Abstract

The utility model relates to a network-type household light control switch which comprises a 220V alternate current transmission line, a plurality of sets of electric lights and a plurality of sets of light control switches connected between the 220V alternate current transmission line and the plurality of sets of the electric lights. The network-type household light control switch is characterized in that each set of the light control switches comprise a control unit, a power line carrier modulation and demodulation circuit, an operating circuit, a commercial power on-off control circuit, a low-voltage direct current power supply circuit, a commercial power access interface and an electric light access interface; the network-type household light control switch has a reasonable circuit, can complete receipt exchange by a power line carrier technology and is convenient to control and operate that a householder can turn on or turn off any light in any places of the house. The network-type household light control switch has a wire connection mode consistent with the common normally-open light switch, is simple and practical, does not need to distribute residual wires, and has low cost.

Description

Interconnection type household lamp control switch
Technical field
The utility model relates to a kind of lamp control switch, particularly a kind of interconnection type household lamp control switch.
Background technology
At present, the household lamp switch adopts mechanical switch more, and all is independently between each lamp switch, each lamp of switch to finish by the panel direct control before the lamp switch of correspondence, and flexibility is not high.And existing interconnection type lamp control switch exists cost height, the complicated shortcoming of wiring.
The utility model content
The purpose of this utility model is to provide a kind of and finishes exchanges data by power line carrier technology, and escapable cost, and easy to operate allows resident family any position of can staying at home open or close the family interconnection type household lamp control switch of local lamp arbitrarily.
The purpose of this utility model can reach by following measure: a kind of interconnection type household lamp control switch, comprise the alternating current 220V transmission line, many group electric lights, and be connected to many groups lamp control switch between alternating current 220V transmission line and the many group electric lights, it is characterized in that: every group of lamp control switch all includes control unit, the power line carrier modulation-demodulation circuit, function circuit, the civil power on-off control circuit, the low-voltage DC supply circuit, civil power access interface and electric light access interface, function circuit is exported two groups of control signals and is delivered to control unit, one group is directly to control the directly control signal of continuous lamp of this lamp control switch, after control unit receives this group signal, the output control signal is delivered to the civil power on-off control circuit, directly control the switch of electric light by the electric light access interface by the civil power on-off control circuit, another group is the control signal of control lamp that other lamp control switchs are controlled, control unit is after receiving this group signal, access corresponding address, send control signal by the power line carrier modulation-demodulation circuit to the lamp switch of appropriate address, after controlled lamp switch is received this signal by the power line carrier modulation-demodulation circuit, corresponding lamp is made switch control.
The purpose of this utility model can also reach by following measure: control unit is made up of single-chip microcomputer and peripheral circuit thereof, control circuit, electricity erasable memorizer.The civil power on-off control circuit adopts thyristor or relay to finish the power supply switching.
The utility model has following advantage compared to existing technology:
1. circuit is reasonable, finishes the receipt exchange by power line carrier technology, and control operation is convenient, the lamp that resident family can be stayed at home the unlatching of any position or close any place of family.
2. consistent, simple and practical with the common lamp switch mode of connection commonly used, need not the unnecessary line of cloth, cost is lower.
Description of drawings
Fig. 1 is system wiring figure of the present utility model;

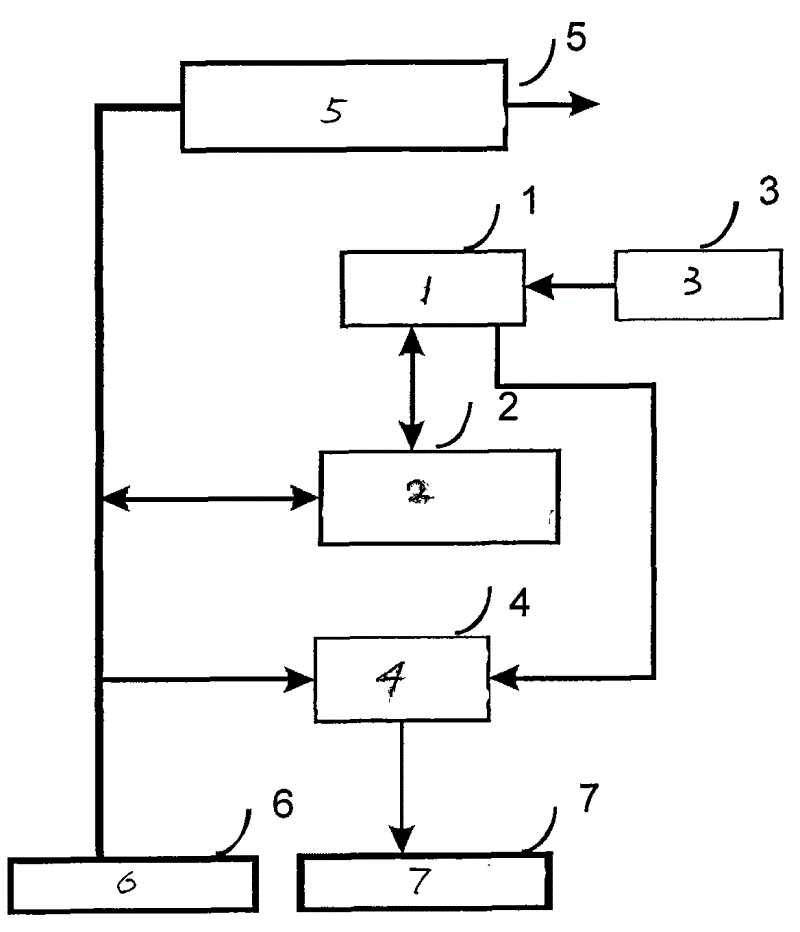

Fig. 2 is the circuit block diagram of lamp control switch.
Embodiment
The utility model is described in further detail below in conjunction with accompanying drawing (embodiment):
With reference to Fig. 1, organize lamp control switch 8 more and be connected to respectively between many group electric lights 10 and the alternating current 220V transmission line 9.By the function circuit in the lamp control switch 8 one of them lamp control switch is made as the coding main frame, other is a slave, be organic address of finishing by main frame, and all corresponding address tables of lamp control switch are delivered to other slave, each lamp control switch has been stored corresponding address or address table, just can work then.
With reference to Fig. 2, lamp control switch 8 comprises control unit 1, power line carrier modulation-demodulation circuit 2, function circuit 3, civil power on-off control circuit 4, low-voltage DC supply circuit 5, civil power access interface 6, electric light access interface 7 etc.Control unit is made up of single-chip microcomputer and peripheral circuit thereof, control circuit, electricity erasable memorizer.The civil power on-off control circuit adopts thyristor or relay to finish the power supply switching.The low-voltage DC supply circuit is weak current part power supply in the lamp control switch.
Control unit 1 is as the center control section of whole lamp control switch, and as the center control chip, its function comprises the demodulated digital signal that reception power line carrier modulation-demodulation circuit 2 sends by output, and handles by single-chip microcomputer; The digital signal that coding will send is sent into power line carrier modulation-demodulation circuit 2 inputs, sends; Reception is from the operation signal of function circuit 3 input and handle; This machine of storage address code.
The modulation signal that 2 receptions of power line carrier modulation-demodulation circuit are come in from the line coupling is imported single-chip microcomputer with the digital signal that restores by output through after the demodulation; Reception is coupled on the line after ovennodulation is amplified from the digital signal that single-chip microcomputer sends.
The operation signal that function circuit 3 receives the user converts the discernible signal of single-chip microcomputer to and sends into single-chip microcomputer.
Civil power on-off control circuit 4 receives the make-and-break signal that control unit 1 sends, for controlled lamp switches on or off civil power.
Low-voltage DC supply circuit 5 converts the alternating current of civil power the direct current of low pressure to, is the power supply of the weak current part in the lamp control switch.Civil power access interface 6 is the access port of city's electrical wiring.Electric light access interface 7 is the access port of electric light line.
During practical operation, the user can directly directly control the lamp that this lamp control switch directly links to each other by function circuit 3 input of control commands of lamp control switch, this process is that control unit 1 is after the input that receives function circuit 3, control civil power on-off control circuit 4 is finished, also can import the control command of the lamp that other lamp control switchs are controlled that will control by function circuit 3, control unit 1 is after the order that receives other lamp control switchs that the user will control, access corresponding address, send control command by power line carrier modulation-demodulation circuit 2 to the lamp control switch of appropriate address, after controlled lamp control switch is received this order by power line carrier modulation-demodulation circuit 2, corresponding lamp is made switch control.Civil power on-off control circuit 4 can be finished power supply with thyristor or relay and switch.
Like this, the user just can oneself easily lamp control switch place control family all etc., do not need to run here and there.
For more convenient user, can in lamp control switch, add the infrared remote control receiving circuit, the user just can stay at home Anywhere and to finish control to all lamps of family by remote controller.
Add voltage regulator circuit in civil power on-off control circuit 4, the user can also regulate the brightness of each lamp easily.

Claims (3)

1. interconnection type household lamp control switch, comprise alternating current 220V transmission line (9), many group electric lights (10), and be connected to many groups lamp control switch (8) between alternating current 220V transmission line (9) and the many group electric lights (10), it is characterized in that: every group of lamp control switch (8) all includes control unit (1), power line carrier modulation-demodulation circuit (2), function circuit (3), civil power on-off control circuit (4), low-voltage DC supply circuit (5), civil power access interface (6) and electric light access interface (7), two groups of control signals of function circuit (3) output are delivered to control unit (1), one group is directly to control the directly control signal of continuous lamp of this lamp control switch, after control unit (1) receives this group signal, the output control signal is delivered to civil power on-off control circuit (4), directly control the switch of electric light by electric light access interface (7) by civil power on-off control circuit (4), another group is the control signal of control lamp that other lamp control switchs are controlled, control unit (1) is after receiving this group signal, access corresponding address, send control signal by power line carrier modulation-demodulation circuit (2) to the lamp switch of appropriate address, after controlled lamp switch is received this signal by power line carrier modulation-demodulation circuit (2), corresponding lamp is made switch control.
2. interconnection type household lamp control switch according to claim 1 is characterized in that: control unit (1) is made up of single-chip microcomputer and peripheral circuit thereof, control circuit, electricity erasable memorizer.
3. a kind of interconnection type household lamp control switch according to claim 1 is characterized in that: civil power on-off control circuit (4) adopts thyristor or relay to finish the power supply switching.
