The utility model relates to a multifunctional pen, which comprises a pen body and a pen head, the pen head is fixedly connected at the front end of the pen body, a longitudinal groove is arranged downwardly from the top end of the pen body, the top end of the groove is in shaft connection with a supporting leg, the supporting leg is of a telescopic structure, and the front end of the supporting leg is pointed. Users can use the pen to write, and when in need of drawing circles, the supporting leg in the groove can be pulled out to adjust the length of the supporting leg, and the pointed portion of the front end of the supporting leg is utilized as a supporting point to start drawing circles. The multifunctional pen is simple and reasonable in structure, convenient in use and the like, and with the new function, the multifunctional pen brings more convenience for users.

Description

The multipurpose pen
Technical field
The utility model relates to a kind of schooling apparatus, and especially a kind of pen of can both can working as uses, and can work as the multipurpose pen that compasses use again.
Background technology
Pen existing and that once had is varied, people also once did improvement to the function of pen, but raising along with people's living standard, existing pen still can not satisfy people's needs, and for example: people draw round the time, mostly use compasses to come picture, so both needed to prepare pen, need to prepare compasses again, not only bother, occupy the space of writing case again.
Summary of the invention
The purpose of this utility model provides a kind of multipurpose pen, to solve the problem of existing function singleness.
For achieving the above object, the utility model multipurpose pen comprises handwriting and nib, and nib is fixed in the front end of handwriting; Offer longitudinal fluting downwards from the top of handwriting, the top axle of groove connects supporting leg, and supporting leg is stretching structure, and the front end of supporting leg is pointed.
After adopting said structure, people can use pen to write; If need picture circle time, the supporting leg in the groove can be broken off with the fingers and thumb out, adjust the length of supporting leg, with the tip of supporting leg front end as the strong point, can the picture circle.
The utility model has the advantages that: simple in structure, easy to use, structure has rationally invested the new function of pen, brings greater convenience for people's use.
Description of drawings

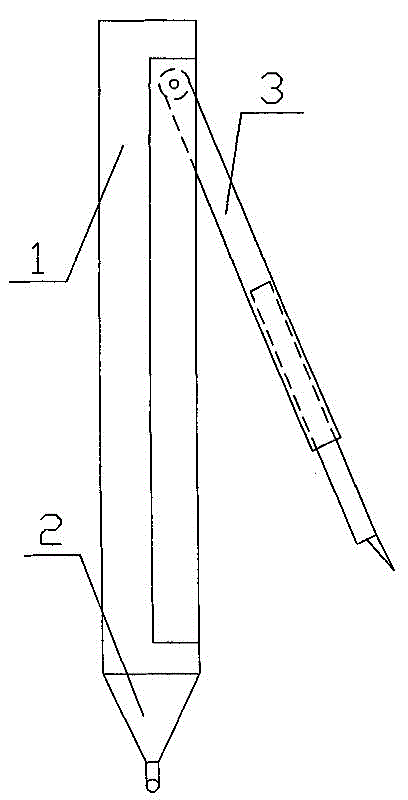

Fig. 1 is the overall structure schematic diagram of the utility model multipurpose pen.
The specific embodiment
As shown in Figure 1, the utility model multipurpose pen comprises handwriting 1 and nib 2, and nib 2 is fixed in the front end of handwriting 1; Offer longitudinal fluting downwards from the top of handwriting 1, the top axle of groove connects supporting leg 3, and supporting leg 3 is stretching structure, and the front end of supporting leg 3 is pointed.If need the picture bowlder, the supporting leg in the groove 3 can be broken off with the fingers and thumb out, do the strong point with the front end of supporting leg 3, can the picture circle.

Claims (1)

1, a kind of multipurpose pen comprises handwriting (1) and nib (2), and it is characterized in that: nib (2) is fixed in the front end of handwriting (1); Offer longitudinal fluting downwards from the top of handwriting (1), the top axle of groove connects supporting leg (3), and supporting leg (3) is stretching structure, and the front end of supporting leg (3) is pointed.
