Abstract

The utility model discloses an anti-mosquito screen window, which comprises a window frame and a window screen, and the window screen is installed on the window frame, and is characterized in that the window screen is installed on the window frame through a self-clamping structure. The self-clamping structure includes hard glue installed on the window frame and soft glue installed on the window screen, the soft glue is provided with protrusions, the hard glue is provided with notches, and the protrusions are snapped into the notches. The protrusion is a cylindrical protrusion, and the notch is a cylindrical notch. The utility model has the advantages of simple structure, environmental protection, recyclable use and low cost.

Description

A kind of anti-mosquito screen window

technical field

The utility model relates to an anti-mosquito screen window, in particular to the technology for improving the existing screen window.

Background technique

In the prior art, there are all kinds of doors and windows on various buildings, and some doors and windows are equipped with anti-theft window decorations of various styles. If the window decorations are installed in front of the windows, the distance between the window decorations and the windows The position is not enough when installing the gauze. The traditional method is to add a large aluminum alloy or wooden frame to the gauze when installing the gauze, and rotate it in a fixed frame and in the window. When the window is to be opened and closed, the gauze needs to be The whole opening makes it easy for mosquitoes and dust to enter the room, and loses the function of screen window. Although its structure is simple, it wastes materials, and it is troublesome to install and disassemble. For this reason, people have designed magnetic screen window, and gauze net is adsorbed on the window frame by magnet, adopts the method for magnet adsorption to have following disadvantages: 1, there is radiation, pollutes environment; 2, can not recycle, has increased use cost; 3 , Poor wind resistance; 4, will rust.

Contents of the invention

The purpose of the utility model is to provide an anti-mosquito screen window with simple structure, environmental protection, recyclable use and low cost.

The purpose of this utility model is achieved through the following technical solutions.

An anti-mosquito screen window includes a window frame and a window screen, and the window screen is installed on the window frame, and is characterized in that the window screen is installed on the window frame through a self-clamping structure.

The self-clamping structure includes hard glue installed on the window frame and soft glue installed on the window screen, the soft glue is provided with protrusions, the hard glue is provided with notches, and the protrusions are snapped into the notches.

The protrusion is a cylindrical protrusion, and the notch is a cylindrical notch.

Compared with the prior art, the utility model has the following advantages.

The window frame and the window screen in the mosquito screen window described in the utility model are respectively made of hard glue and soft glue, and are elastically clamped through the notches and protrusions on the hard glue and the soft glue, so that the connection is firm and the wind resistance is strong. Because the hard and soft glue with environmental protection function is used, it will not pollute the environment and can be recycled, which reduces the cost of use. Because the hard glue and soft glue will not rust, it will not affect the appearance of the product during use. , while improving the service life of the product.

Description of drawings

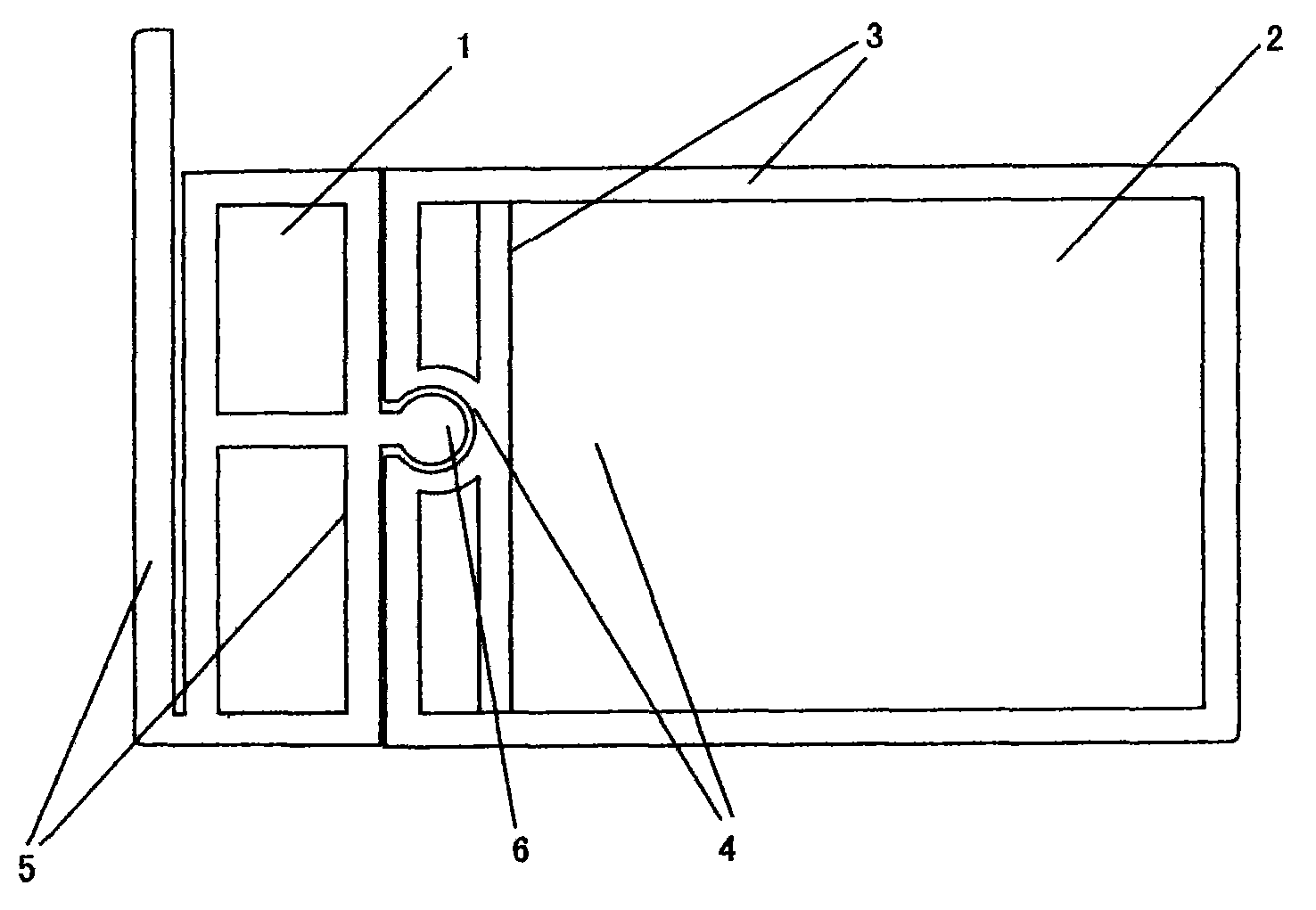

Fig. 1 is the assembly structure schematic diagram of mosquito-proof screen window of the present utility model;

Fig. 2 is a schematic diagram of the exploded structure of the mosquito screen window of the present utility model.

Detailed ways

Below in conjunction with accompanying drawing, mosquito screen window of the present utility model is described in further detail.

As shown in Figure 1, the mosquito screen window described in the utility model is mainly composed of a window frame 2 and a window screen 1. A piece of PVC hard glue 3 is installed on the side of the window frame, and a cylindrical notch 4 is arranged on the PVC hard glue. A piece of PVC soft glue 5 is installed on the side of the window screen, and a cylindrical protrusion 6 is formed on the PVC soft glue. . The protrusion can be snapped into the notch elastically, and the window screen is installed on the window frame through the self-clip connection between the protrusion and the notch. Compared with the existing magnetic screen window, the anti-mosquito screen window described in the utility model has the following advantages: 1. No radiation, no pollution to the environment; 2. Recyclable use, which reduces the cost of use; 3. Strong wind resistance; 4. , will not rust; 5, long service life; 6 easy to disassemble and wash, easy to disassemble.

Claims (3)

1. An anti-mosquito screen window, comprising a window frame and a window screen, the window screen is installed on the window frame, and the feature is that the window screen is installed on the window frame through a self-clamping structure. 2. The anti-mosquito window screen according to claim 1, characterized in that: the self-clamping structure includes hard glue installed on the window frame and soft glue installed on the window screen, the soft glue is provided with protrusions, the hard glue A notch is arranged on the glue, and the protrusion is snapped into the notch. 3. The anti-mosquito screen according to claim 2, wherein the protrusion is a cylindrical protrusion, and the notch is a cylindrical notch.
