Abstract
一种家用节水装置是将家庭废水回收用于冲洗洁具的装置。该装置是在储水箱侧面下部与用水器具的出水口连通有进水管，储水箱另一侧面下部通过压力泵与洁具水箱连通有出水管，储水箱的出水管上部与自来水管间连通有洁水管，进水管上接的下水管连通下水管道，储水箱内的洁水进口设置有应急水位控制器。下水管与进水管的接口位置略低于储水箱上口平面。家庭使用上这样的装置可充分把家庭废水储存起来再冲洗卫生洁具，达到废水利用，大量节约宝贵的水资源。
A domestic water-saving device is a device for recycling domestic waste water for flushing sanitary ware. In the device, a water inlet pipe is connected to the water outlet of the water appliance at the lower side of the water storage tank, and a water outlet pipe is connected to the sanitary ware tank through a pressure pump at the lower part of the other side of the water storage tank, and a clean water pipe is connected between the upper part of the water outlet pipe of the water storage tank and the tap water pipe , the sewer pipe connected on the water inlet pipe is connected to the sewer pipe, and the clean water inlet in the water storage tank is provided with an emergency water level controller. The interface position of the downpipe and the water inlet pipe is slightly lower than the upper surface of the water storage tank. Such a device used at home can fully store domestic waste water and then flush sanitary ware, so as to achieve waste water utilization and save precious water resources in large quantities.
Description
一、技术领域 1. Technical field
本实用新型是将家庭废水回收用于冲洗洁具的装置。The utility model is a device for recycling household waste water for flushing sanitary ware.
二、背景技术 2. Background technology
家庭每天用于洗菜、洗脸、洗澡、冲澡等都要大量用水，用过后这些废水一般通过下水管道放掉。家庭卫生间的洁具每天也要消耗大量洁水，而它是无需洁净的水冲洗，所以大量宝贵的水资源被浪费。Families use a lot of water for washing vegetables, washing face, bathing, showering, etc., and the waste water is usually released through sewer pipes after use. The sanitary ware in the family bathroom also consumes a lot of clean water every day, and it does not need clean water to flush, so a lot of precious water resources are wasted.
三、发明内容 3. Contents of the invention
本实用新型的目的是利用家庭废水来冲洗卫生间洁具。The purpose of the utility model is to use household waste water to flush toilet sanitary ware.
实现上述目的设计方案是：该装置是在储水箱侧面下部与用水器具的出水口连通有进水管，储水箱另一侧面下部通过压力泵与洁具水箱连通有出水管，储水箱的出水管上部与自来水管间连通有洁水管，进水管上接的下水管连通下水管道，储水箱内的洁水进口设置有应急水位控制器。下水管与进水管的接口位置略低于储水箱上口平面。The design scheme to achieve the above purpose is: the device is connected with a water inlet pipe at the lower part of the side of the water storage tank and the water outlet of the water appliance; The running water pipes are connected with clean water pipes, the water inlet pipes connected with the water pipes are connected with the water pipes, and the clean water inlets in the water storage tanks are provided with emergency water level controllers. The interface position of the downpipe and the water inlet pipe is slightly lower than the upper surface of the water storage tank.
家庭使用上这样的装置可充分把家庭废水储存起来再冲洗卫生洁具，达到废水利用，大量节约宝贵的水资源。Such a device used at home can fully store domestic waste water and then flush the sanitary ware to achieve the utilization of waste water and save a lot of precious water resources.
四、附图说明 4. Description of drawings

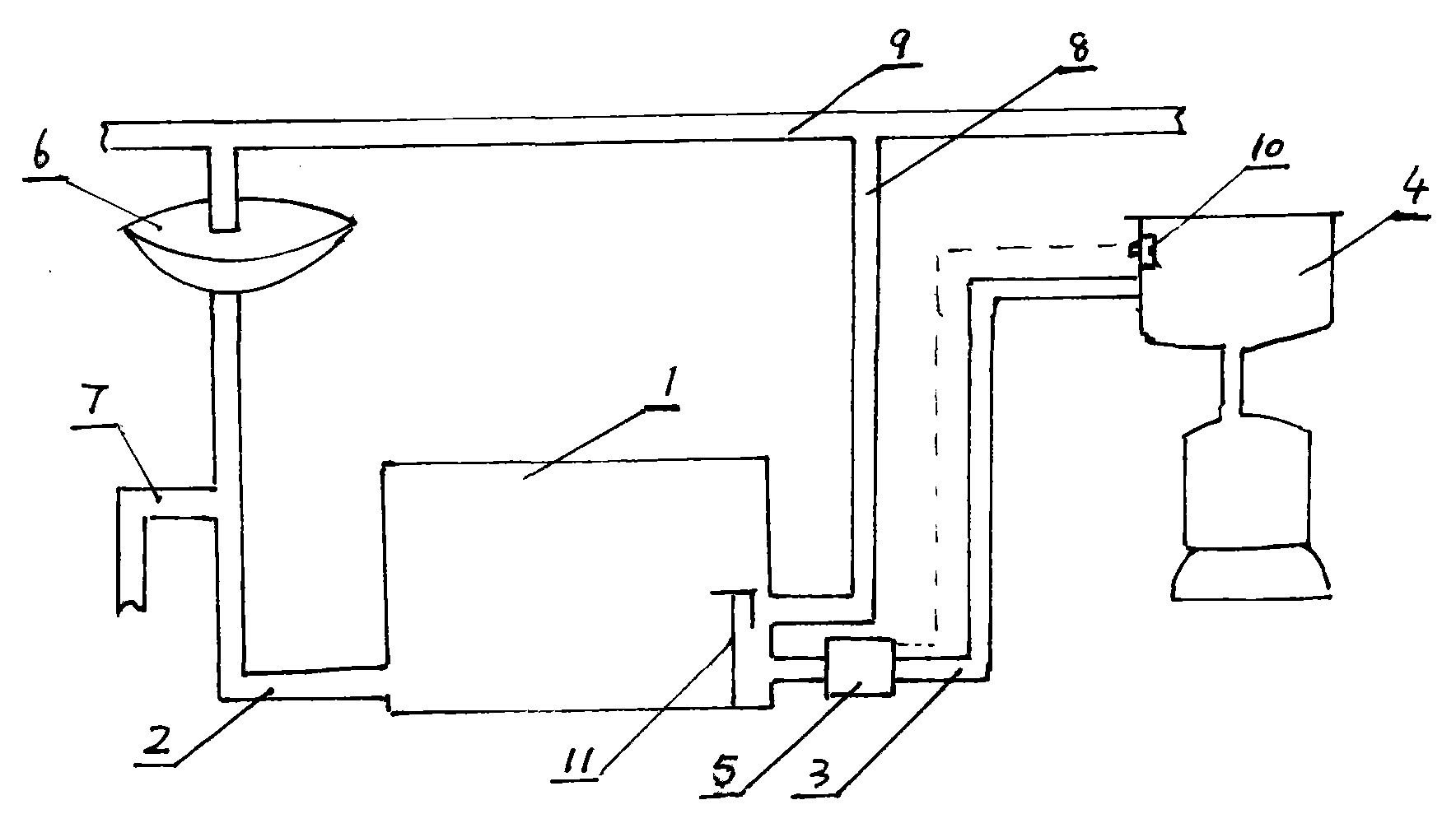

附图为家用节水装置的结构及使用状态示意图。The accompanying drawing is a schematic diagram of the structure and use state of the household water-saving device.
五、具体实施方式 5. Specific implementation
附图中该装置的设置是在家中首先在地面备一储水箱(1)，其侧面下部与用水器具(6)间用进水管(2)连通，另一侧面下部设置出水管(3)与卫生间洁具水箱(4)连通，出水管(3)上安有压力泵(5)。在用水洁具(6)的下部进水管(2)连通有下水管(7)，它下口连通下水管道，下水管(7)与进水管(2)的接口位置略低于储水箱(1)上口平面，以便于储水箱水满时其废水从下水管(7)流入下水管道。在储水箱(1)的出水管(3)上部有根洁水管(8)与自来水管(9)连通，储水箱(1)内的洁水管(8)入口处设置有应急水位控制器(11)，以便当储水箱内无废水时由洁水管(8)向储水箱(1)内供水，供到一定位置再将进口封住。洁具水箱(4)内设置的接触开关(10)，它原来作用是洁具水箱(4)进满水时自动关闭进水管(3)进口，给它新设置的另一功能是：洁具水箱(4)水满时自动关闭压力泵(5)，水放空时自动开启压力泵(5)，仅需在接触开关(10)上增设触动开关与压力泵(5)连接即可。The setting of this device among the accompanying drawings is to prepare a water storage tank (1) on the ground at home at first, its side bottom is communicated with water inlet pipe (2) between the water utensils (6), and the other side bottom is provided with water outlet pipe (3) and The bathroom sanitary ware water tank (4) is connected, and a pressure pump (5) is installed on the water outlet pipe (3). The water inlet pipe (2) at the lower part of the water sanitary ware (6) is connected with a sewer pipe (7), and its lower mouth is connected with the sewer pipe, and the interface position between the sewer pipe (7) and the water inlet pipe (2) is slightly lower than the water storage tank (1) The top surface is flat so that its waste water flows into the sewer pipe from the downpipe (7) when the water storage tank is full. There is a clean water pipe (8) connected to the tap water pipe (9) on the top of the outlet pipe (3) of the water storage tank (1), and an emergency water level controller (11) is arranged at the entrance of the clean water pipe (8) in the water storage tank (1). ), so that when there is no waste water in the water storage tank, water is supplied to the water storage tank (1) by the clean water pipe (8), and the inlet is sealed when it is supplied to a certain position. The contact switch (10) that is provided with in the sanitary ware water tank (4), its original effect is that the sanitary ware water tank (4) automatically closes the water inlet pipe (3) inlet when it is full of water, and another function newly set for it is: the sanitary ware water tank (4) ) automatically closes the pressure pump (5) when the water is full, and automatically opens the pressure pump (5) when the water is emptied, and only needs to add a touch switch on the contact switch (10) to connect with the pressure pump (5).
