Abstract

The utility model discloses a domestic sewage regeneration treatment and recycling device, which is provided with a plurality of partitions with water holes inside a box to divide the box into several chambers, and the chambers are biological filter chamber, hydrolysis acidification chamber, biological contact oxidation chamber, coagulation reaction chamber and high-efficiency sedimentation chamber; the biological filter chamber is provided with a water inlet pipe guide and extends to the bottom of the chamber, and the high-efficiency sedimentation chamber A funnel-shaped mud-water separator and a mud-collecting chamber are provided at the bottom, and a drain pipe is provided above the high-efficiency sedimentation chamber. Different physical interception solid-liquid separation filling materials and biological carrier filling materials are installed in each chamber of the device, and the method of combining physical interception filtration with biocoupling adsorption, digestion, and degradation treatment is used to achieve the purpose of deep purification of water quality, not only It can meet the sewage discharge standard and can be recycled and reused.

Description

Domestic sewage regeneration treatment and reuse device

technical field

The utility model belongs to the field of environmental protection technology and energy saving of water pollution prevention and control, in particular to a domestic sewage regeneration treatment and recycling device.

Background technique

Existing domestic sewage treatment devices mainly use a single process of physical, chemical, electronic, biological and other technologies as the main method. The water quality after treatment cannot meet or can only meet the comprehensive sewage discharge standard stipulated by the state. There are still a large number of pollutants in the water quality of the environment, and most of them continue to be discharged into natural water systems such as rivers and lakes, which not only pollutes the environment, but also causes a great waste of water resources.

Utility model content

The purpose of the utility model is to provide a domestic sewage regeneration treatment and recycling device which can biochemically degrade, regenerate and reuse domestic sewage.

For achieving the above object, the technical solution of the utility model is:

A domestic sewage regeneration treatment and reuse device, which is equipped with a number of partitions with water holes in a box to divide the box into several chambers; the chambers are sequentially composed of biological filter chambers, hydrolysis and acidification chambers from upstream to downstream. chamber, biological contact oxidation chamber, coagulation reaction chamber and high-efficiency sedimentation chamber; the biofilter chamber is provided with a water inlet pipe deflector and extends to the bottom of the chamber, and a biological filter bed is fixed in the middle of the chamber, its The first water hole on the partition between the hydrolysis and acidification chamber is located above; the middle of the hydrolysis acidification chamber is fixed with a hydrolysis acidification filler, and the second water hole opened on the downstream partition is located below; the biological The middle part of the contact oxidation chamber is fixed with a biological contact oxidation filling material, and the third water hole opened on the downstream partition is located above; the coagulant dosing device is arranged above the coagulation reaction chamber, and the downstream partition The fourth water hole is located in the lower middle; the upper middle of the high-efficiency sedimentation chamber is fixed with a high-efficiency sedimentation filler, the bottom of the chamber is provided with a funnel-shaped mud-water separator and a mud collection chamber, and the upper part of the high-efficiency sedimentation chamber is set There are drains.

The downstream of the high-efficiency precipitation chamber is also provided with a biological carbon adsorption filter chamber and a clear water chamber in sequence; and the fifth water hole opened on the partition between the high-efficiency precipitation chamber and the biological carbon adsorption filter chamber is located at the top; The middle of the carbon adsorption filter room is fixed with biological carbon filter material, and the water flow deflector is fixed under the downstream partition, and the water flow deflector extends upward and communicates with the clean water chamber; the clean water chamber is equipped with The ultraviolet C disinfection and sterilization device is also equipped with a return water pump and a reclaimed water return water pipe at the bottom.

An underwater jet mixer is installed at the bottom of the hydrolysis acidification chamber.

An underwater aerator is provided at the bottom of the biological contact oxidation chamber.

A mud discharge pipe with a valve is installed on the outside of the bottom plate of the box to communicate with the bottom of each chamber.

After adopting the above scheme, because the utility model installs different physical interception solid-liquid separation filling materials and biological carrier filling materials in each chamber of the box body, the waste water can evenly flow from the side walls of each purification body to the subsequent process , when passing through each filter layer and biological bed, the water body will be filtered and purified in sequence. Due to the setting of the biofilm layer on the filter layer and the biological bed layer, the fine particles and non-particle organic substances in the wastewater can be biochemically degraded, and the wastewater can be degraded. Complete and effective purification effect, thereby prolonging the service life of the carbon layer and reducing the frequency of its replacement; the utility model uses the method of combining physical interception and filtration with biological coupling adsorption, digestion and degradation treatment to achieve the purpose of deep purification of water quality; finally After the photochemical radiation reaction of the clean water indoor ultraviolet sterilizer, it can effectively kill bacteria and viruses, make the purified water safer and more reliable, and will not cause secondary pollution to humans, animals and the ecological environment, so that the treated water quality can meet the national "Urban Sewage Regeneration" Utilizing the water quality requirements of ", it can be used for toilet flushing, road cleaning, fire protection, urban greening, vehicle washing, non-drinking water for building construction and water for landscape environment. That is to say, the sewage treated by the utility model can not only meet the sewage discharge standard, but also can be recycled and reused.

Description of drawings

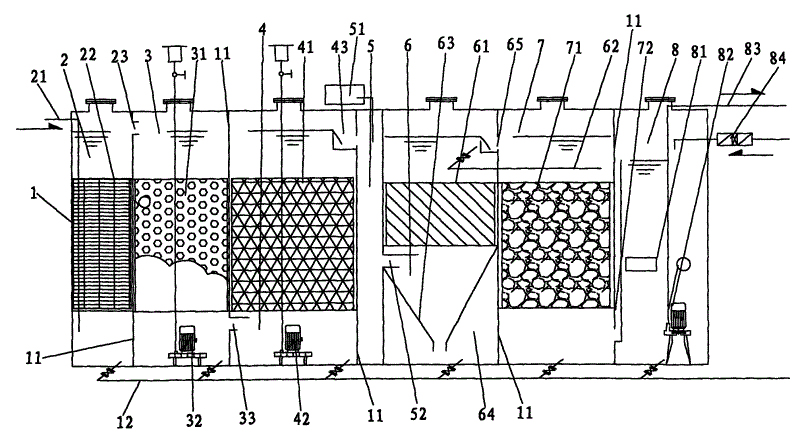

Fig. 1 is a sectional view of the structure of the utility model.

Detailed ways

As shown in Figure 1, the domestic sewage regeneration treatment and recycling device described in the utility model is provided with a plurality of partitions 11 with water holes in a box body 1, so that the box body 1 is divided into several chambers. The chambers from upstream to downstream are biological filter chamber 2, hydrolysis acidification chamber 3, biological contact oxidation chamber 4, coagulation reaction chamber 5, high-efficiency sedimentation chamber 6, biological carbon adsorption filter chamber 7 and clean water chamber 8. in:

The biofilter chamber 2 is provided with a water inlet pipe deflector 21 which extends to the bottom of the biofilter chamber 2, and a biofilter bed 22 is fixed in the middle of the chamber. In addition, a first water hole 23 is opened on the downstream partition 11 to communicate with the hydrolysis acidification chamber 3 and is located above the biological filter bed 22 .

A hydrolytic acidification filling material 31 is fixed in the middle of the hydrolysis acidification chamber 3, an underwater jet mixer 32 is provided at the bottom of the chamber, and a second water hole 33 is opened below the downstream partition 11 to contact the biological oxidation chamber 4. connected.

The middle part of the biological contact oxidation chamber 4 is fixed with a biological contact oxidation filling material 41, an underwater aerator 42 is provided at the bottom of the chamber, and a third water hole 43 is provided above the downstream partition 11 to communicate with the mixing chamber. The coagulation reaction chamber 5 communicates.

A coagulant dosing device 51 is provided above the coagulation reaction chamber 5 , and a fourth water hole 52 is opened in the middle and lower part of the downstream partition 11 to communicate with the high-efficiency sedimentation chamber 6 .

High-efficiency sedimentation filler 61 is fixed on the middle and upper part of the described high-efficiency sedimentation chamber 6, and a drainpipe 62 with a valve is installed on the panel of the horizontal plane above the filler, and a funnel-shaped mud-water separator 63 and a collector are installed at the bottom of the chamber. The mud chamber 64 also has a fifth water hole 65 above the downstream partition 11 to communicate with the biochar adsorption filter chamber 7 .

In the middle of the biochar adsorption filter chamber 7, a biochar filter material 71 is fixed, and a water flow deflector 72 is fixed below the downstream partition 11, and the water flow deflector 72 extends upward and connects with the clean water chamber 8. connected.

A UV-C disinfection device 81 is installed in the clean water chamber 8 , and a reclaimed water pump 82 and a recycled water reclaimed water pipe 83 are installed at the bottom thereof, and a tap water compensator 84 is also installed at the same time.

In addition, a sludge discharge pipe 12 with a valve is installed on the outside of the bottom plate of the box body 1 to communicate with the bottom of each chamber, so that the sludge in each chamber can be discharged conveniently.

When the utility model is in use, the sewage first enters the biological filter chamber 2 through the water inlet pipe-type deflector 21, and since the deflector 21 extends to the bottom of the chamber, the sewage directly enters the biological filter chamber 2 The bottom rather than the top, so that when the sewage is filtered through the biological filter chamber 2, it will infiltrate into the biological filter bed 22 from the bottom to filter, instead of filtering from the top to the bottom as in the traditional technology. Since there is a lot of silt in the sewage, if it is filtered from the top down, the silt will easily fall on the top of the biological filter bed and block the filter material. If it infiltrates upwards from the bottom, the sludge will naturally sink to the bottom of the chamber without clogging the filter material. The valve can be opened to discharge from the mud discharge pipe 12 afterwards.

After the sewage filtered through the rough part of the biological filter chamber 2 enters the hydrolysis and acidification chamber 3 through the first water hole 23, the hydrolysis and acidification filling material 31 in it carries out the hydrolysis and acidification reaction, and the underwater jet mixer 32 at the bottom Then the hydrolyzed and acidified filling material 31 can be fully mixed with the sewage to make the reaction more complete. Afterwards, the sewage enters the biological contact oxidation chamber 4 through the second water passage 33 for oxidation treatment, and the underwater aerator 42 in it is equivalent to the above-mentioned underwater jet mixer 32, which can make the oxidation more sufficient.

The oxidized water enters the coagulation reaction chamber 5 through the third water passage hole 43 above, and mixes with the coagulant at the same time, so that the fine dirt in the sewage is combined to form larger particles of dirt, and then The lower fourth water hole 52 enters into the high-efficiency sedimentation chamber 6 .

Since the fourth water hole 52 is set in the middle and lower part, and there is a funnel-shaped mud-water separator 63 under it, the water naturally forms a spiral shape, so that heavier dirt enters the sludge from the outlet at the bottom chamber 64, and because the outlet is small, once the dirt enters the mud collection chamber 64, it is not easy to float out, and the water is filtered again through the high-efficiency sedimentation filler 61 above. Since then, the sewage has been treated at the first level and can reach the discharge standard. If it does not recycle, it can be discharged by the drain pipe 62 above.

If you want to further process the water to achieve the purpose of recycling, the water will continue to enter the biochar adsorption filter chamber 7 through the fifth water hole 65, filter the biochar filter material 71, and then pass through the water guide 72 and enter the clean water chamber 8, because the water flow deflector 72 extends upwards, so it can play the role of sedimentation dirt again. The water that reaches the clean water chamber 8 is then subjected to ultraviolet photochemical radiation reaction by the ultraviolet C disinfection and sterilization device 81, which can effectively kill bacteria and viruses, make the purified water safer and more reliable, and cause no secondary pollution to humans, animals and the ecological environment. Finally, the purified clear water is discharged by the return water pump 82 and the reclaimed water return pipe 83, and can be used for toilet flushing, road cleaning, fire protection, urban greening, vehicle washing, non-drinking water for building construction and water for landscape environment.

Claims (5)

1, a kind of sanitary sewage manipulation of regeneration and reclamation set, it then is provided with some dividing plates with water hole casing is divided into some chambers in a casing, it is characterized in that: this chamber by on swim over to the downstream and be followed successively by biological filter chamber, acidication chamber, biological contact oxidation chamber, coagulating chamber and efficient settling chamber; Be provided with into water tubular type director in the described biological filter chamber and extend to this cavity bottom always, and this indoor center fixed there is bacteria bed, above first water hole on the dividing plate between itself and the acidication chamber is positioned at; The indoor center fixed of described acidication has the acidication stopping composition, and second water hole of offering on its downstream dividing plate is positioned at the below; Described biological contact oxidation chamber middle portion is fixed with the bio-contact oxidation stopping composition, and the 3rd water hole of offering on its downstream dividing plate is positioned at the top; Top, described coagulating chamber is provided with the coagulant dosage device, and the 4th water hole on its downstream dividing plate is arranged in the below; Middle upper fixed in the described efficient settling chamber has efficient precipitation stopping composition, and this chamber inner bottom part is provided with funnel shaped separator for mud and water and mud collecting chamber, and the top of this efficient settling chamber is provided with water shoot.

2, sanitary sewage manipulation of regeneration as claimed in claim 1 and reclamation set is characterized in that: the downstream of described efficient settling chamber also is disposed with biological carbon absorption filter chamber and clean water chamber; And the 5th water hole of offering on the dividing plate between this efficient settling chamber and the biological carbon absorption filter chamber is positioned at the top; The indoor center fixed of described biological carbon absorption filter chamber has the biological carbon filtrate, and water deflector was fixed in the below of its downstream dividing plate, and this is crossed water deflector and extends upwards and with described clean water chamber always and be communicated with; Ultraviolet C disinfecting device is installed in the described clean water chamber, and its bottom also is equipped with reuse water pump and reclaimed water reuse water pipe.

3, sanitary sewage manipulation of regeneration as claimed in claim 1 or 2 and reclamation set is characterized in that: bottom, described acidication chamber is provided with jet stirrer under water.

4, sanitary sewage manipulation of regeneration as claimed in claim 1 or 2 and reclamation set is characterized in that: described biological contact oxidation chamber bottom is provided with aerator under water.

5, sanitary sewage manipulation of regeneration as claimed in claim 1 or 2 and reclamation set is characterized in that: the shore pipe that the plate outer side of described casing is equipped with the band valve is communicated with each cavity bottom.
