本实用新型公开了一种桥梁雨水口结构，其特征在于：格栅盖板的下部开设有渗水收集孔装置，栅盖板下部的集水装置底部形成斜坡，本实用新型公开了一种桥梁雨水口结构，其整体结构设计合理，能有效解决现有桥梁雨水口结构中存在的种种问题，对集水装置的水力条件作了改善，并增加了渗水收集孔，具有同时收集桥面雨水和渗水的功能。设置了盖板与集水装置间的活动连接装置，便于养护，防止盖板被盗。增加了搭扣，防止行车过程中盖板跳起引起的交通隐患。合理设置盖板于集水装置的间隙，便于养护工人操作管理。
The utility model discloses a bridge rainwater outlet structure, which is characterized in that: the lower part of the grid cover plate is provided with a seepage collection hole device, and the bottom of the water collecting device at the lower part of the grid cover plate forms a slope. The utility model discloses a bridge rainwater The design of the overall structure is reasonable, which can effectively solve various problems existing in the structure of the existing bridge storm water outlet, improve the hydraulic conditions of the water collection device, and increase the seepage collection hole, which has the ability to collect rainwater and seepage on the bridge deck at the same time function. A movable connection device between the cover plate and the water collecting device is provided, which is convenient for maintenance and prevents the cover plate from being stolen. A hasp is added to prevent traffic hazards caused by the jumping of the cover during driving. Reasonably set the gap between the cover plate and the water collecting device, which is convenient for maintenance workers to operate and manage.
Description
技术领域： Technical field:
本实用新型涉及雨水收集系统专用设备的技术领域，具体的说是一种桥梁雨水口结构。The utility model relates to the technical field of special equipment for rainwater collection systems, in particular to a bridge stormwater structure.
背景技术： Background technique:
现有技术中城市桥梁用的雨水口，主要包括格栅盖板、集水装置和排水管。虽有多种形式，但都存在一些技术上的不足，有的未解决收集排放桥面混凝土铺装与沥青面层间渗水的问题，影响道路使用寿命；有的集水口太小，排水不畅，造成路面积水，影响交通，并普遍存在严重的格栅盖板被盗现象，使国家财产遭受损失，同时存在安全隐患，行车过程中常有盖板跳起发生，影响交通安全。The gullies used by urban bridges in the prior art mainly include grid cover plates, water collecting devices and drain pipes. Although there are many forms, there are some technical deficiencies. Some have not solved the problem of collecting and discharging water seepage between the bridge deck concrete pavement and the asphalt surface layer, which affects the service life of the road; some water collection outlets are too small and the drainage is not smooth , resulting in water accumulation on the road, affecting traffic, and the widespread and serious theft of grille cover plates, causing national property losses, and there are safety hazards. Cover plates often jump up during driving, affecting traffic safety.
故仍然需要对现有的桥梁雨水口进一步改进，彻底解决收集排放桥面混凝土铺装与沥青面层间渗水的问题，使得排水通畅。Therefore, it is still necessary to further improve the existing bridge gullies to completely solve the problem of water seepage between the bridge deck concrete pavement and asphalt surface layer for collection and discharge, so as to make the drainage smooth.
发明内容： Invention content:
本实用新型的目的在于提供一种桥梁雨水口结构，它可克服现有桥梁雨水口排水问题，克服了现有技术中存在的缺点和不足。为了实现上述目的，本发明的技术方案是：一种桥梁雨水口结构，它主要包括格栅盖板，设置在格栅盖板下侧部的集水装置，集水装置处设有排水管，其特征在于：所述格栅盖板的下部的开设有渗水收集孔装置，栅盖板下部的集水装置底部形成斜坡。The purpose of the utility model is to provide a bridge gully structure, which can overcome the drainage problem of the existing bridge gully, and overcome the shortcomings and deficiencies in the prior art. In order to achieve the above object, the technical solution of the present invention is: a bridge gully structure, which mainly includes a grille cover plate, a water collecting device arranged on the lower side of the grille cover plate, a drain pipe is arranged at the water collecting device, It is characterized in that: the lower part of the grid cover plate is provided with a water seepage collection hole device, and the bottom of the water collecting device at the lower part of the grid cover plate forms a slope.
本实用新型公开了一种桥梁雨水口结构，其整体结构设计合理，能有效解决现有桥梁雨水口结构中存在的种种问题，对集水装置的水力条件作了改善，并增加了渗水收集孔，具有同时收集桥面雨水和渗水的功能。设置了盖板与集水装置间的活动连接装置，便于养护，防止盖板被盗。增加了搭扣，防止行车过程中盖板跳起引起的交通隐患。合理设置盖板于集水装置的间隙，便于养护工人操作管理。The utility model discloses a bridge gully structure, which has a reasonable overall structure design, can effectively solve various problems existing in the existing bridge gully structure, improves the hydraulic condition of the water collecting device, and adds seepage collecting holes , has the function of collecting rainwater and seepage on the bridge deck at the same time. A movable connection device between the cover plate and the water collecting device is provided, which is convenient for maintenance and prevents the cover plate from being stolen. A hasp is added to prevent traffic hazards caused by the jumping of the cover during driving. Reasonably set the gap between the cover plate and the water collecting device, which is convenient for maintenance workers to operate and manage.
附图说明： Description of drawings:

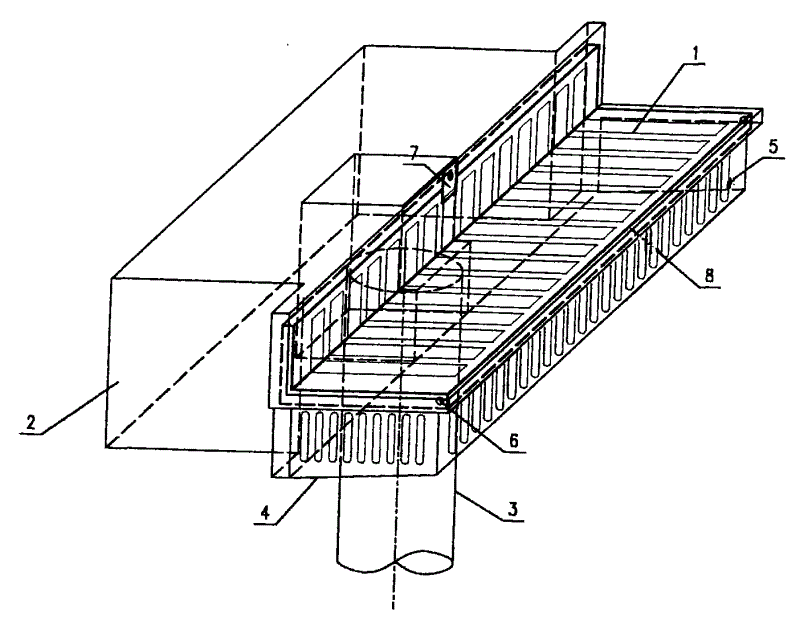

图1为本实用新型结构示意图Fig. 1 is the structural representation of the utility model
图2为本实用新型剖面图Figure 2 is a sectional view of the utility model
具体实施方式： Detailed ways:
下面参照附图，对本实用新型进一步进行描述Below with reference to accompanying drawing, the utility model is further described
本实用新型为一种桥梁雨水口结构，它主要包括格栅盖板1，设置在格栅盖板1下侧部的集水装置2，集水装置2处设有排水管3，其特征在于：所述格栅盖板1的下部开设有渗水收集孔装置5，栅盖板1下部的集水装置2底部形成斜坡4，所述渗水收集孔装置5为一板体，板体处均匀分布有渗水收集孔8，所述渗水收集孔装置5与格栅盖板1的连接处设有活动连接装置6，格栅盖板1与集水装置2的连接处设有搭扣7。The utility model relates to a bridge gully structure, which mainly includes a grid cover plate 1, a
本桥梁雨水扣结构对现有雨水口进行技术改造，1.调整了集水装置的坡度(集水装置底部形成斜坡)，改善了水力条件。2.增加了渗水收集孔，解决了收集排放桥面混凝土铺装与沥青面层间渗水的问题，使雨水口具有同时收集桥面雨水和渗水的功能。3.设置了盖板与集水装置间的活动连接装置，便于养护，防止盖板被盗。4.增加了搭扣，防止行车过程中盖板跳起引起的交通隐患。5.合理设置盖板与集水装置的间隙，便于养护工人操作管理。The rainwater buckle structure of the bridge carries out technical transformation on the existing rainwater outlet. 1. The slope of the water collection device is adjusted (the slope is formed at the bottom of the water collection device), and the hydraulic condition is improved. 2. The seepage collection hole is added to solve the problem of collecting and discharging water seepage between the bridge deck concrete pavement and asphalt surface layer, so that the rainwater outlet has the function of collecting bridge deck rainwater and seepage at the same time. 3. The movable connection device between the cover plate and the water collecting device is installed, which is convenient for maintenance and prevents the cover plate from being stolen. 4. A buckle is added to prevent traffic hazards caused by the jumping of the cover plate during driving. 5. Reasonably set the gap between the cover plate and the water collecting device, which is convenient for maintenance workers to operate and manage.
