Abstract

The utility model relates to a pair of heating gloves for use. A heating core is arranged between the glove lining and the glove fabric layer, a heating wire is arranged in the heating core, and a power switch with a self-locking function and a battery box bag are arranged on the glove. The utility model sets the power supply on the glove, which solves the problem that the electric heating gloves in the prior art are inconvenient to carry and limited to use, and can be used at any time in any occasion. It is suitable for keeping warm for drivers of various handlebar or steering wheel type motor vehicles and outdoor workers. When using the self-contained power supply, it is convenient to use at any time, and when using an external connecting line to connect the locomotive power supply, the use time can be extended. Wearing this heating glove to drive a vehicle can prevent fingers from freezing, ensure the flexibility of the hands, improve the driving safety factor, and reduce accidents. Using a DC 6-12V battery or the power of a motor vehicle, the temperature rises quickly, and the temperature inside the glove can be increased in a short time.

Description

Ready-to-use heated gloves

technical field

The utility model relates to a heat-generating core inserted into an ordinary heat-preserving glove, which can increase the heat-generating function of the traditional heat-retaining glove, and a battery box bag for placing a battery is directly provided on the glove body.

Background technique

In the bitterly cold winter season, even with ordinary warm gloves, the feeling of numbness in the hands is still unbearable. Especially when driving a vehicle in the bitter cold wind, when holding the steering wheel or handlebars, the frozen hands become useless, which is likely to cause traffic accidents. In the past, most of the ordinary thermal gloves circulated on the market used thermal insulation materials to reduce the loss of heat from the hands. In cold environments, ordinary thermal gloves are not enough to meet people's needs. So someone invented a kind of electric heating glove that is made of electric heating wire and is electrically connected to the vehicle power supply. Due to the inconvenient connection of the glove line, it often causes troubles to carry, and the scope of use is limited by environmental conditions.

Contents of the invention

The main purpose of the utility model is to provide a heating glove that is convenient to carry and can be used in any occasion without an external connecting wire.

The purpose of the utility model can be achieved through the following measures. The utility model provides a heating glove for use, including a glove body composed of inner and outer layers, a heating core, a power supply and a switch. It is characterized in that: the glove lining and the glove fabric An electric heating core is arranged between the layers, and the heating wire is arranged in the heating core, and a battery box bag and a power switch are arranged on the back of the hand of the glove.

Compared with the prior art, the utility model has the following beneficial effects:

In the utility model, a heating core is placed in an ordinary thermal glove, and the heating core generates heat under the electric drive of a battery. Battery can select the supporting rechargeable battery in the battery case bag, also can select the electric power of locomotive accumulator for use. This dual power supply mode solves the problems of inconvenient carrying and limited use of the existing electric heating gloves, and can be used in any occasion. Gloves powered by electricity can provide additional heat to meet people's needs. The heating function is added to ordinary thermal gloves, so that some people in cold environments can use the gloves to supplement the heat deficiency of human hands. It is suitable for keeping the hands of various handlebar motor vehicle drivers and outdoor workers warm. Use the built-in power supply, which is convenient to use at any time; use an external connection line to connect to the locomotive power supply, which can prolong the use time. There is no connection on the outer surface of the glove, and the heating wires in the glove are evenly arranged to generate heat quickly. Using a 6V-12V battery or motorcycle power, the temperature rises quickly, and the temperature inside the glove can be raised in a short time.

Description of drawings

Fig. 1 is a schematic diagram of the internal wiring of the utility model heating glove.

Fig. 2 is the lining of the present utility model

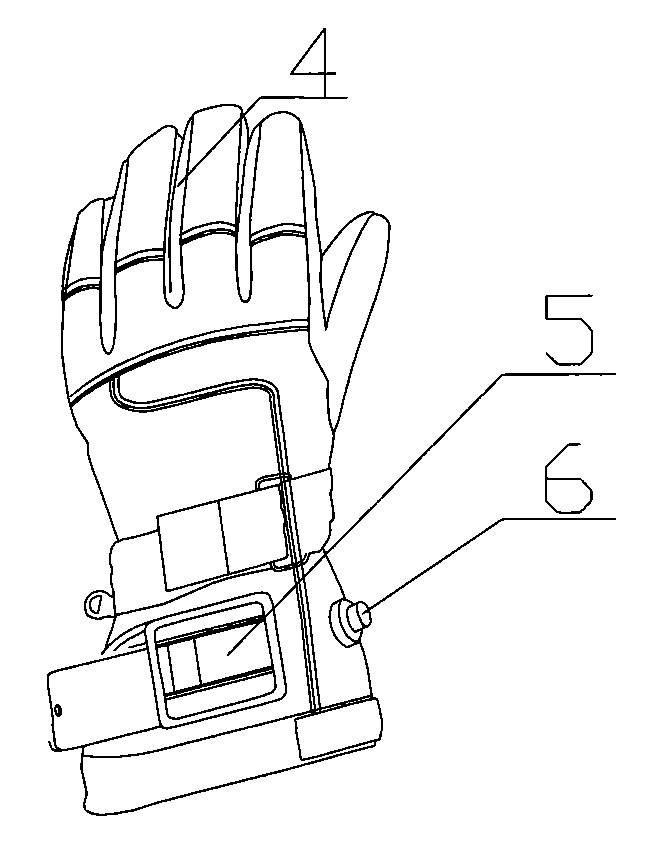

Fig. 3 is a structural schematic diagram of the utility model heating glove.

Fig. 4 is a schematic diagram of the circuit connection of the utility model.

Detailed ways

As shown in FIGS. 1 to 4 , the glove is a double-layer glove sewn from the fabric 4 and the lining 1, and the heating core 2 is sewn on the inner surface of the lining 1 between the fabric 4 and the lining 1 by sewing. The heating wires 3 in the heating core 2 are sequentially distributed in the palm and fingertips of each finger. The back of the hand on the glove fabric 4 is provided with a battery box bag 5 near the wrist joint; a power switch 6 is provided on the side of the glove wrist joint, and the power switch 6 has a self-locking mechanism. A DC plug 8 is provided at the head of the electric heating core 2 power lead wire 7 . One end of the source lead wire 7 is connected to the heating wire 3 inside the heating core 2 . The power lead-out wire 7 is double-stranded, one of which is connected to one end of the heating wire 3 in the heating core 2, and the other end is connected to the DC plug; the other end of the power lead-out wire 7 is connected to the DC plug 8 after passing through the self-locking switch . The other end is connected to the heating wire 3 .

Put the fully charged battery box into the battery box bag 5, insert the DC plug 8 into the corresponding socket on the battery box, press the self-locking power switch 6 on the glove, and the heating core 2 starts to generate heat immediately. Press the self-locking power switch 6 again to stop heating.

Claims (6)

1. one kind with using Heating gloves, comprise that the glove bulk of inside and outside two-layer composition, heat generating core, power supply and switch is characterized in that: between glove liner and gloves precoat, be provided with heating core, heating wire is located in the heat generating core, and the back of the hand position of gloves is provided with battery case bag and power switch.

2. as claimed in claim 1 with using Heating gloves, it is characterized in that: heat generating core (2) sewing is fixed on the lining (1), and each finger that the heating wire (3) in the heat generating core (2) is distributed in gloves refers to abdomen and palm part.

3. as claimed in claim 2 with using Heating gloves, it is characterized in that: heat generating core (2) is provided with power outlet (7), and power outlet (7) head is provided with DC plug (8).

4. as claimed in claim 3 with using Heating gloves, it is characterized in that: power outlet (7) is bifilar arranged side by side, and wherein one is connected in an end of the heating wire (3) in the heat generating core (2), and the other end inserts DC plug; Another thigh of power outlet (7) is by connecting DC plug behind the self-lock switch, the other end inserts heating wire (3).

5. as claimed in claim 1 with using Heating gloves, it is characterized in that: described gloves are provided with power switch (6).

6. as claimed in claim 5 with using Heating gloves, it is characterized in that: described power switch is the power switch of band self-locking.
