CN201130195Y - Integrated terminal box with stop reading battery and communication module for static energy meters - Google Patents

Integrated terminal box with stop reading battery and communication module for static energy meters Download PDF

Info

Publication number
CN201130195Y
CN201130195Y CNU2007201318695U CN200720131869U CN201130195Y CN 201130195 Y CN201130195 Y CN 201130195Y CN U2007201318695 U CNU2007201318695 U CN U2007201318695U CN 200720131869 U CN200720131869 U CN 200720131869U CN 201130195 Y CN201130195 Y CN 201130195Y
Authority
CN
China
Prior art keywords
communication module
battery
energy meter
electric energy
meter
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
CNU2007201318695U
Other languages
Chinese (zh)
Inventor
范继荣
王宏波
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
NANJING BLUESTAR ELECTRICAL METER INSTITUTE
Original Assignee
NANJING BLUESTAR ELECTRICAL METER INSTITUTE
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by NANJING BLUESTAR ELECTRICAL METER INSTITUTE filed Critical NANJING BLUESTAR ELECTRICAL METER INSTITUTE
Priority to CNU2007201318695U priority Critical patent/CN201130195Y/en
Application granted granted Critical
Publication of CN201130195Y publication Critical patent/CN201130195Y/en
Anticipated expiration legal-status Critical
Expired - Fee Related legal-status Critical Current

Links

Images

Classifications

    • Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
    • Y02E60/00—Enabling technologies; Technologies with a potential or indirect contribution to GHG emissions mitigation
    • Y02E60/10—Energy storage using batteries

Landscapes

  • Arrangements For Transmission Of Measured Signals (AREA)

Abstract

本实用新型涉及一种静止式电能表用带停抄电池和通讯模块的一体式端子盒，它包括有与电能表罩壳相配套的端子座(1)，其特征是在端子座(1)的一端设置有与端子座(1)为一整体的空腔体(2)，空腔体(2)一侧敞口，其下侧面板上设有通气孔(3)。本实用新型解决了现有电能表停电抄表电池和通讯模块的安装和更换问题，停电抄表电池和通讯模块均与接线端子构成一个整体，通过插座和电表连接，更换简单方便，并且停电抄表电池和通讯模块位于端子盖下，更换时不会影响电能表整体的防水性能，同时设置的通气孔还能防止因停抄电池发生漏液产生的问题。

Figure 200720131869

The utility model relates to an integrated terminal box with a stop reading battery and a communication module for a static electric energy meter, which includes a terminal seat (1) matched with the electric energy meter cover, and is characterized in that One end of the terminal block (1) is provided with a hollow body (2) which is integral with the terminal base (1). One side of the hollow body (2) is open, and a ventilation hole (3) is provided on the lower side panel. The utility model solves the problem of installation and replacement of the battery and communication module of the existing electric energy meter for power failure. The battery of the meter and the communication module are located under the terminal cover, and the replacement will not affect the waterproof performance of the energy meter as a whole. At the same time, the vent hole can also prevent the problem caused by the leakage of the battery when the meter is stopped.

Figure 200720131869

Description

静止式电能表用带停抄电池和通讯模块的一体式端子盒 Integrated terminal box with stop reading battery and communication module for static energy meters

技术领域 technical field

本实用新型涉及电能表，尤其是一种电能表的端子盒，具体地说是一种静止式电能表用带带停抄电池和通讯模块的一体式端子盒。The utility model relates to an electric energy meter, in particular to a terminal box for an electric energy meter, in particular to an integrated terminal box with a stop-reading battery and a communication module for a static electric energy meter.

背景技术 Background technique

目前的静止式电能表一般接线端子、停电抄表电池、通讯模块(GPRS、RF、GSM等通讯方式)分开，且停电抄表电池和通讯模块多位于电表壳体内或电表上盖内，在更换时需要打开上盖，操作极不方便，并且影响电表的整体防水性能。The current static electric energy meter is generally separated from the terminal block, power-off meter reading battery, and communication module (GPRS, RF, GSM, etc. communication methods), and the power-off meter reading battery and communication module are mostly located in the meter housing or in the upper cover of the meter. It is very inconvenient to operate, and it will affect the overall waterproof performance of the meter.

发明内容 Contents of the invention

本实用新型的目的则是针对上述现有技术的不足，提供一种停电抄表电池和通讯模块位于端子盖下，更换简单方便且不会影响电表整体防水性能的静止式电能表用带停抄电池和通讯模块的一体式端子盒。The purpose of this utility model is to aim at the deficiencies of the above-mentioned prior art, to provide a kind of power failure meter reading battery and communication module located under the terminal cover, the replacement is simple and convenient, and will not affect the overall waterproof performance of the meter. Integrated terminal box for battery and communication module.

本实用新型的目的可以通过以下措施来实现：The purpose of this utility model can be achieved by the following measures:

一种静止式电能表用带停抄电池和通讯模块的一体式端子盒，包括有与电能表罩壳相配套的端子座1，其特征是在端子座1的一端设置有与端子座1为一整体的空腔体2，空腔体2一侧敞口，其下侧面板上设有通气孔3。An integrated terminal box with a stop-reading battery and a communication module for a static electric energy meter, including a terminal base 1 matched with the electric energy meter cover, and is characterized in that one end of the terminal base 1 is provided with the terminal base 1. An integral cavity body 2, one side of the cavity body 2 is open, and a ventilation hole 3 is arranged on the lower side panel.

其中，所述空腔体2为矩形空腔。Wherein, the cavity body 2 is a rectangular cavity.

所述空腔体2为纵向或水平设置，相应的其敞口方向朝向上或向侧面。The hollow body 2 is arranged vertically or horizontally, and its opening direction faces upward or sideways accordingly.

本实用新型解决了现有电能表停电抄表电池和通讯模块的安装和更换问题，停电抄表电池和通讯模块均与接线端子构成一个整体，通过插座和电表连接，更换简单方便，并且停电抄表电池和通讯模块位于端子盖下，更换时不会影响电能表整体的防水性能，同时设置的通气孔还能防止因停抄电池发生漏液产生的问题。The utility model solves the problem of installation and replacement of the battery and communication module of the existing electric energy meter for power failure. The battery of the meter and the communication module are located under the terminal cover, and the replacement will not affect the waterproof performance of the energy meter as a whole. At the same time, the vent hole can also prevent the problem caused by the leakage of the battery when the meter is stopped.

附图说明 Description of drawings

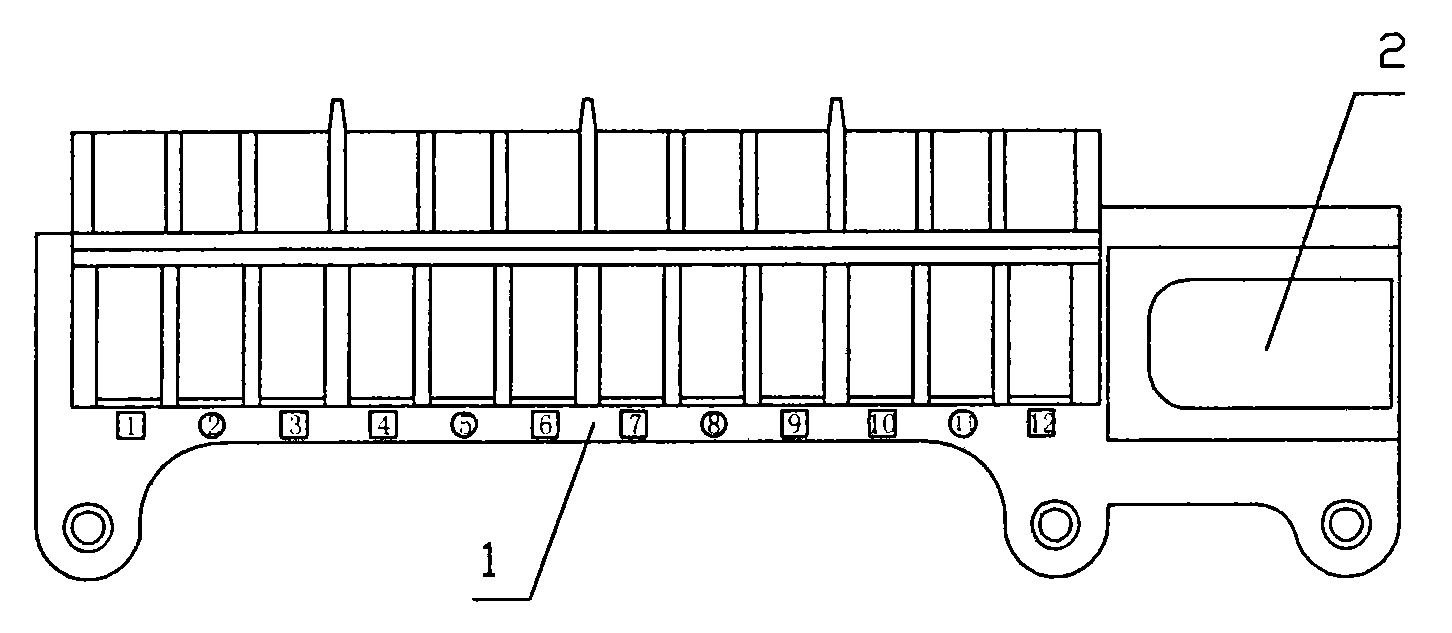

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.

图2为本实用新型的仰视图。Fig. 2 is the bottom view of the utility model.

具体实施方式 Detailed ways

下面结合附图对本实用新型作进一步的说明：Below in conjunction with accompanying drawing, the utility model is further described:

如图1、2所示，本实用新型的一体式端子盒包括有与静止式电能表罩壳相配套的端子座1，端子座1上的各接线端可与电能表线路板相连接。在端子座1的一端设置了与端子座1的空腔体2，空腔体2可以与端子座1整体注塑成形，其一侧敞口，腔体内用于放置停抄电池，也可以用来放入如GPRS、RF、GSM等多种通讯方式的通讯模块。所述空腔体2可是纵向或是水平设置，以满足不同的方向需要，相应的其敞口方向朝向上或向侧面。在空腔体2的下侧面板上设有通气孔3，通气孔3用散热和防电池漏液问题。所述的空腔体2可以设置成矩形空腔，方便停抄电池或通讯模块的放入。使用时，将停抄电池推放进空腔体2内后，将停抄电池的电源正负极通过专用插头(如2510-4A电池插头)与静止式电能表内的停抄电池插座(如相配套的2510-4A电池插座)相连，实现停抄电池与静止式电能表线路板的连接。当空腔体2中放入通讯模块时也是将露在空腔体2外面的通讯模块接线端子与静止式电能表线路板上对应的连接座相配合连接即可。As shown in Figures 1 and 2, the integrated terminal box of the present invention includes a terminal base 1 matched with the static electric energy meter cover, and each terminal on the terminal base 1 can be connected with the electric energy meter circuit board. One end of the terminal base 1 is provided with a cavity body 2 with the terminal base 1, the cavity body 2 can be integrally injection molded with the terminal base 1, and one side of the cavity is open, and the cavity is used for placing a stop battery, and can also be used for Put in the communication module of various communication methods such as GPRS, RF, GSM, etc. The hollow body 2 can be arranged vertically or horizontally to meet the needs of different directions, and correspondingly, the opening direction thereof faces upward or to the side. The lower side panel of the hollow body 2 is provided with a ventilation hole 3, and the ventilation hole 3 is used for heat dissipation and preventing battery leakage. The cavity body 2 can be set as a rectangular cavity, which is convenient for putting in a battery or a communication module. During use, after the battery for stopping reading is pushed into the cavity body 2, the positive and negative poles of the power supply of the battery for stopping reading are passed through the special plug (such as 2510-4A battery plug) and the battery socket for stopping reading in the static watt-hour meter (such as The matching 2510-4A battery socket) is connected to realize the connection between the stop reading battery and the circuit board of the static electric energy meter. When the communication module is put into the cavity body 2, the connection terminals of the communication module exposed outside the cavity body 2 and the corresponding connection sockets on the circuit board of the static watt-hour meter can be mated and connected.

本实用新型涉及的其它未说明部分与现有技术相同或采用现有技术加以实现。Other unexplained parts involved in the utility model are the same as the prior art or implemented by adopting the prior art.

Claims (3)

1、一种静止式电能表用带停抄电池和通讯模块的一体式端子盒，包括有与电能表罩壳相配套的端子座(1)，其特征是在端子座(1)的一端设置有与端子座(1)为一整体的空腔体(2)，空腔体(2)一侧敞口，其下侧面板上设有通气孔(3)。1. An integrated terminal box with a stop-reading battery and a communication module for a static electric energy meter, including a terminal block (1) matched with the electric energy meter cover, which is characterized in that it is set at one end of the terminal block (1) There is a hollow body (2) integrated with the terminal base (1), one side of the hollow body (2) is open, and a ventilation hole (3) is arranged on the lower side panel. 2、根据权利要求1所述的静止式电能表用带停抄电池和通讯模块的一体式端子盒，其特征是所述空腔体(2)为矩形空腔。2. The integrated terminal box for a static electric energy meter with a reading-stop battery and a communication module according to claim 1, wherein the cavity body (2) is a rectangular cavity. 3、根据权利要求1或2所述的静止式电能表用带停抄电池和通讯模块的一体式端子盒，其特征是所述空腔体(2)为纵向或水平设置，相应的其敞口方向朝向上或向侧面。3. The integrated terminal box for static electric energy meter with stop-reading battery and communication module according to claim 1 or 2, characterized in that the cavity (2) is arranged vertically or horizontally, and its corresponding opening The mouth is directed upwards or sideways.
