Abstract

The shelf structure that can be used for refrigerators includes wave-shaped support members, and the wave-shaped support members are divided into two groups, and the peaks and troughs of the two groups of wave-shaped support members are alternately arranged. Each group of wavy support members includes several support bars arranged adjacently and parallel to each other, and the crests and troughs of each group of wavy support bars are consistent. It also includes: a frame, a drawer-type guide rail, and a support bar shelf, one side of the drawer-type guide rail is fixed on the frame, and the support bar shelf is arranged on the frame and fixed. It also includes: a decorative strip, which is fixed on the front of the frame, and a wooden decorative strip is optional. There are three wave-shaped support bars in each group. The shelf of the utility model adopts a novel style, and is combined with a frame, a wooden decorative strip and a guide rail, which not only makes reasonable use of the space but also greatly facilitates users.

Description

Shelving structure for refrigerators

technical field

The utility model belongs to an article storage structure, and relates to a structure capable of storing wine or beverages, in particular to a shelf structure applicable to refrigerators.

Background technique

At present, many wine coolers and refrigerators in the market are equipped with steel wire shelves for storing red wine, but these shelf styles can only store wine bottles in a single row, which wastes a lot of space, and the shelves cannot be completely pulled out from the inner tank for storage. It is inconvenient to fetch the wine bottle.

As shown in Figures 1-3, the existing steel wire shelves for storing red wine, the standard red wine bottle 11 is placed on the chrome-plated steel wire shelf 12, the steel wire shelf 12 is mounted on the inner container, and is stopped by the stopper 13 . When the width of the inner container is the same, the existing shelf style can only store wine bottles in a single row, and the number of storage is less than that of double rows, which wastes a certain amount of space. Now because the shelf cannot slide back and forth on the inner tank, the user needs to reach into the wine cabinet or refrigerator to access the wine bottle, which causes certain inconvenience.

Utility model content

The purpose of this utility model is to provide a shelf structure that can be used in refrigerators, which can store wine bottles or beverage bottles in double rows, and is combined with a stainless steel frame and fixed on the inner tank with three-section drawer-type guide rails, which can be used from the inside. The complete extraction of the gallbladder greatly facilitates the access of wine bottles or beverage bottles. Its function is to rationally utilize the space and facilitate the access of wine bottles, bringing real convenience to consumers.

For achieving above object, the solution of the present utility model is:

A shelf structure applicable to refrigerators, including wave-shaped supports, which are divided into two groups, and the crests and troughs of the two groups of wave-shaped supports are alternately arranged

Further, each set of wavy support members includes several support bars arranged adjacently and parallel to each other, and the peaks and troughs of each set of wavy support bars are consistent.

It also includes: a frame, a drawer-type guide rail, and a support bar shelf, one side of the drawer-type guide rail is fixed on the frame, and the support bar shelf is arranged on the frame and fixed.

It also includes: a decorative strip, which is fixed on the front of the frame, and a wooden decorative strip is optional.

There are three wave-shaped support bars in each group.

Due to the adoption of the above technical solutions, the utility model has the following beneficial effects: the shelf of the utility model adopts a novel style, and is equipped with a frame, a wooden decorative strip and a combination of guide rails, which not only rationally utilizes the space but also greatly facilitates users.

Description of drawings

Fig. 1 is a front view of an example of using a shelf for a conventional wine cooler or refrigerator.

Fig. 2 is a plan view of an example of using a shelf for a conventional wine cooler or refrigerator.

Fig. 3 is a three-dimensional structural schematic diagram of an example of using a shelf for a conventional wine cabinet or refrigerator.

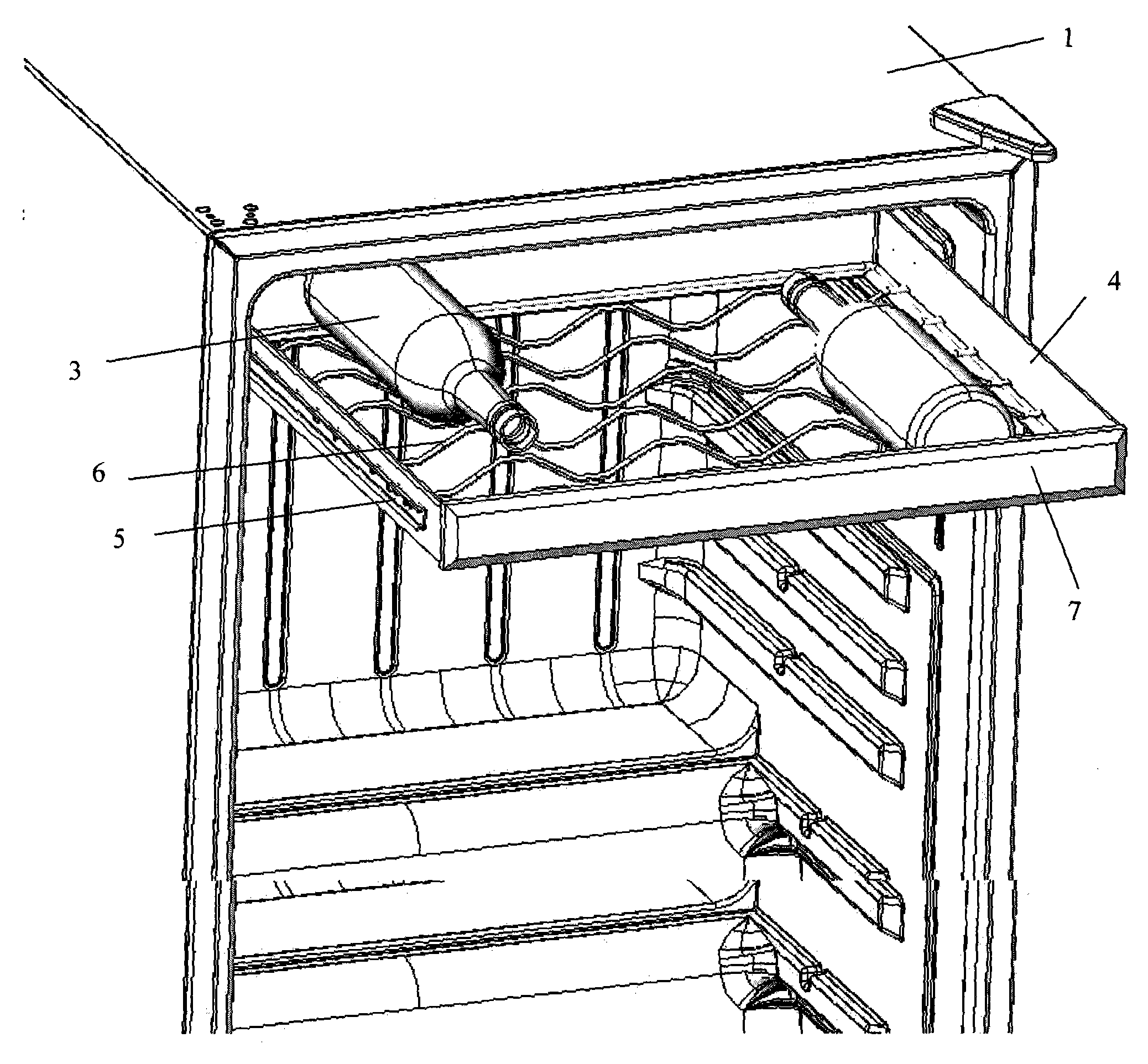

Fig. 4 is a partial structural schematic diagram of a wine cabinet or a refrigerator according to an embodiment of the utility model.

Fig. 5 is a front view of a novel shelf for wine cabinets or refrigerators in use according to the embodiment of the present invention.

Fig. 6 is a top view of the new shelf for wine cabinets or refrigerators in use according to the embodiment of the utility model.

Fig. 7 is a three-dimensional structural schematic view of a new shelf for wine cabinets or refrigerators in use according to the embodiment of the present invention.

Detailed ways

Below in conjunction with the embodiment shown in the accompanying drawings the utility model is further described.

The shelf structure of the utility model can be used as an additional part in wine cabinets and refrigerators. The shelf structure is shown in Figure 4: it includes refrigerator body 1, inner tank 2, wine bottle 3, iron frame 4, three-section drawer guide rail 5, Chrome-plated steel wire shelf 6, wooden decorative strip 7. The steel wire shelf 6 is placed on the iron frame 4 and fixed, and the outer side of the three-section drawer guide rail 5 is fixed in the rib of the inner tank 2, and the other side is fixed on the frame 4, so that the guide rail 5 can flexibly move back and forth on the inner tank 2 . The decorative wooden strip 7 is then fixed on the front of the frame 4, so that the shelf 6 is elegant in appearance.

As shown in Figures 5-7: the steel wire shelf 6 is composed of wavy steel wires interlaced front and back. The steel wires are divided into two groups, three steel wires in front of the front and three steel wires in the rear. The wire waveforms between groups are interleaved. In this embodiment, a total of 6 steel wires are used as the support, but there is no limitation on the material and quantity of the support, which can be selected according to specific situations. Obviously, on the premise that the wine bottle is placed on the shelf stably, the cost can be reduced if the material is properly selected and the amount used is small. This structure can not only facilitate the positioning of the wine bottle 3 but also can insert the wine bottle 3 back and forth, which makes reasonable use of the space and beautifies the shelf 6 . The shelf 6 is placed on the iron frame 4. This structure not only ensures the strength of the shelf 6 to store the wine bottle 3, but also prevents the front and back movement of the wine bottle 3 and the risk of the wine bottle 3 falling off when the shelf is pulled out. The shelf structure uses the guide rail 5, which not only facilitates the user's access to the wine bottle 3 but also prevents the risk of tipping when the shelf 6 twitches, bringing real safety to the user.

The above description of the embodiments is for those of ordinary skill in the technical field to understand and use the utility model. It is obvious that those skilled in the art can easily make various modifications to these embodiments, and apply the general principles described here to other embodiments without creative efforts. Therefore, the utility model is not limited to the above-mentioned embodiments, and the improvements and modifications made by those skilled in the art according to the disclosure of the utility model should be within the protection scope of the utility model.

Claims (5)

1, the rack structure that can be used for refrigerator comprises the waveform support member, it is characterized in that: the waveform support member is divided into two groups, and the crest and the trough of these two groups of waveform support members are crisscross arranged.

2, the rack structure that can be used for refrigerator according to claim 1 is characterized in that:

Every group of waveform support member comprises adjacent setting, some support bars that are parallel to each other, and the crest of every group of waveform support bar is consistent with trough.

3, the rack structure that can be used for refrigerator according to claim 2 is characterized in that: also comprise: frame, drawer type guide rail, support bar shelf, and drawer type guide rail one side is fixed on the frame, and the support bar shelf is arranged on the frame fixing.

4, the rack structure that can be used for refrigerator according to claim 3 is characterized in that: also comprise: ornamental strip, this ornamental strip is fixed in the frame front.

5, according to arbitrary described rack structure that can be used for refrigerator in the claim 1 to 4, it is characterized in that: every group of waveform support bar is three.
