CN201119996Y - baby bottle with thermometer - Google Patents

Abstract

A feeding bottle that indicates the temperature of milk or other liquids in the bottle. On the basis of the existing feeding bottle, put a miniature thermometer into the bottle wall of the feeding bottle, and the mercury bulb part of the thermometer is installed at the bottom of the feeding bottle or near the bottom, and close to the inner wall of the feeding bottle, so as to fully contact the feeding bottle The temperature of the food is engraved on the outer wall of the feeding bottle with a temperature scale line for displaying the thermometer, which is used to display the temperature. The caregiver can easily know whether the temperature in the feeding bottle is suitable for the baby according to the temperature measured by the thermometer, so as to protect the baby. to the protective effect.

Description

baby bottle with thermometer

Technical field

The utility model relates to a feeding bottle for raising babies in daily life, which is a feeding bottle which can indicate the temperature of milk or other liquid objects in the feeding bottle.

Background technique

At present, the known feeding bottle is actually a container, which is used to hold milk or other liquids and then install a pacifier for the convenience of the baby to suck. The temperature of the milk or other liquids therein is generally recognized by the caregiver's feeling. The temperature for sucking food for babies, but the temperature range that adults can withstand is generally larger than that of babies, which can easily lead to the temperature of milk or other liquids in the bottle being too cold or too hot for the baby to suck, which is easy to cause The baby sucks the food with too low temperature and gets sick or the immature mouth is scalded, etc., so how to conveniently display the temperature of the food in the baby's feeding bottle is very important.

Contents of the invention

In order to overcome the above disadvantages, the utility model provides a feeding bottle with a thermometer. The feeding bottle can not only be used as a general feeding bottle, but also can conveniently display the current temperature of milk or other liquids in the feeding bottle, so that the caregiver can know whether It can be used to feed babies and protect babies.

The technical scheme adopted by the utility model to solve the technical problem is: on the basis of the existing feeding bottle, a miniature thermometer is packed into the bottle wall of the feeding bottle, and the mercury ball part of the thermometer is installed at the bottom of the feeding bottle or near the bottom of the feeding bottle. position, and close to the inner wall of the feeding bottle, so as to fully contact the temperature of the food in the feeding bottle, the outer wall of the feeding bottle is engraved with a temperature scale line for displaying the temperature of the thermometer, which is used to display the temperature, and the caregiver can easily know the temperature measured by the thermometer Whether the temperature in the feeding bottle is suitable for the baby to eat, so as to protect the baby.

The beneficial effect of the utility model is that not only can it be used instead of a common feeding bottle, but it is mainly convenient for caregivers to grasp the temperature of milk or other liquids in the feeding bottle, so as to avoid discomfort and damage to the baby caused by too high or too low temperature.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the utility model is further described.

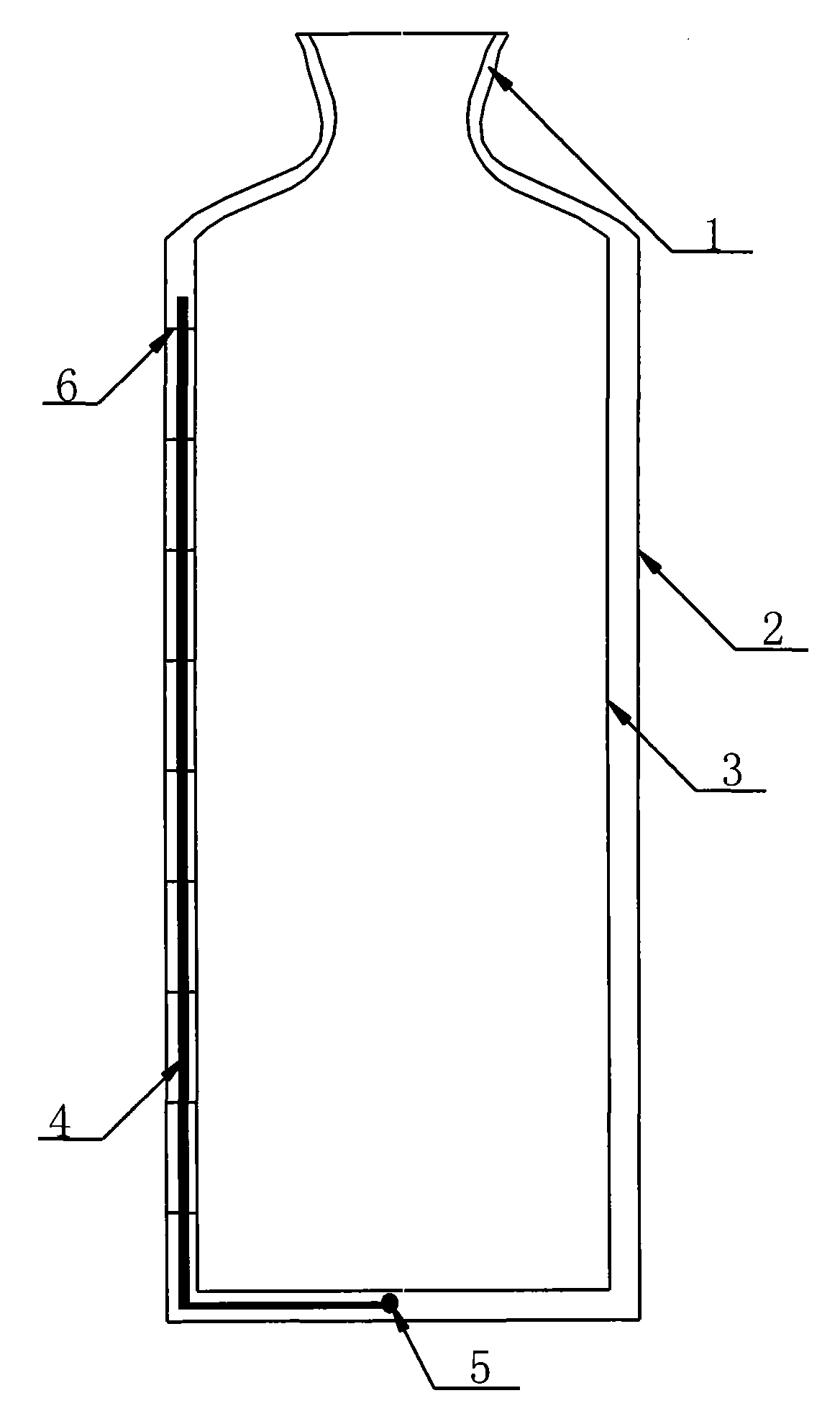

Fig. 1 is a schematic diagram of an embodiment of the utility model.

In the figure 1. feeding bottle, 2. outer wall of feeding bottle, 3. inner wall of feeding bottle, 4. thermometer, 5. mercury bulb of thermometer, 6. temperature scale line.

Detailed ways

In Fig. 1, the thermometer 4 is installed in the bottle wall of the feeding bottle 1, and the mercury bulb 5 of the thermometer is installed at the bottom of the feeding bottle or near the bottom, and is close to the inner wall 3 of the feeding bottle, so as to fully measure milk or other liquids in the feeding bottle There is a temperature scale line 6 on the outer wall 2 of the feeding bottle, which is used to indicate the temperature of the milk or other liquids in the bottle measured by the thermometer. When using the feeding bottle, shake the feeding bottle containing milk or other liquids evenly Finally, judge whether the temperature is suitable for feeding the baby from the temperature measured by the thermometer.

Claims (3)

1. A feeding bottle with a thermometer, consisting of a feeding bottle and a thermometer, characterized in that: a miniature thermometer is packed into the wall of the feeding bottle. 2. The feeding bottle with a thermometer according to claim 1, characterized in that: the mercury bulb part of the thermometer is installed at the bottom of the feeding bottle or near the bottom, and close to the inner wall of the feeding bottle. 3. The feeding bottle with a thermometer according to claim 1, characterized in that: the outer wall of the feeding bottle is engraved with a temperature scale line for displaying the thermometer.
