Abstract
本实用新型涉及一种加油装置，尤其涉及一种气压加油器。一种气压加油器，包括一储油本体，所述储油本体下部连接一出油管，所述储油本体上部设有上盖，所述上盖上设有一气孔接头，在所述气孔接头下方位于储油本体内设有一单向阀。本实用新型提供的一种气压加油器，其结构合理，利用气压将储油本体内的油输出，即使润滑油黏度较大也能快速的为机器加油。同时，该气压加油器可以往任何位置和角度的加油孔输油。
The utility model relates to an oiling device, in particular to an air pressure oiler. A pneumatic oiler, comprising an oil storage body, the lower part of the oil storage body is connected to an oil outlet pipe, the upper part of the oil storage body is provided with an upper cover, the upper cover is provided with an air hole joint, and the air hole joint is below the A one-way valve is arranged in the oil storage body. The utility model provides an air pressure oiler, which has a reasonable structure, uses air pressure to output the oil in the oil storage body, and can quickly refuel the machine even if the viscosity of the lubricating oil is relatively high. At the same time, the air pressure oiler can deliver oil to the oil filling hole at any position and angle.
Description
技术领域 technical field
本实用新型涉及一种加油装置，尤其涉及一种气压加油器。The utility model relates to an oiling device, in particular to an air pressure oiler.
背景技术 Background technique
目前，操作人员在维护机器时通常使用的加油工具为壶、桶和漏斗等，有时由于机器安装位置和角度的原因，加油孔位置常被其他设备所挡住，造成无法对该机器进行润滑加油。At present, the refueling tools that operators usually use when maintaining the machine are pots, barrels, and funnels. Sometimes due to the installation position and angle of the machine, the position of the refueling hole is often blocked by other equipment, making it impossible to lubricate the machine.
另外，当润滑油黏度较大时，使用壶、桶和漏斗等流油速度较慢、操作不便，而且容易污染周围环境，同时造成油料的浪费。In addition, when the viscosity of the lubricating oil is high, the speed of oil flow using pots, barrels, and funnels is slow, inconvenient to operate, and it is easy to pollute the surrounding environment and cause waste of oil.
发明内容 Contents of the invention
本实用新型的发明目的在于提供一种气压加油器，其结构合理，利用气压将储油本体内的油输出，即使润滑油黏度较大也能快速的为机器加油。同时，该气压加油器可以往任何位置和角度的加油孔输油。The purpose of the invention of the utility model is to provide a pneumatic oiler, which has a reasonable structure, uses air pressure to output the oil in the oil storage body, and can quickly refuel the machine even if the viscosity of the lubricating oil is relatively high. At the same time, the air pressure oiler can deliver oil to the oil filling hole at any position and angle.
本实用新型是通过下述技术方案解决上述技术问题的：一种气压加油器，包括一储油本体，所述储油本体下部连接一出油管，所述储油本体上部设有上盖，所述上盖上设有一气孔接头，在所述气孔接头下方位于储油本体内设有一单向阀。所述气孔接头上可以连接普通的手动打气筒等。所述出油管可以是耐油橡胶或塑料软管。所述储油本体为一油壶、油桶或油杯。所述储油本体与上盖采用细牙螺纹连接，并且上盖内设有密封垫片，防止油溢出。The utility model solves the above-mentioned technical problems through the following technical solutions: a pneumatic oiler, comprising an oil storage body, the lower part of the oil storage body is connected with an oil outlet pipe, the upper part of the oil storage body is provided with an upper cover, the An air hole joint is arranged on the upper cover, and a one-way valve is arranged in the oil storage body below the air hole joint. Common manual air pumps and the like can be connected to the air hole connector. The oil outlet pipe can be oil resistant rubber or plastic hose. The oil storage body is an oil pot, oil barrel or oil cup. The oil storage body and the upper cover are connected by fine threads, and a sealing gasket is arranged inside the upper cover to prevent oil from overflowing.
作为优选，所述出油管由一横向管和一竖向管构成，所述横向管与储油本体下部侧壁相连接，所述竖向管顶端高于储油本体顶端。在所述竖向管顶端可以连接软管。Preferably, the oil outlet pipe is composed of a horizontal pipe and a vertical pipe, the horizontal pipe is connected to the lower side wall of the oil storage body, and the top of the vertical pipe is higher than the top of the oil storage body. A hose can be attached to the top of the vertical pipe.
作为优选，所述上盖上设有一旁路手动排气单向阀。当向高位加油结束后，可以通过打开该单向阀让处于高位的润滑油回流。Preferably, the upper cover is provided with a bypass manual exhaust one-way valve. After the refueling to the high position is finished, the lubricating oil in the high position can be allowed to flow back by opening the one-way valve.
作为优选，所述气孔接头上还设有流量控制阀。当通过压缩空气向储油本体内注气时，流量控制阀用以控制压缩空气的流量。Preferably, a flow control valve is also provided on the air hole joint. When the compressed air is used to inject air into the oil storage body, the flow control valve is used to control the flow of the compressed air.
作为优选，所述流量控制阀为一手动球阀。Preferably, the flow control valve is a manual ball valve.
作为优选，所述流量控制阀为一节流阀。Preferably, the flow control valve is a throttle valve.
作为优选，所述流量控制阀为一调压阀。Preferably, the flow control valve is a pressure regulating valve.
作为优选，所述单向阀为一单向球阀。Preferably, the one-way valve is a one-way ball valve.
作为优选，所述单向阀为一气门芯。Preferably, the one-way valve is a valve core.
采用本技术方案的实用新型，其有益效果是：Adopt the utility model of this technical proposal, its beneficial effect is:
一、由于采用了气体助推，克服了润滑油黏度大，流速慢的难题，提高了工作效率。1. Due to the use of gas boosting, the problem of high viscosity and slow flow of lubricating oil is overcome, and the working efficiency is improved.
二、当出油管为金属管时，可以在出油管顶端连接普通软管，通过软管输送润滑油等，消除了减速机油箱位置的死角给润滑工作带来的难题，便于高空或远距离双人操作，提高操作的安全性。同样，当出油管本身为软管时也可以达到上述效果。2. When the oil outlet pipe is a metal pipe, an ordinary hose can be connected to the top of the oil outlet pipe, and lubricating oil can be transported through the hose, which eliminates the difficulty caused by the dead angle of the oil tank of the reducer to the lubrication work, and is convenient for two people at high altitude or long distance operation, improve the safety of operation. Likewise, when the oil outlet pipe itself is a flexible pipe, the above effects can also be achieved.
三、由于软管可伸入加油孔内，避免在润滑工作中润滑油外溢，提高了工作质量，防止润滑油污染周围环境。3. Since the hose can be extended into the filling hole, the lubricating oil is prevented from overflowing during the lubricating work, the work quality is improved, and the surrounding environment is prevented from being polluted by the lubricating oil.
四、当由低处向高处手动注气加油时，所述单向阀可以防止油液倒流。4. When manually injecting gas and refueling from a low place to a high place, the one-way valve can prevent the oil from flowing backwards.
五、所述竖向管顶端高于储油本体顶端，可以有效防止油液从出油管漏出。5. The top of the vertical pipe is higher than the top of the oil storage body, which can effectively prevent the oil from leaking out of the oil outlet pipe.
六、旁路手动排气单向阀是为向高处加油完成后让管路内的油倒流回储油本体。6. Bypass manual exhaust one-way valve is to allow the oil in the pipeline to flow back to the oil storage body after refueling to a high place.
七、流量控制阀是在压缩空气注气时用来控制压缩空气的流量。7. The flow control valve is used to control the flow of compressed air during compressed air injection.
附图说明 Description of drawings
图1为本实用新型实施例1的结构示意图。Fig. 1 is a schematic structural view of Embodiment 1 of the present utility model.
图2为本实用新型实施例2的结构示意图。Fig. 2 is a schematic structural view of
具体实施方式 Detailed ways
下面结合附图1对本实用新型作进一步详细描述：Below in conjunction with accompanying drawing 1 the utility model is described in further detail:
实施例1Example 1

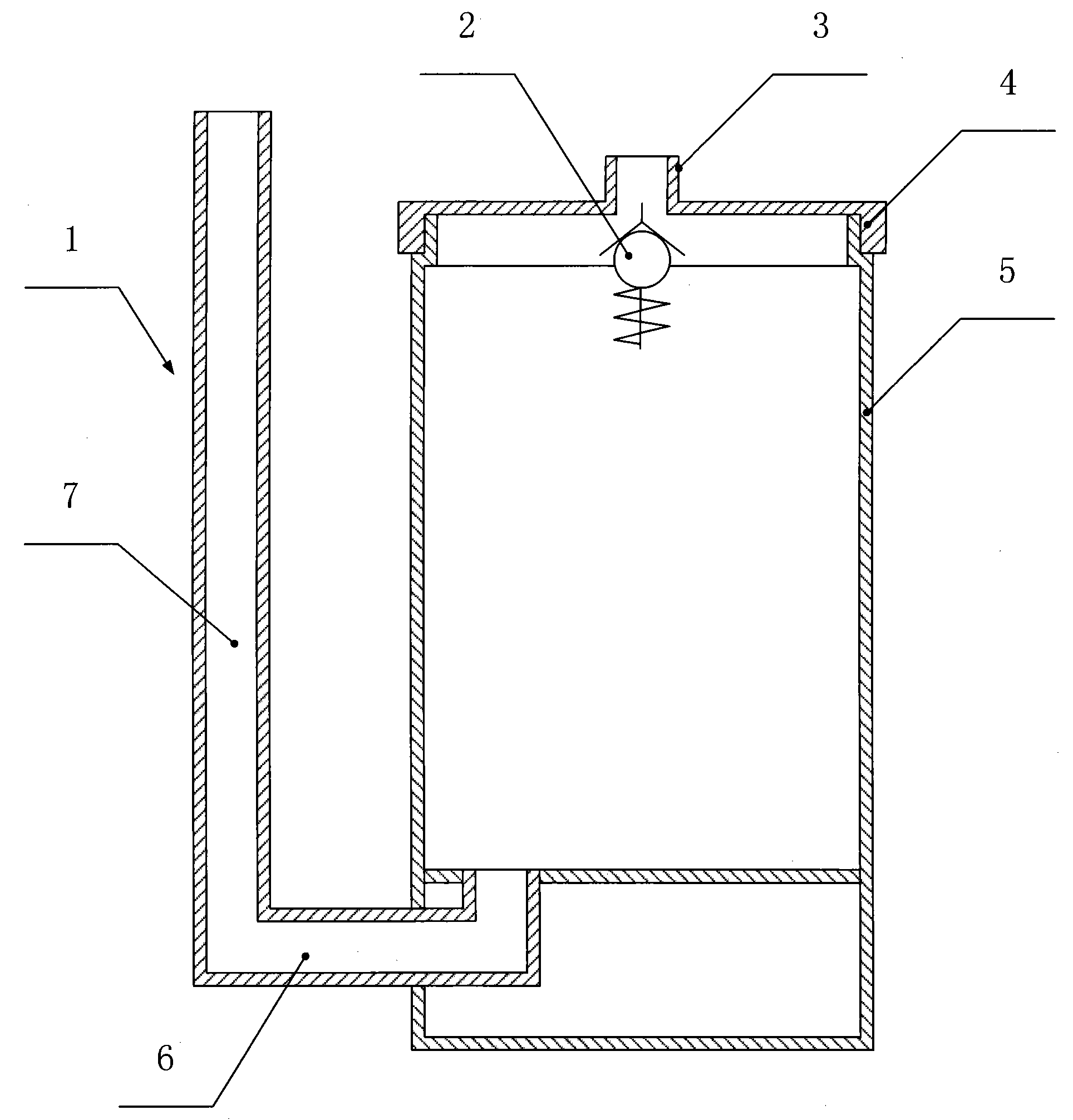

如图1所示，一种气压加油器，包括一储油本体5，所述储油本体5下部连接一出油管1，所述储油本体5上部设有上盖4，所述上盖4上设有一气孔接头3，在所述气孔接头3下方位于储油本体5内设有一单向阀2。所述单向阀2为一气门芯。所述出油管1由一横向管6和一竖向管7构成，所述横向管6与储油本体5下部侧壁相连接，所述竖向管7顶端高于储油本体5顶端。As shown in Figure 1, a kind of air pressure oiler comprises an oil storage body 5, the lower part of the oil storage body 5 is connected with an oil outlet pipe 1, the upper part of the oil storage body 5 is provided with an upper cover 4, and the upper cover 4 An
使用时只需要在出油管1顶端连接一根普通的软管，并且在气孔接头3上夹设一个普通手动气筒即可为机器添加润滑油。When in use, it is only necessary to connect an ordinary hose to the top of the oil outlet pipe 1, and to clamp an ordinary manual air cylinder on the
实施例2Example 2
如图2所示，一种气压加油器，包括一储油本体5，所述储油本体5下部连接一出油管1，所述储油本体5上部设有上盖4，所述上盖4上设有一气孔接头3，在所述气孔接头3下方位于储油本体5内设有一单向阀2。所述气孔接头3上还设有流量控制阀9，所述流量控制阀9为一手动球阀。所述单向阀2为一气门芯。所述上盖4上还设有一旁路手动排气单向阀8。所述出油管1由一横向管6和一竖向管7构成，所述横向管6与储油本体5下部侧壁相连接，所述竖向管7顶端高于储油本体5顶端。As shown in Figure 2, a pneumatic oiler includes an oil storage body 5, the lower part of the oil storage body 5 is connected to an oil outlet pipe 1, the upper part of the oil storage body 5 is provided with an upper cover 4, and the upper cover 4 An
使用时只需要在出油管1顶端连接一根普通的软管，并且在气孔接头3上夹设压缩空气管路即可为机器添加润滑油。When in use, only a common hose needs to be connected to the top of the oil outlet pipe 1, and a compressed air pipeline is clamped on the
实施例3Example 3
一种气压加油器，包括一储油本体5，所述储油本体5下部连接一出油管1，所述出油管1为塑料软管。所述储油本体5上部设有上盖4，所述上盖4上设有一气孔接头3，在所述气孔接头3下方位于储油本体5内设有一单向阀2。所述单向阀2为一单向球阀。A pneumatic oiler, comprising an oil storage body 5, the lower part of the oil storage body 5 is connected with an oil outlet pipe 1, and the oil outlet pipe 1 is a plastic hose. The upper part of the oil storage body 5 is provided with an upper cover 4, the upper cover 4 is provided with an
使用时只需要在气孔接头3上夹设一个普通手动气筒即可为机器添加润滑油。When in use, it is only necessary to clamp an ordinary manual air cylinder on the
以上所述仅为本实用新型的较佳实施例，凡依本实用新型申请专利范围所作的均等变化与修饰，皆应属本实用新型专利的涵盖范围。The above descriptions are only preferred embodiments of the utility model, and all equal changes and modifications made according to the patent scope of the utility model shall fall within the scope of the utility model patent.
