本实用新型提供了具有自动断电控制功能的节能电视。一种节能电视，在所述的电视的前面板上有一红外检测控制装置，在所述的电视的前面板上还有一光电传感器。本实用新型的节能电视的优点在于：电视前面板上的红外检测控制装置检测到房间里没有人时，能自动将电视关闭而处于待机状态；当人再次回到房间时，又能自动开启。防止人们在离开房间时，因为忘记关闭电视而造成电力的浪费。光电传感器能够根据房间的光线情况，自动调节电视荧屏的亮度，不致于刺眼，以保护视力。
The utility model provides an energy-saving television with an automatic power-off control function. A kind of energy-saving TV, there is an infrared detection control device on the front panel of the TV, and a photoelectric sensor on the front panel of the TV. The energy-saving TV of the utility model has the advantages that: when the infrared detection control device on the front panel of the TV detects that there is no one in the room, it can automatically turn off the TV and be in a standby state; Prevent people from wasting electricity because they forget to turn off the TV when they leave the room. The photoelectric sensor can automatically adjust the brightness of the TV screen according to the light conditions in the room, so as not to cause glare, so as to protect eyesight.
Description
技术领域 technical field
本实用新型涉及一种节能电视。The utility model relates to an energy-saving television.
背景技术 Background technique
日常生活中，由于人们使用电器不注意断电，使得家用电器待机的耗电量非常大。就拿电视机为例，通常人们在使用后，只是按遥控器上的待机按钮，很少到电视机前去关闭电源。这样电视仍然是处于待机状态，仍然白白耗费资源。现在已有很多安装在电风扇、微波炉等处的定时断电开关控制。但其大部分是齿轮机械控制式，不适用于电视机上。In daily life, because people do not pay attention to power off when using electrical appliances, the standby power consumption of household appliances is very large. Take the TV as an example, usually people just press the standby button on the remote controller after using it, and rarely go to the TV to turn off the power. The TV is still in the standby state like this, still consuming resources in vain. Existing a lot of timing power-off switch controls that are installed in places such as electric fan, microwave oven etc. now. But most of them are mechanically controlled by gears, which are not suitable for TV sets.
通常，当电视处于正常工作状态时，其工作指示灯亮，待机指示灯灭，则待机指示灯上没有电流通过；当电视处于待机状态时，其工作指示灯灭，待机指示灯亮，则待机指示灯上有电流通过。Usually, when the TV is in the normal working state, its working indicator light is on, and the standby indicator light is off, and no current flows through the standby indicator light; when the TV is in the standby state, its working indicator light is off, the standby indicator light is on, and the standby indicator There is current passing through it.
发明内容 Contents of the invention
本实用新型的目的是为了提供一种具有自动断电控制功能的节能电视。The purpose of the utility model is to provide an energy-saving TV with automatic power-off control function.
为了实现本实用新型，所采用的技术方案为：一种节能电视，其特征在于，在所述的电视的前面板上有一红外检测控制装置。In order to realize the utility model, the adopted technical solution is: an energy-saving television, which is characterized in that there is an infrared detection and control device on the front panel of the television.
在所述的电视的前面板上还有一光电传感器。There is also a photoelectric sensor on the front panel of the TV.
本实用新型的节能电视的优点在于，当房间里没有人电视为开机状态时，电视前面板上的红外检测控制装置，自动将电视关闭处于待机状态，当人再次回到房间时，便能自动开启。防止人们在离开房间时，因为忘记关闭电视而造成电力的浪费。光电传感器能够根据房间的光线情况，自动调节电视荧屏的亮度，不致于刺眼，以保护视力。The advantage of the energy-saving TV of the present utility model is that when there is no one in the room and the TV is turned on, the infrared detection control device on the front panel of the TV automatically turns off the TV and is in a standby state. open. Prevent people from wasting electricity because they forget to turn off the TV when they leave the room. The photoelectric sensor can automatically adjust the brightness of the TV screen according to the light conditions in the room, so as not to cause glare, so as to protect eyesight.
附图说明 Description of drawings

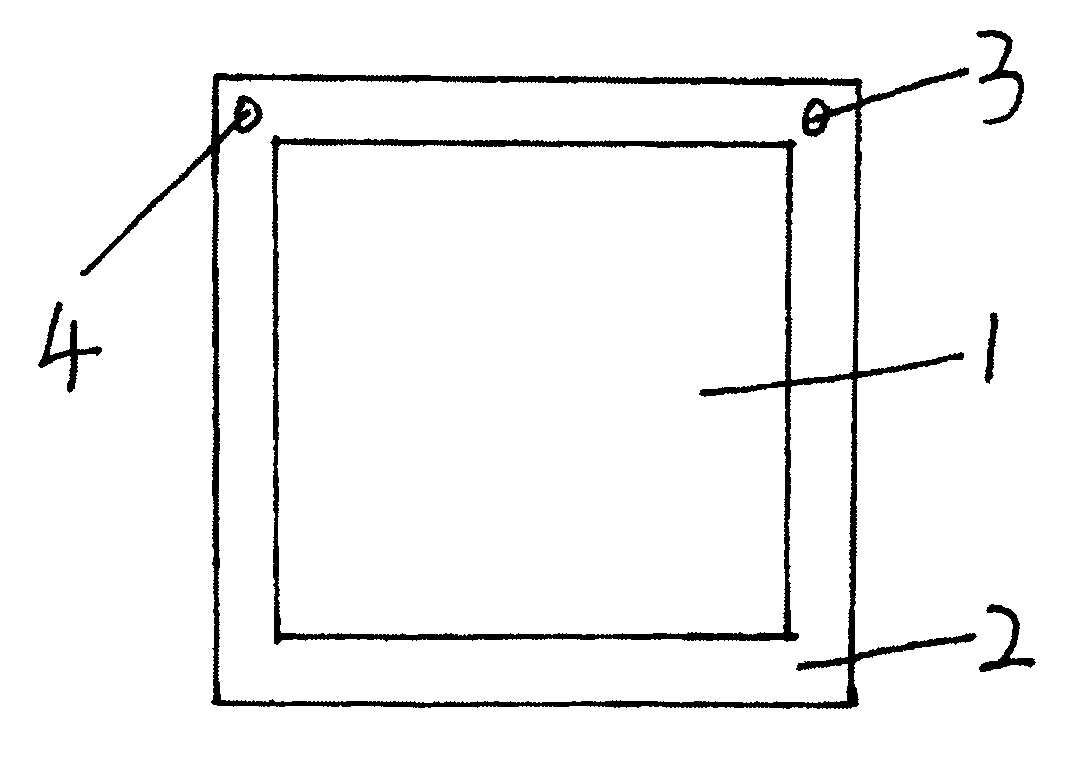

图1是本实用新型的示意图。Fig. 1 is the schematic diagram of the utility model.
具体实施方式 Detailed ways
为使本实用新型实现的技术手段、创作特征、达成目的与功效易于明白了解，下面结合具体实施方式，进一步阐述。In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the following will be further elaborated in conjunction with specific embodiments.
如图1所示，一种节能电视，在所述的电视1的前面板2上有一红外检测控制装置3。在所述的电视1的前面板2上还有一光电传感器4。As shown in FIG. 1 , an energy-saving TV has an infrared
所述的红外检测控制装置和光电传感器4都是现有技术，在此就不赘述。Both the infrared detection control device and the
当然，对于本领域的一般技术人员，不花费创造性的劳动，在上述实施例的基础上能够做多种变化，同样能够实现本发明的目的。但是，上述的各种变化显然应该在本发明的权利要求的保护范围。Of course, those skilled in the art can make many changes on the basis of the above-mentioned embodiments without spending creative efforts, and the purpose of the present invention can also be achieved. However, the above-mentioned various changes should obviously be within the protection scope of the claims of the present invention.
