本实用新型公开了一种多功能水箱，属净水处理技术领域，它用不锈钢板或无污染的塑料板焊制一扁长方体的水箱，中间用隔板将其一分为二，隔板的底部安装一个纯净水滤合或净水器过滤芯，净水器过滤芯由粗细管组成，细管部分用安装装置件安装在水箱隔板上和另一侧水箱相通，在水箱底部装有上水管和自动止水阀，自动止水控制水量，水满则闭，止回阀防止水箱内水倒流，水箱另一侧的下端底部安装一个下水管和阀门，用水时打开阀门，洁净水自动流出，水箱的上侧装有安装维修孔，该孔不用时将其盖严，该水箱最上端设有一个水箱安装板，用膨涨螺栓将其固定在墙壁上，它设计科学先进合理，造价低廉，宜推广应用。
The utility model discloses a multifunctional water tank, which belongs to the technical field of water purification treatment. It uses stainless steel plates or non-polluting plastic plates to weld a flat cuboid water tank, which is divided into two by a partition plate. A pure water filter or water purifier filter element is installed at the bottom. The water purifier filter element is composed of thick and thin tubes. Water pipe and automatic water stop valve, automatic water stop to control the water volume, close when the water is full, check valve to prevent backflow of water in the water tank, a downpipe and valve are installed at the bottom of the lower end on the other side of the water tank, open the valve when water is used, and clean water will flow out automatically , the upper side of the water tank is equipped with installation and maintenance holes, the hole is tightly covered when not in use, the uppermost end of the water tank is provided with a water tank installation plate, which is fixed on the wall with expansion bolts, its design is scientific, advanced and reasonable, and the cost is low , should be popularized and applied.
Description
技术领域 technical field
本实用新型涉及一种多功能水箱，具体地说该水箱能自动上水，自动控制水量，能自动对不洁净的水进行科学过滤，能将净化处理后的水自动排出。属净化水处理技术领域。The utility model relates to a multifunctional water tank. Specifically, the water tank can automatically fill water, automatically control water volume, automatically scientifically filter unclean water, and automatically discharge purified water. It belongs to the technical field of purified water treatment.
背景技术 Background technique
目前，公知的饮水和饮食用水，尤其城市郊区和广大农村的水质不佳含有一些不能直接饮用的水，对人体健康和牲畜的肌体有很大的影响。现在一般采用大缸盛水，进行坐沉的方法，就是将准备食用的水放入大缸内，暂时不用等经过一段时间的所谓自然坐沉后，将上面的浮着物，如地下油，黄色污垢物飘泼出缸，将底层坐沉下的一些杂质清除，只饮用水缸中间的一些所谓清水，其实这种传统办法也不科学，只解除一些群众的心疑，很不尽人意。At present, the known drinking water and drinking water, especially the poor water quality in urban suburbs and vast rural areas contain some water that cannot be directly drunk, which has a great impact on human health and the body of livestock. Nowadays, large tanks are generally used to hold water and the method of sinking is to put the water to be eaten into the large tank. For the time being, there is no need to wait for a period of so-called natural sinking, and the floating objects on it, such as underground oil, yellow Dirt is thrown out of the tank to remove some impurities that have sunk at the bottom, and only drink some so-called clear water in the middle of the tank. In fact, this traditional method is not scientific, and it only relieves some people's doubts, which is not satisfactory.
发明内容 Contents of the invention
为了克服上述不足，本实用新型提供一种多功能水箱，它方便实用，能科学地将净不纯净的水进行过滤，将过滤过的水置于水箱另一侧再经过下水口排出，使人和牲畜真正饮用到合乎国家标准的饮用水。In order to overcome the above disadvantages, the utility model provides a multifunctional water tank, which is convenient and practical, and can scientifically filter the clean and impure water, put the filtered water on the other side of the water tank and then discharge it through the water outlet, making people And livestock can really drink drinking water that meets national standards.
本实用新型解决其技术问题所采用的技术方案是：用不锈钢板或无化学污染的塑料板焊制成一扁长方体的水箱体，水箱中间设一隔板将水箱一分为二，在一侧内的底部安装纯净水滤合阀净水器过滤芯，该净水器过滤芯由粗细管组成，将过滤芯细管部分用安装装置安装在水箱隔板上和另一侧水箱相通，将过滤完好的净水通往另一侧水箱内，在水箱安装有净水器过滤芯的一侧底部装有上水管和自动止水阀，自动止水阀控制水流量，止回阀防止水箱内水倒流，当水装满水箱时，自动止水阀自动关闭，在水箱另一侧的下端底部安装一只水管和阀门，用水时打开阀门，洁净水自动流出；该水箱的上侧各设有安装维修孔，该孔不用时将其盖严，以免污尘落入，该水箱最上端设有一个水箱安装板，用澎涨罗栓将其安装固定在墙壁上。The technical solution adopted by the utility model to solve the technical problem is: use stainless steel plates or plastic plates without chemical pollution to weld a flat cuboid water tank, set a partition in the middle of the water tank to divide the water tank into two, Install the pure water filter valve water purifier filter element at the bottom of the side. The filter element of the water purifier is composed of thick and thin tubes. The well-filtered clean water leads to the water tank on the other side. At the bottom of the side of the water tank where the filter element of the water purifier is installed, there is an upper water pipe and an automatic water stop valve. When the water flows backwards, when the water is full of the water tank, the automatic water stop valve is automatically closed. A water pipe and valve are installed at the bottom of the other side of the water tank. When the water is used, the valve is opened, and the clean water flows out automatically; The maintenance hole is installed, and the hole is tightly covered when not in use, so as not to fall into the water tank. The top of the water tank is provided with a water tank mounting plate, which is installed and fixed on the wall with swelling bolts.
附图说明 Description of drawings
下面结合附图和实施例对本实用新型进一步说明Below in conjunction with accompanying drawing and embodiment the utility model is further described

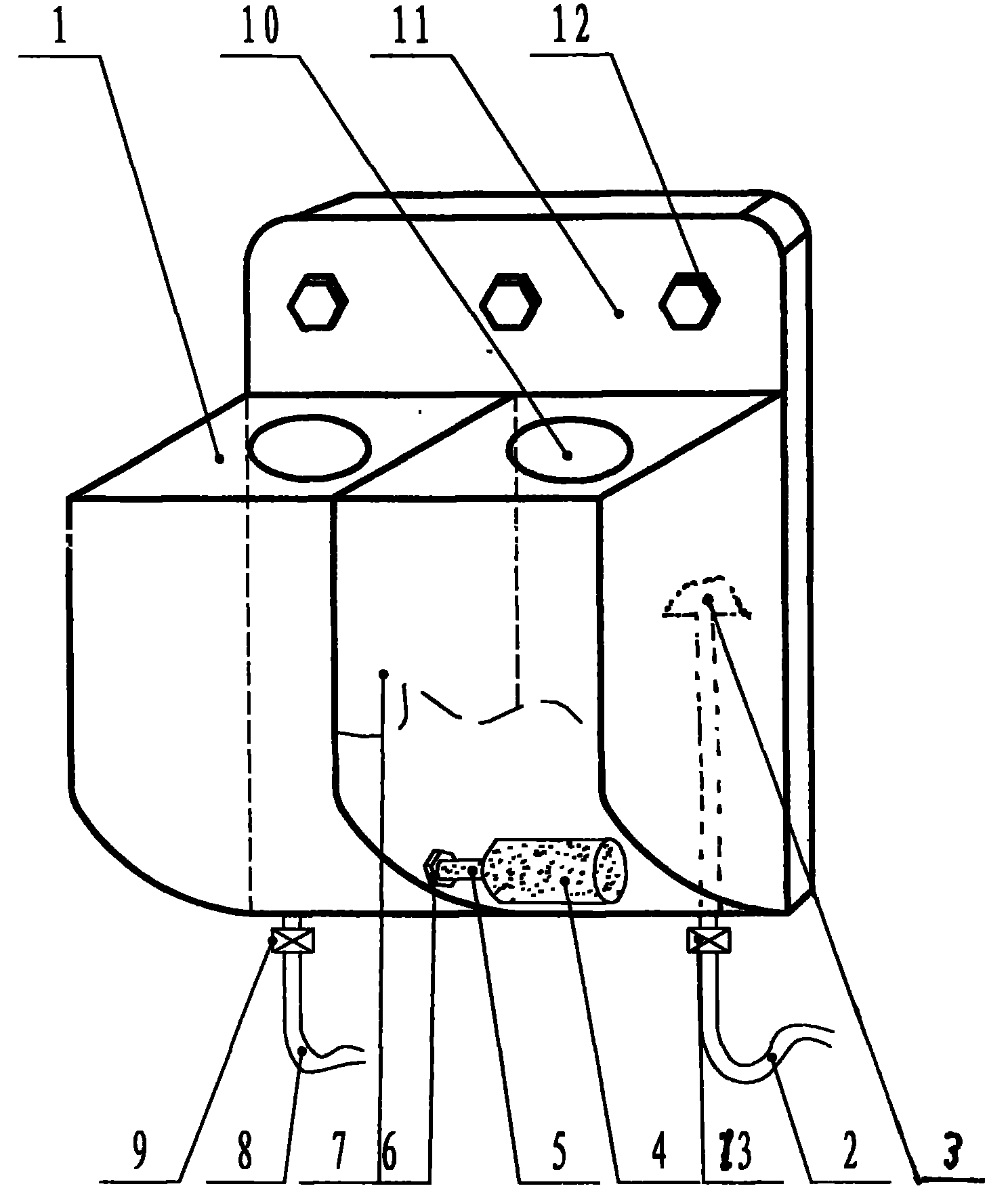

图1、本实用新型立体结构局部剖视图Fig. 1, partial sectional view of the three-dimensional structure of the utility model
图中标号：1、水箱体2、上水管3、自动止水阀4、净水器过滤芯5、净水器过滤芯细水管6、安装装置件7、水箱隔板8、下水管9、阀门10、安装维修孔11、水箱安装板12、彭涨罗栓13、止回阀Labels in the figure: 1, water tank body 2, upper water pipe 3, automatic
具体实施方式 Detailed ways
请参阅图1用不锈钢或无化学污染的塑料板焊制一扁长方体水箱体(1)水箱中间设一水箱隔板(7)使水箱一分为二，在一侧内的底部安装纯净水滤合或一个净水器过滤芯(4)该过滤芯由粗管和细管组成，将过滤完好的纯净水，通往另一侧水箱内，在水箱安装有净水过滤芯的一侧底部装有上水管(2)和自动止水阀。(3)在水装满水箱时，自动止水阀自动关闭，止回阀(13)防止水箱内水倒流，在水箱另一侧目而视的下端底部安装一个下水管(8)和阀门(9)用水时打开阀门(9)水从下水管(8)流出，该水箱的上侧各设有安装维修孔(10)，在安装维修时应用，平时将其盖住，以防污尘落入，该水箱最上端设有一个水箱安装板(11)，用澎涨罗栓(12)将水箱固定在墙壁上。Please refer to Fig. 1 and weld a flat cuboid water tank with stainless steel or plastic plates without chemical pollution Filtration or a water purifier filter element (4) The filter element is composed of a thick tube and a thin tube, and the filtered pure water is passed to the other side of the water tank, where the water purification filter element is installed at the bottom of the side of the water tank An upper water pipe (2) and an automatic water stop valve are installed. (3) when water was full of water tank, automatic water stop valve was closed automatically, and check valve (13) prevented water from flowing backwards in the water tank, and a downpipe (8) and valve (9) were installed at the bottom of the lower end of the other side of the water tank. ) when using water, open the valve (9) and the water flows out from the downpipe (8). The upper side of the water tank is respectively provided with installation and maintenance holes (10), which are used during installation and maintenance, and are usually covered to prevent dirt and dust from falling into the , the water tank top is provided with a water tank mounting plate (11), and the water tank is fixed on the wall with an expansion bolt (12).
