Abstract

The utility model relates to a pen holder capable of correcting the posture of a person holding a pen. noodle. Advantages: not only can effectively correct people's bad pen-holding posture, but also can ensure people's comfortable holding, convenient writing and good effect.

Description

pencil holder

technical field

The utility model relates to a pen holder capable of correcting the posture of a person holding a pen, which belongs to the field of stationery manufacture.

Background technique

CN2895082Y, name "pen holder", the main body is a fist-shaped special-shaped structure, the side of the main body is provided with the little finger grip groove, the ring finger grip groove, the middle finger grip groove that match the shape of the little finger, ring finger, middle finger and index finger belly respectively. Groove and index finger grip groove; on the other side of the body, there is a ring-shaped tiger's mouth groove at the position corresponding to the center of the palm. The shape of the groove matches the shape of the tiger's mouth formed between the index finger and thumb. The top surface is provided with a pen holder groove corresponding to the shape of the pen holder. Its disadvantages: the pen holder is an accessory independent of the pen holder. Although the function of holding the pen is perfect, the diameter of the pen holder is much larger than the diameter of the pen that is usually used by the human hand, so it is very uncomfortable for the human hand to hold the pen , directly affect people's use effect.

Contents of the invention

Design purpose: to avoid the deficiencies in the background technology, to design a pen holder that can not only hold the pen in a correct posture, but also use it comfortably.

Design scheme: In order to achieve the above design purpose. On the basis of the existing penholder, the utility model is provided with a groove for holding the pen with the index finger and a groove for holding the pen with the middle finger at the bottom of the penholder. The purpose of doing like this is: the one, compulsively correct the posture of people holding a pen, can help people to consciously pay attention to the posture of holding a pen, correct incorrect posture of holding a pen in time. Its technical solution: a pen holder, which includes a penholder, the lower part of the penholder is provided with a groove for holding the pen with the index finger and a groove for holding the pen with the middle finger, and the groove for holding the pen with the middle finger and the groove for holding the pen with the index finger are not on the same side.

Compared with the background technology, the utility model can not only effectively correct people's bad pen-holding postures, but also ensure people's comfortable holding, convenient writing and good effect.

Description of drawings

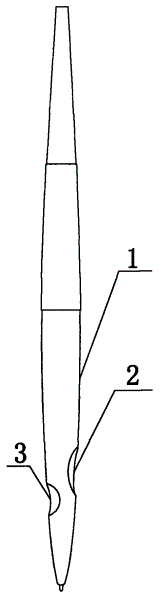

Fig. 1 is a schematic structural view of the pen holder.

Detailed ways

Penholder, it comprises penholder 1, and penholder 1 bottom is provided with index finger penholding groove 3 and middle finger penholding groove 2 and middle finger penholding groove 2 and forefinger penholding groove 3 are not on the same side. Its manufacturing process is with reference to accompanying drawing 1, can be processed and manufactured according to the prior art.

It should be understood that: although the above-mentioned embodiments have described the utility model in more detail, these explanations are only a simple description of the utility model, rather than a limitation of the utility model, and any content that does not exceed the essence of the utility model Inventions and creations all fall within the protection scope of the present utility model.

Claims (1)

1. appliance for holding pen, it comprises penholder, it is characterized in that: the penholder bottom is provided with forefinger groove and middle finger hold a pen groove and the forefinger of groove and middle finger that hold a pen that hold a pen and holds a pen groove not with one side.
