CN201072161Y - Energy-saving gas range - Google Patents

Abstract

The utility model discloses an energy-saving cooker, which comprises a gas stove core, an annular container, a container cover, a faucet, a pot support, a water injection cover and a pot. above the container. When the gas stove core is ignited, the flames radiate, and the flames are repeatedly reflected between the outer surface of the pot and the inner ring surface of the annular container, and the heat energy received by the annular container is used to boil water or cook food, so as to achieve the purpose of comprehensive energy saving.

Description

An energy-saving cooker

【Technical field】

The utility model relates to a gas cooker, in particular to a cooker which can save energy and is beneficial to environmental protection.

【Background technique】

At present, the flame of a general gas stove is emitted from the furnace core and directly heats the bottom of the pot body and the outer surface of the pot body. The flame forms a layer of flame circle on the outer surface of the pot body. Food, but the heat energy of the outer circle of the flame is dissipated in the air, which is not utilized, resulting in waste. Existing several utility model patent technologies relate to gas stove fire-gathering hoods (patent numbers are: 90215121.5; 96202261.6; hood), forcing the outwardly emitted flames to reflect on the pot body, which has a certain energy-saving effect, but the flames that directly hit the fire-gathering hood are not utilized. The flames between the pot body and the fire-gathering hood are reflected repeatedly. In this way, nearly half of the thermal energy is wasted.

【Content of utility model】

In order to effectively utilize the heat energy of the flame outer ring of the gas stove, the utility model provides an energy-saving cooker, which can not only gather fire, but also effectively use the heat energy of the flame outer ring to boil water or cook food.

The technical scheme adopted by the utility model to solve the technical problem is: add an annular container to the outer ring of the gas stove core, and there is a container cover on the annular container, and there are multiple pan supports on the container cover, and the support pan supports pots or other cooking utensils. When cooking food on the gas stove, the flame of the gas stove is repeatedly reflected between the outer surface of the pot and the inner ring surface of the annular container, and the flame continuously heats the inner ring surface of the annular container, and the liquid in the inner cavity of the annular container Heated until boiling, can be used to boil water or cook liquid food, and can also bake food in the ring container.

The beneficial effects of the utility model are: use the flame of the gas stove to boil water or cook food by using the heat energy repeatedly reflected between the outer surface of the pot and the inner ring surface of the annular container, effectively utilizing the wasted outer flame of the gas stove Circle thermal energy, to achieve the purpose of comprehensive energy saving. The gas is fully burned in the process of repeated reflection, which reduces the pollution of the unburned gas to the environment and is conducive to environmental protection.

【Description of drawings】

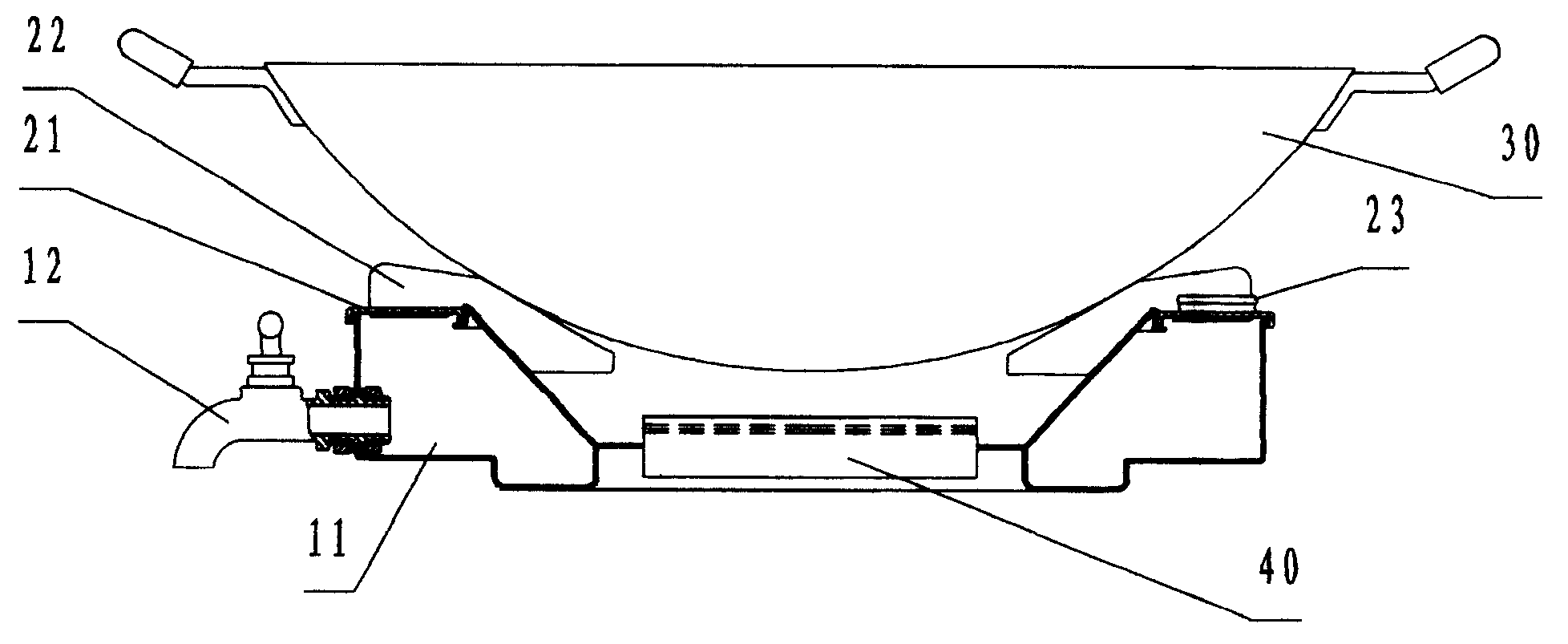

Fig. 1 is a structural representation of the utility model.

Fig. 2 is a top view of the annular container.

Fig. 3 is a cross-sectional view along line A-A of Fig. 2 .

Fig. 4 is a top view of the container cover (the state of covering the water filling cap).

Fig. 5 is a B-B sectional view of Fig. 4 .

Fig. 6 is a top view of the container cover (the water filling cover is opened).

Fig. 7 is a C-C sectional view of Fig. 6 .

【Detailed ways】

As shown in Figure 1, the utility model comprises a gas stove furnace core (40), an annular container (11), a faucet (12), a container cover (21), a pot support (22), a water injection cover (23) and a pot ( 30). There is a circular positioning boss (or concave step) below the annular container (11), which is installed on the stove top, the gas stove core (40) is in the inner ring of the annular container (11), and the container cover (21) is placed on the annular container (11), and there are a plurality of pot supports (22) on the container cover (21), and pot (30) and other cooking utensils are placed on the support pot supports (22).

When the gas stove core (40) is ignited, the flames are radiating, and the flames are repeatedly reflected between the outer surface of the pot (30) and the inner ring surface of the annular container (11), and the heat energy reflected on the annular container (11) is used to burn. Boiling water or cooking food.

For the convenience of water discharge, a water tap (12) is installed on the annular container (11), as shown in Figure 1, Figure 2 and Figure 3, the water tap (12) is to be fastened on the annular container (11) with a nut (13) In order to prevent water leakage, a sealing gasket (14) is added between the nut (13) and the annular container (11). Another connection method between the water tap (12) and the annular container main body (11) is riveting or welding.

For the convenience of adding water to the annular container (11), a water injection port is designed on the container cover (21), and a water injection cover (23) and a small shaft (24) are installed on the water injection port, as shown in Fig. 4, Fig. 5 and Fig. 6 and shown in Figure 7, the water injection cover (23) can rotate around the small shaft (24) flexibly, and the water injection cover (24) can be opened and covered very easily.

As shown in Fig. 1, Fig. 4, Fig. 5 and Fig. 6, a plurality of pot supports (22) are installed on the container cover (21), for supporting pots (30) or other cooking utensils. The pot support (22) and the container cover (21) can be riveted or welded.

Claims (6)

1. An energy-saving cooker, comprising a gas stove core, an annular container, a container cover, a pot support, a water tap, a water injection cover and a pot, is characterized in that: the annular container is installed on the outer ring of the gas stove core, and the pot is placed above the ring container. 2. The energy-saving cooker according to claim 1, characterized in that: a water faucet is installed on the annular container. 3. The energy-saving cooker according to claim 1, wherein the annular container is installed on the gas cooker top, and there is a positioning boss at the junction with the gas cooker top. 4. An energy-saving cooker according to claim 1, characterized in that: the annular container has a container cover. 5. An energy-saving cooker according to claim 4, characterized in that: there are multiple pot supports on the container cover. 6. An energy-saving cooker according to claim 4, characterized in that: the container cover has a water injection port and a water injection cover, and the water injection cover can be flexibly opened and closed.
