一种可移动的烟尘收集、过滤、自动清灰和集尘斗结合一体的除尘器装置。本装置由风机、电磁脉冲阀、脉冲喷吹控制仪、滤筒、集尘斗、全系统密封系统、电子自动控制、吊耳和脚轮系统组成。
The utility model relates to a dust collector device which combines movable dust collection, filtering, automatic dust cleaning and dust collecting hopper. The device is composed of fan, electromagnetic pulse valve, pulse injection controller, filter cartridge, dust collecting hopper, whole system sealing system, electronic automatic control, lifting lug and caster system.
Description
【技术领域】 【Technical field】
本实用新型涉及一种收集气体烟尘的移动式组合滤筒除尘器。The utility model relates to a mobile combined filter cartridge dust collector for collecting gas smoke.
【背景技术】 【Background technique】
随着工业的进程，机械加工、焊接，工件打磨等行业日益发展。其工业生产的大量粉尘随着排放气流进入大气，严重危害人类的工作和生活环境，因此一些相应的法律、法规陆续出台以保护人类的工作和生活环境。目前各类除尘装置多采用固定式布袋或者滤筒对烟尘进行过滤，再用人工清除吸附在布袋或者滤筒灰尘。这类除尘装置体积庞大，工作对象单一。另外由于采用人工清灰，加大了工作量，若不及时清灰，吸附在布袋或者滤筒灰尘过多，导致除尘器工作效率的下降。With the progress of industry, industries such as machining, welding, and workpiece grinding are developing day by day. A large amount of dust from its industrial production enters the atmosphere along with the exhaust airflow, which seriously endangers the working and living environment of human beings. Therefore, some corresponding laws and regulations have been promulgated to protect the working and living environment of human beings. At present, various dust removal devices mostly use fixed cloth bags or filter cartridges to filter the smoke and dust, and then manually remove the dust adsorbed on the cloth bags or filter cartridges. This type of dust removal device is bulky and has a single working object. In addition, due to the use of manual dust removal, the workload is increased. If the dust is not cleaned in time, there will be too much dust adsorbed on the bag or filter cartridge, resulting in a decrease in the efficiency of the dust collector.
【实用新型内容】【Content of utility model】
本实用新型要解决的技术问题是克服当前产品存在的缺陷，提供一种可移动的烟尘收集、过滤、自动清灰和集尘斗结合一体的除尘器装置。The technical problem to be solved by the utility model is to overcome the defects existing in the current products, and provide a dust collector device integrating movable dust collection, filtering, automatic dust cleaning and dust collecting hopper.
本装置由风机、电磁脉冲阀、脉冲反吹控制仪、滤筒、集尘斗、全系统密封系统、电子自动控制、吊耳和脚轮系统组成。This device is composed of fan, electromagnetic pulse valve, pulse blowback controller, filter cartridge, dust collecting hopper, whole system sealing system, electronic automatic control, lifting lug and caster system.
移动式组合滤筒除尘器顶部至底部依次安装有风机、脉冲反吹清灰装置、滤筒和集尘斗。由于风机的作用除尘器内产生气压差。含尘空气从入口接管内被除尘内，受气压差作用，含尘空气通过滤筒壁进入滤筒中空部分，通过滤筒壁过程中，由于滤筒壁采用了复合滤材径向铺叠成无数褶，含尘空气中尘粒被挡在滤筒壁外，进入滤筒中空部分则为清洁空气。净化后的气体由上端的出口排放。From the top to the bottom of the mobile combined filter cartridge dust collector, a fan, a pulse back-blowing dust cleaning device, a filter cartridge and a dust collecting hopper are installed in sequence. Due to the action of the fan, there is an air pressure difference in the dust collector. The dust-laden air enters the dust-removing chamber from the inlet connection pipe. Due to the pressure difference, the dust-laden air enters the hollow part of the filter cartridge through the wall of the filter cartridge. Numerous pleats, the dust particles in the dusty air are blocked outside the wall of the filter cartridge, and the clean air enters the hollow part of the filter cartridge. The purified gas is discharged from the upper outlet.
当滤筒中滤材表面积灰增多需要清灰时，定时或定压差的电磁脉冲阀及脉冲反吹控制仪对滤筒进行清灰操作，高压空气反向冲入相应的滤筒，将吸附在滤材上的粉尘吹净，粉尘在重力的作用下落入集尘斗中。When the dust on the surface of the filter material in the filter cartridge increases and needs to be cleaned, the electromagnetic pulse valve with a fixed time or constant pressure difference and the pulse blowback controller will clean the filter cartridge, and the high-pressure air will reversely rush into the corresponding filter cartridge, and the adsorbed The dust on the filter material is blown off, and the dust falls into the dust hopper under the action of gravity.
滤筒：由于滤筒结构采用复合滤材径向铺叠成无数阔褶组成的中空长圆筒，因而圆筒的过滤面积与它的体积之比很大，是布袋除尘器的30倍左右，故使用滤筒除尘器，结构更加紧凑，大大减少除尘器的占地面积和钢材消耗量。Filter cartridge: Since the filter cartridge structure adopts composite filter material radially stacked into a hollow long cylinder composed of numerous wide pleats, the ratio of the filtering area of the cylinder to its volume is very large, which is about 30 times that of the bag filter. Using the filter cartridge dust collector, the structure is more compact, which greatly reduces the floor space and steel consumption of the dust collector.
压差自动控制仪：易于了解粉尘积聚情况，把清灰时间。超过压差设定值时，自动进行气动脉冲，延长滤筒寿命，节省压缩空气消耗量。Automatic pressure difference controller: easy to understand the dust accumulation situation, and reduce the cleaning time. When the pressure difference setting value is exceeded, the pneumatic pulse is automatically performed to prolong the life of the filter cartridge and save compressed air consumption.
除尘器侧面有两个进气孔可同时对两个工位进行吸尘作业。There are two air inlet holes on the side of the dust collector, which can carry out dust suction on two working stations at the same time.
本装置体积小且安装有脚轮，因此可以很容易地将除尘器移动到需要除尘的场所。The device is small in size and equipped with casters, so the dust collector can be easily moved to the place where dust removal is required.
本实用新型的有益效果是，可用于高含尘浓度的气体处理，对于0.5μ的粉尘颗粒除尘效率可达99.99％，实现近于零排放，因此可以将本除尘器安置在室内。The beneficial effect of the utility model is that it can be used for gas treatment with high dust concentration, and the dust removal efficiency for 0.5μ dust particles can reach 99.99%, realizing near zero emission, so the dust collector can be placed indoors.
【附图说明】 【Description of drawings】
下面结合附图和实施例对本实用新型进一步说明。Below in conjunction with accompanying drawing and embodiment the utility model is further described.

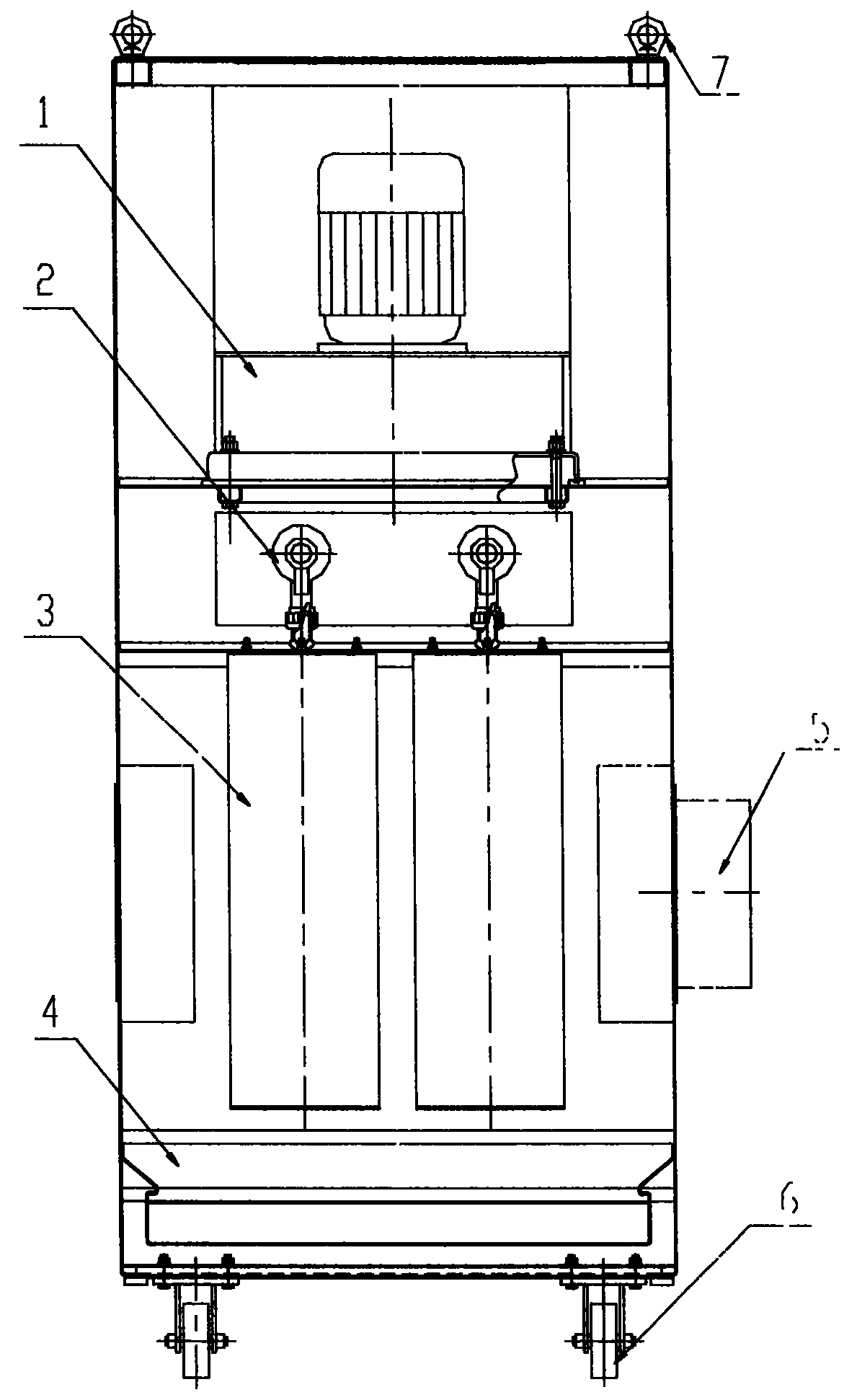

附图是移动式组合滤筒除尘器剖面构造图。The accompanying drawing is a cross-sectional structure diagram of the mobile combined filter cartridge dust collector.
图中1.风机 2.脉冲喷吹控制仪、电磁脉冲阀 3.滤筒 4.集尘斗 5.含尘空气入口 6.脚轮 7.吊耳In the figure 1.
【具体实施方式】 【Detailed ways】
除尘器顶部的风机(1)启动，除尘器内部产生气压差。含尘空气从入口(5)接管内被吸入，受气压差作用，含尘空气通过滤筒(3)壁进入滤筒中空部分，通过滤筒壁过程中，由于滤筒壁采用了复合滤材径向铺叠成无数褶，含尘空气中尘粒被挡在滤筒壁外，进入滤筒中空部分则为清洁空气。净化后的气体由上端的出口排放。The fan (1) on the top of the dust collector is started, and a pressure difference is generated inside the dust collector. Dust-laden air is sucked from the inlet (5) into the nozzle, and affected by the pressure difference, the dust-laden air enters the hollow part of the filter cartridge through the wall of the filter cartridge (3). The radial layer is stacked into numerous pleats, and the dust particles in the dusty air are blocked from the wall of the filter cartridge, and the clean air enters the hollow part of the filter cartridge. The purified gas is discharged from the upper outlet.
当滤筒中滤材表面积灰增多需要清灰时，定时或定压差的电磁脉冲阀及脉冲反吹控制仪对滤筒进行清灰操作，高压空气反向冲入相应的滤筒，将吸附在滤材上的粉尘吹净，粉尘在重力的作用下落入集尘斗(4)中。When the dust on the surface of the filter material in the filter cartridge increases and needs to be cleaned, the electromagnetic pulse valve with a fixed time or constant pressure difference and the pulse blowback controller will clean the filter cartridge, and the high-pressure air will reversely rush into the corresponding filter cartridge, and the adsorbed The dust on the filter material is blown off, and the dust falls into the dust collecting hopper (4) under the action of gravity.
本装置安装有脚轮(6)和吊耳(7)，通过推动或吊装除尘器。The device is equipped with casters (6) and lifting lugs (7), by pushing or hoisting the dust collector.
