CN201067228Y - Soft quality enchased bamboo mat - Google Patents
Soft quality enchased bamboo mat Download PDFInfo
- Publication number
- CN201067228Y CN201067228Y CNU2007201109632U CN200720110963U CN201067228Y CN 201067228 Y CN201067228 Y CN 201067228Y CN U2007201109632 U CNU2007201109632 U CN U2007201109632U CN 200720110963 U CN200720110963 U CN 200720110963U CN 201067228 Y CN201067228 Y CN 201067228Y
- Authority
- CN
- China
- Prior art keywords
- bamboo
- bamboo mat
- soft
- fringing
- mat
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 235000017166 Bambusa arundinacea Nutrition 0.000 title claims abstract description 93
- 235000017491 Bambusa tulda Nutrition 0.000 title claims abstract description 93
- 241001330002 Bambuseae Species 0.000 title claims abstract description 93
- 235000015334 Phyllostachys viridis Nutrition 0.000 title claims abstract description 93
- 239000011425 bamboo Substances 0.000 title claims abstract description 93
- 239000004744 fabric Substances 0.000 claims abstract description 11
- 239000000463 material Substances 0.000 claims description 6
- 238000009954 braiding Methods 0.000 claims description 4
- 230000003068 static effect Effects 0.000 claims description 3
- 238000007688 edging Methods 0.000 abstract 6
- 239000004753 textile Substances 0.000 description 4
- 102100040428 Chitobiosyldiphosphodolichol beta-mannosyltransferase Human genes 0.000 description 3
- 239000007779 soft material Substances 0.000 description 2
- 244000025254 Cannabis sativa Species 0.000 description 1
- 231100000252 nontoxic Toxicity 0.000 description 1
- 230000003000 nontoxic effect Effects 0.000 description 1
- 238000009966 trimming Methods 0.000 description 1
Images
Landscapes
- Mattresses And Other Support Structures For Chairs And Beds (AREA)
Abstract
The utility model relates to a soft edging bamboo mat. Bamboo sheets are made of bamboo or the bamboo mat is knitted by bamboo filament. The bamboo mat is provided with fixed lines, the bottom surface of the bamboo mat is provided with interlining, and the bamboo mat is characterized in that the brim of the bamboo mat is provided with soft edging. The soft (being mainly made of various fabrics) edging added on the bamboo mat of the utility model generates the effects that: firstly, the soft edging is matched with a bed and has few valances covering the edge of the bed, thus having beautiful exterior; secondly, when sitting at the edge of the bed and touch the soft edging, human can feel comfortable without feeling hard matter; thirdly, the soft edging can avoid hard corners to stab the human body or clothes.
Description
Technical field
The utility model relates to bamboo mat, particularly relates to the fringing bamboo mat that studs with soft materials such as textile at the edge of bamboo mat, belongs to bedding.
Background technology
Make the bamboo mat of bamboo chip or the braiding of bamboo silk by bamboo, pleasantlyer cool with the human body contact gear ratio, it is harmless to take from Nantural non-toxic because of bamboo mat again, so summer, a lot of people liked sleeping on bamboo mat.Though bamboo mat is very flat very, and is harder, but people are usual, especially get up before sleep or just, often sit at bedside (edge of bed), can feel obviously that there is corner at the bamboo mat edge.Though bamboo mat is formulated size according to bedside on the other hand, always have extension limit in a small amount (because mat one narrow bedside will be exposed plain), if be seated or run into more uncomfortable.
Summary of the invention
The purpose of this utility model is in order to overcome the shortcoming that prior art exists, to provide a kind of edge at bamboo mat that soft materials such as textile are arranged, and it is comfortable that the people is seated at bedside, and bamboo mat and the docile soft fringing bamboo mat of edge of bed.
The technical scheme of the soft fringing bamboo mat of the utility model is: the bamboo mat of bamboo chip of making by bamboo or the braiding of bamboo silk, static line is arranged between bamboo mat, and in the bottom surface of bamboo mat lining cloth is arranged, it is characterized in that there is soft fringing at the edge of bamboo mat.
Soft fringing bamboo mat of the present utility model has had soft (mainly making with various clothes) fringing at the edge of bamboo mat, and the one, soft fringing is docile with bed, and can have a little to hang the limit, hides edge of bed, and is aesthetic in appearance.The 2nd, when being sitting in bedside, human body contacts with soft fringing, and it is comfortable to be seated, and has avoided hard thing sense.The 3rd, soft fringing can avoid the hard angle of bamboo mat to bump thorn human body or clothes.
Soft fringing bamboo mat of the present utility model, its described soft fringing is the both sides at bamboo mat, outside soft fringing edge-covering cloth is arranged, the both sides of the edge of general seat sit for the people or a little hangs over bedside, cover edge of bed.The width S of its described soft fringing is the 30-100 millimeter.Its described soft trimming material is to spin cloth or nonwoven.The material of edge cloth comprises various textile cloths or suede nap or woolen material etc.It is the wide cut patch of 50-250 millimeter that width L is arranged above the bamboo mat that its bamboo mat is, has had the wide cut patch to increase the attractive in appearance of seat, generally is placed on of pin.Its described bamboo mat can be bamboo bed-mat for summer or bamboo silk seat or bamboo chip bamboo silk shuffling seat, and four jiaos of seat is corner or fillet.Its described bamboo mat is the folding seat that whole piece seat or two and half bar seats link to each other on width.
Description of drawings
Fig. 1 is the soft fringing bamboo mat of a utility model structural representation;

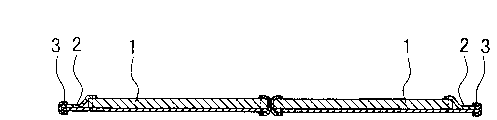

Fig. 2 is the soft fringing bamboo mat of a utility model A-A schematic cross-section.
The specific embodiment
The utility model relates to soft fringing bamboo mat, and as shown in Figure 1 and Figure 2, the bamboo mat of bamboo chip of being made by bamboo or the braiding of bamboo silk has static line between bamboo mat, in the bottom surface of bamboo mat lining cloth is arranged, and it is characterized in that there is soft fringing 2 at the edge of bamboo mat 1.This programme has had soft (mainly making with various clothes) fringing 2, one at the edge of bamboo mat 1, soft fringing 2 is docile with bed, and can have a little to hang the limit, hides edge of bed, and is aesthetic in appearance.The 2nd, when being sitting in bedside, human body contacts with soft fringing 2, and it is comfortable to be seated, and has avoided hard thing sense.The 3rd, soft fringing 2 can avoid the hard angle of bamboo mat to bump thorn human body or clothes.Its described soft fringing 2 is the both sides at bamboo mat, outside soft fringing 2 edge-covering cloth 3 is arranged, and the both sides of the edge of seat sit for the people or a little hangs over bedside, cover edge of bed.The width S of its described soft fringing 2 can be the 30-100 millimeter.Its described soft fringing 2 materials can be to spin various textile cloths such as cloth or nonwoven, comprise suede nap or woolen material etc.It is the wide cut patch 4 of 50-250 millimeter that width L is arranged above the bamboo mat 1 that its bamboo mat is, has had the wide cut patch to increase the attractive in appearance of seat, and patch 4 generally is placed on of pin.Its described bamboo mat can be bamboo bed-mat for summer or bamboo silk seat or bamboo chip bamboo silk shuffling seat, and four jiaos of seat is corner or fillet.Its described bamboo mat is the folding seat that whole piece seat (width is a bamboo) or two and half bar seats link to each other on width.In actual product, this soft fringing also is applicable to the tatami rush that the seat grass is made etc.
Claims (7)
1. soft fringing bamboo mat, the bamboo mat of bamboo chip of being made by bamboo or the braiding of bamboo silk has static line between bamboo mat, in the bottom surface of bamboo mat lining cloth is arranged, and it is characterized in that there is soft fringing (2) at the edge of bamboo mat (1).
2. soft fringing bamboo mat as claimed in claim 1 is characterized in that described soft fringing (2) is the both sides at bamboo mat, has edge-covering cloth (3) outside soft fringing (2).
3. soft fringing bamboo mat as claimed in claim 1 or 2 is characterized in that the width (S) of described soft fringing (2) is the 30-100 millimeter.
4. soft fringing bamboo mat as claimed in claim 3 is characterized in that described soft fringing (2) material is to spin cloth or nonwoven.
5. soft fringing bamboo mat as claimed in claim 1 is characterized in that having width (L) to be the wide cut patch (4) of 50-250 millimeter above the bamboo mat (1) of one of bamboo mat.
6. soft fringing bamboo mat as claimed in claim 1 is characterized in that described bamboo mat is bamboo bed-mat for summer or bamboo silk seat or bamboo chip bamboo silk shuffling seat, and four jiaos of seat is corner or fillet.
7. soft fringing bamboo mat as claimed in claim 1 is characterized in that described bamboo mat is the folding seat that whole piece seat or two and half bar seats link to each other on width.
