CN201066527Y - Handwriting distance and time prompter

Info

Publication number: CN201066527Y
Application number: CNU2007200720402U
Authority: CN
Inventors: 范舒云
Original assignee: Kongjiang Ercun Primary School Shanghai Branch
Current assignee: Kongjiang Ercun Primary School Shanghai Branch
Priority date: 2007-06-29
Filing date: 2007-06-29
Publication date: 2008-05-28
Anticipated expiration: 2017-06-29

Abstract

The utility model discloses a prompter for writing distance and time, which is characterized in that it comprises a plastic shell on which a control switch and a photosensitive resistor are arranged; Inside the housing the timer and buzzer circuits are connected. When in use, the device can be placed on the writing desk in front of the writer's chest after the switch is pressed, and can also be hung on a computer screen facing the writer's face. When the writer's face is less than one foot away from the book or the screen, the photoresistor in the prompter will start the buzzer to give a "beep beep" warning sound; when the writer uses his eyes for more than a certain time, the timer will also drive The buzzer emits a "woo hoo hoo" sound.

Description

Writing distance and time reminder

技术领域： Technical field:

本实用新型涉及一种保健装置，特别涉及一种书写距离和时间提示器。The utility model relates to a health care device, in particular to a writing distance and time prompter.

背景技术： Background technique:

如今的学生由于学业负担沉重，用眼过度；另有一部分同学是由于用眼不卫生；还有不少同学是因为用眼习惯不良，喜欢长时间地把脸凑在离书或作业本很近的地方读书或做作业，久而久之，眼睛长期疲劳而得不到休息，结果就会影响视力。所以，我们设计了能够有效地提醒书写者保持良好的用眼习惯的保健仪器。Due to the heavy academic burden, today's students use their eyes excessively; some students use their eyes unhygienically; many students have poor eye habits and like to keep their faces close to books or homework for a long time Reading or doing homework in a place where the eyes are tired for a long time without rest, as a result, vision will be affected. Therefore, we have designed a health care device that can effectively remind writers to maintain good eye habits.

实用新型内容：Utility model content:

本实用新型的目的是提供一种书写距离和时间提示器。The purpose of the utility model is to provide a writing distance and time prompter.

根据上述目的，其技术方案如下：According to above-mentioned purpose, its technical scheme is as follows:

书写距离和时间提示器，其特征在于，包括塑料外壳，塑料外壳上设有控制开关开关和光敏电阻；外壳内设有的控制电路与光敏电阻、控制开关以及同样安置在外壳内的定时器和蜂鸣器电路连接。The writing distance and time prompter is characterized in that it comprises a plastic shell, and the plastic shell is provided with a control switch switch and a photoresistor; the control circuit, the photoresistor, the control switch and the timer and the timer that are also arranged in the shell are arranged in the shell Buzzer circuit connection.

本实用新型的有益效果为：The beneficial effects of the utility model are:

1.提醒中小学生保持良好的用眼习惯，避免眼睛与书籍或练习本距离过近。1. Remind primary and middle school students to maintain good eye habits and avoid getting too close to books or exercise books.

2.提醒文字工作者(教师、编辑、作家、记者，等等)避免长时间的用眼而造成的视力严重下降。2. Remind writers (teachers, editors, writers, reporters, etc.) to avoid severe vision loss caused by prolonged eye use.

3.当书写者距离书本或屏幕过近，提示仪就会发出声音。3. When the writer is too close to the book or the screen, the prompter will make a sound.

4.提示仪装有定时装置，到时就会提醒书写者，从而避免长时间的使用眼睛4. The prompter is equipped with a timing device, which will remind the writer when the time comes, so as to avoid using the eyes for a long time

5.提示仪可以平放于桌上，也可以悬挂或吸附于电脑屏幕一角。5. The prompter can be placed flat on the table, or hung or attached to the corner of the computer screen.

附图说明： Description of drawings:

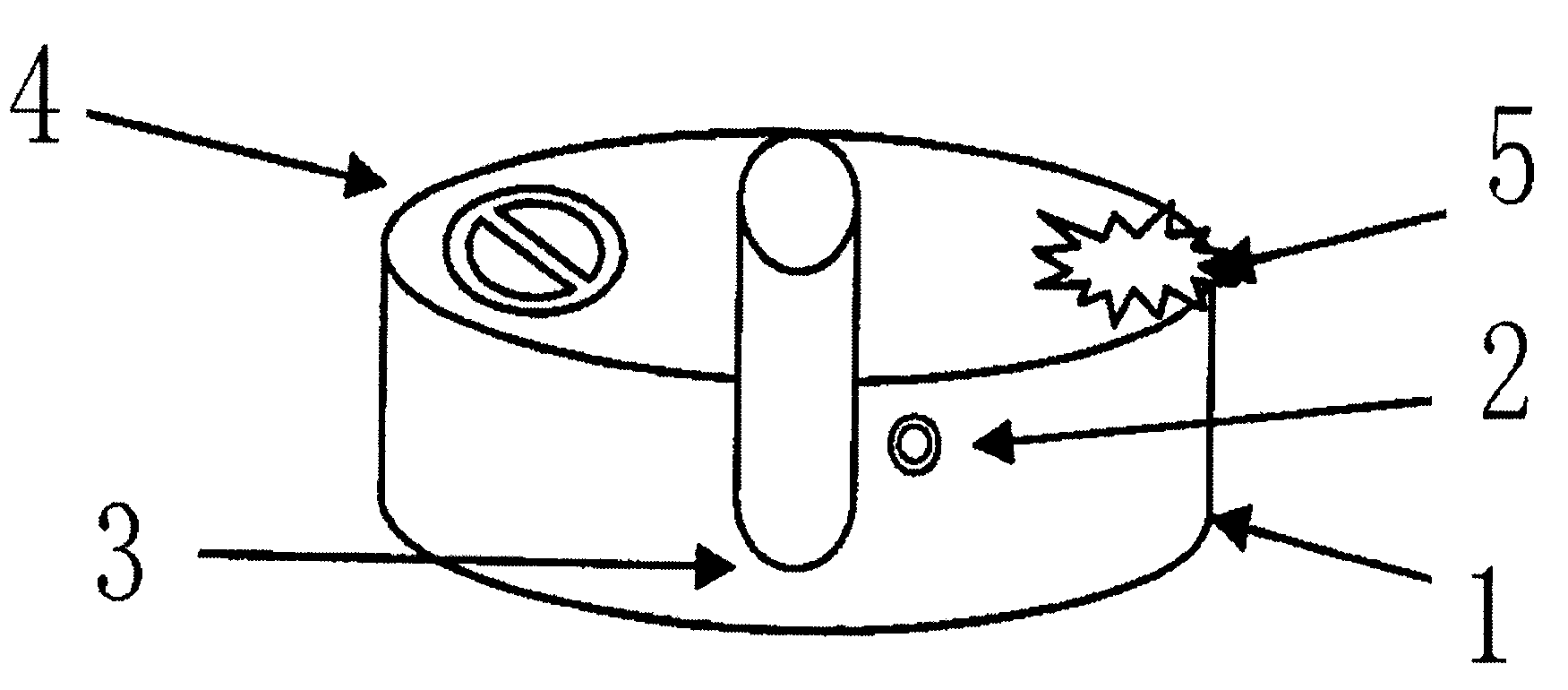

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.

具体实施方式： Detailed ways:

下面结合附图进一步说明本实用新型。Further illustrate the utility model below in conjunction with accompanying drawing.

参见图1，本实用新型所述的书写距离和时间提示器，其特征在于，包括塑料外壳1，塑料外壳上设有控制开关开关2和光敏电阻3；外壳内设有的控制电路(现有技术)与光敏电阻2、控制开关3以及同样安置在外壳内的定时器4和蜂鸣器5电路连接。Referring to Fig. 1, writing distance described in the utility model and time prompter are characterized in that, comprise plastic shell 1, are provided with control switch switch 2 and photoresistor 3 on the plastic shell; Technology) is connected with the photoresistor 2, the control switch 3 and the timer 4 and the buzzer 5 circuits that are also arranged in the shell.

使用时，该装置按下开关后可以放在书写者胸前的写学桌上，也可以挂在与书写者脸部正对着的电脑屏幕上。当书写者的脸距离书本或屏幕不足一尺时，提示仪中的光敏电阻就会启动蜂鸣器发出“嘟嘟嘟”的警示声；当书写者用眼超过一定时间(比如1小时或半小时，可调整)，定时器也会带动蜂鸣器发出“呜呜呜”的提示音。When in use, the device can be placed on the writing desk in front of the writer's chest after the switch is pressed, and can also be hung on a computer screen facing the writer's face. When the writer's face is less than one foot away from the book or screen, the photoresistor in the prompter will start the buzzer to give a "beep beep" warning sound; Hours, adjustable), the timer will also drive the buzzer to make a "woo hoo hoo" sound.

以上显示和描述了本实用新型的基本原理和主要特征和本实用新型的优点。本行业的技术人员应该了解，本实用新型不受上述实施例的限制，上述实施例和说明书中描述的只是说明本实用新型的原理，在不脱离本实用新型精神和范围的前提下，本实用新型还会有各种变化和改进，这些变化和改进都落入要求保护的本实用新型范围内。本实用新型要求保护范围由所附的权利要求书及其等效物界定。The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the art should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims

1. Writing distance and time prompting device is characterized in that, comprise plastic casing, and plastic casing is provided with gauge tap switch and photoresistance; The control circuit that is provided with in the shell is connected with buzzer circuit with photoresistance, gauge tap and the same timer in the enclosure of settling.
