CN201062743Y

CN201062743Y - Dual-purpose mirror lamp of wall table

Info

Publication number: CN201062743Y
Application number: CNU2007200506945U
Authority: CN
Inventors: 林世铭
Original assignee: Individual
Current assignee: Individual
Priority date: 2007-04-25
Filing date: 2007-04-25
Publication date: 2008-05-21
Anticipated expiration: 2017-04-25

Abstract

The utility model discloses a dual-purpose mirror lamp for a wall or table, which comprises a mirror lamp, a hanging plate and a wall plate. The mirror lamp is provided with a concave mirror and a reflector. An LED lamp is placed in the reflector for use as a dressing table and lighting. The hanging plate is fixed to the lower part of the base of the mirror lamp by a plate-head screw. The plate-head holes and the hanging holes of the hanging plate correspond to the plate-head convex columns and the convex blocks on the wall plate respectively. Then, by pulling the design of a movable arm, the entire mirror frame can be attached to the wall for use as a wall lamp, and the mirror lamp can also be removed from the wall and placed on a table for use as a table lamp.

Description

The dual-purpose mirror lamp of a kind of wall table

Technical field

The utility model relates to the dual-purpose mirror lamp of wall table, especially refer to a kind of convenient, flexible, practical, utilization is complete automatic control switch extensively, can apply to mini light night, dressing is controlled with the mirror light fixture of different variations such as mirror lamp and desk lamp, combine with link plate with the mirror lamp, adhere on the design on the wallboard together, can fix with countersunk head cap screw by this link plate and border lamp base, and the ware head hole of this link plate, hanging hole is respectively to the ware head projection on should wallboard, projection is fitted, at last again to pull lever arm, use whole cell mount is pasted obey in the fooled wall lamp of wall, also the mirror lamp can be unloaded from wall, be placed in the desk desk lamp of being taken in and used, and have the function of wall table dual purpose.

Background technology

The fast development of science and technology, ordering about the mankind has had better quality of life, but in order to promote human lives's quality more, how to use simple and convenient, but mode structure and improvement that effect is distinguished, fractal key more for the good and associated safety of the lifting of technology, product ensures.

Antique traditional furniture is many and numerous and diverse, need a desk lamp, a cosmetic mirror, sometimes also need mini light night with convenient use of going to toilet as getting up evening, so, so many furniture but is a kind of burden, pecuniary burden, the space is not applied use and has been formed a very big burden yet, furniture can not find too much, take time that to go for also be temporal burden, moreover, thing is placed on the ground in a jumble, is easy to start the human action or bump against when using furniture or run into and injured of getting married, and promptly has the furniture a pile that need use in vain and also can't reach requirement on the practicality.

Therefore, how reducing the quantity of furniture, a variety of needs are turned to single structure, that is to say the same various furniture purposes of thing tool, promptly is problem to be solved.

The utility model content

At the above-mentioned defective of prior art, the utility model provides a kind of wall table dual-purpose mirror lamp, and its main purpose is, effectively avoids the too much shortcoming of light fixture, reduces habit person's light fixture and changes the shortcoming of purposes inconvenience and dark tool practicality; And then reach tool efficient height, repacking is convenient and practical multi-purpose lamp.

Another purpose of the present utility model is, when assembling is finished on the wall lamp structure, also has the function of dressing glass, not only has a purposes more than the lamp, purposes more than furniture uses especially.

For reaching above-mentioned and other purpose, this creates the dual-purpose mirror lamp of a kind of wall table, be applicable to that mini light night, dressing control with the mirror light fixture of different variations such as mirror lamp and desk lamp, this mirror light fixture comprises a mirror lamp at least, this mirror lamp has been purchased a concave mirror and reflection shield, insert the LED lamp in this reflection shield, to use as dressing and illumination; One link plate, this link plate are fixedly arranged in the base bottom of mirror lamp with countersunk head cap screw; One wallboard, this wallboard are followed closely awl with awl and are gone in the wall awl of wall to be fixed on the wall.

The picture frame below of this mirror lamp is connected with a lever arm, lever arm combines with base with movable pivot button again, make light fixture finish one, but and this lever arm can have the moving function that changes relevant position of rotate of plate by movable pivot button, to drive this picture frame change relevant position to fit on the wall.

The ware head hole of this link plate, hanging hole be respectively to ware head projection, projection on should wallboard, just when this link plate is desired to combine with wallboard, needs only ware head projection, projection are inserted ware head hole, hanging hole respectively and mistake, be i.e. the effect that combines of this link plate of tool and wallboard.

In addition, this creation can plug together ware head projection, projection on should wallboard respectively mutually by the ware head hole of this link plate, hanging hole, make this link plate and wallboard and with base that this link plate combines on the lever arm that is connected with and the design of becoming one in picture frame, cooperate again and pull the lever arm rotation, order about whole cell mount paste obey on wall and be used as wall lamp, mini light night uses, the collocation concave mirror more can be used for dressing etc., on the other hand, this creation also can be unloaded the mirror lamp down from wall, be placed in the desk desk lamp of being taken in again and used, and have the function of wall table dual purpose.

Description of drawings

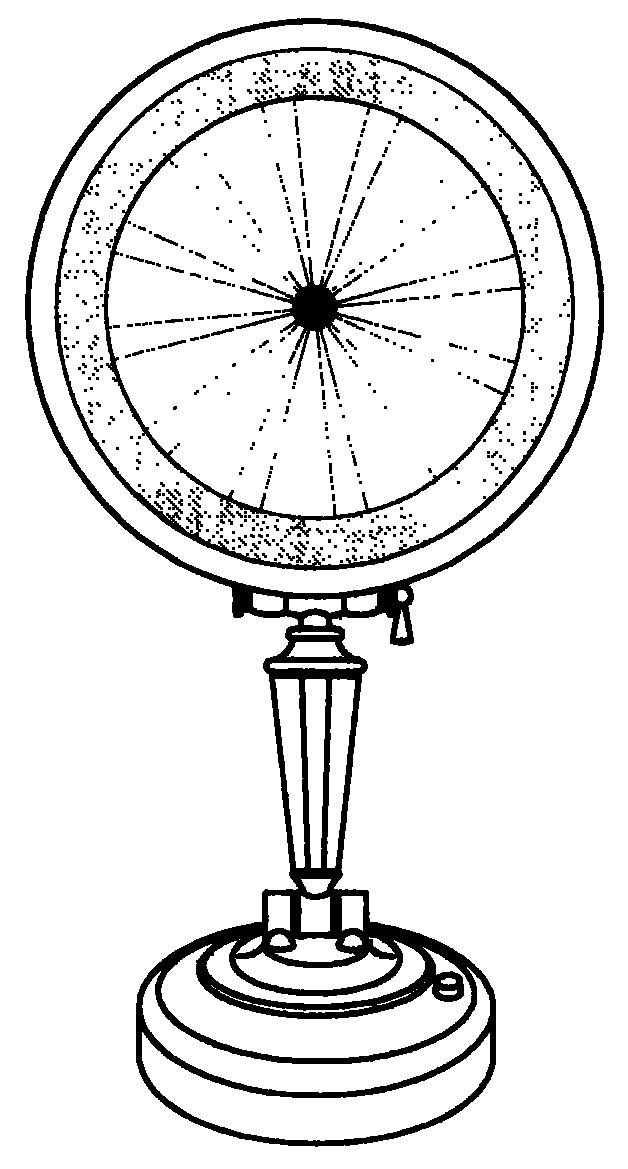

Fig. 1 is the stereogram of the dual-purpose mirror lamp of wall table;

Fig. 2 is the decomposing schematic representation of the dual-purpose mirror lamp of wall table;

Fig. 3 is the cutaway view of the dual-purpose mirror lamp of wall table;

Fig. 4 is the enforcement figure that the fooled wall lamp of wall is used that hangs over of the dual-purpose mirror lamp of wall table;

Fig. 5 is another visual angle enforcement figure that the fooled wall lamp of wall is used that hangs over of the dual-purpose mirror lamp of wall table;

Fig. 6 is the enforcement figure that being placed on of the dual-purpose mirror lamp of wall table used on the desk.

The specific embodiment

Consult Fig. 1, Fig. 2, shown in Figure 3, provide a kind of wall table dual-purpose mirror lamp, the mirror light fixture comprises: a mirror lamp 1, a concave mirror 15 and reflection shield 16 purchased by system, insert LED lamp 161 in this reflection shield 16, to use as dressing and illumination, concave mirror 15 is fixed with picture frame 17 with reflection shield 16, these picture frame 17 belows are connected with a lever arm 13, lever arm 13 combines with a base 11 with movable pivot button 12 again, and base 11 is provided with the usefulness of a shift knob 111 as switch LED lamp 161, in addition, but this lever arm 13 can have the moving function that changes relevant position of being rotated of plate by movable pivot button 12, changes relevant position to drive this picture frame 17;

One link plate 2, mainly be fixedly arranged in base 11 bottoms of mirror lamp 1 with countersunk head cap screw 23, have ware head hole 21 and hanging hole 22 on 2 of the link plates, other is provided with a battery case 24 and is used to place rechargeable battery 241, so that wirelessly carry the occupation mode that displacement position is desk lamp or wall lamp;

One wallboard 3, can bore nail 33 awls goes in the wall awl 34 of wall 4 to be fixed on the wall 4, and the ware head hole 21 that wallboard 3 and link plate 2 leave is provided with ware head projection 31 and projection 32 with hanging hole 22 opposite positions, and ware head projection 31 and projection 32 are in harmony can insert ware head hole 21 and hanging hole 22 to combine link plate 2 and wallboard 3.

Consult Fig. 4, shown in Figure 5; When this creation is used as wall lamp, at first wallboard 3 is seen through awl nail 33, wall awl 34 is fixed on the wall 4, after then link plate 2 and base 11 being one with countersunk head cap screw 23 combination fixed mirror lamps 1 with link plate 2, at last more respectively with the ware head hole 21 of this link plate 2, hanging hole 22 inserts corresponding ware head projection 31 on this wallboard 3, projection 32, it is this link plate 2 of tool and the effect that combines of wallboard 3, make this link plate 2 and wallboard 3, and with base 11 that this link plate 2 combines on the lever arm 13 that is connected with and become one in picture frame 17, cooperate again and pull lever arm 13 rotations, ordering about 17 subsides of whole picture frame obeys on wall 4 and is used as wall lamp, mini light night uses, and collocation concave mirror 15 more can be used for dressing etc.

Consult shown in Figure 6, and before the collocation shown in the figure; This case also can be unloaded mirror lamp 1 down from wall 4, be placed in desk 5 desk lamps of being taken in again and used, and have the function of wall table dual purpose.

Claims

1. A wall table dual-purpose mirror lamp, characterized in that it comprises:

A mirror lamp is fixed by a frame. A concave mirror and a reflector are connected to a movable arm under the frame, and the movable arm is combined with a base by a movable hinge;

A hanging plate, which is mainly fixed on the lower part of the base of the mirror lamp with pan-head screws. There are pan-head holes and hanging holes on the surface of the hanging plate. There is also a battery box for placing rechargeable batteries, so that it can be carried wirelessly and replaced as a table. How the lamp or wall lamp is used;

A wall board can be taped into the wall cone of the wall to be fixed on the wall, and the head holes and hanging holes of the wall board and the hanging board are provided with head bosses and bumps at the positions corresponding to the hanging holes. The head boss and the bump can be inserted into the head hole and the hanging hole of the dish to combine the hanging plate and the wall plate.

2 . The dual-purpose mirror lamp for wall table according to claim 1 , wherein a switch button is provided on the base for switching the LED lamp. 3 .

3 . The dual-purpose mirror lamp for wall and table according to claim 1 , wherein the movable arm can be rotated to change relative positions through movable hinges, so as to drive the mirror frame to change relative positions. 4 .
