Abstract

The utility model discloses a light bulb packaging box, which comprises a hollow box body composed of outer walls: the box body is a hollow multi-angular three-dimensional box, and the outer wall of the three-dimensional box includes a left side, a right side, a top wall, a bottom plate, and a left side. and the right side are connected with the top wall, and the left side and the right side are connected with the bottom plate to form a hollow multi-angular box body, wherein the left side and the right side are concave triangles, and the top wall and bottom plate are respectively concave to the inside of the box body. And circular through holes are respectively provided. The utility model mainly solves the existing problems in the aspects of weak impact resistance of bulb packaging and inconvenient transportation.

Description

light bulb packaging

technical field

The utility model relates to a light bulb packaging box, which belongs to daily necessities. .

Background technique

At present, most of the light bulb packaging boxes popular in the market are clamshell-type at the upper and lower ends. The main problems of the light bulb packaging box are: first, the light bulb is a kind of fragile product, and the light bulb is not in a fixed state in the box, so when the product is loaded and unloaded , In the transportation state, it is easy to cause the bulb to shake in the box and cause the tungsten wire of the bulb to break. Second, the customer must take out the light bulb from the box when purchasing, which is very inconvenient.

Contents of the invention

The purpose of the utility model is to provide a light bulb packing box which has good impact resistance and does not need to be taken out from the packing box to select the light bulb. In order to achieve the above object, the technical solution adopted by the utility model is: the light bulb packaging box includes a hollow box body composed of an outer wall, the box body is a hollow multi-angular three-dimensional box, and the outer wall of the three-dimensional box includes a left side and a right side. , top wall, bottom plate, the left side and the right side are connected with the top wall, and the left side and the right side are connected with the bottom plate to form a hollow multi-angular hollow box body, wherein the left side and the right side are concave triangles, and the top There are through holes on the wall and the bottom plate, and they are respectively concave to the inside of the box body. The function of the through holes on the top wall and the bottom plate is to fix the bulb glass shell. , There is a folded concave-convex structure on the surface of the box body, and the edges and corners and the concave-convex structure all play a buffer role. The bulb electrode is about 14mm away from the upper corner, and the bulb glass shell is about 22mm away from the lower corner, so when the bulb falls from 30m above, the corner will land first, which protects the bulb.

In summary, the box will have good impact resistance.

Because the light bulb packaging box of the utility model is about 22mm away from the lower edge corners of the light bulb glass shell, the light bulb product can be seen directly from the outside, which can facilitate customers' inspection and selection.

Description of drawings

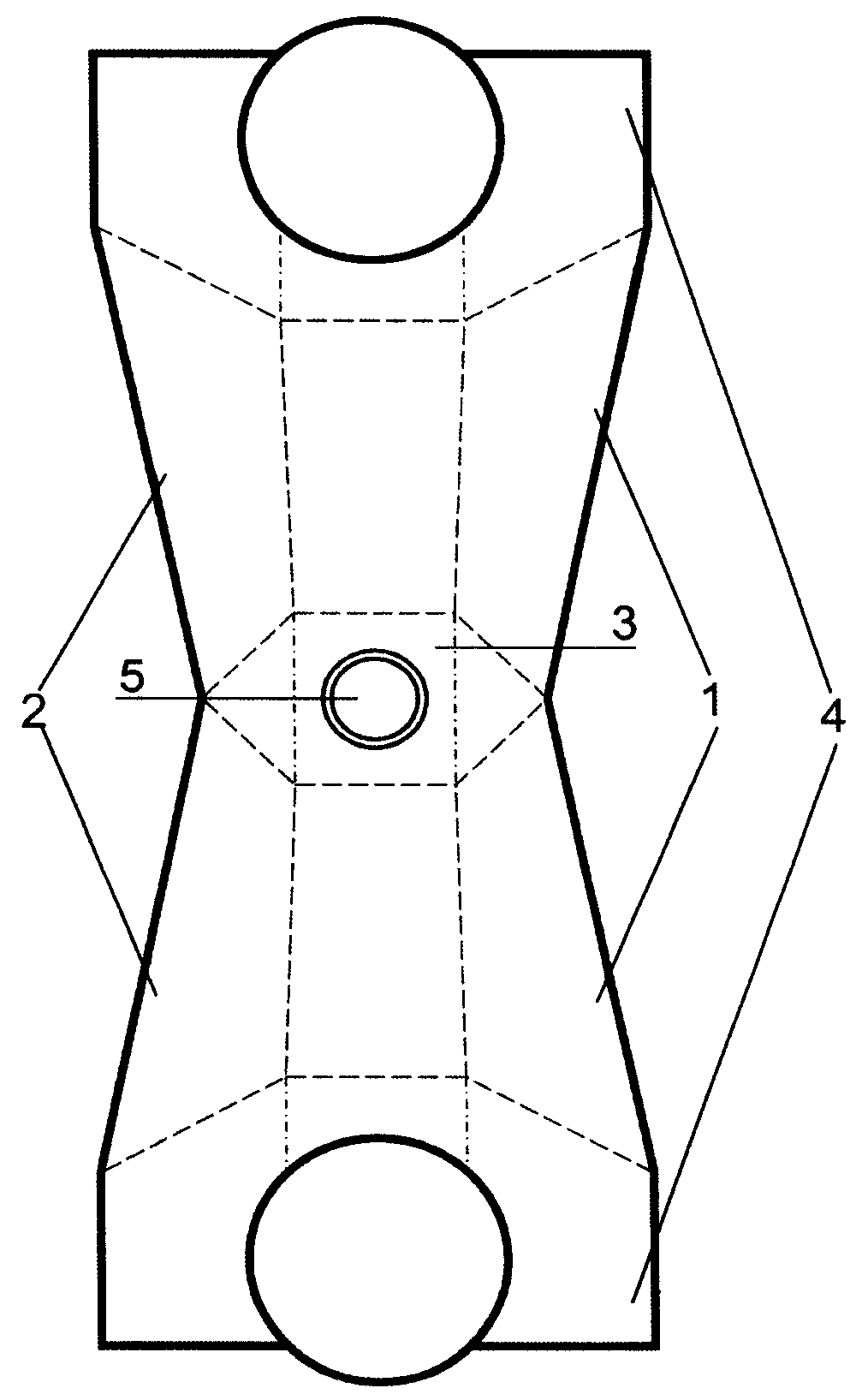

Fig. 1 is a schematic plan view of a light bulb packaging box of the present invention.

Fig. 2 is a perspective view of the light bulb packaging box of the present invention.

In the figure 1. Left side, 2. Right side, 3. Top wall, 4. Bottom plate, 5. Through hole.

Detailed ways

According to Fig. 1 and Fig. 2, the light bulb packaging box of the present utility model comprises a hollow box body composed of outer walls. The box body is a hollow multi-angular three-dimensional box. , the bottom plate 4, the left side 1 and the right side 2 are connected with the top wall 3, the left side 1 and the right side 2 are connected with the bottom plate 4 to form a hollow multi-angular empty box body, wherein the left side and the right side are inner Concave triangle, the top wall is provided with a through hole 5, wherein the top wall and the bottom plate are respectively concave to the inside of the box body, and the function of the through holes on the top wall and the bottom plate is to fix the light bulb glass shell. There are four corners on the body, and a folded structure on the surface of the main box, which acts as a buffer.

The manufacturing process of the packaging box of the utility model is as follows: according to the size of the unfolded drawing, use a cutting machine to cut out the shape on the cardboard or other foldable packaging materials, use a punching machine to punch holes, and make creases, and then fold according to the creases, Finally, a packaging box is formed.

When using the packaging box of the utility model, the electrode end of the spherical bulb can be put into the small hole of the wrapping paper, the whole body can be folded along the folding line, and then the bottom can be glued.

Claims (4)

1. bulb packing box, comprise the hollow box that constitutes by outer wall, it is characterized in that: box body is the multi-angular three-dimensional box of hollow, the outer wall of three-dimensional box comprises left surface, right flank, roof, base plate, left surface is connected with roof with right flank, left surface and right flank and base plate connect and compose the multi-angular box body of hollow, and the left surface of three-dimensional box and right flank are the indent triangle, and roof is provided with through hole.

2. bulb packing box according to claim 1 is characterized in that: roof and base plate are recessed respectively to box body inside.

3. bulb packing box according to claim 1 and 2, it is characterized in that: base plate is provided with through hole.

4. bulb packing box according to claim 3 is characterized in that: the through hole on roof and the base plate is a manhole.
