CN201040608Y - Multi-layer composite craft bottle - Google Patents

Abstract

The utility model discloses a multi-layer composite craft bottle, which belongs to wine bottles, and aims to provide a craft wine bottle with beautiful shape, strong artistry, good three-dimensional effect of pattern and low production cost. Its technical scheme includes a bottle body; the bottle body is composed of a liner bottle (5) and an outer bottle body, the liner bottle (5) is closely attached to the inner surface of the outer bottle body and the bottle mouth (1) is connected from the outside The bottle protrudes from the mouth of the bottle body; wherein, the outer bottle body is a multi-layer composite structure including at least one matrix layer (3). The utility model is novel in structure, beautiful in shape, has certain decoration and ornamental value, and is an ideal craft wine bottle.

Description

Multi-layer composite craft bottle

Technical field:

The utility model relates to a packaging bottle, in particular to a craft wine bottle.

Background technique:

At present, most of the widely used wine bottles are glass bottles or ceramic bottles with a single-layer structure. will have a certain impact.

Invention content:

Aiming at the above-mentioned defects in the prior art, the utility model aims to provide a multi-layer composite craft bottle with beautiful surface shape, strong artistry, good three-dimensional effect of the bottle pattern, and low production cost.

In order to achieve the above object, the utility model adopts the following technical solutions: it includes a bottle body; the bottle body is composed of an inner liner bottle and an outer bottle body, the inner liner bottle is closely attached to the inner surface of the outer bottle body and the bottle mouth It protrudes from the bottle mouth of the outer bottle body; wherein, the outer bottle body is a multi-layer composite structure including at least one matrix layer.

The surface of the matrix layer is covered with a protective layer; the matrix layer can be a resin layer, plastic, cement layer or plaster layer with a three-dimensional pattern on the surface; the matrix layer can also adopt natural coconut shells, bamboo knots, or ox horns; the matrix layer and A filling is arranged between the inner bottles; the inner bottles are made of glass, pottery, metal, plastic or polyester.

Compared with the prior art, the utility model changes the traditional single-layer structure bottle body into a multi-layer bottle body with a composite structure, and adopts plastic materials such as resin, cement, or gypsum that can be molded to form a relief pattern on the surface. The outer bottle matrix layer, or directly use natural bamboo, coconut shell or ox horn as the outer bottle matrix layer; set the inner surface of the matrix layer made of glass, ceramics, plastics, or polyester and other materials. , so it effectively overcomes the defects of monotonous and dull surface shape, poor artistry, and lack of aesthetic feeling of traditional wine bottles, and has a significant effect on improving the packaging quality of products.

Description of drawings:

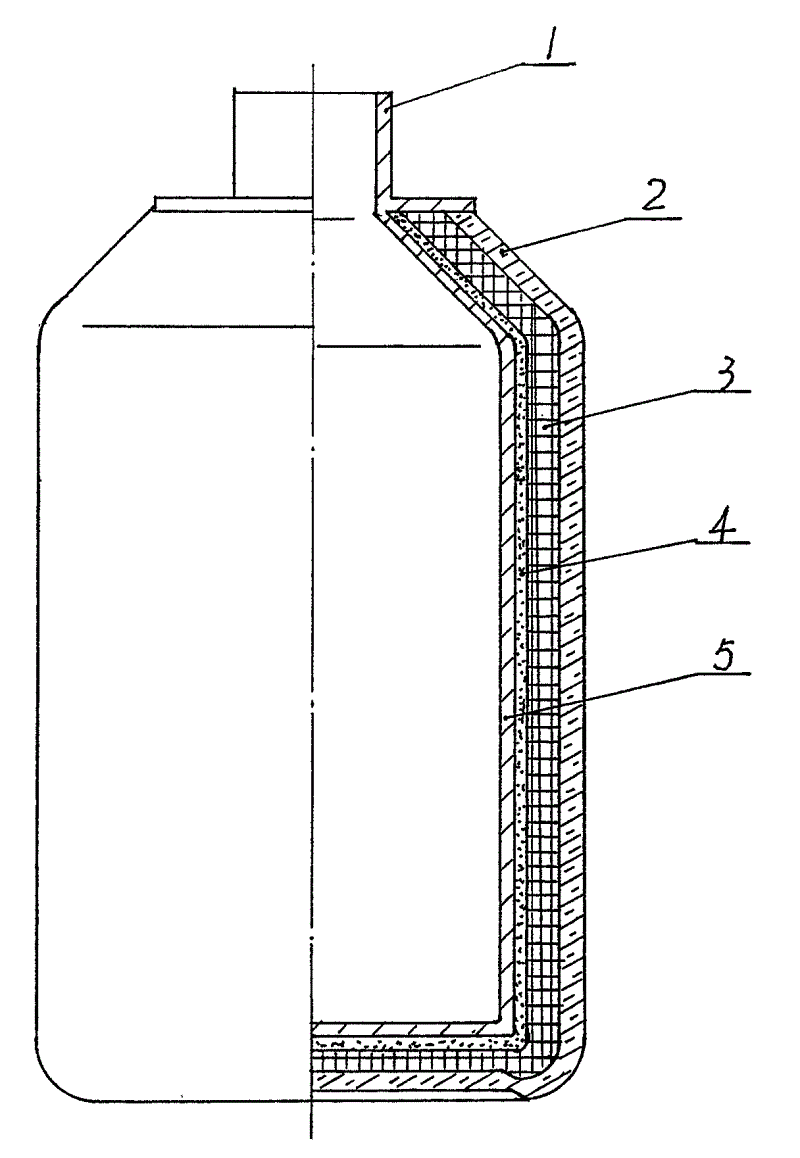

Fig. 1 is a structural representation of the utility model.

In the picture: bottle mouth 1 protective layer 2 matrix layer 3 filler 4 inner bottle 5

Detailed ways:

Below in conjunction with accompanying drawing and specific embodiment the utility model is further described:

As shown in Figure 1: the bottle body is made of a liner bottle 5 and an outer bottle body, the liner bottle 5 is closely attached to the inner surface of the outer bottle body and the bottle mouth 1 protrudes from the mouth of the outer bottle body; The bottle body is a multi-layer composite structure including one or more matrix layers 3 . The matrix layer 3 is the main structure that constitutes the outer bottle body. It is made of plastic materials such as resin, plastic, cement, or gypsum through mold molding, and its surface can be provided with various relief patterns as required; the matrix layer 3 Hollow objects such as natural coconut shells, bamboo joints or ox horns can also be used directly; usually, the matrix layer 3 is made of unsaturated polyester resin.

In order to protect the base layer 3 , and also to enrich the layers and increase the aesthetic feeling, the surface of the base layer 3 can also be covered with paint, transparent resin, translucent resin, etc. as the protective layer 2 . Liner bottle 5 can be made of glass, pottery, metal, plastics or polyester etc. When adopting things such as natural coconut shell or bamboo joint as matrix layer 3, in order to accurately control the volume of wine bottle, cheap fillers 4 such as cement, gypsum can be filled between matrix layer 3 and liner bottle 5.

Claims (6)

1. A multi-layer composite handicraft bottle comprises a bottle body; the method is characterized in that: the bottle body consists of an inner lining bottle (5) and an outer bottle body, the inner lining bottle (5) is tightly attached to the inner surface of the outer bottle body, and a bottle mouth (1) extends out of the bottle mouth of the outer bottle body; wherein, the outer bottle body is a multi-layer composite structure comprising at least one substrate layer (3).

2. The multi-level composite artistic bottle of claim 1, wherein: the surface of the substrate layer (3) is covered with a protective layer (2).

3. The multi-level composite artistic bottle of claim 2, wherein: the substrate layer (3) is a resin layer, a plastic layer, a cement layer or a gypsum layer with a three-dimensional pattern on the surface.

4. The multi-level composite artistic bottle of claim 2, wherein: the matrix layer (3) is coconut shell, bamboo joint, or ox horn.

5. The multi-level composite artistic bottle of claim 4, wherein: a filler (4) is arranged between the substrate layer (3) and the lining bottle (5).

6. The multilayer composite artistic bottle as claimed in any one of claims 2 to 5, wherein: the inner bottle (5) is made of glass, ceramic, metal, plastic, or polyester.
