Abstract

The utility model is a composite container bottom plate with a particle board for structure as the core layer. The particle board for structure is used as the core board, and 2 to 4 layers of glue-coated or dipped wooden veneers are used for the upper and lower layer materials; or from the surface to the inside respectively. Use one impregnated paper, one impregnated bamboo mat and 1-3 double-sided glued or impregnated wooden veneers; or use one piece of clone or Abidon wood veneer produced in Southeast Asia from the surface to the inside. , or other wood veneers with similar properties, 1 to 3 double-sided glued or dipped wooden veneers (or use dipped bamboo curtains or bamboo mats to replace part or all of the wooden veneers). Advantages: Particleboard for structure is used as the middle core material after being sanded to a certain thickness, and 4 to 8 layers of wood veneer, bamboo curtain, bamboo mat, resin impregnated paper and other materials are used alone or in combination as the surface material, which widens the bottom plate The quality of the composite container floor is stable, and the performance indicators such as strength and elastic modulus meet the technical requirements of the international container industry.

Description

Composite container floor with particle board as core material for structure

technical field

The utility model relates to a composite container bottom plate with particleboard for structure as the core material, and belongs to the technical field of wood-based panel manufacturing in the wood industry.

Background technique

The main load-bearing area of a container is the bottom plate. The container manufacturing industry requires the bottom plate to have high mechanical properties, appearance quality, impact resistance and aging resistance. For a long time, the container manufacturing industry has relied almost entirely on multi-layer thick plywood made of hard broad-leaf clones (Keruing) and Apitong (Apitong) grown in tropical rainforests as bottom plates. Because the growth cycle of this type of tree species is very long, it generally takes 50 years or even longer. With the over-exploitation of the original tropical rainforest, large-diameter clones and Abidon have become priceless. In order to protect the world's ecological environment and reduce the consumption of tropical hardwood resources, develop new container floors and broaden the source of floor materials. profound practical significance.

Contents of the invention

The purpose of the utility model is to provide a composite container bottom plate with particleboard for structure as the core material. The composite container bottom plate can be made of small-diameter wood, branch wood, and harvesting and processing residues with high longitudinal strength and elastic modulus, and the ratio of strength and elastic modulus in the longitudinal and horizontal directions meets certain requirements, and has high shear resistance. Structural particleboard with cutting performance, which is used as the core material of the container floor. The surface material can be made of wood veneer, bamboo curtain, bamboo mat, resin impregnated paper and other materials, which can be used alone or in combination.

The technical solution of the present utility model: its structure is to take the particle board for structure as the core board, and the upper and lower layer materials each adopt 2-4 layers of wood veneers coated or impregnated with phenolic glue (or other weather-resistant glue); One piece of impregnated paper, one piece of bamboo mat impregnated with phenolic glue (or other weather-resistant glue) and 1 to 3 sheets of wood veneer (or double-sided coated or impregnated with phenolic glue (or other weather-resistant glue)) Use bamboo curtains impregnated with phenolic glue or other weather-resistant glue to replace part or all of the wooden veneers); or use a piece of clone or Abidon wood veneer produced in Southeast Asia from the outside to the inside, or other wood veneers with similar properties, 1 to 3 double-sided coated or impregnated phenolic glue (or other weather-resistant glue) wooden veneers, or replace part or all of the wood veneers with bamboo curtains or bamboo mats impregnated with phenolic glue (or other weather-resistant glue).

The utility model has the advantages of effectively utilizing timbers of different tree species and different diameter classes in my country and all over the world, such as various coniferous timbers, broad-leaved timbers and bamboos of natural forests and artificial forests. Using these materials alone or in combination, through scientific design and reasonable combination, can not only solve the difficulty of hardwood shortage in the world, but also solve the technical problem of mass production of new bottom plates that meet the technical requirements of the international container industry. The special structural particle board is used as the middle core material after being sanded to a certain thickness, and 4-8 layers of wood veneer, bamboo curtain, bamboo mat, resin impregnated paper and other materials are used alone or in combination as the surface material; some wood The veneer needs to be double-coated (or impregnated) with phenolic glue (or other weather-resistant glue), bamboo curtains and bamboo mats need to be impregnated with phenolic glue (or other weather-resistant glue), and resin-impregnated paper is made of wood pulp paper impregnated with phenolic or melamine Or these two mixed resins are made by drying at low temperature. A certain amount of insecticide should be added to these glues, so that it can penetrate evenly into the surface material of the container floor during hot pressing, so that the bottom plate has long-term insect-proof performance; the core material and surface material are combined into a slab , and then hot-pressed and glued to make the container bottom plate, its strength, elastic modulus and other performance indicators can fully meet the technical requirements of the international container industry.

Description of drawings

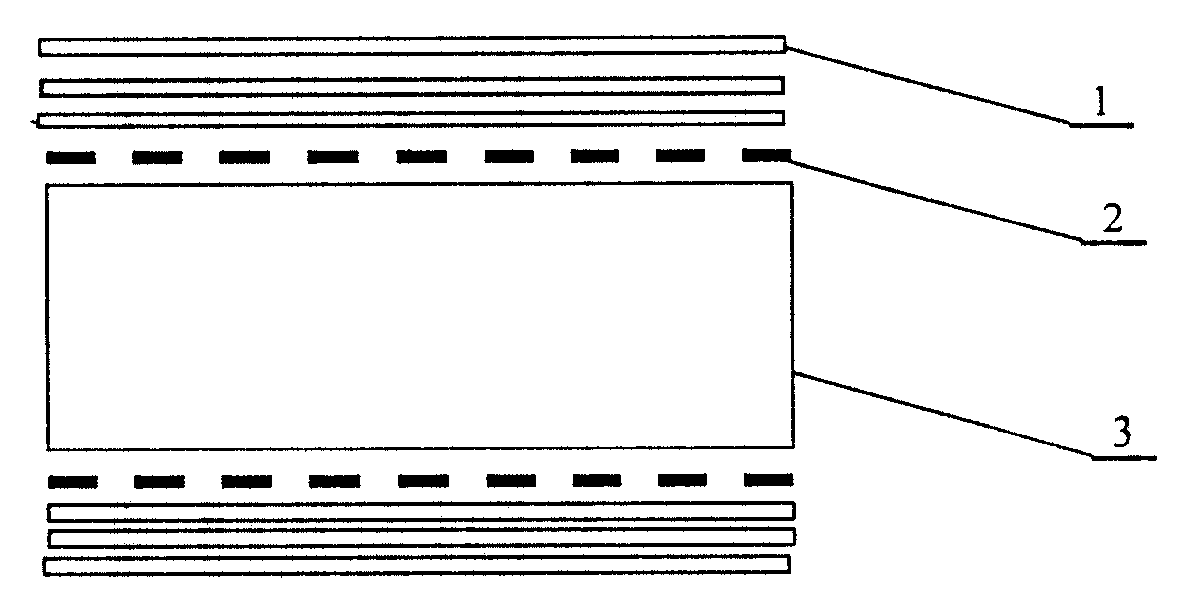

Accompanying drawing 1 is a kind of structural schematic diagram of the bottom plate of composite container with particleboard for structure as the core layer material.

Accompanying drawing 2 is a structural schematic diagram of a composite container floor with particleboard for structure as the core material.

Accompanying drawing 3 is a structural schematic diagram of a composite container floor with particleboard for structure as the core material.

Accompanying drawing 4 is a structural schematic diagram of a composite container floor with particleboard for structure as the core material.

1 in the figure is a wooden veneer with longitudinal texture with 2 to 3 layers of double-sided coating (or impregnated) phenolic glue on the upper and lower sides and dried at low temperature; Wooden veneer with horizontal grains dried at low temperature; 3 is particle board core board for structure; 4 is impregnated paper with phenolic or melamine or the two mixed resins; 5 is impregnated with phenolic glue and passed Bamboo mats dried at low temperature; 6 is two layers of double-sided coated (or impregnated) phenolic glue and dry longitudinal grain wood veneer; 7 is two layers of bamboo curtain impregnated with phenolic glue and dried at low temperature, or with a layer of Double-sided coated (or impregnated) wood veneer with phenolic glue replaces one layer of bamboo curtain; 8 is clone or Abidon wood veneer (from Southeast Asia, etc.), or other wood veneers with similar properties; 9 is up and down 1 to 2 layers of double-sided coated (or impregnated) phenolic glue and dried at low temperature wood veneer, or replace one layer of wooden veneer with a layer of bamboo mat or curtain impregnated with phenolic glue and dried at low temperature.

Detailed ways

Example 1:

Referring to Figure 1, the composite container floor is made of pine (larch, masson pine, Simao pine, etc.) A layer of double-sided coated (or impregnated) phenolic glue is arranged symmetrically on the top and bottom of the structural particleboard core board, and a horizontally textured wooden veneer 2, 2 to 3 layers of double-sided coated (or impregnated) phenolic glue and dried at low temperature A wood veneer 1 with longitudinal grain and dried at low temperature.

Example 2:

Contrast Fig. 2, with phenolic impregnated paper, bamboo mat, wooden veneer, particleboard for structure as raw material to manufacture composite container bottom plate, its structure is to be provided with two layers of double-sided coating ( Or impregnated) phenolic glue and dry longitudinal grain wood veneer 6 at low temperature, one layer of phenolic glue impregnated and low temperature dried bamboo mat 5 and one layer of impregnated paper 4 impregnated with phenolic (or melamine or these two mixed resins).

Example 3,

Comparing with Figure 3, the composite container bottom plate is made of phenolic impregnated paper, bamboo mat, bamboo curtain, wooden veneer, and structural particleboard core board. A bamboo curtain 7 that is glued and dried at a low temperature, a bamboo mat 5 that is impregnated with phenolic glue and dried at a low temperature, and a layer of phenolic impregnated paper 4 .

Example 4:

Comparing with Fig. 4, the composite container floor is manufactured by using cloned wooden veneer, other wooden veneer, bamboo curtain, bamboo mat, and particle board core board for structure as raw materials. Two layers of double-sided coated (or impregnated) phenolic glue and low-temperature dried wood veneer 9 and one layer of clone or Abidon wood veneer 8 .

Claims (4)

1. the structure particieboard is the composite container baseboard of core material, it is characterized in that being provided with one deck double spread or dipping phenol glue successively with the upper and lower symmetry of partice board core stock and through the Wooden veneer of the cross grain of low temperature drying 2～3 layers of double spread or dipping phenol glue and through the Wooden veneer of vertical texture of low temperature drying in structure.

2. the structure particieboard is the composite container baseboard of core material, it is characterized in that being provided with two layers of vertical texture Wooden veneer successively with the symmetry up and down of partice board core stock one deck dipping phenol glue and through the bamboo mat of low temperature drying and the impregnated paper of one deck dipping phenolic aldehyde or melamine or dipping phenolic aldehyde and melamine hybrid resin in structure.

3. the structure particieboard is the composite container baseboard of core material, it is characterized in that being provided with two-layer dipping phenol glue successively and replacing wherein one deck bamboo curtain splint with the symmetry up and down of partice board core stock one deck dipping phenol glue and through bamboo mat and one deck dipping phenolic aldehyde or the melamine of low temperature drying or flood the impregnated paper of phenolic aldehyde and melamine hybrid resin through the bamboo curtain splint of low temperature drying or with the Wooden veneer of one deck double spread or dipping phenol glue in structure.

4. the structure particieboard is the composite container baseboard of core material, it is characterized in that being provided with 1～2 layer of double spread or dipping phenol glue successively with the symmetry up and down of partice board core stock and through the Wooden veneer of low temperature drying and one deck clone or A Bidong Wooden veneer in structure.
