Abstract
一种加床病床床头柜，属于一种辅助医疗器械，它包括柜体(1)，其特征是在柜体(1)的正面设有一个上边与柜体(1)相铰接的柜门(2)，在柜体(1)的顶板(3)的内侧安装有槽形导向体(4)，在该导向体(4)中安装有抽出时能支撑柜门(2)使其处于水平状态的滑动支撑(5)；在柜体(1)的底部安装有万向轮(6)。本实用新型解决了现有的床头柜功能单一，移动不便的问题，具有结构简单，使用方便，功能齐全的优点。
A bedside cabinet for an extra bed, belonging to an auxiliary medical device, comprising a cabinet body (1), characterized in that a cabinet door (2) hinged with the cabinet body (1) is provided on the front of the cabinet body (1) ), a grooved guide body (4) is installed on the inside of the top plate (3) of the cabinet body (1), and a guide body (4) is installed in the guide body (4) that can support the cabinet door (2) so that it is in a horizontal state when it is drawn out. Sliding support (5); Universal wheels (6) are installed at the bottom of the cabinet (1). The utility model solves the problem of single function and inconvenient movement of the existing bedside table, and has the advantages of simple structure, convenient use and complete functions.
Description
Technical field
The utility model relates to a kind of medicine equipment, the bedside cupboard in especially a kind of sick bed equipment, specifically a kind of extra bed sick bed bedside cupboard.
Background technology
As everyone knows, hospital as a kind of specific be the place of service for patients, the human oriented design of all kinds of facilities is patient and family members' thereof hope, also is that hospital improves service quality, and embodies the important measures of humanistic care.For this reason, all kinds of facilities of hospital ward are greatly improved at present, outfit from the Humanity Design of sick bed to everyone at least one bedside cupboard is so that air-conditioning, TV, phone and oxygen therapy, fluid delivery apparatus or the like are very easy to patient and family members thereof, for patient provides good medical environment.
But because China is populous, medical resource is limited, and the berth situation that supply falls short of demand has all appearred in various big hospital, in order to satisfy patient's demand, make full use of limited medical resource, each hospital takes the way of extra bed in walking exterior feature or ward to satisfy patient's requirement as much as possible one after another at present.And be that the patient deposits commodity and the requisite facility of medicine as the bedside cupboard of one of sick bed corollary equipment, and present bedside cupboard is stationary structure on the one hand, its function singleness on the other hand, as just the instrument of depositing article, and for most patient, especially the home-bound patient needs to carry out on one's sick bed at mealtime, and owing to there is not suitable dinner table, make troubles to patient.
Therefore, existing bedside cupboard is function singleness not only, and often because its volume is bigger, moves inconvenience, is not suitable for the extra bed sick bed and uses, and must solve.
Summary of the invention
The purpose of this utility model is not have the operational problem of suitable bedside cupboard at present extra bed sick bed, provides a kind of bedside cupboard that not only can be used as to use but also can be used as that dining table uses and the extra bed sick bed bedside cupboard of conveniently moving.
The technical solution of the utility model is:
A kind of extra bed sick bed bedside cupboard, comprise cabinet 1, it is characterized in that being provided with the cabinet door 2 that a top and cabinet 1 are hinged in the front of cabinet 1, installed inside at the top board 3 of cabinet 1 has flute profile guide way 4, is equipped with can support cabinet door 2 when extracting out and make its sliding support that is in level 5 in this guide way 4; In the bottom of cabinet 1 universal wheel 6 is installed.
Described universal wheel 6 is for having the universal wheel of self-locking device.
On the described cabinet door 2 lockset 7 is installed, a drawer 8 is installed at least in the bottom of cabinet door.
Described sliding support 5 is provided with the anti-skidding block piece.
The beneficial effects of the utility model:
The utility model has solved the ubiquitous bedside cupboard of present hospital and has used inconvenience, the problem of function singleness, not only can move arbitrarily as required, and can be used as dining table after the cabinet door opened or the platen that writes uses, it is also very convenient to get thing simultaneously, is very easy to the patient, and it not only can be used as the extra bed sick bed and uses, also can be used as the fixedly supporting use of sick bed, overcome the existing existing deficiency of bedside cupboard.
The utility model also has simple in structure, makes, advantage easy to use.
Description of drawings

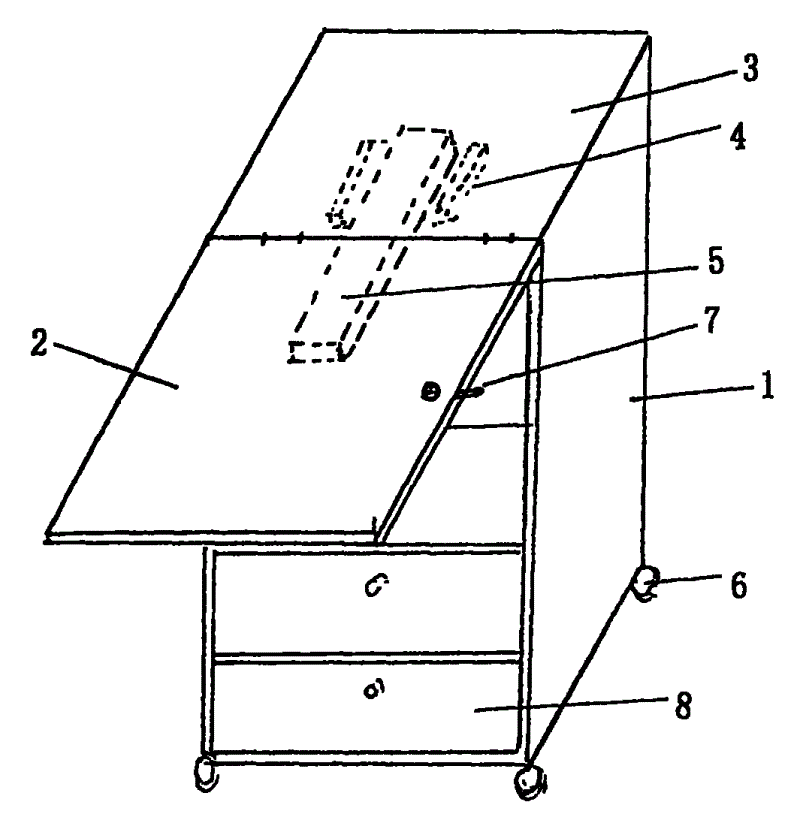

Perspective view when Fig. 1 is a cabinet door open mode of the present utility model.
Fig. 2 is sliding support of the present utility model and guide way assembly structure partial schematic diagram.
The specific embodiment
Below in conjunction with drawings and Examples the utility model is further described.
As shown in Figure 1, 2.
A kind of extra bed sick bed bedside cupboard, it is mainly by cabinet 1, cabinet door 2, guide way 4, sliding support 5, universal wheel 6, lockset 7, drawer 8 compositions such as grade, as shown in Figure 1, the top of cabinet door 2 is hinged by bearing pin and cabinet 1, installed inside at the top board 3 of cabinet 1 has flute profile guide way 4, can support cabinet door 2 when extraction is installed and make its sliding support that is in level 5 in this guide way 4, as shown in Figure 2, slippage guide way 4 when preventing that sliding support 5 from outwards pulling out, an anti-skidding block piece can be set on sliding support 5, this anti-skidding block piece can design as required voluntarily, adds block or backing pin as adopting an end; For the ease of moving and the location of cabinet, the universal wheel 6 that has self-locking device is installed in the bottom of cabinet 1.In addition, for easy to use and protection patients'benefit, also lockset 7 can be installed on cabinet door 2, in the bottom of cabinet door 2 one to two drawer 8 be installed, drawer 8 also can be designed to band pin drawer.
The utility model does not relate to part, is realized as prior aries that maybe can adopt all same as the prior art such as material, sizes.
