Abstract
本实用新型公开了一种多功能洗碗装置，旨在提供一种结构简单、使用方便、可用于洗碗、解冻食品、蒸制食品、消毒等的洗碗装置，其技术要点包括机体，其中所述机体的一侧设有水箱，在水箱侧的机体内依次设有第一洗碗槽、第二洗碗槽，在第一洗碗槽、第二洗碗槽内分别设有鼓泡器，两个鼓泡器分别与设置在机体内的气泵管路连接；在第一洗碗槽、第二洗碗槽的内底部分别设有过滤层；水箱设有加热装置；水箱、第一洗碗槽和第二洗碗槽分别设有进水管；在水箱上部设有蒸汽管别与在第一洗碗槽、第二洗碗槽连通；在第一洗碗槽、第二洗碗槽底部分别设有排水阀；本实用新型用于餐厅。
The utility model discloses a multifunctional dishwashing device, which aims to provide a dishwashing device with simple structure and convenient use, which can be used for washing dishes, thawing food, steaming food, disinfecting, etc. The technical points include a body, wherein A water tank is provided on one side of the body, and a first sink and a second sink are sequentially arranged in the body on the side of the water tank, and bubblers are respectively arranged in the first sink and the second sink , the two bubblers are respectively connected with the air pump pipelines arranged in the body; filter layers are respectively provided at the inner bottom of the first sink and the second sink; the water tank is provided with a heating device; the water tank, the first wash The sink and the second sink are respectively provided with water inlet pipes; the upper part of the water tank is provided with a steam pipe which is not connected with the first sink and the second sink; the bottom of the first sink and the second sink Drain valves are respectively provided; the utility model is used in restaurants.
Description
Technical field
The utility model relates to a kind of dish-washing machine, refers in particular to be used for a kind of multi-functional dish washer that use in the dining room.
Background technology
Traditional dish-washing machine can only be used for cleaning, sterilization, the oven dry to bowl, dish, dish usually, though the automaticity height, function of use is single, and volume is bigger, and disposable flushing dose is little, and water consumption is many, the use cost height is not suitable for the dining room less in the space, that cost control is strict and uses.
The utility model content
The technical problems to be solved in the utility model provide a kind of simple in structure, easy to use, can be used for washing the dishes, the multi-functional dish washer of defrosting food, cooking food, sterilization etc.
The technical solution of the utility model is such: a kind of multi-functional dish washer, comprise body, one side of wherein said body is provided with water tank, in the body of water tank side, be provided with first scullery basin, second scullery basin successively, in first scullery basin, second scullery basin, be respectively equipped with bubbler, two bubblers respectively be arranged on body in the air pump pipeline be connected; Inner bottom part at first scullery basin, second scullery basin is respectively equipped with filter course; Water tank is provided with heater; Water tank, first scullery basin and second scullery basin are respectively equipped with water inlet pipe; Water tank upper be provided with steam pipe not be communicated with at first scullery basin, second scullery basin; Be respectively equipped with draining valve in first scullery basin, second scullery basin bottom.
Be provided with water pump in the body described in the above-mentioned a kind of multi-functional dish washer, the water inlet pipeline connection of water tank and water pump, first scullery basin, second scullery basin bottom respectively with the water inlet pipeline connection of water pump, the delivery port of water pump is pipeline connection bottom first scullery basin, second scullery basin respectively, on every connecting pipeline, be equipped with electromagnetic valve, change mutually to first scullery basin, the second scullery basin delivering hot water with the water in first scullery basin, second scullery basin realizing.
Be respectively equipped with insulation cover on first scullery basin described in the above-mentioned a kind of multi-functional dish washer, second scullery basin, be respectively equipped with blast pipe, to make things convenient at first scullery basin, the second scullery basin cooking food at first scullery basin, the second scullery basin upside.
Water tank described in the above-mentioned a kind of multi-functional dish washer also is provided with the boiling water outlet, so that boiling water conveniently to be provided.
The utility model utilizes two scullery basins that bowl, dish, dish etc. are cleaned after adopting said structure, and simple in structure, volume is little, and water consumption is low; After further improving, the water between two scullery basins and can changing mutually, and can be used for food processing, and in limited space, realize more function of use, reduce the operating cost in dining room.
Description of drawings
Below in conjunction with the embodiment in the accompanying drawing the utility model is described in further detail, but does not constitute any restriction of the present utility model.

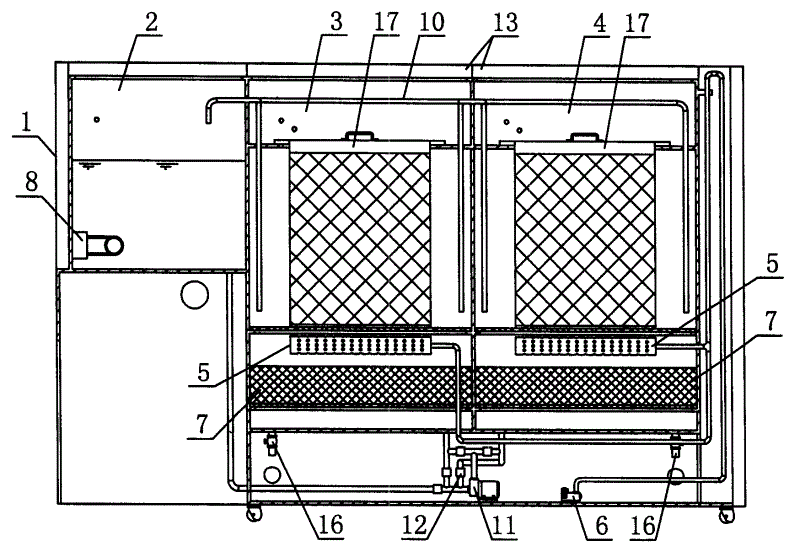

Fig. 1 is the structural representation of a kind of specific embodiment of the utility model;
Fig. 2 is the vertical view of Fig. 1.
Among the figure: 1-body, 2-water tank, 3-first scullery basin, 4-second scullery basin, 5-bubbler, 6-air pump, 7-filter course, 8-heater, 9-water inlet pipe, 10-steam pipe, 11-water pump, 12-magnetic valve, 13-insulation cover, 14-blast pipe, the outlet of 15-boiling water, 16-draining valve, 17-contain the bowl frame.
The specific embodiment
Consult Fig. 1, shown in Figure 2, a kind of multi-functional dish washer of the present utility model, comprise body 1, be provided with water tank 2 in the left side of body 1, in the body 1 on water tank 2 right sides, be provided with first scullery basin 3, second scullery basin 4 successively, bottom at first scullery basin 3, second scullery basin 4 is respectively equipped with bubbler 5, two bubblers 5 are connected (bubbler 5 also can be separately positioned on the inside portion of first scullery basin 3, second scullery basin 4, and bowl, dish, butterfly just need layering to lie in the Sheng bowl frame 17 during use) respectively with air pump 6 pipelines that are arranged on body 1 bottom; Inner bottom part at first scullery basin 3, second scullery basin 4 is respectively equipped with filter course 7; Water tank 2 is provided with heater 8, adopts electric heater in the present embodiment, is installed in the water tank 2; The utility model also can use as heaters such as gas furnace, coal stoves, and heat the bottom that directly is placed on water tank 2, selects for use as required to make things convenient for the user; Water tank 2, first scullery basin 3 and second scullery basin 4 are respectively equipped with water inlet pipe 9, are used for supplying water and washing the bowl, dish, dish etc. of cleaned greasy dirt with clear water to water tank 2; Be provided with steam pipe 10 is communicated with respectively with at first scullery basin 3, second scullery basin 4 on water tank 2 tops; Be respectively equipped with draining valve 16 in first scullery basin 3, second scullery basin, 4 bottoms, be used for blowdown and first scullery basin 3, second scullery basin 4 are cleaned; Be provided with water pump 11 at body 1 inner bottom part, the water inlet pipeline connection of water tank 2 and water pump 11, first scullery basin 3, second scullery basin, 4 bottoms respectively with the water inlet pipeline connection of water pump 11, the delivery port of water pump 11 respectively with first scullery basin 3, second scullery basin, 4 bottom pipeline connections, be equipped with electromagnetic valve 12 on every connecting pipeline, such connecting line can be realized the water in the water tank 2 are injected in first scullery basin 3, second scullery basin 4 and with the water in first scullery basin 3, second scullery basin 4 and exchange; When by water pump 11 water in first scullery basin 3, second scullery basin 4 being exchanged, filter course 7 can prevent to stop up; On first scullery basin 3, second scullery basin 4, be respectively equipped with insulation cover 13, be respectively equipped with blast pipe 14 at first scullery basin 3, second scullery basin, 4 upsides, can be easily at first scullery basin, the second scullery basin cooking food; Also be provided with boiling water outlet 15 in water tank 2 front portions, can supply boiling water, realize one-object-many-purposes.
When the utility model specifically uses, consult shown in Figure 1, bowl to be cleaned, dish, dish etc. are placed vertically in the Sheng bowl frame 17 by layer, to contain bowl frame 17 then and put into first scullery basin 3, second scullery basin 4 that fills cleaning fluid, booster air pump 6 carries out the bubbling stirring and washing, after cleaning is finished, open draining valve 16 venting sewage, will contain 17 taking-ups of bowl frame after cleaning up with clear water and get final product.Also can utilize first scullery basin 3 to carry out first and clean, utilize second scullery basin 4 to carry out second time and clean,, the water of second scullery basin 4 be pumped in first scullery basin repeated use once, with using water wisely then with the sewage discharge of first scullery basin 3; Can also utilize the water in the heating water tank 2, produce steam, carry out heated wash, improve cleaning performance with steam.Steam steamed rice or steaming dish first scullery basin 3, second scullery basin 4 in that the utility model can also utilize water tank 2 to produce, one-object-many-purposes is accomplished in operation such as sterilize, thaw.
Claims (4)
1. multi-functional dish washer, comprise body (1), a side that it is characterized in that described body (1) is provided with water tank (2), in the body (1) of water tank (2) side, be provided with first scullery basin (3), second scullery basin (4) successively, be respectively equipped with bubbler (5) in first scullery basin (3), second scullery basin (4), interior with being arranged on body (1) respectively air pump (6) pipeline of two bubblers (5) is connected; Inner bottom part at first scullery basin (3), second scullery basin (4) is respectively equipped with filter course (7); Water tank (2) is provided with heater (8); Water tank (2), first scullery basin (3) and second scullery basin (4) are respectively equipped with water inlet pipe (9); Being provided with steam pipe (10) on water tank (2) top is communicated with respectively with at first scullery basin (3), second scullery basin (4); Be respectively equipped with draining valve (16) in first scullery basin (3), second scullery basin (4) bottom.
2. a kind of multi-functional dish washer according to claim 1, it is characterized in that being provided with in the described body (1) water pump (11), the water inlet pipeline connection of water tank (2) and water pump (11), first scullery basin (3), second scullery basin (4) bottom respectively with the water inlet pipeline connection of water pump (11), the delivery port of water pump (11) is pipeline connection bottom first scullery basin (3), second scullery basin (4) respectively, is equipped with electromagnetic valve (12) on every connecting pipeline.
3. a kind of multi-functional dish washer according to claim 1, it is characterized in that being respectively equipped with insulation cover (13) on described first scullery basin (3), second scullery basin (4), be respectively equipped with blast pipe (14) at first scullery basin (3), second scullery basin (4) upside.
4. a kind of multi-functional dish washer according to claim 1 is characterized in that described water tank (2) also is provided with boiling water outlet (15).
