Abstract
本实用新型涉及垃圾回收装置，特别是一种专用于回收废旧电池的垃圾箱。它包括箱体和箱体上废旧电池置入口，其特征在于：该废旧电池置入口按照各种型号电池的外形设置在箱体上。藉由上述结构主要解决现有的分类搜集垃圾装置，无法避免废旧电池被误投的技术问题，还能有效地对各种型号的电池做进一步分类。
The utility model relates to a garbage recovery device, in particular to a garbage box specially used for recycling waste batteries. It includes a box body and an inlet for inserting waste batteries on the box body, and is characterized in that: the inlet for inserting waste batteries is arranged on the box body according to the shapes of various types of batteries. The above-mentioned structure mainly solves the technical problem that the existing garbage collection device by classification cannot avoid the technical problem of waste batteries being misthrown, and can effectively further classify batteries of various types.
Description
Technical field:
The utility model relates to garbage recovery device, particularly a kind of rubbish container that reclaims old and useless battery that is exclusively used in.
Background technology:
Battery application has in daily life more and more widely spread all over the every aspect that we work and live.But battery has also caused great pollution to environment when bringing convenience to us, and one piece of button cell just can pollute 600,000 premium on currency, and this almost is the water yield of drinking in people all one's life; Battery of one joint rots the soil that can make a sq m in soil, and No kernels or seeds are gathered, as in a year of scarcity.Why old and useless battery has so big harm, be because it contains toxic heavy metals such as lead, mercury, manganese, these objectionable impuritiess enter the water source, enter soil, finally enter human body by food, cause great threat to human beings'health, simultaneously, these heavy metals are again more rare resources, therefore, no matter be from removing the angle of environmental pollution, still from the angle of resource recycling, collecting old and useless battery all is a very significant thing.
Being worth joyful is, has had increasing people to recognize the harm of old and useless battery and goes into action.The garbage recovery device of various collection old and useless battery has also appearred in the street corner.As Chinese utility model patent specification sheets (Granted publication number: CN 2475707Y) disclose a kind of combined classified garbage box monitored, comprise pedestal and some independent utility boxs that holds the space, its characteristics are that some independent utility boxs that hold space (comprising the old and useless battery private part) are movably connected on the pedestal.Can have characteristics simple in structure, easy to use by taking out one by one or overturning and dump rubbish when removing rubbish.But this refuse collector can't avoid old and useless battery by the position of miscarrying, or other rubbish is dropped into the old and useless battery private space.
Have again, as: Chinese utility model patent specification sheets (Granted publication number: CN2594203Y) also disclose a kind of automatic classification environment-protection garbage can, it is made of the dividing plate in casing and the casing, dividing plate will be divided into the paper scrap collection box in the casing, the waste plastics bag, refuse battery, waste plastic bottle and waste top-pop collection box, the ramped shaped of having separating opening is arranged on each casing, an electric fan is arranged above the rubbish container madial wall, after above-mentioned useless rubbish enters rubbish container by dog-house, at first through the air delivery duct, then by its sorting waste product that varies in weight, automatically enter in the collection box under its action of gravity, the utility model is simple in structure, and is easy to use, overcome prior art rubbish and brought the drawback that causes environmental pollution because of classifying, this device is suitable in enterprises and institutions, factory, school extensively promotes the use of.This product is just classified according to the weight of rubbish, if one in the identical object of old and useless battery weight, just may be miscarried.
The utility model content:
The purpose of this utility model provides a kind of rubbish container that reclaims old and useless battery that is exclusively used in, and solves existing classification and collects the rubbish device, and the technical matters that can't avoid old and useless battery to be miscarried can also be done further classification to the battery of various models effectively.
For solving the problems of the technologies described above, the utility model is achieved in that
A kind of rubbish container that reclaims old and useless battery that is exclusively used in comprises old and useless battery posting port on casing and the casing, and it is characterized in that: this old and useless battery posting port is arranged on the casing according to the profile of various size battery.
The described rubbish container that reclaims old and useless battery that is exclusively used in, it is characterized in that: this casing inner route clapboard is divided into some collection spaces, each corresponding collection space of the battery posting port of every kind of profile.
The described rubbish container that reclaims old and useless battery that is exclusively used in, it is characterized in that: this collection space is a funnel shaped.
The described rubbish container that reclaims old and useless battery that is exclusively used in, it is characterized in that: the bottom of this collection space is provided with article and launches button.
By said structure, the utlity model has following useful technique effect:
1, the utility model can correctly drop into rubbish container according to the model (size) of old and useless battery, has avoided miscarrying.
2, old and useless battery delivery mode of the present utility model has certain interest, and preschool children also can very fast grasp, cultivates good environmental consciousness.
Description of drawings:

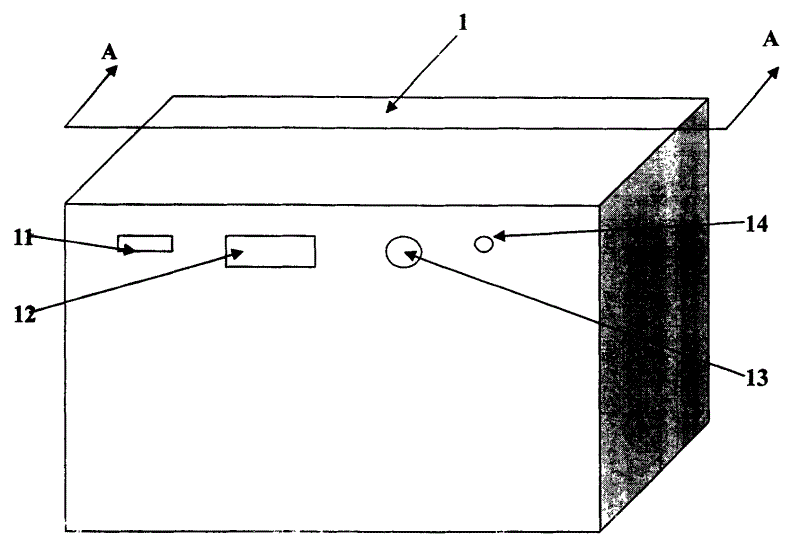

Fig. 1 is a structural representation of the present utility model.
Fig. 2 is an A-A direction cutaway view among Fig. 1.
The specific embodiment:
See also Fig. 1-2, it is the structural representation that the utility model is exclusively used in rubbish container one preferred embodiment of reclaiming old and useless battery.As shown in Figure 1: it comprises old and useless battery posting port 11,12,13,14 on casing 1 and the casing 1.This old and useless battery posting port 11,12,13,14.Profile according to various size battery is arranged on the casing 1.As Fig. 2, this casing 1 inner route clapboard 21,22,23 is divided into some collection spaces 31,32,33,34, battery posting port 11,12,13,14 each corresponding collection space 31,32,33,34 of every kind of profile.This collection space 31,32,33,34 is a funnel shaped, helps collecting old and useless battery like this.
In addition, the bottom of this collection space 31,32,33,34 is provided with article and launches button 41,42,43,44, can trigger by this button and launch gift or money and goods, awards for the people of active response environmental protection cause.
Being preferred embodiment of the present utility model only in sum, is not to be used for limiting practical range of the present utility model.Be that all equivalences of doing according to the content of the utility model claim change and modification, all should be technology category of the present utility model.
Claims (4)
