Abstract
The utility model relates to a breeze solar energy complementation circuit light, comprising a lamp post, an illumination system arranged on the lamp post and solar battery power charging and supplying system, the solar battery power charging and supplying system comprising solar energy battery panel, a charged battery and power source controller, which is characterized by: the top of lamp post is provided with a breeze generator assemble, the breeze generator assemble is communicated with the charging battery; the through hole is arranged at the bottom of the reflection type hemisphere of the generator assembly, the inside of reflection type hemisphere is hinge jointed a baffle can shelter the through holes; a lightning rod is arranged at the top of the breeze generator. The utility model solves the problems of deficiency of solar energy power supply, and the wind energy can let the street lamp keep longer time.
Description
Technical field
The utility model relates to a kind of street lamp, refers in particular to a kind of street lamp that utilizes natural wind and solar energy complemental power-generation.
Background technology
Existing conventional road lamp, what use mostly is mains-supplied.Owing to reasons such as current energy scarcity and power grid construction input are too big, a lot of highways and municipal highway all also do not install street lamp.At any time heliotechnics is constantly perfect, and cost progressively reduces, and the street lamp of some specific occasions has also adopted solar powered, but solar powered some obvious defects that also exist, when cloudy day or rainy day day after day, solar panel is adopted less than sunshine, and street lamp is also with regard to cisco unity malfunction.Wind energy is inexhaustible green resource, with wind energy transformation is the technology comparative maturity of electric energy, breeze generating set is the air blade that the gentle breeze-driven generator assembly generally comprises gentle breeze-driven generator and is provided with all around, usually breeze wind has certain requirement to wind speed, blade rotation when wind speed is 1.5M/S can be generated electricity during the 3-4 level.So far do not see as yet that utilizing breeze wind and solar electrical energy generation to combine supplies the successful case of street lamp.
The utility model content
The utility model is intended to address the above problem, and a kind of street lamp of gentle breeze solar energy complemental power-generation is provided.
In order to reach above purpose, this gentle breeze solar energy complemental power-generation street lamp, comprise lamppost, be installed on the lamppost illuminator and with the rechargeable solar battery electric power system that is connected, wherein the rechargeable solar battery electric power system is made up of solar panel, charging accumulator and power-supply controller of electric, it is characterized in that: the lamppost top is provided with the gentle breeze-driven generator assembly, and the gentle breeze-driven generator assembly is connected with charging accumulator.
Described gentle breeze-driven generator assembly comprises generator and the reflection type semi-spherical blade that connects by support thereof all around.
The reflection type semi-spherical blade bottom is provided with through hole, and the reflection type semi-spherical blade inner top side is hinged with the baffle plate that can block through hole.
Between gentle breeze-driven generator assembly, solar panel and charging accumulator, also be connected with the supply voltage frequency automatic controller.
Power-supply controller of electric is electronics inverter and automatic light-operated system device.
Gentle breeze-driven generator assembly top is provided with lightning rod.
The utlity model has following advantage:
Be subjected to resistance little when 1, starting, also rotatable generating under the gentle breeze situation.
2, remedied the deficiency of single solar powered existence, solved the difficult problem that night illumination is provided under the situation that civil power can not supply, maintenance cost is low.
3, the lightning rod at street lamp top can be avoided the danger of being struck by lightning.
Description of drawings
Fig. 1 is a structural representation of the present utility model.

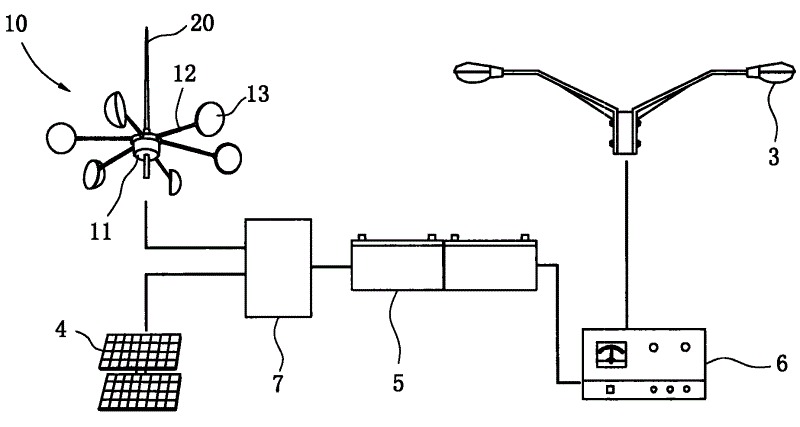

Fig. 2 is a fundamental diagram of the present utility model.
Fig. 3 is the reflection type semi-spherical blade structural representation, and wherein Fig. 3 A is a front view, and Fig. 3 B is a side sectional view, and Fig. 3 C is that baffle plate is the side sectional view of opening.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is further described.
As shown in Figure 1, this gentle breeze solar energy complemental power-generation street lamp, comprise lamppost 1, wherein lamppost 1 bottom is provided with electrical power control cabinet 2, it is illuminating lamp 3 and solar panel 4 that illuminator is installed on the lamppost 1, the charging accumulator 5 and the power-supply controller of electric 6 that connect illuminating lamp 3 and solar panel 4 are installed in the electrical power control cabinet 2, also are provided with gentle breeze-driven generator assembly 10 at lamppost 1 top.Its operation principle is referring to Fig. 2, and gentle breeze-driven generator assembly 10, solar panel 4 are connected with supply voltage frequency automatic controller 7 respectively, and supply voltage frequency automatic controller 7 is connected with charging accumulator 4, power-supply controller of electric 6, illuminating lamp 3 successively.Same as the prior art, be provided with single-chip microcomputer in the supply voltage frequency automatic controller 7, be used for controlling the wind-power electricity generation electrical power storage to charging accumulator 5, under the rotating speed of setting, can generate electricity, and when wind-force surpasses the highest setting value, single-chip microcomputer promptly can send the safe separating instruction, at this moment the generator transmission system is separated with fan blade, is running light, when wind speed meets the safe power generation condition, single-chip microcomputer promptly can send the instruction that is in transmission connection, and generator can generate electricity.
Power-supply controller of electric 6 is electronics inverter and automatic light-operated system device in the present embodiment, can control the power supply of 5 pairs of illuminating lamps 3 of charging accumulator automatically, when light is more weak, when promptly the evening draws on, help switch secretly and send the instruction of turning on light, illuminating lamp is bright, when light is more intense, help switch secretly and send the instruction of turning off the light, illuminating lamp goes out, and can reach the purpose of saves energy like this.The gentle breeze-driven generator assembly 10 of present embodiment comprises generator 11 and the fan blade 13 that connects by support 12 thereof all around, as can be seen, six reflection type semi-spherical blades 13 drive the gentle breeze-driven generator assembly and horizontally rotate under the promotion of wind-force, this fan blade 13 has adopted the higher reflection type semi-spherical blade of the wider transformation efficiency of present application, its structure is referring to Fig. 3, Fig. 3 A wherein, Fig. 3 B, Fig. 3 C is respectively the schematic diagram of a plurality of states, identical with existing fan blade, this fan blade 13 is the hemisphere housing, the difference part is, the fan blade bottom is that the bottom of hemisphere housing is provided with through hole 14, be hinged with the baffle plate 16 that can block through hole by hinge 15 in fan blade 13 inner top side, shown in Fig. 3 B, in wind blows from the opening direction of fan blade, this baffle plate 16 shelters from through hole 14 under the wind-force effect, its effect is identical with existing reflection type semi-spherical blade, blow in the other direction and work as wind facies, promptly when through hole 14 directions blow, see Fig. 3 C, baffle plate 16 these through holes 14 of swing in opened condition, can reduce resistance, design can allow fan blade rotate under littler wind condition like this, has further improved generating efficiency.Simultaneously, consider under the more susceptible condition of the utility model it is to be applied on the highway and the situation of self, be struck by lightning easily that can be provided with a lightning rod 20 on gentle breeze-driven generator assembly 10, referring to Fig. 1, Fig. 2, purpose is to be used to avoid lightning risk at thundery sky.Present embodiment has solved solar powered existing defective well, can allow street lamp keep the longer working time.
Above content be in conjunction with concrete preferred implementation to further describing that the utility model is done, can not assert that concrete enforcement of the present utility model is confined to these explanations.For the utility model person of an ordinary skill in the technical field, under the prerequisite that does not break away from the utility model design, its framework form can be flexible and changeable, can the subseries product.Just make some simple deduction or replace, all should be considered as belonging to the scope of patent protection that the utility model is determined by claims of being submitted to.
Claims (6)
1, a kind of gentle breeze solar energy complemental power-generation street lamp, comprise lamppost (10), be installed on the lamppost illuminator (3) and with the rechargeable solar battery electric power system that is connected, wherein the rechargeable solar battery electric power system is made up of solar panel (4), charging accumulator (5) and power-supply controller of electric (6), it is characterized in that: the lamppost top is provided with gentle breeze-driven generator assembly (10), and gentle breeze-driven generator assembly (10) is connected with charging accumulator (5).
2, gentle breeze solar energy complemental power-generation street lamp according to claim 1 is characterized in that: described gentle breeze-driven generator assembly (10) comprises generator (11) and the reflection type semi-spherical blade (13) that connects by support (12) thereof all around.
3, gentle breeze solar energy complemental power-generation street lamp according to claim 2 is characterized in that: described reflection type semi-spherical blade (13) bottom is provided with through hole (14), and the reflection type semi-spherical blade inner top side is hinged with the baffle plate (16) that can block through hole (14).
4, gentle breeze solar energy complemental power-generation street lamp according to claim 1 is characterized in that: also be connected with supply voltage frequency automatic controller (7) between gentle breeze-driven generator assembly (10), solar panel (4) and charging accumulator (5).
5, gentle breeze solar energy complemental power-generation street lamp according to claim 1 is characterized in that: described power-supply controller of electric (6) is electronics inverter and automatic light-operated system device.
6, gentle breeze solar energy complemental power-generation street lamp according to claim 1, it is characterized in that: described gentle breeze-driven generator assembly (10) top is provided with lightning rod (20).
