Abstract
本实用新型公开了一种电动汽车的蓄电池固定支架，包括托架、上固定圈、下固定圈、螺栓螺母、连接块、电池箱，托架由相互平行的竖连接条和与竖连接条垂直相连的横连接条组成，托架的竖连接条的上端分别与连接块相连，下固定圈与托架的竖连接条连接于下固定圈的中线延长线上，电池箱为一无盖的长方体盒体，其上部具有向外的折边，折边的下表面与下固定圈上表面贴合，电池箱的下底面放置于托架的横连接条上，蓄电池放置于电池箱内，上固定圈卡在蓄电池的上部，上固定圈与下固定圈通过螺栓螺母相互联接。本实用新型采用这样的结构，减轻了蓄电池固定支架的重量，减小了体积，安装和拆卸蓄电池显得方便，使得蓄电池在电动汽车上便于布置。
The utility model discloses a battery fixing bracket for an electric vehicle, which comprises a bracket, an upper fixing ring, a lower fixing ring, bolts and nuts, a connecting block, and a battery box. The upper ends of the vertical connecting bars of the bracket are respectively connected with the connecting blocks, the lower fixing ring and the vertical connecting bars of the bracket are connected on the extension line of the center line of the lower fixing ring, and the battery box is a cuboid without a cover The box body has an outward folded edge on the upper part, and the lower surface of the folded edge is attached to the upper surface of the lower fixing ring. The lower bottom surface of the battery box is placed on the horizontal connecting strip of the bracket, and the battery is placed in the battery box, and the upper surface is fixed. The ring is stuck on the upper part of the battery, and the upper fixing ring and the lower fixing ring are connected to each other through bolts and nuts. The utility model adopts such a structure, which reduces the weight of the storage battery fixing bracket and reduces the volume, and it is convenient to install and disassemble the storage battery, so that the storage battery is convenient to be arranged on the electric vehicle.
Description
Technical field
The utility model relates to electronlmobil, especially relates to the storage battery fixed support of electronlmobil.
Background technology
Electronlmobil has become the vehicle of effective and safe owing to its energy-saving and environmental protection, nothing are discharged, noise is low, and the storage battery of present electronlmobil is positioned in the battery pack box body, and the battery pack box body is fixed on the vehicle frame.Such structure, the volume of battery pack support is bigger, and is not easy to the Assembly ﹠Disassembly storage battery.
Summary of the invention
Technical problem to be solved in the utility model is: provide a kind of volume to reduce, and be convenient to the storage battery fixed support of the electronlmobil of Assembly ﹠Disassembly battery pack.
Solve this technical problem, technical scheme of the present invention is: a kind of storage battery fixed support of electronlmobil, comprise carriage, last mounting ring, following mounting ring, the bolt and nut of lengthening, two contiguous blocks, battery box, carriage by two perpendicular connecting straps that are parallel to each other with form with the vertical horizontal connecting strap that links to each other of these two perpendicular connecting straps, the upper end of the perpendicular connecting strap of carriage links to each other with contiguous block, the upper end of the perpendicular connecting strap of carriage links to each other with contiguous block, the top of carriage is connected with following mounting ring, two perpendicular connecting straps of following mounting ring and carriage are connected in down on the center line extended line of mounting ring, battery box is the cuboid box body of a uncovered, its top has outside flanging, the lower surface of flanging is fitted with following mounting ring upper surface, the bottom surface of battery box is positioned on the horizontal connecting strap of carriage, storage battery is positioned in the battery box, last mounting ring is stuck in the top of storage battery, and last mounting ring is coupled to each other with the bolt and nut of following mounting ring by lengthening.
Two perpendicular connecting straps and two contiguous blocks of described carriage are an integral body, all have the vehicle frame bonded assembly bolt hole with electronlmobil on each contiguous block.
Be connected with fixed strip respectively between the bottom of two perpendicular connecting straps of described carriage and the battery box.
The utility model adopts such structure, has alleviated the support bracket fastened weight of storage battery, has reduced volume, and it is convenient that the Assembly ﹠Disassembly storage battery seems, makes storage battery be convenient to arrange on electronlmobil.
Description of drawings
Below in conjunction with accompanying drawing the utility model is described in further detail:

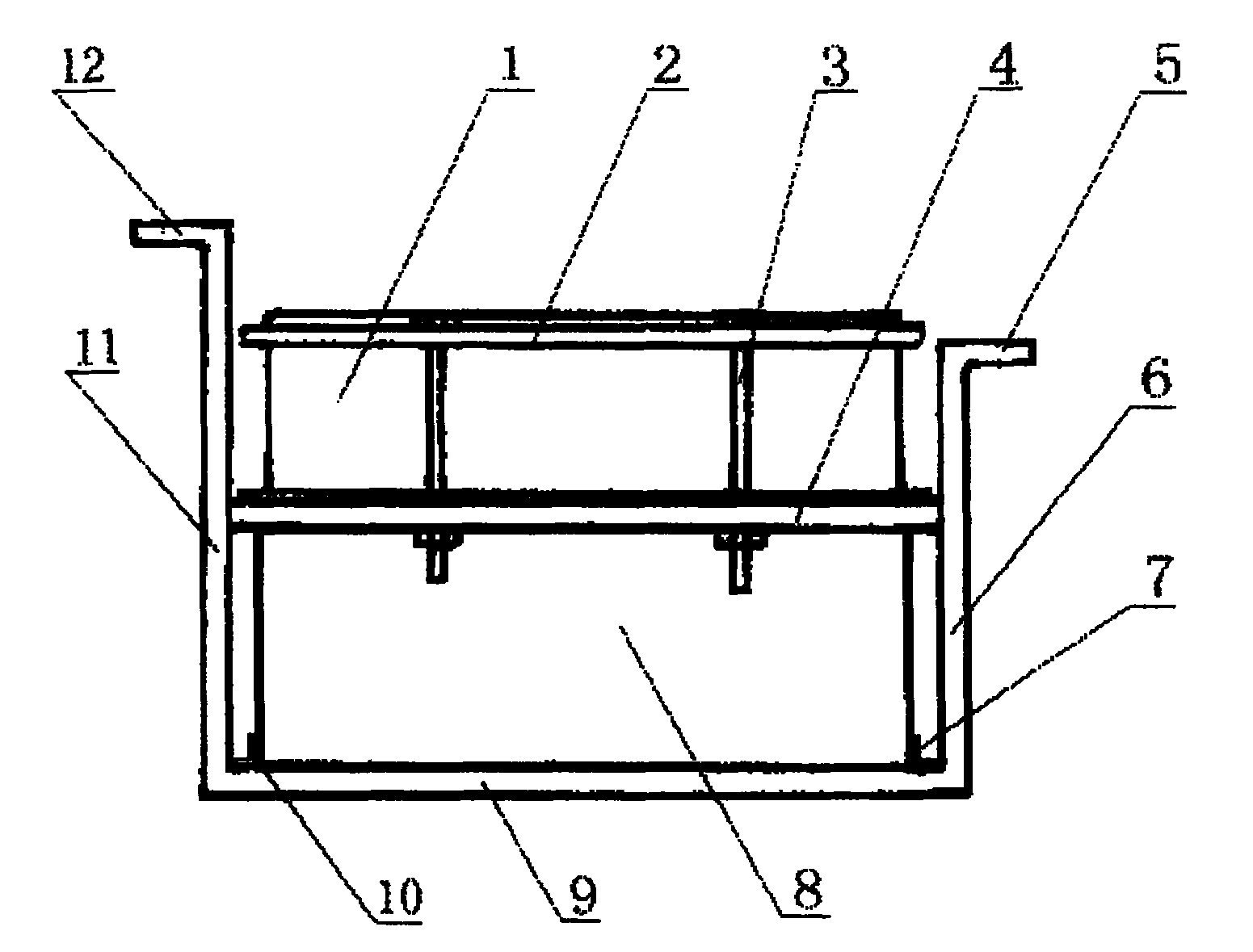

Fig. 1 is the support bracket fastened structural representation of the power battery pack of battery electric vehicle;
Fig. 2 is a birds-eye view shown in Figure 1;
In Fig. 1, Fig. 2,1, storage battery; 2, go up mounting ring; 3, bolt and nut; 4, following mounting ring; 5, contiguous block; 6, perpendicular connecting strap; 7, fixed strip; 8, battery box; 9, horizontal connecting strap; 10, fixed strip; 11, perpendicular connecting strap; 12, contiguous block.
The specific embodiment
As Fig. 1, shown in Figure 2, the storage battery fixed support of electronlmobil is installed on the vehicle frame between two wheels of battery electric vehicle, the storage battery fixed support comprises carriage, last mounting ring 2, following mounting ring 4, the bolt and nut 3 of lengthening, contiguous block 5,12, battery box 8, carriage is by the perpendicular connecting strap 6 that is parallel to each other, 11 and with perpendicular connecting strap 6, the 11 vertical horizontal connecting straps that link to each other 9 are formed, the perpendicular connecting strap 6 of carriage, 11 upper end respectively with contiguous block 5,12 link to each other, also can be with the perpendicular connecting strap 6 of carriage, 11 with contiguous block 5,12 make an integral body, contiguous block 5, has the bolt hole that connects to ground on 12, contiguous block 5,12 also can be welded on the vehicle frame lower surface of electronlmobil.The top of carriage is connected with following mounting ring 4, following mounting ring 4 is connected in down on the center line extended line of mounting ring with the perpendicular connecting strap 6,11 of carriage, battery box 8 is the cuboid box body of a uncovered, its top has outside flanging, the lower surface of flanging is fitted with following mounting ring 4 upper surfaces, the bottom surface of battery box is positioned on the horizontal connecting strap 9 of carriage, and the bottom of two perpendicular connecting straps 6,11 of carriage is connected with fixed strip 7,10.Storage battery 1 is positioned in the battery box 8, and last mounting ring 2 is stuck in the upper notch place of storage battery 1, and last mounting ring 2 is coupled to each other with the bolt and nut 3 of following mounting ring 4 by four lengthenings.
Storage battery adopts the fixed form of said frame structure, has alleviated the support bracket fastened weight of storage battery, has reduced volume, and it is convenient that the Assembly ﹠Disassembly storage battery seems.The length by the perpendicular connecting strap 2,8 that is parallel to each other of the support bracket fastened carriage of storage battery can be different, make storage battery be convenient to arrange on electronlmobil.
Claims (3)
1, a kind of storage battery fixed support of electronlmobil, it is characterized in that: comprise carriage, last mounting ring (2), following mounting ring (4), the bolt and nut (3) of lengthening, two contiguous blocks (5,12), battery box (8), carriage is by two that are parallel to each other perpendicular connecting straps (6,11) and with these two perpendicular connecting straps (6,11) the vertical horizontal connecting strap (9) that links to each other is formed, the upper end of the perpendicular connecting strap (6) of carriage links to each other with contiguous block (5), the upper end of the perpendicular connecting strap (11) of carriage links to each other with contiguous block (12), the top of carriage is connected with following mounting ring (4), two perpendicular connecting straps (6 of following mounting ring (4) and carriage, 11) be connected in down on the center line extended line of mounting ring (4), battery box (8) is the cuboid box body of a uncovered, its top has outside flanging, the lower surface of flanging is fitted with following mounting ring (4) upper surface, the bottom surface of battery box (8) is positioned on the horizontal connecting strap (9) of carriage, storage battery (1) is positioned in the battery box (8), last mounting ring (2) is stuck in the top of storage battery (1), and last mounting ring (2) is coupled to each other with the bolt and nut (3) of following mounting ring (4) by lengthening.
2, the storage battery fixed support of electronlmobil according to claim 1, it is characterized in that: two perpendicular connecting straps (6,11) of described carriage are an integral body with two contiguous blocks (5,12), all have the vehicle frame bonded assembly bolt hole with electronlmobil on each contiguous block (5,12).
3, the storage battery fixed support of electronlmobil according to claim 1 and 2 is characterized in that: be connected with fixed strip (7,10) respectively between the bottom of two perpendicular connecting straps (6,11) of described carriage and the battery box (8).
