CN1945318A - Full automatic underground water constant level compensating evaporimeter-lysimeter - Google Patents
Full automatic underground water constant level compensating evaporimeter-lysimeter Download PDFInfo
- Publication number
- CN1945318A CN1945318A CN 200610104683 CN200610104683A CN1945318A CN 1945318 A CN1945318 A CN 1945318A CN 200610104683 CN200610104683 CN 200610104683 CN 200610104683 A CN200610104683 A CN 200610104683A CN 1945318 A CN1945318 A CN 1945318A
- Authority
- CN
- China
- Prior art keywords
- water
- water level
- level control
- box
- control
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Landscapes
- Control Of Non-Electrical Variables (AREA)
- Cultivation Of Plants (AREA)
Abstract
全自动地下水恒位补偿蒸渗仪，由栽培池、水位控制及补给系统、数据处理系统组成；水位控制及补给系统由储水罐、水位控制管、水位控制箱、水层分离管、膨大气泡箱和联通管组成；水位控制管上端装在储水罐下端，下端位于水位控制箱并与控制水位面相平齐，水层分离管上端位于水位控制箱下部、控制水位面下方，下部伸出水位控制箱的出水口位于密闭的膨大气泡箱，水位控制箱设有进气孔；数据处理系统由翻斗计数器、数据采集仪和数据采集线组成；膨大气泡箱内安装翻斗计数器，水层分离管出水口与翻斗位置对应，数据采集线将翻斗计数器与数据采集仪相连接；联通管将膨大气泡箱水层与栽培池水层相连接。它实现了地下水位恒定控制和自动补水，应用范围广。
Fully automatic groundwater constant level compensation lysimeter, composed of cultivation pool, water level control and replenishment system, data processing system; water level control and replenishment system consists of water storage tank, water level control pipe, water level control box, water layer separation pipe, expanded air bubbles The upper end of the water level control pipe is installed at the lower end of the water storage tank, and the lower end is located in the water level control box and is flush with the control water level surface. The water outlet of the control box is located in the airtight expanded bubble box, and the water level control box is provided with an air inlet; the data processing system is composed of a tipping bucket counter, a data acquisition instrument and a data acquisition line; The water outlet corresponds to the position of the tipping bucket, and the data acquisition line connects the tipping bucket counter with the data acquisition instrument; the communication pipe connects the water layer of the expanded bubble box with the water layer of the cultivation pool. It realizes constant control of groundwater level and automatic water replenishment, and has a wide range of applications.
Description
Technical field the present invention relates to belong to the lysimeter that is used to observe plant transpiration water consumption and vegetation evapotranspiration in farming, forestry plant physiology, the ecological monitoring technical field, specifically a kind of full automatic underground water constant level compensating evaporimeter-lysimeter.
Background technology plant transpiration water consumption and vegetation evapotranspiration are important index in plant physiology ecology, water-saving irrigation and the agriculture and forestry engineering design.Though it is a lot of to measure the method for plant transpiration amount and vegetation evapotranspiration at present, can not measure and grasp water consumption and the water consumption rule of trees complete stool exactly.
The traditional plant evapotranspiration and the assay method of rising intensity are a lot, can divide sprig rapid weighing method, the rising mensuration of various leaves chamber method blade system, microclimate method, thermal diffusion method etc., these methods all are to measure the rising intensity or the liquid-flow state of the single organ of plant or organ a part, thereby calculate the transpiration rate of plant, the resultant error of reckoning is very big.
Lysimeter claims infiltrometer and soil seepage gauge again, the lysimeter method is accurately to measure the reliable method of plant complete stool evapotranspiration. the lysimeter kind is a lot, can branch Weighing Lysimeter and non-Weighing Lysimeter. Weighing Lysimeter can be used on farmland, grassland and forest, but can't be applied to the desert area that terrestrial materials often is in flow state.Existing non-Weighing Lysimeter is difficult to satisfy long location observation research owing to can not realize automatic water-supply and record.
Though the lysimeter of present domestic introduction or development voluntarily has large-scale Weighing Lysimeter, suspension Weighing Lysimeter etc. can accurately disclose the dynamic rule of individual trees and even association transpiration water consumption, but except that above defective, and because of costing an arm and a leg, the operating cost height is difficult to popularization and application.
Summary of the invention the purpose of this invention is to provide the full automatic underground water constant level compensating evaporimeter-lysimeter that a kind of cost is low, simple in structure, easy to use, measurement is highly sensitive.It is a kind of non-weighing formula lysimeter, can realize the constant control of underground water table, automatic water supplement, whole-process automatic collection and storage data, and can realize the computing machine immediately monitoring, satisfies the requirement of long-term position monitor.
Above-mentioned purpose is achieved through the following technical solutions: a kind of full automatic underground water constant level compensating evaporimeter-lysimeter, form by cultivating pool, water level control and make-up system, data handling system; Water level control and make-up system are made up of water tank, water level control pipe, water level control box, water layer separator tube, enlargement bubble box and cross over pipe; The water level control pipe upper end is contained in the water tank lower end, the water level control pipe lower end is positioned at water level control box and mutually concordant with the control water level face, water layer separator tube upper end is positioned at water level control box bottom, control water level face below, the water delivering orifice that water level control box is stretched out in water layer separator tube bottom is positioned at airtight enlargement bubble box, and water level control box is provided with the air admission hole that is communicated with atmosphere; Data handling system is made up of tipper counter, data collecting instrument and data acquisition line; Tipper counter is installed in the enlargement bubble box, and water layer separator tube water delivering orifice is corresponding with the quantitative tipping bucket position of tipper counter, and the data acquisition line is connected tipper counter with data collecting instrument; Cross over pipe is connected the enlargement bubble box water layer with the cultivating pool water layer.
Cultivating pool is arranged on not the seeping water of below ground, watertight large-scale pond body, at the bottom of the pond gravel bed is housed so that underground water table is set, top dress cultivating soil.Cultivating pool underground water table SW is set in the cultivating pool bottom
PlantSet control water level SW in the water level control box
Control, the enlargement bubble box inner bottom part forms a bubble water level SW
Swollen, control water level SW
ControlEqual cultivating pool underground water table SW with the water layer difference in height h of interruption-forming under the water layer separator tube
PlantHeight of water level difference H with the formation of enlargement bubble box inner bottom part bubble water level.The place establishes freeing port in the cultivating pool underground water table.Enlargement bubble box of the present invention is equivalent to be provided with on the link road of water level control box and cultivating pool water table and expands bubble, and the bubble that expands separates water layer, and tipper counter is installed in the enlargement bubble box, has created the working environment of automatic metering system.The critical component that separates water layer formation bubble is the water layer separator tube.
The present invention relies on air pressure to realize that the underground water table of automatic water supplement and control water level, tipping bucket metering keeps constant compensation lysimeter.When plant transpiration or the evaporation of native face, cultivating pool soil moisture wanes, upwards conduction of moisture under the capillary force effect, cultivating pool underground water table SW
PlantDescend and cause bubble bottom decline of water table, cause pressure in bubbles to lower, the water of water level control box replenishes downwards with the water droplet form along the water layer separator tube, at this moment control water level SW
ControlDescend, water level control pipe breaks away from control water level SW
Control, the water of reserve tank replenishes downwards along water level control pipe, simultaneously airborne gas along water level control pipe to the water storing tank make-up gas.The water droplet that the water layer separator tube moves downward enters the water yield of tipper counter stoichiometric consumption, and the data that the First Astronautic Research Institute for Measurement and Test gets store data collecting instrument into by data line.
The present invention has realized constant control of underground water table and automatic water supplement, and cost is low, and applied range is saved manpower.Because of data handling system being installed as the automatic measuring apparatus of gathering, realized whole-process automatic collection and storage data, the data of being gathered are in time, accurately, reliably, and are highly sensitive, measure sensitivity and can reach 12.56g (depending on tipper counter).And can realize the computing machine immediately monitoring, satisfy the requirement of long-term position monitor.

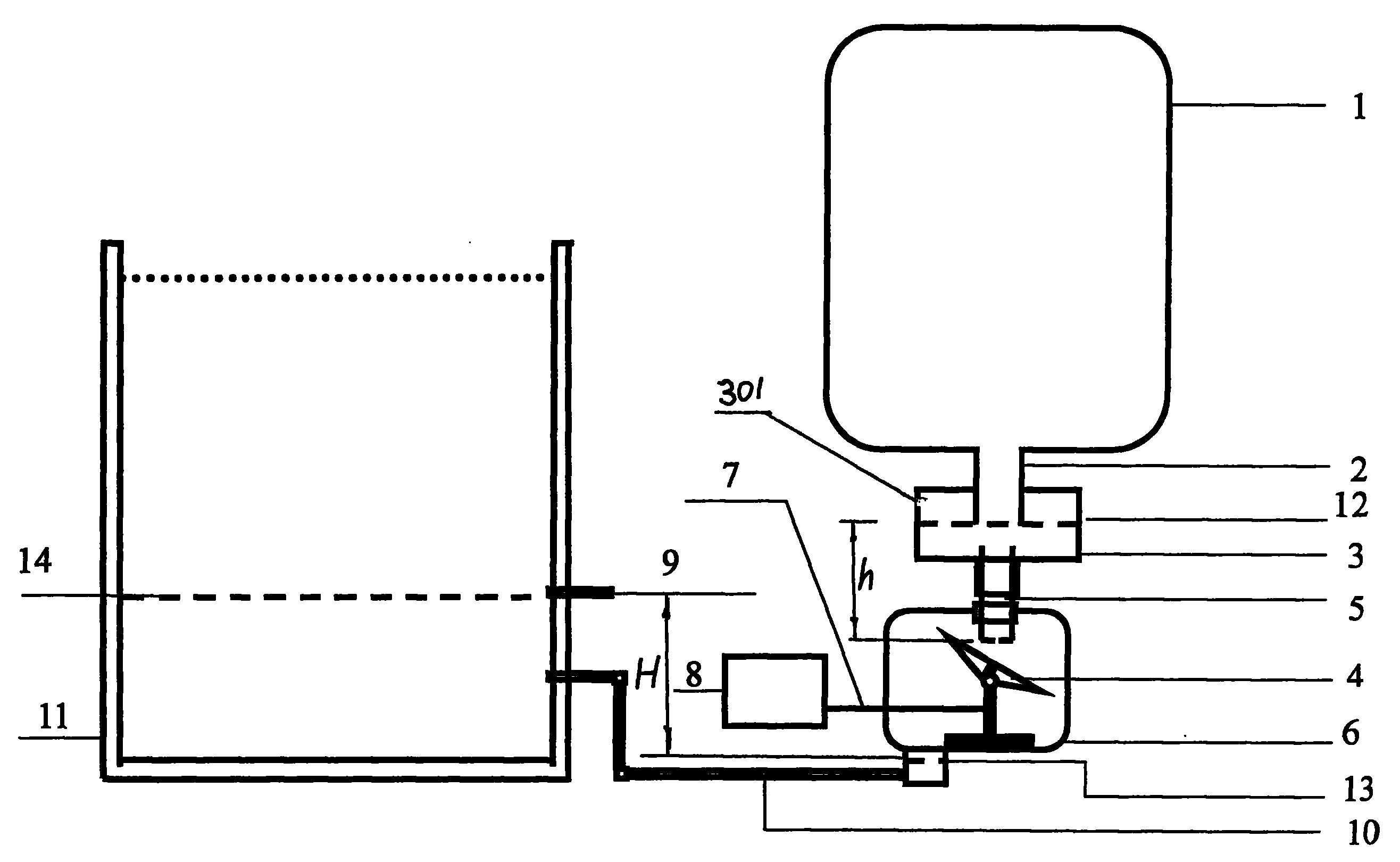

Appended drawings is a structural representation of the present invention.
Among the figure: 1-water storing tank, 2-water level control pipe, 3-water level control box, 301-air admission hole, 4-tipper counter, 5-water layer separator tube, 6-enlargement bubble box; The 7-number is adopted line, and the 8-number is adopted instrument, 9-drainpipe, 10-cross over pipe, 11-cultivating pool, 12-control water level SW
Control, 13-bubble water level SW
Swollen, 14-cultivating pool underground water table SW
Plant, h-control water level SW
ControlWith the water layer height of interruption-forming under the water layer separator tube, H-cultivating pool underground water table SW
PlantWith enlargement bubble box inner bottom part bubble water level SW
SwollenThe height of water level that forms.
Embodiment is as shown in the figure: a kind of full automatic underground water constant level compensating evaporimeter-lysimeter comprises cultivating pool 11, water level control and make-up system, data handling system; Water level control and make-up system are made up of water tank 1, water level control pipe 2, water level control box 3, water layer separator tube 5, enlargement bubble box 6 and cross over pipe 10; Water level control pipe 2 upper ends are contained in water tank 1 lower end, and water level control pipe 2 lower ends are positioned at water level control box 3, just in time are positioned at the control water level SW of water level control box 3
ControlOn 12 liquid levels, with control water level SW
Control12 liquid levels are mutually concordant, and water layer separator tube 5 upper ends are positioned at water level control box 3 bottoms, control water level SW
Control12 liquid levels below, the water delivering orifice that water level control box 3 is stretched out in water layer separator tube 5 bottoms is positioned at airtight enlargement bubble box 6, and water level control box 3 is provided with air admission hole 301; Data handling system is made up of tipper counter 4, data collecting instrument 8 and data acquisition line 7, tipper counter 4 is installed in the enlargement bubble box 6, water layer separator tube 5 water delivering orifices are corresponding with the quantitative tipping bucket position of tipper counter 4, and data acquisition line 7 is connected tipper counter 4 with placing peripheral data collecting instrument 8; Enlargement bubble box 6 bottoms are provided with bubble water level SW
Swollen13, cultivating pool 11 bottoms are provided with cultivating pool underground water table SW
Plant14, cultivating pool underground water table SW
Plant14 is constant underground water table layers.Cross over pipe 10 is connected enlargement bubble box 6 with cultivating pool 11, with bubble water level SW
Swollen13 subsurface water layers and cultivating pool underground water table SW
Plant14 subsurface water layers connect.Cultivating pool underground water table SW at cultivating pool 11
Plant14 places are promptly with cultivating pool underground water table SW
PlantFreeing port is established in 14 concordant positions, freeing port attaching drainpipe 9, and drainpipe 9 is got rid of the moisture that oozes under the precipitation and can be measured down milliosmolarity.Tipper counter 4, data acquisition line 7 etc. are all directly bought from market.
Cultivating pool 11 is arranged on not the seeping water of below ground, watertight large-scale pond body, at the bottom of the pond gravel bed is housed so that underground water table is set, top dress cultivating soil.In cultivating pool 11 bottoms cultivating pool underground water table SW is set
Plant14; Make cultivating pool underground water table SW
PlantWith enlargement bubble box 6 inner bottom part bubble water level SW
SwollenThe 13 height of water level difference H that form equal control water level SW
Control12 with the water layer difference in height h of 5 times interruption-formings of water layer separator tube.When plant transpiration or the evaporation of native face, cultivating pool soil moisture wanes, upwards conduction of moisture under the capillary force effect, cultivating pool underground water table SW
Plant14 descend causes the bubble water level SW of enlargement bubble box 6 bottoms
Swollen13 descend, and cause pressure in bubbles to lower, and the water of water level control box 3 replenishes downwards with the water droplet form along water layer separator tube 5, at this moment control water level SW
Control12 descend, and water level control pipe 2 breaks away from control water level SW
Control12, the water of reserve tank 1 replenishes downwards along water level control pipe 2, simultaneously airborne gas along water level control pipe 2 to reserve tank 1 make-up gas.The water droplet that water layer separator tube 5 moves downward enters the water yield of tipper counter 4 stoichiometric consumption, and the data that the First Astronautic Research Institute for Measurement and Test gets store data collecting instrument 8 into by data line 7 transmission.
Claims (3)
1, a kind of full automatic underground water constant level compensating evaporimeter-lysimeter is characterized in that: it is made up of cultivating pool (11), water level control and make-up system, data handling system; Described water level control and make-up system are made up of water tank (1), water level control pipe (2), water level control box (3), water layer separator tube (5), enlargement bubble box (6) and cross over pipe (10); Described water level control pipe (2) upper end is contained in described water tank (1) lower end, described water level control pipe (2) lower end be positioned at described water level control box (3), with control water level SW
Control(12) liquid level is mutually concordant, and described water layer separator tube (5) upper end is positioned at described water level control box (3) bottom, described control water level SW
Control(12) liquid level below, the water delivering orifice that described water level control box (3) is stretched out in described water layer separator tube (5) bottom is positioned at airtight described enlargement bubble box (6), and described water level control box (3) is provided with air admission hole (301); Described data handling system is made up of tipper counter (4), data collecting instrument (8) and data acquisition line (7); Described tipper counter (4) is installed in the described enlargement bubble box (6), described water layer separator tube (5) water delivering orifice is corresponding with the quantitative tipping bucket position of described tipper counter (4), and described data acquisition line (7) is connected described tipper counter (4) with described data collecting instrument (8); Described cross over pipe (10) is connected described enlargement bubble box (6) with described cultivating pool (11).
2, a kind of full automatic underground water constant level compensating evaporimeter-lysimeter as claimed in claim 1 is characterized in that: described enlargement bubble box (6) bottom is provided with bubble water level SW
Swollen(13), described cultivating pool (11) bottom is provided with cultivating pool underground water table SW
Plant(14), described cross over pipe (10) is with described bubble water level SW
Swollen(13) subsurface water layer and described cultivating pool underground water table SW
Plant(14) subsurface water layer connects.
3, a kind of full automatic underground water constant level compensating evaporimeter-lysimeter as claimed in claim 1 or 2 is characterized in that: described cultivating pool (11), with described cultivating pool underground water table SW
Plant(14) freeing port is established in concordant position, described freeing port attaching drainpipe (9).
