Abstract

A partition structure of a cushioning packaging material has a comb-like structure. The comb-like structure has a plurality of flexible strips. The strips are placed in a plurality of corresponding slots of the cushioning packaging material in a bent state, and the strips can be used to support the slots, so that the cushioning packaging material is not easily deformed.

Description

Partition structure for cushioning packaging materials

technical field

The invention relates to a partition structure for cushioning packaging materials, in particular to a partition structure with a comb structure

Background technique

Referring to FIG. 1 , FIG. 1 is a schematic diagram of a known buffer packaging box 100 . A cushioning packaging material 102 is placed on both sides of the interior of the cushioning packaging box 100 , and the user can place items between the two cushioning packaging materials 102 to avoid collision damage during transportation. Referring to FIG. 2 again, FIG. 2 is a schematic diagram of a known cushioning packaging material 102 . The cushioning packaging material 102 can be divided into a base plate 104 and a fixing plate 106 , and slots 108 are formed between adjacent fixing plates 106 . When the user places the item between the two cushioning packaging materials 102, the item can be fixed in the slot 108, and the thickness, width and other dimensions of the slot 108 are determined according to the specifications of the item to be loaded. Generally speaking, flat-panel items can be shipped in such cushioned packaging boxes, such as finished or semi-finished liquid crystal display panels, and the like.

In order to save costs and take into account environmental protection policies, the bottom plate 104 and the fixing plate 106 are usually made of cardboard, which can be recycled and reused easily. In this known cushioning packing box 100, when the cushioning packing box 100 is full of articles, articles are placed in each slot 108, and the articles can be tightly fixed by the cushioning packing material 102, thus producing a good shockproof shockproof effect. But when the buffer packing box 100 is not full of articles, some slots 108 are empty, and then some problems will be produced.

When the items in the buffer packing box 100 are not full, the vacant slots 108 will shake because there are no items to support each other, which causes the spaces of the slots 108 to vary in size. Because the base plate 104 and the fixing plate 106 are joined by tenons, and the material is cardboard, the joint between the base plate 104 and the fixing plate 106 will be loose or deformed, thus causing the slots 108 to have different spaces. And the situation that the space of the slot 108 changes will cause the articles in the cushioning packaging box 100 to shake, seriously affecting its fixing and cushioning functions. When there is great shaking during transportation, the bottom plate 104 or the fixing plate 106 may even be broken, thus causing collision and damage to the items.

Contents of the invention

Therefore, the main purpose of the present invention is to provide a partition structure for cushioning packaging materials, which has tight and safe fixing and cushioning effects no matter whether the items are full or not, so as to solve the problems in the above-mentioned known technologies.

Another object of the present invention is to provide a partition structure for cushioning packaging materials, which can not only fix the spacing of the slots of the cushioning packaging materials, but also take into account the convenience of packaging.

According to the invention, a partition structure of cushioning packaging materials is disclosed, and the partition structure has a flexible strip. Wherein these strips are put into a plurality of corresponding slots of the buffer packaging material in a bent state, and these strips can support these slots.

According to the present invention, a packaging material is also disclosed, which includes an accommodating device and a partition structure. The accommodating device has a plurality of slots for placing an item, and the partition structure is used for supporting the accommodating device. The partition structure includes a comb structure with a plurality of flexible strips. Wherein, the strips are put into the corresponding slots of the accommodating device in a bent state, and the strips can support the slots.

According to the present invention, there is also disclosed a partition structure for cushioning packaging materials, the partition structure has a plurality of strips, and these strips are placed in a plurality of corresponding slots of the cushioning packaging material in a bent state, and used to support these slots.

Description of drawings

Fig. 1 is the schematic diagram of known buffer packing box;

Fig. 2 is the schematic diagram of known buffer packaging material;

Fig. 3 is the schematic diagram of dividing plate structure of the present invention;

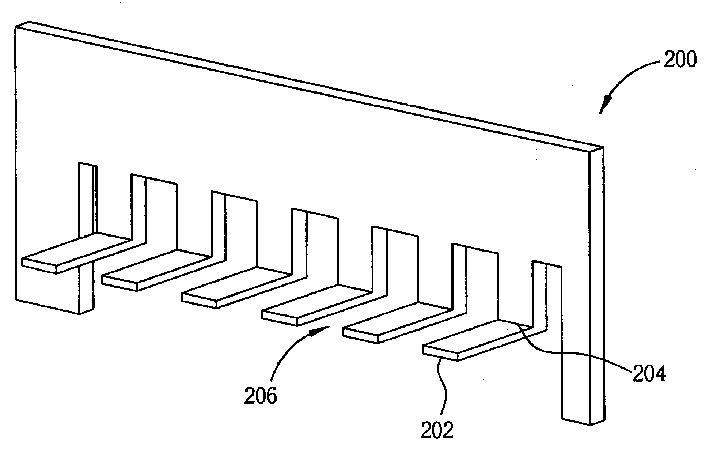

Fig. 4 is a schematic diagram of the separator structure of the present invention in a bent state;

Fig. 5 is a schematic diagram of installing the partition structure of the present invention on the cushioning packaging material.

Detailed ways

Referring to Fig. 3, Fig. 3 is a schematic diagram of the separator structure of the cushioning packaging material of the present invention. The separator 200 is a supporting device made of cardboard, which is used to support the slot of the cushioning packaging material so that it is not easily deformed. The separator 200 is a comb-shaped structure, which has a plurality of elongated strips 202 , and a slit 206 is separated between each strip 202 . A bent structure 204 is formed on each strip-shaped groove 202 , wherein the bent structure 204 may be a groove or a notch pre-formed on the strip-shaped body 202 . When in use, the bar 202 can be bent along the bending structure 204 into a situation as shown in FIG. 4 . Of course, the bending structure 204 can also be more than one groove or notch, as long as it can achieve the function of convenient bending. If no bending structure 204 is designed on the strip 202, the user can also bend the strip 202, but the bending position of each strip 202 may be inconsistent, thus affecting the aesthetic appearance, but its function and function The partition 200 of the bent structure 204 is the same.

Before packing items into the cushioning packaging box 100, put the partition 200 of the present invention, and insert the slit 206 of the partition 200 into the fixing plate 106 of the cushioning packaging material 102 to form a structure as shown in FIG. 5 . Figure 5 is a schematic diagram of the combination of the partition 200 and the cushioning packaging material 102, wherein each slit 206 of the partition 200 is snapped into the fixing plate 106 of the cushioning packaging material 102, and the bending strip of the partition 200 Body 202 is also inserted into slot 108 of cushioning wrap 102 . By bending the strips 202 of the separator 200 , the adjacent fixing plates 106 can be fixed to each other through the bent parts, so as to avoid shaking. In this way, even if the items in the buffer packaging box 100 are not full, the fixing plate 106 will not shake, so the items can obtain good buffer protection.

In addition, after the cushioning packaging box 100 is put into the partition board 200 of the present invention, it will not increase the complexity of its loading and packaging. After the separator 200 and the cushioning packaging material 102 are combined into the structure shown in Figure 5, when loading the article, the article will be directly inserted into the slot 108, and the article will push the bent strip 202 to straighten it. Items can thus be loaded without a hitch. Therefore, after using the separator 200 of the present invention, it will not have any impact on the packaging process at all, as long as the original process is followed.

Compared with the known cushioning packing box, the partition structure of the present invention has the characteristics of providing the supporting force of the cushioning packing material, and is simple to manufacture and convenient to use, can effectively ensure the cushioning protection function during the transportation of the articles, and reduce the Collision damage.

The above descriptions are only preferred embodiments of the present invention, and all equivalent changes and modifications made in accordance with the claims of the present invention shall fall within the protection scope of the present invention.

Claims (10)

1. the diaphragm structure of an amortizing packaging material, described diaphragm structure comprises:

One pectination, described pectination has the strip shape body of a plurality of deflections;

Wherein these strip shape bodies are a plurality of cooresponding slots of putting into described amortizing packaging material with bending state, and these strip shape bodies can support these slots.

2. diaphragm structure as claimed in claim 1, wherein said strip shape body further comprises a bending structure.

3. diaphragm structure as claimed in claim 2, wherein said bending structure are a groove or an indentation.

4. diaphragm structure as claimed in claim 1, wherein when article were placed into described slot, strip shape body was pushed and is changed shape.

5. diaphragm structure as claimed in claim 1, the material of wherein said diaphragm structure are a cardboard.

6. the diaphragm structure of an amortizing packaging material, described diaphragm structure has a plurality of strip shape bodies, and these strip shape bodies are a plurality of cooresponding slots of putting into described amortizing packaging material with bending state, are used to support these slots.

7. diaphragm structure as claimed in claim 6, wherein said strip shape body further comprises bending structure, strip shape body can be along described bending structure bending.

8. diaphragm structure as claimed in claim 7, wherein said bending structure are a groove or an indentation.

9. diaphragm structure as claimed in claim 6, wherein when article were placed into described slot, strip shape body was pushed and is changed shape.

10. diaphragm structure as claimed in claim 6, the material of wherein said diaphragm structure are a cardboard.
