CN1243443A - Fresh Rehmannia glutinosa extract and its extraction method for propagating bifidobacteria - Google Patents
Fresh Rehmannia glutinosa extract and its extraction method for propagating bifidobacteria Download PDFInfo
- Publication number
- CN1243443A CN1243443A CN98801822A CN98801822A CN1243443A CN 1243443 A CN1243443 A CN 1243443A CN 98801822 A CN98801822 A CN 98801822A CN 98801822 A CN98801822 A CN 98801822A CN 1243443 A CN1243443 A CN 1243443A
- Authority
- CN
- China
- Prior art keywords
- extract
- fresh rehmannia
- rehmannia root
- liquid
- eluent
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Classifications
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
- A61K36/00—Medicinal preparations of undetermined constitution containing material from algae, lichens, fungi or plants, or derivatives thereof, e.g. traditional herbal medicines
- A61K36/18—Magnoliophyta (angiosperms)
- A61K36/185—Magnoliopsida (dicotyledons)
- A61K36/80—Scrophulariaceae (Figwort family)
- A61K36/804—Rehmannia
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61P—SPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
- A61P1/00—Drugs for disorders of the alimentary tract or the digestive system
- A61P1/12—Antidiarrhoeals
Landscapes
- Health & Medical Sciences (AREA)
- Natural Medicines & Medicinal Plants (AREA)
- Life Sciences & Earth Sciences (AREA)
- Pharmacology & Pharmacy (AREA)
- Chemical & Material Sciences (AREA)
- Engineering & Computer Science (AREA)
- Veterinary Medicine (AREA)
- Public Health (AREA)
- General Health & Medical Sciences (AREA)
- Medicinal Chemistry (AREA)
- Animal Behavior & Ethology (AREA)
- Biotechnology (AREA)
- Bioinformatics & Cheminformatics (AREA)
- Epidemiology (AREA)
- Microbiology (AREA)
- Medical Informatics (AREA)
- Botany (AREA)
- Alternative & Traditional Medicine (AREA)
- Mycology (AREA)
- Chemical Kinetics & Catalysis (AREA)
- General Chemical & Material Sciences (AREA)
- Nuclear Medicine, Radiotherapy & Molecular Imaging (AREA)
- Organic Chemistry (AREA)
- Medicines Containing Plant Substances (AREA)
- Coloring Foods And Improving Nutritive Qualities (AREA)
- Medicines Containing Material From Animals Or Micro-Organisms (AREA)
- Pharmaceuticals Containing Other Organic And Inorganic Compounds (AREA)
Abstract
Description
用于增殖双歧杆菌 for the propagation of bifidobacteria
的鲜地黄提取物及其提取方法 Fresh rehmannia glutinosa extract and its extraction method
发明所属技术领域 The technical field of the invention
本发明涉及一种用于增殖双歧杆菌的地黄提取物及其提取方法, 更详 细地是涉及一种从鲜地黄中提取的能够使人体内自身双歧杆菌成倍增生的 鲜地黄提取物及高收率地从鲜地黄中进行提取的方法。 The present invention relates to a rehmannia extract used to proliferate bifidobacteria and an extraction method thereof, and more specifically relates to a fresh rehmannia extract extracted from fresh rehmannia that can multiply the bifidobacteria in the human body and its A method for extracting fresh rehmannia glutinosa with high yield.
背景技术 Background technique
目前已经知道在人体肠道内栖居的细菌中, 与人的健康最密切相关的 是双歧杵菌, 这种双歧杆菌定植于肠粘膜的深层, 形成了一道生物屏障, 阻止外来细菌的入侵, 抑制肠内腐败, 增强人体免疫力, 促进营养物质的 吸收, 合成 B族维生素及维生素 K, 减少肠源性内毒素的来源, 从而对保 护肝脏、 防治肿瘤以及抗衰老起到有益的作用。 但由于某种原因, 例如长 期大量服用抗生素、 使用免疫抑制剂、 施行化疗或放疗、 手术、 精神及肉 体刺激或饮食不当等, 会造成双歧杆菌的数量减少, 这时其他有害菌就会 侵入, 引起菌群失调和代谢异常, 各种毒素、 腐败物质、 致癌物质增加, 产生多种病变, 如腹泻、 便秘、 消化功能紊乱, 以及一些难以治愈的慢性 疾病, 如动脉硬化、 肝脏损害、 肠道癌变等, 其中腹泻是上述这些疾病中 最明显且发病率最高的病症。 It is now known that among the bacteria living in the human intestinal tract, the most closely related to human health is Bifidobacterium bifidobacterium, which colonizes in the deep layer of the intestinal mucosa and forms a biological barrier to prevent the invasion of foreign bacteria , inhibit intestinal corruption, enhance human immunity, promote the absorption of nutrients, synthesize B vitamins and vitamin K, reduce the source of intestinal endotoxin, and thus play a beneficial role in protecting the liver, preventing tumors and anti-aging. However, due to certain reasons, such as long-term use of large amounts of antibiotics, use of immunosuppressants, chemotherapy or radiotherapy, surgery, mental and physical stimulation, or improper diet, etc., the number of bifidobacteria will decrease, and other harmful bacteria will invade , cause flora imbalance and metabolic abnormalities, various toxins, spoilage substances, and carcinogens increase, resulting in various diseases, such as diarrhea, constipation, digestive disorders, and some chronic diseases that are difficult to cure, such as arteriosclerosis, liver damage, intestinal Road cancer, etc., wherein diarrhea is the most obvious and the highest incidence of disease among the above-mentioned diseases.
目前对于腹泻的治疗多采用抗生素或抗动力药物, 其中抗生素的使用 率已高达 84 % , 滥用情况十分严重。 抗生素的滥用会导致菌群失调, 严重 的会导致二重感染, 而实际上 70 %的感染型腹泻是不需要抗生素治疗的。 另外, 抗动力药的使用不当会抑制病毒及毒素的排泻, 使病情加重。 At present, antibiotics or antimotility drugs are mostly used in the treatment of diarrhea, and the usage rate of antibiotics is as high as 84%, and the abuse situation is very serious. Abuse of antibiotics can lead to flora imbalance, which can lead to superinfection in serious cases, but in fact 70% of infectious diarrhea does not need antibiotic treatment. In addition, improper use of anti-motility drugs will inhibit the excretion of viruses and toxins, making the condition worse.
研究结果表明, 腹泻引起肠道内的菌群失调, 尤为明显的是双歧杵菌 数量大大减少, 因此保持和恢复肠道内双歧杆菌的优势地位是预防和治疗 腹泻的重要条件。 基于上述的认识, 最近十年来对以双歧杵菌及其增殖剂 为代表的微生态制剂和治疗方法进行了深入的研究。 但是, 目前为止许多 国家都侧重于双歧杵菌活菌制剂的研制。 双歧杵菌活菌的制剂技术要求相 当高, 若不严格控制条件则质量很难保证, 且存在着一定的潜在危险。 另 外, 对于活菌制剂的使用、 保存等都有特殊严格的要求。 同时活菌制剂中 一般只选用一种双歧杆菌菌种, 存在菌种单一、 不能完全满足人体需要的 双歧杆菌菌种构成的问题。 The results of the study showed that diarrhea caused intestinal flora imbalance, especially the greatly reduced number of bifidobacteria. Therefore, maintaining and restoring the dominant position of bifidobacteria in the intestine is an important condition for preventing and treating diarrhea. Based on the above understanding, in the last ten years, in-depth research has been carried out on the microecological preparations and treatment methods represented by bifid clubella and their proliferating agents. However, so far many countries have focused on the development of Bifidobacterium live bacteria preparations. The technical requirements for the preparation of live bifidobacteria are quite high. If the conditions are not strictly controlled, the quality is difficult to guarantee, and there are certain potential dangers. In addition, there are special and strict requirements for the use and preservation of live bacterial preparations. At the same time, only one kind of bifidobacterium strain is generally used in live bacterial preparations, and there are some strains that are single and cannot fully meet the needs of the human body. The issue of bifidobacteria species composition.
鉴于上述情况, 迫切需要开发一种即可以使双歧杆菌增殖, 又能克服 活菌制剂的缺点的新型 歧杆菌增殖制剂。 In view of the above situation, there is an urgent need to develop a new type of bifidobacterium proliferation preparation that can proliferate bifidobacteria and overcome the shortcomings of live bacteria preparations.
在日本科学家正井辉久所著的 《大豆低聚糖的开发及其制品特性》 一 文中记载了大豆中的水苏糖及棉籽糖对双歧軒菌具有极好的增殖作用, 确 认了水苏糖及棉籽糖是一种非常好的双歧杆菌增殖剂。 但是, 如该文中所 记载, 大豆中的水苏糖及棉籽糖的含量低, 其中水苏糖含量为 24 % , 棉籽 糖含量为 8 % , 总计为 32 % , 而且蔗糖、 果糖、 葡萄糖等可吸收糖含量很 高, 达 55 %以上(含量均以干品计算)。 因此不适合糖尿病人、 肥胖者和 老年人服用, 使用范围受到限制。 In the article "Development of Soybean Oligosaccharides and Its Product Characteristics" written by Japanese scientist Teruhisa Masai, it is recorded that stachyose and raffinose in soybeans have an excellent proliferation effect on Bifidobacteria, confirming that stachyose Sugar and raffinose are very good bifidobacteria proliferators. However, as recorded in this article, the content of stachyose and raffinose in soybeans is low, of which the content of stachyose is 24%, the content of raffinose is 8%, the total is 32%, and sucrose, fructose, glucose, etc. can be Absorbed sugar content is very high, reaching more than 55% (the contents are all calculated as dry products). Therefore, it is not suitable for diabetics, obese people and the elderly to take, and the scope of use is limited.
鉴于上述情况, 本发明人等以开发水苏糖及棉籽糖含量高且可吸收糖 含量低的新型双歧杵菌增殖剂为目的, 进行了深入的研究, 结果发现在中 药鲜地黄中水苏糖及棉籽糖的总含量很高, 用适当的提取方法从其中提取 的提取物可以满足上述要求, 从而完成了本发明。 In view of the above situation, the present inventors conducted in-depth research for the purpose of developing a new bifidobacterium proliferative agent with high stachyose and raffinose content and low absorbable sugar content. The total content of sugar and raffinose is very high, and the extract extracted from it with an appropriate extraction method can meet the above requirements, thus completing the present invention.
发明概述 Summary of the invention
本发明提供了用于增殖肠道内双歧杆菌的鲜地黄提取物 , 以及以中药 鲜地黄或鲜地黄干片为原料进行提取的方法, 利用该方法可以迅速、 高收 率地进行提取, 在提取过程中不会发生长菌等不良现象, 不会由此而导致 收率的下降。 The present invention provides a fresh rehmannia extract used to proliferate bifidobacteria in the intestinal tract, and a method for extracting the traditional Chinese medicine fresh rehmannia or dried fresh rehmannia slices as a raw material. The method can be used for rapid and high-yield extraction. During the process, there will be no adverse phenomena such as growth of bacteria, and the decline in yield will not be caused thereby.
发明详细说明 Detailed Description of the Invention
本发明的鲜地黄提取物中含有有效成分水苏糖 55 % - 70重量%和棉 籽糖 2.5 - 5重量%, 可吸收的蔗糖和果糖总计为 5― 10重量% (均以干 品计算), 其余为其他的糖和不可避免的杂质。 The fresh rehmannia glutinosa extract of the present invention contains 55%-70% by weight of active ingredients stachyose and 2.5-5% by weight of raffinose, and the total amount of absorbable sucrose and fructose is 5-10% by weight (both calculated as dry products), The remainder is other sugars and unavoidable impurities.
本发明的鲜地黄提取物是以天然中药鲜地黄或鲜地黄干片为原料, 其 提取方法由如下步骤组成: The fresh rehmannia extract of the present invention uses the natural Chinese medicine fresh rehmannia or fresh rehmannia dried slices as a raw material, and its extraction method consists of the following steps:
( 1 )提取: 取鲜地黄或鲜地黄干片加入可与水混溶的溶剂提取 2次, 合并 2次的提取液; (1) Extraction: Take fresh rehmannia or dried fresh rehmannia slices and add a water-miscible solvent to extract twice, and combine the two extracts;
( 2 )脱色: 在提取液中加入活性碳脱色, 脱色后得到淡黄色或灰黄 色液体; (2) Decolorization: add activated carbon to the extract to decolorize, and obtain a light yellow or grayish yellow liquid after decolorization;
( 3 )过滤: 将脱色后的液体离心分离, 然后使用砂芯过滤, 减压抽 滤后使用中空纤维过滤; (3) Filtration: Centrifuge the decolorized liquid, then filter it with a sand core, and filter it with a hollow fiber after vacuum filtration;
( 4 ) 浓缩冷藏: 将上述得到的滤液减压浓缩, 浓缩液冷藏保存; ( 5 ) 分离: 将冷藏后的上清液采用下述四种方法之一进行分离, 方法 1 : 将冷藏液进行活性碳柱层析, 留取前 2/3的洗脱液; (4) Concentration and cold storage: Concentrate the filtrate obtained above under reduced pressure, and store the concentrate in cold storage; (5) Separation: The refrigerated supernatant is separated by one of the following four methods. Method 1: The refrigerated solution is subjected to activated carbon column chromatography, and the first 2/3 of the eluate is retained;
方法 2 : 将冷藏液进行大孔吸附树脂柱层析, 留取前 2/3的洗脱液; 方法 3 : 将冷藏液进行 C18柱层析, 留取前 2/3的洗脱液; Method 2: subject the refrigerated liquid to macroporous adsorption resin column chromatography, and retain the first 2/3 of the eluent; Method 3: subject the refrigerated liquid to C18 column chromatography, and retain the first 2/3 of the eluent;
方法 4 : 将冷藏液用醇沉淀法沉淀, 收集沉淀部分; Method 4: Precipitate the refrigerated solution with alcohol precipitation, and collect the precipitated part;
( 6 )配制: 将由上述分离方法 1至 3中任意一种方法得到的前 2/3洗 脱液减压浓缩, 或将方法四的醇沉淀部分挥发至无醇味后加水调制成溶 液。 (6) Preparation: Concentrate the first 2/3 of the eluate obtained by any one of the above separation methods 1 to 3 under reduced pressure, or volatilize the alcohol precipitated part of method 4 until there is no alcohol smell, and then add water to prepare a solution.
上述步骤( 1 ) 中使用的可与水混溶的溶剂优选采用浓度为 95 %以下 的乙醇溶液。 第 1次提取优选加入 10 - 20倍量的溶剂, 第 2次提取优选 加入 5 - 10倍量的溶剂, 提取时间优选为 2 - 4小时( 2次之和)。 The water-miscible solvent used in the above step (1) is preferably an ethanol solution with a concentration of 95% or less. The first extraction preferably adds 10-20 times the amount of solvent, and the second extraction preferably adds 5-10 times the amount of solvent, and the extraction time is preferably 2-4 hours (the sum of the two times).
上述步骤( 2 ) 中使用的活性碳的量优选为相对于提取液的 0.15-5重 量%, 脱色温度优选为 85 ― 95 *C。 The amount of activated carbon used in the above step (2) is preferably 0.15-5% by weight relative to the extract, and the decolorization temperature is preferably 85-95*C.
上述步骤( 3 )中进行的离心分离优选以 5000 - 20000转 /分的速度进 行 5 - 10分钟, 所用的砂芯的孔径优选为 10 - 15μ, 所用的中空纤维的 孔径优选为 0.15-0.20μ。 The centrifugation performed in the above step (3) is preferably performed at a speed of 5000-20000 rpm for 5-10 minutes, the pore size of the sand core used is preferably 10-15μ, and the pore size of the hollow fiber used is preferably 0.15-0.20μ .
在上述步骤( 4 ) 中优选将滤液减压浓缩至比重为 1.05 - 1.27 ( 25 V ), 浓缩液优选冷藏保存 24 - 48小时。 In the above step (4), the filtrate is preferably concentrated under reduced pressure to a specific gravity of 1.05-1.27 (25°C), and the concentrate is preferably refrigerated for 24-48 hours.
在上述步骤( 5 ) 的分离方法二中使用的大孔吸附树脂优选采用 ZTC - I型和 II型, 在分离方法三中使用的 C18柱的粒度优选为 50 - 100μ。 The macroporous adsorption resin used in the second separation method of the above step (5) is preferably ZTC-Type I and Type II, and the particle size of the C18 column used in the third separation method is preferably 50-100μ.
在上述步骤( 6 ) 中优选将洗脱液减压浓缩至比重为 1.05 - 1.45 (室 温 25 ),将醇沉淀部分挥发至无醇味后加水制成的溶液的比重优选为 1.05 - 1.45 (室温 25 " ) 。 利用本发明的提取方法, 可以快速、 高收率地从鲜地黄或鲜地黄干片 中提取有效成分, 可以避免以往的常用过滤方法中出现的长菌现象, 由此 可以避免作为有效成分的水苏糖及棉籽糖的分解, 大大地提高了收率。 In the above step (6), the eluate is preferably concentrated under reduced pressure to a specific gravity of 1.05-1.45 (room temperature 25), and the specific gravity of the solution prepared by adding water after volatilizing the alcohol precipitation part until it has no alcohol smell is preferably 1.05-1.45 (room temperature 25 "). By using the extraction method of the present invention, active ingredients can be extracted from fresh rehmannia or fresh rehmannia dried slices quickly and with high yield, and the bacteria growth phenomenon that occurs in the common filtration methods in the past can be avoided, thereby avoiding as The decomposition of the active ingredients stachyose and raffinose greatly improves the yield.
本发明的提取物可以制成口服液服用。 此外, 本发明的上述提取物还 可以利用常用方法如冷冻干燥法或喷雾干燥法制成粉剂, 或加入药理学上 可接收的载体或赋形剂, 制成任何一种常见的口服固体制剂, 这些制剂例 如可以举出粉剂、 片剂、 胶嚢剂、 颗粒剂、 散剂等。 当然, 任何一种本专 业人员可以想到的制剂形式都包括在本发明的范围之内。 本发明的提取物的口服剂型优选为口服液, 口服液的制备方法是将上 述提取液加水调制成含水苏糖和棉籽糖总计为 150 - 300毫克 /亳升的溶 液, 经灭菌后装瓶即得。 The extract of the present invention can be made into oral liquid and taken. In addition, the above-mentioned extracts of the present invention can also be made into powders by common methods such as freeze-drying or spray-drying, or added with pharmacologically acceptable carriers or excipients to make any common oral solid preparations, these Preparations include, for example, powders, tablets, capsules, granules, powders, and the like. Of course, any formulation form that can be imagined by those skilled in the art is included within the scope of the present invention. The oral dosage form of the extract of the present invention is preferably an oral liquid, and the oral liquid is prepared by adding water to the above-mentioned extract to prepare a solution containing stachyose and raffinose at a total of 150-300 mg/ml, and bottled after sterilization Instantly.
下面举出实施例及药理试验例, 对本发明进行更详细的说明。 Examples and pharmacological test examples are given below to describe the present invention in more detail.
实施例 Example
实施例 1 Example 1
取鲜地黄 5000克, 加入 20 %乙醇 15升, 加热回流 2小时, 过滤, 滤 液备用。 过滤后的药渣再加 20 %乙醇 10升, 加热回流 1小时, 过滤, 合 并两次的滤液, 回收乙醇至无醇味, 将回收乙醇后的溶液加入 1重量% (相 对于溶液的重量)的活性碳脱色,温度为 85 得到淡黄色液体,再以 15000 转 /分离心 5分钟, 上清液减压浓缩至比重为 1.20 ( 25 °C ) , 浓缩液冷藏 24小时, 倾出上清液, 进行活性碳柱层析, 收集前 25000亳升, 洗脱液减 压浓缩至比重为 1.19 ( 25 "C ) , 浓缩液冷藏保存 24小时, 倾出上清液, 进一步浓缩至比重为 1.39 ( 25€ ) , 即得黄褐色鲜地黄浸膏 600克。 Take 5000 grams of fresh rehmannia glutinosa, add 15 liters of 20% ethanol, heat to reflux for 2 hours, filter, and use the filtrate for later use. Add 10 liters of 20% ethanol to the filtered medicinal dregs, heat to reflux for 1 hour, filter, combine the filtrates twice, recover the ethanol until it has no alcohol smell, add 1% by weight (relative to the weight of the solution) of the recovered ethanol solution Activated carbon decolorization, the temperature is 85 to obtain a light yellow liquid, then centrifuge at 15000 rpm for 5 minutes, the supernatant is concentrated under reduced pressure to a specific gravity of 1.20 (25 °C), the concentrated solution is refrigerated for 24 hours, and the supernatant is poured out , carry out activated carbon column chromatography, collect 25,000 ml, concentrate the eluent under reduced pressure to a specific gravity of 1.19 (25 "C), store the concentrated solution in cold storage for 24 hours, decant the supernatant, and further concentrate to a specific gravity of 1.39 ( 25€ ), that is, 600 grams of yellow-brown fresh rehmannia extract.
经高效液相色谱法分析, 其中含有水苏糖 57.5 %、 棉籽糖 3.6 %、 蔗 糖 4.2 %、 果糖 3.6 % (均以干品计算)。 According to high performance liquid chromatography analysis, it contains 57.5% stachyose, 3.6% raffinose, 4.2% sucrose, and 3.6% fructose (both calculated as dry products).
实施例 2 Example 2
取鲜地黄干片 (由鲜地黄切片后经烘烤制成) 1000克, 加入水 15升, 加热回流 1.5小时, 过滤, 滤液备用。 过滤后的药渣再加水 10升, 加热回 流 1小时, 过滤, 合并两次的滤液。 在滤液中加入 1.0重量% (相对于滤液 重量) 的活性碳, 于 95 °C下脱色, 得淡黄色液体, 以 10000转 /分离心 5 分钟, 再将上清液以砂芯( 15μ )过滤, 再进行中空纤维过滤( 0.2μ ), 滤液减压浓缩至比重为 1.15 (室温 25 " ) , 浓缩液冷藏 48小时, 倾出上 清液, 使用大孔吸附树脂( ZTC - I型和 II型的混合物, 上海试剂一厂生 产)进行层析, 收集前 20000毫升洗脱液, 将洗脱液浓缩至比重 1.25 (室 温 25 " ) , 即得黄褐色鲜地黄浸膏 650克。 Take 1,000 grams of fresh rehmannia dried slices (made by roasting fresh rehmannia slices), add 15 liters of water, heat to reflux for 1.5 hours, filter, and use the filtrate for later use. Add 10 liters of water to the filtered medicinal residue, heat to reflux for 1 hour, filter, and combine the two filtrates. Add 1.0% by weight (relative to the weight of the filtrate) of activated carbon to the filtrate, decolorize at 95 ° C to obtain a light yellow liquid, centrifuge at 10,000 rpm for 5 minutes, and then filter the supernatant with a sand core (15μ) , then carry out hollow fiber filtration (0.2μ), the filtrate is concentrated under reduced pressure to a specific gravity of 1.15 (room temperature 25 "), the concentrated solution is refrigerated for 48 hours, the supernatant is poured out, and the macroporous adsorption resin (ZTC-Type I and Type II The mixture (produced by Shanghai Reagent No. 1 Factory) was chromatographed, the first 20,000 ml eluate was collected, and the eluate was concentrated to a specific gravity of 1.25 (room temperature 25") to obtain 650 grams of yellow-brown fresh rehmannia extract.
经高效液相色谱法分析, 其中含有水苏糖 52.3 %、 棉籽糖 2.5 %、 蔗 糖 3.7 %、 果糖 4.2 % (均以干品计算)。 According to high performance liquid chromatography analysis, it contains 52.3% stachyose, 2.5% raffinose, 3.7% sucrose, and 4.2% fructose (calculated as dry product).
实施例 3 Example 3
取鲜地黄干片 1000克, 加水 12升, 加热回流 1.5小时, 过滤, 药渣再 加水 10升, 加热回流 1小时, 合并两次滤液, 滤液中加入 1.5重量%活性 炭(相对于滤液重量), 于 9(TC下脱色, 得淡黄色液体, 以 10000转 /分离 心 5分钟, 砂芯过滤( 10 - 15μ ) , 中空纤维( 0.15μ )过滤, 滤液減压 浓缩至比重 1.15 (室温 25 ) ,冷藏 48小时,倾出上清液,使用 C18 ( 50 ― 100μ )进行层析, 用水洗脱, 收集前 10000亳升洗脱液, 将洗脱液浓缩 至比重 1.25 ( 25 ) , 即得黄褐色鲜地黄流浸膏 700克。 Take 1000 grams of fresh rehmannia dry slices, add 12 liters of water, heat and reflux for 1.5 hours, filter, add 10 liters of water to the dregs, heat and reflux for 1 hour, combine the two filtrates, add 1.5% by weight of activated carbon (relative to the weight of the filtrate) in the filtrate, Decolorize at 90°C to obtain light yellow liquid, separate at 10000 rpm Heart for 5 minutes, filter with sand core (10-15μ), filter with hollow fiber (0.15μ), concentrate the filtrate under reduced pressure to a specific gravity of 1.15 (room temperature 25), refrigerate for 48 hours, pour out the supernatant, use C18 (50-100μ) Perform chromatography, elute with water, collect the first 10,000 ml of eluate, concentrate the eluate to a specific gravity of 1.25 (25), and obtain 700 grams of yellow-brown fresh rehmannia extract.
经高效液相色傳法分析, 该浸膏含有水苏糖 53 %、 棉籽糖 2 %、 蔗糖 2 %、 果糖 3 % (均以干品计算)。 According to HPLC analysis, the extract contains 53% stachyose, 2% raffinose, 2% sucrose, and 3% fructose (calculated as dry product).
实施例 4 Example 4
取鲜地黄 5000克, 加 60 %乙醇 15升, 加热回流 2小时, 过滤, 药渣 再加入 60 %乙醇 15升, 加热回流 1 。 5小时, 过滤, 合并两次提取液, 减压回收乙醇至无醇味, 调节提取液体积为 2000亳升, 加入 3重量%活性 炭(相对于滤液重量), 于 90 °C下脱色, 得淡黄色液体, 以 10000转 /分离 心 5分钟, 砂芯( 10 - 15μ )过滤, 中空纤维( 0.15μ )过滤, 滤液减压 浓缩至 1500亳升, 于 80 1加热, 加入 95 %乙醇, 使含醇量达 90 % , 静 置一夜, 收集沉淀, 干燥, 得干浸膏 520克。 Take 5000 grams of fresh rehmannia glutinosa, add 15 liters of 60% ethanol, heat to reflux for 2 hours, filter, add 15 liters of 60% ethanol to the dregs, and heat to reflux for 1. After 5 hours, filter, combine the two extracts, recover ethanol under reduced pressure until there is no alcohol smell, adjust the volume of the extract to 2000 ml, add 3% by weight of activated carbon (relative to the weight of the filtrate), and decolorize at 90 ° C to obtain light The yellow liquid was centrifuged at 10,000 rpm for 5 minutes, filtered through a sand core (10-15μ), filtered through a hollow fiber (0.15μ), the filtrate was concentrated under reduced pressure to 1500 ml, heated at 80°C, and 95% ethanol was added to make the The alcohol content reaches 90%, let it stand overnight, collect the precipitate, and dry it to obtain 520 grams of dry extract.
经高效液相色谱法分析, 该浸膏含水苏糖 65 %、 棉籽糖 3 %、 蔗糖 2 %、 果糖 4 % (均以干品计算)。 制剂例 1 According to the analysis by high performance liquid chromatography, the extract contains 65% stachyose, 3% raffinose, 2% sucrose, and 4% fructose (both calculated as dry products). Preparation Example 1
取由上述实施例 1得到的鲜地黄浸膏 1000克, 加入 2200毫升的蒸馏 水, 调制成含水苏糖及梯籽糖总计为 200毫克 /亳升的溶液, 灌入小瓶中, 每瓶 10毫升, 灭菌后密封即得口服液。 Take 1,000 grams of fresh rehmannia extract obtained in Example 1 above, add 2,200 ml of distilled water to prepare a solution containing stachyose and ladder seed sugar at a total of 200 mg/ml, pour it into small bottles, 10 ml per bottle, Sterilize and seal to obtain the oral liquid.
制剂例 1 Preparation Example 1
取由上述实施例 2得到的鲜地黄浸膏 1000克, 利用冷冻干燥机 (江苏 冷冻干燥设备厂生产)进行冷冻干燥, 得到浸膏粉 830克。 Take 1000 grams of fresh rehmannia extract obtained in Example 2 above, and use a freeze dryer (produced by Jiangsu Freeze Drying Equipment Factory) to freeze-dry to obtain 830 grams of extract powder.
取上述得到的浸膏粉 100克, 加入羧甲基纤维素 10克, 混合, 制粒, , 制得含水苏糖为 45.5 %的颗粒剂。 药理试验例 Take 100 grams of the extract powder obtained above, add 10 grams of carboxymethylcellulose, mix, granulate, and prepare granules containing 45.5% stachyose. Pharmacological test case
试验例 1、 对双歧杆菌的体外增殖作用 Test Example 1. In vitro Proliferation Effect on Bifidobacteria
(一)材料和方法 (1) Materials and methods
培养基: 使用选择性促双歧杆菌生长的专用 ΧΥ培养基, 主要含蛋白胨 等两种营养成分, 使双歧杆菌能在此培养基中生长而又不旺盛, 以突出水 苏糖的作用。在培养基中加入水苏糖纯品,使水苏糖浓度达到 1.5重量% (相 对于培养基的重量)。 Culture medium: Use the special ΧY medium that selectively promotes the growth of bifidobacteria, mainly containing two nutrients such as peptone, so that bifidobacteria can grow in this medium without flourishing, so as to highlight the water The role of threose. Pure stachyose was added to the medium to make the stachyose concentration reach 1.5% by weight (relative to the weight of the medium).
将冷冻干燥菌抹经碎裂法开启后, 接种于相应培养基中, 37 °C 48小 时厌氧培养后, 挑 3 - 4个菌落至相应的液体培养基中, 再厌氧培养, 取 出作纯菌检查合格后, 稀释 1000倍, 取 105 - 106CFU/ml接种到含水苏糖 的相应培养基中, 作平板活菌计数记录各菌生长情况。 试验重复 3次, 并 作统计学处理。 After opening the freeze-dried bacterial smear by the fragmentation method, inoculate it in the corresponding medium, and after 48 hours of anaerobic culture at 37 ° C, pick 3-4 colonies into the corresponding liquid medium, and then anaerobic culture, take out as After passing the pure bacteria inspection, dilute 1000 times, inoculate 10 5 - 10 6 CFU/ml into the corresponding medium containing stachyose, and count the viable bacteria on the plate to record the growth of each bacteria. The experiment was repeated 3 times and processed statistically.
(二)试验结果 (2) Test results
水苏糖在体外试验中促进肠道双歧杵菌菌种生长情况见表 1 。 表 1 水苏糖促双歧杆菌生长情况( CFU/ml以 LoglO计) See Table 1 for stachyose to promote the growth of intestinal Bifidobacterium species in vitro. Table 1 Growth of stachyose-promoting bifidobacteria (CFU/ml in LoglO)
与空白培养基活菌数相比, *表示 PO.05; **表示 PO.01 Compared with the number of live bacteria in the blank medium, * indicates PO.05; ** indicates PO.01
结果表明水苏糖对长双歧杆菌、 青春双歧杆菌、 短双歧杆菌、 角双歧 杆菌、 婴儿双歧杵菌都具有促生长作用, 而对两歧双歧杵菌几乎无促进作 用。 The results showed that stachyose had growth-promoting effects on Bifidobacterium longum, Bifidobacterium adolescentis, Bifidobacterium breve, Bifidobacterium angle, and Bifidobacterium infantis, but had almost no promoting effect on Bifidobacterium bifidum.
试验例 2、 对小鼠体内双歧杆菌的增殖作用 Test example 2. Proliferation of bifidobacteria in mice
(一) 实验设备及材料 (1) Experimental equipment and materials
( 1 )动物: 昆明种小白鼠, 体重 18 ~ 20克, 雌雄各半。 (1) Animals: Kunming white mice, weighing 18-20 grams, half male and half male.
( 2 ) 药物: 鲜地黄提取物。 (2) Medicine: fresh rehmannia extract.
( 3 )仪器: 美国 VITEK - AMS 全自动细菌鉴定仪, AN1鉴定卡。 (3) Instrument: American VITEK-AMS automatic bacteria identification instrument, AN1 identification card.
(二) 实验方法与结果 (2) Experimental methods and results

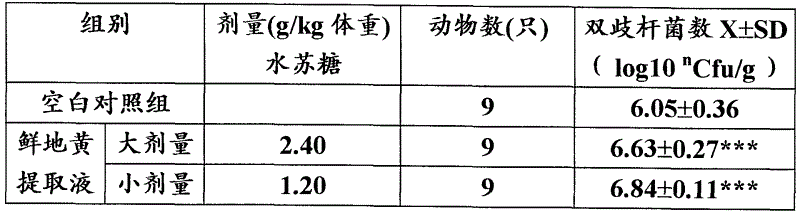

将动物随机分为 4组, 除空白组外, 每只小鼠每日口服给药一次, 剂 量见表 2 , 连续给药一个月, 于末次给药后 12小时, 取小鼠粪便, 即刻置 于备好的厌氧瓶中。 将定量的粪便标本用组织匀浆器匀盾, 用 0.1 %琼脂蛋 白胨水溶液连续 10倍稀释, 制成 10 _ 1 ~ 10— 1(>悬浮液, 用刻度滴管取各 种稀释悬浮液接种于烘干的 Bib培养基表面, 每个稀释度 3滴, 并迅速将 接种的平板置于厌氧环境中, 35 Γ培养 48小时, 然后对 Bib培养基上的 菌落根据形状、 大小、 外观、 透明度、 颜色、 边缘以及是否溶血等特征进 行分离、 鉴定、 计数。 鉴定用美国 VITEK - AMS全自动细菌鉴定仪, 鉴 定卡为 AN1 , 通过 30种特定的生化反应计算出相似筛选值和标准化百分 概率及生化数码, 报告为 A.bifidobacterium的细菌经定量计算得出双歧杆 菌的数量 (cfu/克), 结果见表 2 。 表 2 鲜地黄提取物对小鼠体内默歧杆菌的增殖作用 The animals were randomly divided into 4 groups. Except for the blank group, each mouse was orally administered once a day. The dosage is shown in Table 2. The administration was continued for one month. After the last administration, 12 hours after the last administration, the feces of the mice were taken and placed immediately in a prepared anaerobic bottle. The quantitative fecal specimens were homogenized with a tissue homogenizer, and serially diluted 10 times with 0.1% agar-peptone aqueous solution to make a suspension of 10_1 ~10_1 (>) , and various diluted suspensions were inoculated with a graduated dropper. Dry the surface of the Bib medium, 3 drops for each dilution, and quickly place the inoculated plate in an anaerobic environment, and cultivate it at 35°C for 48 hours, and then check the colonies on the Bib medium according to the shape, size, appearance, and transparency , color, edge, and whether hemolysis and other characteristics are separated, identified, and counted. The identification uses the American VITEK-AMS automatic bacterial identification instrument, the identification card is AN1, and the similar screening value and standardized percentage probability are calculated through 30 specific biochemical reactions. and Biochemical Digital, the bacteria reported as A.bifidobacterium were quantitatively calculated to obtain the number of bifidobacteria (cfu/g), and the results are shown in Table 2. Table 2 The effect of fresh rehmannia extract on the proliferation of Mufidobacterium in mice
***Ρ<0·001 *Ρ<0.05 ***Ρ<0·001 *Ρ<0.05
实验结果表明, 连续给小鼠口服鲜地黄提取物一个月, 可以非常有效 地增加肠中双歧杆菌的数量, 与空白对照组比, PO.001 , 有非常显著性 差异。 The experimental results showed that oral administration of fresh rehmannia extract to mice for one month could effectively increase the number of bifidobacteria in the intestines, and compared with the blank control group, PO.001, there was a very significant difference.
试验例 3、 对番泻叶引起急性腹泻的拮抗作用 Test example 3, antagonism to acute diarrhea caused by senna
(一 ) 实验材料 (1) Experimental materials
( 1 )动物: 昆明种小白鼠, 体重 20 ~ 22g , 雌雄皆可。 (1) Animals: Kunming white mice, weighing 20-22g, can be either male or female.
( 2 ) 药物: 鲜地黄提取物。 (2) Medicine: fresh rehmannia extract.
(二) 实验方法与结果 (2) Experimental methods and results
番泻叶 50g加入 5倍量的水, 小火煮沸 10分钟, 过滤, 药渣中再加入 3倍量的水煮沸 10分钟, 过滤》 滤液减压浓缩至 lg/ml , 备用。 Add 5 times the amount of water to 50 g of senna leaves, boil on low heat for 10 minutes, filter, add 3 times the amount of water to the medicinal residues, boil for 10 minutes, filter, and concentrate the filtrate under reduced pressure to 1g/ml for later use.

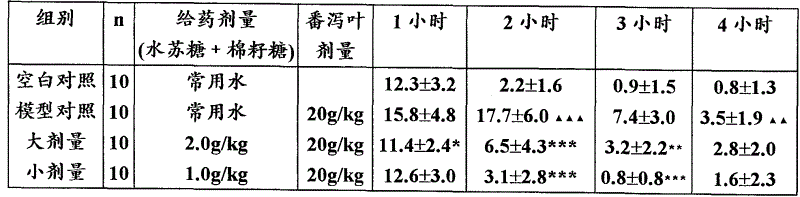

将小鼠按体重随机分成 4組, 每曰灌胃给药一次, 模型組给等体积生 理盐水, 连续给药三天, 于末次给药前 30分钟, 给各組小鼠按 20g/kg灌胃 番泻叶煎剂,在给药后把小鼠单独放在垫有 12.5 X 23.0cm滤纸的笼内,每 1小时更换一次滤纸, 观察 4小时, 记录各时间内滤纸上的湿粪粒数, 检验比较組间各时间的累记腹泻次数, 结果见表 1。 表 3 鲜地黄提取物抗小鼠急性腹泻作用 The mice were randomly divided into 4 groups according to body weight, administered once a day by intragastric administration, and the model group was administered with an equal volume of normal saline for three consecutive days, and 30 minutes before the last administration, the mice in each group were administered with 20 g/kg Stomach senna decoction, mouse is placed on alone in the cage that pad has 12.5 * 23.0cm filter paper after administration, every The filter paper was replaced every 1 hour, observed for 4 hours, and the number of wet fecal particles on the filter paper was recorded at each time, and the accumulated diarrhea times at each time between the groups were tested and compared. The results are shown in Table 1. Table 3 The antidiarrheal effect of fresh rehmannia glutinosa extract in mice
与空白组比较 A P<0.01, A A A P<0.001 Compared with blank group A P<0.01, AAA P<0.001
与模型组比较 *P<0.05, **P<0.01, ***P<0.001 Compared with the model group *P<0.05, **P<0.01, ***P<0.001
实验结果表明鲜地黄提取物对番泻叶引起的急性腹泻有显箸的拮抗作 用, 经数理统计 PO.001 , 有非常显著性差异。 The experimental results show that the fresh rehmannia extract has a significant antagonistic effect on the acute diarrhea caused by senna leaves, and there is a very significant difference by mathematical statistics PO.001.
试验例 4、 对盐酸林可霉素所致抗生素性肠炎及双歧杆菌减少保护作 用 Test example 4. Protective effect against antibiotic enteritis and reduction of bifidobacteria caused by lincomycin hydrochloride
(一) 实验材料 (1) Experimental materials
( 1 )动物: 昆明种小鼠 50只, 体重 18 - 20g , 雌雄均可。 (1) Animals: 50 Kunming mice, weighing 18-20g, both male and female.
( 2 ) 药物: 鲜地黄提取物; 盐酸林可霉素, 批号: 9601152 , 江苏 省新沂制药厂生产。 (2) Drugs: fresh rehmannia glutinosa extract; lincomycin hydrochloride, batch number: 9601152, produced by Jiangsu Xinyi Pharmaceutical Factory.
(二) 实验方法与结果 (2) Experimental methods and results
将小鼠随机分为 4组, 除空白组外, 各组小鼠均口服盐酸林可霉素水 溶液(浓度 100mg/ml ) 0.5ml/次, 2次 /日, 口服 3天。 鲜地黄提取物组 按表中剂量给药, 每日给药 1次, 共给药 10天。 于第 4天和第 10天给药 后 1小时观察各组小鼠 2小时内的排便次数, 结果见表 4。 取第 10天的各 組小鼠的粪便做双歧杆菌的培养, 并记数, 结果见表 5。 表 4 各組小鼠排便次数比较( X士 SD ) The mice were randomly divided into 4 groups. Except for the blank group, the mice in each group were orally administered lincomycin hydrochloride aqueous solution (concentration 100mg/ml) 0.5ml/time, 2 times/day, for 3 days. The fresh rehmannia extract group was administered according to the dosage in the table, once a day, for a total of 10 days. On the 4th and 10th days, the defecation frequency of mice in each group within 2 hours was observed 1 hour after administration, and the results are shown in Table 4. On the 10th day, the feces of mice in each group were taken for culture of Bifidobacteria and counted. The results are shown in Table 5. Table 4 Comparison of defecation times of mice in each group (X±SD)
与空白组比较: A p<0.05 与模型组比较: *P<0.05, **P<0.01 表 5 各组小鼠粪便中双歧杵菌数的比较( X士 SD ) Compared with the blank group: A p<0.05 Compared with the model group: *P<0.05, **P<0.01 Table 5 Comparison of the number of bifidus club bacteria in the feces of mice in each group (X±SD)
与模型組比较: ***P<0.001, 与空白组比较: A A A p<0.001 Compared with the model group: ***P<0.001, compared with the blank group: A A A p<0.001
实验结果表明, 鲜地黄提取物对林可霉素所致小鼠抗生素性肠炎有明 显保护作用, 给药第 4天记粪点数, 大剂量组与模型組比较, P< 0.01 , 有 非常显著性差异。 给药 10天后粪点结果表明, 各给药组小鼠肠炎症状已完 全恢复。 同时鲜地黄提取物对盐酸林可霉素引起的体内双歧杆菌减少有明 显的增殖作用, 达 2 3个数量级, P<0.01 。 The experimental results show that the fresh rehmannia extract has obvious protective effect on lincomycin-induced antibiotic enteritis in mice, and fecal points were recorded on the 4th day of administration. Compared with the model group, P<0.01, there is a very significant difference. The feces spot results after 10 days of administration showed that the symptoms of enteritis in mice in each administration group had completely recovered. At the same time, fresh rehmannia glutinosa extract had a significant proliferation effect on the reduction of bifidobacteria in vivo caused by lincomycin hydrochloride, reaching 23 orders of magnitude, P<0.01.
