Abstract

The present invention provides a hanging type tower crane driver's safety telescopic channel; it includes a main channel, an extension channel, a slide rail and a number of lifting components; the near end of the main channel is fixedly connected with several U-shaped bolts, and the several U-shaped bolts are connected with the standard section The horizontal chords are matched, the distal end of the main passage protrudes to the outside of the standard section, the slide rail is fixedly connected to the upper side of the main passage, the direction of the slide rail is consistent with the length direction of the main passage, and the slide rail and the extension Channel coordination; the lifting assembly includes a pull rod and a hook, one end of the pull rod is fixed to the main channel, the other end of the pull rod is connected to the end of the hook, the hook is matched with the horizontal chord of the standard section, and the level of the horizontal chord matched with the hook is higher than that of the main channel. The horizontal height of the horizontal chord to which the channel's U-bolts fit. The suspension-type tower crane driver safety telescopic channel is fixed on the standard section of the tower crane. When the tower crane shakes, the channel and the standard section shake together, and no friction damage will be caused between the channel and the standard section, reducing potential safety hazards.

Description

Suspended tower crane driver safety telescopic channel

technical field

The invention relates to a safety telescopic channel for a suspended tower crane driver.

Background technique

At present, most of the houses are high-rise buildings, and the tower cranes are installed and used at a relatively high height. Tower crane operators usually use artificial passages to get up to the tower crane from the main body of the built building to the roof of the building, so as to save energy and avoid falling accidents caused by climbing the tower crane for a long time. At present, the safety passages of tower crane operators are mostly erected by steel pipes. One end is placed on the main body of the building, and the other end is placed on the standard section of the tower crane. There are handrails above the passage, steel plates are laid, and vertical nets are placed on the side.

However, the channel disadvantages of the existing channel are: 1. It takes a long time to set up the channel. It takes two people and half a day to build a channel; 2. There is a risk of falling from a high place when the erection personnel are working at heights, and objects such as steel pipe deductions will hit the ground personnel; 3. As the construction progress progresses, the height of the tower crane increases. The channel has been set up many times; it is extremely inconvenient and costs a lot of labor costs; 4. One end of the old-fashioned tower crane channel is placed on the standard section chord, and the shaking of the tower crane causes friction damage to the standard section chord by the channel, which poses a great safety hazard; 5. The construction of the channel occupies the turnover materials of the project, which causes additional cost increase; 6. After the construction is completed, when the channel is dismantled, it is extremely inconvenient for professionals to dismantle the channel before dismantling the tower crane.

The utility model patent with the application number CN202221895273.3 belongs to the technical field of building construction, and discloses a safety passage for tower cranes, which includes a support beam group and a passage main body. A wall connecting piece is connected between the tower crane and the high-rise building, and the supporting beam set includes at least two supporting beams, and each supporting beam is configured to be arranged on the connecting wall piece at intervals. The channel main body includes a support platform, a first guardrail and a second guardrail. The first guardrail and the second guardrail are relatively erected on the support platform in the width direction of the support platform. The support platforms are arranged on each support beam. One end of the tower extends to the opening of the high-rise building, and the other end is fixed to the tower crane. The driver of the tower crane climbs to the position of the hole in the high-rise building, and then reaches the height of the tower crane from the hole through the support platform. However, the safety channels described in the above patents still have problems in the prior art, and no technical means to solve the above problems have been proposed.

Contents of the invention

The technical problem to be solved by the present invention is to provide a safety telescopic passageway for suspended tower crane drivers with reasonable structure and convenient disassembly.

In order to solve the above-mentioned technical problems, the present invention provides a hanging type tower crane driver safety telescopic passage;

Including main channel, extension channel, slide rail and several lifting components;

The near end of the main channel is fixedly connected with several U-shaped bolts, which cooperate with the horizontal chord of the standard section, the distal end of the main channel protrudes to the outside of the standard section, and the slide rail is fixedly connected to the main channel On the upper side, the direction of the slide rail is consistent with the length direction of the main channel, and the slide rail cooperates with the extension channel;

The lifting assembly includes a pull rod and a hook, one end of the pull rod is fixed to the main channel, the other end of the pull rod is connected to the end of the hook, the hook is matched with the horizontal chord of the standard section, and the level of the horizontal chord matched with the hook is higher than that of the main channel The level height of the U-bolt fits the horizontal chord.

As a preferred option for the suspended tower crane driver's safe telescopic passage, the hook of the lifting assembly includes a hook body and a positioning pin, one end of the hook body is fixedly connected to the pull rod, and the middle part of the hook body is provided with a bend that fits the outer contour of the side wall of the horizontal chord. The two ends of the hook body are provided with positioning holes that cooperate with the positioning pins. After the positioning pins pass through the positioning holes at both ends of the hook body, the space between the positioning pins and the bending of the hook body forms a space for clamping the horizontal chord.

As a preferred option of the suspended tower crane driver's safety telescopic channel, the main channel includes a main frame and a net plate, the net plate is fixedly connected in the main frame, and the slide rail is fixedly connected to the upper end surface of the main frame;

The extension channel includes an extension frame and a net plate, and the net plate is fixedly connected in the extension frame.

As a preferred option for the hanging type tower crane driver's safety telescopic passageway, first railings that are detachably connected are respectively provided on both sides of the main passageway. A number of intubates cooperating with the support bars at the lower end of the first railing;

The two sides of the extension channel are respectively provided with detachable second railings, the lower end of the second railing is provided with a number of support rods, and the extension frame of the extension channel is fixedly connected with a number of intubation tubes that cooperate with the support rods at the lower end of the second railing .

As a preferred option for the suspended tower crane driver's safety telescopic channel, the lifting assembly also includes a positioning seat and a lock nut, the positioning seat is fixedly connected to the side wall of the main frame of the main channel, and the positioning seat is provided with a positioning seat that cooperates with the pull rod. The end of the pull rod is provided with an external thread, and the end of the pull rod passes through the positioning hole of the positioning seat and cooperates with the lock nut to realize limiting the position between the end of the pull rod and the main channel.

As a preferred option of the suspended tower crane driver's safety telescopic passage, it also includes an adjustment pin rod. The proximal end of the extension passage is provided with a first adjustment hole passing through both sides, and the middle part of the slide rail is also provided with a second adjustment hole passing through both sides. hole, the adjusting pin rod can cooperate with the first adjusting hole of the extension channel and the second adjusting hole of the slide rail.

As a preferred option of the suspended tower crane driver's safety telescopic passage, the lifting assembly further includes turnbuckle bolts, and the pull rod and the hook are connected and fixed by turnbuckle bolts.

As a preferred option for the safe telescopic channel for the suspended tower crane driver, the slide rail includes two channel steels, the two channel steels are respectively fixedly connected to both sides of the upper end surface of the main channel, and the two channel steels are arranged opposite to each other. Two channel steel fit.

The beneficial technical effects of the suspended tower crane driver safety telescopic passage are:

1. A tower crane only needs one safe telescopic passage for the driver of the suspended tower crane. As the height of the tower crane increases, the tower crane can be used to hoist the passage at the required position;

2. The installation and removal are fast and convenient. One person can use the tower crane to hoist and complete the installation and removal of the hanging tower crane driver safety telescopic channel in half an hour, which is extremely convenient.

3. The safety telescopic channel for the suspended tower crane driver is fixed on the standard section of the tower crane. When the tower crane shakes, the channel and the standard section shake together, and there will be no friction damage between the channel and the standard section, which reduces potential safety hazards;

4. The channel can be reused many times, which reduces the occupation of turnover materials by the project and saves costs.

5. When the outer frame is removed, the channel can be extended, which meets the requirements of use.

Sixth, the time and personnel for high-altitude operations are reduced, which greatly reduces safety risks.

Description of drawings

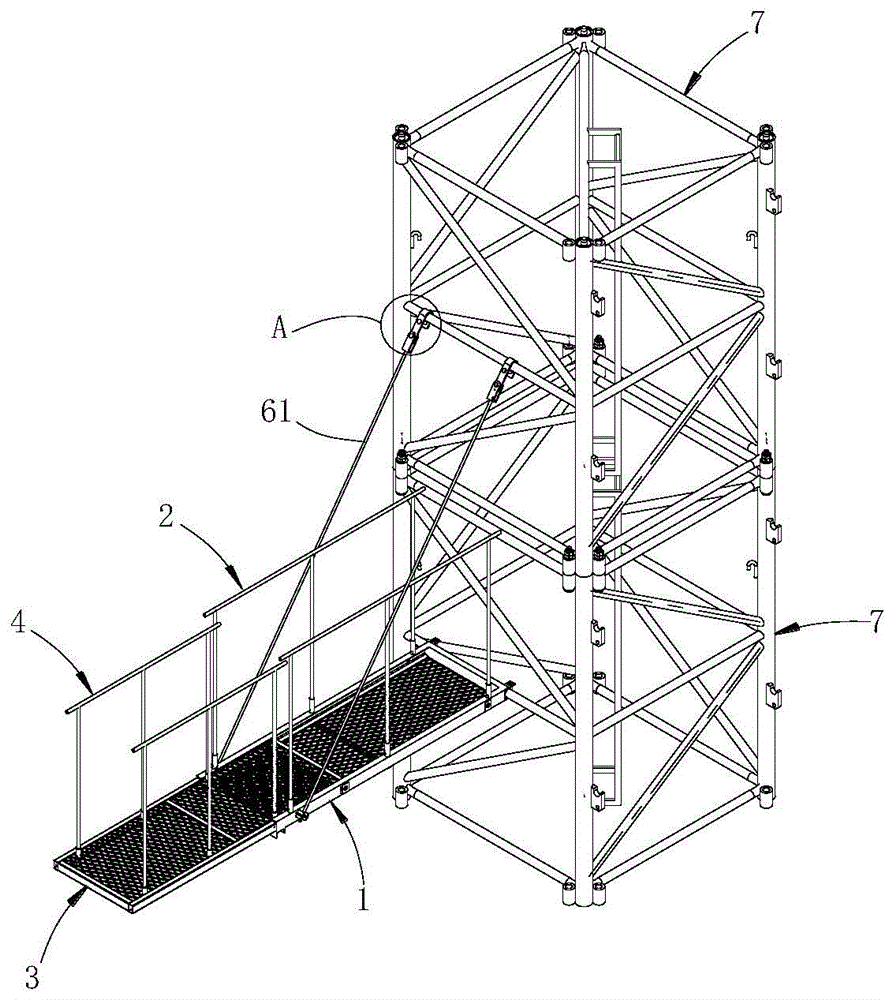

Fig. 1 is a perspective view of Embodiment 1 of the safety telescopic passage for the driver of the suspended tower crane.

Fig. 2 is a front view of Embodiment 1 of the safety telescopic passage for the driver of the suspended tower crane.

Fig. 3 is a perspective view of the main passage in Embodiment 1 of the safety telescopic passage for the driver of the suspended tower crane.

Fig. 4 is a perspective view of the extension passage in Embodiment 1 of the safety telescopic passage for the driver of the suspended tower crane.

Fig. 5 is an enlarged view of part A of Fig. 1 .

FIG. 6 is an enlarged view of part B of FIG. 2 .

Fig. 7 is a front view of Embodiment 2 of the safety telescopic passage for the driver of the suspended tower crane.

Detailed ways

In order to make the above objects, features and advantages of the present invention more comprehensible, specific implementations of the present invention will be described in detail below in conjunction with the accompanying drawings. In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention. However, the present invention can be implemented in many other ways different from those described here, and those skilled in the art can make similar improvements without departing from the connotation of the present invention, so the present invention is not limited by the specific implementations disclosed below.

The terms "vertical," "horizontal," "left," "right," and similar expressions are used herein for purposes of illustration only and are not intended to represent the only embodiments.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field of the invention. The terms used herein in the description of the present invention are for the purpose of describing specific embodiments only, and are not intended to limit the present invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

Embodiment one

See Figures 1 through 6.

The suspended tower crane driver's safety telescopic channel includes a main channel 1, an extension channel 3, a slide rail 5, an adjusting pin rod and two groups of lifting components.

The main channel 1 includes a main frame 12 and a mesh plate 13. The main frame 12 adopts a channel steel 12a of type 8, and four channel steels 12a are connected end to end in turn to form a closed rectangle. The mesh plate 13 is a steel mesh sheet, and the mesh plate 13 is welded on On the upper surface of the main body frame 12, two U-shaped bolts 11 are welded to the proximal end of the main body frame 12 of the main channel 1, and the U-shaped bolts 11 are U-shaped bolts of φ14, and the two U-shaped bolts 11 are connected to the horizontal chord of the standard section 7 71, the distal end of the main channel 1 protrudes to the outside of the standard section 7.

The two sides of the main channel 1 are respectively provided with first railings 2 that are detachably connected. The lower end of the first railing 2 is provided with three support rods 21. Fitting cannula 14 .

The structure of the extension channel 3 is similar to that of the main channel 1. The extension channel 3 also includes an extension frame 31 and a mesh plate 32. The structure of the extension frame 31 is similar to that of the main frame 12 of the main channel 1. The extension frame 31 is composed of four square steels. 40×60 rectangular square steel, the mesh plate 32 is welded in the extension frame 31 .

The two sides of the extension channel 3 are respectively provided with a second railing 4 that is detachably connected. The lower end of the second railing 4 is provided with three support rods 41, and the extension frame 31 of the extension channel 3 is fixedly connected with three support rods 41 at the lower end of the second railing 4. Fitting cannula 33 .

The support bar 21 of the first railing 2 and the support bar 41 of the second railing 4 all adopt the circular tube of φ 32 and wall thickness of 2.5.

The slide rail 5 is directly composed of two channel steels 12a of the main frame 12. The two channel steels 12a are arranged opposite to each other. The extension frame 31 of the extension channel 3 cooperates with the slide rail 5. The direction of the slide rail 5 is consistent with the length direction of the main channel 1. .

The proximal end of the extension passage 3 has a first adjustment hole 31a that runs through its both sides, the middle part and the near end of the slide rail 5 are respectively provided with a second adjustment hole 51 that runs through its both sides, and the adjustment pin (because the adjustment pin extends into In the extension channel 3 and the slide rail 5, not shown in the figure) can cooperate with the first adjustment hole 31a of the extension channel 3 and one of the two second adjustment holes 51 on the slide rail 5, when the adjustment pin extends through the When the first adjustment hole 31a of the passage 3 and the second adjustment hole 51 at the proximal end of the slide rail 5, the extension passage 3 is completely in the slide rail 5; During the second adjustment hole 51 in the middle part of the slide rail 5, the extension channel 3 partly stretches out of the slide rail 5, increasing the length of the standard section stretched out from the safety telescopic channel of the suspension type tower crane driver.

The lifting assembly includes a pull rod 61, a hook 64, a positioning seat 62 and a lock nut 63. The pull rod 61 is made of φ12 round steel. One end of the pull rod 61 is fixed to the main channel 1 through the positioning seat 62, and the positioning seat 62 is welded to the main frame of the main channel 1. On the side wall of 12, the positioning seat 62 has a positioning hole that cooperates with the pull rod 61, and the end of the pull rod 61 is provided with an external thread, and the end of the pull rod 61 passes through the positioning hole of the positioning seat 62 and cooperates with the lock nut 63 to realize the restriction. The position between the end of the pull rod 61 and the main channel 1 , and the length of the pull rod 61 can be finely adjusted by the lock nut 63 .

The other end of the pull rod 61 is hinged to the end of the hook 64 through a splint 65. The hook 64 includes a hook body 64a and a positioning pin 64b. One end of the hook body 64a is fixed to the pull rod 61 by bolts. For the bending of the contour, the two ends of the hook body 64a are provided with positioning holes that cooperate with the positioning pins 64b. Chord 71 space.

The hook 64 cooperates with the horizontal chord 71 of the standard section 7, and the level of the horizontal chord 71 matched with the hook 64 is higher than that of the horizontal chord 71 matched with the U-shaped bolt 11 of the main passage 1.

The suspended tower crane driver's safety telescopic channel is made of channel steel, rectangular square steel, round steel, steel wire mesh, etc. One end of the main channel 1 is fixed on the chord of the standard section 7, and the main channel 1 is connected by a pull rod 61 made of round steel. The other end of the main channel 1 is cable-stayed with the standard section 7. The end of the main channel 1 away from the standard section 7 is provided with a slide rail 5. The extension channel 3 can be made telescopic. When not in use, the extension channel 3 can overlap with the main channel 1. Later, according to It can be pulled out for use as needed.

Embodiment two

See Figure 7.

The difference between this embodiment and Embodiment 1 is that in this embodiment, the tie rod 61' and the hook 63' are connected by a turnbuckle bolt 66', and the turnbuckle bolt 66' can be flexibly adjusted to the overall length of the turnbuckle bolt 66', which is convenient for adjustment The main channel 1' remains relatively horizontal.

The above are only two implementations of the present invention. It should be pointed out that for those of ordinary skill in the art, some modifications and improvements can be made without departing from the principles of the present invention. These should also be regarded as Belong to the protection scope of the present invention.

Claims (8)

1. A safety telescopic channel for suspended tower crane drivers, characterized by: Including main channel, extension channel, slide rail and several lifting components; The near end of the main channel is fixedly connected with several U-shaped bolts, which cooperate with the horizontal chord of the standard section, the distal end of the main channel protrudes to the outside of the standard section, and the slide rail is fixedly connected to the main channel On the upper side, the direction of the slide rail is consistent with the length direction of the main channel, and the slide rail cooperates with the extension channel; The lifting assembly includes a pull rod and a hook, one end of the pull rod is fixed to the main channel, the other end of the pull rod is connected to the end of the hook, the hook is matched with the horizontal chord of the standard section, and the level of the horizontal chord matched with the hook is higher than that of the main channel The level height of the U-bolt fits the horizontal chord. 2. The safety telescopic channel for suspended tower crane drivers according to claim 1, characterized in that: The hook of the lifting assembly includes a hook body and a positioning pin. One end of the hook body is fixedly connected with the pull rod. After the positioning pin penetrates the positioning holes at both ends of the hook body, a space for clamping the horizontal chord is formed between the positioning pin and the bending of the hook body. 3. The safety telescopic passageway for suspended tower crane drivers according to claim 1, characterized in that: The main channel includes a main frame and a net plate, the net plate is fixedly connected in the main frame, and the slide rail is fixedly connected to the upper end surface of the main frame; The extension channel includes an extension frame and a net plate, and the net plate is fixedly connected in the extension frame. 4. The safety telescopic channel for suspended tower crane drivers according to claim 3, characterized in that: The two sides of the main passage are respectively provided with detachable first railings, the lower end of the first railing is provided with a number of support rods, and the main frame of the main passage is fixedly connected with a number of intubation tubes which are matched with the support rods at the lower end of the first railing. ; The two sides of the extension channel are respectively provided with detachable second railings, the lower end of the second railing is provided with a number of support rods, and the extension frame of the extension channel is fixedly connected with a number of intubation tubes that cooperate with the support rods at the lower end of the second railing . 5. The safety telescopic channel for suspended tower crane drivers according to claim 3, characterized in that: The lifting assembly also includes a positioning seat and a lock nut. The positioning seat is fixedly connected to the side wall of the main frame of the main channel. The positioning seat is provided with a positioning hole matched with the pull rod. The end of the pull rod is provided with an external thread, and the end of the pull rod After the part passes through the positioning hole of the positioning seat, it cooperates with the lock nut to realize the limitation of the position between the end of the pull rod and the main channel. 6. The safety telescopic passageway for suspended tower crane drivers according to claim 1, characterized in that: It also includes an adjusting pin. The proximal end of the extension channel is provided with a first adjusting hole passing through both sides thereof, and the middle part of the slide rail is also provided with a second adjusting hole passing through both sides. The adjusting pin rod can be connected with the extending channel. The first adjustment hole is matched with the second adjustment hole of the slide rail. 7. The safety telescopic passageway for suspended tower crane drivers according to claim 1, characterized in that: The lifting assembly also includes turnbuckle bolts, and the pull rod and the hook are connected by turnbuckle bolts. 8. The safety telescopic passageway for suspended tower crane drivers according to claim 1, characterized in that: The slide rail includes two channel steels, the two channel steels are respectively fixedly connected to both sides of the upper end surface of the main channel, and the two channel steels are arranged opposite to each other, and the extension channel is matched with the two channel steels respectively.
