Abstract

The invention relates to a hair dryer with a spray function, comprising: a casing, the casing includes a first casing and a second casing; a hot air device, the hot air device includes an air inlet, a motor, an impeller, a heating wire group and an air outlet; The device is a spray device, and the spray device includes a solution box, a spray motor, a nozzle port, a first connecting pipe connection and a second connecting pipe; a control device, and the control device includes a control board and a spray switch arranged on the control board. The hair dryer with spray function can be filled with liquid hair care essential oil in the solution box, and the essential oil can be evenly sprayed onto the hair when the hair dryer is working, so as to achieve the effect of hair care.

Description

A hair dryer with spray function

technical field

The disclosure belongs to the field of household appliances, in particular to a hair dryer with a spray function.

Background technique

At present, ordinary hair dryers or high-speed hair dryers usually only have blowing and heating functions. When using, users need to blow their hair to a semi-dry state, then stop the hair dryer, apply hair care essential oil to the hair, start the hair dryer again, and continue to dry and apply hair care oil. For hair, in the process of applying hair care essential oil, the user needs to apply the hair care essential oil to the hands first, then apply the hair care essential oil to the hair with hands, and then clean the hands and pick up the hair dryer again to continue drying the hair. If you pick up the hair dryer without cleaning your hands, it is easy to get the hair care essential oil on the hair dryer, which will cause the hair dryer to be unclean and even cause the hair dryer to malfunction. Therefore, this process is troublesome for users to operate, the experience is not good, and it takes a long time.

Contents of the invention

The invention provides a hair dryer with a spray function, aiming to solve at least one of the technical problems in the prior art.

The technical solution of the present invention is a hair dryer with a spray function, which is characterized in that it includes: a housing, the housing includes a first housing and a second housing connected to the first housing; a hot air device, The hot air device is arranged inside the housing, and the hot air device includes an air inlet, a motor, an impeller, a heating wire group and an air outlet sequentially installed inside the first housing, and the output shaft of the motor is connected to the air outlet. Said impeller is fixedly connected; spray device, said spray device is installed inside said housing, said spray device includes a solution box, a spray motor and a nozzle opening, said solution box is connected to said spray motor through a first connecting pipe, The spray motor is connected to the nozzle port through a second connecting pipe, the solution box and the spray motor are installed on the second housing; a control device is used to control the hot air device and the spray device work, the control device includes a control board and a spray switch arranged on the control board, the spray switch is used to control the working state of the spray motor, the spray switch includes a key switch or a touch switch, the heating The wire group and the spray motor are respectively electrically connected to the control board.

Further, the solution box is provided with a first through hole for the first end of the first connecting pipe to pass through, and the spray motor is provided with a second through hole for the second end of the first connecting pipe to pass through. Two through holes, the spray motor is provided with a third through hole for the second end of the second connecting pipe to pass through.

Further, it also includes a deflector cover, the deflector cover is installed in the first housing, the deflector cover includes a deflector seat and a deflector slot connected with the deflector seat, and the output shaft of the motor The bottom of the guide seat passes through and is connected with the impeller, and the impeller and the first end of the second connecting pipe are installed inside the guide groove.

Further, the guide groove includes an outer ring groove and an inner ring groove, the impeller includes a blade ring and a plurality of blades arranged on the blade ring, the inner diameter of the inner ring groove is smaller than the inner diameter of the blade ring, The inner ring groove passes through the leaf ring, and the blade is arranged between the outer ring groove and the inner ring groove.

Further, the leaf ring and the inner ring groove are coaxial, and the first end of the second connecting pipe is arranged on the axis of the leaf ring or the inner ring groove.

Further, the second housing is provided with a solution box installation seat for installing the solution box.

Further, the control board is also provided with a plurality of buttons for controlling the operation of the motor and the heating wire group.

Further, it also includes a baffle installed on the second housing, and the baffle is arranged between the control board and the spray motor.

Further, it also includes a dust-proof net installed on the first housing, and the dust-proof net is arranged between the motor and the end of the first housing.

Further, a power supply device is also included, and the power supply device is electrically connected to the control board.

The beneficial effects of the present invention are as follows,

In this application, a hair dryer with a spray function is proposed. The hair dryer with a spray function can be filled with liquid hair care essential oil in the solution box. When the hair dryer is working, the user can press the spray switch, combined with the handheld The second casing should move the hair dryer, so that the essential oil can be evenly sprayed onto the hair. The hot air device of the hair dryer works in a hot air state, which can effectively absorb the essential oil to the hair and achieve the effect of hair care. Users can also match different hair care essential oils with different hair types. When the hair dryer is drying the hair, the essential oil can be conveniently sprayed on the hair according to the user's personal needs.

Description of drawings

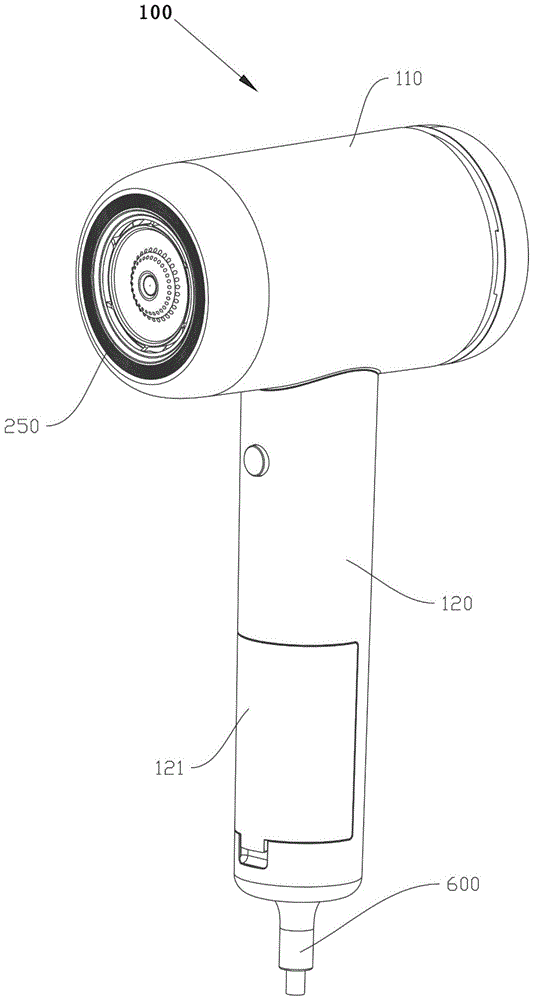

Fig. 1 is a front schematic view of a hair dryer with a spray function according to the present invention.

Fig. 2 is a rear schematic view of the hair dryer with spray function according to the present invention.

Fig. 3 is a schematic side view of the hair dryer with spray function according to the present invention (housing hidden).

Fig. 4 is an exploded schematic diagram (with the housing hidden) of the hair dryer with spray function according to the present invention.

Fig. 5 is an exploded schematic view of the rear part of the hair dryer with spray function according to the present invention (hiding the first casing).

Fig. 6 is an internal schematic view of the guide tank of the hair dryer with spray function according to the present invention.

Fig. 7 is a schematic diagram of a spraying device of a hair dryer with a spraying function according to the present invention.

In the above figure, 100, shell; 110, first shell; 111, dustproof net; 120, second shell; 121, solution box mounting seat; 122, clapboard; 200, hot air device; 210, air inlet 220, motor; 230, impeller; 231, leaf ring; 232, blade; 240, heating wire group; 250, air outlet; 300, spray device; 310, solution box; 311, first through hole; 320, spray motor ; 321, the second through hole; 322, the third through hole; 330, the nozzle opening; 340, the first connecting pipe; 350, the second connecting pipe; 400, the control device; 410, the control board; 411, the spray switch; 412 , button; 500, diversion cover; 510, diversion seat; 520, diversion groove; 521, outer ring groove; 522, inner ring groove; 600, power supply device.

Detailed ways

The idea, specific structure and technical effects of the present invention will be clearly and completely described below in conjunction with the embodiments and accompanying drawings, so as to fully understand the purpose, scheme and effect of the present invention. It should be noted that, in the case of no conflict, the embodiments in the present application and the features in the embodiments can be combined with each other.

It should be noted that, unless otherwise specified, when a feature is called "fixed" or "connected" to another feature, it can be directly fixed and connected to another feature, or indirectly fixed and connected to another feature. on a feature. In addition, descriptions such as up, down, left, right, top, and bottom used in the present invention are only relative to the mutual positional relationship of the components of the present invention in the drawings.

Also, unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art. The terms used in the specification herein are for describing specific embodiments only, and are not intended to limit the present invention. As used herein, the term "and/or" includes any combination of one or more of the associated listed items.

It should be understood that although the terms first, second, third etc. may be used in the present disclosure to describe various elements, these elements should not be limited by these terms. These terms are only used to distinguish elements of the same type from one another. For example, a first element could be termed a second element, and, similarly, a second element could be termed a first element, without departing from the scope of the present disclosure.

Referring to FIGS. 1 to 7 , in this application, a hair dryer with a spray function is proposed, which is characterized in that it includes: a housing 100 , the housing 100 includes a first housing 110 and the first housing 110 The second housing 120 connected; the hot air device 200, the hot air device 200 is arranged inside the housing 100, and the hot air device 200 includes an air inlet 210 and a motor 220 installed in the first housing 110 in turn , impeller 230, heating wire group 240 and air outlet 250, the output shaft of the motor 220 is fixedly connected with the impeller 230; the spray device 300, the spray device 300 is installed inside the housing 100, the spray device 300 includes a solution box 310, a spray motor 320 and a nozzle port 330, the solution box 310 is connected to the spray motor 320 through a first connecting pipe 340, and the spray motor 320 is connected to the nozzle port 330 through a second connecting pipe 350 connected, the solution box 310 and the spray motor 320 are installed on the second housing 120; the control device 400 is used to control the work of the hot air device 200 and the spray device 300, and the spray switch 411 is used In order to control the working state of the spray motor 320, the spray switch 411 includes a key switch or a touch switch, the key switch is a physical key switch arranged outside the second housing 120, and the touch switch is an electronic switch. Press the key switch or touch the electronic switch to control the working state of the spray motor 320; the control device 400 includes a control board 410 and a spray switch 411 arranged on the control board 410, the heating wire group 240 and the The spray motors 320 are electrically connected to the control board 410 respectively.

The beneficial effects of the present invention are as follows,

The hair dryer with spray function can be filled with liquid hair care essential oil in the solution box 310. When the hair dryer is working, the user can press the spray switch 411, combined with holding the second housing 120, the hair dryer should be moved , the essential oil can be evenly sprayed on the hair, and the hot air device 200 of the hair dryer works in the hot air state, which can effectively absorb the essential oil to the hair to achieve the effect of hair care. Users can also match different hair care essential oils with different hair types. When the hair dryer is drying the hair, the essential oil can be conveniently sprayed on the hair according to the user's personal needs.

Specifically, the user first pours hair care essential oil into the solution box 310, inserts the first end of the first connecting tube 340 into the bottom of the solution box 310 through the first through hole 311, and then inserts the The solution box 310 is installed in the solution box mounting seat 121, and the hair dryer is started, so that the hot air device 200 blows out hot air at a suitable temperature, and the hair is blown to a semi-dry state. After that, the user presses the spray switch 411 to start the hair dryer. The spray motor 320 sucks the hair care essential oil in the solution box 310 into the spray motor 320 through the first connecting pipe 340, and then pumps the hair care essential oil into the spray motor 320 through the second connecting pipe 350. The nozzle opening 330 is sprayed out in the form of mist through the nozzle opening 330 .

The second connecting pipe 350 starts from the first housing 110 and reaches the second housing 120 near the air outlet 250, since the first housing 110 and the second housing 120 are not Therefore, the second connecting pipe 350 must pass through a corner when going from the first housing 110 to the second housing 120, and in a specific embodiment, a second connecting pipe is also included at the corner A protective cover, the protective cover is installed at the corner of the second connecting pipe 350 .

Referring to FIG. 7 , further, the solution box 310 is provided with a first through hole 311 for the first end of the first connecting pipe 340 to pass through, and the spray motor 320 is provided with a first through hole for the first connecting pipe 340 to pass through. The second through hole 321 through which the second end of the second connection pipe 340 passes, and the spray motor 320 is provided with a third through hole 322 for the second end of the second connecting pipe 350 to pass through. The first connecting pipe 340 absorbs the hair care essential oil of the solution box 310 through the first through hole 311, and the spray motor 320 pumps the hair care essential oil through the first connecting pipe 340 to the spray motor 320, the second connecting pipe 350 enters the spray motor 320 through the second through hole 321 to complete the work of pumping the hair care essential oil from the solution box 310 to the spray motor 320, and then the One end of the second connecting pipe 350 enters the spray motor 320 through the third through hole 322 to extract the hair care essential oil, and then pumps the hair care essential oil to the second connection through the second connecting pipe 350. At the nozzle opening 330 at the other end of the tube 350 , through the atomization of the nozzle opening 330 , the hair care essential oil is sprayed out from the nozzle opening 330 in the form of atomization.

Referring to Fig. 3 to Fig. 6, further, it also includes a wind deflector 500, the wind deflector 500 is installed in the first housing 110, the wind deflector 500 includes a deflector seat 510 and is connected with the deflector The guide groove 520 connected to the seat 510, the output shaft of the motor 220 passes through the bottom of the guide seat 510 and is connected to the impeller 230, and the first end of the impeller 230 and the second connecting pipe 350 is installed inside the diversion groove 520 . The air guide cover 500 is used to guide the air blown out by the hot air device 200 to be sent out along the air guide groove 520, the air guide seat 510 is conical, and the bottom of the air guide seat 510 is provided with an opening, so The opening is used for the output shaft of the motor 220 to pass through and be connected with the impeller 230, and the motor 220 is used to drive the impeller 230 to rotate to generate wind; the guide groove 520 is cylindrical, and the air outlet 250 is set at the front end of the diversion groove 520, and the air outlet 250 is provided with an essential oil outlet for spraying hair care essential oil, and the essential oil outlet is arranged in the center of the air outlet 250, and the essential oil spray The outlet is facing the nozzle opening 330 ; an air outlet hole is provided on the outside of the air outlet 250 , and the air outlet hole is used for the hot air blown by the hot air device 200 or the air at normal temperature. The air deflector 500 is wrapped inside the first housing 110 , and the air deflector 500 also helps to keep the inside of the hair dryer clean, and enhances the mechanical strength of the inside of the hair dryer.

3 to 6, further, the guide groove 520 includes an outer ring groove 521 and an inner ring groove 522, and the impeller 230 includes a blade ring 231 and a plurality of blades 232 arranged on the blade ring 231, so The inner diameter of the inner ring groove 522 is smaller than the inner diameter of the leaf ring 231, the inner ring groove 522 passes through the leaf ring 231, and the blade 232 is arranged between the outer ring groove 521 and the inner ring groove 522 between. The blade ring 231 of the impeller 230 passes through the inner ring groove 522, and the end of the second connecting pipe 350 close to the nozzle opening 330 also passes through the inner ring groove 522, so the inner ring groove 522 While not hindering the rotation of the leaf ring 231, the vane 232 and the end of the second connecting pipe 350 close to the nozzle opening 330 can be isolated, so that the work of the leaf ring 231 and the nozzle The work of port 330 does not affect each other.

In a specific embodiment, referring to FIG. 6 , reinforcing ribs are provided on the outside of the diversion groove 520 , and the reinforcing ribs are used to strengthen the mechanical strength of the diversion groove 520 .

Referring to FIG. 4 , further, the leaf ring 231 and the inner ring groove 522 are coaxial, and the first end of the second connecting pipe 350 is arranged on the axis of the leaf ring 231 or the inner ring groove 522 superior. The first end of the second connecting pipe 350 is the end close to the nozzle opening 330 , and the first end of the second connecting pipe 350 is arranged on the axis of the leaf ring 231 or the inner ring groove 522 The nozzle opening 330 can face the essential oil outlet of the air outlet 250, so that the hair care essential oil ejected from the nozzle opening 330 will not be sprayed to other places inside the air outlet 250 and block the air outlet 250.

Referring to FIG. 1 to FIG. 5 , further, the second housing 120 is provided with a solution box mounting seat 121 for installing the solution box 310 . The solution box mounting base 121 is arranged on the outside of the second housing 120, which can facilitate the user to take out the solution box 310 to replenish the technical effect of hair care essential oil.

In a specific embodiment, referring to Fig. 1 to Fig. 5, a cover plate and a lock are provided on the solution box mounting base 121, after the user installs the solution box 310, by placing the cover plate and putting the cover One end of the plate is installed on the lock to achieve the technical effect of fixing the solution box 310 .

Referring to FIG. 4 to FIG. 5 , further, the control board 410 is further provided with a plurality of buttons 412 for controlling the operation of the motor 220 and the heating wire group 240 . In a specific embodiment, the buttons 412 include a switch button 412 for starting and stopping the motor 220, a heating button 412 for starting and stopping the heating wire group 240, and a button for adjusting the rotation speed of the motor 220. The rotation speed button 412 and the heating adjustment button 412 for adjusting the heating power of the heating wire group 240 . The rotation speed button 412 and the heating adjustment button 412 can control the rotation speed of the motor 220 and the heating power of the heating wire group 240 through conventional or specific methods.

Referring to FIG. 3 to FIG. 4 , it further includes a partition 122 installed on the second housing 120 , and the partition 122 is arranged between the control board 410 and the spray motor 320 . The partition 122 is used to isolate the control board 410 and the spray motor 320. Since the spray motor 320 has liquids such as hair care essential oils to participate in the work, the two control boards 410 are circuit boards, so the partition is set. The board 122 can prevent the control board 410 from being wetted by liquids such as hair care essential oils, so as to achieve the technical effect of protecting the control board 410 .

Referring to FIG. 5 , further, it further includes a dust-proof net 111 installed on the first housing 110 , and the dust-proof net 111 is arranged between the motor 220 and the end of the first housing 110 . The dust-proof net 111 is used to isolate the dust entering from the air inlet 210 .

Referring to FIG. 1 to FIG. 5 , further, a power supply device 600 is further included, and the power supply device 600 is electrically connected to the control board 410 . The power supply device 600 is used to supply power to the hot air device 200 and the spray device 300 . The power supply device 600 includes a power cord connected to the control board 410 .

The above is only a preferred embodiment of the present invention, and the present invention is not limited to the above-mentioned embodiment, as long as it achieves the technical effect of the present invention by the same means, within the spirit and principles of the present disclosure, any Any modification, equivalent replacement, improvement, etc., shall be included within the protection scope of the present disclosure. All should belong to the protection scope of the present invention. Various modifications and changes may be made to the technical solutions and/or implementations within the protection scope of the present invention.

Claims (10)

1. A hair dryer with a spray function, characterized in that it comprises: A housing (100), the housing (100) comprising a first housing (110) and a second housing (120) connected to the first housing (110); A hot air device (200), the hot air device (200) is arranged inside the housing (100), and the hot air device (200) includes air inlets (210) sequentially installed inside the first housing (110) ), motor (220), impeller (230), heating wire group (240) and air outlet (250), the output shaft of described motor (220) is fixedly connected with described impeller (230); A spray device (300), the spray device (300) is installed inside the housing (100), the spray device (300) includes a solution box (310), a spray motor (320) and a nozzle opening (330), The solution box (310) is connected to the spray motor (320) through a first connecting pipe (340), and the spray motor (320) is connected to the nozzle opening (330) through a second connecting pipe (350), The solution box (310) and the spray motor (320) are installed on the second housing (120); A control device (400), used to control the operation of the hot air device (200) and the spray device (300), the control device (400) includes a control panel (410) and is arranged on the control panel (410) The spray switch (411), the spray switch (411) is used to control the working state of the spray motor (320), the spray switch (411) includes a key switch or a touch switch, the heating wire group (240) and the spray motor (320) are respectively electrically connected with the control board (410). 2. The hair dryer with spray function according to claim 1, characterized in that, The solution box (310) is provided with a first through hole (311) for the first end of the first connecting pipe (340) to pass through, and the spray motor (320) is provided with a A second through hole (321) through which the second end of the connecting pipe (340) passes, and the spray motor (320) is provided with a third through hole for the second end of the second connecting pipe (350) to pass through. hole (322). 3. The hair dryer with spray function according to claim 1, characterized in that, It also includes a wind deflector (500), the wind deflector (500) is installed in the first housing (110), the wind deflector (500) includes a deflector seat (510) and the deflector The flow guide groove (520) connected with the flow seat (510), the output shaft of the motor (220) passes through the bottom of the flow guide seat (510) and is connected with the impeller (230), and the impeller (230) and the first end of the second connecting pipe (350) are installed inside the guide groove (520). 4. The hair dryer with spray function according to claim 3, characterized in that, The guide groove (520) includes an outer ring groove (521) and an inner ring groove (522), and the impeller (230) includes a vane ring (231) and a plurality of blades arranged on the vane ring (231) (232), the inner diameter of the inner ring groove (522) is smaller than the inner diameter of the leaf ring (231), the inner ring groove (522) passes through the leaf ring (231), and the blade (232) is set between the outer ring groove (521) and the inner ring groove (522). 5. The hair dryer with spray function according to claim 4, characterized in that, The leaf ring (231) and the inner ring groove (522) are coaxial, and the first end of the second connecting pipe (350) is arranged on the leaf ring (231) or the inner ring groove (522). ) on the axis. 6. The hair dryer with spray function according to claim 1, characterized in that, The second housing (120) is provided with a solution box installation seat (121) for installing the solution box (310). 7. The hair dryer with spray function according to claim 1, characterized in that, The control board (410) is also provided with a plurality of buttons (412) for controlling the operation of the motor (220) and the heating wire group (240). 8. The hair dryer with spray function according to claim 1, characterized in that, It also includes a partition (122) installed on the second housing (120), and the partition (122) is arranged between the control board (410) and the spray motor (320). 9. The hair dryer with spray function according to claim 1, characterized in that, It also includes a dust-proof net (111) installed on the first housing (110), and the dust-proof net (111) is arranged at the end of the motor (220) and the first housing (110) between. 10. The hair dryer with spray function according to claim 1, characterized in that, It also includes a power supply device (600), and the power supply device (600) is electrically connected with the control board (410).
