Abstract

The invention relates to the technical field of concrete grouting equipment, in particular to a grouting device for a concrete prefabricated laminated slab. Through the setting of drive assembly, pushing component and shrouding subassembly, accessible servo motor drive pushing component is to the inside round shrouding of pushing of barrel to make round shrouding inwards remove, and scrape down with puddler and stirring leaf on remaining concrete in the barrel, thereby reduced the residual of the inside concrete of equipment, not only be convenient for the subsequent cleaning operation of personnel, reduced the waste that the unable take out of surplus concrete produced simultaneously, promoted the life of equipment.

Description

Grouting device for concrete prefabricated laminated slab
Technical Field
The invention relates to the technical field of concrete grouting equipment, in particular to a grouting device for a concrete prefabricated laminated slab.
Background
The superimposed sheet is an assembled panel formed by combining precast slabs and cast-in-situ slabs. The bonding is enhanced by the internal grooves, and the connecting parts are welded by adopting keel steel trusses. The laminated slab has good integration, the upper half part of the slab surface is smooth, and the laminated slab is easy to decorate and is suitable for high-rise and large-area buildings with high rigidity requirements.
The slip casting device of current prefabricated superimposed sheet has some shortages in the use, if concrete easily solidifies in the transportation before pouring, leads to pouring the back shaping effect relatively poor, and simultaneously, its stirring transportation operation of concrete before pouring is comparatively loaded down with trivial details to need wash each part after pouring finishes, personnel's work load is great, and in stirring and transportation also have more concrete to remain in stirring transportation equipment inside, influence the normal use of equipment in the past easily in addition.
Disclosure of Invention
Aiming at the problems existing in the prior art, the invention aims to solve the technical problems that: the concrete is easy to solidify in the transportation process before pouring.
In order to solve the technical problems, the invention adopts the following technical scheme:
the utility model provides a slip casting device of precast concrete superimposed sheet, includes the bottom plate, the one end rotation of bottom plate upper surface is connected with the barrel subassembly, the one end fixedly connected with slip casting subassembly of barrel subassembly, the inside grafting of barrel subassembly has the shrouding subassembly, the one end fixedly connected with supporting component of barrel subassembly both sides, the inside fixed mounting of supporting component has drive assembly, the both sides fixedly connected with control assembly of bottom plate upper surface, drive assembly's output joint has stirring subassembly, one side rotation of supporting component is connected with pushing assembly.
As a further scheme of the invention: the cylinder assembly comprises a supporting seat fixedly connected to one end of the upper surface of a bottom plate, an A bearing is fixedly connected to the inside of the supporting seat, a rotating rod is connected to the supporting seat through the A bearing in a rotating mode, one end of the rotating rod is fixedly connected with a cylinder body, a feeding opening is formed in the top of the surface of the cylinder body, a baffle is connected to the inside of the feeding opening in a sliding mode, a connecting seat is fixedly connected to the surface of the baffle and the surface of the cylinder body, and an A pin is inserted into the inside of the connecting seat.
As still further aspects of the invention: the grouting assembly comprises a funnel head fixedly connected to one end of the cylinder body, an envelope is sleeved on the surface of the funnel head, and a pin B is inserted on the upper surface of the envelope.
As still further aspects of the invention: the sealing plate assembly comprises a circular sealing plate inserted into the cylinder body, a sealing rubber pad is sleeved on the surface of the circular sealing plate, a scraping groove is formed in the middle of the front face of the circular sealing plate, and holes for fixing the B bearing are formed in the top and the bottom of the front face of the circular sealing plate.
As still further aspects of the invention: the supporting component comprises supporting rods fixedly connected to one ends of two sides of the cylinder body, one ends of the supporting rods are fixedly connected with a motor cover, and round grooves for fixing the C bearings are formed in the top and the bottom of one side of the motor cover.
As still further aspects of the invention: the driving assembly comprises a servo motor fixedly installed inside the motor cover, and an output end of the servo motor is connected with an A gear, a clamping seat and a B gear from left to right through one-time spline.
As still further aspects of the invention: the control assembly comprises a supporting frame fixedly connected to two sides of the upper surface of a bottom plate, a motor base is fixedly connected to the top of the supporting frame, a driving motor is fixedly installed inside the motor base, an output end of the driving motor is connected with an A screw rod through a spline, a driving frame is connected to the surface of the A screw rod through threads, guide rods are fixedly connected to two sides of the driving frame and are inserted into the supporting frame, pulleys are connected to the inside of the driving frame in a rotating mode, guide rails are connected to the surfaces of the pulleys in a sliding mode, and the guide rails are fixedly connected to the middle portions of two sides of the surface of the cylinder body.
As still further aspects of the invention: the stirring assembly comprises a rotating seat meshed with the surface of the gear A, a chuck is connected to the surface of the rotating seat in a rotating mode, a limiting frame is fixedly connected to one side of the rotating seat, a C pin bolt used for fixing the clamping seat is arranged on one side of the limiting frame, a clamping seat A is fixedly connected to the other side of the limiting frame, a stirring rod is clamped inside the rotating seat, a plurality of stirring blades are fixedly connected to the surface of the stirring rod, and the stirring rod is inserted into the scraping groove.
As still further aspects of the invention: the pushing assembly comprises two B screws which are rotationally connected to the inside of a C bearing, the surfaces of the B screws are fixedly connected with C gears, the C gears are meshed with the B gears, a loop bar is connected to the surface threads of the B screws, the loop bar is inserted into the inside of the chuck, a limit hole is formed in the surface of the loop bar, a D pin bolt used for fixing the B screws is inserted into the inside of the limit hole, one end of the loop bar is rotationally connected to the inside of the B bearing, and a B clamping seat which is staggered with the A clamping seat is fixedly connected to the surface of the loop bar.
As still further aspects of the invention: the four corners of bottom plate lower surface all are provided with the antiskid wheel, arc wall has been seted up to the center department of bottom plate upper surface, the inside fixedly connected with blotter of arc wall.
As still further aspects of the invention: the inside fixedly connected with gag lever post of rotating the seat, the guide way with gag lever post looks adaptation has been seted up to one side on puddler surface.
As still further aspects of the invention: the stirring blades are eight in number, four are fixedly connected to two sides of the surface of the stirring rod, and the scraping grooves are matched with the stirring blades.
Compared with the prior art, the invention has at least the following advantages:
1. according to the invention, by arranging the cylinder assembly, the stirring assembly, the driving assembly and the control assembly, before pouring the laminated slab, concrete raw materials can be added into the cylinder and the stirring assembly is used for stirring and mixing concrete, and in the stirring and transporting processes, the internal concrete is kept to be continuously mixed, so that the condition that the concrete is easy to solidify in the transporting process is reduced, the concrete is hard to be molded in the pouring process is avoided, and the waste of the concrete is reduced.
2. According to the invention, through the arrangement of the cylinder assembly, the grouting assembly, the stirring assembly, the driving assembly and the control assembly, the equipment integrates stirring, transportation and dumping, so that the time and effort consumed by a person for stirring and transporting concrete through a single equipment are reduced, the working efficiency of the person is greatly improved, and the dependence on manpower is reduced.
3. According to the invention, through the arrangement of the cylinder assembly and the stirring assembly, after the concrete in the equipment is poured by personnel, clear water is added into the equipment through the feeding port above the cylinder, and the stirring rod is driven to rotate by starting the servo motor, so that the stirring blade is driven to stir clear water in the cylinder, thereby flushing the concrete attached to the inner wall of the cylinder by the clear water, facilitating the maintenance of the equipment by the personnel, reducing the time and effort consumed by the personnel to maintain a plurality of equipment, and improving the working efficiency of the personnel.
4. According to the invention, through the arrangement of the driving assembly, the pushing assembly and the sealing plate assembly, the pushing assembly can be driven by the servo motor to push the circular sealing plate into the cylinder body, so that the circular sealing plate moves inwards, and residual concrete in the cylinder body and on the stirring rod and the stirring blade is scraped, so that the residual concrete in the equipment is reduced, the subsequent cleaning operation of personnel is facilitated, the waste caused by the fact that the residual concrete cannot be taken out is reduced, the service life of the equipment is prolonged, and the equipment is convenient for the personnel to use.
Drawings
Fig. 1 is a schematic diagram of the overall device structure.
Fig. 2 is a schematic diagram showing the structural separation of the grouting assembly of the whole device.
Fig. 3 is a schematic view of the structural separation of the circular seal plate in the overall device.
Fig. 4 is a schematic top view of the structure of the stirring assembly in the overall device.
Fig. 5 is a schematic view showing the structural separation of the driving assembly in the whole device.
Fig. 6 is a schematic view showing the structural disassembly of the rotating seat in the whole device.
Fig. 7 is a schematic rear view of the structure of the rotary base in the whole device.

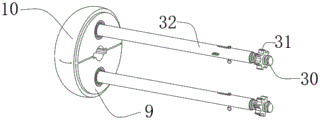

Fig. 8 is a schematic view showing the structural detachment of the pushing assembly in the whole device.
Fig. 9 is a schematic structural view of a control assembly in the overall apparatus.
In the figure, 1, a bottom plate; 2. a support base; 3. a rotating rod; 4. a cylinder; 5. a baffle; 6. a connecting seat; 7. a funnel head; 8. an envelope; 9. a circular sealing plate; 10. sealing rubber cushion; 11. a support rod; 12. a motor cover; 13. a servo motor; 14. a gear; 15. a clamping seat; 16. a gear B; 17. a support frame; 18. a motor base; 19. a driving motor; 20. a screw rod A; 21. a drive frame; 22. a guide rod; 23. a guide rail; 24. a rotating seat; 25. a chuck; 26. a limit frame; 27. a, clamping and fixing a seat; 28. a stirring rod; 29. stirring the leaves; 30. b, a screw rod; 31. a C gear; 32. a loop bar; 33. and a cushion pad.
Detailed Description
The present invention will be described in further detail below.
In the description of the present invention, it should be noted that, the terms "upper", "lower", and the like indicate an azimuth or a positional relationship based on the azimuth or the positional relationship shown in the drawings, or an azimuth or a positional relationship conventionally put in use of the inventive product, or an azimuth or a positional relationship conventionally understood by those skilled in the art, such terms are merely for convenience of describing the present invention and simplifying the description, and do not indicate or imply that the apparatus or element to be referred must have a specific azimuth, be constructed and operated in a specific azimuth, and thus should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and the like, are used merely to distinguish between descriptions and should not be construed as indicating or implying relative importance.
With reference to figures 1-9 of the drawings,
example 1: the utility model provides a slip casting device of precast concrete superimposed sheet, includes bottom plate 1, and the one end rotation of bottom plate 1 upper surface is connected with barrel subassembly, and barrel subassembly's one end fixedly connected with slip casting subassembly, barrel subassembly's inside grafting has shrouding subassembly, and barrel subassembly both sides's one end fixedly connected with supporting component, supporting component's inside fixed mounting has drive assembly, and the both sides fixedly connected with control assembly of bottom plate 1 upper surface, drive assembly's output joint has stirring subassembly, and one side rotation of supporting component is connected with the promotion subassembly.
Specifically, can support barrel 4 through setting up of bottom plate 1, support drive assembly through supporting component, make drive assembly and barrel 4 keep horizontal position, and mix through drive assembly control stirring subassembly, thereby the concrete raw materials that adds inside barrel 4, can control pushing assembly through drive assembly, thereby make pushing assembly to the inside shrouding subassembly that promotes of barrel 4 remove, in order to reach the purpose of striking off the inside concrete of barrel 4, and can adjust barrel assembly and start-up subassembly and angle through control assembly, when the follow-up concrete is emptyd, the concrete is by slip-off inside slip-off of slip casting subassembly downwards.
Example 2: barrel subassembly includes supporting seat 2 of fixed connection in bottom plate 1 upper surface one end, and the inside fixedly connected with A bearing of supporting seat 2, and supporting seat 2 is connected with bull stick 3 through A bearing rotation, and the one end fixedly connected with barrel 4 of bull stick 3, the pan feeding mouth has been seted up at the top on barrel 4 surface, and the inside sliding connection of pan feeding mouth has baffle 5, and baffle 5 and the equal fixedly connected with connecting seat 6 of the surface of barrel 4, peg graft in the inside of connecting seat 6 has A round pin.
Specifically, the setting through A bearing and supporting seat 2 can support bull stick 3 to make barrel 4 revolute the pole position and rotate, thereby realize the purpose of angle modulation, be convenient for follow-up when pouring the inside concrete of barrel 4, can rotate barrel 4, make inside concrete roll-off. Through the setting of baffle 5, personnel can manually control baffle 5 slide in the pan feeding mouth to the size of control baffle 5 open position is convenient for personnel to the inside concrete raw materials that adds of barrel 4.
Example 3: the grouting assembly comprises a funnel head 7 fixedly connected to one end of the cylinder body 4, an envelope 8 is sleeved on the surface of the funnel head 7, and a pin B is inserted on the upper surface of the envelope 8.
Specifically, the concrete can slide out from the inside of the funnel head 7, and personnel can seal the funnel head 7 by sleeving the envelope 8 and insert the pin B to fix the position of the envelope 8 in the concrete raw material stirring period, so that the concrete is prevented from leaking out in the stirring process.
Example 4: the shrouding subassembly is including pegging graft in the inside circular shrouding 9 of barrel 4, and sealed cushion 10 has been cup jointed on the surface of circular shrouding 9, and scraping the groove has been seted up at the positive middle part of circular shrouding 9, and the positive top of circular shrouding 9 has all seted up the hole that is used for fixed B bearing with the bottom.
Specifically, through the setting of circular shrouding 9, can carry out the shutoff to the afterbody of barrel 4 to avoid outwards flowing out at stirring in-process inside concrete, and keep its compactness of laminating with barrel 4 inner wall through the setting of sealed cushion 10, through the setting of scraping the groove, can make circular shrouding 9 remove on puddler 28, the follow-up operation of scraping out the concrete of being convenient for.
Example 5: the supporting component comprises supporting rods 11 fixedly connected to one ends of two sides of the cylinder body 4, one ends of the supporting rods 11 are fixedly connected with a motor cover 12, and round grooves for fixing the C bearings are formed in the top and the bottom of one side of the motor cover 12.
Specifically, the motor cover 12 can be supported through the arrangement of the supporting rod 11, the horizontal position between the supporting rod 11 and the motor cover 12 is kept, and the subsequent pushing assembly is installed through the arrangement of the C bearing.
Example 6: the driving assembly comprises a servo motor 13 fixedly arranged in a motor cover 12, and an output end of the servo motor 13 is connected with an A gear 14, a clamping seat 15 and a B gear 16 from left to right through primary splines.
Specifically, the servo motor 13 is installed and supported by the motor cover 12, so that the servo motor and the cylinder 4 are kept in a horizontal position, and by the arrangement of the servo motor 13, a person can drive the gear A14, the clamping seat 15 and the gear B16 on the output end of the servo motor 13 to rotate by starting the servo motor 13 so as to drive equipment of a connecting part.
Example 7: the control assembly comprises a supporting frame 17 fixedly connected to two sides of the upper surface of the bottom plate 1, a motor base 18 is fixedly connected to the top of the supporting frame 17, a driving motor 19 is fixedly installed inside the motor base 18, an A screw rod 20 is connected to the output end of the driving motor 19 through a spline, a driving frame 21 is connected to the surface of the A screw rod 20 through threads, guide rods 22 are fixedly connected to two sides of the driving frame 21, the guide rods 22 are inserted into the supporting frame 17, pulleys are rotatably connected to the inside of the driving frame 21, guide rails 23 are slidably connected to the surfaces of the pulleys, and the guide rails 23 are fixedly connected to the middle parts of two sides of the surface of the cylinder 4.
Specifically, through the setting of support frame 17, personnel can start driving motor 19 in the motor cabinet 18, make it drive A screw rod 20 and rotate, and upwards pull drive frame 21 removal, make the pulley remove to the afterbody of barrel 4 in guide rail 23 when drive frame 21 upwards moves, and upwards pull up barrel 4, make it rotate around A bearing position, thereby make in the stirring process with empty in-process, the inside concrete of barrel 4 keeps the below position, make the stirring more abundant, and can avoid the concrete to spill by circular shrouding 9.
Example 8: the stirring subassembly is including meshing in the rotation seat 24 on A gear 14 surface, and the surface rotation of rotation seat 24 is connected with chuck 25, and one side fixedly connected with spacing frame 26 of rotation seat 24, one side of spacing frame 26 is equipped with the C round pin that is used for fixed cassette 15, and the opposite side fixedly connected with A card solid seat 27 of spacing frame 26, and the inside joint of rotation seat 24 has puddler 28, and the fixed surface of puddler 28 is connected with a plurality of stirring leaf 29, and puddler 28 is pegged graft in the inside of scraping the groove.
Specifically, through the setting of the rotating seat 24, when the rotating seat 24 is sleeved on the gear a 14 and the limiting frame 26 is fixed with the clamping seat 15 through the pin C, the servo motor 13 is started to drive the rotating seat 24 to rotate, and the rotating seat 24 drives the stirring rod 28 to rotate, so that the stirring blade 29 finally stirs and mixes the concrete in the cylinder 4, and during this period, the position of the chuck 25 is fixed.
Example 9: the pushing assembly comprises two B screws 30 which are rotationally connected to the inside of a C bearing, the surfaces of the two B screws 30 are fixedly connected with a C gear 31, the C gear 31 is meshed with a B gear 16, the surface of the B screw 30 is in threaded connection with a loop bar 32, the loop bar 32 is inserted into the inside of the chuck 25, a limiting hole is formed in the surface of the loop bar 32, a D pin used for fixing the B screw 30 is inserted into the inside of the limiting hole, one end of the loop bar 32 is rotationally connected to the inside of the B bearing, and a B clamping seat which is staggered with the A clamping seat 27 is fixedly connected to the surface of the loop bar 32.
Specifically, after the implementation of the scheme in embodiment 8 is completed, the gear a 14 and the rotating seat 24 can be separated by removing the pin C, the limiting frame 26 and the clamping seat 15 can be separated, a person can manually push the chuck 25 to drive the rotating seat 24 to move, and when the clamping seat a 27 and the clamping seat B are overlapped, the pin D in the limiting hole is removed and inserted between the clamping seat a 27 and the clamping seat B, so that the sleeve rod 32 and the clamping seat B are fixed, when the servo motor 13 rotates, the gear B16 drives the gear C31 to rotate, the gear C31 drives the screw B30 to rotate, and the sleeve rod 32 and the clamping seat 25 are fixed and cannot rotate along with the screw B30, so that the circular sealing plate 9 is pushed to move inside the cylinder 4, and meanwhile, the concrete remained on the inner wall of the cylinder 4 is scraped by the scraping groove, the cleaning effect is improved, the waste caused by concrete remained is reduced, the workload of the person is reduced, and the service life of the equipment is improved.
Example 10: the four corners department of bottom plate 1 lower surface all is provided with the antiskid wheel, and arc wall has been seted up to the center department of bottom plate 1 upper surface, and arc wall inside fixedly connected with blotter 33.
Specifically, through the setting of antiskid wheel, personnel accessible drive traction machinery drives this equipment and removes, through the setting of blotter 33, can avoid servo motor 13 falling speed too fast and produce the collision between bottom plate 1 when control assembly operates.
Example 11: a limiting rod is fixedly connected to the inside of the rotating seat 24, and a guide groove matched with the limiting rod is formed in one side of the surface of the stirring rod 28.
Specifically, through the setting of gag lever post and guide way, can drive puddler 28 and rotate when rotating seat 24 to rotating seat 24 accessible gag lever post makes a round trip to slide on puddler 28.
Example 12: the stirring blades 29 are eight in number, four are fixedly connected to two sides of the surface of the stirring rod 28, and the scraping grooves are matched with the stirring blades 29.
Specifically, through the setting of stirring leaf 29, when puddler 28 rotates, drive stirring leaf 29 and rotate in barrel 4 to stir the processing to inside concrete raw materials, and when stirring leaf 29 passed circular shrouding 9, the accessible scraped the groove with the remaining concrete on the stirring leaf 29 and scraped, thereby the personnel of being convenient for was cleared up subsequently.
This slip casting device of precast concrete superimposed sheet when during operation/during use: personnel can add concrete raw materials into the cylinder 4 by opening the baffle plate 5, then the driving motor 19 drives the A screw rod 20 to rotate by starting the control assembly, so that the driving frame 21 is pulled to slightly lift the cylinder 4, then the servo motor 13 is started, the A gear 14 drives the rotating seat 24 to rotate and the stirring rod 28 and the stirring blade 29 are driven by the rotating seat 24 to rotate, so that concrete in the cylinder 4 is stirred, at the moment, the B gear 16 drives the C gear 31 to rotate, a D pin is inserted between the B screw rod 30 and the sleeve rod 32, so that the B screw rod 30 and the sleeve rod 32 idle, then when the personnel needs to pour the concrete, the personnel can detach the A pin, detach the sleeve 8, enable the concrete to flow outwards from the hopper head, the personnel can further lift the inclination angle of the cylinder 4 by controlling assembly, so that the outflow of the concrete is accelerated, after the concrete flows into the mould, a person can detach the C pin to separate the A gear 14 from the rotating seat 24 and separate the limiting frame 26 from the clamping seat 15, the person can manually push the chuck 25 to drive the rotating seat 24 to move, and when the A clamping seat 27 and the B clamping seat are overlapped, the D pin in the limiting hole is detached and inserted between the A clamping seat 27 and the B clamping seat, so that the sleeve rod 32 and the position of the chuck 25 are fixed, the B gear 16 drives the C gear 31 to rotate when the servo motor 13 rotates, the C gear 31 drives the B screw 30 to rotate, the sleeve rod 32 and the chuck 25 are fixed and can not rotate along with the B screw 30, the circular sealing plate 9 is pushed to move inside the cylinder 4, so that the residual concrete on the inner wall of the cylinder 4 is scraped, after the concrete is completely scraped, the servo motor 13 is controlled to be reversely opened to restore the position of the sleeve rod 32, finally, clear water is added into the barrel 4, the gear A14 is connected with the rotating seat 24 and the limiting frame 26 is connected with the clamping seat 15, the servo motor 13 is started to rotate through the stirring rod 28 and the stirring blade 29, the inside of the barrel 4 is washed, the cleaning effect on the inside of equipment is improved, the concrete residue is reduced, and the service life of the equipment is prolonged.
Finally, it is noted that the above embodiments are only for illustrating the technical solution of the present invention and not for limiting the same, and although the present invention has been described in detail with reference to the preferred embodiments, it should be understood by those skilled in the art that modifications and equivalents may be made thereto without departing from the spirit and scope of the technical solution of the present invention, which is intended to be covered by the scope of the claims of the present invention.

Claims (9)

1. The utility model provides a slip casting device of precast concrete superimposed sheet which characterized in that: including bottom plate (1), the one end rotation of bottom plate (1) upper surface is connected with the barrel subassembly, the one end fixedly connected with slip casting subassembly of barrel subassembly, the inside grafting of barrel subassembly has the shrouding subassembly, the one end fixedly connected with supporting component of barrel subassembly both sides, the inside fixed mounting of supporting component has drive assembly, the both sides fixedly connected with control assembly of bottom plate (1) upper surface, drive assembly's output joint has the stirring subassembly, one side rotation of supporting component is connected with the promotion subassembly.
2. A grouting device for concrete prefabricated superimposed sheet as claimed in claim 1, characterized in that: barrel subassembly includes supporting seat (2) of fixed connection in bottom plate (1) upper surface one end, the inside fixedly connected with A bearing of supporting seat (2), supporting seat (2) are connected with bull stick (3) through A bearing rotation, the one end fixedly connected with barrel (4) of bull stick (3), the pan feeding mouth has been seted up at the top on barrel (4) surface, the inside sliding connection of pan feeding mouth has baffle (5), the equal fixedly connected with connecting seat (6) of the surface of baffle (5) and barrel (4), peg graft in the inside of connecting seat (6) has A round pin bolt.
3. A grouting device for concrete prefabricated superimposed sheet as claimed in claim 2, characterized in that: the grouting assembly comprises a funnel head (7) fixedly connected to one end of the cylinder body (4), an envelope (8) is sleeved on the surface of the funnel head (7), and a pin B is inserted on the upper surface of the envelope (8).
4. A grouting device for concrete prefabricated superimposed sheet as claimed in claim 2, characterized in that: the sealing plate assembly comprises a circular sealing plate (9) inserted into the cylinder body (4), a sealing rubber pad (10) is sleeved on the surface of the circular sealing plate (9), a scraping groove is formed in the middle of the front face of the circular sealing plate (9), and holes for fixing the B bearing are formed in the top and the bottom of the front face of the circular sealing plate (9).
5. A grouting device for concrete prefabricated superimposed sheet as defined in claim 4, wherein: the supporting component comprises supporting rods (11) fixedly connected to one ends of two sides of the cylinder body (4), one ends of the supporting rods (11) are fixedly connected with motor covers (12), and round grooves for fixing C bearings are formed in the top and the bottom of one side of each motor cover (12).
6. A grouting device for concrete prefabricated superimposed sheet as defined in claim 5, wherein: the driving assembly comprises a servo motor (13) fixedly arranged in a motor cover (12), and an output end of the servo motor (13) is connected with an A gear (14), a clamping seat (15) and a B gear (16) from left to right through one spline.
7. A grouting device for concrete prefabricated superimposed sheet as claimed in claim 2, characterized in that: the control assembly comprises a supporting frame (17) fixedly connected to two sides of the upper surface of a bottom plate (1), a motor base (18) is fixedly connected to the top of the supporting frame (17), a driving motor (19) is fixedly arranged in the motor base (18), an A screw (20) is connected to the output end of the driving motor (19) in a spline mode, a driving frame (21) is connected to the surface of the A screw (20) in a threaded mode, guide rods (22) are fixedly connected to two sides of the driving frame (21), the guide rods (22) are inserted into the supporting frame (17), pulleys are connected to the inner portion of the driving frame (21) in a rotating mode, guide rails (23) are connected to the surfaces of the pulleys in a sliding mode, and the guide rails (23) are fixedly connected to the middle portions of two sides of the surface of a cylinder body (4).
8. A grouting device for concrete prefabricated superimposed sheet as defined in claim 6, wherein: the stirring assembly comprises a rotating seat (24) meshed with the surface of an A gear (14), a chuck (25) is rotationally connected to the surface of the rotating seat (24), a limiting frame (26) is fixedly connected to one side of the rotating seat (24), a C pin bolt used for fixing a clamping seat (15) is arranged on one side of the limiting frame (26), an A clamping seat (27) is fixedly connected to the other side of the limiting frame (26), a stirring rod (28) is clamped in the rotating seat (24), a plurality of stirring blades (29) are fixedly connected to the surface of the stirring rod (28), and the stirring rod (28) is inserted into the scraping groove.
9. A grouting device for concrete prefabricated superimposed sheet as claimed in claim 8, wherein: the pushing assembly comprises two B screws (30) which are rotationally connected to the inside of a C bearing, the surfaces of the B screws (30) are fixedly connected with C gears (31), the C gears (31) are meshed with the B gears (16), a sleeve rod (32) is connected to the surface of the B screws (30) in a threaded mode, the sleeve rod (32) is inserted into the inside of the chuck (25), a limiting hole is formed in the surface of the sleeve rod (32), a D pin bolt used for fixing the B screws (30) is inserted into the limiting hole, one end of the sleeve rod (32) is rotationally connected to the inside of the B bearing, and a B clamping seat which is staggered with the A clamping seat (27) is fixedly connected to the surface of the sleeve rod (32).
CN202310588055.8A 2023-05-24 2023-05-24 Grouting device for concrete prefabricated laminated slab Active CN116352881B (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202310588055.8A CN116352881B (en) 2023-05-24 2023-05-24 Grouting device for concrete prefabricated laminated slab

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202310588055.8A CN116352881B (en) 2023-05-24 2023-05-24 Grouting device for concrete prefabricated laminated slab

Publications (2)

Publication Number Publication Date
CN116352881A true CN116352881A (en) 2023-06-30
CN116352881B CN116352881B (en) 2023-08-18

Family

ID=86925794

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202310588055.8A Active CN116352881B (en) 2023-05-24 2023-05-24 Grouting device for concrete prefabricated laminated slab

Country Status (1)

Country Link
CN (1) CN116352881B (en)

Citations (20)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GB1187542A (en) * 1967-01-26 1970-04-08 Lionello Rossi Vehicle for the Transport of a Rotating Mixer or the like Provided with a Continuous Conveyor of an Articulated Type
KR200395148Y1 (en) * 2005-06-20 2005-09-07 유경근 Automatic washing apparatus for mixer of concrete batcher plant
KR101585079B1 (en) * 2015-06-26 2016-01-22 (주)세종이엔씨 Filling apparatus of flowable fills for a structural backfills
KR101845771B1 (en) * 2017-11-24 2018-04-05 주식회사 반석테크 A concrete mixing agitator that minimizes the sticking of concrete and facilitates discharging and washing of concrete
US20190137029A1 (en) * 2017-11-06 2019-05-09 Warren Peterson Apparatus and method for loading a pig into a pipeline
CN209682604U (en) * 2019-01-16 2019-11-26 甘肃建投商品混凝土有限公司 A kind of commerical ready-mixed concrete anti-solidifying device
CN209999452U (en) * 2018-09-27 2020-01-31 陈佳 concrete mixing device
CN111152359A (en) * 2020-02-26 2020-05-15 王帅 Concrete solidification-preventing transfer trolley
CN211194400U (en) * 2019-09-21 2020-08-07 陕西新意达建材产业发展有限公司 Concrete mixer for building
CN112454671A (en) * 2020-11-25 2021-03-09 李宁宁 High efficiency concrete mixing jar convenient to it is clean
AT523366A1 (en) * 2014-05-20 2021-07-15 Geolyth Mineral Tech Gmbh Mixer of a continuous mixing plant
CN214447326U (en) * 2021-01-14 2021-10-22 青岛青新建材有限公司 Concrete is with equipment of pouring fast
CN215396035U (en) * 2021-08-09 2022-01-04 乐清市嘉盛混凝土有限公司 Concrete mixing equipment
CN216068026U (en) * 2021-08-13 2022-03-18 陕西梓美怡新型保温材料有限公司 Internal shell surface solidification prevention treatment device for production and stirring of waterproof mortar
CN217205384U (en) * 2022-04-20 2022-08-16 中铁十二局集团建筑安装工程有限公司 Building engineering concrete pouring device
CN217226087U (en) * 2021-12-26 2022-08-19 三亚华盛新混凝土有限公司 Mixing device for concrete conveying
CN115090632A (en) * 2022-07-23 2022-09-23 北京中实上庄混凝土有限责任公司 Self-cleaning system of concrete stirring tank
CN217748524U (en) * 2022-06-21 2022-11-08 杭州前诚混凝土有限公司 Oscillating concrete mixing jar belt cleaning device
CN218314306U (en) * 2022-05-23 2023-01-17 西藏鸿仁新型建材科技有限责任公司 Prevent remaining ready-mixed concrete transportation jar
CN115674442A (en) * 2022-11-21 2023-02-03 肥西县水务局 Concrete blending device and method for hydraulic engineering

Patent Citations (20)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GB1187542A (en) * 1967-01-26 1970-04-08 Lionello Rossi Vehicle for the Transport of a Rotating Mixer or the like Provided with a Continuous Conveyor of an Articulated Type
KR200395148Y1 (en) * 2005-06-20 2005-09-07 유경근 Automatic washing apparatus for mixer of concrete batcher plant
AT523366A1 (en) * 2014-05-20 2021-07-15 Geolyth Mineral Tech Gmbh Mixer of a continuous mixing plant
KR101585079B1 (en) * 2015-06-26 2016-01-22 (주)세종이엔씨 Filling apparatus of flowable fills for a structural backfills
US20190137029A1 (en) * 2017-11-06 2019-05-09 Warren Peterson Apparatus and method for loading a pig into a pipeline
KR101845771B1 (en) * 2017-11-24 2018-04-05 주식회사 반석테크 A concrete mixing agitator that minimizes the sticking of concrete and facilitates discharging and washing of concrete
CN209999452U (en) * 2018-09-27 2020-01-31 陈佳 concrete mixing device
CN209682604U (en) * 2019-01-16 2019-11-26 甘肃建投商品混凝土有限公司 A kind of commerical ready-mixed concrete anti-solidifying device
CN211194400U (en) * 2019-09-21 2020-08-07 陕西新意达建材产业发展有限公司 Concrete mixer for building
CN111152359A (en) * 2020-02-26 2020-05-15 王帅 Concrete solidification-preventing transfer trolley
CN112454671A (en) * 2020-11-25 2021-03-09 李宁宁 High efficiency concrete mixing jar convenient to it is clean
CN214447326U (en) * 2021-01-14 2021-10-22 青岛青新建材有限公司 Concrete is with equipment of pouring fast
CN215396035U (en) * 2021-08-09 2022-01-04 乐清市嘉盛混凝土有限公司 Concrete mixing equipment
CN216068026U (en) * 2021-08-13 2022-03-18 陕西梓美怡新型保温材料有限公司 Internal shell surface solidification prevention treatment device for production and stirring of waterproof mortar
CN217226087U (en) * 2021-12-26 2022-08-19 三亚华盛新混凝土有限公司 Mixing device for concrete conveying
CN217205384U (en) * 2022-04-20 2022-08-16 中铁十二局集团建筑安装工程有限公司 Building engineering concrete pouring device
CN218314306U (en) * 2022-05-23 2023-01-17 西藏鸿仁新型建材科技有限责任公司 Prevent remaining ready-mixed concrete transportation jar
CN217748524U (en) * 2022-06-21 2022-11-08 杭州前诚混凝土有限公司 Oscillating concrete mixing jar belt cleaning device
CN115090632A (en) * 2022-07-23 2022-09-23 北京中实上庄混凝土有限责任公司 Self-cleaning system of concrete stirring tank
CN115674442A (en) * 2022-11-21 2023-02-03 肥西县水务局 Concrete blending device and method for hydraulic engineering

Also Published As

Publication number Publication date
CN116352881B (en) 2023-08-18

Similar Documents

Publication Publication Date Title
CN116352881B (en) Grouting device for concrete prefabricated laminated slab
CN111975992A (en) Dismantlement formula concrete mixing device convenient to intensive mixing
CN117983100A (en) Inclined mixer for lithium manganate powder production
CN111873183A (en) Concrete stirring device for building construction and stirring method thereof
CN218310682U (en) Sand mixing device for casting processing
CN212417675U (en) Antiseized wall type agitating unit
CN114471342A (en) Rare earth raw material mixing and homogenizing equipment for hard alloy pre-sintering
CN216726796U (en) Agitated vessel is used in lithium ion battery material production and processing
CN210525486U (en) Mixer convenient to ejection of compact
CN114030086A (en) Concrete mixing device is used in precast concrete production and processing
CN220389856U (en) High-efficient mixing stirring device
CN213617447U (en) Concrete mortar's cloth pushing hands
CN221536496U (en) Mixing arrangement is used in chilli sauce production and processing
CN219399788U (en) Stirring and mixing device for preventing solidification of residual putty powder
CN221291795U (en) Mixing device for preparing concrete interlocking precast block
CN219466529U (en) Cement paste mixer
CN221143588U (en) Concrete pouring device
CN214391584U (en) Garbage flying ash resource recovery processing device
CN222360405U (en) Concrete production conveyer convenient to unload
CN219027856U (en) Pouring device for building block manufacturing
CN220609921U (en) Portable building wall coating agitating unit
CN220661284U (en) Concrete pole pouring device
CN219352924U (en) Efficient full-automatic meat material agitating unit
CN220610090U (en) Vacuum homogenizing emulsifying machine
CN220162821U (en) Civil engineering mortar mixer

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
GR01 Patent grant
GR01 Patent grant
