CN116316223A - Protective device of electric energy meter measuring box and use method thereof - Google Patents
Protective device of electric energy meter measuring box and use method thereof Download PDFInfo
- Publication number
- CN116316223A CN116316223A CN202310535470.7A CN202310535470A CN116316223A CN 116316223 A CN116316223 A CN 116316223A CN 202310535470 A CN202310535470 A CN 202310535470A CN 116316223 A CN116316223 A CN 116316223A
- Authority
- CN
- China
- Prior art keywords
- box
- box body
- electric energy
- energy meter
- winding wheel
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- H—ELECTRICITY
- H02—GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
- H02B—BOARDS, SUBSTATIONS OR SWITCHING ARRANGEMENTS FOR THE SUPPLY OR DISTRIBUTION OF ELECTRIC POWER
- H02B1/00—Frameworks, boards, panels, desks, casings; Details of substations or switching arrangements
- H02B1/56—Cooling; Ventilation
- H02B1/565—Cooling; Ventilation for cabinets
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65H—HANDLING THIN OR FILAMENTARY MATERIAL, e.g. SHEETS, WEBS, CABLES
- B65H75/00—Storing webs, tapes, or filamentary material, e.g. on reels
- B65H75/02—Cores, formers, supports, or holders for coiled, wound, or folded material, e.g. reels, spindles, bobbins, cop tubes, cans, mandrels or chucks
- B65H75/34—Cores, formers, supports, or holders for coiled, wound, or folded material, e.g. reels, spindles, bobbins, cop tubes, cans, mandrels or chucks specially adapted or mounted for storing and repeatedly paying-out and re-storing lengths of material provided for particular purposes, e.g. anchored hoses, power cables
- B65H75/38—Cores, formers, supports, or holders for coiled, wound, or folded material, e.g. reels, spindles, bobbins, cop tubes, cans, mandrels or chucks specially adapted or mounted for storing and repeatedly paying-out and re-storing lengths of material provided for particular purposes, e.g. anchored hoses, power cables involving the use of a core or former internal to, and supporting, a stored package of material
- B65H75/44—Constructional details
- B65H75/4481—Arrangements or adaptations for driving the reel or the material
- B65H75/4486—Electric motors
-
- G—PHYSICS
- G08—SIGNALLING
- G08B—SIGNALLING SYSTEMS, e.g. PERSONAL CALLING SYSTEMS; ORDER TELEGRAPHS; ALARM SYSTEMS
- G08B21/00—Alarms responsive to a single specified undesired or abnormal condition and not otherwise provided for
- G08B21/18—Status alarms
- G08B21/24—Reminder alarms, e.g. anti-loss alarms
-
- G—PHYSICS
- G08—SIGNALLING
- G08B—SIGNALLING SYSTEMS, e.g. PERSONAL CALLING SYSTEMS; ORDER TELEGRAPHS; ALARM SYSTEMS
- G08B5/00—Visible signalling systems, e.g. visible personal calling systems or remote indication of seats occupied
- G08B5/22—Visible signalling systems, e.g. visible personal calling systems or remote indication of seats occupied using electric transmission; using electromagnetic transmission
- G08B5/36—Visible signalling systems, e.g. visible personal calling systems or remote indication of seats occupied using electric transmission; using electromagnetic transmission using visible light sources
- G08B5/38—Visible signalling systems, e.g. visible personal calling systems or remote indication of seats occupied using electric transmission; using electromagnetic transmission using visible light sources using flashing light
-
- H—ELECTRICITY
- H02—GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
- H02B—BOARDS, SUBSTATIONS OR SWITCHING ARRANGEMENTS FOR THE SUPPLY OR DISTRIBUTION OF ELECTRIC POWER
- H02B1/00—Frameworks, boards, panels, desks, casings; Details of substations or switching arrangements
- H02B1/26—Casings; Parts thereof or accessories therefor
- H02B1/28—Casings; Parts thereof or accessories therefor dustproof, splashproof, drip-proof, waterproof or flameproof
-
- H—ELECTRICITY
- H02—GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
- H02B—BOARDS, SUBSTATIONS OR SWITCHING ARRANGEMENTS FOR THE SUPPLY OR DISTRIBUTION OF ELECTRIC POWER
- H02B1/00—Frameworks, boards, panels, desks, casings; Details of substations or switching arrangements
- H02B1/26—Casings; Parts thereof or accessories therefor
- H02B1/46—Boxes; Parts thereof or accessories therefor
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A30/00—Adapting or protecting infrastructure or their operation
- Y02A30/14—Extreme weather resilient electric power supply systems, e.g. strengthening power lines or underground power cables
Landscapes
- Engineering & Computer Science (AREA)
- Power Engineering (AREA)
- Physics & Mathematics (AREA)
- General Physics & Mathematics (AREA)
- Business, Economics & Management (AREA)
- Emergency Management (AREA)
- Electromagnetism (AREA)
- Power-Operated Mechanisms For Wings (AREA)
Abstract
The invention provides a protection device of an electric energy meter measuring box and a use method thereof, comprising the following steps: the box body is provided with an opening at one side, and a box door is slidably arranged at one side of the opening of the box body; the two ends of the box body are provided with ventilation windows, and the top of the box body is provided with a plugging assembly for plugging the ventilation windows; the top of box is provided with power component, passes through power component drive shutoff subassembly. The electric appliance inside the box can be ventilated and radiated through the ventilation window, the double-headed motor can drive the two shaft rods to synchronously rotate through the starting, the winding wheel inside the storage box can be driven to rotate through the shaft rods, the winding wheel which is clockwise rotated can wind the lifting rope on the winding wheel, the synchronous strip and the connecting strip are driven to move upwards through the winding lifting rope, and finally the baffle plate is driven to seal the ventilation window through the connecting strip, so that the sealing and ventilation effects are considered.
Description
Technical Field
The invention relates to the field of electric power facilities, in particular to a protective device of an electric energy meter measuring box and a use method thereof.
Background
The electric energy meter measuring box is the whole body of measuring appliances and auxiliary equipment which are necessary for measuring electric energy, and comprises an electric energy meter, a voltage transformer for measuring, a current transformer and a secondary circuit thereof, an electric energy measuring screen, a cabinet, a box and the like.
In actual use, the electric energy meter measuring box is placed in natural environment, is commonly installed on a wall surface and is used for counting the electricity consumption conditions of each household, corresponding electric elements are installed in the electric energy meter measuring box, and the electric elements in the electric energy meter measuring box are mainly protected by the design of the measuring box to prevent damage.
However, the prior metering box has poor effect on ventilation and heat dissipation, and cannot simultaneously realize sealing and ventilation, so that high temperature is easily caused in long-term sultry environment, and the service life of the electric energy meter is influenced.
Disclosure of Invention
In order to solve the above problems, the present invention provides a protection device for a metering box of an electric energy meter, which is used for solving the problem that sealing and ventilation cannot be simultaneously achieved in the prior art.
In order to achieve the above object, the present invention provides a protection device for a metering box of an electric energy meter, comprising:
the box body is provided with an opening at one side, and a box door is slidably arranged at one side of the opening of the box body;
the two ends of the box body are provided with ventilation windows, and the top of the box body is provided with a plugging assembly for plugging the ventilation windows;
the top of the box body is provided with a power assembly, and the plugging assembly is driven by the power assembly;
the plugging assembly comprises a storage box fixedly mounted at two ends of the top of the box body, a storage groove formed in the inner bottom of the storage box, sliding grooves formed in two ends of the inner portion of the storage box, a baffle plate slidingly arranged in the sliding grooves, and a plurality of connecting strips slidingly arranged at the inner top of the storage box, wherein the bottoms of the connecting strips are connected with the baffle plate together;
the power assembly is connected with the top of the storage box and used for driving the connecting strip to slide up and down;
the middle part of the storage box is communicated with the ventilation window;
the length and width of the baffle are the same as those of the ventilation window;
the back of box has seted up a plurality of installation screw.
Preferably, the two ends of the top of the box body are provided with storage boxes, the inner top of each storage box is rotatably provided with a winding wheel, the winding wheel is wound with a lifting rope, the free end of the lifting rope is fixedly connected with a synchronizing bar, and the synchronizing bar is fixedly connected with the tops of the connecting bars;
the power component is connected with one end of the winding wheel to drive the winding wheel to rotate positively and negatively.
Preferably, the power assembly comprises a motor box fixedly arranged at the top of the box body, a double-head motor fixedly arranged in the motor box, and shaft rods arranged on two output shafts of the double-head motor;
the two shaft rods respectively extend to the interiors of the two storage boxes and are fixedly connected with one end of the winding wheel;
racks are slidably arranged at two opposite ends of the top of the box body, and one end of each rack is connected with a shielding plate;
the shielding plate is slidably arranged at the top of the box body;
the rack is connected with the power assembly, and the power assembly drives the rack to slide back and forth in the first direction.
Preferably, the power assembly further comprises gears connected to the outer surfaces of the two shafts in a key mode, and racks are meshed with the outer parts of the gears.
Preferably, a rainwater sensor is fixedly mounted at the top of the box body, a controller is arranged in the motor box, the rainwater sensor is electrically connected with the controller, and the controller is electrically connected with the double-headed motor.
Preferably, a storage bar is installed on one side of the box body, the position of the storage bar corresponds to the box door, and one end of the storage bar is open;
the inside fixed mounting of accomodate the strip has touch switch, one side fixed mounting of accomodate the strip has the flashing lamp, touch switch with flashing lamp electric connection.
Preferably, filter plates are fixedly arranged in the two ventilation windows.
Preferably, protection plates are arranged at two opposite ends of the top of the box body, and the protection plates are located above the racks.
The method for using the protective device of the electric energy meter measuring box comprises the following steps of;
s1, electric appliances such as an electric energy meter and the like are installed in the box in advance, and then the box is integrally installed on a wall surface through installation screw holes formed in the back of the box and screws;
s2, pushing the box door to one side to open the box body, when the box door is disconnected with the touch switch, the touch switch starts the flashing lamp to work, so that the flashing lamp continuously flashes, after the box door is reset, the box door is contacted with the touch switch, and the touch switch closes the flashing lamp;
s3, driving the shaft lever to rotate through the double-headed motor, driving the winding wheel to rotate through the shaft lever, clockwise rotating the winding lifting rope through the winding wheel, further driving the connecting strip to move upwards through the lifting rope and the synchronous strip, finally moving the baffle upwards to block the ventilation window, and anticlockwise rotating the winding wheel to loosen the lifting rope to reset the baffle;
s4, when the double-headed motor drives the shaft lever to rotate clockwise, the gear is synchronously driven to rotate, the gear is driven to move towards the opening direction of the box body by rotating clockwise, and the shielding plate is driven to move by the gear;
s5, the rainwater sensor senses rainwater, when the rainwater is sensed, a signal is fed back to the controller, the double-headed motor is controlled to start through the controller, clockwise rotation is carried out, and when the rainwater disappears, the double-headed motor is controlled to rotate anticlockwise for resetting.
Compared with the prior art, the invention has the beneficial effects that:
1. the electric appliance inside the box can be ventilated and radiated through the ventilation window, the double-headed motor can drive the two shaft rods to synchronously rotate through the starting, the winding wheel inside the storage box can be driven to rotate through the shaft rods, the winding wheel which is clockwise rotated can wind the lifting rope on the winding wheel, the synchronous strip and the connecting strip are driven to move upwards through the winding lifting rope, and finally the baffle plate is driven to seal the ventilation window through the connecting strip, so that the sealing and ventilation effects are considered.
2. When the axostylus axostyle rotates, the gear that sets up on its surface will follow simultaneously and rotate, can drive the rack rather than the meshing through the gear clockwise and remove towards the open direction of box, remove through the rack and can drive the shielding plate and remove, can shelter from the rain to the top of box through the shielding plate after removing, conveniently protect the inside electrical apparatus of box when opening the box in the rainy day, effectually prevent that the rainwater from getting into.
3. Can sense the rainwater through the rainwater sensor that sets up, rainwater sensor gives the controller with signal transmission when sensing the rainwater, then carries out clockwise rotation through controller control double-end motor, after the rainwater disappears, the anticlockwise rotation of controller control double-end motor, and then opens ventilation window, ventilates to realize automatic closed box and the effect of ventilation.
4. The signal receiving and transmitting module can enable the staff to remotely control the double-headed motor, and the baffle plate is convenient to operate manually.
5. The box body can be opened by pushing the box door out of one side, when the box door is disconnected with the touch switch, the touch switch starts the flashing lamp to work, so that the flashing lamp continuously flashes, a worker is conveniently reminded to remember to close the box door after working, and after the box door is reset, the box door is contacted with the touch switch, and the flashing lamp is closed by the touch switch.
For a better understanding and implementation, the present invention is described in detail below with reference to the drawings.
Drawings
FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic diagram of the overall side view of the present invention;
FIG. 3 is a schematic diagram of the overall top view of the present invention;
FIG. 4 is a schematic view of the structure of the rack in the present invention;
FIG. 5 is a schematic view of the structure of the baffle plate of the present invention;
FIG. 6 is a cross-sectional view of a receiving bar of the present invention;

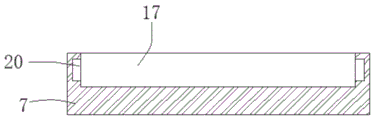

FIG. 7 is a cross-sectional view of the storage box of the present invention;
fig. 8 is a sectional view of a motor case in the present invention;
FIG. 9 is a schematic view of the winding wheel of the present invention.
In the figure: 1. a case; 2. a door; 3. a storage strip; 4. a ventilation window; 5. a filter plate; 6. a flashing light; 7. a storage box; 8. a motor box; 9. a protection plate; 10. a shielding plate; 11. a connecting strip; 12. installing a screw hole; 13. a rain sensor; 14. a shaft lever; 15. a rack; 16. a gear; 17. a baffle; 18. a storage groove; 19. a touch switch; 20. a chute; 21. a double-ended motor; 22. a winding wheel; 23. a hanging rope; 24. synchronization bars.
Description of the embodiments
For a clearer understanding of technical features, objects and effects of the present invention, a specific embodiment of the present invention will be described with reference to the accompanying drawings, but the scope of the present invention is not limited to the following.
Referring to fig. 1 to 9, a protection device for a metering box of an electric energy meter includes: the box body 1, one side of the box body 1 is open, and a box door 2 is arranged on the open side of the box body 1 in a sliding manner;
the two ends of the box body 1 are provided with ventilation windows 4, and the top of the box body 1 is provided with a plugging assembly for plugging the ventilation windows 4;
the top of the box body 1 is provided with a power assembly, and the plugging assembly is driven by the power assembly;
the plugging assembly comprises a storage box 7 fixedly arranged at two ends of the top of the box body 1, a storage groove 18 formed in the inner bottom of the storage box 7, sliding grooves 20 formed at two ends of the inner part of the storage box 7, a baffle 17 arranged in the sliding grooves 20 in a sliding manner, and a plurality of connecting strips 11 arranged at the inner top of the storage box 7 in a sliding manner, wherein the bottoms of the connecting strips 11 are connected with the baffle 17 together;
the power assembly is connected with the top of the storage box 7 and is used for driving the connecting strip 11 to slide up and down;
the middle part of the storage box 7 is communicated with the ventilation window 4;
the length and width of the baffle 17 are the same as those of the ventilation window 4;
the back of the case 1 is provided with a plurality of mounting screw holes 12.
According to the technical scheme provided by the invention, when the box body 1 is used, electric appliances such as an electric energy meter and the like are installed in the box body 1 in advance, then the box body 1 is integrally installed on a wall surface through the installation screw holes 12 formed in the back surface of the box body 1 and the screws, the ventilation and heat dissipation effects can be realized through the ventilation window 4, the box body 1 is required to be sealed in severe weather, a power assembly can be started to work, the power assembly drives the baffle 17 in the storage box 7 to move upwards, the baffle 17 is stopped after the ventilation window is completely sealed, and the ventilation window can be sealed, so that the effect of sealing the box body 1 is realized. The baffle 17 can slide up and down conveniently through the chute 20 arranged in the storage box 7.
The width direction of the case 1 is the first direction.
Preferably: a winding wheel 22 is rotatably arranged at the inner top of the storage box 7, a lifting rope 23 is wound on the winding wheel 22, the free end of the lifting rope 23 is fixedly connected with a synchronizing bar 24, and the synchronizing bar 24 is fixedly connected with the tops of the connecting bars 11;
the power component is connected with one end of the winding wheel 22 to drive the winding wheel 22 to rotate positively and negatively;
the power assembly comprises a motor box 8 fixedly arranged at the top of the box body 1, a double-headed motor 21 fixedly arranged in the motor box 8, and shaft rods 14 arranged on two output shafts of the double-headed motor 21;
the two shaft rods 14 respectively extend to the inside of the two storage boxes 7 and are fixedly connected with one end of the winding wheel 22.
Specifically, the double-headed motor 21 is started to drive the two shaft rods 14 to synchronously rotate, the shaft rods 14 can drive the winding wheel 22 inside the storage box 7 to rotate, the winding wheel 22 which is clockwise rotated can wind the lifting rope 23 wound on the winding wheel, the lifting rope 23 can drive the synchronous bar 24 connected with the lifting rope 23 to move upwards, the synchronous bar 24 can drive the three connecting bars 11 to move upwards, and finally the baffle 17 is driven by the connecting bars 11 to seal the ventilation window 4. The winding wheel 22 is rotated anticlockwise, so that the lifting rope 23 wound on the winding wheel can be loosened, the synchronous bar 24, the connecting bar 11 and the baffle 17 are reset, the ventilation window 4 is opened, and ventilation work is facilitated. The double-headed motor 21 can be protected by the motor case 8 provided.
Preferably: the opposite ends of the top of the box body 1 are respectively provided with a rack 15 in a sliding manner, and one ends of the two racks 15 are commonly connected with a shielding plate 10;
the shielding plate 10 is slidably installed on the top of the case 1;
the rack 15 is connected with the power assembly, and the power assembly drives the rack 15 to slide back and forth in the first direction;
the power assembly further comprises a gear 16 keyed to the outer surface of the two shafts 14, the gear 16 being in mesh with the rack 15.
Specifically, when the shaft lever 14 rotates, the gear 16 arranged on the surface of the shaft lever will synchronously follow and rotate, the rack 15 meshed with the gear 16 can be driven to move towards the opening direction of the box body 1 by clockwise rotation of the gear 16, the shielding plate 10 can be driven to move by movement of the rack 15, the top of the box body 1 can be shielded from rain by the shielding plate 10 after movement, electric appliances inside the box body 1 can be protected conveniently when the box body 1 is opened in a rainy day, and rainwater can be effectively prevented from entering. When the shaft lever 14 rotates anticlockwise, the gear 16 drives the rack 15 to reset, and then drives the shielding plate 10 to reset.
The top of the case 1 is provided with a chute, and the shielding plate 10 is connected with the chute through a slider.
Preferably: the top fixed mounting of box 1 has rain sensor 13, and the inside of motor box 8 is provided with the controller, and rain sensor 13 and controller electric connection, controller and double-end motor 21 electric connection. The inside of the box body 1 is also provided with a signal receiving and transmitting module which is electrically connected with the controller.
Specifically, rainwater can be sensed through the rainwater sensor 13 that sets up, and rainwater sensor 13 gives the controller with signal transmission when sensing the rainwater, then carries out clockwise rotation through controller control double-end motor 21 to realize the effect of automatic enclosure box 1 and ventilation, compromise sealed and ventilation effect simultaneously. After the rainwater disappears, the controller controls the double-headed motor 21 to rotate anticlockwise, and then opens the ventilation window 4 to ventilate. The double-headed motor 21 can be controlled remotely by a worker through the set signal receiving and transmitting module, and the baffle 17 is convenient to operate and control manually.
Preferably: a storage strip 3 is arranged on one side of the box body 1, the position of the storage strip 3 corresponds to the box door 2, and one end of the storage strip 3 is open;
the inside fixed mounting of accomodate strip 3 has touch switch 19, and one side fixed mounting of accomodate strip 3 has flash lamp 6, touch switch 19 and flash lamp 6 electric connection.
Specifically, the box body 1 can be opened by pushing the box door 2 out to one side, when the box door 2 is disconnected with the touch switch 19, the touch switch 19 opens the flashing lamp 6 to work, so that the flashing lamp 6 continuously flashes, a worker is conveniently reminded to remember to close the box door 2 after working, after the box door 2 is reset, the box door 2 is contacted with the touch switch 19, and the touch switch 19 closes the flashing lamp 6.
Preferably: the inside of both ventilation windows 4 is fixedly provided with a filter plate 5.
Specifically, the garbage can be filtered by the provided filter plate 5.
Preferably: the protection plates 9 are arranged at the opposite ends of the top of the box body 1, and the protection plates 9 are positioned above the racks 15.
Specifically, the rack 15 can be protected through the protection plate 9, and the service life of the rack is prolonged.
When in use, the utility model is characterized in that: s1, electric appliances such as an electric energy meter and the like are installed in the box body 1 in advance, and then the box body 1 is integrally installed on a wall surface through installation screw holes 12 formed in the back surface of the box body 1 and screws;
s2, pushing the box door 2 to one side can open the box body 1, when the box door 2 is disconnected from the touch switch 19, the touch switch 19 starts the flashing lamp 6 to work, so that the flashing lamp 6 continuously flashes, after the box door 2 is reset, the box door 2 is contacted with the touch switch 19, and the touch switch 19 closes the flashing lamp 6;
s3, driving the shaft lever 14 to rotate through the double-headed motor 21, driving the winding wheel 22 to rotate through the shaft lever 14, enabling the winding wheel 22 to rotate clockwise to rotate and winding the lifting rope 23, driving the connecting strip 11 to move upwards through the lifting rope 23 and the synchronous strip 24, finally moving the baffle 17 upwards to block the ventilation window 4, and enabling the winding wheel 22 to rotate anticlockwise to loosen the lifting rope 23 to reset the baffle 17;
s4, when the double-headed motor 21 drives the shaft lever 14 to rotate clockwise, the gear 16 is synchronously driven to rotate, the gear 16 rotates clockwise to drive the rack 15 to move towards the opening direction of the box body 1, and the shielding plate 10 is driven to move through the rack 15;
s5, the rainwater sensor 13 senses rainwater, when the rainwater is sensed, a signal is fed back to the controller, the double-headed motor 21 is controlled to start through the controller, clockwise rotation is performed, and when the rainwater disappears, the double-headed motor 21 is controlled to rotate anticlockwise for resetting.
The foregoing disclosure is merely illustrative of the preferred embodiments of the present invention and is not intended to limit the scope of the claims herein, as equivalent changes may be made in the claims herein without departing from the scope of the invention.
Claims (9)
1. A protective device for a metering box of an electric energy meter, comprising:
the box body (1), one side of the box body (1) is open, and a box door (2) is arranged on the open side of the box body (1) in a sliding manner;
the two ends of the box body (1) are provided with ventilation windows (4), and the top of the box body (1) is provided with a plugging assembly for plugging the ventilation windows (4);
the top of the box body (1) is provided with a power assembly, and the plugging assembly is driven by the power assembly;
the plugging assembly comprises a storage box (7) fixedly arranged at two ends of the top of the box body (1), a storage groove (18) formed in the inner bottom of the storage box (7), sliding grooves (20) formed in two ends of the inner portion of the storage box (7), a baffle plate (17) slidably arranged in the sliding grooves (20), and a plurality of connecting strips (11) slidably arranged at the inner top of the storage box (7), wherein the bottoms of the connecting strips (11) are connected with the baffle plate (17) together;
the power assembly is connected with the top of the storage box (7) and is used for driving the connecting strip (11) to slide up and down;
the middle part of the storage box (7) is communicated with the ventilation window (4);
the length and the width of the baffle plate (17) are the same as those of the ventilation window (4);
the back of the box body (1) is provided with a plurality of mounting screw holes (12).
2. The protective device for a metering box of an electric energy meter according to claim 1, wherein: the automatic feeding device is characterized in that storage boxes (7) are arranged at two ends of the top of the box body (1), a winding wheel (22) is rotatably arranged at the inner top of each storage box (7), a lifting rope (23) is wound on each winding wheel (22), a synchronizing bar (24) is fixedly connected to the free end of each lifting rope (23), and the synchronizing bars (24) are fixedly connected with the tops of a plurality of connecting bars (11);
the power assembly is connected with one end of the winding wheel (22) to drive the winding wheel (22) to rotate positively and negatively.
3. The protective device for a metering box of an electric energy meter according to claim 2, wherein: the power assembly comprises a motor box (8) fixedly arranged at the top of the box body (1), a double-head motor (21) fixedly arranged in the motor box (8), and shaft rods (14) arranged on two output shafts of the double-head motor (21);
the two shaft rods (14) respectively extend to the interiors of the two storage boxes (7) and are fixedly connected with one end of the winding wheel (22);
the two opposite ends of the top of the box body (1) are respectively provided with a rack (15) in a sliding manner, and one ends of the two racks (15) are commonly connected with a shielding plate (10);
the shielding plate (10) is slidably arranged at the top of the box body (1);
the rack (15) is connected with the power assembly, and the power assembly drives the rack (15) to slide back and forth in a first direction.
4. A protective device for a metering tank of an electric energy meter according to claim 3, characterized in that: the power assembly further comprises gears (16) connected to the outer surfaces of the two shafts (14) in a key mode, and racks (15) are meshed with the outer parts of the gears (16).
5. A protective device for a metering tank of an electric energy meter according to claim 3, characterized in that: the top fixed mounting of box (1) has rain sensor (13), the inside of motor box (8) is provided with the controller, rain sensor (13) with controller electric connection, the controller with double-end motor (21) electric connection.
6. The protective device for a metering box of an electric energy meter according to claim 1, wherein: a storage strip (3) is arranged on one side of the box body (1), the position of the storage strip (3) corresponds to the box door (2), and one end of the storage strip (3) is open;
the inside fixed mounting of accomodate strip (3) has touch switch (19), one side fixed mounting of accomodate strip (3) has flashing lamp (6), touch switch (19) with flashing lamp (6) electric connection.
7. The protective device for a metering box of an electric energy meter according to claim 1, wherein: the inside of each ventilation window (4) is fixedly provided with a filter plate (5).
8. A protective device for a metering tank of an electric energy meter according to claim 3, characterized in that: the protection plates (9) are arranged at two opposite ends of the top of the box body (1), and the protection plates (9) are located above the racks (15).
9. The method of using a protective device for a metering box of an electric energy meter according to any of claims 1 to 9, comprising the steps of;
s1, the electric energy meter is mounted in the box body (1) in advance, and then the box body (1) is integrally mounted on a wall surface through mounting screw holes (12) formed in the back surface of the box body (1) and the combination screws;
s2, pushing the box door (2) out to one side can open the box body (1), when the box door (2) is disconnected with the touch switch (19), the touch switch (19) opens the flashing lamp (6) to work, the flashing lamp (6) continuously flashes, after the box door (2) is reset, the box door (2) is contacted with the touch switch (19), and the touch switch (19) closes the flashing lamp (6);
s3, driving the shaft lever (14) to rotate through the double-headed motor (21), driving the winding wheel (22) to rotate through the shaft lever (14), enabling the winding wheel (22) to rotate clockwise to wind the lifting rope (23), driving the connecting strip (11) to move upwards through the lifting rope (23) and the synchronous strip (24), finally moving the baffle plate (17) upwards to block the ventilation window (4), and enabling the winding wheel (22) to rotate anticlockwise to loosen the lifting rope (23) to reset the baffle plate (17);
s4, when the double-headed motor (21) drives the shaft lever (14) to rotate clockwise, the gear (16) is synchronously driven to rotate, the rack (15) is driven to move towards the opening direction of the box body (1) through the clockwise rotation of the gear (16), and the shielding plate (10) is driven to move through the rack (15);
s5, a rainwater sensor (13) senses rainwater, when the rainwater is sensed, a signal is fed back to the controller, the double-headed motor (21) is controlled to start through the controller to rotate clockwise, and when the rainwater disappears, the double-headed motor (21) is controlled to rotate anticlockwise and reset.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202310535470.7A CN116316223B (en) | 2023-05-12 | 2023-05-12 | Protection device for electric energy meter measuring box |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202310535470.7A CN116316223B (en) | 2023-05-12 | 2023-05-12 | Protection device for electric energy meter measuring box |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN116316223A true CN116316223A (en) | 2023-06-23 |
| CN116316223B CN116316223B (en) | 2024-07-19 |
Family
ID=86813463
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202310535470.7A Active CN116316223B (en) | 2023-05-12 | 2023-05-12 | Protection device for electric energy meter measuring box |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN116316223B (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN118249235A (en) * | 2024-05-30 | 2024-06-25 | 山东得胜电力股份有限公司 | Heat dissipation type box-type substation |
Citations (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2000013940A (en) * | 1998-06-23 | 2000-01-14 | Mitsubishi Electric Corp | Drawer-type closed switchboard |
| CN108649461A (en) * | 2018-06-14 | 2018-10-12 | 河北金润电器自动化成套设备有限公司 | A kind of low-voltage distribution cabinet |
| CN208126624U (en) * | 2018-05-03 | 2018-11-20 | 广东电网有限责任公司 | Door-closing reminding device and cabinet |
| CN211480702U (en) * | 2020-03-27 | 2020-09-11 | 东北林业大学 | Heat radiator for box-type substation |
| CN216672285U (en) * | 2021-11-24 | 2022-06-03 | 承德圣地源电气设备有限公司 | Low-voltage comprehensive distribution box |
-
2023
- 2023-05-12 CN CN202310535470.7A patent/CN116316223B/en active Active
Patent Citations (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2000013940A (en) * | 1998-06-23 | 2000-01-14 | Mitsubishi Electric Corp | Drawer-type closed switchboard |
| CN208126624U (en) * | 2018-05-03 | 2018-11-20 | 广东电网有限责任公司 | Door-closing reminding device and cabinet |
| CN108649461A (en) * | 2018-06-14 | 2018-10-12 | 河北金润电器自动化成套设备有限公司 | A kind of low-voltage distribution cabinet |
| CN211480702U (en) * | 2020-03-27 | 2020-09-11 | 东北林业大学 | Heat radiator for box-type substation |
| CN216672285U (en) * | 2021-11-24 | 2022-06-03 | 承德圣地源电气设备有限公司 | Low-voltage comprehensive distribution box |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN118249235A (en) * | 2024-05-30 | 2024-06-25 | 山东得胜电力股份有限公司 | Heat dissipation type box-type substation |
Also Published As
| Publication number | Publication date |
|---|---|
| CN116316223B (en) | 2024-07-19 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN108847596B (en) | Box-type substation with dampproofing heat dissipation function | |
| CN110620340A (en) | Portable waterproof type block terminal | |
| CN116316223B (en) | Protection device for electric energy meter measuring box | |
| CN112350164A (en) | Automatically controlled cabinet of regulation type environmental control | |
| CN105977829A (en) | High efficiency outdoor rainproof switchgear | |
| CN115459183A (en) | A cable branch box for preventing rainwater immersion | |
| CN210608234U (en) | KYN28-12 high-voltage switch cabinet | |
| CN209730542U (en) | A kind of photovoltaic apparatus electric power box | |
| CN216215065U (en) | Novel prepackage type looped netowrk cabinet | |
| CN221057873U (en) | Rain-proof snow block terminal cabinet | |
| CN221176994U (en) | Outdoor waterproof type switch board | |
| CN217469206U (en) | Rainproof distribution box | |
| CN221315832U (en) | Charging pile | |
| CN219268469U (en) | Outdoor cable tapping box | |
| CN219067617U (en) | Waterproof transformer switch cabinet | |
| CN210866882U (en) | An electric energy meter metering box protection device | |
| CN209730565U (en) | A kind of electrical installation device for mining | |
| CN220528371U (en) | Intelligent measurement and control device for box transformer substation | |
| CN113690739A (en) | Distribution switchgear with remote control function | |
| CN220934671U (en) | Switch board convenient to installation | |
| CN218275596U (en) | Adjustable control cabinet | |
| CN215011238U (en) | Control box for outdoor detection | |
| CN222862727U (en) | Solar power supply integrated sunshade window | |
| CN113708261A (en) | Intelligent integrated reinforced case and system | |
| CN221476774U (en) | Fill electric pile control panel of wire jumper heat dissipation |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
