The invention discloses a medical nursing car for mothers and babies, which comprises a car body, a nursing platform is arranged on the top of the car body, a nursing tank is arranged inside the nursing platform, and a flip cover is connected to one side of the nursing table in rotation, and the flip cover is used for sealing and nursing care. The side of the flip cover close to the nursing tank is provided with a display device, the display device is rotatably connected with the flip cover, the bottom of the nursing table is provided with a spring telescopic device and a presser, a contact switch is provided below the presser, and the inside of the car body is also provided with a The power supply is electrically connected to the contact switch and the display device respectively. The mother-infant care cart of the present invention can care for the baby. When in use, the flip cover is turned upside down, the baby is placed in the nursing tank, and the display device inside the flip device is turned to the side facing the baby's face. After being squeezed by gravity, it descends, so that the presser touches the contact switch, and the power supply is turned on, so that the display device plays animation to attract the attention of young children.

Description

A kind of medical mother and baby care car

technical field

The invention belongs to the technical field of mother and infant care, in particular to a medical mother and infant care vehicle.

Background technique

At present, in the obstetrics and gynecology department, in order to facilitate the care of newborns, such as weighing, touching after bathing, dressing, etc., there will be corresponding nursing carts, but there are many shortcomings in the existing nursing carts for mothers and babies. First of all, the traditional baby care cart has a single function. The baby is simply lying on the nursing platform, and the baby is naturally active. When the baby moves around, it is not conducive to the adults to take care of the baby. There are many, such as weighing scales, blankets, moisturizing products for touching, hot water, towels and even some disinfectants. The existing nursing carts cannot classify these different items well, resulting in confusion in the placement of items. affect the use of other items.

Contents of the invention

In view of this, the object of the present invention is to provide a medical mother and baby care cart in order to overcome the deficiencies in the prior art. This application provides the following technical solutions:

A medical nursing car for mothers and babies, comprising a car body, a nursing platform is arranged on the top of the car body, a nursing tank is arranged inside the nursing platform, a flip cover is rotatably connected to one side of the nursing platform, and the flip cover is used for In order to cover the nursing tank, a display device is provided on the side of the flip cover close to the nursing tank, and the display device is rotatably connected to the flip cover, and a spring telescopic device and a presser are provided at the bottom of the nursing table. A contact switch is provided under the presser, and a power supply is provided inside the vehicle body, and the power supply is electrically connected to the contact switch and the display device respectively.

In a possible embodiment, a strap is arranged in the nursing tank.

In a possible embodiment, one end of the strap is fixedly connected to one side wall of the nursing tank, the other end of the strap is provided with a child buckle, and the other opposite side wall of the nursing tank is provided with a female buckle .

In a possible embodiment, both sides of the flip cover are provided with accommodating holes, and a telescopic hanging rod is arranged in the accommodating hole, and one end of the telescopic hanging rod is fixedly connected with the bottom of the accommodating hole, and the telescopic hanging rod The other end face of the rod is flush with the top of the receiving hole.

In a possible embodiment, the end of the telescopic hanging rod that is flush with the top of the receiving hole is an anti-slip protrusion.

In a possible embodiment, a receiving groove is provided on the side of the flip cover close to the nursing tank, and a clip is provided above the receiving groove, and the clip is rotatably connected with the vehicle body, and the display device The bottom is rotatably connected with the bottom of the accommodating groove, and the top of the display device is fixed with a buckle.

In a possible embodiment, the spring telescopic device includes a telescopic spring and a telescopic rod, the telescopic spring is sleeved on the telescopic rod, one end of the telescopic rod is fixed in the vehicle body, and the other end of the telescopic rod is located bottom of the table.

In a possible embodiment, the vehicle body is also provided with a storage chamber and a drawer.

In a possible embodiment, a locking plate is provided on the side of the drawer close to the interior of the vehicle body, a locking hole is provided on the locking plate, a fixing plate is provided inside the vehicle body, and the fixing plate is located at the locking position. Above the plate, the bottom of the fixed plate is provided with a limit pin, a return spring and an electromagnet, one end of the limit pin is hingedly connected with the fixed plate, the other end of the limit pin is provided with a magnetic material, and the reset One end of the spring is connected to the limit pin, the other end of the return spring is connected to the fixing plate, and the electromagnet is connected to the power supply.

In a possible embodiment, the bottom of the vehicle body is provided with universal wheels, and the universal wheels are provided with brake pads.

In summary, owing to adopting above-mentioned technical scheme, the beneficial effect of the present invention is:

The mother-infant care cart of the present invention can care for the baby. When in use, the flip cover is turned upside down, the baby is placed in the nursing tank, and the display device inside the flip device is turned to the side facing the baby's face. After being squeezed by gravity, it falls, so that the presser touches the contact switch, and the power is turned on, so that the display device plays an animation to attract the attention of the child. After the nursing is completed, the display device can be turned over and put away, and the cover can be closed to complete the nursing care The storage of the platform, so the present invention absorbs and disperses the attention of the child by setting the display device, avoiding the restlessness of the child when the adult is nursing the child, which is conducive to the nursing operation. At the same time, the baby care cart of the present invention is easy to operate and can Quickly put down and put away, very convenient.

In order to make the above-mentioned purpose, features and advantages of the present application more obvious and understandable, preferred embodiments will be described in detail below together with the accompanying drawings.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present application more clearly, the accompanying drawings used in the embodiments will be briefly introduced below. It should be understood that the following drawings only show some embodiments of the present invention, and therefore do not It should be regarded as a limitation on the scope, and those skilled in the art can also obtain other related drawings based on these drawings without creative work.

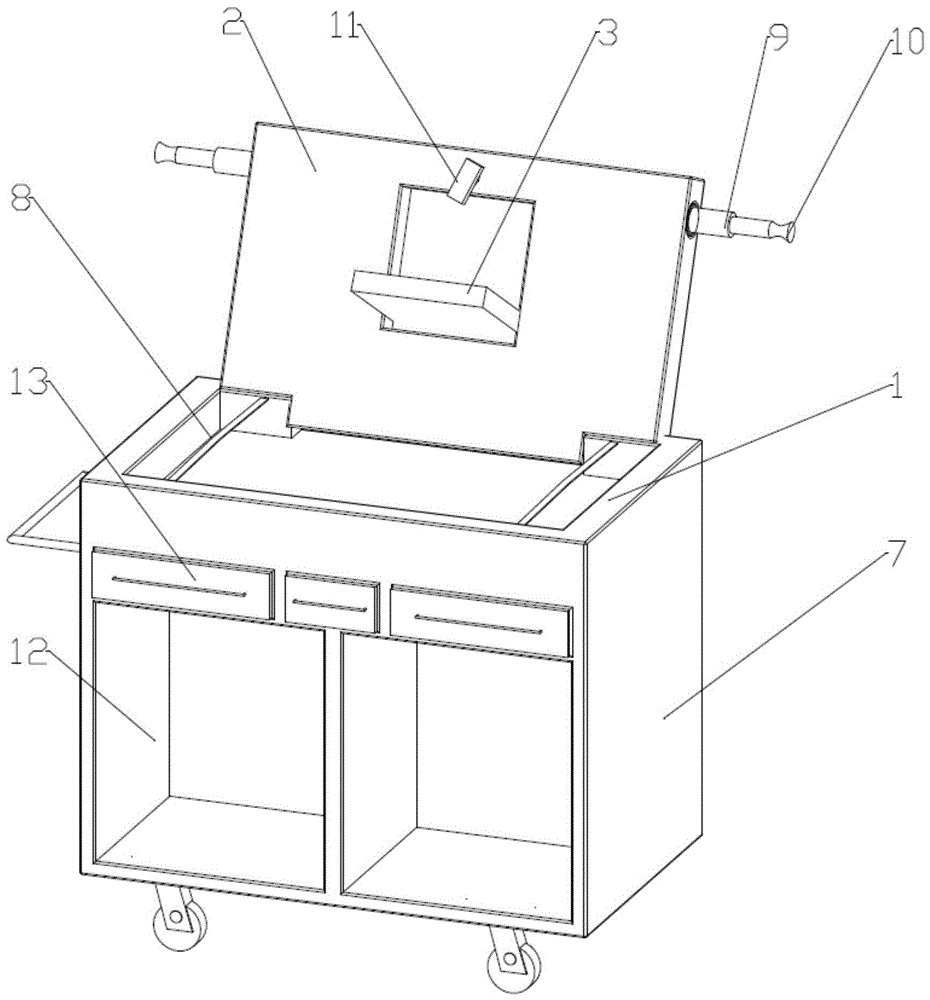

Fig. 1 is a schematic diagram of the three-dimensional structure of the present invention.

Fig. 2 is a schematic diagram of the assembly of the anti-skid table and the spring expansion device of the present invention.

Fig. 3 is a schematic diagram of the assembly of the drawer and the car body of the present invention.

Reference signs: 1-Nursing platform; 2-Flip cover; 3-Display device; 4-Spring telescopic device; 5-Presser; 6-Contact switch; 7-Car body; 8-Bandage; 10-anti-slip convex head; 11-fastener; 12-storage chamber; 13-drawer; 14-locking plate; 15-locking hole; 16-limit pin; 17-electromagnet;

Detailed ways

Embodiments of the present application are described in detail below, examples of which are shown in the drawings, wherein the same or similar reference numerals denote the same or similar elements or elements having the same or similar functions throughout. The embodiments described below by referring to the figures are exemplary, are only for explaining the present application, and should not be construed as limiting the present application.

In this application, terms such as "installation", "connection", "connection" and "fixation" should be interpreted in a broad sense, for example, it can be a fixed connection or a detachable connection, unless otherwise clearly specified and limited. , or integrated; it can be mechanically connected or electrically connected; it can be directly connected or indirectly connected through an intermediary, and it can be the internal communication of two components or the interaction relationship between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in this application according to specific situations.

In the present application, unless otherwise clearly specified and limited, a first feature being "on" or "under" a second feature may mean that the first and second features are in direct contact, or that the first and second features are indirect through an intermediary. touch. Moreover, "above", "above" and "above" the first feature on the second feature may mean that the first feature is directly above or obliquely above the second feature, or simply means that the first feature is higher in level than the second feature. "Below", "beneath" and "beneath" the first feature may mean that the first feature is directly below or obliquely below the second feature, or simply means that the first feature is less horizontally than the second feature.

Embodiment one

Please refer to Fig. 1 and shown in Fig. 2, a kind of medical mother-infant nursing cart provided by the present embodiment 1 includes a car body 7, a nursing platform 1 is arranged on the top of the car body 7, and the inside of the nursing platform 1 is arranged There is a nursing tank, one side of the nursing table 1 is rotatably connected with a flip cover 2, the flip cover 2 is used to cover the nursing tank, and a display device 3 is arranged on the side of the flip cover 2 close to the nursing tank, the display The device 3 is rotatably connected with the flip cover 2, the bottom of the nursing platform 1 is provided with a spring telescopic device 4 and a presser 5, a contact switch 6 is provided below the presser, and a contact switch 6 is provided inside the car body 7. A power supply, the power supply is electrically connected to the contact switch 6 and the display device 3 respectively.

During concrete implementation, nursing car of the present invention comprises car body 7, and the top of car body 7 is provided with nursing table 1, and nursing table 1 is reversible 2 formula, and the middle part of nursing table 1 is provided with nursing tank, and nursing tank is arranged on a The flip cover 2 on the side realizes the cover, and the flip cover 2 is connected to one side of the nursing table 1 through a rotating shaft. This connection is an interference connection, and the flip cover 2 itself is light in weight. state, when the flip cover 2 is in a vertical state, it needs a certain force to rotate, and the inside of the flip cover 2 is provided with a display device 3, which is an entertainment product for babies and has playback and pronunciation functions. The flat panel display, the display device 3 and the flip cover 2 are rotationally connected, the display device 3 can be turned over to the side facing the baby, and the baby is placed in the nursing trough to nurse the baby, including changing diapers, wiping the body, etc., the bottom of the nursing table 1 A spring expansion device 4 and a presser 5 are provided. When the baby is placed on the nursing platform 1, the nursing platform 1 will drop a short distance under the influence of the baby's gravity, causing the presser 5 at the bottom of the nursing platform 1 to touch the car body 7 Internal contact switch 6, thereby turn on power supply and start display device 3 to play animation and make sound, reach the attention that attracts children, the power supply used among the present invention is rechargeable accumulator, and it is installed in the inside of car body 7, when finishing Nursing, after the baby is picked up, the spring expansion device 4 rebounds, the presser 5 rises with the nursing table 1, the contact switch 6 disconnects the power supply, the display device 3 is automatically turned off, the display device 3 is turned over and put away, and the flip cover 2 is covered That is, the present invention absorbs and disperses the attention of the infant by arranging the display device 3, avoiding that when the adult nurses the infant, the infant is restless, which is conducive to the carrying out of the nursing operation. Quick unfold and close, very convenient.

Further improvement on the basis of the above-mentioned first embodiment, that is, in a possible second embodiment, a medical mother-infant care cart includes a car body 7, a nursing platform 1 is arranged on the top of the car body 7, and the nursing The inside of the table 1 is provided with a nursing tank, one side of the nursing table 1 is rotatably connected with a flip cover 2, the flip cover 2 is used to cover the nursing tank, and a display device is provided on the side of the flip cover 2 close to the nursing tank 3. The display device 3 is rotatably connected to the flip cover 2. The bottom of the nursing table 1 is provided with a spring telescopic device 4 and a presser 5. A contact switch 6 is provided below the presser. The car body 7 A power supply is also provided inside the body, and the power supply is electrically connected to the contact switch 6 and the display device 3 respectively; a strap 8 is arranged in the nursing tank, and one end of the strap 8 is connected to one end of the nursing tank. The side walls are fixed, the other end of the strap 8 is provided with a child buckle, and the other opposite side wall of the nursing tank is provided with a female buckle.

In the second embodiment above, after the child is placed in the nursing tank, the child's body can be properly restrained by the strap 8 to avoid excessive movements of the child, causing the child to roll down. The strap 8 in this solution is A kind of safety belt, which can be detachably connected through the form of buckle, which is very convenient.

Further improvement on the basis of the above-mentioned first embodiment, that is, in a possible third embodiment, a medical mother-infant care cart includes a car body 7, a nursing platform 1 is arranged on the top of the car body 7, and the nursing The inside of the table 1 is provided with a nursing tank, one side of the nursing table 1 is rotatably connected with a flip cover 2, the flip cover 2 is used to cover the nursing tank, and a display device is provided on the side of the flip cover 2 close to the nursing tank 3. The display device 3 is rotatably connected to the flip cover 2. The bottom of the nursing table 1 is provided with a spring telescopic device 4 and a presser 5. A contact switch 6 is provided below the presser. The car body 7 The inside of the cover is also provided with a power supply, which is electrically connected to the contact switch 6 and the display device 3 respectively; both sides of the flip cover 2 are provided with accommodation holes, and telescopic hanging rods are arranged in the accommodation holes 9. One end of the telescopic hanging rod 9 is fixedly connected to the bottom of the receiving hole, and the other end surface of the telescopic hanging rod 9 is flush with the top of the receiving hole. The end of the telescopic hanging rod 9 that is flush with the top of the receiving hole is an anti-slip protrusion 10 .

In the third embodiment above, by arranging accommodation holes and telescopic hanging rods 9 on both sides of the flip cover 2, the telescopic hanging rods 9 can be hidden and designed inside the flip cover 2. The rod 9 is pulled out from the receiving hole and stretched, so that during nursing, the baby's clothes or wet towels can be hung on the telescopic rod, effectively classifying the items, and the hidden rod design is convenient for storage after use , and does not affect the cover of the flip cover 2 to the nursing tank. At the same time, in this program, the telescopic hanging rod 9 is pulled out from the accommodation hole for convenience, and an anti-slip convex head 10 is designed at the end of the telescopic hanging rod 9. It can be directly hooked by hand Hold the anti-slip convex head 10, you can pull out the telescopic hanging rod 9, the telescopic hanging rod 9 is a mature product in the prior art, and has multi-section telescopic functions.

Further improvement on the basis of the above-mentioned first embodiment, that is, in a possible fourth embodiment, a medical mother-infant care cart includes a car body 7, a nursing platform 1 is arranged on the top of the car body 7, and the nursing The inside of the table 1 is provided with a nursing tank, one side of the nursing table 1 is rotatably connected with a flip cover 2, the flip cover 2 is used to cover the nursing tank, and a display device is provided on the side of the flip cover 2 close to the nursing tank 3. The display device 3 is rotatably connected to the flip cover 2. The bottom of the nursing table 1 is provided with a spring telescopic device 4 and a presser 5. A contact switch 6 is provided below the presser. The car body 7 The interior of the cover is also provided with a power supply, which is electrically connected to the contact switch 6 and the display device 3 respectively; the side of the flip cover 2 close to the nursing tank is provided with a receiving tank, and the top of the receiving tank is provided with a Don't buckle 11, said don't buckle 11 is rotatably connected with said car body 7, the bottom of said display device 3 is rotatably connected with the bottom of said receiving tank, and the top of said display device 3 is fixed with don't buckle 11.

In the above-mentioned fourth embodiment, the storage and fixation of the display device 3 can be realized by providing the receiving groove and the buckle 11. The display device 3 is located in the receiving groove, and the display device 3 is connected to the bottom of the receiving groove through a rotating shaft. The display device 3 Rotate the buckle 11 to block the top of the display device 3 to prevent the display device 3 from falling out of the storage tank. When the display device 3 needs to be used, rotate the buckle 11 to turn the display device 3 to a horizontal position, and use the bottom of the storage tank to support the display. Apparatus 3 supports.

Further improvement on the basis of the above-mentioned first embodiment, that is, in a possible fifth embodiment, a medical mother-infant care cart includes a car body 7, a nursing platform 1 is arranged on the top of the car body 7, and the nursing The inside of the table 1 is provided with a nursing tank, one side of the nursing table 1 is rotatably connected with a flip cover 2, the flip cover 2 is used to cover the nursing tank, and a display device is provided on the side of the flip cover 2 close to the nursing tank 3. The display device 3 is rotatably connected to the flip cover 2. The bottom of the nursing table 1 is provided with a spring telescopic device 4 and a presser 5. A contact switch 6 is provided below the presser. The car body 7 There is also a power supply inside, and the power supply is electrically connected to the contact switch 6 and the display device 3 respectively; the spring telescopic device 4 includes a telescopic spring and a telescopic rod, and the telescopic spring is sleeved on the telescopic rod One end of the telescopic rod is fixed in the car body 7, and the other end of the telescopic rod is located at the bottom of the nursing platform 1.

In the fifth embodiment, four spring telescopic devices 4 are arranged at the bottom of the nursing platform, and are evenly distributed on the four corners of the nursing platform 1. Each spring telescopic device 4 includes a telescopic spring and a telescopic rod, and the two ends of the telescopic rod are respectively Connect the bottom of the nursing platform 1 and the interior of the car body, the telescopic spring is set on the telescopic rod, the telescopic rod can freely move back and forth in the vertical direction, the reset of the nursing platform 1 can be realized by setting the spring telescopic device 4, and the nursing platform 1 is protected by the infant. It descends after being extruded by gravity, and is guided by the telescopic rod, and the telescopic spring is compressed in the vertical direction. After the baby is picked up, the telescopic spring resets and drives the nursing table 1 to rise.

Further improvement on the basis of the above-mentioned first embodiment, that is, in a possible sixth embodiment, a medical mother-infant care cart includes a car body 7, a nursing platform 1 is arranged on the top of the car body 7, and the nursing The inside of the table 1 is provided with a nursing tank, one side of the nursing table 1 is rotatably connected with a flip cover 2, the flip cover 2 is used to cover the nursing tank, and a display device is provided on the side of the flip cover 2 close to the nursing tank 3. The display device 3 is rotatably connected to the flip cover 2. The bottom of the nursing table 1 is provided with a spring telescopic device 4 and a presser 5. A contact switch 6 is provided below the presser. The car body 7 The interior of the vehicle is also provided with a power supply, which is electrically connected to the contact switch 6 and the display device 3 respectively; the vehicle body 7 is also provided with a storage chamber 12 and a drawer 13 . The drawer 13 is provided with a locking plate 14 on the side close to the inside of the car body 7, the locking plate 14 is provided with a locking hole 15, the inside of the car body 7 is provided with a fixing plate, and the fixing plate is located on the locking plate 14. Above, the bottom of the fixed plate is provided with a limit pin 16, a return spring and an electromagnet 17, one end of the limit pin 16 is hingedly connected with the fixed plate, and the other end of the limit pin 16 is provided with a magnetic material, One end of the return spring is connected to the limit pin 16, the other end of the return spring is connected to the fixing plate, and the electromagnet 17 is connected to the power supply.

In above-mentioned embodiment six, as shown in Fig. 1-3, the side of vehicle body 7 is provided with storage chamber 12, and one side of storage chamber 12 is open, can place bulky article in storage chamber 12, as bucket, Towels and weighing scales, etc., two storage chambers 12 are set in this embodiment, so as to separate clean articles and used articles through multiple storage chambers 12, drawers 13 are also provided in this embodiment, and drawers 13 It is used to place some disinfection medicines or other disposable consumables for nursing. In this embodiment, there are three drawers 13 in total. Through the provided drawers 13 and storage chambers 12, the items used in nursing can be well classified;

The drawer 13 in the present embodiment can be movable drawer 13, also can be self-locking drawer 13, concrete, the back of drawer 13 is provided with locking plate 14, and the middle part of locking plate 14 is provided with locking hole 15, and car body 7 The interior of the fixed plate is provided with a fixed plate, and the bottom of the fixed plate is provided with a return spring and a limit pin 16. When the drawer 13 is pushed into the car body 7, the locking plate 14 pushes the limit pin 16 to rotate, and when the locking hole 15 passes through the limit pin At 16 o'clock, the limit pin 16 rotates and snaps into the locking hole 15 under the action of the return spring, thereby restricting the outward movement of the drawer 13 and realizing the self-locking of the drawer 13. The electromagnet 17 is provided with a magnetic material at the end of the stop pin 16, and when the electromagnet 17 was energized, one end of the stop pin 16 with a magnetic material moved towards the electromagnet 17 under the adsorption of the electromagnet 17, thereby moving the stop pin 17 to the electromagnet 17. The pin 16 is taken out from the locking hole 15, thereby releasing the self-locking, and the drawer 13 can be pulled out. By setting the self-locking drawer 13, the drawer 13 can be quickly closed and locked, which is convenient for the medical staff to temporarily store some medicines and important items. One side of the car body can be provided with a switch button, which is electrically connected with the electromagnet 3 and the power supply. When the drawer 13 needs to be unlocked, only the switch button on the side of the car body 7 needs to be pressed to realize the short-term electrification of the electromagnet 17. The drawer 13 can be pulled out.

In an optional solution of the sixth embodiment, universal wheels are provided on the bottom of the vehicle body 7, and the universal wheels are equipped with brake pads. By setting the universal wheel and the push handle on one side of the car body 7, the nursing car can be promoted, preferably the universal wheel with brake pads, so that the present invention is conveniently stopped for nursing.

Although the embodiments of the present application have been shown and described above, it can be understood that the above embodiments are exemplary and should not be construed as limitations on the present application, and those skilled in the art can make the above-mentioned The embodiments are subject to changes, modifications, substitutions and variations.

Claims (10)

1. A medical mother-infant nursing vehicle, which is characterized in that: including automobile body (7), the top of automobile body (7) is provided with nursing platform (1), the inside of nursing platform (1) is provided with nursing groove, one side rotation of nursing platform (1) is connected with flip (2), flip (2) are used for the closing cap nursing groove, one side that flip (2) is close to nursing groove is provided with display device (3), display device (3) with flip (2) rotate and are connected, the bottom of nursing platform (1) is provided with spring telescoping device (4) and presser (5), the below of presser (5) is provided with contact switch (6), the inside of automobile body (7) still is provided with the power, the power respectively with contact switch (6) with display device (3) electric connection.

2. A medical care cart for mother and infant according to claim 1, wherein: a binding belt (8) is arranged in the nursing groove.

3. A medical care cart for mother and infant according to claim 3, wherein: one end of the binding belt (8) is fixedly connected with one side wall of the nursing groove, a child buckle is arranged at the other end of the binding belt (8), and a female buckle is arranged on the other opposite side wall of the nursing groove.

4. A medical care cart for mother and infant according to claim 1, wherein: the utility model discloses a flip, including flip (2), telescopic peg (9) are provided with the accommodation hole in the both sides of flip (2), the one end and the bottom fixed connection of accommodation hole of telescopic peg (9), the other end terminal surface and the accommodation hole top of telescopic peg (9) flush.

5. A medical care cart for mother and infant according to claim 4, wherein: one end of the telescopic hanging rod (9) flush with the top of the containing hole is an anti-slip raised head (10).

6. A medical care cart for mother and infant according to claim 1, wherein: one side that flip (2) is close to the nursing groove is provided with the holding tank, the top of holding tank is provided with and detains (11), detain (11) respectively with automobile body (7) rotate and be connected, the bottom of display device (3) with the bottom of holding tank rotates to be connected, the top of display device (3) is fixed with detaining (11) through the difference.

7. A medical care cart for mother and infant according to claim 1, wherein: the spring telescoping device (4) includes expansion spring and telescopic link, the expansion spring cover is established on the telescopic link, the one end of telescopic link is established in automobile body (7), and the other end of telescopic link is located the bottom of nursing platform (1).

8. A medical care cart for mother and infant according to claim 1, wherein: the vehicle body (7) is also provided with a storage chamber (12) and a drawer (13).

9. A medical care cart for mother and infant according to claim 8, wherein: the drawer (13) is close to inside one side of automobile body (7) and is provided with locking plate (14), be provided with locking hole (15) on locking plate (14), the inside of automobile body (7) is provided with the fixed plate, the fixed plate is located the top of locking plate (14), the bottom of fixed plate is provided with spacer pin (16), reset spring and electro-magnet (17), the one end and the fixed plate of spacer pin (16) are articulated to be connected, the other end of spacer pin (16) is provided with magnetic material, reset spring's one end with spacer pin (16) are connected, reset spring's the other end is connected with the fixed plate, electro-magnet (17) with power connection.

10. A medical care cart for mother and infant according to claim 1, wherein: the bottom of automobile body (7) is provided with the universal wheel, the universal wheel has the brake block.
