Abstract

The invention relates to an energy-saving sewage treatment equipment, which comprises a treatment box and a support installed on the lower surface of the treatment box. The inner bottom wall of the treatment box is fixedly connected with a vertical plate, and the inner wall of the treatment box is detachably connected to one side of the vertical plate. There is the same first filter screen, one side of the vertical plate is provided with a communication port, the right side of the treatment box is fixedly connected with a water inlet pipe connected with the treatment box, and the lower surface of the treatment box is fixedly connected with a drainage pipe connected with the treatment box. The left side of the vertical plate is fixedly connected with the secondary filter assembly. In the present invention, the position of the moving plate is adjusted by the handle, so that the sewage enters the front side or the back side of the inner partition of the filter box through the water inlet, and the two racks drive the two second filter screens to move in opposite directions, so that one The second filter screen is located at the top, and the other one is located at the bottom, which is convenient for cleaning the second filter screen above, thus solving the problem of needing to stop working when cleaning the filter bag in the prior art and reducing work efficiency.

Description

An energy-saving sewage treatment equipment

technical field

The invention relates to the technical field of purification equipment, in particular to an energy-saving sewage treatment equipment.

Background technique

Industrial wastewater refers to the wastewater, sewage and waste liquid produced in the process of industrial production, which contains industrial production materials, intermediate products and products lost with water, as well as pollutants produced in the production process. With the rapid development of industry, the types and quantities of wastewater have increased rapidly, and the pollution of water bodies has become increasingly widespread and serious, threatening human health and safety. For the protection of the environment, the treatment of industrial wastewater is more important than the treatment of urban sewage. Nowadays, sewage treatment plants are used in the market to purify sewage.

In the prior art, for example, the Chinese patent with the authorization number CN 217391747 U discloses a kind of energy-saving and environment-friendly sewage treatment equipment, which cleans the bottom of the filter device and the filter pool after the sewage treatment is completed through the cleaning mechanism arranged under the filter device. Scrape and collect the dirt, and connect the replaceable filter bag inside the through hole, so that the running water can be filtered twice before entering the outlet pool. However, in this device, there is a lot of dirt inside the filter bag after long-term use , the filter bag needs to be disassembled during cleaning, and the sewage treatment work cannot be carried out during this process, which affects the efficiency of the treatment, and the sludge treatment process of the existing sewage treatment equipment is cumbersome, and the equipment needs to be suspended for sludge treatment Cleaning up will affect the progress of sewage treatment.

In order to solve the above problems, the present invention proposes an energy-saving sewage treatment equipment.

Contents of the invention

The purpose of the present invention is to overcome the deficiencies of the prior art, meet the actual needs, and provide an energy-saving sewage treatment equipment to solve the above technical problems.

In order to realize the purpose of the present invention, the technical scheme adopted in the present invention is:

An energy-saving sewage treatment equipment, comprising a treatment box and a support installed on the lower surface of the treatment box, the inner bottom wall of the treatment box is fixedly connected with a vertical plate, and the inner wall of the treatment box is detachable from one side of the vertical plate The same first filter screen is connected, a communication port is opened on one side of the vertical plate, a water inlet pipe communicating with the treatment box is fixedly connected to the right side of the treatment box, and a water inlet pipe connected to the treatment box is fixedly connected to the lower surface of the treatment box. The drainpipe communicated with the treatment box, and the left side of the vertical plate is fixedly connected with a secondary filter assembly.

Further, the secondary filter assembly includes a filter box fixedly connected to the left side of the vertical plate, the left side of the filter box is fixedly connected to the inner wall of the treatment box, the inner bottom wall of the filter box is fixedly connected to a partition, In addition, two second filter screens are slidably connected to the inner wall of the filter box, and a water inlet corresponding to the communication port is provided on the right side of the filter box.

Further, both sides of the partition are provided with a chute, and the inner wall of the chute is slidably connected with a lifting rack, and the opposite surfaces of the two lifting racks are respectively fixed to the opposite surfaces of the two second filter screens. connection, the interior of the partition is provided with a cavity, and the inner wall of the cavity is rotatably connected with a rotating shaft, and the surface of the rotating shaft is fixedly connected with a first gear, and the first gear meshes with the two elevating racks , the left side of the treatment box is fixedly connected with a motor, one end of the rotating shaft is rotatably connected with the inner wall of the filter box, and one end of the rotating shaft passes through the left side of the filter box and the treatment box in turn and is fixedly connected with the output end of the motor .

Further, the upper surface of the vertical plate is provided with a moving groove, the inner wall of the moving groove is slidably connected with a moving plate, the upper surface of the moving plate is fixedly connected with a handle, and the inner bottom walls of the communication ports are respectively fixed Two limiting plates are connected, and the positions of the two limiting plates correspond to the partitions.

Further, the inner wall of the processing box is respectively rotatably connected with two rotating rollers, the surfaces of the two rotating rollers are provided with a transmission belt, the surface of the transmission belt is fixedly connected with a mounting seat, and one side of the mounting seat is provided with a A rotating hole, and the inner wall of the rotating hole is rotatably connected with a transmission shaft, the surface of the transmission shaft is fixedly connected with a sleeve, and the surface of the sleeve is fixedly connected with a cleaning device for cleaning flocs attached to the lower surface of the first filter screen. pole.

Further, the surface of the transmission shaft is fixedly connected with a second gear, the inner wall of the processing box is fixedly connected with a second rack, the inner bottom wall of the processing box is fixedly connected with a third rack, and the second rack is fixedly connected with the inner wall of the processing box. The gear meshes with the second rack.

Further, the inner wall of the processing box is fixedly connected with a driving part, and the driving part includes a connecting block fixedly connected with the inner wall of the processing box, one end of the connecting block is fixedly connected with an end cover, and the surface of the end cover is fixedly connected There is a fixed cylinder, one side of the end cover is rotatably connected with a drive shaft, the surface of the drive shaft is fixedly connected with a drive vane, the lower surface of the filter box is fixedly connected with a water collecting bucket, and the lower surface of the water collecting bucket The surface is fixedly connected with a connecting pipe, and the bottom end of the connecting pipe is fixedly connected with the surface of the fixing cylinder and runs through the inner wall of the fixing cylinder, and a through hole is opened on the bottom of the surface of the fixing cylinder.

Further, one end of the drive shaft passes through one side of the fixed cylinder and is rotationally connected with the left side of the vertical plate, the surface of the drive shaft is fixedly connected with a driving pulley, and the left side of the vertical plate is rotationally connected with a driven pulley. Pulley, the surface of the driving pulley and the driven pulley is provided with the same synchronous belt, and the driven pulley is fixedly connected with the rear rotating roller through a connecting shaft.

Further, it also includes a mud pump, the mud inlet end of the mud pump communicates with the treatment tank, and the mud outlet end of the mud pump is fixedly connected with a mud outlet pipe.

A treatment method for energy-saving sewage treatment equipment. The external sewage is introduced to the bottom of the first filter screen through the water inlet pipe. As the water level rises, the first filter screen blocks impurities below it, and after being filtered by the first filter screen The sewage enters the filter box through the connecting port, and is filtered by the second filter net. The water filtered after the second time enters the fixed cylinder through the water collecting bucket and the connecting pipe, and then falls into the treatment box through the through hole and passes through the drain pipe. Discharge, during this process, the driving blade rotates when the water flows through, the driving blade drives the driving shaft to rotate, the driving shaft drives the driving pulley to rotate, the driving pulley drives the driven pulley to rotate with the cooperation of the synchronous belt, and the driven belt The wheel drives one of the rotating rollers to rotate, and then the transmission belt moves under the cooperation of the other rotating roller. The transmission belt drives the mounting seat to move, and the mounting seat drives the transmission shaft, sleeve and cleaning rod to move. Through the connection between the second gear and the second rack Cooperate to make the second gear rotate, the second gear drives the transmission shaft to rotate, the transmission shaft drives the casing and the cleaning rod to rotate, and then cleans the flocs attached to the lower surface of the first filter net to improve the filtration efficiency. When the cleaning rod moves to the bottom, the second gear meshes with the third rack, the third rack drives the second gear to rotate, the second gear drives the transmission shaft to rotate, the transmission shaft drives the casing and the cleaning rod to rotate, and the sewage is cleaned. Agitate to prevent the sediment contained in it, and prevent the sedimented and condensed sludge from being discharged by the mud pump, so that the mud pump can work more conveniently. normal work;

When it is necessary to clean one of the second filter screens, use the handle to adjust the position of the moving plate so that the sewage enters the front or rear side of the inner partition of the filter box through the water inlet, and then start the motor, and the output end of the motor drives the first When the gear rotates, the first gear drives the two racks to move, and the two racks drive the two second filter screens to move in opposite directions, so that one second filter screen is located at the top and the other is located at the bottom. The net is cleaned without stopping the sewage treatment and the work efficiency is improved. In the process, when the two second filter nets are at the same height, they are located below the connecting port;

When it is necessary to clean up the sludge, start the sludge pump to pump out the sludge under the first filter screen in the treatment box, so that the energy-saving sewage treatment equipment solves the need to stop working when cleaning the filter bag in the prior art, The problem of reducing work efficiency.

Beneficial effect

In the present invention, the sewage filtered by the first filter is sent into the filter box through the communication port, and it is filtered twice through the second filter, and the position of the moving plate is adjusted by the handle so that the sewage enters the filter through the water inlet. The front or rear side of the partition in the box drives the first gear to rotate through the output end of the motor, and then drives the two racks to move, and then drives the two second filter screens to move in opposite directions, so that one second filter screen Located at the top and the other at the bottom, it is convenient to clean the second filter screen on the top without stopping the sewage treatment and improving work efficiency, so that this energy-saving sewage treatment equipment solves the need to stop working when cleaning the filter bag in the prior art, The problem of reducing work efficiency.

In the present invention, through the rotation of one of the rotating rollers, the transmission belt is then moved under the cooperation of the other rotating roller, which then drives the mounting seat to move, and then drives the transmission shaft, sleeve and cleaning rod to move, and the second gear and the second tooth The cooperation of the strips makes the second gear rotate, which in turn drives the drive shaft to rotate, which in turn drives the casing and the cleaning rod to rotate, and then cleans up the floc attached to the lower surface of the first filter screen, improving the filtration efficiency, thereby making the energy-saving Type sewage treatment equipment has the effect of improving work efficiency.

In the present invention, by setting a mud pump, the sludge under the first filter screen in the treatment box can be drawn out, and by setting the third rack, when the casing and the cleaning rod move to the bottom, the second gear and the third tooth The third rack drives the second gear to rotate, which in turn drives the transmission shaft to rotate, and then drives the casing and the cleaning rod to rotate, agitating the sewage, preventing the debris contained in it from settling, and preventing the sludge from settling and congealing from being difficult to clean. It is discharged by the mud pump, so that the mud pump works more conveniently, and at the same time, it can prevent a large amount of sludge from settling on the third rack, affecting its normal operation, so that the energy-saving sewage treatment equipment has the effect of conveniently cleaning the sludge .

In the present invention, the water filtered by the second filter screen is collected by the water collection bucket and then enters the fixed cylinder through the connecting pipe, and the driving blade rotates when the water flows through, thereby driving the driving shaft to rotate, and then driving the driving pulley to rotate , and then drive the driven pulley to rotate under the cooperation of the synchronous belt, and then drive one of the rotating rollers to rotate. By converting the kinetic energy of the water flow into mechanical energy, energy is saved, so that the energy-saving sewage treatment equipment has an energy-saving effect.

Description of drawings

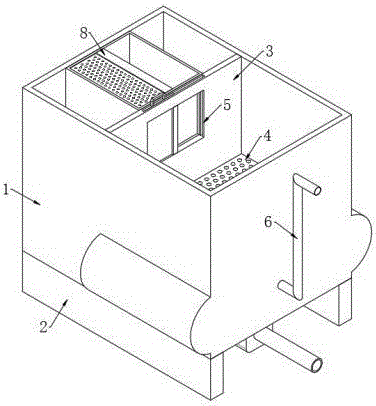

Fig. 1 is the three-dimensional structure schematic diagram of the present invention;

Fig. 2 is the three-dimensional structure schematic diagram of transmission belt of the present invention;

Fig. 3 is the schematic diagram of enlarged structure of place A in Fig. 2 of the present invention;

Fig. 4 is the three-dimensional (section of the treatment box) structural schematic diagram of the secondary filter assembly of the present invention;

Fig. 5 is the three-dimensional structure schematic diagram of vertical plate of the present invention;

Fig. 6 is the sectional structure schematic diagram of filter box and dividing plate of the present invention;

FIG. 7 is a schematic diagram of an enlarged structure at B in FIG. 6 of the present invention;

Fig. 8 is a schematic diagram of a three-dimensional structure of the drive unit of the present invention;

Fig. 9 is a schematic cross-sectional structural view of the fixing cylinder of the present invention;

Fig. 10 is a schematic diagram of the three-dimensional structure of the sludge pump of the present invention.

The reference signs are as follows:

1. Treatment box; 2. Support; 3. Vertical plate; 4. First filter screen; 5. Connecting port; 6. Water inlet pipe; 7. Drainage pipe; 8. Secondary filter assembly; , clapboard; 803, second filter screen; 804, water inlet; 805, lifting rack; 806, rotating shaft; 807, first gear; 808, motor; 809, moving slot; 810, moving plate; 811, grip handle; 812, limit plate; 9, rotating roller; 10, transmission belt; 11, mounting seat; 12, casing; 13, cleaning rod; 14, mud pipe; 15, second gear; 16, second rack ;17, the third rack; 18, the driving part; 1801, the connecting block; 1802, the end cover; 1803, the fixed cylinder; 1804, the driving shaft; 1805, the driving blade; , Drive pulley; 1809, driven pulley; 1810, synchronous belt; 19, mud pump.

Implementation

Below in conjunction with accompanying drawing 1-10 and embodiment the present invention is further described:

As shown in Figure 1-10, an energy-saving sewage treatment equipment includes a treatment box 1 and a support 2 installed on the lower surface of the treatment box 1. The inner bottom wall of the treatment box 1 is fixedly connected with a vertical plate 3, and the treatment box 1 The same first filter screen 4 is detachably connected to the inner wall of the vertical plate 3, one side of the vertical plate 3 is provided with a communication port 5, and the right side of the processing box 1 is fixedly connected with the inlet port 1 that communicates with the processing box 1. The water pipe 6 is fixedly connected to the lower surface of the treatment box 1 with a drain pipe 7 communicating with the treatment box 1 , and the left side of the vertical plate 3 is fixedly connected to a secondary filter assembly 8 .

It also includes a mud pump 19, the mud inlet end of the mud pump 19 communicates with the treatment box 1, and the mud outlet end of the mud pump 19 is fixedly connected with a mud outlet pipe 14.

Specifically, the external sewage is introduced through the water inlet pipe 6, the treated water is discharged through the drain pipe 7, the primary filtration is performed through the first filter screen 4, the secondary filtration is performed through the secondary filter assembly 8, and the mud pump 19 is set. , the sludge under the first filter screen 4 in the treatment box 1 can be extracted.

In this embodiment, as shown in Figures 4-7, the secondary filter assembly 8 includes a filter box 801 fixedly connected to the left side of the vertical plate 3, the left side of the filter box 801 is fixedly connected to the inner wall of the processing box 1, and the filter box 801 The inner bottom wall of the filter box 801 is fixedly connected with a partition 802, and the inner wall of the filter box 801 is respectively slidably connected with two second filter screens 803, and the right side of the filter box 801 is provided with a water inlet 804 corresponding to the communication port 5.

Both sides of the dividing plate 802 are provided with chute, and the inner wall of the chute is slidably connected with a lifting rack 805, and the opposite surfaces of the two lifting racks 805 are fixedly connected with the opposite surfaces of the two second filter screens 803 respectively, The inside of the plate 802 is provided with a cavity, and the inner wall of the cavity is rotatably connected with a rotating shaft 806, and the surface of the rotating shaft 806 is fixedly connected with a first gear 807, and the first gear 807 meshes with the two elevating racks 805, and the processing box The left side of 1 is fixedly connected with a motor 808, and one end of the rotating shaft 806 is rotationally connected with the inner wall of the filter box 801, and one end of the rotating shaft 806 runs through the left side of the filter box 801 and the processing box 1 in turn and is fixed to the output end of the motor 808 connect.

The upper surface of the vertical plate 3 is provided with a moving groove 809, the inner wall of the moving groove 809 is slidably connected with a moving plate 810, the upper surface of the moving plate 810 is fixedly connected with a handle 811, and the inner bottom wall of the communication port 5 is fixedly connected with two handles respectively. Limiting plates 812 , the two limiting plates 812 correspond to the positions of the partitions 802 .

Specifically, the sewage filtered by the first filter screen 4 is sent into the filter box 801 through the communication port 5, and it is filtered twice through the second filter screen 803, and the position of the moving plate 810 is adjusted by the handle 811, so that the sewage Enter the front side or rear side of the inner partition 802 of the filter box 801 through the water inlet 804, drive the first gear 807 to rotate through the output end of the motor 808, and then drive the two racks to move, and then drive the two second filter screens 803 to rotate Move in the opposite direction, so that one second filter 803 is located at the top and the other is located at the bottom, which is convenient for cleaning the upper second filter 803 without stopping the sewage treatment and improving work efficiency.

In this embodiment, as shown in Figures 2-3 and 8-9, the inner wall of the processing box 1 is respectively rotatably connected with two rotating rollers 9, the surfaces of the two rotating rollers 9 are provided with a transmission belt 10, and the surface of the transmission belt 10 is fixedly connected Mounting seat 11 is arranged, and one side of mounting seat 11 is provided with rotating hole, and the inner wall of rotating hole is connected with transmission shaft in rotation, and the surface of transmission shaft is fixedly connected with sleeve pipe 12, and the surface of sleeve pipe 12 is fixedly connected with for cleaning and attaching A cleaning rod 13 for the flocs on the lower surface of the filter screen 4 .

The surface of transmission shaft is fixedly connected with second gear 15, the inner wall of processing box 1 is fixedly connected with second tooth bar 16, and the inner bottom wall of processing box 1 is fixedly connected with third tooth bar 17, and second gear 15 is connected with the second tooth bar. Bar 16 engages.

The inner wall of the processing box 1 is fixedly connected with a driving part 18, and the driving part 18 includes a connecting block 1801 fixedly connected with the inner wall of the processing box 1. One end of the connecting block 1801 is fixedly connected with an end cover 1802, and the surface of the end cover 1802 is fixedly connected with a fixed cylinder. 1803, one side of the end cover 1802 is rotatably connected with a drive shaft 1804, the surface of the drive shaft 1804 is fixedly connected with a drive blade 1805, the lower surface of the filter box 801 is fixedly connected with a water collection bucket 1806, and the lower surface of the water collection bucket 1806 is fixedly connected with There is a connecting pipe 1807. The bottom end of the connecting pipe 1807 is fixedly connected with the surface of the fixing cylinder 1803 and runs through the inner wall of the fixing cylinder 1803. The bottom of the surface of the fixing cylinder 1803 is provided with a through hole.

One end of the drive shaft 1804 runs through one side of the fixed cylinder 1803 and is rotationally connected with the left side of the vertical plate 3. The surface of the drive shaft 1804 is fixedly connected with a driving pulley 1808, and the left side of the vertical plate 3 is rotationally connected with a driven pulley 1809. The surface of the driving pulley 1808 and the driven pulley 1809 is provided with the same timing belt 1810, and the driven pulley 1809 is fixedly connected with the rear rotating roller 9 through a connecting shaft.

Specifically, through the rotation of one of the rotating rollers 9, the transmission belt 10 is moved under the cooperation of the other rotating roller 9, and then the mounting seat 11 is driven to move, and then the transmission shaft, the sleeve 12 and the cleaning rod 13 are driven to move, and the second The cooperation between the gear 15 and the second rack 16 makes the second gear 15 rotate, and then drives the transmission shaft to rotate, and then drives the sleeve pipe 12 and the cleaning rod 13 to rotate, and then cleans the floc attached to the lower surface of the first filter screen 4 Clean, improve the efficiency of filtration, collect the water filtered by the second filter screen 803 through the water collecting bucket 1806, and then enter the fixed cylinder 1803 through the connecting pipe 1807, and drive the driving blade 1805 to rotate when the water flows through, and then drive the drive shaft 1804 rotates, and then drives the driving pulley 1808 to rotate, and then drives the driven pulley 1809 to rotate under the cooperation of the synchronous belt 1810, and then drives one of the rotating rollers 9 to rotate. By converting the kinetic energy of the water flow into mechanical energy, energy is saved. By setting The third rack 17, when the sleeve pipe 12 and the cleaning rod 13 move to the bottom, the second gear 15 meshes with the third rack 17, the third rack 17 drives the second gear 15 to rotate, and then drives the transmission shaft to rotate, and then Drive the sleeve pipe 12 and the cleaning rod 13 to rotate, stir the sewage, prevent the sundries contained in it from settling, and prevent the sedimented and condensed sludge from being discharged by the mud pump 19, so that the mud pump 19 works more conveniently, and at the same time , can prevent a large amount of sludge from settling on the third rack 17, affecting its normal operation.

Working principle: When the energy-saving sewage treatment equipment is in use, the user first introduces the external sewage to the bottom of the first filter 4 through the water inlet pipe 6, and as the water level rises, the first filter 4 blocks impurities below it , the sewage filtered by the first filter 4 enters the filter box 801 through the connecting port 5, and the second filter 803 filters it for the second time, and the water after the second filter enters the fixed cylinder through the water collecting bucket 1806 and the connecting pipe 1807 In 1803, it falls into the treatment box 1 through the through hole and is discharged through the drain pipe 7. During this process, the driving vane 1805 rotates when the water flows through, and the driving vane 1805 drives the driving shaft 1804 to rotate, and the driving shaft 1804 drives the driving belt The wheel 1808 rotates, and the driving pulley 1808 drives the driven pulley 1809 to rotate under the cooperation of the synchronous belt 1810, and the driven pulley 1809 drives one of the rotating rollers 9 to rotate, and then the transmission belt 10 is moved under the cooperation of the other rotating roller 9 , the transmission belt 10 drives the mounting seat 11 to move, and the mounting seat 11 drives the transmission shaft, the sleeve pipe 12 and the cleaning rod 13 to move, and through the cooperation of the second gear 15 and the second rack 16, the second gear 15 rotates, and the second gear 15 Drive the transmission shaft to rotate, and the transmission shaft drives the sleeve pipe 12 and the cleaning rod 13 to rotate, and then the flocs attached to the lower surface of the first filter screen 4 are cleaned up to improve the filtering efficiency, and the sleeve pipe 12 and the cleaning rod 13 move to the bottom , the second gear 15 meshes with the third rack 17, the third rack 17 drives the second gear 15 to rotate, the second gear 15 drives the drive shaft to rotate, and the drive shaft drives the sleeve pipe 12 and the cleaning rod 13 to rotate, and the sewage Agitation is carried out to prevent the debris contained in it from settling, and to avoid the sedimentation and coagulation of the sludge being difficult to be discharged by the sludge pump 19, so that the sludge pump 19 works more conveniently, and at the same time, it can prevent a large amount of sludge from settling on the third rack 17 on, affecting its normal work;

When one of the second filter screens 803 needs to be cleaned, use the handle 811 to adjust the position of the moving plate 810, so that the sewage enters the front or rear side of the filter box 801 inner partition 802 through the water inlet 804, and then starts the motor 808, The output end of the motor 808 drives the first gear 807 to rotate, the first gear 807 drives the two racks to move, and the two racks drive the two second filter screens 803 to move in opposite directions, so that a second filter screen 803 is located above , and the other is located at the bottom to clean up the second filter screen 803 above without stopping the sewage treatment to improve work efficiency. In the process, when the two second filter screens 803 are at the same height, they are located below the communication port 5 ;

When it is necessary to clean up the sludge, the sludge pump 19 is started to extract the sludge below the first filter screen 4 in the treatment box 1, so that the energy-saving sewage treatment equipment solves the problem of cleaning the filter bag in the prior art. Problems that stop work and reduce productivity.

The embodiments of the present invention disclose preferred embodiments, but are not limited thereto. Those skilled in the art can easily comprehend the spirit of the present invention based on the above-mentioned embodiments, and make different extensions and changes. But as long as it does not deviate from the spirit of the present invention, it is within the protection scope of the present invention.

Claims (9)

1. An energy-saving sewage treatment equipment, comprising a treatment box (1) and a support (2) installed on the lower surface of the treatment box (1), the inner bottom wall of the treatment box (1) is fixedly connected with a vertical plate ( 3), the inner wall of the processing box (1) is detachably connected to the side of the vertical plate (3) with the same first filter screen (4), and one side of the vertical plate (3) is provided with a communication port ( 5), the right side of the treatment box (1) is fixedly connected with the water inlet pipe (6) communicating with the treatment box (1), and the lower surface of the treatment box (1) is fixedly connected with the treatment box (1) The connected drain pipe (7) is characterized in that a secondary filter assembly (8) is fixedly connected to the left side of the vertical plate (3). 2. The energy-saving sewage treatment equipment according to claim 1, characterized in that: the secondary filter assembly (8) includes a filter box (801) fixedly connected to the left side of the vertical plate (3), the The left side of the filter box (801) is fixedly connected to the inner wall of the treatment box (1), the inner bottom wall of the filter box (801) is fixedly connected with a partition (802), and the inner walls of the filter box (801) are respectively slidably connected There are two second filter screens (803), and a water inlet (804) corresponding to the communication port (5) is opened on the right side of the filter box (801). 3. The energy-saving sewage treatment equipment according to claim 2, characterized in that: both sides of the partition (802) are provided with chutes, and the inner wall of the chute is slidably connected with a lifting rack (805 ), the opposite surfaces of the two elevating racks (805) are respectively fixedly connected with the opposite surfaces of the two second filter screens (803), the interior of the partition (802) is provided with a cavity, and the cavity The inner wall is rotatably connected with a rotating shaft (806), and the surface of the rotating shaft (806) is fixedly connected with a first gear (807), and the first gear (807) meshes with the two elevating racks (805). A motor (808) is fixedly connected to the left side of the treatment box (1), and one end of the rotating shaft (806) is rotationally connected with the inner wall of the filter box (801), and one end of the rotating shaft (806) passes through the filter box ( 801) and the left side of the processing box (1) and is fixedly connected with the output end of the motor (808). 4. The energy-saving sewage treatment equipment according to claim 1, characterized in that: the upper surface of the vertical plate (3) is provided with a moving groove (809), and the inner wall of the moving groove (809) is slidingly connected There is a moving plate (810), the upper surface of the moving plate (810) is fixedly connected with a handle (811), and the inner bottom wall of the communicating port (5) is respectively fixedly connected with two limiting plates (812), The positions of the two limiting plates (812) correspond to those of the partition plate (802). 5. The energy-saving sewage treatment equipment according to claim 1, characterized in that: the inner wall of the treatment tank (1) is respectively rotatably connected with two rotating rollers (9), and the two rotating rollers (9) ) is provided with a transmission belt (10), the surface of the transmission belt (10) is fixedly connected with a mounting base (11), one side of the mounting base (11) is provided with a rotating hole, and the inner wall of the rotating hole is rotationally connected with a transmission shaft, the surface of the transmission shaft is fixedly connected with a sleeve (12), and the surface of the sleeve (12) is fixedly connected with a cleaning rod ( 13). 6. The energy-saving sewage treatment equipment according to claim 5, characterized in that: the surface of the transmission shaft is fixedly connected with the second gear (15), and the inner wall of the treatment box (1) is fixedly connected with the second gear Two racks (16), the inner bottom wall of the processing box (1) is fixedly connected with a third rack (17), and the second gear (15) meshes with the second rack (16). 7. The energy-saving sewage treatment equipment according to claim 2, characterized in that: the inner wall of the treatment box (1) is fixedly connected with a drive part (18), and the drive part (18) includes a (1) A connection block (1801) fixedly connected to the inner wall, one end of the connection block (1801) is fixedly connected with an end cover (1802), and the surface of the end cover (1802) is fixedly connected with a fixed cylinder (1803), the One side of the end cover (1802) is rotatably connected with a drive shaft (1804), the surface of the drive shaft (1804) is fixedly connected with a drive vane (1805), and the lower surface of the filter box (801) is fixedly connected with a collector Water bucket (1806), the lower surface of the water collection bucket (1806) is fixedly connected with a connecting pipe (1807), and the bottom end of the connecting pipe (1807) is fixedly connected with the surface of the fixed cylinder (1803) and runs through the fixed cylinder (1803), the bottom of the surface of the fixing cylinder (1803) is provided with a through hole. 8. The energy-saving sewage treatment equipment according to claim 7, characterized in that: one end of the drive shaft (1804) runs through one side of the fixed cylinder (1803) and rotates with the left side of the vertical plate (3) connection, the surface of the drive shaft (1804) is fixedly connected with a driving pulley (1808), the left side of the vertical plate (3) is connected with a driven pulley (1809), and the driving pulley (1808) The same synchronous belt (1810) is provided on the surface of the driven pulley (1809), and the driven pulley (1809) is fixedly connected to the rear rotating roller (9) through a connecting shaft. 9. The energy-saving sewage treatment equipment according to claim 1, characterized in that it further comprises a mud pump (19), and the mud inlet end of the mud pump (19) is connected to the treatment tank (1) , the mud outlet end of the dredge pump (19) is fixedly connected with a mud outlet pipe (14).
