The invention provides a fire-resistant sandwich panel conveying device, which relates to the technical field of conveying devices and includes: a conveying frame body, a conveying part, a cleaning part and a drying part; the conveying frame body is fixedly connected with four supporting legs by bolts. Because there is an auxiliary block welded on the inner side of the two connecting rods; the two auxiliary blocks are right-angled triangular block structures, when the plate moves 200cm to the right, the plate contacts the inclined surface of the auxiliary block, and the right end of the plate is raised. At this time, it is convenient to take the board, which also improves the work efficiency. It solves the problem that there are still dust and debris on the surface of the fireproof sandwich panel after processing, so it needs to be cleaned in the subsequent use. Cleaning, and in the follow-up cleaning, only the brush cannot be used to complete the cleaning. At this time, it needs to be cleaned with water. If the water is not removed in time when cleaning with water, it will directly affect the quality of the sandwich panel. The problem.

Description

A fireproof sandwich panel conveying device

technical field

The invention relates to the technical field of transmission devices, in particular to a transmission device for fireproof sandwich panels.

Background technique

When processing the fireproof sandwich panel, it is necessary to use the conveying device to convey the board.

As far as the existing fireproof sandwich panel conveying device is concerned:

At present, after the fire-proof sandwich panel is processed, there are still debris such as dust and debris on its surface, so it needs to be cleaned up in the subsequent use, and it cannot be completely cleaned only by a brush in the subsequent cleaning. When cleaning with water, if the water is not removed in time when cleaning through water, it will directly affect the quality of the sandwich panel.

Contents of the invention

In view of this, the present invention provides a fireproof sandwich panel conveying device, which has a cleaning part and a drying part, through the setting of the cleaning part and the drying part, the drying of the board can be automatically realized during the board conveying process, and the drying effect is good; It can automatically realize the cleaning of the board during the board conveying process, and the cleaning effect is good.

The purpose and effect of a fireproof sandwich panel transmission device of the present invention are achieved by the following specific technical means:

The invention provides a fire-proof sandwich panel conveying device, which specifically includes: a conveying frame body, a conveying part, a cleaning part, a drying part and a control part; the conveying frame body is fixedly connected with four supporting legs by bolts, four The supporting legs are all fixed on the ground; the transmission part is composed of roller shafts, conveyor belts, protrusions and gears. Gears are installed on the roller shaft; the cleaning part is composed of a first mounting seat, a first elastic telescopic rod, a mounting block, a wiping block, a fixing seat, a water storage box, a telescopic bottle and a stress rod, and the first mounting seat is fixed on On the conveying frame body; two first elastic telescopic rods are symmetrically installed on the bottom end surface of the first mounting seat, and the lower ends of the two first elastic telescopic rods are fixed with the installation block, and a wiper block is attached to the bottom end surface of the installation block, and the wiper block It is in contact with the top surface of the plate; the dry part is composed of a sliding seat, a sliding block, a mounting arm, a second elastic telescopic rod, a second mounting seat, a heating wire and a force arm. There are two sliding seats, two sliding The seats are all fixed on the top surface of the conveyor frame; the control part is composed of a control box, a microprocessor, a probe seat, an induction probe, a second gear, an electric telescopic rod and a tooth row, and the control box is installed on the conveyor body to control A microprocessor is installed in the box; a probe base is installed on the transport frame body, and an induction probe is installed on the probe base.

Further, a conveyor belt is sleeved on the two roller shafts, and a driving motor for driving the roller shafts is installed on the conveyor frame;

Plates are placed on the conveyor belt, and protrusions are arranged in an array on the conveyor belt. The protrusions are in a semi-cylindrical structure, and the protrusions are in contact with the bottom surface of the plate. At this time, the plate is in a propped state.

Further, a fixing seat is installed on the front end of the transport frame body, and a water storage box is installed on the fixing seat;

The fixed seat is an L-shaped structure, and a telescopic bottle is installed on the right end of the fixed seat;

A coil spring for self-elastic reset is installed inside the telescopic bottle. The telescopic bottle is connected with a water inlet pipe and a drain pipe. One-way valve, when the telescopic bottle is squeezed, the one-way valve in the water inlet pipe is closed, and the one-way valve in the drain pipe is open. When the telescopic bottle is reset, the one-way valve in the water inlet pipe is open, and the one-way valve in the drain pipe is open. The one-way valve is closed.

Further, a stress rod is installed on the right end of the telescopic bottle, and the right end of the stress rod is polished. , when the gear rotates, the force rod is in a state of reciprocating left and right.

Further, a sliding block is slidably connected to each sliding seat, and a mounting arm is installed on each sliding block;

A second mounting base is welded between the two mounting arms, and a heating wire is installed on the second mounting base, and the heating wire is located 10 cm above the plate.

Further, a connecting rod is rotationally connected to the inner side of the conveying frame body 1, and auxiliary blocks are welded on the two connecting rods; the second gear is installed on the connecting rod;

The left side of the two auxiliary blocks is an inclined structure. When the plate moves 200cm to the right, the plate is in contact with the inclined surface of the auxiliary block; the electric telescopic rod is installed on the conveying frame, and the electric telescopic rod is electrically connected with the microprocessor. The left end of the electric telescopic rod is equipped with a tooth row, and the tooth row meshes with the second gear. When the plate moves 400cm to the right, the plate moves to the middle position of the auxiliary block. At this time, the induction probe senses the plate.

Further, the two auxiliary blocks are right-angled triangular block structures. When the plate moves 200cm to the right, the plate contacts the inclined surface of the auxiliary block, and at this time, the right end of the plate is lifted.

Further, a second elastic telescopic rod is installed in each of the sliding seats, and the two second elastic telescopic rods are respectively in contact with the two sliding blocks, and the two second elastic telescopic rods together form the elastic reset of the sliding block. structure.

Further, a force arm is welded on the sliding block on the rear side. The force arm is a curved rod-shaped structure. The lower end of the force arm is in elastic contact with the top surface of the conveyor belt. When the conveyor belt moves, the force arm and the protrusion Contact, at this time, the sliding block is in a state of moving to the right under the toggle of the protrusion, and when the sliding block moves 5cm to the right, the force arm and the protrusion are in a slipping state.

Further, the bottom end surface of the force-bearing arm has been polished, and the bottom end surface of the force-bearing arm has an arc-shaped structure after grinding.

Beneficial effect

Through the setting of the protrusion and the drying part, the present application can automatically realize the drying of the board during the conveying process of the board, and the drying effect is good, as follows: First, because each of the sliding seats is slidably connected with a sliding block, Each sliding block is equipped with a mounting arm; a second mounting seat is welded between the two mounting arms, and a heating wire is installed on the second mounting seat. The heating wire is located 10cm above the plate. When the plate moves with the conveyor belt At the same time, the drying of the moisture on the plate can be realized by the heating wire, which improves the finished product efficiency of the plate; second, because a second elastic telescopic rod is installed in each of the sliding seats, the two second elastic telescopic rods are respectively In contact with the two sliding blocks, the two second elastic telescopic rods jointly form the elastic reset structure of the sliding block, and the automatic reset of the sliding block can be realized through the second elastic telescopic rod during use; The force arm is welded. The force arm is a curved rod structure. The lower end of the force arm is in elastic contact with the top surface of the conveyor belt. When the conveyor belt moves, the force arm contacts the protrusion. At this time, under the movement of the protrusion The sliding block is in the state of moving to the right. When the sliding block moves 5cm to the right, the force arm and the protrusion are in a slipping state. At this time, the reciprocating motion of the heating wire can be completed, which improves the drying effect of the plate and improves the overall processing. efficiency.

In addition, through the setting of the cleaning part, the plate can be automatically cleaned during the plate conveying process, and the cleaning effect is good. The bottom end of the first elastic telescopic rod is fixed with the installation block, and the bottom surface of the installation block is attached with a wiper block, which is in contact with the top surface of the plate. When the plate moves with the conveyor belt, the plate can be wiped and cleaned by the wiper block. ; Second, because the front end of the carrier body is equipped with a fixed seat, the fixed seat is equipped with a water storage box; the fixed seat is an L-shaped structure, and the right end of the fixed seat is equipped with a telescopic bottle; The coil spring is connected with a water inlet pipe and a drain pipe on the telescopic bottle. When the telescopic bottle is reset, the one-way valve in the water inlet pipe is in the closed state, and the one-way valve in the drain pipe is in the open state. In the process, when the telescopic bottle completes one expansion and contraction, the water supply to the wiping block can be completed once; third, because the right end of the telescopic bottle is equipped with a force rod, the right end of the force rod is polished, and the right end of the force rod is polished. One end of the side is an arc-shaped structure, and the right end of the force rod is clamped with the gear. When the gear rotates, the force rod is in a state of reciprocating left and right. At this time, the water supply to the wiper block is completed. Improve the cleaning effect on the board.

In addition, through the setting of the connecting rod and the auxiliary block, because the inner side of the conveying rack body is welded symmetrically with two connecting rods, and the inner side of the two connecting rods is welded with an auxiliary block; the two auxiliary blocks are right-angled triangular block structures, When the plate moves 200cm to the right, the plate contacts the inclined surface of the auxiliary block. At this time, the right end of the plate is in a lifted state, which facilitates the taking of the plate and improves the work efficiency.

In addition, through the setting of the control part, a connecting rod is connected to the inner side of the conveying frame body 1 for rotation, and auxiliary blocks are welded on the two connecting rods; the second gear is installed on the connecting rod;

The left side of the two auxiliary blocks is an inclined structure. When the plate moves 200cm to the right, the plate is in contact with the inclined surface of the auxiliary block. At this time, it is convenient for the plate to move to the auxiliary block; It is electrically connected with the microprocessor, and the left end of the electric telescopic rod is equipped with a tooth row, which meshes with the second gear. When the plate moves 400cm to the right, the plate moves to the middle position of the auxiliary block. At this time, the induction probe senses the plate , then the induction probe sends the signal to the microprocessor at this time, and the microprocessor controls the electric telescopic rod to shrink by 10cm and then reset. Place the two devices close to each other, and at this time, the panel can be turned over automatically.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings of the embodiments will be briefly introduced below.

The drawings in the following description only relate to some embodiments of the present invention, but do not limit the present invention.

In the attached picture:

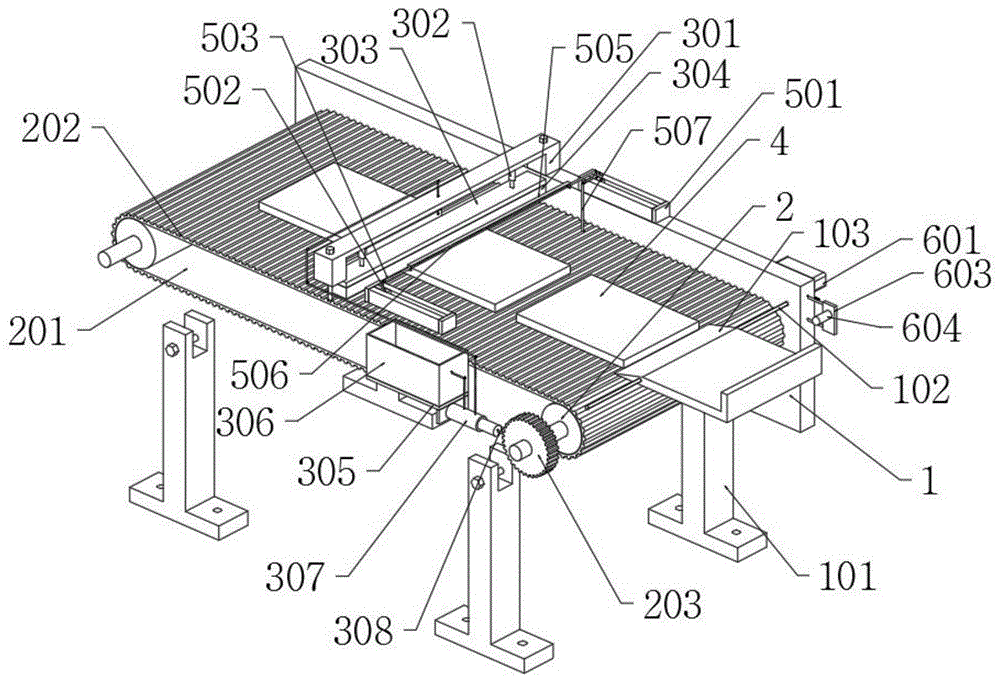

Fig. 1 is a schematic diagram of the axial structure of the fireproof sandwich panel conveying device of the present invention.

Fig. 2 is a top structural schematic diagram of the fireproof sandwich panel conveying device of the present invention.

Fig. 3 is a schematic diagram of the axial view structure of the fireproof sandwich panel conveying device of the present invention after part of the structure is removed.

Fig. 4 is a schematic diagram of the axial structure of Fig. 3 after rotation in the present invention.

Fig. 5 is a front view structural diagram of Fig. 4 of the present invention.

Fig. 6 is a schematic diagram of the enlarged structure at A in Fig. 5 of the present invention.

FIG. 7 is a schematic diagram of the enlarged structure at B in FIG. 5 of the present invention.

Fig. 8 is a schematic diagram of the axial structure of the drying part of the present invention.

Fig. 9 is a schematic diagram of the system structure of the present invention.

list of figure markers

1. Conveyor frame body; 101. Support leg; 102. Connecting rod; 103. Auxiliary block; 2. Transmission part; 201. Roller shaft; 202. Conveyor belt; 203. Protrusion; 204. First gear; 3. Cleaning Part; 301, the first installation seat; 302, the first elastic expansion rod; 303, the installation block; 304, the wiping block; 305, the fixed seat; 306, the water storage box; 307, the telescopic bottle; 308, the force bar; 4 , plate; 5, drying part; 501, sliding seat; 502, sliding block; 503, mounting arm; 504, second elastic telescopic rod; 505, second mounting seat; 506, heating wire; 507, force arm; 6 , control part; 601, control box; 602, microprocessor; 603, probe seat; 604, induction probe; 605, second gear; 606, electric telescopic rod; 607, tooth row.

Detailed ways

Embodiments of the present invention will be further described in detail below in conjunction with the accompanying drawings and examples.

Example: Please refer to Figure 1 to Figure 9:

The present invention proposes a transmission device for fireproof sandwich panels, including: a transmission frame body 1, a transmission part 2, a cleaning part 3, a drying part 5 and a control part 6;

Four supporting legs 101 are fixedly connected to the conveying frame body 1 by bolts, and the four supporting legs 101 are all fixed on the ground;

The transmission part 2 is composed of a roller shaft 201, a conveyor belt 202, a protrusion 203 and a first gear 204. There are two roller shafts 201 in total. A first gear 204 is installed on the roller shaft 201;

The cleaning part 3 is made up of a first mounting base 301, a first elastic telescopic rod 302, a mounting block 303, a wiping block 304, a fixing seat 305, a water storage box 306, a telescopic bottle 307 and a force rod 308, and the first mounting base 301 is fixed On the transport frame body 1;

Drying part 5 is made up of sliding seat 501, sliding block 502, mounting arm 503, second elastic expansion rod 504, second mounting seat 505, heating wire 506 and force arm 507, and sliding seat 501 is provided with two altogether, two The sliding seats 501 are all fixed on the top surface of the transport frame body 1;

The control part 6 is made up of a control box 601, a microprocessor 602, a probe base 603, an induction probe 604, a second gear 605, an electric telescopic rod 606 and a tooth row 607. A microprocessor 602 is installed inside;

A probe base 603 is installed on the transport frame body 1 , and an induction probe 604 is installed on the probe base 603 .

Wherein, two roller shafts 201 are sleeved with conveyor belts 202, and a driving motor for driving the roller shafts 201 is installed on the conveyor frame body 1;

A plate 4 is placed on the conveyor belt 202, and the conveyor belt 202 is provided with protrusions 203 in an array. The protrusions 203 have a semi-cylindrical structure, and the protrusions 203 are in contact with the bottom surface of the plate 4. At this time, the plate 4 is in a propped state. It will be more convenient when the plate 4 needs to be taken.

Among them, two first elastic telescopic rods 302 are symmetrically installed on the bottom end surface of the first installation seat 301, and the lower ends of the two first elastic telescopic rods 302 are fixed with the installation block 303, and the bottom end surface of the installation block 303 is adhered with a wiping block 304, which can be wiped The block 304 is in contact with the top surface of the plate 4 , and when the plate 4 moves with the conveyor belt 202 , the wiping and cleaning of the plate 4 can be completed by wiping the block 304 at this time.

Wherein, a fixing seat 305 is installed on the front end of the transport frame body 1, and a water storage box 306 is installed on the fixing seat 305;

The fixed seat 305 is an L-shaped structure, and the right end surface of the fixed seat 305 is equipped with a telescopic bottle 307;

A coil spring for self elastic reset is installed in the telescopic bottle 307. The telescopic bottle 307 is connected with a water inlet pipe and a drain pipe. The water inlet pipe is connected with the water storage box 306. Both are equipped with a one-way valve. When the telescopic bottle 307 is squeezed, the one-way valve in the water inlet pipe is in a closed state, and the one-way valve in the drain pipe is in an open state. When the telescopic bottle 307 is reset, the one-way valve in the water inlet pipe is in a state of In the open state, the one-way valve in the drain pipe is in the closed state, and the water supply to the wiping block 304 can be completed once when the telescopic bottle 307 completes a stretch during use.

Wherein, the telescopic bottle 307 right end face is equipped with force bar 308, and the end of force bar 308 right side is through polishing process, after polishing, the end of force bar 308 right side is arc-shaped structure, and force bar 308 right side end is connected with the first end. A gear 204 is clamped. When the first gear 204 rotates, the force bar 308 is in a state of reciprocating left and right. At this time, the water supply of the wiping block 304 is completed. At this time, the wiping block 304 has moisture to improve the cleaning of the plate 4 Effect.

Wherein, each sliding seat 501 is slidably connected with a sliding block 502, and each sliding block 502 is equipped with a mounting arm 503;

A second mounting base 505 is welded between the two mounting arms 503, and a heating wire 506 is installed on the second mounting base 505. The heating wire 506 is located at 10 cm above the plate 4. When the plate 4 moves with the conveyor belt 202, the heating wire 506 is heated The wire 506 can realize the drying of the moisture on the board 4 and improve the finished product efficiency of the board 4 .

Wherein, a connecting rod 102 is rotatably connected to the inner side of the transport frame body 1, and auxiliary blocks 103 are welded on the two connecting rods 102; the second gear 605 is installed on the connecting rod 102;

The left side of the two auxiliary blocks 103 is an inclined structure. When the plate 4 moved 200cm to the right, the plate 4 was in contact with the inclined surface of the auxiliary block 103, which facilitated the movement of the plate 4 onto the auxiliary block 103.

Wherein, the electric telescopic rod 606 is installed on the conveying frame body 1, and the electric telescopic rod 606 is electrically connected with the microprocessor 602, and the left end of the electric telescopic rod 606 is equipped with a tooth row 607, and the tooth row 607 meshes with the second gear 605, When the plate 4 moves to the right by 400cm, the plate 4 moves to the middle position of the auxiliary block 103. At this time, the induction probe 604 senses the plate 4, and the signal is sent to the microprocessor 602 by the induction probe 604. At this time, the microprocessor 602 Control the electric telescopic rod 606 to shrink by 10cm and then reset. At this time, the auxiliary block 103 is in a flipped state, so that the flipping of the plate 4 is realized. Flip over.

Wherein, each sliding seat 501 is equipped with a second elastic telescopic rod 504, and the two second elastic telescopic rods 504 are in contact with the two sliding blocks 502 respectively, and the two second elastic telescopic rods 504 jointly form the sliding block 502 The elastic reset structure can realize the automatic reset of the sliding block 502 through the second elastic telescopic rod 504 during use.

Wherein, a force arm 507 is welded on a sliding block 502 on the rear side. The force arm 507 is a curved rod-shaped structure. The lower end of the force arm 507 is in elastic contact with the top surface of the conveyor belt 202. 507 is in contact with the protrusion 203. At this time, the sliding block 502 is in a state of moving to the right under the toggle of the protrusion 203. When the sliding block 502 moves 5 cm to the right, the force arm 507 and the protrusion 203 are in a slipping state. Completing the reciprocating motion of the heating wire 506 improves the drying effect of the board 4 .

Wherein, the bottom end surface of the force receiving arm 507 has been polished, and the bottom end surface of the force receiving arm 507 has an arc-shaped structure after the grinding process, which can reduce the wear on the protrusion 203 at this time.

The specific usage and function of this embodiment:

During use, the plate 4 is placed on the conveyor belt 202, and the drive motor is started, and the conveyor belt 202 starts to move at this time, and two first elastic telescopic rods 302 are symmetrically installed on the bottom end face of the first mounting base 301, two One end below the first elastic telescopic rod 302 is fixed with the installation block 303, and the bottom surface of the installation block 303 is adhered with a wiper block 304, which is in contact with the top surface of the plate 4. Block 304 can finish the wiping and cleaning of plate 4; Because of the fixed seat 305 is installed on the front end face of conveying rack body 1, the water storage box 306 is installed on the fixed seat 305; Telescopic bottle 307; The helical spring that is used for self elastic reset is installed in the telescopic bottle 307, is connected with water inlet pipe and drainpipe on the telescopic bottle 307, and water inlet pipe is connected with water storage box 306, and drainpipe is connected with wiping block 304, enters Both the water pipe and the drain pipe are equipped with a one-way valve. When the telescopic bottle 307 is squeezed, the one-way valve in the water inlet pipe is closed, and the one-way valve in the drain pipe is in an open state. When the telescopic bottle 307 is reset, the one-way valve in the water inlet pipe The one-way valve is in the open state, and the one-way valve in the drain pipe is in the closed state. During use, when the telescopic bottle 307 completes a stretch, the water supply to the wiper block 304 can be completed once; Rod 308, the end on the right side of the force rod 308 has been polished, and the end on the right side of the force rod 308 is an arc-shaped structure after the grinding process, and the right end of the force rod 308 is engaged with the first gear 204. When the first gear 204 When rotating, the force rod 308 is in a left-right reciprocating state, and at this moment, the water supply of the wiping block 304 has been completed, and now the wiping block 304 has moisture to improve the cleaning effect on the plate 4;

The conveyor belt 202 continues to move, and when the plate 4 moves to the position of the drying part 5, a sliding block 502 is slidably connected in each sliding seat 501, and a mounting arm 503 is installed on each sliding block 502; A second mounting seat 505 is welded between the arms 503, and a heating wire 506 is installed on the second mounting seat 505. The heating wire 506 is located at 10 cm above the plate 4. When the plate 4 moves with the conveyor belt 202, the heating wire 506 can The drying of moisture on the plate 4 is realized, and the finished product efficiency of the plate 4 is improved; because a second elastic telescopic rod 504 is installed in each sliding seat 501, the two second elastic telescopic rods 504 are connected with the two sliding blocks respectively. 502 contacts, the two second elastic telescopic rods 504 jointly constitute the elastic reset structure of the sliding block 502, and the automatic reset of the sliding block 502 can be realized through the second elastic telescopic rods 504 during use; a sliding block 502 on the rear side is welded There is a force arm 507, the force arm 507 is a curved rod-shaped structure, and the lower end of the force arm 507 is in elastic contact with the top surface of the conveyor belt 202. When the conveyor belt 202 moves, the force arm 507 is in contact with the protrusion 203. When the protrusion 203 is moved, the lower sliding block 502 is in a state of moving to the right. When the sliding block 502 moves 5 cm to the right, the force arm 507 and the protrusion 203 are in a slipping state. At this time, the reciprocating motion of the heating wire 506 can be completed. Improve the drying effect of plate 4;

When turning over the plate 4, a connecting rod 102 is connected to the inner side of the conveying frame body 1, and the auxiliary blocks 103 are welded on the two connecting rods 102; the second gear 605 is installed on the connecting rod 102; the left side of the two auxiliary blocks 103 It is an inclined structure. When the plate 4 moves 200cm to the right, the plate 4 is in contact with the inclined surface of the auxiliary block 103. At this time, it is convenient for the plate 4 to move to the auxiliary block 103; The rod 606 is electrically connected with the microprocessor 602, and the left end of the electric telescopic rod 606 is equipped with a gear row 607, and the gear row 607 meshes with the second gear 605. In the middle position, at this time, the induction probe 604 senses the plate 4, and at this time the induction probe 604 sends a signal to the microprocessor 602. At this time, the microprocessor 602 controls the electric telescopic rod 606 to shrink by 10 cm and then reset. At this time, the auxiliary block 103 is In the flipping state, the turning of the plate 4 is realized. During use, the two devices are placed close to each other, and the turning of the plate 4 can be automatically realized at this time;

During use, because the conveyor belt 202 is sleeved on the two roller shafts 201, a driving motor for driving the roller shaft 201 is installed on the conveyor frame body 1; a plate 4 is placed on the conveyor belt 202, and the conveyor belt 202 is in an array The shape is provided with a protrusion 203, and the protrusion 203 is a semi-cylindrical structure, and the protrusion 203 is in contact with the bottom surface of the plate 4. At this time, the plate 4 is in a propped state, which will be more convenient when the plate 4 needs to be taken.

Claims (10)

1. A fireproof sandwich panel conveying device, characterized in that it includes: a conveying frame body (1), a conveying part (2), a cleaning part (3), a drying part (5) and a control part (6); There are four supporting legs (101) fixedly connected to the conveying frame body (1) by bolts, and the four supporting legs (101) are all fixed on the ground; the conveying part (2) is composed of a roller shaft (201), a conveyor belt ( 202), protrusions (203) and gears (204), there are two roller shafts (201) in total, and the two roller shafts (201) are both rotatably connected to the conveyor body (1), and the right roller A gear (204) is installed on the shaft (201); the cleaning part (3) is fixed by the first mounting seat (301), the first elastic telescopic rod (302), the mounting block (303), the wiping block (304), seat (305), water storage box (306), telescopic bottle (307) and force rod (308), the first mounting seat (301) is fixed on the transport frame body (1); the first mounting seat ( 301) Two first elastic telescopic rods (302) are symmetrically installed on the bottom end surface, and the lower ends of the two first elastic telescopic rods (302) are fixed to the installation block (303), and the bottom end surface of the installation block (303) is adhered with a wiping block (304), the wiping block (304) is in contact with the top surface of the plate (4); the dry part (5) consists of a sliding seat (501), a sliding block (502), an installation arm (503), a second elastic telescopic rod ( 504), the second mounting base (505), heating wire (506) and force arm (507), there are two sliding bases (501), and the two sliding bases (501) are fixed on the conveyor body ( 1) Top surface; the control part (6) consists of a control box (601), a microprocessor (602), a probe seat (603), an induction probe (604), a second gear (605), an electric telescopic rod (606 ) and tooth row (607), the control box (601) is installed on the conveying frame body (1), and the microprocessor (602) is installed in the control box (601); the probe seat is installed on the conveying frame body (1) (603), an induction probe (604) is installed on the probe base (603). 2. A fireproof sandwich panel conveying device according to claim 1, characterized in that: the two roller shafts (201) are sleeved with conveyor belts (202), and the conveyor frame (1) is equipped with A drive motor driven by the roller shaft (201); Plates (4) are placed on the conveyor belt (202), and projections (203) are arranged in an array on the conveyor belt (202). ) are in contact with the bottom end faces, and the plate (4) is in a propped state at this time. 3. A fireproof sandwich panel conveying device according to claim 1, characterized in that: the front end of the conveying frame body (1) is equipped with a fixed seat (305), and a water storage box is installed on the fixed seat (305) (306); The fixed seat (305) is an L-shaped structure, and the right end surface of the fixed seat (305) is equipped with a telescopic bottle (307); The telescopic bottle (307) is equipped with a coil spring for its own elastic reset, the telescopic bottle (307) is connected with a water inlet pipe and a drain pipe, the water inlet pipe is connected with the water storage box (306), and the drain pipe is connected with the wiping block (304) connected with each other, a check valve is installed in the water inlet pipe and the drain pipe. When the telescopic bottle (307) is squeezed, the check valve in the water inlet pipe is in a closed state, and the one-way valve in the drain pipe is in an open state. When the telescopic bottle (307) is squeezed 307) When reset, the one-way valve in the water inlet pipe is in the open state, and the one-way valve in the drain pipe is in the closed state. 4. A fireproof sandwich panel conveying device according to claim 1, characterized in that: the right end of the telescopic bottle (307) is equipped with a stress rod (308), and the right end of the stress rod (308) is polished After grinding, the right end of the force rod (308) is an arc-shaped structure, and the right end of the force rod (308) is engaged with the gear (204). When the gear (204) rotates, the force rod (308) It is in a state of reciprocating movement left and right. 5. A fireproof sandwich panel transmission device according to claim 1, characterized in that: each sliding seat (501) is slidably connected with a sliding block (502), and each sliding block (502) is Each is equipped with a mounting arm (503); A second mounting base (505) is welded between the two mounting arms (503), and a heating wire (506) is installed on the second mounting base (505), and the heating wire (506) is located 10 cm above the plate (4). 6. A fireproof sandwich panel conveying device according to claim 1, characterized in that: a connecting rod (102) is rotatably connected to the inner side of the conveying frame body 1, and auxiliary blocks are welded on the two connecting rods (102) (103); the second gear (605) is installed on the connecting rod (102); The left side of the two auxiliary blocks (103) is an inclined structure. When the plate (4) moves 200cm to the right, the plate (4) contacts the inclined surface of the auxiliary block (103); The electric telescopic rod (606), the electric telescopic rod (606) is electrically connected with the microprocessor (602), and the left end of the electric telescopic rod (606) is equipped with a tooth row (607), and the tooth row (607) and the second gear (605) engage, when the plate (4) moves 400cm to the right, the plate (4) moves to the middle position of the auxiliary block (103), at this time the induction probe (604) senses the plate (4). 7. A fireproof sandwich panel conveying device according to claim 6, characterized in that: the two auxiliary blocks (103) are right-angled triangular block structures, and when the plate (4) moves 200cm to the right, the plate ( 4) Contact with the inclined surface of the auxiliary block (103), and at this moment, the right end of the plate (4) is lifted. 8. A fireproof sandwich panel transmission device according to claim 1, characterized in that: each of the sliding seats (501) is equipped with a second elastic telescopic rod (504), and two second elastic telescopic rods The rods (504) are respectively in contact with the two sliding blocks (502), and the two second elastic telescopic rods (504) together form the elastic reset structure of the sliding block (502). 9. A fireproof sandwich panel conveying device according to claim 1, characterized in that: a force arm (507) is welded on the rear sliding block (502), and the force arm (507) is a bent rod The lower end of the force arm (507) is in elastic contact with the top surface of the conveyor belt (202). When the conveyor belt (202) moves, the force arm (507) contacts the protrusion (203). At this time, the protrusion ( 203) the sliding block (502) is in a state of moving to the right, and when the sliding block (502) moves 5 cm to the right, the force arm (507) and the protrusion (203) are in a slipping state. 10. A fireproof sandwich panel conveying device according to claim 1, characterized in that: the bottom end surface of the force arm (507) is polished, and the bottom end surface of the force arm (507) is arc-shaped after grinding structure.
