A water and fertilizer management device for preventing and controlling Chinese chive maggots by entomopathogenic nematodes relates to the technical field of Chinese chive maggot prevention and control, and realizes Chinese chive maggot prevention and control by a combination mode of adding chemical agents and throwing pathogenic nematodes. Including irrigation pipe, sealed lid and moisture probe, the irrigation pipe transversely sets up and buries in soil, the both ends of irrigation pipe have a terminal pipe respectively, the one end and the irrigation pipe fixed connection of terminal pipe, the other end of terminal pipe upwards extends, sealed lid is located another end-to-end pipe of terminal pipe and seals, the bottom of irrigation pipe has the irrigation hole, moisture probe is located irrigation pipe bottom. According to the invention, through the arrangement of the irrigation pipe, water and fertilizer are irrigated to the roots of plants; through the arrangement of the irrigation pipe, pathogenic nematodes or chemical agents are conveyed into the soil, so that the Chinese chive maggot larvae in the soil are killed, and the Chinese chive maggots are prevented and treated in a combined mode of biological prevention and treatment of the pathogenic nematodes and chemical prevention and treatment of the chemical agents.

Description

一种昆虫病原线虫防治韭蛆的水肥管理装置及方法A kind of water and fertilizer management device and method for entomopathogenic nematodes to control chive maggots

技术领域technical field

本发明涉及韭蛆防治技术领域，具体地说是一种昆虫病原线虫防治韭蛆的水肥管理装置及方法。The invention relates to the technical field of leek maggot prevention and control, in particular to a water and fertilizer management device and method for preventing and treating leek maggot by entomopathogenic nematodes.

背景技术Background technique

韭蛆属双翅目，眼蕈蚊科，迟眼蕈蚊属。主要危害韭菜、大葱、洋葱、小葱、大蒜等百合科蔬菜，偶尔也危害莴苣、青菜、芹菜等，是葱蒜类蔬菜的主要害虫之一。虫态有成虫、卵、幼虫、蛹，以幼虫聚集在韭菜地下部的鳞茎和柔嫩的茎部为害。初孵幼虫先为害韭菜叶鞘基部和鳞茎的上端。春、秋两季主要为害韭菜的幼茎引起腐烂，使韭叶枯黄而死。夏季幼虫向下活动蛀入鳞茎，重者鳞茎腐烂，整墩韭菜死亡。韭蛆的防治，可通过浇水的方式施加化学药剂。病原线虫可寄生于昆虫消化道内，通过释放共生菌在昆虫血液内增殖，进而导致昆虫的死亡。将药剂防治以及病原线虫施加结合起来防治韭蛆，则可减少化学药剂使用。Leek maggots belong to the order Diptera, Oculomycetidae, and Bradyophthora genus. It mainly harms leeks, green onions, onions, shallots, garlic and other lily vegetables, and occasionally lettuce, green vegetables, celery, etc. It is one of the main pests of green onion and garlic vegetables. There are adults, eggs, larvae, and pupae in the insect state, and the larvae gather in the bulbs and tender stems of the leeks. The newly hatched larvae first damage the base of the leek sheath and the upper end of the bulb. In spring and autumn, the young stems of leeks are mainly caused to rot, causing the leaves of leeks to wither and die. In summer, the larvae move downward and bore into the bulbs. In severe cases, the bulbs rot and the whole pile of leeks dies. The prevention and control of leek maggots can be applied with chemical agents by watering. Pathogenic nematodes can parasitize in the digestive tract of insects and proliferate in the blood of insects by releasing symbiotic bacteria, leading to the death of insects. Combining chemical control and application of pathogenic nematodes to control chive maggots can reduce the use of chemical agents.

发明内容Contents of the invention

本发明的目的在于提供一种昆虫病原线虫防治韭蛆的水肥管理装置及方法，以添加化学药剂和投放病原线虫的联合方式实现对韭蛆的防治。The object of the present invention is to provide a water and fertilizer management device and method for entomopathogenic nematodes to prevent and treat chive maggots, and realize the prevention and control of chive maggots by adding chemical agents and injecting pathogenic nematodes.

本发明解决其技术问题所采取的技术方案是：一种昆虫病原线虫防治韭蛆的水肥管理装置，包括灌溉管、密封盖和水分探针，所述灌溉管横向设置并埋于土壤内，所述灌溉管的两端分别具有一根端管，所述端管的一端与灌溉管固定连接，所述端管的另一端向上延伸，所述密封盖位于端管另一端对端管进行密封，所述灌溉管的底部具有灌溉孔，所述水分探针位于灌溉管底部。The technical solution adopted by the present invention to solve the technical problem is: a water and fertilizer management device for entomopathogenic nematodes to prevent and treat chive maggots, including irrigation pipes, sealing covers and moisture probes, the irrigation pipes are horizontally arranged and buried in the soil, and the The two ends of the irrigation pipe respectively have an end pipe, one end of the end pipe is fixedly connected with the irrigation pipe, the other end of the end pipe extends upward, and the sealing cover is located at the other end of the end pipe to seal the end pipe, The bottom of the irrigation pipe has an irrigation hole, and the moisture probe is located at the bottom of the irrigation pipe.

进一步地，所述灌溉管的外径大于端管的外径。Further, the outer diameter of the irrigation pipe is larger than the outer diameter of the end pipe.

进一步地，所述端管包括水平部分和竖直部分，所述端管的水平部分与灌溉管连接，所述端管的竖直部分伸出土壤表面。Further, the end pipe includes a horizontal part and a vertical part, the horizontal part of the end pipe is connected to the irrigation pipe, and the vertical part of the end pipe protrudes from the soil surface.

进一步地，所述密封盖与端管另一端螺纹连接。Further, the sealing cap is screwed to the other end of the end pipe.

进一步地，所述端管的另一端为漏斗型的膨大部，所述膨大部内具有滤网。进一步地，所述水分探针顶部具有探针固定箍，所述探针固定箍套在灌溉管的外壁。Further, the other end of the end pipe is a funnel-shaped enlarged part, and the enlarged part has a filter mesh inside. Further, the top of the moisture probe has a probe fixing hoop, and the probe fixing hoop is sheathed on the outer wall of the irrigation pipe.

进一步地，所述灌溉管内具有吸水海绵。Further, there is a water-absorbing sponge inside the irrigation pipe.

进一步地，所述灌溉管的外壁滑动安装有观察镜安装箍，所述观察镜安装箍的底部具有光学观察镜，所述观察镜安装箍的顶部具有手柄。Further, the outer wall of the irrigation pipe is slidably mounted with a viewing mirror mounting hoop, the bottom of the viewing mirror mounting hoop has an optical viewing mirror, and the top of the viewing mirror mounting hoop has a handle.

本发明还提供一种昆虫病原线虫防治韭蛆的水肥管理方法，包括以下步骤：The present invention also provides a water and fertilizer management method for entomopathogenic nematodes to prevent and treat chive maggots, comprising the following steps:

(1)通过端管向灌溉管内加入水肥和病原线虫，使得灌溉管内的水肥缓慢滴灌，病原线虫穿过滴灌孔钻入土壤内；(1) Add water and fertilizer and pathogenic nematodes into the irrigation pipe through the end pipe, so that the water and fertilizer in the irrigation pipe are slowly drip-irrigated, and the pathogenic nematodes drill into the soil through the drip irrigation holes;

(2)通过水分探针探测土壤内水分含量；当土壤中水分含量低于设定阈值后，向灌溉管内加入水，使得滴灌管内的水缓慢滴灌；(2) Use the moisture probe to detect the moisture content in the soil; when the moisture content in the soil is lower than the set threshold, add water to the irrigation pipe, so that the water in the drip irrigation pipe is dripped slowly;

(3)观察土壤中是否有韭蛆，当土壤内有韭蛆时，向灌溉管内加入化学药剂，使得化学药剂缓慢滴灌。(3) Observe whether there are leek maggots in the soil. When there are leek maggots in the soil, add chemical agents into the irrigation pipe to make the chemical agents slowly drip.

本发明的有益效果是：本发明通过灌溉管的设置，向植物根部滴灌水肥；通过灌溉管的设置，向土壤中输送病原线虫或化学药剂，进而杀灭土壤中的韭蛆幼虫，进而以病原线虫生物防治以及化学药剂化学防治的联合方式，对韭蛆进行防治。The beneficial effects of the present invention are: the present invention drips water and fertilizer to the roots of plants through the setting of irrigation pipes; through the setting of irrigation pipes, pathogenic nematodes or chemical agents are transported to the soil, thereby killing the leek maggot larvae in the soil, and then using the pathogenic The combined method of biological control of nematodes and chemical control of chemical agents is used to control leek maggots.

附图说明Description of drawings

图1为本发明的主视图；Fig. 1 is the front view of the present invention;

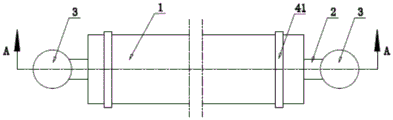

图2为本发明的俯视图；Fig. 2 is the top view of the present invention;

图3为图2中的A-A剖视图；Fig. 3 is A-A sectional view among Fig. 2;

图4为本发明安装示意图；Fig. 4 is the installation schematic diagram of the present invention;

图5为在灌溉管内增加吸水海绵的示意图；Fig. 5 is the schematic diagram that increases water-absorbing sponge in irrigation pipe;

图6为在本发明的灌溉管上安装观察镜的示意图；Fig. 6 is the schematic diagram that sight glass is installed on irrigation pipe of the present invention;

图7为图6的B向局部向视图；Fig. 7 is a partial view of B direction in Fig. 6;

图中：1灌溉管，11灌溉孔，2端管，21膨大部，3密封盖，31安装环，4水分探针，41探针固定箍，5滤网，6土壤，7吸水海绵，8光学观察镜，81观察镜安装箍，82手柄。In the figure: 1 irrigation pipe, 11 irrigation hole, 2 end pipe, 21 expansion part, 3 sealing cover, 31 installation ring, 4 moisture probe, 41 probe fixing hoop, 5 filter screen, 6 soil, 7 absorbent sponge, 8 Optical sight glass, 81 sight glass mounting collar, 82 handle.

具体实施方式Detailed ways

如图1至图7所示，本发明包括灌溉管1、端管2、密封盖3和水分探针4，下面结合附图对本发明进行详细描述。As shown in Figures 1 to 7, the present invention includes an irrigation pipe 1, an end pipe 2, a sealing cover 3 and a moisture probe 4, and the present invention will be described in detail below with reference to the accompanying drawings.

如图1至图7所示，一种昆虫病原线虫防治韭蛆的水肥管理装置包括灌溉管1、密封盖3和水分探针4，灌溉管1横向设置并埋于土壤内，灌溉管1的两端分别具有一根端管2，端管2的一端与灌溉管1固定连接，端管2的另一端向上延伸，密封盖3位于端管2另一端对端管2进行密封，灌溉管1的底部具有灌溉孔11，水分探针4位于灌溉管1底部。通过端管2向灌溉管1内加入水肥、病原线虫、化学药剂或水，进而实现滴灌、病原线虫的施放、化学药剂的施加，以病原线虫的施放实现生物防治，以化学药剂的施加实现化学防治，以生物防治和化学防治的措施对韭蛆进行联合防治。通过密封盖3对端管2另一端密封后，灌溉管1内的水肥不能流出。开启密封盖3后，灌溉管1内的水肥可以穿过灌溉孔11进行滴灌。As shown in Figures 1 to 7, a water and fertilizer management device for entomopathogenic nematode control of chive maggots includes an irrigation pipe 1, a sealing cover 3 and a moisture probe 4, the irrigation pipe 1 is arranged horizontally and buried in the soil, and the irrigation pipe 1 There is an end pipe 2 at both ends, one end of the end pipe 2 is fixedly connected with the irrigation pipe 1, the other end of the end pipe 2 extends upward, and the sealing cover 3 is located at the other end of the end pipe 2 to seal the end pipe 2, and the irrigation pipe 1 The bottom of the pipe has irrigation holes 11, and the moisture probe 4 is located at the bottom of the irrigation pipe 1. Add water and fertilizer, pathogenic nematodes, chemical agents or water into the irrigation pipe 1 through the end pipe 2, and then realize drip irrigation, release of pathogenic nematodes, and application of chemical agents, realize biological control by releasing pathogenic nematodes, and realize chemical Prevention and control, combined prevention and control of chive maggots with biological control and chemical control measures. After the other end of the end pipe 2 is sealed by the sealing cover 3, the water and fertilizer in the irrigation pipe 1 cannot flow out. After the sealing cover 3 is opened, the water and fertilizer in the irrigation pipe 1 can pass through the irrigation hole 11 for drip irrigation.

如图1所示，灌溉管1的外径大于端管2的外径。灌溉管1的设置，用于对水肥、化学药剂进行暂时的存储，且水肥、化学药剂经灌溉孔11缓慢流出，进而实现水肥、化学药剂的缓慢施加。As shown in FIG. 1 , the outer diameter of the irrigation pipe 1 is larger than the outer diameter of the end pipe 2 . The arrangement of the irrigation pipe 1 is used for temporarily storing water, fertilizers and chemicals, and the water, fertilizers and chemicals flow out slowly through the irrigation holes 11, thereby realizing the slow application of water, fertilizers and chemicals.

如图1、图3所示，端管2包括水平部分和竖直部分，端管2的水平部分与灌溉管1连接，端管2的竖直部分伸出土壤表面。如图4所示，使用时，将灌溉管1埋于土壤6之下。As shown in Fig. 1 and Fig. 3, the end pipe 2 includes a horizontal part and a vertical part, the horizontal part of the end pipe 2 is connected with the irrigation pipe 1, and the vertical part of the end pipe 2 protrudes from the soil surface. As shown in FIG. 4 , when in use, the irrigation pipe 1 is buried under the soil 6 .

如图3所示，为便于连接，密封盖3的端面设置有安装环31，安装环31上设置外螺纹，安装环31伸入端管2内且安装环31与端管2另一端螺纹连接。As shown in Figure 3, in order to facilitate the connection, the end face of the sealing cover 3 is provided with a mounting ring 31, the mounting ring 31 is provided with external threads, the mounting ring 31 extends into the end pipe 2 and the mounting ring 31 is screwed to the other end of the end pipe 2 .

如图3所示，端管2的另一端为漏斗型的膨大部21，膨大部21内具有滤网5。滤网5的设置，避免杂质进入灌溉管2内。As shown in FIG. 3 , the other end of the end pipe 2 is a funnel-shaped enlarged portion 21 , and the enlarged portion 21 has a filter screen 5 inside. The setting of the filter screen 5 prevents impurities from entering the irrigation pipe 2 .

如图1、图3所示，水分探针4顶部具有探针固定箍41，探针固定箍41套设在灌溉管1的外壁。将灌溉管1埋于土壤之下后，水分探针4插入土壤内，进而对灌溉管1下方的土壤进行水分探测。As shown in FIG. 1 and FIG. 3 , the top of the moisture probe 4 has a probe fixing hoop 41 , and the probe fixing hoop 41 is sheathed on the outer wall of the irrigation pipe 1 . After the irrigation pipe 1 is buried under the soil, the moisture probe 4 is inserted into the soil to detect the moisture of the soil under the irrigation pipe 1 .

为延缓灌溉管1内水肥滴灌速率，提高植物对水肥的吸收率，如图5所示，灌溉管1内具有吸水海绵7。加入灌溉管1内的水肥，部分被吸水海绵吸附，然后缓慢释放，进而增加水肥的施加时间、减缓水肥的施加速率。In order to delay the drip irrigation rate of water and fertilizer in the irrigation pipe 1 and improve the absorption rate of water and fertilizer by plants, as shown in FIG. 5 , the irrigation pipe 1 has a water-absorbing sponge 7 . The water and fertilizer added to the irrigation pipe 1 are partially absorbed by the water-absorbing sponge, and then released slowly, thereby increasing the application time of water and fertilizer and slowing down the application rate of water and fertilizer.

如图6、图7所示，灌溉管1的外壁滑动安装有观察镜安装箍8，观察镜安装箍8的底部具有光学观察镜81，观察镜安装箍8的顶部具有手柄82。当需要观察土壤内韭蛆的生长状态、数量时，可以握住手柄82，滑动观察镜安装箍8，使得光学观察镜81于土壤中缓慢移动，通过光学观察镜81观察土壤中病原线虫的生长状态。As shown in Fig. 6 and Fig. 7, the outer wall of the irrigation pipe 1 is slidably installed with a viewing mirror mounting hoop 8, the bottom of the viewing mirror mounting hoop 8 has an optical viewing mirror 81, and the top of the viewing mirror mounting hoop 8 has a handle 82. When it is necessary to observe the growth state and quantity of leek maggots in the soil, you can hold the handle 82, slide the observation mirror mounting hoop 8, so that the optical observation mirror 81 moves slowly in the soil, and observe the growth of pathogenic nematodes in the soil through the optical observation mirror 81 state.

本发明还提供一种昆虫病原线虫防治韭蛆的水肥管理方法，包括以下步骤：The present invention also provides a water and fertilizer management method for entomopathogenic nematodes to prevent and treat chive maggots, comprising the following steps:

(1)通过端管向灌溉管内加入水肥和病原线虫，使得灌溉管内的水肥缓慢滴灌，病原线虫穿过滴灌孔钻入土壤内；(1) Add water and fertilizer and pathogenic nematodes into the irrigation pipe through the end pipe, so that the water and fertilizer in the irrigation pipe are slowly drip-irrigated, and the pathogenic nematodes drill into the soil through the drip irrigation holes;

(2)通过水分探针探测土壤内水分含量；当土壤中水分含量低于设定阈值后，向灌溉管内加入水，使得滴灌管内的水缓慢滴灌；(2) Use the moisture probe to detect the moisture content in the soil; when the moisture content in the soil is lower than the set threshold, add water to the irrigation pipe, so that the water in the drip irrigation pipe is dripped slowly;

(3)观察土壤中是否有韭蛆，当土壤内有韭蛆时，向灌溉管内加入化学药剂，使得化学药剂缓慢滴灌。(3) Observe whether there are leek maggots in the soil. When there are leek maggots in the soil, add chemical agents into the irrigation pipe to make the chemical agents slowly drip.

本发明通过灌溉管的设置，向植物根部滴灌水肥；通过灌溉管的设置，向土壤中输送病原线虫或化学药剂，进而杀灭土壤中的韭蛆幼虫，进而以病原线虫生物防治以及化学药剂化学防治的联合方式，对韭蛆进行防治。The present invention drips water and fertilizer to the roots of plants through the setting of irrigation pipes; through the setting of irrigation pipes, pathogenic nematodes or chemical agents are delivered to the soil, thereby killing leek maggot larvae in the soil; The joint way of prevention and treatment is carried out prevention and treatment to leek maggot.

Claims (9)

1. The utility model provides a liquid manure management device of entomopathogenic nematodes prevention and cure leek maggot, its characterized in that, including irrigation pipe, sealed lid and moisture probe, irrigation pipe transversely sets up and buries in soil, irrigation pipe's both ends have a terminal pipe respectively, terminal pipe's one end and irrigation pipe fixed connection, terminal pipe's the other end upwards extends, sealed lid is located another terminal pipe of terminal pipe and seals, irrigation pipe's bottom has the irrigation hole, moisture probe is located irrigation pipe bottom.
2. The water and fertilizer management device for preventing and controlling Chinese chive maggots by using entomopathogenic nematodes as set forth in claim 1, wherein the outer diameter of the irrigation pipe is larger than the outer diameter of the end pipe.
3. The water and fertilizer management device for preventing and controlling Chinese chive maggots by using entomopathogenic nematodes according to claim 2, wherein the end pipe comprises a horizontal part and a vertical part, the horizontal part of the end pipe is connected with the irrigation pipe, and the vertical part of the end pipe extends out of the soil surface.
4. The water and fertilizer management device for preventing and controlling Chinese chive maggots by using entomopathogenic nematodes as set forth in claim 1, wherein the sealing cover is screwed with the other end of the end pipe.
5. The water and fertilizer management device for preventing and controlling Chinese chive maggots by using entomopathogenic nematodes as set forth in claim 3, wherein the other end of the end pipe is a funnel-shaped expansion part, and a filter screen is arranged in the expansion part.
6. The water and fertilizer management device for preventing and controlling Chinese chive maggots by using entomopathogenic nematodes according to claim 1, wherein the top of the moisture probe is provided with a probe fixing hoop, and the probe fixing hoop is sleeved on the outer wall of the irrigation pipe.
7. The water and fertilizer management device for preventing and controlling Chinese chive maggots by using entomopathogenic nematodes as defined in claim 1, wherein the irrigation pipe is internally provided with a water-absorbing sponge.
8. The water and fertilizer management device for preventing and controlling Chinese chive maggots by using entomopathogenic nematodes according to claim 1, wherein a sight glass mounting hoop is slidably mounted on the outer wall of the irrigation pipe, an optical sight glass is arranged at the bottom of the sight glass mounting hoop, and a handle is arranged at the top of the sight glass mounting hoop.
9. The method for managing a water and fertilizer management device for controlling chive maggots by using entomopathogenic nematodes according to any one of claims 1 to 8, comprising the following steps:
(1) Adding water fertilizer and pathogenic nematodes into the irrigation pipe through the end pipe, so that the water fertilizer in the irrigation pipe is slowly drip-irrigated, and the pathogenic nematodes penetrate through drip-irrigation holes and are drilled into soil;
(2) Detecting the moisture content in the soil through a moisture probe; when the moisture content in the soil is lower than a set threshold value, adding water into the irrigation pipe, so that the water in the drip irrigation pipe is slowly drip-irrigated;
(3) Observing whether the soil contains Chinese chive maggots, and adding chemical agents into the irrigation pipe when the soil contains Chinese chive maggots, so that the chemical agents are slowly dripped.
