CN116100823A - Silica gel suit, labeling all-in-one - Google Patents

Abstract

The invention discloses a silica gel set and labeling integrated machine, comprising: a conveying device, which transports semi-finished products to various work stations; a feeding device, which inserts rubber plugs into semi-finished products; a labeling device, a labeling device Label the appearance of semi-finished products; the conveying device includes a conveyor belt, a deck for placing semi-finished products on the conveyor belt, and a fixedly installed unloading mechanism on the conveyor belt; Material component; feeding mechanism, the feeding mechanism includes a feeding arm, a pushing component and a reversing component, the feeding arm is fixedly connected to the pushing component, the pushing component is fixedly connected to the reversing component, and the reversing component is driven by the reciprocating rotation of the motor The pushing component changes direction. The invention can insert a sealing plug into the mouthpiece of the semi-finished product of the electronic cigarette, and at the same time, label the surface of the electronic cigarette, which has a high degree of automation and saves manpower compared with the traditional assembly method.

Description

Silicone suit, labeling all-in-one machine

technical field

The invention relates to the technical field of mechanical equipment, in particular to a silicone suit and labeling integrated machine.

Background technique

E-cigarettes are mainly composed of four parts: e-liquid, heating system, power supply and filter tip. Aerosol with specific smell is produced by heating and atomizing for smokers to use. Including electronic cigarettes, hookahs, hookah pens and other forms. With the development of hardware and software, some manufacturers have begun to develop fully automatic mechanical manufacturing of electronic cigarettes, eliminating the use of manual wiring, welding or electronics, in order to achieve higher safety and reliability. After the electronic cigarette parts are produced, the electronic cigarette needs to be assembled. At present, some manufacturers have also begun to study electronic cigarette assembly equipment to replace the traditional manual assembly method to meet market demand.

At present, some assembly equipment cannot realize the function of assembling the rubber plug at the cigarette holder, and manual assembly is still the main method, and the e-cigarette must be labeled when assembling. Therefore, in order to solve the problems existing in the current electronic cigarette assembly equipment, this patent proposes an all-in-one machine for silica gel suiting and labeling that can save manpower.

Contents of the invention

The purpose of the present invention is to solve the shortcomings in the prior art, and propose a silicone sleeve and labeling integrated machine, which can insert a sealing plug into the mouthpiece of the electronic cigarette, and at the same time label the surface of the electronic cigarette, automatically The degree is high, and it is more labor-saving than the traditional assembly method.

In order to achieve the above object, the present invention provides the following technical solutions:

Silicone set, labeling all-in-one machine, including:

A conveying device, which conveys the semi-finished product to each station;

Feeding device, the feeding device inserts the rubber plug into the semi-finished product; the feeding device includes a feeding mechanism and a feeding mechanism; the feeding mechanism includes a vibrating plate, a track and a material shifting There is a slot for placing the rubber plug on the top, and the rubber plug is sent to the bottom of the feeding mechanism to facilitate the feeding mechanism to grab the rubber plug; the feeding mechanism includes a feeding arm, a pushing component and a reversing component, and the feeding arm is fixedly connected On the pusher assembly, the pusher assembly is fixedly connected to the reversing assembly, and the reversing assembly drives the pusher assembly to reversing through the reciprocating rotation of the motor;

Labeling device, the labeling device labels the appearance of the semi-finished product; the labeling device includes a bracket, a fixed cylinder, and a roller installed at the bottom of the fixed cylinder; the bracket includes a vertical rod and a horizontal rod, and the horizontal rod Both the vertical rod and the vertical rod are provided with a waist-shaped hole, which is convenient for adapting to the specifications of the product when replacing the product, and the horizontal rod is fixedly connected with the fixed cylinder.

Preferably, the conveying device includes a conveyor belt, a deck on the conveyor belt for placing semi-finished products, and a material unloading mechanism fixedly installed on the conveyor belt.

Preferably, the unloading mechanism is fixedly connected to the discharge end of the conveying device, the unloading mechanism includes a support rod and a paddle, and when the conveyor belt is running, one end of the paddle can enter the deck and be positioned at The bottom of the semi-finished product, so that the semi-finished product can be automatically separated from the deck.

Preferably, the material moving assembly drives the bottom plate where the slot is located to slide through the connecting cylinder, so that the slot moves between the position aligned with the track and the position aligned with the feeding arm.

Preferably, one end of the feeding arm is provided with a groove matching the surface of the rubber plug, and the other end of the feeding arm is connected to the cylinder so that the feeding arm can absorb the rubber plug.

Preferably, the pusher assembly drives the slider where the feed arm is located to slide through the connecting cylinder, so that the feed arm approaches or moves away from the semi-finished product and the material transfer assembly.

Preferably, the feeding device further includes a pressing device, and the pressing device drives the pressing plate to slide through the connecting cylinder, so as to further compress the rubber plug on the semi-finished product.

Preferably, the silicone suit and labeling all-in-one machine also includes a body, a vibration governor, a control panel and an emergency stop button, the body is provided with a machine door, and the bottom of the body is provided with universal wheels and feet.

Compared with the prior art, the present invention has the beneficial effects of being able to insert a sealing plug into the mouthpiece of the semi-finished product of the electronic cigarette, and at the same time label the surface of the electronic cigarette, which has a high degree of automation and saves manpower compared with the traditional assembly method .

Description of drawings

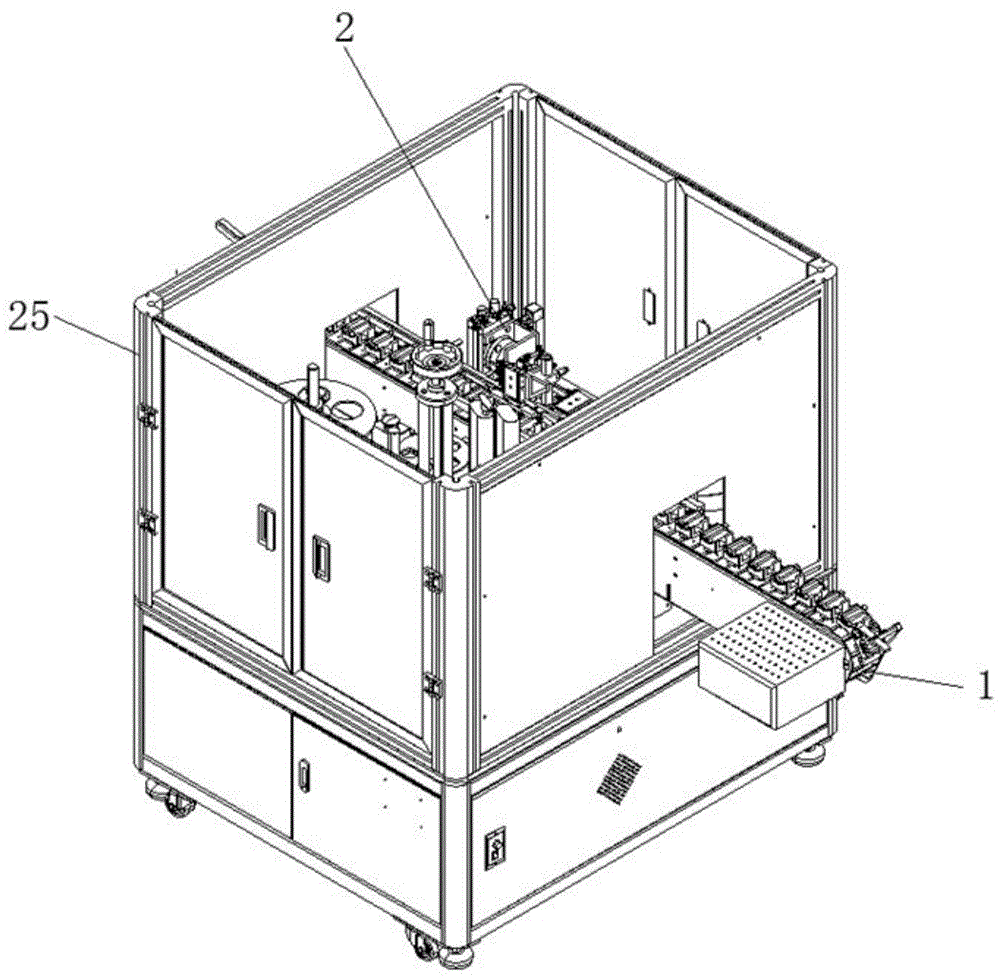

Fig. 1 is the schematic diagram of the three-dimensional structure of the silica gel suit and labeling all-in-one machine proposed by the present invention;

Fig. 2 is the top view of the structure of the silica gel suit and labeling all-in-one machine proposed by the present invention;

Fig. 3 is the three-dimensional structure schematic diagram of the feeding device in the silica gel suit and labeling all-in-one machine proposed by the present invention;

Fig. 4 is the schematic diagram of the three-dimensional structure of the conveying device in the silica gel suit and labeling all-in-one machine proposed by the present invention;

Fig. 5 is a three-dimensional structural schematic diagram of a labeling device in a silicone suit and a labeling all-in-one machine proposed by the present invention;

In the figure: 1. Conveying device; 2. Feeding device; 3. Labeling device; 4. Conveyor belt; ;10. Track; 11. Shifting component; 12. Slot; 13. Feeding arm; 14. Pushing component; 15. Reversing component; 16. Groove; 17. Bracket; 18. Fixed cylinder; 19. Roller ; 20, vertical rod; 21, horizontal rod; 22, support rod; 23, paddle;

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

Example

Please refer to Figure 1-2, the present invention provides the following technical solutions: a silicone suit and a labeling machine, including:

Conveying device, conveying device 1 transports semi-finished products to each station, and completes the workflow of packaging and labeling;

The feeding device 2, the feeding device 2 inserts the rubber plug into the semi-finished product; the feeding device 2 includes a feeding mechanism 7 and a feeding mechanism 8;

Labeling device 3, the labeling device 3 labels the appearance of the semi-finished product; the labeling device 3 includes a bracket 17, a fixed cylinder 18, and a roller 19 that is rotatably installed at the bottom of the fixed cylinder 18; when the conveyor belt is running, the pressure on the surface of the roller 19 and the electronic cigarette contact, the roller 19 obtains traction and rotates, thereby completing the labeling on the surface of the electronic cigarette.

In this embodiment, a sealing plug can be inserted into the mouthpiece of the electronic cigarette, and at the same time, a label can be attached to the surface of the electronic cigarette, which has a high degree of automation and saves manpower compared with the traditional assembly method.

As shown in FIGS. 2 and 4 , the conveying device 1 includes a conveyor belt 4 , a deck 5 on the conveyor belt 4 for placing semi-finished products, and a material unloading mechanism 6 fixedly installed on the conveyor belt 4 . Among them, there are guard plates on both sides of the conveyor belt 4 for installing the labeling device 3; the card holders 5 are evenly distributed on the conveyor belt 4, and there are support positions that match the shape of the electronic cigarette. The paddle 23 on the 6 extends into the gap, and the card holder 5 and the conveyor belt 4 are detachable and installed, which is convenient for replacing the card holder 5 of different specifications when assembling different electronic cigarettes; the unloading mechanism 6 is used for the assembled electronic cigarette remove.

As shown in Figure 3, the feeding mechanism 7 includes a vibrating plate 9, a track 10, and a material transfer assembly 11. The material transfer assembly 11 is provided with a slot 12 for placing rubber plugs, and the rubber plugs are sent to the bottom of the feeding mechanism 8, which is convenient. The feeding mechanism 8 grabs the rubber stopper. Wherein, the vibrating plate 9 places the rubber plug, and sends the rubber plug into the track 10, and moves to the slot 12; the material shifting assembly 11 sends the rubber plug to a position aligned with the lower part of the feeding arm 13;

The feeding mechanism 8 includes a feeding arm 13 , a pushing assembly 14 and a reversing assembly 15 . The feeding arm 13 is fixedly connected to the pusher assembly 14. One end of the feed arm 13 is provided with a groove 16 that matches the surface of the rubber plug, and the other end of the feed arm 13 is connected to the cylinder so that the feed arm 13 can absorb the rubber plug; the pusher assembly 14 Fixedly connected to the reversing assembly 15, the pusher assembly 14 drives the slider where the feeding arm 13 is located to slide through the connecting cylinder, so that the feeding arm 13 is close to or away from the semi-finished product and the material moving assembly 11; the reversing assembly 15 is driven by the reciprocating rotation of the motor Push material assembly 14 reversing. After the material-moving component 11 sends the rubber plug to the position aligned with the lower part of the feeding arm 13, the pushing component 14 operates to make the feeding arm 13 approach the rubber plug in the slot 12, and suck the rubber plug, and the pushing component 14 On the return trip, the motor runs to make the feeding arm 13 rotate to align with the mouthpiece of the electronic cigarette, the pushing mechanism starts again, pushes the rubber plug into the mouthpiece, the pushing mechanism returns again, and the motor rotates the feeding arm 13 to the initial position to carry out Next delivery.

The feeding mechanism 7 is used in conjunction with the feeding mechanism 8 . This design enables the electronic cigarette to travel in a flat manner, which is convenient for the operation of the subsequent labeling device 3 .

As shown in Figures 4-5, the bracket 17 includes a vertical bar 20 and a horizontal bar 21, and the horizontal bar 21 and the vertical bar 20 are provided with waist-shaped holes, and the horizontal bar 21 or the vertical bar 20 can be installed by screws. The position is adjusted, so that the labeling position of the cylinder 19 is changed, so that the specifications of the product can be adapted when the product is replaced; the horizontal rod 21 is fixedly connected with the fixed cylinder 18.

As shown in Figure 4, the unloading mechanism 6 is fixedly connected to the discharge end of the conveying device 1. The unloading mechanism 6 includes a support rod 22 and a paddle 23. When the conveyor belt 4 is running, one end of the paddle 23 can enter the deck 5 It is located at the bottom of the semi-finished product, so that the semi-finished product is automatically separated from the deck 5, and the finished product is automatically unloaded through a relatively simple result.

As shown in Figure 3, the moving assembly 11 drives the bottom plate where the slot 12 is located to slide through the connecting cylinder, so that the slot 12 moves between the position aligned with the rail 10 and the position aligned with the feeding arm 13, and then the glue can be moved. The plugs are brought out of the track 10 one by one, so that the feeding arm 13 can grab the plugs.

As shown in Figure 2 and Figure 4, the feeding device 2 also includes a pressing device 24, which drives the pressing plate to slide through the connecting cylinder, so as to further compress the rubber plug on the semi-finished product and prevent the rubber plug from falling.

As shown in Fig. 1, Fig. 2 and Fig. 4, the silicone suit and labeling machine also includes a body 25, a vibration governor 26, a control panel 27 and an emergency stop button 28, wherein the body 25 is the conveying device 1, the feeding The device 2 and the labeling device 3 provide installation positions and form a semi-closed device. The vibration governor 26 is used to adjust the operation of the vibrating plate 9; the machine body 25 is provided with a machine door, and the bottom of the body 25 is provided with universal wheels and feet .

The working principle and usage process of the present invention: put the semi-finished product of the electronic cigarette on the card holder 5, the vibrating plate 9 sends the rubber plug into the track 10, and moves it to the slot 12 of the material transfer component 11, and the material transfer component 11 will After the rubber plug is sent to the position aligned with the lower part of the feeding arm 13, the pushing mechanism operates, so that the feeding arm 13 is close to the rubber plug in the slot 12, and the rubber plug is sucked, the pushing component 14 returns, and the motor runs to make the feeding The arm 13 rotates to align with the mouthpiece of the electronic cigarette, and the pushing mechanism starts again to push the rubber plug into the mouthpiece. This design enables the electronic cigarette to travel in a flat position, which is convenient for the follow-up labeling device 3 to be placed on the electronic cigarette. The side surface of the cigarette is labeled, and then the pressing plate on the pressing device 24 further compresses the rubber plug on the semi-finished product to prevent the rubber plug from falling off; when the electronic cigarette moves to the bottom of the drum 19, the electronic cigarette and the drum are in pressure contact with each other, and the drum 19 obtains traction and rotates, so that the label on the drum 19 is attached to the side surface of the electronic cigarette.

The above is only a preferred embodiment of the present invention, but the scope of protection of the present invention is not limited thereto, any person familiar with the technical field within the technical scope disclosed in the present invention, according to the technical solution of the present invention Any equivalent replacement or change of the inventive concepts thereof shall fall within the protection scope of the present invention.

Claims (8)

1. The all-in-one machine for silica gel suit and labeling is characterized in that it includes: A conveying device, which conveys the semi-finished product to each station; Feeding device, the feeding device inserts the rubber plug into the semi-finished product; the feeding device includes a feeding mechanism and a feeding mechanism; the feeding mechanism includes a vibrating plate, a track and a material shifting There is a slot for placing rubber plugs; the feeding mechanism includes a feeding arm, a pushing assembly and a reversing assembly, the feeding arm is fixedly connected to the pushing assembly, and the pushing assembly is fixedly connected to the reversing assembly On, the reversing assembly drives the pushing assembly to reversing through the reciprocating rotation of the motor; Labeling device, the labeling device labels the appearance of the semi-finished product; the labeling device includes a bracket, a fixed cylinder, and a roller installed at the bottom of the fixed cylinder; the bracket includes a vertical rod and a horizontal rod, and the horizontal rod Both the vertical rod and the vertical rod are provided with waist-shaped holes, and the horizontal rod is fixedly connected with the fixed cylinder. 2. The all-in-one machine for silicone packaging and labeling according to claim 1, characterized in that: the conveying device includes a conveyor belt, a holder on the conveyor belt for placing semi-finished products, and a fixedly installed unloading mechanism on the conveyor belt. 3. The silicone suit and labeling machine according to claim 2, characterized in that: the unloading mechanism is fixedly connected to the discharge end of the conveying device, the unloading mechanism includes a support rod and a paddle, and When the conveyor belt is running, one end of the plectrum can enter the deck and be located at the bottom of the semi-finished product, so that the semi-finished product can be automatically separated from the deck. 4. The all-in-one machine for silica gel suiting and labeling according to claim 1, characterized in that: the moving assembly drives the bottom plate where the slot is located to slide through the connecting cylinder, so that the slot is aligned with the track and aligned with the feeding arm Move between aligned positions. 5. The silicone suit and labeling machine according to claim 1, characterized in that: one end of the feeding arm is provided with a groove matching the surface of the rubber plug, and the other end of the feeding arm is connected to the cylinder so that the feeding arm Capable of absorbing rubber stoppers. 6. The all-in-one machine for silicone sleeve and labeling according to claim 1, characterized in that: the pusher assembly drives the slider where the feeder arm is located to slide through the connecting cylinder. 7. The all-in-one machine for silicone sleeve and labeling according to claim 1, characterized in that: the feeding device further includes a pressing device, and the pressing device drives the pressing plate to slide through a connecting cylinder. 8. The all-in-one machine for silica gel suit and labeling according to any one of claims 1-7, characterized in that: it also includes a body, a vibration governor, a control panel and an emergency stop button, and the body is provided with a machine door , the bottom of the body is provided with universal wheels and feet.
