Abstract

The invention discloses a steaming oven and an integrated stove with a steaming and roasting function, which relate to the technical field of kitchen appliances and include a box for placing food. The bottom end is provided with a drainage hole, and the outside of the box is provided with a discharge component that communicates with the drain hole. The inner wall of the box is provided with a heating pipe that heats up the inside of the box. An integrated cooker with a steaming and roasting function, including a cooker, the cooker is provided with an inner cavity, and the inner cavity is provided with the above-mentioned steaming oven. When the existing steaming oven and integrated cooker for steaming and roasting food are in use, the grease sticks It is highly resistant, and it is attached to the inner wall of the box, and it is very time-consuming and laborious for personnel to remove it. The steam oven and the integrated stove with steaming and baking functions provided by the present invention can facilitate the removal of grease inside the box, and the overall experience of personnel is improved.

Description

A steam oven and an integrated stove with a steam oven function

technical field

The invention relates to the technical field of kitchen electric equipment, in particular to a steam oven and an integrated stove with a steam and oven function.

Background technique

With the continuous improvement of people's quality of life, kitchen appliances are becoming more and more abundant. Microwave ovens, ovens, steamers, integrated stoves, etc. have gradually become necessary kitchen appliances for family life. Each product needs to occupy a certain amount of kitchen space and must be purchased separately. The cost is high. In order to effectively use the kitchen space and reduce the purchase cost, the integration of existing kitchen utensils is getting higher and higher. The appearance of the steam oven represents the integration of the steamer and the oven, which effectively reduces the occupied area. It can not only steam and bake, but also It can defrost and ferment, and is more suitable for daily use. The integrated stove is a kitchen appliance that further integrates multiple functions such as a steam oven, a range hood, a gas stove, a disinfection cabinet, and a storage cabinet.

When the existing medium-steamed oven is in use, food exists on the material tray during the heating process, and the heating of the food tends to produce some grease that adheres to the inner wall of the box body. After use, personnel are required to clean it up, but the grease The adhesiveness is high, and it is attached to the inner wall of the box. It is very time-consuming and laborious for personnel to remove it manually, which greatly reduces the overall experience of personnel.

Contents of the invention

The purpose of the present invention is to provide a steaming oven and an integrated stove with a steaming and baking function, which can facilitate the removal of grease inside the box.

The above-mentioned technical purpose of the present invention is achieved by the following technical solutions: a steaming oven, comprising a box for placing food, a steaming and baking assembly for steaming and roasting food is arranged outside the box, and the inner bottom of the box is A drainage hole is provided, and a discharge assembly is arranged on the outside of the box to communicate with the drainage hole. The inner wall of the box is provided with a heating pipe for heating the inside of the box, and the inside of the box is provided with a The exhaust port connected to the above-mentioned steaming and grilling components.

Preferably, the discharge assembly includes a driving member arranged outside the box body and a leaking pipe connecting its inlet end to the drain hole, and an oil receiving box is arranged at the outlet end of the driving member.

Preferably, the bottom side of the inner wall of the box is tapered toward the drain hole.

Preferably, a temperature sensor is arranged inside the box.

Preferably, the heating pipe is capable of drying the inside of the box.

Preferably, an energy-gathering reflective cleaning plate is slidably arranged on the heating pipe inside the box.

An integrated cooker with steaming and roasting functions, comprising a cooker top, the cooker top is provided with an inner cavity, and the inner cavity is provided with the steam oven.

Preferably, an oil receiving plate is arranged inside the inner cavity, the oil receiving plate is located between the driving member and the oil receiving box, and a through hole is opened in the middle of the oil receiving plate.

Preferably, the upper side of the oil receiving plate is arranged in an inverted tapered shape toward the through hole.

Beneficial effects of the present invention: Compared with the prior art, the steam oven of the present invention utilizes a heating tube arranged on the box body, and the heating tube heats up and cools down the inside of the box body to achieve the control of the solid-liquid form of the oil inside the box body. Transformation, and the steaming and baking components installed on the box form a high-temperature steam environment inside the box, and the high-temperature steam decomposes the grease, changing the existing way of cleaning the grease in the box manually by personnel, reducing the cleaning labor of personnel At the same time, it improves the cleaning effect of the grease inside the box. Compared with the cleaning of the partial coverage of personnel, the heating pipe fully liquefies the grease inside the box at high temperature. At the same time, the drain hole is set at the bottom of the box and through The driving parts are transported to the oil receiving box, so that the water drops formed by the steam inside the box and part of the grease wrapped by the water droplets are guided out of the box, which strengthens the overall effect of removing the oil inside the box. After the grease is removed, Through the heating of the heating tube, the residual water vapor inside the box can be dried, and there is no need for later personnel to clean up the water vapor attached to the inner wall of the box, which further reduces the cleaning labor of the personnel. The energy-gathering reflection cleaning plate is set above the tube, which can make the floating grease adhere to its lower surface and avoid it from adhering to the upper surface of the inner wall of the box itself. Pull it out for cleaning, which is convenient for cleaning. At the same time, it can reflect the energy of the heating pipe when the heating pipe is working, and reflect the energy emitted upwards to the middle of the box body, which improves the utilization of the energy of the heating pipe. The integrated stove with steaming and roasting functions, by setting the steaming oven inside the integrated stove, and setting a stove on the countertop, the user can realize the cooking function through the stove, and the steaming oven can realize the function of steaming and roasting food, and the overall function is more perfect , It takes up less space in the kitchen, and it is more convenient to clean the grease inside the steam oven, which improves the experience of personnel.

Description of drawings

Fig. 1 is a schematic diagram for separately showing the partial structure of a steaming oven in an embodiment of the present invention;

Fig. 2 is a schematic diagram for separately showing the internal structure of the steam oven in one embodiment of the present invention;

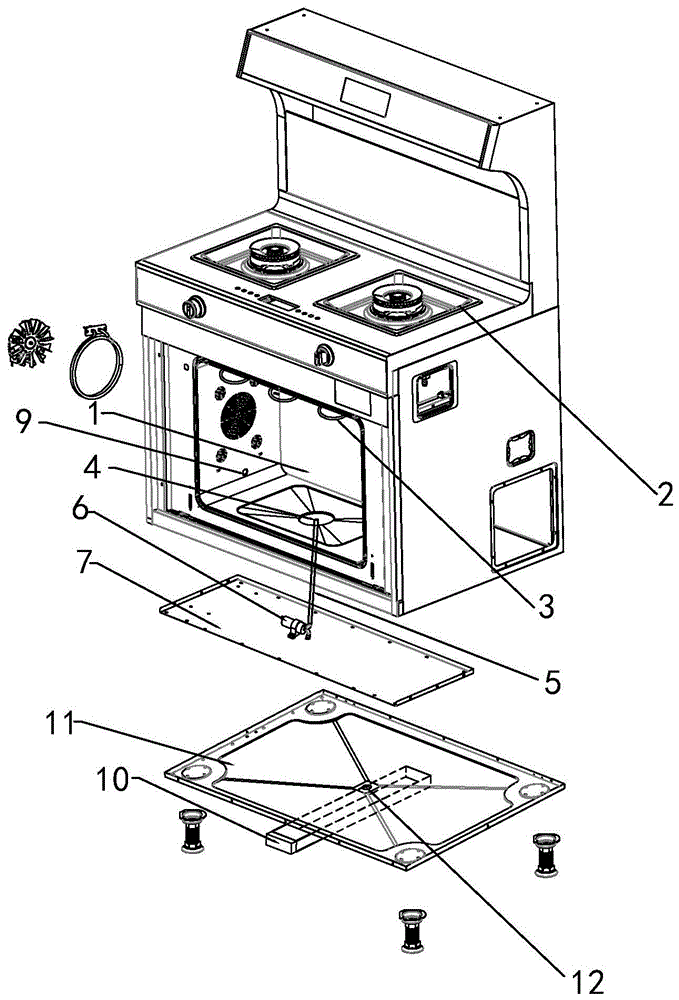

Fig. 3 is a schematic diagram for showing part of the internal mechanism of the integrated stove in an embodiment of the present invention;

Fig. 4 is a schematic diagram for showing a concentrated energy reflective cleaning board in an integrated stove according to an embodiment of the present invention.

Reference signs: 1. Box body; 2. Cooktop; 3. Heating pipe; 4. Drainage hole; 5. Leakage pipe; 6. Driver; 7. Bottom plate; 8. Temperature sensor; 9. Steam outlet; 10 1. Oil receiving box; 11. Oil receiving plate; 12. Through hole; 13. Energy-gathering reflection cleaning plate.

Detailed ways

The following description is only a preferred embodiment of the present invention, and the scope of protection is not limited to this embodiment. All technical solutions belonging to the thinking of the present invention should belong to the scope of protection of the present invention. As far as personnel are concerned, some improvements and modifications without departing from the principle of the present invention should also be regarded as the protection scope of the present invention.

It should be noted that the orientation words mentioned in this embodiment, such as "up, down, left, right", etc., are only used in conjunction with the drawings to enable those skilled in the art to understand the relationship between various features or parts, etc. .

In this embodiment, unless otherwise specified and limited, the terms "connection" and "fixation" should be interpreted in a broad sense, for example, "fixation" can be a fixed connection, a detachable connection, or an integral body; It can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediary, and it can be an internal connection between two components or an interaction relationship between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention according to specific situations.

As shown in Figures 1 to 2, a steaming oven includes a box body 1 for placing food, and a steaming and baking assembly (not shown in the drawings) for steaming and baking food is fixed outside the box body 1. In this embodiment, The steaming assembly adopts the technical equipment conventionally used by those skilled in the art, and consists of a water tank (not shown in the accompanying drawings) and a heater (not shown in the accompanying drawings) communicated with it and a steam outlet pipe (not shown in the accompanying drawings) communicated with the inside of the casing 1 not shown), a circulating fan (not shown in the accompanying drawings), and a side high-temperature heating tube (not shown in the accompanying drawings), the purpose of which is to steam and roast the food inside the cabinet 1.

A serpentine heating pipe 3 is fixed on the inner top side of the box body 1, a temperature sensor 8 is fixed on the upper end of the inner wall of the box body 1, and a steam exhaust port 9 is pierced on the inner wall of the box body 1. It should be noted that the exhaust steam There is at least one port, and the opening position and personnel can be changed according to the actual situation.

One end of the steam outlet pipe (not shown in the accompanying drawings) in the steaming and baking assembly communicates with the steam exhaust port 9. The purpose is to deliver water to the heater through the water tank and heat it into high-temperature steam to flow into the steam outlet pipe when outputting high-temperature steam. The exhaust port 9 is output to the inside of the box body, and the outside of the box body is provided with a driver 6. In this embodiment, the driver 6 is preferably used as a water pump. The purpose is to provide a certain power for the transfer of grease, and at the same time During the internal operation of the water pump, the grease is not easy to adhere to the inside, so as to reduce the accumulation of grease inside and affect its working efficiency. The inlet end of the driving part 6 is connected with a leaking pipe 5, and the outlet end of the driving part 6 is provided with a rectangular The oil receiving box 10 has a circular drain hole 4 in the middle of the bottom side of the inner wall of the box body 1, and the end of the leaking pipe 5 away from the driver 6 communicates with the drain hole 4, and the bottom side of the inner wall of the box body 1 is conical in the direction of the drain hole 4. The purpose is to effectively guide the water drops and grease inside the box body 1 into the drain hole 4 .

In this embodiment, an energy-gathering reflection cleaning plate 13 is arranged inside the box body 1 directly above the heating pipe 3, and the upper side of the energy-gathering reflection cleaning plate 13 is consistent with the length and width of the upper surface of the inner wall of the box body 1, and is in the shape of a cuboid. , there are curved angles at the left and right ends. One function of the energy-gathering reflection cleaning plate 13 is to cover the upper surface of the inner wall of the box to reduce its adhesion to grease or oil. The upper side of the energy-gathering reflection cleaning plate 13 is in contact with the casing 1 The upper surface of the inner wall slides and connects horizontally along the depth direction of the box body 1. It is made of stainless steel. When the energy-gathering reflection cleaning plate 13 needs to be cleaned, the personnel can open the box body 1 after confirming the overall cooling, and extend into the box body 1. Pull out the energy-gathering reflection cleaning plate 13 to clean it. When the personnel start to use the heating tube 3, the energy-gathering reflection cleaning plate 13 located directly above the heating tube 3 has the effect of reflecting the energy on the heating tube 3. The energy-gathering reflection cleaning plate 13 It not only reduces the adhesion of grease and oil to the upper surface of the inner wall of the box body 1, but also effectively improves the utilization of the energy of the heating pipe 3, and improves the experience of customers during use.

As shown in Figures 3 to 4, this embodiment also provides an integrated cooker with a steaming and baking function, including a cooker 2, an inner cavity (not shown in the drawings) is opened at the lower end of the cooker 2, and the above-mentioned steam cooker is also included. The oven and the steam oven are embedded and installed in the inner cavity of the cooktop 2, and a rectangular parallelepiped bottom plate 7 is fixed horizontally inside the inner cavity and at the lower end of the outer wall of the box body 1 of the steam oven, and a rectangular parallelepiped oil receiving plate 11 is fixed below the bottom plate 7 , the middle part of the oil receiving plate 11 is provided with a circular through hole 12, the upper side of the oil receiving plate 11 is designed in an inverted tapered direction towards the through hole 12, the oil receiving box 10 is located directly below the oil receiving plate 11, and the through hole 12 is located The oil receiving box 10 is directly above.

When a certain amount of solidified grease adheres to the inner wall of the box body 1, the personnel first close the opening at the front end of the upper box body 1 to stop the food processing, and then control the drive part 6 to be in the open state through the control system, and the control system will control the steaming and baking at the same time. The component starts steaming mode. Guided by the steam outlet pipe, the exhaust port 9 outputs high-temperature steam at 100 degrees Celsius to the inside of the box body 1. The high-temperature steam is sprayed into the box body 1 through the steam exhaust port 9. The high-temperature steam will communicate with the box body The grease on the inner wall of the body 1 contacts and decomposes the grease, and the condensed water droplets will flow out of the inside of the casing 1 through the drain hole 4 at the lower end of the casing 1 with the grease. In this embodiment, the output time of the high-temperature steam at 100 degrees Celsius is controlled at 10 Between minutes and 30 minutes, it should be noted that the temperature sensor 8 will continue to detect. When the temperature is insufficient, it will control the steaming and baking components to recirculate into new high-temperature steam through the control system to ensure the temperature of the high-temperature steam. The water flow formed by the steam enters the leaking pipe 5 through the drain hole 4 and is transferred to the oil receiving plate 11 by the driving member 6, and flows into the oil receiving plate 11 from the inverted tapered surface on the upper side of the oil receiving plate 11 to the through hole 12 in the middle. The oil box 10 is stored in the oil box 10 to complete the removal of the grease in the box body 1. After the grease is removed, there are still some water stains inside the box body 1. The control system controls the heating tube 3 to heat again, and the water vapor inside the box body 1 Carry out drying treatment to prevent the internal growth of bacteria. In this embodiment, the temperature range of the heating tube 3 for drying treatment is controlled at 120 degrees to 150 degrees, and the time range is controlled between 10 minutes and 20 minutes. At the same time, the temperature sensor 8 will Real-time detection is performed, and the heating tube 3 is controlled to repeatedly heat between 120 degrees and 150 degrees.

The above-mentioned embodiment is an illustration of the present invention, not a limitation of the present invention, and any solution after a simple transformation of the present invention belongs to the protection scope of the present invention.

Claims (9)

1. A steaming oven, comprising a box (1) for placing food, and a steaming and baking component for steaming and roasting food is arranged outside the box (1), It is characterized in that a drainage hole (4) is provided at the inner bottom of the box body (1), and a discharge assembly is provided outside the box body (1) to communicate with the drainage hole (4); The inner wall of the box (1) is provided with a heating pipe (3) for heating the inside of the box (1); The inside of the box (1) is provided with a steam outlet (9) communicating with the steaming and baking assembly. 2. A steam oven according to claim 1, characterized in that the drain assembly includes a drive member (6) arranged outside the box body (1) and connects its inlet end with the drain hole (4) The connected leakage pipe (5), the outlet end of the driving member (6) is provided with an oil receiving box (10). 3 . The steam oven according to claim 1 , characterized in that, the bottom side of the inner wall of the box ( 1 ) is tapered toward the drainage hole ( 4 ). 4 . 4. A steam oven according to claim 1, characterized in that a temperature sensor (8) is arranged inside the box (1). 5. The steam oven according to claim 1, characterized in that, the heating pipe (3) is capable of drying the inside of the box (1). 6 . The steam oven according to claim 1 , characterized in that, inside the box body ( 1 ), an energy-gathering reflective cleaning plate ( 13 ) is slidably arranged on the heating tube ( 3 ). 7. An integrated cooker with a steaming and roasting function, comprising a cooker (2), the cooker (2) is provided with an inner cavity, characterized in that the inner cavity is provided with a The steam oven. 8. The integrated cooker with steaming function according to claim 7, the inner cavity is provided with an oil receiving plate (11), and the oil receiving plate (11) is located between the driving member (6) and A through hole (12) is opened between the oil receiving boxes (10) and in the middle of the oil receiving plate (11). 9. The integrated cooker with steaming and roasting functions according to claim 8, characterized in that, the upper side of the oil receiving plate (11) is arranged in an inverted tapered shape toward the through hole (12).
