Abstract

The invention discloses a high-efficiency wet electrostatic precipitator for organic waste gas and its use method, comprising a main body, a vibrator, a driver and a collection box. A dust collector is installed on the inner wall of the main body, and a vibrator is installed on the outer wall of the dust collector. The outer wall of the striking rod is surrounded by a first spring, the top of the vibrator is equipped with a first motor, the output end of the first motor is equipped with a rotating shaft, and the outer wall of the rotating shaft is equipped with a plurality of impact blocks . The invention can clean the dust by installing a vibrator. When cleaning the dust remover, start the vibrator, the vibrator; the first motor on the top drives the rotating shaft and the impact block to rotate, and the impact block squeezes the impact bar, so that the impact bar hits For the dust collector, the first spring is extended, and then the dust collector vibrates to make the dust fall off, realizing the cleaning function. In addition, the first water pump starts to spray the inside of the dust collector, making the dust flow down further, realizing the cleaning function.

Description

A high-efficiency wet electrostatic precipitator for organic waste gas and its use method

technical field

The invention relates to the technical field of wet electrostatic precipitators, in particular to a high-efficiency wet electrostatic precipitator for organic waste gas and a method for using the same.

Background technique

Its working principle is to spray atomized water to the discharge electrode and corona area. Since the specific resistance of atomized water is relatively small, after it combines with dust in the corona area, the specific resistance of high specific resistance dust can be reduced. The atomized water splits after being charged in the corona field formed by the electrodes, further atomized, the electric field force, the collision interception of the charged water mist, adsorption and condensation, together play a role in trapping the dust particles, and finally make the dust particles in the Driven by the force of the electric field, it reaches the dust collector and is collected. The continuous water film formed by the spray washes the captured dust into the ash hopper for discharge.

The defects of existing wet electrostatic precipitator are:

1. The patent document CN113664674A discloses an environmentally friendly dust removal equipment suitable for the grinding field. The protection rights "include: the equipment base, the grinding machine and the dust collection component. The equipment base includes the working area and the protection area. The grinding machine is installed in the The working area of the equipment base, the working area of the equipment base is provided with a ventilation net. The grinding machine includes: a fixed frame, a sandpaper grinding belt and a driving mechanism; , vacuum cleaner and dust suction pipe, the dust collection port faces the ventilation net, the vacuum cleaner is installed inside the equipment frame and in the protection area, and the dust suction pipe connects the dust collection port and the vacuum cleaner. Among them, the equipment frame includes: A protective door, a second protective door and a safety lock, the first protective door and the second protective door are covered in the protective area of the equipment base, and the safety lock controls the locking of the first protective door and the second protective door. The application of the present invention The environmental protection dust removal equipment in the grinding field can carry out dust removal treatment in time during the grinding process and improve production efficiency.” Most of the existing devices only rely on water to clean the dust, and the dust attached to the inner wall is not washed clean, which is easy to cause Dust removal effect becomes poor;

2. The patent document CN111359315A discloses dust removal equipment, and the protection right "relates to the field of dust removal technology. The dust removal equipment includes a cyclone dust collector, a static pressure box, a dust collection pipe and a cylindrical filter. The side wall of the cyclone dust collector is provided with an air inlet The top of the cyclone dust collector is provided with an air outlet, and the bottom of the cyclone dust collector is provided with a dust collection bin. The air inlet, air outlet, and dust collection bin are all connected to the inner cavity of the cyclone dust collector. The pipes are all fixed in the inner cavity of the cyclone dust collector, the dust collection pipe extends to the dust collection bin, and the air inlet channel is formed between the bottom of the static pressure box and the outer pipe wall of the dust collection pipe, the inner cavity of the cyclone dust collector, the static The inner cavity of the plenum and the inner cavity of the dust collection pipe are connected with the air intake passage. The cylindrical filter element is fixed in the inner cavity of the static pressure box and extends from the inner cavity of the static pressure box to the inner cavity of the dust collection pipe, and the cylinder The air outlet of the shape filter element is connected with the air outlet. The dust removal equipment has achieved a better dust removal effect through the secondary dust removal of the cyclone dust collector and the cylindrical filter element. Most of the existing devices lack the dust collection structure, making Dust accumulates inside the device, which is not convenient enough;

3. The patent document CN204395664U discloses bag-type dust removal equipment, and the protection item "it includes a top seat, a ventilation barrel, an inner ring and a sealing ring. The top seat is circular, and the inner ring and the top seat are integrally formed. There is a buckle on the top of the inner ring, and the upper end of the air exchange barrel passes through the top seat and the center hole of the inner ring and extends to the top of the inner ring. The upper part of the air exchange barrel is the barrel body, and the lower end of the air exchange barrel is the assembly Limiting surface, the middle part of the assembly limiting surface is a torus, the inner diameter of the torus is slightly smaller than the diameter of the center hole of the top seat, the outer diameter of the torus is larger than the diameter of the center hole of the top seat, the ring The outer circumference of the surface is provided with a plurality of connecting pieces at intervals of a certain angle. The connecting piece is provided with an assembly hole, and a corresponding through hole is provided on the top seat corresponding to the assembly hole. The assembly hole is fixedly connected with the top seat through bolts or screws. The advantage of the bag-type dust removal equipment of the present invention is that it has good sealing performance, is easy to assemble, and is not easy to rust and deform. Detection requires staff to check, which increases the workload of staff;

4. The patent document CN106111343A discloses electric dust removal equipment, and the right to protect "belongs to the field of environmental protection, including a chassis, a rapping device and a multilayer electrode plate. The chassis includes a cavity, and the multilayer electrode plates are respectively installed in the chassis; The beating device includes an intermittent rotating mechanism, a connecting rod and a plurality of beating parts. The intermittent rotating mechanism is installed on the chassis, and the output end of the intermittent rotating mechanism drives the connecting rod. The hammering parts are respectively installed on the connecting rods. Multiple hammering parts are arranged at intervals along the axial direction of the connecting rods. The multiple hammering parts correspond to the multilayer electrode plates one by one. The rotation of the connecting rod drives the hammering parts to rotate, and the hammering parts rotate intermittently The electric dust removal equipment provided by the present invention is equipped with an intermittent rotation mechanism, and the intermittent rotation mechanism drives the connecting rod to do intermittent rotation, so that the hammering parts have enough time between two consecutive impacts on the electrode plate to let the dust Deposition, so as to avoid secondary ash and make dust removal more thorough." Most of the existing devices lack discharge devices, which cannot discharge dust and are not convenient enough.

Contents of the invention

The purpose of the present invention is to provide a high-efficiency wet electrostatic precipitator for organic waste gas and its use method, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the present invention provides the following technical solutions: a high-efficiency wet electrostatic precipitator for organic waste gas, including a main body, a vibrator, a driver and a collection box, the inner wall of the main body is equipped with a dust collector, and the outer wall of the dust collector is installed There is a vibrator, the inner wall of the vibrator is equipped with a fixed plate, the outer wall of the fixed plate is installed with a plurality of strike bars, the outer wall of the strike bar is surrounded by a first spring, and the top of the vibrator is installed with a A first motor, a rotating shaft is installed on the output end of the first motor, and a plurality of impact blocks are installed on the outer wall of the rotating shaft;

Two sets of water tanks are installed on the top of the main body, a collection box is installed on the bottom of the main body, and a driver is installed on the outer wall of the collection box.

Preferably, a display screen is installed on the front of the main body, a control button is installed on the front of the main body, a support column is installed on the bottom of the main body, a material inlet is installed on one side of the main body, and a discharge port is installed on the other side of the main body. mouth.

Preferably, a vertical plate is installed on the outer wall of the dust collector, a horizontal plate is installed on the outer wall of the vertical plate, and a plurality of conductive columns are installed on the bottom of the horizontal plate.

Preferably, the inner bottom wall of the water tank is equipped with a waterproof casing, the inner bottom wall of the waterproof casing is installed with a first water pump, the output end of the first water pump is installed with a deflector, and a plurality of spray pipes are installed at the bottom of the deflector , and the bottom of the spray pipe extends into the interior of the dust collector, and a detector is installed on the inner bottom wall of the water tank.

Preferably, the output end of the first motor extends into the inside of the vibrator, the control button is located below the display screen, the bottom of the conductive column extends into the inside of the dust collector, and the input end of the first water pump extends Out of the outer wall of the waterproof case, the output end of the first water pump extends into the interior of the main body.

Preferably, a battery is installed on the inner bottom wall of the detector, a torsion spring is installed on the inner wall of the detector, a rotating shaft is installed on one end of the torsion spring, a wire is installed around the outer wall of the rotating shaft, and a floating block is installed on one end of the wire. An infrared emitter is installed on the inner wall of the floating block, a fixed shell is installed on the inner wall of the water tank, and an infrared receiver is installed on the inner wall of the fixed shell.

Preferably, a fan is installed on the inner wall of the driver, a filter is installed on the inner wall of the driver, a slanting plate is installed on the inner wall of the driver, a lifting rod is installed through the top of the sloping plate, and a second spring is installed around the outer wall of the lifting rod. The inner wall of the first motor is installed with a first motor, the output end of the first motor is installed with a bump, the bottom of the inclined plate is installed with a discharge pipe, the inner wall of the discharge pipe is installed with a sealing groove, and the outer wall of the discharge pipe is installed with a sealing column. A third spring is installed around the outer wall of the sealing column, and a second motor is installed on the inner bottom wall of the driver, and the output end of the second motor is connected to the sealing column through a cable.

Preferably, a collection plate is installed on the inner wall of the collection box, an exhaust pipe is installed through the outer wall of the collection box, an installation plate is installed on the inner wall of the collection plate, an electric telescopic rod is installed on the outer wall of the installation plate, and an electric telescopic rod is installed on the outer wall There is a sealing plate, the top of the collecting plate is provided with a plurality of collecting holes, and one end of the sealing plate extends out of the outer wall of the collecting hole, the inner bottom wall of the main body is installed with a second water pump, and the input end of the second water pump extends into the inside of the collecting box , the output end of the second water pump extends out of the outer wall of the main body.

Preferably, a control valve is installed on the outer wall of the exhaust pipe, a sealing gasket is installed on the inner bottom wall of the control valve, a fixing frame is installed on the top of the control valve, an electric push rod is installed on the inner top wall of the fixing frame, and the electric push rod An adjustment plate is installed at the bottom.

Preferably, the working steps of the device are as follows:

S1. When cleaning the dust collector, start the vibrator, the vibrator; the first motor on the top drives the rotating shaft and the impact block to rotate, and the impact block squeezes the impact rod, so that the impact rod hits the dust collector, the first spring stretches, and then the dust is removed The dust collector vibrates to make the dust fall off to realize the cleaning function. In addition, the first water pump starts to spray the inside of the dust collector to make the dust flow down further to realize the cleaning function;

S2. The sewage flowing down is intercepted by the collection plate, and then the electric telescopic rod shrinks to drive the sealing plate to move, so that the collection hole is opened, and the sewage enters the inside of the collection box to realize the collection function of sewage;

S3. When the water in the water tank is lowered, the floating block is lowered, and the torsion spring drives the rotating shaft to rotate, so that the cable is tightened, and the corresponding infrared receiver receives the signal from the infrared transmitter, so that the water level in the water tank can be known and realized. detection function;

S4. When the sewage needs to be discharged, the second water pump starts to work to extract the sewage in the collection box to realize the discharge function. When cleaning the filter screen, the first motor drives the bump to rotate, so that the lifting rod hits the filter screen, and the filter screen The attached dust falls, and then the second motor drives the cable to shrink, so that the sealing column is separated from the sealing groove, so that the dust falls out, and the discharge function is realized.

Preferably, said in S1 also includes the following steps;

S11. The gas with dust enters from the feed port, and then the driver is started to make the fan start to work. The fan blows the airflow upwards, making the airflow flow to the top of the dust collector, and then energizes the shell and the conductive column of the dust collector to make it conductive The column is the cathode, and the shell of the precipitator is the anode. The airflow with dust enters the interior of the precipitator to charge the dust, and the negative charge of the dust makes the dust attract the shell of the precipitator and accumulate on the shell of the precipitator;

In said S2, the following steps are also included;

S21. In the dust removal state, the dust is absorbed, and the control valve on the outer wall of the exhaust pipe is opened to make the electric push rod shrink, and the electric push rod shrinks to drive the adjustment plate to separate from the gasket, so that clean air flows out to realize the exhaust function.

Compared with prior art, the beneficial effect of the present invention is:

1. The present invention can clean the dust by installing a vibrator. When cleaning the dust collector, start the vibrator, the vibrator; the first motor on the top drives the rotating shaft and the impact block to rotate, and the impact block squeezes the impact rod to make the impact The rod hits the dust collector, the first spring stretches, and then the dust collector vibrates, causing the dust to fall off, realizing the cleaning function, and the first water pump starts to spray the inside of the dust collector, making the dust flow down further, realizing the cleaning function;

2. The present invention can realize the function of collecting sewage by installing a collection box. The sewage that flows down is intercepted by the collection plate, and then the electric telescopic rod shrinks to drive the sealing plate to move, so that the collection hole is opened, and the sewage enters the interior of the collection box to realize the collection of sewage. collection function;

3. The invention can realize the detection function by installing a detector. When the water in the water tank drops, the floating block drops, and the torsion spring drives the rotating shaft to rotate, so that the cable is tightened, and the corresponding infrared receiver receives the signal from the infrared emitter. signal, so that the water level status in the water tank can be known and the detection function can be realized;

4. The present invention can realize the discharge function by installing the second water pump and the discharge pipe. When the sewage needs to be discharged, the second water pump starts to work to extract the sewage in the collection box to realize the discharge function. When cleaning the filter net , the first motor drives the bump to rotate, so that the lifting rod hits the filter screen, and the dust attached to the filter screen falls, and then the second motor drives the cable to shrink, so that the sealing column is separated from the sealing groove, so that the dust falls out and discharges. Function.

Description of drawings

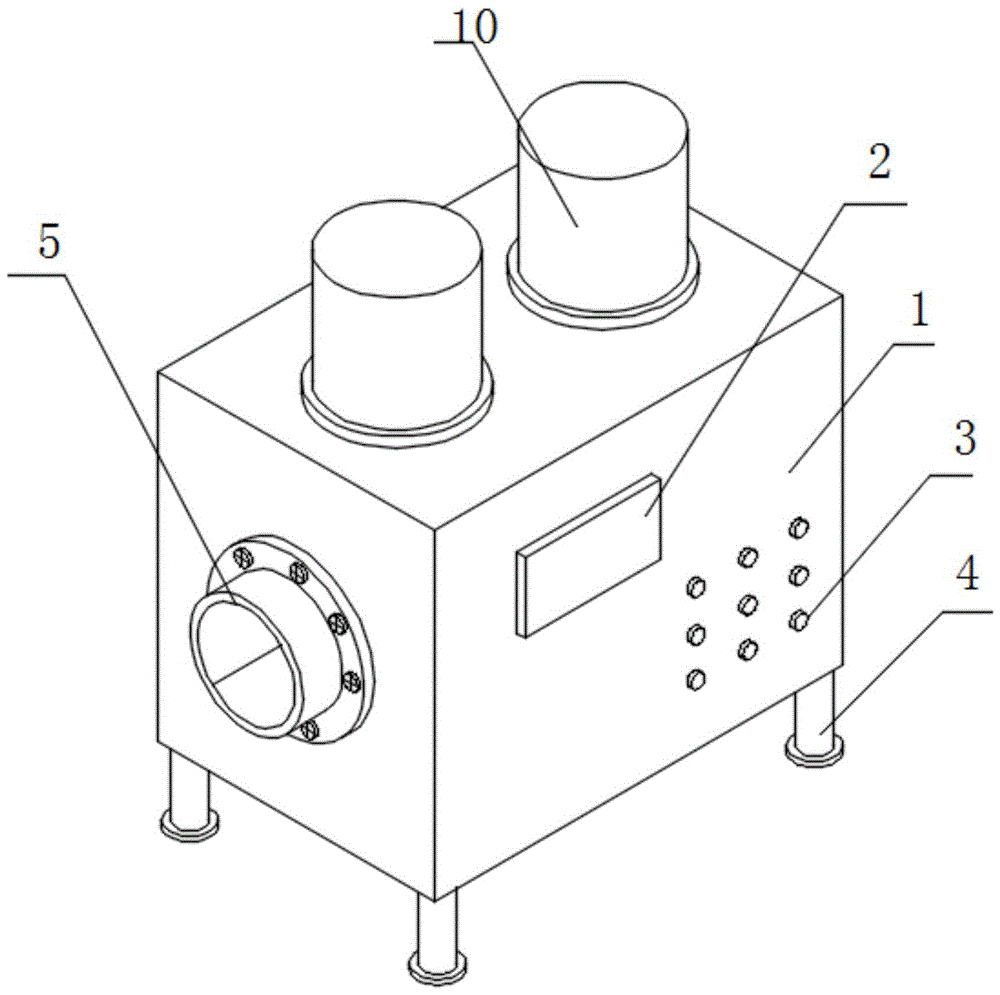

Fig. 1 is the overall structure schematic diagram of the present invention;

Fig. 2 is the front structural schematic diagram of the present invention;

Fig. 3 is a structural schematic diagram of the driver of the present invention;

Fig. 4 is the structural representation of vibrator of the present invention;

Fig. 5 is a schematic structural view of the control valve of the present invention;

Fig. 6 is the partial structure schematic diagram of detector of the present invention;

Fig. 7 is a schematic structural diagram of part A in Fig. 2 of the present invention.

In the figure: 1. Main body; 2. Display screen; 3. Control button; 4. Support column; 5. Inlet port; 6. Outlet port; 7. Dust collector; 8. Horizontal plate; , water tank; 11, waterproof casing; 12, first water pump; 13, deflector; 14, spray pipe; 15, detector; 16, battery; 17, torsion spring; 18, rotating shaft; 19, wire; 20, Floating block; 21, infrared transmitter; 22, fixed shell; 23, infrared receiver; 24, vibrator; 25, fixed plate; 26, impact bar; 27, first spring; 28, first motor; 29, rotation Shaft; 30, impact block; 31, driver; 32, fan; 33, filter screen; 34, inclined plate; 35, lifting rod; 36, second spring; 37, first motor; 38, bump; 39, row Material pipe; 40, sealing groove; 41, sealing column; 42, third spring; 43, second motor; 44, collecting box; 45, collecting plate; 46, mounting plate; 47, electric telescopic rod; 48, collecting hole ; 49, sealing plate; 50, exhaust pipe; 51, control valve; 52, gasket; 53, fixed frame; 54, electric push rod;

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "another end" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, use a specific Azimuth configuration and operation, therefore, should not be construed as limiting the invention. In addition, the terms "first" and "second" are used for descriptive purposes only, and should not be understood as indicating or implying relative importance.

In the description of the present invention, it should be noted that, unless otherwise specified and limited, the terms "installed", "set with", "connected", etc. should be understood in a broad sense, such as "connected", which may be a fixed connection , can also be a detachable connection, or an integrated connection; it can be a mechanical connection, or an electrical connection; it can be a direct connection, or an indirect connection through an intermediary, or an internal connection between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention in specific situations.

Please refer to Figure 1, Figure 2 and Figure 4, an embodiment provided by the present invention: a high-efficiency wet electrostatic precipitator for organic waste gas, including a main body 1, a vibrator 24, a driver 31 and a collection box 44, the main body 1 A dust remover 7 is installed on the inner wall, a vibrator 24 is installed on the outer wall of the dust remover 7, a fixed plate 25 is installed on the inner wall of the vibrator 24, and a plurality of striking rods 26 are installed through the outer wall of the fixed plate 25, so The outer wall of the striking rod 26 is surrounded by a first spring 27, the top of the vibrator 24 is equipped with a first motor 28, the output end of the first motor 28 is equipped with a rotating shaft 29, and the outer wall of the rotating shaft 29 A plurality of impact blocks 30 are installed, two groups of water tanks 10 are installed on the top of the main body 1, a collection box 44 is installed on the bottom of the main body 1, and a driver 31 is installed on the outer wall of the collection box 44, and the main body 1 A display screen 2 is installed on the front, a control button 3 is installed on the front of the main body 1, a support column 4 is installed on the bottom of the main body 1, a material inlet 5 is installed on one side of the outer wall of the main body 1, and an outlet is installed on the other side outer wall of the main body 1. A feed opening 6, a vertical plate is installed on the outer wall of the dust collector 7, a horizontal plate 8 is installed on the outer wall of the vertical plate, a plurality of conductive columns 9 are installed on the bottom of the horizontal plate 8, and a waterproof Shell 11, the inner bottom wall of waterproof case 11 is equipped with first water pump 12, and the output end of first water pump 12 is equipped with deflector 13, and the bottom of deflector 13 is installed with a plurality of spray pipes 14, and spray pipe 14 The bottom extends into the inside of the dust remover 7, the inner bottom wall of the water tank 10 is equipped with a detector 15, the output end of the first motor 28 extends into the inside of the vibrator 24, the control button 3 is located below the display screen 2, the The bottom of the conductive column 9 extends into the interior of the dust collector 7 , the input end of the first water pump 12 extends out of the outer wall of the waterproof case 11 , and the output end of the first water pump 12 extends into the interior of the main body 1 .

Please refer to Fig. 2 and Fig. 6, a kind of embodiment that the present invention provides: the inner bottom wall of described detector 15 is equipped with battery 16, and the inner wall of detector 15 is installed with torsion spring 17, and one end of torsion spring 17 is installed with rotating The shaft 18, the outer wall of the rotating shaft 18 is surrounded by a wire 19, and one end of the wire 19 is equipped with a floating block 20. An infrared receiver 23 is installed on the inner wall.

Referring to Fig. 1, Fig. 2 and Fig. 3, an embodiment provided by the present invention: a fan 32 is installed on the inner wall of the driver 31, a filter screen 33 is installed on the inner wall of the driver 31, and a swash plate 34 is installed on the inner wall of the driver 31 , the top of the swash plate 34 is installed with a lifting rod 35, the outer wall of the lifting rod 35 is surrounded by a second spring 36, the inner wall of the driver 31 is installed with a first motor 37, and the output end of the first motor 37 is installed with a bump 38, The bottom of the inclined plate 34 is equipped with a discharge pipe 39, the inner wall of the discharge pipe 39 is provided with a sealing groove 40, the outer wall of the discharge pipe 39 is installed with a sealing column 41, and the outer wall of the sealing column 41 is surrounded by a third spring 42. A second motor 43 is mounted on the inner bottom wall of the driver 31 , and the output end of the second motor 43 is connected to the sealing column 41 through a cable.

Referring to Fig. 2, Fig. 5 and Fig. 7, a kind of embodiment that the present invention provides: the inner wall of described collecting box 44 is equipped with collecting plate 45, and the outer wall of collecting box 44 is penetrated with exhaust pipe 50 installed, and the collecting plate 45 The inner wall is equipped with a mounting plate 46, the outer wall of the mounting plate 46 is equipped with an electric telescopic rod 47, the outer wall of the electric telescopic rod 47 is equipped with a sealing plate 49, the top of the collecting plate 45 is provided with a plurality of collecting holes 48, and one end of the sealing plate 49 Extending out of the outer wall of the collection hole 48, the inner bottom wall of the main body 1 is equipped with a second water pump 56, the input end of the second water pump 56 extends into the inside of the collection box 44, and the output end of the second water pump 56 extends out of the outer wall of the main body 1, The outer wall of the exhaust pipe 50 is equipped with a control valve 51, the inner bottom wall of the control valve 51 is equipped with a gasket 52, the top of the control valve 51 is installed with a fixed frame 53, and the inner top wall of the fixed frame 53 is equipped with an electric push rod 54, the bottom of the electric push rod 54 is equipped with an adjustment plate 55.

Further, the working steps of the device are as follows:

S1. When cleaning the dust collector 7, start the vibrator 24 and the vibrator 24; the first motor 28 on the top drives the rotating shaft 29 and the impact block 30 to rotate, and the impact block 30 squeezes the impact rod 26, so that the impact rod 26 hits the dust collector 7. The first spring 27 stretches, and then the dust collector 7 vibrates, causing the dust to fall off to realize the cleaning function. In addition, the first water pump 12 starts to spray the inside of the dust collector 7, so that the dust further flows down to realize the cleaning function;

S2, the sewage flowing down is intercepted by the collection plate 45, and then the electric telescopic rod 47 shrinks and drives the sealing plate 49 to move, so that the collection hole 48 is opened, and the sewage enters the inside of the collection box 44 to realize the sewage collection function;

S3. When the water in the water tank 10 drops, the floating block 20 drops, the torsion spring 17 drives the rotating shaft 18 to rotate, so that the cable is tightened, and the corresponding infrared receiver 23 receives the signal from the infrared transmitter 21, so that the water tank can be known The water level status in 10 realizes the detection function;

S4. When the sewage needs to be discharged, the second water pump 56 starts to work to extract the sewage in the collection box 44 to realize the discharge function. When the filter screen 33 is cleaned, the first motor 37 drives the protrusion 38 to rotate, so that the lifting rod 35 When the filter screen 33 is hit, the dust attached to the filter screen 33 falls, and then the second motor 43 drives the cable to shrink, so that the sealing column 41 is separated from the sealing groove 40, and the dust falls out to realize the discharge function.

Further, said in S1 also includes the following steps;

S11, the gas with dust enters from the feed port 5, and then the driver 31 is started, so that the fan 32 starts to work, and the fan 32 blows the airflow upwards, so that the airflow flows to the top of the dust collector 7, and then the shell of the dust collector 7 and The conductive column 9 is energized, so that the conductive column 9 is a cathode, and the shell of the dust collector 7 is an anode. On the shell of dust collector 7;

In said S2, the following steps are also included;

S21. In the dust removal state, the dust is absorbed, and the control valve 51 on the outer wall of the exhaust pipe 50 is opened, so that the electric push rod 54 contracts, and the contraction of the electric push rod 54 drives the adjustment plate 55 to separate from the gasket 52, so that clean air flows out. Realize exhaust function.

Working principle, the gas with dust enters from the feed port 5, and then the driver 31 is started, so that the fan 32 starts to work, and the fan 32 blows the airflow upward, so that the airflow flows to the top of the dust collector 7, and then the shell of the dust collector 7 The conductive column 9 is energized so that the conductive column 9 is a cathode, and the shell of the dust collector 7 is an anode. The airflow with dust enters the interior of the dust collector 7 to charge the dust, and the negative charge of the dust makes the dust attract the shell of the dust collector 7. Accumulated on the shell of dust remover 7, when cleaning dust remover 7, start vibrator 24, vibrator 24; The first motor 28 on the top drives rotating shaft 29 and impact block 30 to rotate, and impact block 30 squeezes impact bar 26, Make the impact rod 26 collide with the dust collector 7, the first spring 27 is elongated, then the dust collector 7 vibrates, the dust falls off, and the cleaning function is realized. In addition, the first water pump 12 starts to spray the inside of the dust collector 7, so that the dust flows down further. Realize the cleaning function;

The sewage flowing down is intercepted by the collecting plate 45, and then the electric telescopic rod 47 shrinks and drives the sealing plate 49 to move, so that the collecting hole 48 is opened, and the sewage enters the inside of the collecting box 44 to realize the sewage collection function. In the dust removal state, the dust is absorbed , the control valve 51 on the outer wall of the exhaust pipe 50 is opened, so that the electric push rod 54 contracts, and the contraction of the electric push rod 54 drives the adjustment plate 55 to separate from the gasket 52, so that clean air flows out to realize the exhaust function;

When the water in the water tank 10 drops, the floating block 20 descends, and the torsion spring 17 drives the rotating shaft 18 to rotate, so that the cable is tightened. The state of the water level to realize the detection function;

When it is necessary to discharge the sewage, the second water pump 56 starts to work to extract the sewage in the collection box 44 to realize the discharge function. When the filter screen 33 is cleaned, the first motor 37 drives the protrusion 38 to rotate, so that the lifting rod 35 hits the filter. The dust attached to the net 33 and the filter net 33 falls, and then the second motor 43 drives the cable to shrink, so that the sealing column 41 is separated from the sealing groove 40, so that the dust falls out to realize the discharge function.

It will be apparent to those skilled in the art that the invention is not limited to the details of the above-described exemplary embodiments, but that the invention can be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. Accordingly, the embodiments should be regarded in all points of view as exemplary and not restrictive, the scope of the invention being defined by the appended claims rather than the foregoing description, and it is therefore intended that the scope of the invention be defined by the appended claims rather than by the foregoing description. All changes within the meaning and range of equivalents of the elements are embraced in the present invention. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (11)

1. A high-efficiency wet electrostatic precipitator for organic waste gas, comprising a main body (1), a vibrator (24), a driver (31) and a collection box (44), characterized in that: the inner wall of the main body (1) is equipped with a dust collector device (7), the outer wall of the dust remover (7) is equipped with a vibrator (24), the inner wall of the vibrator (24) is equipped with a fixed plate (25), and the outer wall of the fixed plate (25) is installed through the There are a plurality of striking rods (26), the outer wall of the striking rod (26) is surrounded by a first spring (27), the top of the vibrator (24) is equipped with a first motor (28), and the first The output end of the motor (28) is equipped with a rotating shaft (29), and the outer wall of the rotating shaft (29) is equipped with a plurality of impact blocks (30); Two sets of water tanks (10) are installed on the top of the main body (1), a collection box (44) is installed on the bottom of the main body (1), and a driver (31) is installed on the outer wall of the collection box (44). 2. A high-efficiency wet electrostatic precipitator for organic waste gas according to claim 1, characterized in that: a display screen (2) is installed on the front of the main body (1), and a control button ( 3), the bottom of the main body (1) is equipped with a support column (4), the outer wall of one side of the main body (1) is equipped with a material inlet (5), and the outer wall of the other side of the main body (1) is equipped with a material outlet (6) ). 3. A high-efficiency wet electrostatic precipitator for organic waste gas according to claim 1, characterized in that: a vertical plate is installed on the outer wall of the dust collector (7), and a horizontal plate (8) is installed on the outer wall of the vertical plate. A plurality of conductive posts (9) are installed on the bottom of the plate (8). 4. A high-efficiency wet electrostatic precipitator for organic waste gas according to claim 1, characterized in that: the inner bottom wall of the water tank (10) is equipped with a waterproof casing (11), and the inner bottom wall of the waterproof casing (11) The first water pump (12) is installed, and the output end of the first water pump (12) is equipped with deflector (13), and the bottom of deflector (13) is equipped with a plurality of spray pipes (14), and spray pipe (14) ) extends into the inside of the dust collector (7), and the inner bottom wall of the water tank (10) is equipped with a detector (15). 5. A high-efficiency wet electrostatic precipitator for organic waste gas according to any one of claims 1-4, characterized in that: the output end of the first motor (28) extends into the vibrator (24), so The control button (3) is located below the display screen (2), the bottom of the conductive column (9) extends into the dust collector (7), and the input end of the first water pump (12) extends out of the waterproof case ( 11), the output end of the first water pump (12) extends into the interior of the main body (1). 6. A high-efficiency wet electrostatic precipitator for organic waste gas according to claim 4, characterized in that: a battery (16) is installed on the inner bottom wall of the detector (15), and a battery (16) is installed on the inner wall of the detector (15). Torsion spring (17), one end of torsion spring (17) is equipped with rotating shaft (18), and the outer wall of rotating shaft (18) is surrounded with lead (19), and one end of lead (19) is equipped with floating block (20), The inwall of floating block (20) is equipped with infrared emitter (21), and the inwall of water tank (10) is equipped with fixed shell (22), and the inwall of fixed shell (22) is equipped with infrared receiver (23). 7. A high-efficiency wet electrostatic precipitator for organic waste gas according to claim 1, characterized in that: a fan (32) is installed on the inner wall of the driver (31), and a filter screen (33) is installed on the inner wall of the driver (31) ), the inner wall of the driver (31) is equipped with a slant plate (34), the top of the slant plate (34) is penetrated with a lifting rod (35), and the outer wall of the lifting rod (35) is surrounded by a second spring (36). The inwall of (31) is equipped with the first motor (37), and the output end of the first motor (37) is equipped with bump (38), and the bottom of inclined plate (34) is equipped with discharge pipe (39), and discharge pipe The inwall of (39) is equipped with sealing groove (40), and the outer wall of discharge pipe (39) is penetrated with sealing column (41), and the outer wall of sealing column (41) is surrounded with the 3rd spring (42) that is installed, driver (31) ) is equipped with a second motor (43) on the inner bottom wall, and the output end of the second motor (43) is connected with the sealing column (41) by cables. 8. A high-efficiency wet electrostatic precipitator for organic waste gas according to claim 1, characterized in that: a collection plate (45) is installed on the inner wall of the collection box (44), and a collection plate (45) is installed through the outer wall of the collection box (44). Exhaust pipe (50), the inwall of collecting plate (45) is equipped with mounting plate (46), the outer wall of mounting plate (46) is equipped with electric telescopic link (47), and the outer wall of electric telescopic link (47) is equipped with sealing plate (49), the top of the collection plate (45) is provided with a plurality of collection holes (48), and one end of the sealing plate (49) extends out of the outer wall of the collection hole (48), and the inner bottom wall of the main body (1) is equipped with the first Two water pumps (56), the input end of the second water pump (56) extends into the inside of the collection box (44), and the output end of the second water pump (56) extends out of the outer wall of the main body (1). 9. A high-efficiency wet electrostatic precipitator for organic waste gas according to claim 8, characterized in that: a control valve (51) is installed on the outer wall of the exhaust pipe (50), and the inner bottom wall of the control valve (51) A gasket (52) is installed, a fixed frame (53) is installed on the top of the control valve (51), an electric push rod (54) is installed on the inner top wall of the fixed frame (53), and an electric push rod (54) is installed on the bottom of the electric push rod (54). There is an adjustment plate (55). 10. A method for using an organic waste gas high-efficiency wet electrostatic precipitator according to any one of claims 1-9, characterized in that the working steps of the device are as follows: S1, when dust remover (7) is cleaned, start vibrator (24), vibrator (24); The first motor (28) on the top drives rotating shaft (29) and impact block (30) to rotate, impact block (30) ) to squeeze the striking rod (26), so that the striking rod (26) hits the dust remover (7), the first spring (27) is stretched, and then the dust remover (7) vibrates to make the dust fall off and realize the cleaning function. A water pump (12) starts to spray the inside of the dust collector (7), making the dust flow down further to realize the cleaning function; S2, the sewage flowing down is intercepted by the collection plate (45), and then the electric telescopic rod (47) shrinks and drives the sealing plate (49) to move, so that the collection hole (48) is opened, and the sewage enters the inside of the collection box (44), realizing the Sewage collection function; S3. When the water in the water tank (10) drops, the floating block (20) descends, and the torsion spring (17) drives the rotating shaft (18) to rotate, so that the cable is tightened, and the corresponding infrared receiver (23) receives the infrared Transmitter (21) signal, thereby can know the water level state in the water tank (10), realize detection function; S4. When it is necessary to discharge the sewage, the second water pump (56) starts to work to extract the sewage in the collection box (44) to realize the discharge function. When the filter screen (33) is cleaned, the first motor (37) drives the convex The block (38) rotates, so that the elevating rod (35) hits the filter screen (33), and the dust attached to the filter screen (33) falls, and then the second motor (43) drives the cable to shrink, so that the sealing column (41) and The sealing groove (40) is separated, so that the dust falls out to realize the discharge function. 11. A method for using organic waste gas high-efficiency wet electrostatic precipitator according to claim 9, characterized in that, the step S1 further includes the following steps; S11, the gas with dust enters from the feed port (5), and then the driver (31) is started, so that the fan (32) starts to work, and the fan (32) blows the airflow upwards, so that the airflow flows to the dust collector (7) Above, the casing and conductive column (9) of dust collector (7) are energized subsequently, so that conductive column (9) is cathode, the casing of dust collector (7) is anode, and the airflow with dust enters dust collector (7) The interior of the dust is charged, and the dust is negatively charged to attract the dust to the shell of the dust collector (7), and accumulate on the shell of the dust collector (7); In said S2, the following steps are also included; S21. In the state of dust removal, the dust is absorbed, and the control valve (51) on the outer wall of the exhaust pipe (50) is opened, so that the electric push rod (54) shrinks, and the shrinkage of the electric push rod (54) drives the adjustment plate (55) and the seal The pads (52) are separated to allow clean air to flow out, fulfilling the exhaust function.
