Abstract

The invention discloses a multifunctional teaching board for pedagogy teaching, which comprises a mounting backboard, a strip-shaped host is arranged at the lower end of the mounting backboard, fixed ink screens are installed on the left and right sides of the mounting backboard, and the back of the fixed ink screen is There is a sliding gap between it and the strip-shaped host, and there is a screen switching slot between the two fixed ink screens; the installation backplane is set above the strip-shaped host with multiple horizontal magnetic rails, and the horizontal magnetic rails can be connected with each other. The sliding ink screen and the sliding LCD screen slide left and right in the sliding gap. The horizontal magnetic track is equipped with multiple movers on the rear side of the sliding ink screen and the sliding LCD screen. The drive motor is installed on the mover, and the drive motor is connected to the screw connection. The shaft, the rear side of the sliding ink screen and the sliding liquid crystal screen are all provided with a threaded connection sleeve that is threaded with the corresponding threaded connection shaft. The present invention utilizes the dynamic combination of the liquid crystal screen and the ink screen, which can not only facilitate teachers to impart knowledge in a variety of ways, but also achieve better writing experience without using chalk.

Description

Multifunctional teaching board for pedagogy teaching

technical field

The invention relates to the technical field of teaching tools, in particular to a multifunctional teaching board for pedagogy teaching.

Background technique

In schools, the blackboard is one of the most important parts of the classroom, as a medium for teachers to impart knowledge. The traditional blackboard can only be used by the teacher to write on the blackboard with chalk. The problems of the traditional blackboard have always been the single function, troublesome cleaning of the blackboard handwriting, and the great harm of chalk dust to the teacher's body. With the increasing popularity of electronic intelligent products, the education industry also attaches great importance to technological change. Under the influence of the trend of intelligent teaching tools, multimedia blackboards and smart blackboards are gradually popularized in most educational environments.

The multimedia blackboard is a large touch screen, no need to write with chalk, and can impart knowledge in multiple ways. The contents of the screen cannot be seen clearly on the screen, and the writing experience of the existing touch screen is much worse than that of paper or traditional blackboards, and the writing experience is poor. A smart blackboard usually includes a spliced main screen and sub-screens set on opposite sides of the main screen. The main screen can be operated by touch to present teaching content in the form of pictures, videos, etc., and the sub-screen can be used for users to write on the blackboard with chalk. way of presenting teaching content. The main screen has the problem of ordinary touch screen, while the secondary screen is written with chalk, which has the problems of troublesome cleaning and great hazards of chalk dust.

Contents of the invention

The purpose of the present invention is to provide a multi-functional teaching board for pedagogy teaching, which utilizes the dynamic combination of liquid crystal screen and ink screen, which can not only facilitate teachers to impart knowledge in a variety of ways, but also achieve better writing experience without using chalk. It is more helpful for teachers to impart knowledge.

Above-mentioned technical purpose of the present invention is achieved through the following technical solutions:

A multifunctional teaching board for pedagogy teaching, comprising an installation backboard, the lower end of the front side of the installation backboard is provided with a strip-shaped host, and the left and right sides of the front side of the installation backboard are all in front of the strip-shaped host Fixed ink screens are installed, and there is a sliding gap between the back of each fixed ink screen and the strip-shaped host, and a screen switching slot is left between the two fixed ink screens;

The front side of the installation backboard is provided with a plurality of horizontal magnetic rails above the strip-shaped main unit, and the plurality of horizontal magnetic rails are cooperatively connected with a sliding ink screen and a sliding liquid crystal that can slide left and right in the sliding gap. screen, the size of the sliding ink screen and the sliding liquid crystal screen is consistent with the screen switching groove, and each horizontal magnetic track is provided with a plurality of A mover that slides along its length, the horizontal magnetic track and the mover constitute a linear motor, each mover is equipped with a drive motor, and the power output shaft of each drive motor is provided with a threaded connection shaft forward, Both the rear side of the sliding ink screen and the sliding liquid crystal screen are provided with a plurality of threaded connection sleeves threadedly connected with the corresponding threaded connection shafts;

Each fixed ink screen, the sliding ink screen and the sliding liquid crystal screen are touch screens, each fixed ink screen, the sliding ink screen, the sliding liquid crystal screen, each linear motor and each driving motor All are electrically connected with the strip-shaped host.

By adopting the above-mentioned technical solution, when blackboard writing teaching is required, the sliding ink screen moves into the screen switching slot, and the teacher can write on the three ink screens with a special writing pen. The ink screen has a writing experience close to that of a paper book and Visual experience, and the ink screen does not emit light, but a total reflection display, which does not hurt the eyes when used;

When it is necessary to use the sliding LCD screen for color teaching, the driving motor on the back side of the sliding ink screen drives the threaded connection shaft to rotate, and the threaded connection shaft is pulled back to make the sliding ink screen move backward into the sliding gap, and then the two linear motors The mover drives the sliding ink screen and the sliding LCD screen to move to the left at the same time until the sliding LCD screen reaches the screen switching slot, the driving motor behind the sliding LCD screen drives the threaded connection shaft to rotate, and pushes the threaded connection shaft forward to make the sliding LCD screen Moving forward to the screen switch slot, you can use the screen switch slot for color playback.

A further configuration of the present invention is that: a support plate is provided on one side of the installation backboard, a vertically rotating scanning placement plate is rotatably connected to the lower side of the support plate, and a support plate is provided forwardly on the lower side of the support plate for supporting The scanning and placement plate can only be rotated to the horizontal support bar, the upper end of the support plate is rotatably connected with a horizontally rotating rotating bar, and the free end of the rotating bar is downwardly provided with a Electrically connected scanning camera.

By adopting the above technical scheme, when explaining paper test papers, the scanning placement board can be rotated to the horizontal, the scanning camera can be rotated directly above the scanning placement board, and the paper test papers can be placed on the scanning placement board. The scanning camera shoots the scanned test paper, transmits it to the long strip host, and displays it on any display screen of the fixed ink screen, sliding ink screen and sliding LCD screen, and can explain to students according to the test paper.

A further setting of the present invention is: each mover is provided with a limit block, the limit block and the drive motor are respectively arranged on the upper and lower sides of the mover, and the front end of each limit block is set backward for a limited Position holes, the rear sides of the sliding ink screen and the sliding liquid crystal screen are provided with a plurality of limit shafts that are slidably connected to the corresponding limit holes.

A further setting of the present invention is: the edge of the installation backboard is provided with a wrapping edge forward, and the edges of the sliding ink screen and the sliding liquid crystal screen except the screen switching groove are all connected to the wrapping edge.

A further setting of the present invention is: a strip-shaped operating panel is provided under the installation backplane and the strip-shaped main unit, and speakers electrically connected to the strip-shaped main unit are provided on both sides of the strip-shaped operating panel , the middle part of the strip-shaped operation panel is provided with a plurality of control buttons electrically connected with the strip-shaped main unit.

A further setting of the present invention is that: the diameter of each threaded shaft is larger than the diameter of its corresponding drive motor, and each threaded sleeve can cover its corresponding drive motor.

A further setting of the present invention is: each threaded connection sleeve is provided with a plurality of avoidance notches for avoiding the shape of the corresponding drive motor.

A further setting of the present invention is that: the rear side of the installation backboard is provided with a plurality of installation hooks for installation.

Compared with the prior art, the present invention has the following beneficial effects:

One, the present invention is provided with an ink screen on the left and right sides, and dynamically switches between the ink screen and the liquid crystal screen in the middle, and three ink screens can be directly used during ordinary teaching, and when color videos and pictures need to be played, the liquid crystal screen can be switched It can be switched automatically with one button, which is convenient to switch, and meets the needs of ordinary teaching and diversified teaching at the same time;

Second, the ink screen adopts total reflection display, which does not emit light and does not hurt the eyes. It is not easy to see the content clearly when exposed to sunlight, and the ink screen has a writing experience and visual experience close to paper. When teachers write on the blackboard, The writing experience is better, no need to use chalk to write, no need to clean up the chalk writing on the teaching board, and teachers do not have to worry about the hazards caused by chalk dust when using it;

Its three, the present invention is equipped with main frame, can install various teaching software, all can use teaching software on ink screen and liquid crystal screen, is convenient for teacher to carry out diversified teaching.

Description of drawings

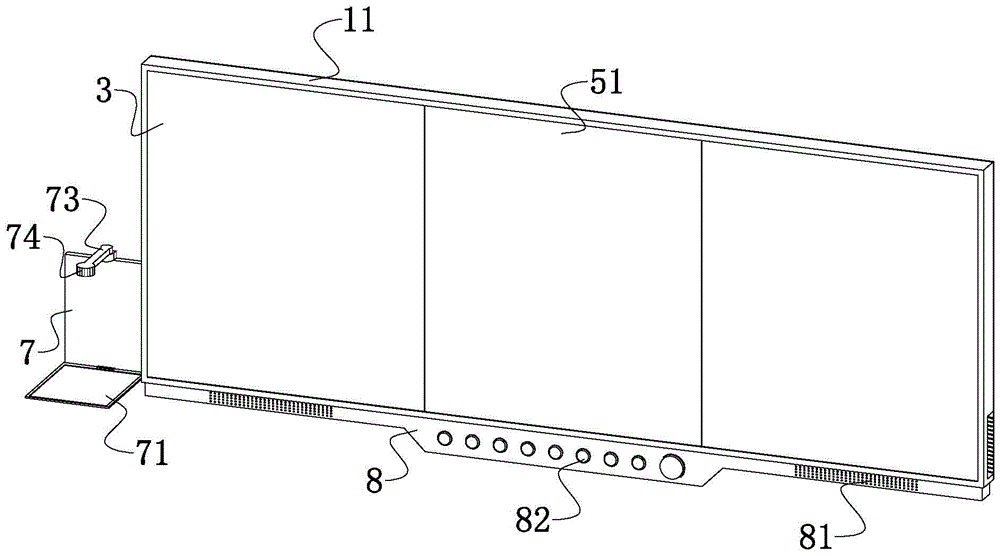

Fig. 1 is the overall structural representation of the present invention;

Figure 2 is used to show the screen switching slot between two fixed ink screens;

Figure 3 is mainly used to show the sliding LCD screen after fixing the ink screen;

Figure 4 is used to show the layout before installing the backplane;

Figure 5 is used to show the installation hook after installing the backplane;

Figure 6 is used to show the connection between the sliding ink screen or the sliding liquid crystal screen and the mover.

In the figure: 1. Back panel installation; 11. Hemming; 12. Installation hook; 13. Sliding gap; 14. Screen switching slot; 2. Long host; 3. Fixed ink screen; 4. Linear motor; 41. Horizontal magnetic track; 42, mover; 43, drive motor; 44, threaded connection shaft; 45, limit block; 46, limit hole; 51, sliding ink screen; 52, sliding LCD screen; 61, threaded connection sleeve; 62. Avoidance gap; 63. Limit shaft; 7. Support plate; 71. Scanning placement plate; 72. Support bar; 73. Rotation bar; 74. Scanning camera; 8. Bar operation panel; 81. Speaker; 82 , control buttons.

Detailed ways

The present invention will be described in further detail below in conjunction with the accompanying drawings.

In describing the present invention, it is to be understood that the terms "upper", "lower", "left", "right", "front", "rear", "inner", "outer" etc. indicate an orientation or position The relationship is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, therefore It should not be construed as a limitation of the present invention.

Furthermore, the terms "horizontal", "vertical" and the like do not imply that a component is absolutely level or overhanging, but may be slightly inclined. For example, "horizontal" only means that its direction is more horizontal than "vertical", and it does not mean that the structure must be completely horizontal, but can be slightly inclined.

Embodiments, with reference to Figures 1-6, a multifunctional teaching board for pedagogy teaching, including a mounting backboard 1, the edge of the mounting backboard 1 is provided with a circle of hemming 11 forward, and the rear side of the mounting backboard 1 is provided with A plurality of installation hooks 12 for installation, the lower end of the front side of the installation backplane 1 is provided with a strip-shaped host 2, the strip-shaped host 2 is a computer host, and relies on the host to realize video playback, web browsing, graphic display and some In the application of the teaching software, a fixed ink screen 3 is installed on the left and right sides of the front side of the backboard 1 in front of the elongated main frame 2, and the sliding ink screen 51 and the sliding liquid crystal screen 52 are all connected to the package except the edge of the screen switching slot 14. The sides 11 are connected, and there is a sliding gap 13 between the back of each fixed ink screen 3 and the strip-shaped main unit 2, and a screen switching slot 14 is left between two fixed ink screens 3 .

The front side of the installation backplane 1 is provided with two upper and lower horizontal magnetic rails 41 above the elongated main frame 2, and the two horizontal magnetic rails 41 are cooperatively connected with a sliding ink screen 51 and a sliding ink screen 51 that can slide left and right in the sliding gap 13. The size of the liquid crystal screen 52, the sliding ink screen 51 and the sliding liquid crystal screen 52 all coincide with the screen switching groove 14, the sliding ink screen 51 is positioned at the left side, and the sliding liquid crystal screen 52 is positioned at the right side. Under normal conditions, the sliding ink screen 51 and the sliding liquid crystal screen One of the screens 52 is located in the screen switching groove 14, and each horizontal magnetic track 41 is provided with two movers 42 sliding along its length direction on the rear side of the sliding ink screen 51 and the sliding liquid crystal screen 52. 41 and mover 42 constitute linear motor 4 .

A drive motor 43 and a limit block 45 are respectively installed on the upper and lower sides of each mover 42. The power output shaft of each drive motor 43 is provided with a threaded connection shaft 44 forward, and the sliding ink screen 51 and the sliding liquid crystal The rear side of the screen 52 is provided with two threaded connection sleeves 61 that are threadedly connected with the corresponding threaded connection shaft 44. The diameter of each threaded connection shaft 44 is greater than the diameter of its corresponding drive motor 43. Each threaded connection sleeve 61 The corresponding drive motor 43 can be encased, and the left and right sides of the drive motor 43 are provided with connecting blocks connected with the mover 42, and the left and right sides of each threaded connection sleeve 61 are provided with a shape for avoiding the corresponding drive motor 43. When the sliding ink screen 51 and the sliding liquid crystal screen 52 are close to the mover 42, the threaded connection sleeve 61 encloses the drive motor 43, which can make the overall teaching board thinner. The front end of each spacer 45 is provided with two spacer holes 46 backwards, and the rear sides of the sliding ink screen 51 and the sliding liquid crystal screen 52 are all provided with two spacers that are slidably connected with the corresponding spacer holes 46. The position shaft 63, through the connection between the position limit shaft 63 and the limit hole 46, makes the connection between the sliding ink screen 51 and the sliding liquid crystal screen 52 and the mover 42 more stable and firm.

One side of the installation backplane 1 is provided with a support plate 7, the lower side of the support plate 7 is rotatably connected with a vertically rotating scanning placement plate 71, and the lower side of the support plate 7 is provided with two fronts for supporting the scanning placement. Plate 71 makes it can only be rotated to the support bar 72 of level, and the upper end of support plate 7 is rotatably connected with a rotating bar 73 that rotates horizontally, and the free end of rotating bar 73 is provided with a scanning camera 74 downwards, and scanning camera 74 is downwards. Photograph and scan the paper documents on the placement board 71 .

Each fixed ink screen 3, sliding ink screen 51 and sliding liquid crystal screen 52 are touch screens, and a bar-shaped operating panel 8 is arranged below the installation backplane 1 and the strip-shaped host 2, and the two sides of the bar-shaped operating panel 8 Each is provided with a loudspeaker 81, and the middle part of the strip operation panel 8 is provided with a plurality of control buttons 82, each fixed ink screen 3, sliding ink screen 51, sliding liquid crystal screen 52, each linear motor 4, each driving motor 43 , scanning camera 74, each loudspeaker 81 and each control button 82 are all electrically connected with strip-shaped main frame 2.

Working principle: When blackboard writing teaching is required, slide the ink screen 51 to move into the screen switching slot 14, and the teacher can use a special writing pen to write on the three ink screens. The ink screen has a writing experience close to that of a paper book and visual Feel, and the ink screen does not emit light, but a total reflection display, which does not hurt the eyes when used;

When it is necessary to use the sliding liquid crystal screen 52 for color teaching, the drive motor 43 on the rear side of the sliding ink screen 51 works to drive the threaded connection shaft 44 to rotate, and the threaded connection shaft 44 is pulled backward to make the sliding ink screen 51 move backward into the sliding gap 13 , then the movers 42 of the two linear motors 4 drive the sliding ink screen 51 and the sliding liquid crystal screen 52 to move to the left at the same time until the sliding liquid crystal screen 52 reaches the screen switching slot 14, and the driving motor 43 behind the sliding liquid crystal screen 52 works to drive the screw thread The connecting shaft 44 rotates, and the threaded connecting shaft 44 is pushed forward, so that the sliding liquid crystal screen 52 moves forward to the screen switching slot 14, and the screen switching slot 14 can be used for color playback;

When explaining paper test papers, the scanning placement board 71 can be rotated to the horizontal, the scanning camera 74 can be rotated to the top of the scanning placement board 71, the paper test papers can be placed on the scanning placement board 71, and the scanning camera can be used to 74 photographs and scans the test paper, transmits it to the elongated host computer 2, displays on any display screen of the fixed ink screen 3, the sliding ink screen 51 and the sliding liquid crystal screen 52, and then can explain to the students in comparison with the test paper.

This specific embodiment is only an explanation of the present invention, and it is not a limitation of the present invention. Those skilled in the art can make modifications to this embodiment without creative contribution as required after reading this specification, but as long as they are within the rights of the present invention All claims are protected by patent law.

Claims (8)

1. A multifunctional teaching board for pedagogy teaching, comprising an installation backboard (1), is characterized in that: the lower end of the front side of the installation backboard (1) is provided with a strip-shaped host (2), and the installation The left and right sides of the front side of the backboard (1) are all equipped with a fixed ink screen (3) in front of the strip-shaped main frame (2), and the back of each fixed ink screen (3) is connected to the strip-shaped main frame ( 2) A sliding gap (13) is left between them, and a screen switching slot (14) is left between the two fixed ink screens (3); The front side of the installation backboard (1) is provided with a plurality of horizontal magnetic rails (41) above the elongated main frame (2), and the plurality of horizontal magnetic rails (41) can be connected with the The sliding ink screen (51) and the sliding liquid crystal screen (52) sliding left and right in the sliding gap (13), the size of the sliding ink screen (51) and the sliding liquid crystal screen (52) are all the same as the screen switching groove ( 14) Matching, each horizontal magnetic track (41) is provided with a plurality of movers (42) sliding along its length direction on the rear side of the sliding ink screen (51) and the sliding liquid crystal screen (52) , the horizontal magnetic track (41) and the mover (42) constitute a linear motor (4), each mover (42) is equipped with a drive motor (43), the power output of each drive motor (43) The shafts are all provided with threaded connection shafts (44) forward, and the rear sides of the sliding ink screen (51) and the sliding liquid crystal screen (52) are all provided with a plurality of threaded connections with the corresponding threaded connection shafts (44) backwards. The threaded connection sleeve (61); Each fixed ink screen (3), the sliding ink screen (51) and the sliding liquid crystal screen (52) are touch screens, each fixed ink screen (3), the sliding ink screen (51), The sliding liquid crystal screen (52), each linear motor (4) and each driving motor (43) are electrically connected to the strip-shaped host (2). 2. A multifunctional teaching board for pedagogy teaching according to claim 1, characterized in that: one side of the installation backboard (1) is provided with a support plate (7), and the support plate (7) The lower side of the lower side is connected with a vertically rotating scanning placement plate (71), and the lower side of the support plate (7) is forwardly provided with a support for supporting the scanning placement board (71) so that it can only rotate to a horizontal position. bar (72), the upper end of the support plate (7) is rotatably connected with a horizontally rotating rotatable bar (73), and the free end of the rotatable bar (73) is downwardly provided with a Electrically connected scanning camera (74). 3. A multifunctional teaching board for pedagogy teaching according to claim 1, characterized in that: each mover (42) is provided with a limit block (45), and the limit block (45) is in contact with the limit block (45). The drive motors (43) are respectively arranged on the upper and lower sides of the mover (42), and the front end of each limit block (45) is provided with a limit hole (46) backward, and the sliding ink screen (51) and The rear side of the sliding liquid crystal screen (52) is provided with a plurality of limiting shafts (63) that are slidably connected to the corresponding limiting holes (46). 4. A kind of multifunctional teaching board for pedagogy teaching according to claim 1, characterized in that: the edge of the installation backboard (1) is provided with hemming (11) forward, and the sliding ink screen ( 51) and the edge of the sliding liquid crystal screen (52) except the screen switching slot (14) are all connected to the wrapping edge (11). 5. A multi-functional teaching board for pedagogy teaching according to claim 1, characterized in that: a bar-shaped operation board is arranged under the installation backboard (1) and the strip-shaped host (2) (8), both sides of the strip-shaped operating panel (8) are provided with loudspeakers (81) electrically connected to the strip-shaped main frame (2), and the middle part of the strip-shaped operating panel (8) is provided with multiple Each control button (82) is electrically connected with the strip-shaped host (2). 6. A kind of multifunctional teaching board for pedagogy according to claim 1, characterized in that: the diameter of each threaded shaft (44) is greater than the diameter of its corresponding drive motor (43), each threaded Cover (61) can be entangled with its corresponding drive motor (43). 7. A multifunctional teaching board for pedagogy according to claim 6, characterized in that: each threaded connection sleeve (61) is provided with a plurality of avoidance gaps for avoiding the shape of the corresponding drive motor (43) (62). 8. A multifunctional teaching board for pedagogy teaching according to claim 1, characterized in that: a plurality of installation hooks (12) for installation are provided on the rear side of the installation backboard (1).
