CN115889362A - Tunnel drainage pipe self-adaptive crystallization blockage dredging and silting suction device - Google Patents

Abstract

A self-adaptive crystallization blocking dredging silt suction device for a tunnel drain pipe pipeline is characterized in that a cutting device is arranged at the front end of the silt suction device, 2-6 groups of monitoring devices are arranged on the outer circumference of the silt suction device, the rear end of the silt suction device is communicated with a high-elasticity pipeline, a front end advancing mechanism, a rear end advancing mechanism and a supporting mechanism are sequentially arranged outside the high-elasticity pipeline, a conversion joint is arranged at the free end of the high-elasticity pipeline and connected with an external pipeline through the conversion joint, the external pipeline is communicated with an air compressor, and the air compressor, the cutting device, the monitoring device, the front end advancing mechanism and the rear end advancing mechanism are electrically connected with a PLC (programmable logic controller); the broken crystalline substance of this device place ahead cutter, the crystalline substance after the breakage is inhaled silt device and air compressor machine and is absorbed into collection device through the pipeline, realizes pipeline mediation and broken crystalline substance and inhales silt integral type work, simultaneously because it possesses pipeline self-adaptation function, has improved the work efficiency of punishment crystalline substance greatly.

Description

Tunnel drainage pipe self-adaptive crystallization blockage dredging and silting suction device

technical field

The invention belongs to the technical field of tunnel drainage pipe crystallization treatment equipment or devices, and in particular relates to a tunnel drainage pipe self-adaptive crystallization blockage dredging and silt suction device.

Background technique

In areas rich in groundwater, shotcrete has poor impermeability and is continuously eroded by erosive groundwater at the initial stage of construction. Groundwater is easy to penetrate the shotcrete and invade the interior of the tunnel, affecting the durability of the tunnel structure and the construction process. In shotcrete, the gel material is continuously hydrated to produce hydration products such as calcium hydroxide and calcium silicate hydrate. When the groundwater rich in corrosive ions passes through the concrete, the calcium ions in the concrete are dissolved, making the calcium ions As the erosive fluid flows into the tunnel drainage system, it accelerates the crystallization and clogging of the drainage system. This process is called the "calcium dissolution crystallization" phenomenon of tunnel shotcrete.

The calcium dissolution effect of shotcrete makes the underground aqueous solution flowing into the drainage system rich in precipitated substances such as calcium ions, which are easy to combine with bicarbonate or carbonate ions to form calcium carbonate crystals that adhere to the surface of the drainage pipes, resulting in blockage of the drainage pipes over time. . The blockage of the drainage system prevents the groundwater behind the lining from being drained in time, and then acts on the outside of the support structure and the bottom of the road surface in the form of pressure, causing the lining and the road surface to bear additional water pressure, resulting in a large number of tunnels being destroyed in a short time after completion. Lining cracks, water leakage, and road surface water leakage have occurred, seriously endangering the safety of tunnel operation.

Due to the complex internal conditions of the tunnel drainage system, and during the tunnel construction period, due to construction reasons, the drainage pipes are often crushed, causing pipe rupture, deformation, corrosion and other diseases. These will cause the internal size of the pipeline to deviate from the originally designed size. The existing crystallization treatment device cannot realize the treatment work under different pipe diameters due to its fixed size. For example, the patent number is: ZL201920397536.X, and the invention title is "A Tunnel Crystal Dredging Device"; Crystal cleaning devices with different pipe diameters.

Contents of the invention

The technical problem to be solved by the present invention is to overcome the above-mentioned deficiencies in the prior art, and provide a tunnel drainage pipe self-adaptive crystallization blockage dredging and silting suction device with reasonable design, simple operation and remarkable treatment effect.

The technical solution adopted to solve the above technical problems is: a tunnel drainage pipe self-adaptive crystallization blockage dredging suction device, the front end of the suction device is equipped with a cutting device, and 2 to 6 groups of monitoring devices are installed on the outer circumference of the suction device , the back end of the suction device is connected with the high-elastic pipeline, and the outside of the high-elastic pipeline is provided with a front-end traveling mechanism, a rear-end traveling mechanism, and a supporting mechanism in sequence, and a conversion joint is provided at the free end of the high-elastic pipeline, through which the conversion joint is connected to the external The pipelines are connected, the external pipeline is connected with the air compressor, and the air compressor, the cutting device, the monitoring device, the front-end traveling mechanism, and the rear-end traveling mechanism are electrically connected with the PLC controller.

The silt suction device of the present invention is as follows: the shell is a hollow cylindrical structure, the front end of the shell is provided with a silt suction plate, the rear end is connected with a high-elastic pipeline, the silt suction plate is uniformly processed with silt suction holes, and the silt suction plate The outside is provided with a conical collection cover.

The front end of the collecting cover of the present invention is processed into a zigzag structure.

The cutting device of the present invention is as follows: the cutting cutter head is arranged on the rotating shaft, the rotating shaft is connected with the output shaft of the cutting motor through a shaft coupling, the cutting motor is fixed on the inner wall of the housing through a bracket, and the cutting motor is electrically connected with the PLC controller .

The monitoring device of the present invention is as follows: a miniature camera is arranged on the silt suction device through a connecting frame, an infrared sensor is arranged on the connecting frame, and the miniature camera and the infrared sensor are electrically connected with a PLC controller.

The front-end traveling mechanism of the present invention is as follows: 2 to 6 sets of first connecting rods are evenly distributed between the first connecting ring and the second connecting ring, the first connecting rods are provided with a first sliding sleeve, and the first sliding sleeve is fixed The first push rod is connected, the second push rod is hinged on the first connecting ring, the first push rod and the second push rod are hinged, the end of the second push rod is provided with the first traveling wheel, and the first driving motor is set On the second push rod, the output shaft of the first driving motor is connected with the axle of the first road wheel through a coupling, and the first driving motor is electrically connected with the PLC controller.

The rear-end traveling mechanism of the present invention is as follows: 2 to 6 sets of connecting blocks are evenly distributed on the fourth connecting ring, a second connecting rod is arranged between the third connecting ring and the connecting blocks, and the second sliding sleeve is arranged on the second connecting block. On the rod, the third push rod is hinged on the connecting block, one end of the fourth push rod is fixedly arranged on the second sliding sleeve, the other end is hinged with the third push rod, and the second traveling wheel is arranged on the third push rod.

The supporting mechanism of the present invention is as follows: the detachable rigid ring is sleeved on the high-elastic pipeline, 2 to 6 sets of support rods are evenly distributed on the detachable rigid ring, the end of the support rod is provided with a mounting frame, and the universal wheel is installed on the installation on the shelf.

A limiting spring is arranged inside the support rod of the present invention, the free end of the limiting spring is connected with the bottom of the sliding rod, and the top of the sliding rod is connected with the mounting frame.

Two to six groups of buffer springs are evenly distributed between the front-end traveling mechanism and the rear-end traveling mechanism of the present invention.

Compared with the prior art, the present invention has the following advantages;

1. The cutting cutter head of the present invention is formed by several groups of 1095 carbon steel blades which are arranged obliquely and interlacedly to cut and break the crystals in the pipeline. It has high strength and hardness, good cutting performance, good impact resistance, and high cutting efficiency. Good durability, can be used for a long time.

2. The front cutting cutter head of the present invention breaks the crystals, and the broken crystals are absorbed by the silt suction device and the air compressor into the collection device through the pipeline, so as to realize the integrated work of pipeline dredging and broken crystal suction silt, which greatly improves the working efficiency of crystal treatment .

3. The present invention can realize pipeline self-adaptation, the internal structure of the tunnel is complex, and the drainage system includes circular drainage pipes, longitudinal drainage pipes, horizontal drainage pipes, and central drainage ditches. The diameters and types of different drainage pipes are not the same. Conventional dredging robots Due to its fixed size, it is often only possible to dredge the crystal of a single drainage pipe, or due to various factors such as construction and post-maintenance, the cross-section of the tunnel drainage pipe is irregular, and the shape of the conventional dredging machine is fixed. For the crystallization section in the serious area, because the fuselage structure cannot be changed, it is often impossible to continue the treatment work. The front-end traveling mechanism and the rear-end traveling mechanism of the present invention can be expanded and contracted according to different pipe diameters, and can better deal with complex situations in the drainage pipe. At the same time, the front-end traveling mechanism and the rear-end traveling mechanism can realize curve steering by changing the speed of the motor. Therefore, treatment work between different drainage pipes can be realized.

Description of drawings

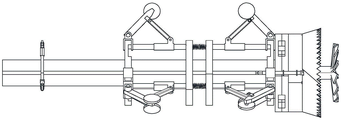

Fig. 1 is a structural schematic diagram of the present invention.

Fig. 2 is a front view of the present invention.

Fig. 3 is a structural schematic diagram of the present invention.

FIG. 4 is a cross-sectional view of the housing 2-3 in FIG. 3 .

Fig. 5 is a schematic structural diagram of the support rod 8-2 in Fig. 3 .

In the figure: 1. Cutting device; 2. Silt suction device; 3. Monitoring device; 4. Front-end traveling mechanism; 5. Buffer spring; 6. Rear-end traveling mechanism; Conversion joint; 1-1, cutting cutter head; 1-2, rotating shaft; 1-3, cutting motor; 1-4, bracket; 2-1, silt suction hole; 2-2, silt suction plate; 2-3 , housing; 2-4, collection cover; 3-1, miniature camera; 3-2, infrared sensor; 3-3, connecting frame; 4-1, first connecting ring; 4-2, second push rod; 4-3, the first sliding sleeve; 4-4, the first push rod; 4-5, the first traveling wheel; 4-6, the first drive motor; 4-7, the first connecting rod; 4-8, the first Two connecting rings; 6-1, the third connecting ring; 6-2, the second connecting rod; 6-3, the second sliding sleeve; 6-4, the fourth push rod; 6-5, connecting block; 6-6 , the third push rod; 6-7, the second road wheel; 6-8, the fourth connecting ring; 8-1, the detachable rigid ring; 8-2, the support rod; 8-3, the mounting frame; 8-4 , universal wheel; 8-5, limit spring; 8-6, sliding rod.

Detailed ways

The present invention will be described in further detail below in conjunction with the accompanying drawings and embodiments, but the present invention is not limited to these embodiments.

Example 1

In Figures 1 and 2, the present invention relates to a tunnel drainage pipe self-adaptive crystallization blockage dredging suction device, the front end of the suction device 2 is provided with a cutting device 1, and the outer circumference of the suction device 2 is provided with 2~ 6 groups of monitoring devices 3, this embodiment is described with 3 groups of monitoring devices 3 evenly distributed, the specific arrangement position and quantity of monitoring devices 3 are determined according to the diameter of the drainage pipe and the local geological conditions. The rear end of the silt suction device 2 is connected with the high-elastic pipeline 7, and the exterior of the high-elastic pipeline 7 is provided with a front-end traveling mechanism 4, a rear-end traveling mechanism 6, a supporting mechanism 8, and a front-end traveling mechanism 4 and a rear-end traveling mechanism 6. 2 to 6 groups of buffer springs 5 are evenly distributed among them. In this embodiment, three groups of buffer springs are used for illustration, and the buffer spring 5 mainly assists the device in turning in curves. The front-end traveling mechanism 4 and the rear-end driving structure 6 provide forward power for the device, wherein the front-end traveling mechanism 4 has a turning function, and the support mechanism 8 is adjusted according to the diameter of the drain pipe to support and guide the high-elastic pipe 7 , to prevent the high-elastic pipeline 7 from mopping the floor and increase the friction with the pipe wall. The free end of the high-elastic pipeline 7 is provided with a conversion joint 9, which is connected to the external pipeline through the conversion joint 9. The external pipeline is arranged on the coiler, saving At the same time, ensure that the pipeline can smoothly enter and exit the drain pipe, the external pipeline is connected with the air compressor, and the air compressor is installed in the crystal collection device to provide a negative pressure environment for the device, and suck the crystals cut and broken by the cutting device 1 to absorb silt Inside the device 2, the broken crystals are sucked into the crystal collection device from the drainage pipe through the high-elastic pipeline 7 and the external pipeline. The air compressor, the cutting device 1, the monitoring device 3, the front-end traveling mechanism 4, and the rear-end traveling mechanism 6 are electrically connected to the PLC controller. The PLC controller receives the real-time working conditions of the pipeline transmitted by the monitoring device 3, sends out corresponding instructions, and controls the front-end traveling mechanism 4 and the rear-end traveling mechanism 6 to move forward. The pipe crystals are cut and broken, and the air compressor works at the same time to provide a negative pressure environment for the pipe.

As shown in Figures 3 and 4, the silt suction device 2 of this embodiment is composed of a silt suction hole 2-1, a silt suction plate 2-2, a housing 2-3, and a collection cover 2-4. The housing 2-3 It is a hollow cylindrical structure. The front end of the shell 2-3 is provided with a silt suction plate 2-2, and the rear end is connected with the high-elastic pipeline 7. The silt suction plate 2-2 is a conical curved surface, which is convenient for the collection of broken crystals and suction silt. Silt suction holes 2-1 are evenly distributed on the plate 2-2. The number and size of the silt suction holes 2-1 are set according to the specific conditions of the drainage pipe. The outside of the silt suction plate 2-2 is provided with a conical collection cover 2 -4. When the pipeline is under negative pressure, the collection cover 2-4 can collect the broken crystals cut by the cutting device 1 to prevent them from splashing and affecting the silt suction effect. Preferably, the front end of the collection cover 2-4 is processed into a zigzag structure. Because the outer diameter of collecting cover 2-4 is greater than the outer diameter of cutting cutter head 1-1, in the process of advancing, it can further crush and process the crystals that cutting cutter head 1-1 cannot reach, and clean more thoroughly.

The cutting device 1 of the present embodiment is composed of a cutting cutter head 1-1, a rotating shaft 1-2, a cutting motor 1-3, and a support 1-4. The cutting cutter head 1-1 is arranged on the rotating shaft 1-2. The rotating shaft 1-2 is connected with the output shaft of the cutting motor 1-3 through a coupling, the cutting motor 1-3 is fixed on the inner wall of the housing 2-3 through the bracket 1-4, and the cutting motor 1-3 is connected with the PLC controller electrical connection. The rotation of the cutting motor 1-3 drives the rotation of the cutting cutter head 1-1 to cut and break the crystals encountered during the advancing process. Further, in order to ensure the cutting effect, the cutting cutter head 1-1 is composed of several sets of cutting blades that are arranged obliquely and staggered. become.

The monitoring device 3 of the present embodiment is composed of a micro camera 3-1, an infrared sensor 3-2, and a connecting frame 3-3. -3 is provided with an infrared sensor 3-2, and the miniature camera 3-1 and the infrared sensor 3-2 are electrically connected with the PLC controller. The infrared sensor 3-2 measures the distance between the crystal and the device in real time and transmits it to the PLC controller. The micro camera 3-1 transmits the real-time picture in the pipeline to the PLC controller and displays it. The PLC controller sends out a signal according to the received signal. corresponding control instructions.

The front-end traveling mechanism 4 of the present embodiment consists of a first connecting ring 4-1, a second push rod 4-2, a first sliding sleeve 4-3, a first push rod 4-4, a first traveling wheel 4-5, a first A driving motor 4-6, a first connecting rod 4-7, and a second connecting ring; 4-8 are connected, and 2 to 6 groups are evenly distributed between a connecting ring 4-1 and a second connecting ring 4-8. The first connecting rods 4-7, this embodiment is described with 3 sets of first connecting rods 4-7 evenly distributed, the specific number of sets is determined according to the diameter of the drain pipe, and the first connecting rods 4-7 are provided with a first slide Cover 4-3, the first sliding sleeve 4-3 is fixedly connected with the first push rod 4-4, the first connecting ring 4-1 is hinged with the second push rod 4-2, the first push rod 4-4 and Hinged between the second push rod 4-2, the end of the second push rod 4-2 is provided with the first traveling wheel 4-5, the first drive motor 4-6 is arranged on the second push rod 4-2, the first The output shaft of the driving motor 4-6 is connected with the wheel shaft of the first traveling wheel 4-5 through a coupling, and the first driving motor 4-6 is electrically connected with the PLC controller. The first drive motor 4-6 rotates to drive the first road wheel 4-5 to rotate, so that the whole device is advanced. The first push rod 4-4 of the present embodiment is hinged with the second push rod 4-2, and the second push rod 4-2 is hinged. The rod 4-2 is hinged on the first connecting ring 4-1, and the first sliding sleeve 4-3 slides back and forth along the first connecting rod 4-7 under the action of the first push rod 4-4, thereby changing the first walking The distance from the wheel 4-5 to the outer wall of the high elastic pipeline 7 realizes self-adaptive adjustment of different drainage pipe diameters. By changing the rotation speed of each group of first drive motors 4-6, the turning of the device in the curve can be realized.

The rear end traveling mechanism 6 of the present embodiment consists of a third connecting ring 6-1, a second connecting rod 6-2, a second sliding sleeve 6-3, a fourth push rod 6-4, a connecting block 6-5, a third The push rod 6-6, the second road wheel 6-7, and the fourth connecting ring 6-8 are connected to form, and 2 to 6 groups of connecting blocks 6-5 are evenly distributed on the fourth connecting ring 6-8. 3 sets of connecting blocks 6-5 for illustration, the second connecting rod 6-2 is arranged between the third connecting ring 6-1 and the connecting block 6-5, and the second sliding sleeve 6-3 is arranged on the second connecting rod 6- 2, the third push rod 6-6 is hinged on the connecting block 6-5, one end of the fourth push rod 6-4 is fixedly arranged on the second sliding sleeve 6-3, and the other end is connected with the third push rod 6-6. Hinged, the second road wheel 6-7 is arranged on the third push rod 6-6. The self-adaptive adjustment principle of the rear-end traveling mechanism 6 is exactly the same as that of the front-end traveling mechanism 4, and the second traveling wheel 6-7 can be provided with a motor to drive it to rotate, or no motor can be provided, and the front-end traveling mechanism 4 will drive it to walk. The motor is determined according to the length of the drain pipe and the local geological conditions.

As shown in Figures 3 and 5, the support mechanism 8 of this embodiment consists of a detachable rigid ring 8-1, a support rod 8-2, a mounting frame 8-3, a universal wheel 8-4, a limit spring 8-5, The sliding rods 8-6 are connected, the detachable rigid ring 8-1 is sleeved on the high-elastic pipeline 7, and 2 to 6 sets of support rods 8-2 are evenly distributed on the detachable rigid ring 8-1. In this embodiment, the Three sets of support rods 8-2 are described, the ends of the support rods 8-2 are provided with a mounting frame 8-3, and the universal wheels 8-4 are installed on the mounting frame 8-3. The detachable rigid ring 8-1 props up the high elastic pipe 7, and the universal wheel 8-4 can slide along the pipe wall, so as to avoid the high elastic pipe 7 being dragged on the pipe wall and increase the friction force in the process of traveling. Preferably, a limit spring 8-5 is arranged inside the support rod 8-2, the free end of the limit spring 8-5 is connected with the bottom of the slide bar 8-6, and the top of the slide bar 8-6 is connected with the mounting bracket 8-3 connected. The sliding rod 8-6 can slide back and forth in the supporting rod 8-2 through the expansion and contraction of the limit spring 8-5, thereby realizing the adjustment of the length of the supporting rod 8-2 to adapt to different drain pipe diameters.

Claims (10)

1. The utility model provides a tunnel drain pipe pipeline self-adaptation crystallization blocks up mediation and inhales silt device which characterized in that: the front end of the silt suction device (2) is provided with a cutting device (1), 2-6 groups of monitoring devices (3) are arranged on the outer circumference of the silt suction device (2), the rear end of the silt suction device (2) is communicated with a high-elastic pipeline (7), a front end advancing mechanism (4), a rear end advancing mechanism (6) and a supporting mechanism (8) are sequentially arranged outside the high-elastic pipeline (7), a conversion joint (9) is arranged at the free end of the high-elastic pipeline (7) and is connected with an external pipeline through the conversion joint (9), the external pipeline is communicated with an air compressor, and the air compressor, the cutting device (1), the monitoring devices (3), the front end advancing mechanism (4) and the rear end advancing mechanism (6) are electrically connected with a PLC (programmable logic controller).

2. The self-adaptive crystallization blockage dredging silt suction device for the tunnel drain pipe according to claim 1, wherein the silt suction device (2) comprises: the shell (2-3) is of a hollow cylindrical structure, the front end of the shell (2-3) is provided with a silt suction plate (2-2), the rear end of the shell is communicated with a high-elasticity pipeline (7), silt suction holes (2-1) are uniformly distributed and processed on the silt suction plate (2-2), and a conical collection cover (2-4) is arranged outside the silt suction plate (2-2).

3. The self-adaptive crystallization blockage dredging and silt sucking device for the tunnel drain pipeline according to claim 2, characterized in that: the front end of the collecting cover (2-4) is processed into a sawtooth structure.

4. The self-adaptive crystallization blockage dredging and silt sucking device for the tunnel drain pipe according to claim 2, characterized in that the cutting device (1) comprises: the cutting cutter head (1-1) is arranged on the rotating shaft (1-2), the rotating shaft (1-2) is connected with an output shaft of the cutting motor (1-3) through a coupler, the cutting motor (1-3) is fixed on the inner wall of the shell (2-3) through a support (1-4), and the cutting motor (1-3) is electrically connected with the PLC.

5. The self-adaptive crystallization blockage dredging and silt sucking device for the tunnel drain pipeline according to claim 1, wherein the monitoring device (3) comprises: the miniature camera (3-1) is arranged on the silt suction device (2) through a connecting frame (3-3), the connecting frame (3-3) is provided with an infrared sensor (3-2), and the miniature camera (3-1) and the infrared sensor (3-2) are electrically connected with the PLC.

6. The self-adaptive crystallization blockage dredging and silt sucking device for the tunnel drain pipe according to claim 1, wherein the front end advancing mechanism (4) comprises: 2-6 groups of first connecting rods (4-7) are uniformly distributed between the first connecting ring (4-1) and the second connecting ring (4-8), a first sliding sleeve (4-3) is arranged on the first connecting rods (4-7), a first push rod (4-4) is fixedly connected onto the first sliding sleeve (4-3), a second push rod (4-2) is hinged onto the first connecting ring (4-1), the first push rod (4-4) is hinged with the second push rod (4-2), a first traveling wheel (4-5) is arranged at the end part of the second push rod (4-2), a first driving motor (4-6) is arranged on the second push rod (4-2), the output shaft of the first driving motor (4-6) is connected with the wheel shaft of the first traveling wheel (4-5) through a coupler, and the first driving motor (4-6) is electrically connected with the PLC.

7. The self-adaptive crystallization blockage dredging and silt sucking device for the tunnel drain pipe according to claim 1, wherein the rear end advancing mechanism (6) comprises: 2-6 groups of connecting blocks (6-5) are uniformly distributed on the fourth connecting ring (6-8), a second connecting rod (6-2) is arranged between the third connecting ring (6-1) and the connecting blocks (6-5), the second sliding sleeve (6-3) is arranged on the second connecting rod (6-2), the third push rod (6-6) is hinged on the connecting blocks (6-5), one end of the fourth push rod (6-4) is fixedly arranged on the second sliding sleeve (6-3), the other end of the fourth push rod is hinged with the third push rod (6-6), and the second traveling wheel (6-7) is arranged on the third push rod (6-6).

8. The self-adaptive crystallization blockage dredging and silt sucking device for the tunnel drain pipe according to claim 1, wherein the supporting mechanism (8) comprises: the detachable rigid ring (8-1) is sleeved on the high-elasticity pipeline (7), 2-6 groups of supporting rods (8-2) are uniformly distributed on the detachable rigid ring (8-1), the end part of each supporting rod (8-2) is provided with an installation frame (8-3), and the universal wheels (8-4) are installed on the installation frames (8-3).

9. The self-adaptive crystallization blockage dredging and silt sucking device for the tunnel drain pipeline according to claim 8, characterized in that: the supporting rod (8-2) is internally provided with a limiting spring (8-5), the free end of the limiting spring (8-5) is connected with the bottom of the sliding rod (8-6), and the top of the sliding rod (8-6) is connected with the mounting frame (8-3).

10. The self-adaptive crystallization blockage dredging and silt sucking device for the tunnel drain pipeline according to claim 1, characterized in that: 2-6 groups of buffer springs (5) are uniformly distributed between the front end advancing mechanism (4) and the rear end advancing mechanism (6).
