The invention relates to a power generation device, in particular to a solar power generation device with a windproof function. The invention provides a solar power generation device with a wind-proof function, which has a good wind-proof effect. The utility model provides a solar power system with prevent wind function, is including bottom plate and stopper, and the symmetry is fixed with the stopper around bottom plate top right side, still including adjusting part, pushing mechanism and protection machanism, installs adjusting part on the stopper, is equipped with on the bottom plate to be used for the pushing mechanism who descends photovoltaic board height, is equipped with on the pushing mechanism to be used for preventing wind the protection machanism to the photovoltaic board. When the wind speed is strong, can make the guard plate be close to the photovoltaic board through pushing mechanism, make the photovoltaic board height to descending simultaneously to rotate and be the horizontally state, improve stably, the guard plate will rotate and be located the photovoltaic board top, can block the fine sand that contains in keeping out the wind, avoid fine sand to beat and cause wearing and tearing on the photovoltaic board, prevent wind the effect better.

Description

Solar power generation device with windproof function

Technical Field

The invention relates to a power generation device, in particular to a solar power generation device with a windproof function.

Background

The solar photovoltaic panel is a generating set which can generate direct current when exposed to the sun, and when the solar photovoltaic panel is installed, in order to enable the solar photovoltaic panel to receive sunlight more fully, the solar photovoltaic panel is generally installed in an inclined way by 45 degrees, in some hilly areas, the windy weather is more, the inclined state of the solar photovoltaic panel is easily blown down by wind, and certain loss can be caused.

Authorizing the automatic adjusting of disclosing number for CN110138324B prevent wind solar panel, a plurality of bracing pieces of bottom fixedly connected with of regulating box, it has the base to articulate on solar panel's the bottom face, base fixed connection is on the roof of regulating box, solar panel's bottom surface is equipped with the rack bar that two symmetries set up, through the combination of rack bar, carousel and ratchet, has realized automatically regulated solar panel's angle to adapt to the change of sunlight irradiation angle, realize the biggest photoelectric conversion rate, through the ratchet rotation of the clearance meshing of the pawl on the carousel, the speed that makes the rack bar rise the decline is the same with the speed that the sun position changes, when receiving wind-force and scraping, the electro-magnet can attract the iron plate to be located same horizontal plane, makes two rack bar levels, ensures that the solar panel level is placed, reduces the wind-force that solar panel received, has ensured solar panel's steadiness.

The problems of the above patents are: when blowing, solar panel level can be ensured to above-mentioned patent and place, reduces the wind-force that solar panel received, but some areas can be in the same direction as taking fine sand when blowing, and fine sand can be beaten on solar panel, causes solar panel wearing and tearing easily, and it is not good enough to prevent wind the effect.

The wind-proof effect is not sufficient enough to the above patent, and the situation that the fine sand abrades the solar panel exists, so that the solar power generation device with the wind-proof function and good wind-proof effect needs to be designed.

Disclosure of Invention

In order to overcome above-mentioned solar panel prevent wind the effect not enough, have the shortcoming of fine sand wearing and tearing solar panel, technical problem: the solar power generation device with the wind-proof function is good in wind-proof effect.

The utility model provides a solar power system with prevent wind function, is including bottom plate and stopper, and the symmetry is fixed with the stopper around bottom plate top right side, still including adjusting part, pushing mechanism and protection machanism, installs adjusting part on the stopper, is equipped with on the bottom plate to be used for the pushing mechanism who descends photovoltaic board height, is equipped with on the pushing mechanism to be used for preventing wind the protection machanism to the photovoltaic board.

Optionally, the adjusting part includes a first screw, a support block, a rotating rod, a first torsional spring, a photovoltaic panel, a first clamping rod and a pushing frame, the stopper is provided with a first screw in an equal rotation mode, the upper side of the first screw is in threaded connection with the support block, the rotating mode is provided with the rotating rod between the support blocks, the photovoltaic panel is fixed on the rotating rod, the right side of the top of the bottom plate is fixed with a storage battery, the storage battery is electrically connected with the photovoltaic panel, the first torsional spring is connected between the front side and the rear side of the rotating rod and the adjacent support block, the first clamping rod is arranged on the support block in an equal sliding mode, the first clamping rod is connected with the rotating rod in a clamping mode, the pushing frame is fixed on the two sides of the top of the bottom plate close to the stopper, and the first clamping rod moves downwards to contact with the right side of the adjacent pushing frame.

Optionally, the pushing mechanism comprises a guide frame, a movable plate, racks and gears, the guide frame is symmetrically fixed on the top of the bottom plate in a front-back manner, the movable plate is arranged between the left sides of the guide frames in a sliding manner, the racks are symmetrically fixed on the front and back of the movable plate, the gears are fixed on the lower sides of the first screws, and the racks are all meshed with the adjacent gears.

Optionally, the protection mechanism comprises a support ring, a support rod, a protection plate, a second torsion spring, a first guide rod and a second clamping rod, the support ring is symmetrically fixed to the front and the back of the top of the movable plate, the support rod is arranged between the support rings in a rotating mode, the protection plate used for blocking sand blown by the wind is fixed to the support rod, the second torsion spring is connected between the front side of the protection plate and the back side of the support ring, the second torsion spring is sleeved on the support rod, the first guide rod is symmetrically fixed to the front and the back of the movable plate, the second clamping rod is arranged on the first guide rod in a sliding mode, the second clamping rod is connected with the adjacent support rod in a clamping mode, and the second clamping rod moves towards the right side and can be in contact with the left side of the adjacent pushing frame.

Optionally, the electric vehicle further comprises a fixing mechanism, the fixing mechanism comprises a supporting plate, a motor and a second screw rod, the supporting plate is uniformly fixed on the front side and the rear side of the top of the bottom plate, the motor is mounted on the supporting plate and is electrically connected with the storage battery, and the second screw rod used for fixing the bottom plate is connected to an output shaft of the motor.

Optionally, the wind power generation device further comprises a detection mechanism, the detection mechanism comprises a support column, a wind power detector and a controller, the support column is fixed on the left side of the top of the bottom plate, the wind power detector capable of detecting the intensity of peripheral wind speed is fixed on the top of the support column, the controller is installed in the middle of the support column, the wind power detector is electrically connected with the controller, and the wind power detector and the controller are electrically connected with the storage battery.

Optionally, the photovoltaic panel cleaning device further comprises a cleaning mechanism, the cleaning mechanism comprises a second guide rod and a cleaning brush, the second guide rod is symmetrically fixed to the front and the back of the photovoltaic panel, the cleaning brush is arranged between the second guide rods in a sliding mode, and the cleaning brush is in contact with the photovoltaic panel.

Optionally, the rain shielding device further comprises a rain shielding frame, the rain shielding frame is fixed on the right side of the top of the bottom plate, and the storage battery is located below the rain shielding frame.

Optionally, the gear mechanism further comprises a telescopic cylinder, the top of the gear is connected with the telescopic cylinder, the telescopic cylinder is made of rubber and has elasticity, the first screw rods are located inside the adjacent telescopic cylinder, and the supporting blocks are in contact with the adjacent telescopic cylinder.

Compared with the prior art, the invention has the following advantages: 1. when the wind speed is high, the protection plate can be close to the photovoltaic plate through the pushing mechanism, meanwhile, the photovoltaic plate is enabled to descend in the height direction and rotate to be in a horizontal state, the stability is improved, the protection plate rotates above the photovoltaic plate, fine sand contained in the wind can be blocked, the abrasion caused by the fine sand beating on the photovoltaic plate is avoided, and the wind prevention effect is better;

2. the wind power is detected by the wind power detector, and after the wind speed is weakened, people can be prompted, so that the protection plate and the photovoltaic plate can be conveniently reset, and the normal use of the photovoltaic plate is ensured;

3. under the effect of cleaning brush, after the photovoltaic board resets, the accessible cleaning brush cleans the photovoltaic board, avoids the dust to remain and influences the photovoltaic board and receive the sunlight.

Drawings

Fig. 1 is a schematic perspective view of the present invention.

FIG. 2 is a schematic view of a first partial body structure according to the present invention.

FIG. 3 is a schematic view of a second partial body structure according to the present invention.

Fig. 4 is a schematic perspective view of the fixing mechanism of the present invention.

Fig. 5 is a partial perspective view of the fixing mechanism of the present invention.

Fig. 6 is a schematic perspective view of the pushing mechanism of the present invention.

Fig. 7 is a partial sectional structural schematic view of the pushing mechanism of the present invention.

Fig. 8 is a schematic perspective view of the protection mechanism of the present invention.

Fig. 9 is a partial cross-sectional structural schematic view of the guard mechanism of the present invention.

Fig. 10 is a schematic perspective view of the detecting mechanism of the present invention.

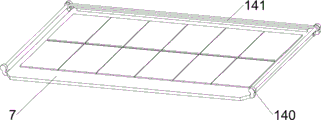

FIG. 11 is a perspective view of the cleaning mechanism of the present invention.

Reference numbers in the drawings: 1: bottom plate, 2: a limiting block, 3: first screw, 4: a supporting block, 5: dwang, 6: first torsion spring, 7: photovoltaic panel, 701: a storage battery, 8: first catch lever, 9: push frame, 10: fixing mechanism, 100: support plate, 101: motor, 102: second screw, 11: pushing mechanism, 110: guide frame, 111: moving plate, 112: rack, 113: gear, 12: guard mechanism, 120: support ring, 121: support rod, 122: guard plate, 123: second torsion spring, 124: first guide bar, 125: second catch lever, 13: detection mechanism, 130: support column, 131: wind force detector, 133: controller, 14: cleaning mechanism, 140: second guide bar, 141: cleaning brush, 15: rain-shielding frame, 16: a telescopic cylinder.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Example 1

A solar power generation device with a windproof function is shown in figures 1-3 and comprises a bottom plate 1, limiting blocks 2, adjusting components, a pushing mechanism 11 and a protection mechanism 12, wherein the limiting blocks 2 are symmetrically bolted on the front and back of the right side of the top of the bottom plate 1, the adjusting components are mounted on the limiting blocks 2, the pushing mechanism 11 used for descending the height of a photovoltaic panel 7 is arranged on the bottom plate 1, and the protection mechanism 12 used for preventing the photovoltaic panel 7 from being windproof is arranged on the pushing mechanism 11.

As shown in fig. 1, fig. 2 and fig. 3, the adjusting assembly includes a first screw rod 3, a supporting block 4, a rotating rod 5, a first torsion spring 6, a photovoltaic panel 7, a first clamping rod 8 and a pushing frame 9, the limiting block 2 is provided with the first screw rod 3 in an equal rotating manner, the first screw rod 3 is provided with the supporting block 4 in an upper side in an equal threaded connection manner, the rotating type is provided with the rotating rod 5 between the supporting blocks 4, the photovoltaic panel 7 is fixed on the rotating rod 5, a storage battery 701 is fixed on the right side of the top of the bottom plate 1, the storage battery 701 is electrically connected with the photovoltaic panel 7, the first torsion spring 6 is respectively connected between the front side and the rear side of the rotating rod 5 and the adjacent supporting block 4, the first clamping rod 8 is arranged in a sliding manner on the supporting block 4, the first clamping rod 8 is respectively connected with the rotating rod 5 in a clamping manner, the pushing frame 9 is fixed on both sides of the top of the bottom plate 1 close to the limiting block 2, and the first clamping rod 8 can be contacted with the right side of the adjacent pushing frame 9 in a downward movement manner.

As shown in fig. 1, 6 and 7, the pushing mechanism 11 includes a guide frame 110, a moving plate 111, a rack 112 and a gear 113, the guide frame 110 is symmetrically welded to the top of the bottom plate 1 in front and back directions, the moving plate 111 is slidably disposed between the left sides of the guide frame 110, the rack 112 capable of indirectly rotating the first screw 3 is symmetrically fixed to the front and back of the moving plate 111, the gear 113 is fixedly connected to the lower side of the first screw 3, and the rack 112 is engaged with the adjacent gear 113.

As shown in fig. 1, 8 and 9, the protection mechanism 12 includes a support ring 120, a support rod 121, a protection plate 122, a second torsion spring 123, a first guide rod 124 and a second clamping rod 125, the support ring 120 is symmetrically welded to the front and back of the top of the moving plate 111, the support rod 121 is rotatably disposed between the support rings 120, the support rod 121 is fixed with the protection plate 122 for blocking wind and sand, the second torsion spring 123 is connected between the front and back sides of the protection plate 122 and the adjacent support ring 120, the second torsion spring 123 is sleeved on the support rod 121, the first guide rod 124 is symmetrically fixed to the front and back of the moving plate 111, the second clamping rod 125 capable of fixing the protection plate 122 is slidably disposed on the first guide rod 124, the second clamping rod 125 is clamped with the adjacent support rod 121, and the second clamping rod 125 moves to the right side and can contact with the left side of the adjacent pushing frame 9.

The device is mainly installed in hilly areas for use and can generate electricity, when in specific installation, the bottom plate 1 can be fixed on an appropriate outdoor position by using bolts, the photovoltaic panel 7 is in an inclined state initially, sunlight irradiates on the photovoltaic panel 7, the photovoltaic panel 7 can convert the sunlight into electric energy to be stored on the storage battery 701, the use is convenient, the device is more environment-friendly and economical, the light in some hilly areas is good, and wind is large, when the device is installed, the direction needs to be selected, the right side of the photovoltaic panel 7 can be close to a mountain, the wind blowing from the right side is small, when wind blowing from the left side is strong, the protection plate 122 can be blown to move to the right side, so that the protection plate 122 drives the support rod 121, the support ring 120, the first guide rod 124 and the second clamping rod 125 to move to the right side, and simultaneously drives the moving plate 111 and the rack 112 to move to the right side along the guide frame 110, the rack 112 moves to the right side and drives the gear 113 to rotate, and further driving the first screw rod 3 to rotate, so that the first screw rod 3 drives the supporting block 4, the rotating rod 5, the photovoltaic panel 7, the first clamping rod 8 and the pushing frame 9 to move downwards, when the first clamping rod 8 moves downwards to contact with the right side of the pushing frame 9, the first clamping rod is pushed by the pushing frame 9 to move outwards, and further the rotating rod 5 is not clamped, the first torsion spring 6 is in a deformation state initially, after the rotating rod 5 is not clamped any more, the rotating rod 5 drives the photovoltaic panel 7 to rotate downwards under the resetting action of the first torsion spring 6, so that the photovoltaic panel 7 is in a horizontal state, meanwhile, the second clamping rod 125 moves towards the right side and contacts with the left side of the pushing frame 9, and further is pushed by the pushing frame 9 to move outwards, so that the supporting rod 121 is not clamped any more, when the second torsion spring 123 is in a deformation state initially, and after the supporting rod 121 is not clamped any more, the protecting plate 122 drives the supporting rod 121 to rotate downwards under the resetting action of the second torsion spring 123, the protection plate 122 is located above the photovoltaic panel 7, the movable plate 111 moves to the limit, and the protection plate 122 blocks the photovoltaic panel 7 due to the fact that fine sand and impurities are mixed in wind, so that the photovoltaic panel 7 can be protected, the phenomenon that the wind sand hits the surface of the photovoltaic panel 7 to cause abrasion is avoided, after the wind speed is reduced, the surrounding workers can rotate the protection plate 122 upwards to reset, and then drive the support rod 121 to rotate, the second torsion spring 123 will deform, after the protection plate 122 is in the vertical state, the protection plate 122 can be pushed to the left side, the whole protection mechanism 12 moves to the left side, thereby driving the moving plate 111 and the rack 112 to move and reset to the left along the guiding frame 110, the rack 112 will drive the gear 113 and the first screw 3 to rotate in the opposite direction, so that the first screw 3 drives the supporting block 4, the rotating rod 5, the photovoltaic panel 7, the first clamping rod 8 and the pushing frame 9 to move and reset upwards, after the protection plate 122 moves to the left for resetting, the second locking rod 125 can be manually pushed to the inner side, so that the second locking rod 125 locks the supporting rod 121, thereby preventing the second torsion spring 123 from resetting, after the photovoltaic panel 7 moves to the initial height, the photovoltaic panel 7 can be rotated upwards, and then the rotating rod 5 is driven to rotate, so that the first torsion spring 6 is deformed, after the photovoltaic panel 7 rotates to be in an inclined state, the first clamping rod 8 can move inwards, so that the first clamping rod 8 clamps the rotating rod 5, the photovoltaic panel 7 can be fixed, and the first torsion spring 6 is prevented from resetting, therefore, the device is matched with the protection mechanism 12 through the pushing mechanism 11, when the wind speed is high, the photovoltaic panel 7 can automatically descend and rotate to be in a horizontal state, the wind force borne by the photovoltaic panel 7 is reduced, meanwhile, the protection plate 122 is arranged on the top surface of the photovoltaic panel 7, so that wind and sand can be blocked, and the wind-proof effect is effectively achieved.

Example 2

On the basis of embodiment 1, as shown in fig. 1, 4 and 5, the device further comprises a fixing mechanism 10, wherein the fixing mechanism 10 comprises a support plate 100, a motor 101 and a second screw 102, the three support plates 100 are uniformly fixed on the front side and the rear side of the top of the bottom plate 1, the motor 101 which is convenient for fixing the device is installed on each support plate 100, the motor 101 is electrically connected with a storage battery 701, and an output shaft of the motor 101 is connected with the second screw 102 for fixing the bottom plate 1.

When the device is installed, the bottom plate 1 is stepped downwards by force, then the motor 101 is started, the output shaft of the motor 101 rotates to drive the second screw 102 to rotate, the second screw 102 rotates to be capable of penetrating into the ground, the second screw 102 moves downwards to penetrate into the ground through extrusion of people, the bottom plate 1 is tightly attached to the ground, the effect of fixing the device is achieved, after the fixing is finished, the motor 101 is closed, electric energy inside the storage battery 701 can supply power for the motor 101, the position of the device needs to be changed, the motor 101 can be controlled to rotate reversely, the output shaft of the motor 101 reversely rotates to drive the second screw 102 to rotate reversely, the second screw 102 rotates upwards, people can also pull the device upwards, the second screw 102 is assisted to be separated from the ground, the device can be detached, and the installation position is convenient to change.

As shown in fig. 1 and 10, the wind power detection device further includes a detection mechanism 13, the detection mechanism 13 includes a support column 130, a wind power detector 131 and a controller 133, the support column 130 is fixed on the left side of the top of the bottom plate 1, the wind power detector 131 capable of detecting the intensity of the peripheral wind speed is fixed on the top of the support column 130, the controller 133 capable of sending signals is installed in the middle of the support rod 121, the wind power detector 131 is electrically connected with the controller 133, and both the wind power detector 131 and the controller 133 are electrically connected with the storage battery 701.

When the device is used, the controller 133 can be connected with a mobile phone, the wind detector 131 can detect wind speed, electric energy in the storage battery 701 can supply power for the wind detector 131 and the controller 133, when the wind detector 131 detects that peripheral wind speed is strong, the wind detector 131 can send signals to the controller 133, the controller 133 can send signals to the mobile phone of people, and further warn people, the protection mechanism 12 and the pushing mechanism 11 can automatically protect the photovoltaic panel 7, when people receive the signals, people can check whether the photovoltaic panel 7 is protected, after the wind speed is weakened, the wind detector 131 can send signals to the controller 133 after detecting that the wind speed is reduced, the controller 133 can send signals to the mobile phone, and further prompt people to reset the photovoltaic panel 7.

As shown in fig. 1 and 11, the photovoltaic panel cleaning device further comprises a cleaning mechanism 14, the cleaning mechanism 14 comprises a second guide rod 140 and a cleaning brush 141, the second guide rod 140 is symmetrically fixed to the front and the back of the photovoltaic panel 7, the cleaning brush 141 capable of cleaning the photovoltaic panel 7 is slidably arranged between the second guide rods 140, and the cleaning brush 141 is in contact with the photovoltaic panel 7.

Photovoltaic board 7 is in outdoor use, and the surface is stained with the dust easily, uses a period of time after, can clear up photovoltaic board 7 surface, and direct pulling cleaning brush 141 slides along second guide bar 140, makes cleaning brush 141 clear up the dust on photovoltaic board 7 surface, and after the clearance finishes, stops to remove cleaning brush 141.

As shown in fig. 1, the solar water heater further comprises a rain shielding frame 15, the rain shielding frame 15 capable of blocking rainwater is fixed on the right side of the top of the bottom plate 1, and the storage battery 701 is located below the rain shielding frame 15.

When raining in rainy season, the storage battery 701 is easily corroded by rainwater, and the rain blocking frame 15 can prevent rainwater from directly washing the storage battery 701, so that better protection is achieved.

As shown in fig. 1, the telescopic cylinder 16 is further included, the top of the gear 113 is connected with the telescopic cylinders 16, the telescopic cylinders 16 are made of rubber and have elasticity, the first screws 3 are located inside the adjacent telescopic cylinders 16, and the supporting blocks 4 are in contact with the adjacent telescopic cylinders 16.

Can extrude telescopic cylinder 16 when supporting shoe 4 moves down, make telescopic cylinder 16 compress, and gear 113 can drive telescopic cylinder 16 to rotate when rotating, when moving up to reset at supporting shoe 4, will no longer extrude telescopic cylinder 16, make telescopic cylinder 16 rely on self elasticity rebound to reset, telescopic cylinder 16 can reduce the contact of first screw rod 3 with the air, avoids first screw rod 3 oxidation to influence the removal of supporting shoe 4.

The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.

Claims

1. The utility model provides a solar power system with prevent wind function, is including bottom plate (1) and stopper (2), and bottom plate (1) top right side front and back symmetry is fixed with stopper (2), characterized by: the photovoltaic panel safety protection device is characterized by further comprising an adjusting assembly, a pushing mechanism (11) and a protection mechanism (12), the adjusting assembly is installed on the limiting block (2), the pushing mechanism (11) used for enabling the height of the photovoltaic panel (7) to descend is arranged on the bottom plate (1), and the protection mechanism (12) used for preventing wind from the photovoltaic panel (7) is arranged on the pushing mechanism (11).

2. The solar power generation device with the wind-proof function as claimed in claim 1, wherein: the adjusting component comprises a first screw (3), a supporting block (4), a rotating rod (5), a first torsion spring (6), a photovoltaic plate (7), a first clamping rod (8) and a pushing frame (9), the first screw (3) is arranged on a limiting block (2) in an equal rotating mode, the supporting block (4) is in threaded connection with the upper side of the first screw (3), the rotating rod (5) is arranged between the supporting blocks (4), the photovoltaic plate (7) is fixed on the rotating rod (5), a storage battery (701) is fixed on the right side of the top of the bottom plate (1), the storage battery (701) is electrically connected with the photovoltaic plate (7), the first torsion spring (6) is connected between the front side and the rear side of the rotating rod (5) and the adjacent supporting block (4), the first clamping rod (8) is arranged on the supporting block (4) in an equal sliding mode, the first clamping rod (8) is connected with the adjacent clamping rod (5) in a clamping mode, the two sides of the top of the bottom plate (1) close to the limiting block (2) are both fixed with the pushing frame (9), and the first clamping rod (8) can be in a downward moving mode and can be in contact with the right side of the pushing frame (9).

3. The solar power generation device with the wind-proof function as claimed in claim 2, wherein: the pushing mechanism (11) comprises a guide frame (110), a moving plate (111), a rack (112) and a gear (113), the guide frame (110) is symmetrically fixed on the top of the bottom plate (1) in a front-back mode, the moving plate (111) is arranged between the left sides of the guide frame (110) in a sliding mode, the rack (112) is symmetrically fixed on the front side and the back side of the moving plate (111), the gear (113) is fixed on the lower side of the first screw (3), and the rack (112) is meshed with the adjacent gear (113).

4. The solar power generation device with the wind-proof function according to claim 3, wherein: the protection mechanism (12) comprises a support ring (120), support rods (121), protection plates (122), second torsion springs (123), first guide rods (124) and second clamping rods (125), the support rings (120) are symmetrically fixed on the front and back of the top of the moving plate (111), the support rods (121) are rotatably arranged between the support rings (120), the protection plates (122) used for blocking wind and sand are fixed on the support rods (121), the second torsion springs (123) are connected between the front side and the back side of each protection plate (122) and the adjacent support rings (120), the second torsion springs (123) are sleeved on the support rods (121), the first guide rods (124) are symmetrically fixed on the front and back side of the moving plate (111), the second clamping rods (125) are arranged on the first guide rods (124) in a sliding mode, the second clamping rods (125) are clamped with the adjacent support rods (121), and the second clamping rods (125) move towards the right side and can be in contact with the left sides of the adjacent pushing frames (9).

5. The solar power generation device with the wind-proof function according to claim 4, wherein: still including fixed establishment (10), fixed establishment (10) are all evenly fixed with backup pad (100) including backup pad (100), motor (101) and second screw rod (102) around bottom plate (1) top both sides, all install motor (101) on backup pad (100), and motor (101) and battery (701) electrical property link to each other, all are connected with second screw rod (102) that are used for PMKD (1) on motor (101) output shaft.

6. The solar power generation device with the wind-proof function according to claim 5, wherein: still including detection mechanism (13), detection mechanism (13) are including support column (130), wind detector (131) and controller (133), bottom plate (1) top left side is fixed with support column (130), support column (130) top is fixed with wind detector (131) that can detect peripheral wind speed intensity, controller (133) are installed to the centre of bracing piece (121), wind detector (131) and controller (133) electrical property link to each other, wind detector (131) and controller (133) all link to each other with battery (701) electrical property.

7. The solar power generation device with the wind-proof function as claimed in claim 6, wherein: the photovoltaic panel cleaning device is characterized by further comprising a cleaning mechanism (14), the cleaning mechanism (14) comprises a second guide rod (140) and a cleaning brush (141), the second guide rod (140) is symmetrically fixed to the front and the back of the photovoltaic panel (7), the cleaning brush (141) is arranged between the second guide rods (140) in a sliding mode, and the cleaning brush (141) is in contact with the photovoltaic panel (7).

8. The solar power generation device with the wind-proof function as claimed in claim 7, wherein: the rain shield is characterized by further comprising a rain shield frame (15), the rain shield frame (15) is fixed on the right side of the top of the bottom plate (1), and the storage battery (701) is located below the rain shield frame (15).

9. The solar power generation device with the wind-proof function as claimed in claim 8, wherein: still including a telescopic cylinder (16), gear (113) top all is connected with telescopic cylinder (16), and telescopic cylinder (16) are the rubber material, have elasticity, and first screw rod (3) all are located near inside telescopic cylinder (16), and supporting shoe (4) and near telescopic cylinder (16) contact.
