CN115846435A

CN115846435A - Energy-saving and water-saving device of low-pressure turbid ring water supply pump for rolling mill and using method thereof

Info

Publication number: CN115846435A
Application number: CN202211365645.6A
Authority: CN
Inventors: 张宝明; 张玉剑; 黄晓武; 刘芳勇
Original assignee: Yangzhou Haogang Pump Technology Co ltd
Current assignee: Yangzhou Haogang Pump Technology Co ltd
Priority date: 2022-10-31
Filing date: 2022-10-31
Publication date: 2023-03-28

Abstract

The invention relates to the technical field of auxiliary equipment for steel rolling processing, in particular to an energy-saving and water-saving device of a low-pressure turbid ring water supply pump for a rolling mill. The technical scheme comprises the following steps: the roof, the roof passes through moving mechanism and is connected with first connecting plate, and moving mechanism installs the lower surface central point at the roof and puts, first connecting plate passes through the connecting rod and is connected with the second connecting plate, first pneumatic cylinder and second pneumatic cylinder are all installed respectively to the upper surface both sides of second connecting plate, and just first pneumatic cylinder is located the inboard of second pneumatic cylinder, the second hydraulic telescoping rod is installed to the bottom of second pneumatic cylinder. The invention can filter impurities and liquid generated by washing the iron scale on the steel billet, and the filtered water can be conveyed by the water supply pump body again to wash the steel billet, thereby saving energy and water, being convenient for removing the filtered impurities, avoiding the shutdown operation in the removing process, improving the working efficiency and having strong practicability.

Description

Energy-saving and water-saving device of low-pressure turbid ring water supply pump for rolling mill and using method thereof

Technical Field

The invention relates to the technical field of auxiliary equipment for steel rolling processing, in particular to an energy-saving and water-saving device of a low-pressure turbid ring water supply pump for a rolling mill and a using method thereof.

Background

The steel is oxidized at high temperature to form a layer of compact iron scale on the surface. If this layer of scale cannot be removed before rolling, it can be pressed into the surface of the strip by the rolls during rolling, which affects its surface quality. The residual iron oxide scale can also accelerate the abrasion of the roller and reduce the service life of the roller. If the strip steel needs to be acid-washed, the residual iron oxide scale can increase the difficulty of acid-washing and increase the acid consumption. Therefore, before billet rolling, the scale on the surface must be removed. The method for removing the iron oxide scale (removing phosphorus by high-pressure water) by utilizing the mechanical impact force of high-pressure water is the most effective method at present.

Through retrieval, patent publication No. CN213944346U discloses a simple automatic dephosphorization device of rolling line, includes: the device comprises a turbid ring pipeline, a rolling mill trench, a phosphorus removal ring, a pump and a controller, wherein the controller controls a first electromagnetic valve to be connected and disconnected with the water supply of the turbid ring pipeline; the controller controls the pump to provide high-pressure water for the phosphorus removal ring; the controller controls the second electromagnetic valve to discharge the water in the phosphorus removal ring to a rolling mill trench. The invention relates to a simple and efficient phosphorus removal device, which simplifies the structural form of the existing rolling line phosphorus removal device, and a booster pump is arranged on a turbid ring pipeline to increase the water pressure of a turbid ring and eject the turbid ring through a phosphorus removal ring.

When filtering and reusing the produced waste water when washing the steel billet at present, handle filterable impurity, the staff need shut down the operation and just can handle the impurity of filter screen, the work efficiency that reduces, we provide a rolling mill for this reason and supply energy-conserving water saving fixtures of low pressure turbid ring working pump and solve current problem.

Disclosure of Invention

The invention aims to provide an energy-saving and water-saving device of a low-pressure turbid circulating water supply pump for a rolling mill, which aims to solve the problems in the background technology.

In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a mill is with energy-conserving water saving fixtures of turbid ring working shaft of low pressure, includes the roof, the roof passes through moving mechanism and is connected with first connecting plate, and moving mechanism installs the lower surface central point who puts at the roof, first connecting plate passes through the connecting rod and is connected with the second connecting plate, first pneumatic cylinder and second pneumatic cylinder are all installed respectively to the upper surface both sides of second connecting plate, and just first pneumatic cylinder is located the inboard of second pneumatic cylinder, second hydraulic telescopic rod is installed to the bottom of second pneumatic cylinder, the bottom of second hydraulic telescopic rod runs through the surface of second connecting plate and is connected with the third connecting plate, the below of third connecting plate is provided with the curb plate, and the curb plate is installed on the both sides outer wall of bounding wall, spacing post is all installed to four upper surface of curb plate, the other end of spacing post passes damping rubber sleeve and is connected with the limiting plate, all be provided with the spring between limiting plate and the third connecting plate and the curb plate, and the spring housing establishes in the outer wall outside of spacing post, first hydraulic telescopic rod's bottom is installed first hydraulic telescopic rod's bottom, runs through the surface of second connecting plate and the movable connecting block and the body of water supply shaft base, the movable connection block and the bottom plate pass through the groove body and the movable connection block of water supply shaft connection base, the bottom plate, the movable connection block and the groove body, the movable connection base of water supply shaft connection base and the bottom plate, the movable connection of water supply shaft connection block pass through the groove body, and movable connection base.

Through the matching arrangement of a series of structures, a worker conveys water through the water supply pump body and washes iron oxide scales on a steel billet to generate wastewater which can be conveyed to the inner side of the enclosing plate by external equipment, the filtering holes on the enclosing plate and the bottom plate can filter impurities in the wastewater, the filtered water can be conveyed by the water supply pump body again to wash the iron oxide scales on the steel billet, the energy-saving and water-saving effects are achieved, when the worker needs to treat the filtered impurities, the conveying of the wastewater is stopped, the worker starts the second hydraulic cylinder, the second hydraulic telescopic rod can drive the enclosing plate to do upward linear motion, after the enclosing plate moves to a certain horizontal height, the worker starts the speed reducing motor on the moving mechanism, the speed reducing motor indirectly drives the rotating shaft to rotate forwards or backwards, and due to the fact that the external thread on the outer wall of the rotating shaft is in thread meshing connection with the second thread hole on the moving plate, when the rotating shaft rotates forwards or backwards, the movable plate can do forward or backward linear motion, the movable plate can indirectly drive the coaming to do forward or backward linear motion, the coaming is positioned right above the impurity collecting object by an operator, the operator starts the first hydraulic cylinder, when the first hydraulic telescopic rod stretches and retracts downwards, the bottom plate can be driven to rotate downwards, after the bottom plate rotates downwards for a certain angle, the impurities on the inner side of the coaming can fall into the impurity collecting object, after the impurity cleaning is finished, the operator moves the coaming into the groove body and filters the wastewater again, so that when the filtered impurities are treated, the operator can treat the impurities of the filter screen without stopping the machine, and the working efficiency is improved, through the cooperation setting of a series of structures such as spacing post, limiting plate, spring, damping rubber sleeve, when waste water carries the inboard of bounding wall, waste water can cause certain impact to the bottom plate when falling into on the bottom plate, and the cooperation setting of a series of structures such as spring and damping rubber sleeve this moment can play the effect of buffering, has reduced the impact force that the bottom plate received, has avoided the bottom plate to be strikeed the condition emergence of warping or even damaging, has improved the life of bottom plate, and the practicality is strong.

Preferably, the sliding blocks are installed on two sides of the upper surface of the first connecting plate, the top ends of the sliding blocks are installed on the sliding rails, the sliding blocks are connected with the sliding rails in a sliding mode, and the sliding rails are installed on two sides of the lower surface of the top plate.

Preferably, the damping rubber sleeve sets up on the pore wall of first through-hole, four corners on the surface of third connecting plate are seted up to first through-hole, be provided with the external screw thread on the other end outer wall of spacing post, first screw hole has been seted up on the surface of limiting plate, be connected for thread engagement between the first screw hole on the external screw thread on the outer wall of spacing post and the limiting plate.

Preferably, the periphery of the outer wall of the coaming and the surface of the bottom plate are provided with filtering holes.

Preferably, a water outlet pipe is arranged below the outer wall of one side of the tank body, the water outlet pipe is connected with a water inlet end on the outer wall of one side of the water supply pump body through a pipe type connector, a water outlet valve is arranged on the water outlet pipe, and a flow guide block is arranged at the bottom end inside the tank body.

Preferably, moving mechanism includes gear motor, fourth connecting plate, mounting panel, guide bar, movable plate, fifth connecting plate, first bevel gear, second bevel gear, pivot, external screw thread, second through-hole and second screw hole, install in the bearing on the fifth connecting plate outer wall in the one end of pivot, the bearing and the second bevel gear connection on the fourth connecting plate outer wall are passed to the other end of pivot, second bevel gear is connected with first bevel gear meshing, first bevel gear installs on gear motor's output shaft, gear motor installs the lower surface rear end at the mounting panel.

Preferably, the front end and the rear end at the mounting panel lower surface are installed respectively to fifth connecting plate and fourth connecting plate, install the movable plate on the outer wall of pivot, second through-hole and second screw hole have been seted up to the terminal surface of movable plate, and the second through-hole is located the top of second screw hole, be provided with the external screw thread on the outer wall of pivot, be connected for thread engagement between the external screw thread on the pivot outer wall and the second screw hole on the movable plate, install the guide bar in the second through-hole, be gap junction between the outer wall of guide bar and the pore wall of second through-hole, and install respectively on the outer wall of fifth connecting plate and fourth connecting plate at the both ends of guide bar.

Preferably, the first connecting plate is installed at the bottom end of the moving plate, and the installation plate is installed at the center of the lower surface of the top plate.

A use method of an energy-saving and water-saving device of a low-pressure turbid ring water supply pump for a rolling mill comprises the following steps:

step one, an external power supply is connected, a worker conveys water and washes iron scales on a billet through a water supply pump body, and generated waste water can be conveyed to the inner side of a coaming by external equipment;

step two, filtering holes in the coaming and the bottom plate can filter impurities in the waste water, and the filtered water can be conveyed by the water supply pump body again to wash iron scales on the steel billets;

step three, when the staff needs to treat the filtered impurities, the conveying of the wastewater is stopped, the staff starts a second hydraulic cylinder, the second hydraulic telescopic rod stretches and retracts to drive the enclosing plate to do upward linear motion, after the enclosing plate moves to a certain horizontal height, the staff starts a speed reducing motor on the moving mechanism, the speed reducing motor indirectly drives the rotating shaft to rotate forwards or backwards, the external threads on the outer wall of the rotating shaft are in threaded engagement with a second threaded hole in the moving plate, so that the moving plate can do forward or backward linear motion when the rotating shaft rotates forwards or backwards, the moving plate can indirectly drive the enclosing plate to do forward or backward linear motion, the staff enables the enclosing plate to be located right above the impurity collecting object, the staff starts a first hydraulic cylinder, when the first hydraulic telescopic rod stretches and retracts downwards, the bottom plate can be driven to rotate downwards, and after the bottom plate rotates downwards for a certain angle, the impurities on the inner side of the enclosing plate can fall into the impurity collecting object;

and step four, after the impurities are cleaned, the staff moves the enclosing plate into the tank body, and the wastewater is filtered again, so that the filtered impurities are treated.

Compared with the prior art, the invention has the beneficial effects that:

1. through the matching arrangement of a series of structures, the wastewater generated by conveying water and washing the iron scales on the steel billets by the working personnel through the water supply pump body can be conveyed to the inner side of the enclosing plate by external equipment, the impurities in the wastewater can be filtered by the enclosing plate and the filtering holes on the bottom plate, the filtered water can be conveyed by the water supply pump body again to wash the iron scales on the steel billets, the effects of saving energy and water are achieved, when the working personnel need to treat the filtered impurities, stopping conveying the wastewater, starting a second hydraulic cylinder by a worker, driving the coaming to do upward linear motion by the extension and contraction of the second hydraulic telescopic rod, moving the coaming to a certain horizontal height, the worker starts the speed reducing motor on the moving mechanism, the speed reducing motor indirectly drives the rotating shaft to rotate forwards or backwards, the external thread on the outer wall of the rotating shaft is in threaded engagement connection with the second threaded hole on the moving plate, when the rotating shaft rotates forwards or backwards, the movable plate can do forward or backward linear motion, the movable plate does forward or backward linear motion so as to indirectly drive the coaming to do forward or backward linear motion, the operator enables the coaming to be positioned right above the impurity collecting object, the operator starts the first hydraulic cylinder, and when the first hydraulic telescopic rod stretches and retracts downwards, can drive the bottom plate to rotate downwards, after the bottom plate rotates downwards by a certain angle, impurities on the inner side of the coaming can fall into the collected impurity object, after the impurities are cleaned, a worker moves the coaming into the groove body to filter the wastewater again, therefore, when the filtered impurities are treated, the impurities of the filter screen can be treated without stopping the machine by workers, and the working efficiency is improved.

2. According to the invention, through the matching arrangement of a series of structures such as the limiting columns, the limiting plates, the springs and the damping rubber sleeves, when waste water is conveyed to the inner side of the enclosing plate, the waste water can impact the bottom plate to a certain extent when falling onto the bottom plate, and at the moment, the matching arrangement of the series of structures such as the springs and the damping rubber sleeves can play a role in buffering, so that the impact force on the bottom plate is reduced, the situation that the bottom plate is deformed or even damaged by impact is avoided, the service life of the bottom plate is prolonged, and the practicability is strong.

Drawings

FIG. 1 is a front view of the present invention;

FIG. 2 is a schematic view of the internal structure of the present invention;

FIG. 3 is an enlarged view of a portion of FIG. 2;

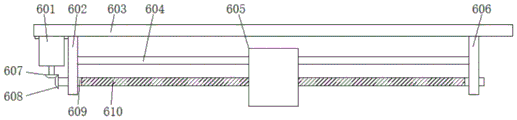

FIG. 4 is a left side view of the movement mechanism of the present invention;

fig. 5 is a cross-sectional view of the invention as shown in fig. 4.

In the figure: 1. a connecting rod; 2. a slide rail; 3. a slider; 4. a first connecting plate; 5. a first hydraulic cylinder; 6. a moving mechanism; 601. a reduction motor; 602. a fourth connecting plate; 603. mounting a plate; 604. a guide bar; 605. moving the plate; 606. a fifth connecting plate; 607. a first bevel gear; 608. a second bevel gear; 609. a rotating shaft; 610. an external thread; 611. a second through hole; 612. a second threaded hole; 7. a first hydraulic telescopic rod; 8. a second connecting plate; 9. a second hydraulic cylinder; 10. a top plate; 11. a support pillar; 12. a second hydraulic telescopic rod; 13. a third connecting plate; 14. a side plate; 15. enclosing plates; 16. filtering holes; 17. a trough body; 18. a base; 19. a water outlet valve; 20. a water outlet pipe; 21. a pipe joint; 22. a water supply pump body; 23. a flow guide block; 24. a base plate; 25. a first connection block; 26. a second connecting block; 27. a limiting column; 28. a limiting plate; 29. a spring; 30. a first threaded hole; 31. a damping rubber sleeve; 32. a first via.

Detailed Description

The technical solution of the present invention is further explained with reference to the accompanying drawings and specific embodiments.

Example one

As shown in fig. 1-5, the energy-saving and water-saving device for the low-pressure turbid ring water supply pump for the rolling mill provided by the invention comprises a top plate 10, wherein the top plate 10 is connected with a first connecting plate 4 through a moving mechanism 6, the moving mechanism 6 is installed at the center position of the lower surface of the top plate 10, the first connecting plate 4 is connected with a second connecting plate 8 through a connecting rod 1, a first hydraulic cylinder 5 and a second hydraulic cylinder 9 are respectively installed on two sides of the upper surface of the second connecting plate 8, the first hydraulic cylinder 5 is located at the inner side of the second hydraulic cylinder 9, a second hydraulic telescopic rod 12 is installed at the bottom end of the second hydraulic cylinder 9, the bottom end of the second hydraulic telescopic rod 12 penetrates through the surface of the second connecting plate 8 and is connected with a third connecting plate 13, a side plate 14 is arranged below the third connecting plate 13, the side plate 14 is installed on the outer walls on two sides of a coaming 15, four corners of the upper surface of the side plate 14 are respectively provided with a limiting column 27, the other end of spacing post 27 passes damping rubber sleeve 31 and is connected with limiting plate 28, all be provided with spring 29 between limiting plate 28 and the third connecting plate 13 and between third connecting plate 13 and curb plate 14, and spring 29 cover is established in the outer wall outside of spacing post 27, first hydraulic telescoping rod 7 is installed to the bottom of first pneumatic cylinder 5, the bottom of first hydraulic telescoping rod 7 runs through the surface of second connecting plate 8 and is connected with first connecting block 25, first connecting block 25 passes through activity round pin axle and second connecting block 26 swing joint, second connecting block 26 is installed in the upper surface one side of bottom plate 24, bottom plate 24 passes through activity round pin axle and bounding wall 15 swing joint, roof 10 passes through support column 11 and is connected with base 18, the upper surface mounting of base 18 has cell body 17 and working shaft body 22, and cell body 17 is located one side of working shaft body 22.

The energy-saving and water-saving device of the low-pressure turbid ring water supply pump for the rolling mill based on the first embodiment has the working principle that: when the device is used, an external power supply is connected, a worker conveys water and washes iron scales on a steel billet through the water supply pump body 22, generated waste water can be conveyed to the inner side of the enclosing plate 15 by external equipment, impurities in the waste water can be filtered through the enclosing plate 15 and the filtering holes 16 in the bottom plate 24, the filtered water can be conveyed to wash the iron scales on the steel billet by the water supply pump body 22 again, the energy-saving and water-saving effects are achieved, when the worker needs to treat the filtered impurities, the conveying of the waste water is stopped, the worker starts the second hydraulic cylinder 9, the second hydraulic telescopic rod 12 can drive the enclosing plate 15 to do upward linear motion through stretching, after the enclosing plate 15 moves to a certain horizontal height, the worker starts the speed reducing motor 601 on the moving mechanism 6, the speed reducing motor 601 indirectly drives the rotating shaft 609 to rotate forwards or backwards, because the external thread 610 on the outer wall of the rotating shaft 609 is in threaded engagement with the second threaded hole 612 on the moving plate 605, when the rotating shaft 609 rotates forward or reversely, the moving plate 605 can move linearly forwards or backwards to indirectly drive the enclosing plate 15 to move linearly forwards or backwards, a worker can enable the enclosing plate 15 to be positioned right above the collected impurity object, the worker starts the first hydraulic cylinder 5, when the first hydraulic telescopic rod 7 stretches and stretches downwards, the bottom plate 24 can be driven to rotate downwards, after the bottom plate 24 rotates downwards for a certain angle, the impurity on the inner side of the enclosing plate 15 falls into the collected impurity object, after the impurity is cleaned, the worker moves the enclosing plate 15 into the tank body 17 to filter the wastewater again, so as to treat the filtered impurity, the worker can treat the impurity of the filter screen without stopping the machine, the efficiency of work is improved, when the inboard of bounding wall 15 is carried to waste water, waste water can cause certain impact to bottom plate 24 when falling into on bottom plate 24, and the cooperation setting of a series of structures such as spring 29 and damping rubber sleeve 31 can play the effect of buffering this moment, has reduced the impact force that bottom plate 24 received, has avoided bottom plate 24 to be taken place by the condition of impact deformation damage even, has improved bottom plate 24's life, and the practicality is strong.

Example two

As shown in fig. 1 to 5, compared with the first embodiment, the present invention provides an energy-saving and water-saving device for a low-pressure turbid circulating water supply pump for a rolling mill, which further includes: the two sides of the upper surface of the first connecting plate 4 are provided with sliding blocks 3, the top ends of the sliding blocks 3 are arranged on the sliding rails 2, the sliding blocks 3 are in sliding connection with the sliding rails 2, the sliding rails 2 are arranged on the two sides of the lower surface of the top plate 10, damping rubber sleeves 31 are arranged on the hole walls of the first through holes 32, the first through holes 32 are arranged at four corners of the surface of the third connecting plate 13, external threads 610 are arranged on the outer wall of the other end of the limiting column 27, first threaded holes 30 are arranged on the surface of the limiting plate 28, the external threads 610 on the outer wall of the limiting column 27 are in threaded engagement connection with the first threaded holes 30 on the limiting plate 28, filter holes 16 are arranged on the periphery of the outer wall of the enclosing plate 15 and the surface of the bottom plate 24, a water outlet pipe 20 is arranged below the outer wall on one side of the tank body 17, the water outlet pipe 20 is connected with a water inlet end on the outer wall on one side of the water supply pump body 22 through a pipe connector 21, and a water outlet valve 19 is arranged on the water outlet pipe 20, the guide block 23 is installed at the bottom end inside the tank body 17, the moving mechanism 6 comprises a speed reducing motor 601, a fourth connecting plate 602, a mounting plate 603, a guide rod 604, a moving plate 605, a fifth connecting plate 606, a first bevel gear 607, a second bevel gear 608, a rotating shaft 609, external threads 610, a second through hole 611 and a second threaded hole 612, one end of the rotating shaft 609 is installed in a bearing on the outer wall of the fifth connecting plate 606, the other end of the rotating shaft 609 penetrates through the bearing on the outer wall of the fourth connecting plate 602 to be connected with the second bevel gear 608, the second bevel gear 608 is in meshing connection with the first bevel gear 607, the first bevel gear 607 is installed on an output shaft of the speed reducing motor 601, the speed reducing motor 601 is installed at the rear end of the lower surface of the mounting plate 603, the fifth connecting plate 606 and the fourth connecting plate 602 are respectively installed at the front end and the rear end of the lower surface of the mounting plate 603, and the moving plate 605 is installed on the outer wall of the rotating shaft 609, the end face of the moving plate 605 is provided with a second through hole 611 and a second threaded hole 612, the second through hole 611 is located above the second threaded hole 612, the outer wall of the rotating shaft 609 is provided with an external thread 610, the external thread 610 on the outer wall of the rotating shaft 609 is in threaded engagement connection with the second threaded hole 612 on the moving plate 605, the guide rod 604 is installed in the second through hole 611, the outer wall of the guide rod 604 is in clearance connection with the hole wall of the second through hole 611, two ends of the guide rod 604 are respectively installed on the outer walls of the fifth connecting plate 606 and the fourth connecting plate 602, the first connecting plate 4 is installed at the bottom end of the moving plate 605, and the installation plate 603 is installed at the center position of the lower surface of the top plate 10.

In this embodiment, the cooperation of slider 3 and slide rail 2 sets up, indirect stability when having strengthened bounding wall 15 and removing, the condition of skew appears in the in-process of having avoided bounding wall 15 to remove takes place, be connected for thread engagement between the external screw thread 610 on the spacing post 27 outer wall and the first screw hole 30 on the limiting plate 28, thereby be convenient for the staff to carry out the dismouting change to spring 29, the setting of filtration pore 16, can filter the impurity in the waste water, the setting of water conservancy diversion piece 23, can carry out the water conservancy diversion, be clearance connection between the pore wall of the outer wall of guide bar 604 and second through hole 611, thereby can the removal of movable plate 605 play the effect of spacing direction, avoided movable plate 605 can take place along with the pivoted condition of the rotation of pivot 609.

The above embodiments are only some preferred embodiments of the present invention, and many alternative modifications and combinations of the above embodiments may be made by those skilled in the art based on the technical solution of the present invention and the related teachings of the above embodiments.

Claims

1. The utility model provides a mill is with muddy ring working shaft energy-saving water saving fixtures of low pressure, includes roof (10), its characterized in that: the roof (10) is connected with a first connecting plate (4) through a moving mechanism (6), the moving mechanism (6) is arranged at the center of the lower surface of the roof (10), the first connecting plate (4) is connected with a second connecting plate (8) through a connecting rod (1), a first hydraulic cylinder (5) and a second hydraulic cylinder (9) are respectively arranged on the two sides of the upper surface of the second connecting plate (8), the first hydraulic cylinder (5) is positioned at the inner side of the second hydraulic cylinder (9), a second hydraulic telescopic rod (12) is arranged at the bottom end of the second hydraulic cylinder (9), the bottom end of the second hydraulic telescopic rod (12) penetrates through the surface of the second connecting plate (8) and is connected with a third connecting plate (13), a side plate (14) is arranged below the third connecting plate (13), the side plates (14) are arranged on the outer walls of the two sides of a surrounding plate (15), four upper surfaces of the side plates (14) are respectively provided with a limiting column (27), the other end of the limiting column (27) penetrates through a damping rubber sleeve (31) and is connected with the first connecting plate (28), a spring (29) and a limiting plate (13) is arranged between the third spring (29) and the limiting plate (13), first hydraulic telescoping rod (7) are installed to the bottom of first pneumatic cylinder (5), the bottom of first hydraulic telescoping rod (7) runs through the surface of second connecting plate (8) and is connected with first connecting block (25), first connecting block (25) are through activity pin axle and second connecting block (26) swing joint, upper surface one side at bottom plate (24) is installed in second connecting block (26), bottom plate (24) are through activity pin axle and bounding wall (15) swing joint, roof (10) are connected with base (18) through support column (11), the last surface mounting of base (18) has cell body (17) and working shaft body (22), and cell body (17) are located one side of working shaft body (22).

2. The energy-saving and water-saving device of the low-pressure turbid circulating water supply pump for the rolling mill according to claim 1, is characterized in that: slider (3) are installed to the upper surface both sides of first connecting plate (4), install on slide rail (2) the top of slider (3), and be sliding connection between slider (3) and slide rail (2), the lower surface both sides at roof (10) are installed in slide rail (2).

3. The energy-saving and water-saving device of the low-pressure turbid circulating water supply pump for the rolling mill according to claim 1, characterized in that: damping rubber sleeve (31) sets up on the pore wall of first through-hole (32), four corners on the surface of third connecting plate (13) are seted up in first through-hole (32), be provided with external screw thread (610) on the other end outer wall of spacing post (27), first screw hole (30) have been seted up on the surface of limiting plate (28), be connected for thread engagement between external screw thread (610) on spacing post (27) outer wall and first screw hole (30) on limiting plate (28).

4. The energy-saving and water-saving device of the low-pressure turbid circulating water supply pump for the rolling mill according to claim 1, is characterized in that: and the periphery of the outer wall of the coaming (15) and the surface of the bottom plate (24) are provided with filter holes (16).

5. The energy-saving and water-saving device of the low-pressure turbid circulating water supply pump for the rolling mill according to claim 1, is characterized in that: the utility model discloses a water supply pump, including cell body (17), outlet pipe (20) are provided with below one side outer wall of cell body (17), outlet pipe (20) are connected through pipe type joint (21) and the end of intaking on the outer wall of working shaft body (22) one side, be provided with outlet valve (19) on outlet pipe (20), water conservancy diversion piece (23) are installed to the inside bottom of cell body (17).

6. The energy-saving and water-saving device of the low-pressure turbid circulating water supply pump for the rolling mill according to claim 1, characterized in that: the moving mechanism (6) comprises a speed reducing motor (601), a fourth connecting plate (602), a mounting plate (603), a guide rod (604), a moving plate (605), a fifth connecting plate (606), a first bevel gear (607), a second bevel gear (608), a rotating shaft (609), an external thread (610), a second through hole (611) and a second threaded hole (612), one end of the rotating shaft (609) is mounted in a bearing on the outer wall of the fifth connecting plate (606), the other end of the rotating shaft (609) penetrates through the bearing on the outer wall of the fourth connecting plate (602) to be connected with the second bevel gear (608), the second bevel gear (608) is meshed with the first bevel gear (607), the first bevel gear (607) is mounted on an output shaft of the speed reducing motor (601), and the speed reducing motor (601) is mounted at the rear end of the lower surface of the mounting plate (603).

7. The energy-saving and water-saving device of the low-pressure turbid circulating water supply pump for the rolling mill according to claim 6, characterized in that: the mounting structure is characterized in that a fifth connecting plate (606) and a fourth connecting plate (602) are respectively mounted at the front end and the rear end of the lower surface of the mounting plate (603), a moving plate (605) is mounted on the outer wall of the rotating shaft (609), a second through hole (611) and a second threaded hole (612) are formed in the end surface of the moving plate (605), the second through hole (611) is located above the second threaded hole (612), an external thread (610) is arranged on the outer wall of the rotating shaft (609), the external thread (610) on the outer wall of the rotating shaft (609) is in threaded engagement with the second threaded hole (612) on the moving plate (605), a guide rod (604) is mounted in the second through hole (611), the outer wall of the guide rod (604) is in clearance connection with the hole wall of the second through hole (611), and two ends of the guide rod (604) are respectively mounted on the outer walls of the fifth connecting plate (606) and the fourth connecting plate (602).

8. The energy-saving and water-saving device of the low-pressure turbid circulating water supply pump for the rolling mill according to claim 1, is characterized in that: the first connecting plate (4) is arranged at the bottom end of the moving plate (605), and the mounting plate (603) is arranged at the center of the lower surface of the top plate (10).

9. The use method of the energy-saving and water-saving device of the low-pressure turbid circulating water supply pump for the rolling mill is characterized by comprising the following steps of:

firstly, an external power supply is connected, a worker conveys water and washes iron scales on a billet through a water supply pump body, and generated waste water can be conveyed to the inner side of a surrounding plate by external equipment;

filtering impurities in the waste water through the filter holes in the enclosing plate and the bottom plate, and washing iron scales on the steel billets by conveying the filtered water by the water supply pump body;

and step four, after the impurities are cleaned, the enclosing plate is moved into the tank body by the staff, and the wastewater is filtered again, so that the filtered impurities are treated.
