Abstract

The invention belongs to the technical field of solar street lamps, especially solar street lamp modules and lamps, including a main body, a street lamp is arranged on one side of the main body, a support seat is provided on the upper end of the main body, and a support member is connected to the upper end of the support seat , the upper end of the support is provided with a solar panel. In the present invention, by setting support base, fixing piece, rolling ball, inner gear ring, driving gear, electric push rod, kit, movable rod, slot, block, compression spring, movable block, push block, electromagnet and magnetic block, It can adjust the rotation angle and tilt angle of the solar panel, adjust the position according to different environments, improve the applicability of the solar street light module, improve the combination rate of LED lights and solar devices, and at the same time realize the adjusted solar panel The supporting function ensures the stability of the solar panel after adjustment, prevents the structural instability of the solar panel after adjustment, and ensures the use effect of the solar street light module.

Description

Solar street light modules and lamps

technical field

The invention relates to the technical field of solar street lamps, in particular to solar street lamp modules and lamps.

Background technique

Road lighting is an important part of urban lighting. Traditional street lights often use high-pressure sodium lamps to emit light at 360 degrees. The disadvantage of large light loss has caused a huge waste of energy. At present, the global environment is deteriorating day by day, and all countries are developing clean energy. With the rapid growth of the national economy, the contradiction between energy supply and demand in my country has become increasingly prominent, and there has been a serious shortage of power supply. Energy conservation is an urgent problem to be solved. Therefore, the development of new solar street lamps with high efficiency, energy saving, long life, high color rendering index and environmental protection is of great significance to energy saving of urban lighting.

There are following problems in prior art:

Road lighting is closely related to people's production and life. With the acceleration of urbanization in our country, LED street lights are gradually becoming more and more popular due to their advantages such as directional light emission, low power consumption, good driving characteristics, fast response speed, high earthquake resistance, long service life, and environmental protection. Entering people's field of vision, becoming the world's most powerful new generation of energy-saving light sources that can replace traditional light sources. Therefore, LED street lights will become the best choice for energy-saving transformation of road lighting. In the prior art, the combination rate of LED lights and solar devices is low, and the positions of LED lights and solar devices are relatively fixed, and the positions cannot be adjusted according to different environments.

Contents of the invention

Aiming at the deficiencies of the prior art, the present invention provides solar street lamp modules and lamps, which solve the existing problems of low combination ratio of LED lamps and solar devices, relatively fixed positions of LED lamps and solar devices, and inability to adjust positions according to different environments.

In order to achieve the above object, the present invention provides the following technical solutions: solar street lamp module and lamps, including a main body, a street lamp is provided on one side of the main body, a support seat is provided on the upper end of the main body, and a support seat is connected to the upper end of the support seat. A support member, the upper end of the support member is provided with a solar panel, the outer side of the support seat is provided with a fixing member, the inside of the fixing member is provided with a rolling ball, and the lower end of the solar panel is provided with an electric push rod. One side of the electric push rod is provided with a movable rod, one end of the movable rod is provided with a sleeve, the lower end of the fixed part is provided with a support plate, the inner wall of the sleeve is provided with a card slot, and the inside of the card slot is provided with a A block, one end of the block is connected with a compression spring, the lower end of the block is connected with a movable block, the lower end of the movable block is provided with a push block, the lower end of the push block is connected with a magnetic block, the magnetic The lower end of the block is provided with an electromagnet.

As a preferred technical solution of the present invention, the shape of the support base is "convex", the inner diameter of the fixing piece matches the outer diameter of the support base, and the fixing piece is set on the outside of the support base. And the fixing part is flexibly connected with the supporting base.

As a preferred technical solution of the present invention, the number of the rolling balls is several, the rolling balls are symmetrically distributed on the lower surface of the support seat, and the rolling balls are movably connected with the support seat.

As a preferred technical solution of the present invention, an inner gear ring is connected to the inner wall of the support base, a driving gear is arranged on the inner side of the inner gear ring, a driving motor is connected to the upper end of the driving gear, and the driving gear is connected to the inner gear ring. Gear ring rolling connection.

As a preferred technical solution of the present invention, the card slots are mainly divided into two groups, the number of the card slots in each group is several, and the card slots in each group are equidistantly distributed on the inner wall of the kit.

As a preferred technical solution of the present invention, the internal shape of the clamping slot is triangular, the shape of the clamping block is a right-angled trapezoid, the internal size of the clamping slot matches the size of the clamping block, and the clamping block passes through The card slot is engaged with the kit.

As a preferred technical solution of the present invention, the shape of the lower end of the movable block is triangular, the shape of the push block is triangular, and the push block is slidably connected with the movable block.

Compared with the prior art, the present invention provides solar street lamp modules and lamps, which have the following beneficial effects:

1. The solar street lamp module and lamps can adjust the rotation angle and inclination angle of the solar panel by setting the support base, fixing parts, rolling ball, inner gear ring, driving gear and electric push rod, and can adjust the rotation angle and inclination angle according to different environments. By adjusting the position, the applicability of the solar street lamp module is improved, and the combination rate of the LED lamp and the solar device is improved.

2. The solar street light module and lamps can support the adjusted solar panel by setting kits, movable rods, card slots, card blocks, compression springs, movable blocks, push blocks, electromagnets and magnetic blocks to ensure that the solar energy The stability of the panel after adjustment prevents the structural instability of the solar panel after adjustment and ensures the use effect of the solar street light module.

Description of drawings

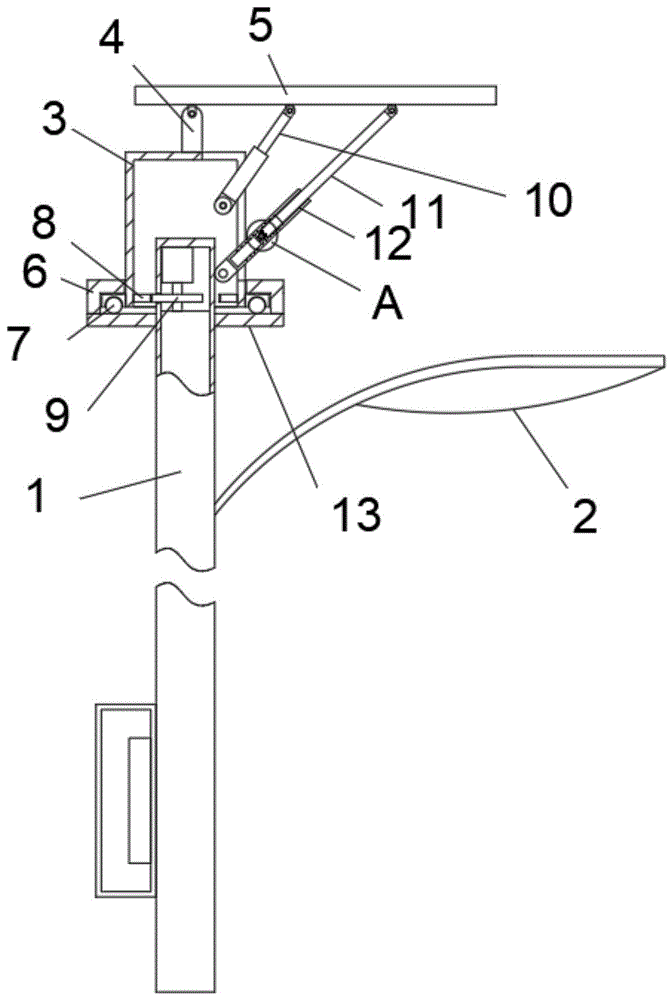

Fig. 1 is a structural schematic diagram of a solar street lamp module and a lamp of the present invention;

Figure 2 is a schematic diagram of the enlarged structure at A;

Fig. 3 is a structural schematic diagram of a fixture and a support plate;

Figure 4 is a schematic diagram of the structure of the support seat.

In the figure: 1. Main body; 2. Street lamp; 3. Support seat; 4. Support member; 5. Solar panel; 6. Fixing member; 7. Rolling ball; 8. Internal gear ring; 9. Driving gear; Push rod; 11, movable rod; 12, kit; 13, support plate; 14, slot; 15, block; 16, compression spring; 17, movable block; 18, push block; 19, magnetic block; 20, electromagnetic body.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

Please refer to Figures 1-4. In this embodiment: the solar street lamp module and lamps include a main body 1, a street lamp 2 is provided on one side of the main body 1, a support base 3 is provided on the upper end of the main body 1, and a support base 3 is connected to the upper end of the support base 3. Support 4, the upper end of the support 4 is provided with a solar panel 5, the outside of the support seat 3 is provided with a fixing member 6 for the installation and use of the support seat 3, the inside of the fixing member 6 is provided with a rolling ball 7, the solar panel 5 The lower end is provided with an electric push rod 10, one side of the electric push rod 10 is provided with a movable rod 11, one end of the movable rod 11 is provided with a kit 12, the lower end of the fixing part 6 is provided with a support plate 13, and the inner wall of the kit 12 is provided with a card slot 14, the inside of the card slot 14 is provided with a block 15, one end of the block 15 is connected with a compression spring 16, the lower end of the block 15 is connected with a movable block 17, and the lower end of the movable block 17 is provided with a push block 18, the push block 18 The lower end is connected with a magnetic block 19 , and the lower end of the magnetic block 19 is provided with an electromagnet 20 .

In this embodiment, the shape of the support seat 3 is "convex", the inner diameter of the fixing part 6 matches the outer diameter of the support seat 3, the fixing part 6 is set on the outside of the support seat 3, and the fixing part 6 and the support The seat 3 is movably connected, the structure is reasonable, and it is convenient for the installation and fixation of the support seat 3, and the bolts are used to pass through the installation holes (not marked) to install and fix the two; the number of rolling balls 7 is several, and the rolling balls 7 are symmetrical to the center Distributed on the lower surface of the support seat 3, and the rolling ball 7 is flexibly connected with the support seat 3 to ensure the rotation sensitivity of the support seat 3; The upper end of the gear 9 and the driving gear 9 is connected with a driving motor, and the driving gear 9 is rollingly connected with the inner gear ring 8 to realize the adjustment of the rotation angle of the solar panel 5 and improve the applicability; the card slot 14 is mainly divided into two groups, each The number of group card slots 14 is several, and each group of card slots 14 is equidistantly distributed on the inner wall of the kit 12 to improve the support stability of the solar panel 5; the inner shape of the card slot 14 is a triangle, and the shape of the card block 15 is a right-angled trapezoid , the internal size of the card slot 14 matches the size of the card block 15, the card block 15 is connected to the sleeve 12 through the card slot 14, and the structural design is reasonable; the shape of the lower end of the movable block 17 is triangular, and the shape of the push block 18 is triangular. And the push block 18 is slidably connected with the movable block 17, and the structure is simple and easy to realize.

The working principle and application process of the present invention: When the rotation angle of the solar panel 5 needs to be adjusted, the operator controls the rotation of the drive motor through the control box (not shown), and the drive gear 9 rotates with the inner gear ring 8 to support the The seat 3 rotates horizontally with the solar panel 5, and the rolling ball 7 rolls on the support plate 13. When the rotation reaches an appropriate angle, the control stops. When controlling the inclination angle of the solar panel 5, the electric push rod 10 rotates with the solar panel 5 , when the solar panel 5 rotates clockwise and the electric push rod 10 becomes shorter, the magnetism generated by the electrification of the electromagnet 20 is the same as that of the magnetic block 19, and the push block 18 moves closer to each other with the movable block 17, and the locking block 15 breaks away from the corresponding The card slot 14, the electric push rod 10 rotates clockwise with the solar panel 5, the movable rod 11 retracts into the inside of the kit 12, and after adjusting to an appropriate angle, the electromagnet 20 is powered off, and the compression spring 16 carries the block 15 to lock Inside the corresponding card slot 14, when the solar panel 5 rotates counterclockwise, the electric push rod 10 becomes longer, and the card block 15 will break away from the initial card slot 14 until it is adjusted to an appropriate angle and then stuck inside the corresponding card slot 14 , to complete the adjustment.

Finally, it should be noted that: the above is only a preferred embodiment of the present invention, and is not intended to limit the present invention. Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it still The technical solutions recorded in the foregoing embodiments may be modified, or some technical features thereof may be equivalently replaced. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included within the protection scope of the present invention.

Claims (7)

1. Solar street lamp module and lamps and lanterns, including main part (1), its characterized in that: one side of main part (1) is provided with street lamp (2), the upper end of main part (1) is provided with supporting seat (3), the upper end of supporting seat (3) is connected with support piece (4), the upper end of support piece (4) is provided with solar panel (5), the outside of supporting seat (3) is provided with mounting (6), the inside of mounting (6) is provided with spin (7), the lower extreme of solar panel (5) is provided with electric putter (10), one side of electric putter (10) is provided with movable rod (11), the one end of movable rod (11) is provided with external member (12), the lower extreme of mounting (6) is provided with backup pad (13), draw-in groove (14) have been seted up to the inner wall of external member (12), the inside of draw-in groove (14) is provided with fixture block (15), the one end of fixture block (15) is connected with compression spring (16), the lower extreme of fixture block (15) is connected with movable block (17), the lower extreme of movable block (17) is provided with ejector pad (18), the lower extreme of ejector pad (18) is connected with magnetic block (19), the lower extreme of ejector pad (18) is provided with electromagnet (20).

2. The solar street light module and the lamp as claimed in claim 1, wherein: the shape of supporting seat (3) is "protruding" font, the internal diameter size of mounting (6) and the external diameter size phase-match of supporting seat (3), mounting (6) cover is in the outside of supporting seat (3), and mounting (6) and supporting seat (3) swing joint.

3. The solar street light module and the lamp as claimed in claim 1, wherein: the quantity of spin (7) is a plurality of, spin (7) are central symmetry distribution in the surface under supporting seat (3), and spin (7) and supporting seat (3) swing joint.

4. The solar street light module and the lamp as claimed in claim 1, wherein: the inner wall of supporting seat (3) is connected with interior ring gear (8), the inboard of interior ring gear (8) is provided with drive gear (9), the upper end of drive gear (9) is connected with driving motor, and drive gear (9) and interior ring gear (8) roll connection.

5. The solar street light module and the lamp as claimed in claim 1, wherein: the clamping grooves (14) are mainly divided into two groups, each group is formed by a plurality of clamping grooves (14), and each group is formed by equidistantly distributing the clamping grooves (14) on the inner wall of the sleeve piece (12).

6. The solar street light module and the lamp as claimed in claim 1, wherein: the inside shape of draw-in groove (14) is triangle-shaped, the shape of fixture block (15) is right trapezoid, the inside dimension of draw-in groove (14) and the size phase-match of fixture block (15), fixture block (15) pass through draw-in groove (14) and external member (12) joint.

7. The solar street light module and the lamp as claimed in claim 1, wherein: the lower end of the movable block (17) is triangular, the push block (18) is triangular, and the push block (18) is connected with the movable block (17) in a sliding mode.
