Abstract
The invention belongs to the technical field of printing machines, and discloses a printing machine which comprises a mounting frame, wherein a rack and a supporting frame are respectively arranged on the left side and the right side of the top of the mounting frame, a clamping roller and a transmission rod are arranged between the rack and the supporting frame, and a transfer roller and a positioning mechanism are arranged outside the transmission rod; the transfer printing roller is including setting up in the outside and end to end of transfer rod a plurality of printing plates, the both ends of printing plate all are connected with a link, two the looks back of link all is provided with the locating shaft, and is adjacent sealing contact between printing plate or the link, the both ends of printing plate all are provided with two mount pads that are located both ends link and carry on the back one side mutually. The invention can facilitate the replacement and installation of the printing plate by staff through the positioning shaft and the mounting seat, and further can realize the replacement of the printing plate with different patterns or diameters, thereby achieving the adjustment of the same pattern with different sizes and being suitable for printing grey cloth with different lengths.
Description
Technical Field
The invention belongs to the technical field of printing machines, and particularly relates to a printing machine.
Background
The variety of calico printing machine is many, and the common main type that includes circular screen printer, flat screen printer and digital calico printing machine in the industrial production at present, and wherein flat screen printer and circular screen printer structure operation are all comparatively simple, be fit for industrialized batch production, but digital calico printing machine pattern type is abundant, but its operation is comparatively loaded down with trivial details, moreover, the exact part is more for flat screen and circular screen printer not be fit for using in the mill that the environment is complicated, and the mill is usually more dust, damage to the precision instrument is comparatively frequent, and flat screen printer application scope is limited, therefore the industrial calico printing production processing in the mill in prior art is mostly adopting circular screen printer, but its disadvantage is that the plate structure in the circular screen printer is fixed, not only lead to its decorative pattern that can transfer, but also the pattern size of transfer printing is limited, so with the practical diversified production of present back to back, not only greatly reduced the application scope of calico printing machine, but also limited printing enterprise's market competitiveness.
Therefore, a novel printing machine for industrial production, which has wide application range and is convenient to maintain, needs to be developed.
Disclosure of Invention
The present invention is directed to a printing machine, which solves the above-mentioned problems.
In order to achieve the above object, the present invention provides the following technical solutions: the printing machine comprises a mounting frame, wherein a rack and a supporting frame are respectively arranged on the left side and the right side of the top of the mounting frame, a clamping roller and a transmission rod are arranged between the rack and the supporting frame, and a transfer roller and a positioning mechanism are arranged outside the transmission rod;
the transfer printing roller is including setting up in the outside and end to end of transfer rod a plurality of printing plates, the both ends of printing plate all are connected with a link, two the looks back of link all is provided with the locating shaft, and is adjacent sealing contact between printing plate or the link, the both ends of printing plate all are provided with two mount pads that are located both ends link and carry on the back one side mutually, the locating shaft imbeds the inside of mount pad, a plurality of the link is sealed to be slipped in the outside of transfer rod.
Preferably, the back of one of the installation seats is fixedly connected with a rotating shaft, the rotating shaft is inserted into the frame through a bearing, a motor is arranged in the frame, the end part of the rotating shaft is fixedly connected with an output shaft of the motor, and the other installation seat is connected with a positioning mechanism.
Preferably, the positioning mechanism comprises a positioning sleeve which is sleeved on the surface of the transmission rod in a sliding manner, one end of the positioning sleeve is fixed on the surface of the transmission rod through a positioning bolt, a positioning plate is fixedly sleeved outside the positioning sleeve, and an adjusting sleeve positioned on the positioning bolt and the extension line of the positioning plate is sleeved outside threads of the positioning sleeve.
Preferably, a plurality of adjusting rods which are uniformly distributed are movably sleeved in the positioning plate, one ends of the adjusting rods penetrate through the positioning plate and are connected with the mounting seat, the other ends of the adjusting rods penetrate through the positioning plate and are fixedly connected with connecting rings which are sleeved on the outer side of the positioning sleeve, and the connecting rings are rotatably clamped in the adjusting sleeve.
Preferably, one end of the transmission rod extends to the inside of the transfer roller, the other end of the transmission rod penetrates through the transfer roller and contacts with the supporting frame, the cleaning shaft is movably sleeved in the transmission rod, the grouting rod is arranged in the cleaning shaft, one end of the grouting rod is fixedly connected with the inner wall of the cleaning shaft, and the other end of the grouting rod penetrates through the cleaning shaft and is fixedly connected with the plugging rod.
Preferably, the one end that the shutoff pole is close to the slip casting pole is sealed laminating with the inner wall of transfer line, the surface screw thread of shutoff pole cup joints in the inside of transfer line, the one end that the shutoff pole is kept away from the slip casting pole runs through slip casting pole and support frame and fixed intercommunication has the annotate stub bar, the externally mounted of shutoff pole has the swivel mount that is located between support frame and the annotate stub bar.
Preferably, the outer surface of the transmission rod is close to one end of the rotating shaft and is provided with a limiting groove, the inside of the transmission rod is provided with a discharge hole positioned at the bottom of the limiting groove, and the inside of the grouting rod is provided with a communication hole positioned at the bottom of the discharge hole.
Preferably, the inside of slip casting pole is through the intercommunication mouth and the inside intercommunication of transfer rod, the inside of transfer rod is through discharge gate and current-limiting groove and transfer roller's inside intercommunication each other, and a plurality of the outside of printing plate is provided with the apopore, the pinch roller is located the position that is close to front end or rear end in transfer roller bottom.
Preferably, the surface of the transfer roller close to the frame is fixedly connected with a guide cone, the other end of the guide cone is fixedly connected with a transmission rod, a sealing gasket is wrapped outside the guide cone, and the sealing gasket is in sealing fit with a plurality of connecting frames.
The beneficial effects of the invention are as follows:
1. the invention can facilitate the replacement and installation of the printing plate by staff through the positioning shaft and the mounting seat, and further can realize the replacement of the printing plate with different patterns or diameters, thereby achieving the adjustment of the same pattern with different sizes and being suitable for printing grey cloth with different lengths.
2. According to the invention, the whole transfer printing roller can be quickly disassembled and replaced under the cooperation of the two mounting seats through the positioning mechanism, so that the mounting seats with different length and size can be conveniently replaced, the transfer printing roller is suitable for printing grey cloth with different widths, meanwhile, the mounting seats can be further moved under the limitation of the positioning sleeve due to the cooperation of the surface threads of the adjusting sleeve and the positioning sleeve, so that a plurality of printing plates can be firmly supported by the two transfer printing rollers, and the printing plates or the connecting frame can be stably assembled into a complete printing roller.
3. According to the invention, the plugging rod can be driven to rotate through the rotating frame, so that the plugging rod is separated from the transmission rod, and meanwhile, the cleaning shaft can be driven to rotate one end along the inside of the transmission rod through the grouting rod, so that the slurry adhered to the inner wall of the transmission rod can be cleaned to a great extent, further, the influence on the next printing of slurries with different colors can be avoided, and the printing quality is improved.
4. According to the invention, through the slurry outlet arranged on the surface of the printing plate, slurry can only penetrate from the bottom of the transfer roller to the outside of the printing plate beyond the area of the tangent point of the clamping roller under the action of gravity, so that the slurry on the surface of the printing plate can flow uniformly under the rotation action of the transfer roller, and then the slurry can be printed on the grey cloth when moving to the tangent point of the clamping roller, so that the conditions of slurry dripping, slurry flowing and the like are avoided to a great extent.
Drawings
FIG. 1 is a schematic diagram of a body of the present invention;
FIG. 2 is a front view of the present invention;

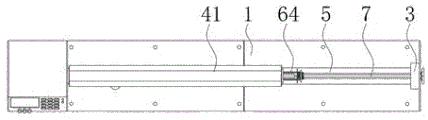

FIG. 3 is a top view of the present invention;
FIG. 4 is a side view of the present invention;
FIG. 5 is a cross-sectional view of the front face of the drive rod of the present invention;
FIG. 6 is an enlarged partial schematic view of FIG. 5A;
FIG. 7 is an enlarged partial schematic view at B in FIG. 5;
FIG. 8 is an enlarged partial schematic view of FIG. 5C;
FIG. 9 is a schematic diagram of a transfer roller monomer in accordance with the present invention;
FIG. 10 is a schematic view of a transfer roller turn of the present invention.
In the figure: 1. a mounting frame; 2. a frame; 3. a support frame; 4. a transfer roller; 41. printing plate; 42. a connecting frame; 43. positioning a shaft; 44. a mounting base; 45. a rotation shaft; 5. a pinch roller; 6. a positioning mechanism; 61. a positioning sleeve; 62. a positioning bolt; 63. a positioning plate; 64. an adjusting rod; 65. a connecting ring; 66. an adjusting sleeve; 7. a transmission rod; 8. cleaning a shaft; 9. grouting rod; 10. a plugging rod; 11. a material injection head; 12. a rotating frame; 13. a flow limiting groove; 14. a discharge port; 15. a communication port; 16. a guide cone; 17. and a sealing gasket.
Detailed Description
The following description of the embodiments of the present invention will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present invention, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the invention without making any inventive effort, are intended to be within the scope of the invention.
As shown in fig. 1 to 10, an embodiment of the present invention provides a printing machine, which comprises a mounting frame 1, wherein a frame 2 and a supporting frame 3 are respectively arranged on the left side and the right side of the top of the mounting frame 1, a clamping roller 5 and a transmission rod 7 are arranged between the frame 2 and the supporting frame 3, and a transfer roller 4 and a positioning mechanism 6 are arranged outside the transmission rod 7;
the transfer roller 4 comprises a plurality of printing plates 41 which are arranged outside the transmission rod 7 and are connected end to end, two ends of each printing plate 41 are connected with a connecting frame 42, the opposite sides of the two connecting frames 42 are respectively provided with a positioning shaft 43, adjacent printing plates 41 or the connecting frames 42 are in sealing contact, two ends of each printing plate 41 are respectively provided with two mounting seats 44 positioned on the opposite sides of the connecting frames 42 at the two ends, the positioning shafts 43 are embedded into the mounting seats 44, and the connecting frames 42 are in sealing sliding connection with the outside of the transmission rod 7;
according to the need of replacing the required transfer roller 4, namely, the connecting frame 42 at one end of the printing plate 41 is attached to the surface of the sealing pad 17 to move, namely, the positioning shaft 43 can be inserted into the interior of the rotary shaft 45 corresponding to one mounting seat 44 under the oblique guide of the connecting frame, then all the other transfer rollers 4 are mounted, and the other mounting seat 44 is gradually close to the connecting frame 42 through the positioning mechanism 6 and is sleeved outside the corresponding positioning shaft 43;
the positioning shaft 43 and the mounting seat 44 can facilitate the replacement and the installation of the printing plate 41 by workers, and further the replacement of printing plates with different patterns or diameters can be realized, so that the adjustment of the same pattern with different sizes can be realized, and the printing plate is suitable for printing grey fabrics with different lengths.
As shown in fig. 6, a rotary shaft 45 is fixedly connected to the back of one of the mounting seats 44, the rotary shaft 45 is inserted into the frame 2 through a bearing, a motor is arranged in the frame 2, the end of the rotary shaft 45 is fixedly connected with the output shaft of the motor, and the other mounting seat 44 is connected with the positioning mechanism 6.
As shown in fig. 7, the positioning mechanism 6 comprises a positioning sleeve 61 which is sleeved on the surface of the transmission rod 7 in a sliding manner, one end of the positioning sleeve 61 is fixed on the surface of the transmission rod 7 through a positioning bolt 62, a positioning plate 63 is fixedly sleeved outside the positioning sleeve 61, and an adjusting sleeve 66 positioned on the extension line of the positioning bolt 62 and the positioning plate 63 is sleeved outside the positioning sleeve 61 in a threaded manner;
the positioning pin 62 can adjust and fix the position of the positioning sleeve 61 under the cooperation of the transmission rod 7, so that the positioning sleeve is suitable for fixing printing plates 41 with different length sizes, and meanwhile, the mounting seat 44 can be driven to move through the connecting ring 65 and the adjusting rod 64 when the adjusting sleeve 66 is also convenient to rotate.
As shown in fig. 7, a plurality of adjusting rods 64 are movably sleeved in the positioning plate 63, one ends of the adjusting rods 64 penetrate through the positioning plate 63 and are connected with the mounting seat 44, the other ends of the adjusting rods 64 penetrate through the positioning plate 63 and are fixedly connected with a connecting ring 65 sleeved on the outer side of the positioning sleeve 61, and the connecting ring 65 is rotatably clamped in the adjusting sleeve 66;
the transfer printing roller 4 can be integrally and rapidly detached and replaced under the cooperation of the two mounting seats 44 through the positioning mechanism 6, and then the mounting seats 44 with different length sizes are also conveniently replaced, so that the transfer printing roller is suitable for printing grey cloth with different widths, meanwhile, the mounting seats 44 can be further moved under the limitation of the positioning sleeve 61 due to the cooperation of the surface threads of the adjusting sleeve 66 and the positioning sleeve 61, a plurality of printing plates 41 can be firmly added and held by the two transfer printing rollers 4, and the printing plates 41 or the connecting frame 42 can be ensured to be stably assembled into a complete printing roller.
As shown in fig. 8, one end of a transmission rod 7 extends to the inside of the transfer roller 4, the other end of the transmission rod 7 penetrates through the transfer roller 4 and is in contact with the support frame 3, a cleaning shaft 8 is movably sleeved in the inside of the transmission rod 7, a grouting rod 9 is arranged in the cleaning shaft 8, one end of the grouting rod 9 is fixedly connected with the inner wall of the cleaning shaft 8, and the other end of the grouting rod 9 penetrates through the cleaning shaft 8 and is fixedly connected with a blocking rod 10;
can drive the shutoff pole 10 rotatory through swivel mount 12, make it break away from transfer line 7, make it simultaneously can drive through slip casting pole 9 clearance axle 8 along the rotatory one end of the inside of transfer line 7, can make it clear up the thick liquids of adhesion at transfer line 7 inner wall to a great extent, and then can avoid causing the influence to the thick liquids stamp of different colours next time to improve the stamp quality.
As shown in fig. 8, one end of a plugging rod 10 close to the grouting rod 9 is in sealing fit with the inner wall of the transmission rod 7, the outer surface of the plugging rod 10 is in threaded sleeve joint with the inside of the transmission rod 7, one end of the plugging rod 10 away from the grouting rod 9 penetrates through the grouting rod 9 and the support frame 3 and is fixedly communicated with the injection head 11, and a rotary frame 12 positioned between the support frame 3 and the injection head 11 is arranged outside the plugging rod 10;
the cleaning shaft 8 can be driven to move under the cooperation of the plugging rod 10 and the grouting rod 9 by rotating to the rotating frame 12, and the movement of the cleaning shaft 8 is in a movement form of rotating and translating along the inner wall of the transmission rod 7, so that the slurry adhered to the inner wall of the transmission rod 7 can be cleaned to a great extent.
As shown in fig. 6, a limited flow groove 13 is formed in one end, close to the rotating shaft 45, of the outer surface of the transmission rod 7, a discharge hole 14 positioned at the bottom of the limited flow groove 13 is formed in the transmission rod 7, and a communication hole 15 positioned at the bottom of the discharge hole 14 is formed in the grouting rod 9;
through the communication port 15 and the discharge port 14, the grouting rod 9, the transmission rod 7 and the transfer roller 4 can be communicated, so that the slurry entering the grouting rod 9 from the grouting head 11 and the blocking rod 10 can permeate to the outside of the printing plate 41 under the action of the slurry outlet, and the slurry flowing out from the discharge port 14 can be ensured not to flow to the outer surface of the transmission rod 7 to cause excessive pollution when the transmission rod 7 rotates through the limiting groove 13.
As shown in fig. 10, the inside of the grouting rod 9 is communicated with the inside of the transmission rod 7 through a communication port 15, the inside of the transmission rod 7 is communicated with the inside of the transfer roller 4 through a discharge port 14 and a flow limiting groove 13, the outside of a plurality of printing plates 41 is provided with a grouting hole, and the clamping roller 5 is positioned at the position near the front end or the rear end of the bottom of the transfer roller 4;
the rotation direction of the transfer roller 4 is the same as the tangent point of the pinch roller 5 and the transfer roller 4 and the connecting line of the lowest end of the transfer roller 4, so that printing paste oozed out from the paste outlet hole at the bottom of the transfer roller 4 can firstly permeate to the surface of the printing plate 41 under the action of gravity, then the printing plate 41 is more uniformly spread by the rotation of the transfer roller 4, and then the uniformly spread paste is moved between the printing plate 41 and the pinch roller 5, so that the transfer can be completed.
As shown in fig. 6, a guide cone 16 is fixedly connected to the surface of the transfer roller 4 close to the frame 2, the other end of the guide cone 16 is fixedly connected with the transmission rod 7, a sealing gasket 17 is wrapped outside the guide cone 16, and the sealing gasket 17 is in sealing fit with a plurality of connecting frames 42;
the guide cone 16 and the inclined surface of the sealing gasket 17 can facilitate the staff to insert the positioning shaft 43 on the surface of the connecting frame 42 at one end of the printing plate 41 into the mounting seat 44, and can ensure the tightness between the connecting frame 42 and the sealing gasket 17.
Working principle and using flow:
according to the need of replacing the required transfer roller 4, namely, the connecting frame 42 at one end of the printing plate 41 is attached to the surface of the sealing pad 17 to move, namely, the positioning shaft 43 can be inserted into the interior of one mounting seat 44 corresponding to the rotating shaft 45 under the oblique guide of the connecting frame, then all other transfer rollers 4 are mounted, the other mounting seat 44 is gradually close to the connecting frame 42 through the positioning mechanism 6, and the connecting frame is sleeved outside the corresponding positioning shaft 43, so that the replacement and mounting of the printing plates 41 with different diameters or different patterns can be completed;
then the positioning sleeve 61 is fixed through the positioning bolt 62, the adjusting sleeve 66 is rotated to move left and right under the coordination of the screw threads on the surface of the positioning sleeve 61, and then the mounting seat 44 can be further pushed through the adjusting rod 64 under the coordination of the connecting ring 65, so that a plurality of printing plates 41 can be clamped under the coordination of the other mounting seat 44, and the replacement and the installation of the printing plates 41 with different length sizes can be completed;
the rotating frame 12 can drive the plugging rod 10 to rotate, the plugging rod 10 moves, the grouting rod 9 can drive the cleaning shaft 8 to rotate along the inner side of the transmission rod 7 to one end, and therefore slurry adhered to the inner wall of the transmission rod 7 can be cleaned to a great extent.
It is noted that relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Moreover, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a calico printing machine, includes mounting bracket (1), its characterized in that: the device is characterized in that a rack (2) and a supporting frame (3) are respectively arranged on the left side and the right side of the top of the mounting frame (1), a clamping roller (5) and a transmission rod (7) are arranged between the rack (2) and the supporting frame (3), and a transfer roller (4) and a positioning mechanism (6) are arranged outside the transmission rod (7);
the transfer printing roller (4) comprises a plurality of printing plates (41) which are arranged outside a transmission rod (7) and are connected end to end, two ends of each printing plate (41) are connected with a connecting frame (42), the opposite sides of each connecting frame (42) are respectively provided with a positioning shaft (43), two adjacent printing plates (41) or connecting frames (42) are in sealing contact, two mounting seats (44) which are positioned on the opposite sides of the connecting frames (42) at the two ends of each printing plate (41) are respectively arranged, the positioning shafts (43) are embedded into the mounting seats (44), and the connecting frames (42) are in sealing sliding connection with the outside of the transmission rod (7);
one end of the transmission rod (7) extends to the inside of the transfer roller (4), the other end of the transmission rod (7) penetrates through the transfer roller (4) and is in contact with the support frame (3), a cleaning shaft (8) is movably sleeved in the transmission rod (7), a grouting rod (9) is arranged in the cleaning shaft (8), one end of the grouting rod (9) is fixedly connected with the inner wall of the cleaning shaft (8), and the other end of the grouting rod (9) penetrates through the cleaning shaft (8) and is fixedly connected with a blocking rod (10);
the one end that shutoff pole (10) is close to slip casting pole (9) is sealed laminating with the inner wall of transfer line (7), the surface screw thread of shutoff pole (10) cup joints in the inside of transfer line (7), the one end that shutoff pole (10) was kept away from slip casting pole (9) runs through slip casting pole (9) and support frame (3) and fixedly communicates there is injection head (11), the externally mounted of shutoff pole (10) has swivel mount (12) that are located between support frame (3) and the injection head (11).
2. A printing machine according to claim 1, wherein: one of them the back fixedly connected with rotation axis (45) of mount pad (44), rotation axis (45) are pegged graft in the inside of frame (2) through the bearing, the inside of frame (2) is provided with the motor, the tip and the motor output shaft fixed connection of rotation axis (45), another mount pad (44) link to each other with positioning mechanism (6).
3. A printing machine according to claim 1, wherein: the positioning mechanism (6) comprises a positioning sleeve (61) which is sleeved on the surface of the transmission rod (7) in a sliding manner, one end of the positioning sleeve (61) is fixed on the surface of the transmission rod (7) through a positioning bolt (62), a positioning plate (63) is fixedly sleeved outside the positioning sleeve (61), and an adjusting sleeve (66) positioned on the extension line of the positioning bolt (62) and the positioning plate (63) is sleeved on an external thread of the positioning sleeve (61).
4. A printing machine according to claim 3, wherein: the inside activity of locating plate (63) has cup jointed a plurality of regulation poles (64) of evenly distributed, the one end of adjusting pole (64) runs through locating plate (63) and links to each other with mount pad (44), the other end of adjusting pole (64) runs through locating plate (63) and fixedly connected with cover and locates go-between (65) in the locating sleeve (61) outside, go-between (65) rotatory joint in the inside of adjusting sleeve (66).
5. A printing machine according to claim 1, wherein: the outer surface of the transmission rod (7) is close to one end of the rotating shaft (45) and is provided with a limiting groove (13), the inside of the transmission rod (7) is provided with a discharge hole (14) positioned at the bottom of the limiting groove (13), and the inside of the grouting rod (9) is provided with a communication hole (15) positioned at the bottom of the discharge hole (14).
6. A printing machine according to claim 5, wherein: the inside of slip casting pole (9) is through intercommunication mouth (15) and the inside intercommunication of transfer rod (7), the inside of transfer rod (7) is through discharge gate (14) and current-limiting groove (13) and the inside intercommunication each other of transfer roller (4), a plurality of the outside of printing plate (41) is provided with the play thick liquid hole, pinch roller (5) are located the position that is close to front end or rear end in transfer roller (4) bottom.
7. A printing machine according to claim 1, wherein: be close to frame (2) surface fixedly connected with direction awl (16) of transfer roller (4), the other end and the transfer rod (7) fixed connection of direction awl (16), the outside parcel of direction awl (16) has sealed pad (17), sealed pad (17) are sealed laminating with a plurality of link (42).
