Abstract

The present application discloses a sewage sediment separation and discharge device, including: a sediment pretreatment component, and the sediment pretreatment component includes: a first column, an overflow box, a filter plate, a first floating plate and a water inlet pipe, wherein, the first A column is set in the sedimentation tank; the overflow box is slidably set on the first column; the first floating plate is set outside the overflow box, and the first floating plate is used to control the overflow box to always float on the water surface; the filter plate and the inlet The water outlet end of the water pipe is arranged in the overflow box, and the water outlet end of the water inlet pipe is located below the filter plate; the drainage assembly, the drainage assembly includes: a drainage pipe, a second floating plate and a second column, wherein the second column is arranged on the first A floating plate; the second floating plate is slidably arranged on the second column; the water inlet end of the drain pipe is arranged on the second floating plate, and the drain pipe is used to discharge the surface water in the sedimentation tank. As a result, the agitation of the sediment at the bottom when the sewage is discharged can be reduced, the separation efficiency can be improved, and the operation is simple and the workload is small.

Description

Sewage sediment separation and discharge device

technical field

The application relates to the technical field of sewage treatment, in particular to a sewage sediment separation and discharge device.

Background technique

Sewage sedimentation refers to the process in which suspended particles in sewage are separated from sewage by gravity.

In related technologies, the way of separating sewage and sediment is mostly to discharge by opening a drain under the side wall of the sedimentation tank. This method is likely to cause the sediment at the bottom to be stirred, so that the sewage mixed with the stirred up sediment is discharged together. The separation efficiency is not high, but manual suction is used. The relevant staff not only need to control the suction pipe in real time, but also need to ensure that the sediment at the bottom is avoided as much as possible when pumping sewage. The operation is cumbersome and the workload is huge.

Contents of the invention

The present application aims to solve one of the technical problems in the above-mentioned technologies at least to a certain extent.

For this reason, one purpose of the present application is to propose a sewage sediment separation and discharge device, which can reduce the agitation of the bottom sediment when sewage is discharged, improve the separation efficiency, and is easy to operate and has a small workload.

In order to achieve the above purpose, the embodiment of the first aspect of the present application proposes a sewage sediment separation and discharge device, including: a sediment pretreatment component, and the sediment pretreatment component includes: a first column, an overflow box, a filter plate , the first floating plate and the water inlet pipe, wherein, the first column is arranged in the sedimentation tank; the overflow box is slidably arranged on the first column; the first floating plate is arranged in the overflow box In addition, the first floating plate is used to control the overflow tank to float on the water surface; the filter plate and the water outlet end of the water inlet pipe are arranged in the overflow tank, and the water outlet end of the water inlet pipe Located below the filter plate, the filter plate is used to filter the sewage when the sewage permeates through the filter plate, wherein the sewage permeated through the filter plate flows into through the opening of the overflow box The sedimentation tank; the drainage assembly, the drainage assembly includes: a drainage pipe, a second floating plate and a second column, wherein the second column is arranged on the first floating plate; the second floating plate can Slidingly arranged on the second column; the water inlet end of the drainage pipe is arranged on the second floating plate, and the drainage pipe is used to discharge the surface water in the sedimentation tank. .

The sewage sediment separation and discharge device of the embodiment of the present application can reduce the agitation of the sediment at the bottom when the sewage is discharged, improve the separation efficiency, and is easy to operate and has a small workload.

In addition, the sewage sediment separation and discharge device proposed according to the above-mentioned embodiments of the present application may also have the following additional technical features:

In one embodiment of the present application, a first discharge port is provided at the bottom of the overflow tank to discharge the sediment in the overflow tank.

In one embodiment of the present application, the bottom of the sedimentation tank is funnel-shaped, and a second discharge port is provided at the center of the bottom of the sedimentation tank.

In one embodiment of the present application, electromagnetic valve switches are provided on the first discharge port and the second discharge port, and both of the electromagnetic valve switches are controlled by a controller.

In one embodiment of the present application, a limit device is provided at the bottom of the overflow tank, and the limit device includes a support rod and a support plate, wherein the support rod is vertically arranged at the bottom of the overflow tank, so The support plate is hinged on the support rod.

In one embodiment of the present application, the settling tank is provided with a mounting plate, and the water inlet end of the water inlet pipe and the water outlet end of the drain pipe are both arranged on the mounting plate.

In one embodiment of the present application, an overflow port is opened on the overflow box, and the overflow port is arranged above the filter plate.

In one embodiment of the present application, both the water inlet pipe and the drain pipe are elastic telescopic pipes.

Additional aspects and advantages of the application will be set forth in part in the description which follows, and in part will be obvious from the description, or may be learned by practice of the application.

Description of drawings

The above and/or additional aspects and advantages of the present application will become apparent and easy to understand from the following description of the embodiments in conjunction with the accompanying drawings, wherein:

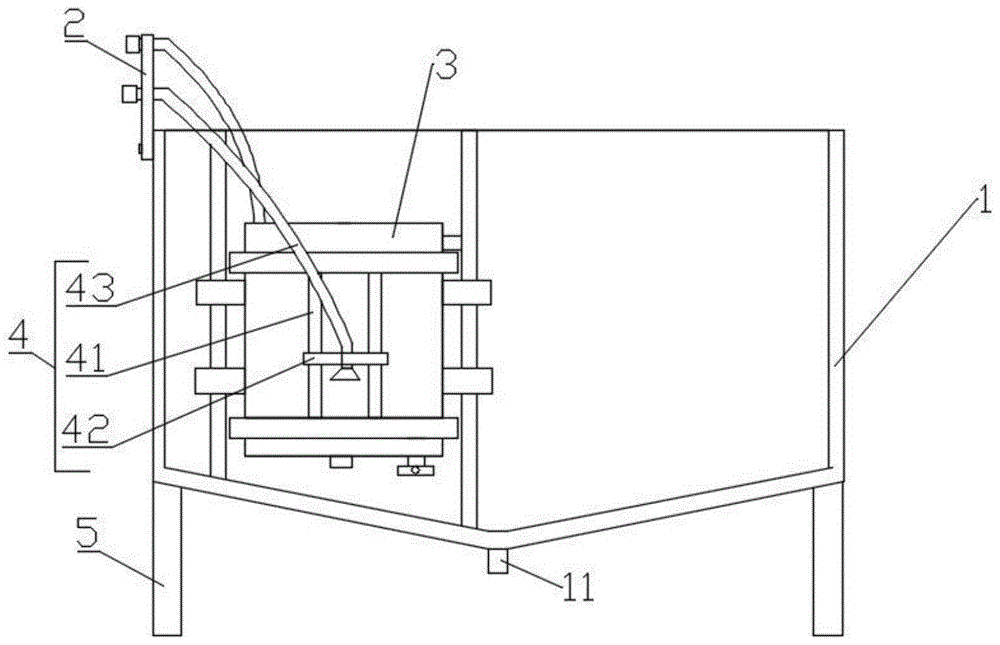

Fig. 1 is a schematic structural view of a sewage sediment separation and discharge device according to an embodiment of the present application;

Fig. 2 is a schematic structural view of a sewage sediment separation and discharge device according to another embodiment of the present application;

Fig. 3 is a structural schematic diagram of an overflow assembly according to an embodiment of the present application;

Fig. 4 is a working schematic diagram of the internal structure of a sewage sediment separation and discharge device according to an embodiment of the present application; and

Fig. 5 is a working diagram of the internal structure of a sewage sediment separation and discharge device according to another embodiment of the present application.

as the picture shows:

1. Sedimentation tank; 11. Second discharge port; 2. Mounting plate; 3. Sediment pretreatment component; 31. First column; 32. Overflow box; 321. Connector; 33. First floating plate; 34. Water inlet pipe; 35. Filter plate; 36. First discharge port; 37. Limiting device; 38. Overflow port; 4. Drainage assembly; 41. Second column; 42. Second floating plate; 43. Drain pipe; 5, supporting legs.

Detailed ways

Embodiments of the present application are described in detail below, examples of which are shown in the drawings, wherein the same or similar reference numerals denote the same or similar elements or elements having the same or similar functions throughout. The embodiments described below by referring to the figures are exemplary, and are intended to explain the present application, and should not be construed as limiting the present application.

The sewage sediment separation and discharge device of the embodiment of the present application can be applied to separate and discharge industrial sewage or domestic sewage after sedimentation, for example, for sewage purification treatment in sewage plants.

The sewage sediment separation and discharge device according to the embodiment of the present application will be described below with reference to the accompanying drawings.

As shown in FIG. 1 and FIG. 2 , the sewage sediment separation and discharge device of the embodiment of the present application includes a sedimentation tank 1 , a sediment pretreatment component 3 and a drainage component 4 .

Wherein, the bottom of the sedimentation tank 1 is provided with supporting legs 5 , and the sediment pretreatment component 3 and the drainage component 4 are both arranged in the sedimentation tank 1 .

Specifically, as shown in FIG. 3 , the sediment pretreatment assembly 3 may include a first column 31 , an overflow tank 32 , a first floating plate 33 , a water inlet pipe 34 and a filter plate 35 .

Wherein, the first column 31 is arranged in the sedimentation tank 1, the overflow box 32 is slidably arranged on the first column 31 through the connector 321, the first floating plate 33 is arranged outside the overflow box 32, the first floating plate 33, For controlling the overflow box 32 to float on the water surface all the time, the water outlet end of the filter plate 35 and the water inlet pipe 34 is arranged in the overflow box 32, and the water outlet end of the water inlet pipe 34 is positioned at the bottom of the filter plate 35, and the filter plate 35 is used for When the sewage permeates through the filter plate 35 , the sewage is filtered, wherein the sewage permeated through the filter plate 35 flows into the sedimentation tank 1 through the opening of the overflow box 32 .

Specifically, as shown in FIG. 1 , the drainage assembly 4 may include a drain pipe 43, a second floating plate 42 and a second column 41, wherein the second column 41 is arranged on the first floating plate 33, and the second floating plate 42 may Slidingly arranged on the second column 41 , the water inlet end of the drain pipe 43 is arranged on the second floating plate 42 , and the drain pipe 43 is used to discharge the surface water in the sedimentation tank 1 .

It should be noted that, in order to ensure that the overflow tank 32 can float, two first floating plates 33 can be provided, and the two first floating plates 33 are respectively disposed on the top and bottom of the overflow tank 32 .

It can be understood that the overflow box 32 can be made of plastic material, which can not only prevent the sewage from corroding the overflow box 32, but also reduce the weight of the overflow box 32, and the required buoyancy is smaller, thereby making the size of the first floating plate 33 smaller. Small.

In the embodiment of the present application, by injecting sewage into the sediment pretreatment assembly 3, the floating matter and large particle sediment in the sewage are left in the overflow tank 32, and the pretreated sewage flows into the sedimentation tank 1 Sedimentation is carried out, and the settled sewage is discharged through the drainage assembly 4. The drainage assembly 4 follows the sediment pretreatment assembly 3 and floats on the upper water surface of the sedimentation tank 1, which can effectively avoid the agitation of the sediment at the bottom and improve the separation efficiency.

In addition, when the sewage in the sedimentation tank 1 is pumped out, the drainage assembly 4 and the sediment pretreatment assembly 3 follow the water level to descend, and the drainage assembly 4 keeps sucking the upper water surface in the sedimentation tank 1, which does not require real-time operation by staff, and is more convenient. It is simple, and the workload is more convenient and less than manual suction.

When the sewage plant needs to treat the sewage, it means separating the sewage after sedimentation.

Specifically, as shown in Fig. 3 and Fig. 5, the relevant staff connects the water inlet pipe 34 to the sewage treatment place, which can be the sewage source pool of the sewage plant, (the sewage source pool, which is used to store untreated treated sewage pool), and the sewage is pumped into the overflow tank 32 by the water inlet pipe 34 through the water pump. As the sewage in the overflow tank 32 increases until it overflows the filter plate 35, the floating water in the sewage The sediment and large particle sediment are blocked by the filter plate 35, and the pretreated sewage finally overflows the overflow tank 32 and flows into the sedimentation tank 1. The sewage is filtered by the sediment pretreatment component 3 to remove the large particle in the sewage (comprising sediment, floating matter and floc, etc.) are blocked in the overflow box 32, and the sewage has been preliminarily filtered.

Along with more and more pretreated sewage in the sedimentation tank 1, the overflow box 32 floats under the buoyancy effect of the first floating plate 33, and the connector 321 on the overflow box 32 floats along the first column 31, keeping The overflow tank 32 is always in a floating state.

Then, as shown in Figure 4, the relevant staff puts a precipitant or flocculant into the sedimentation tank 1 to make the pretreated sewage settle down, and after the sewage in the sedimentation tank 1 is left to stand, the relevant staff through the external The water pump sucks the water in the sedimentation tank 1 from the drainage pipe 43, and the extracted sewage can be used for deep purification of the sewage plant.

As the water level in the sedimentation tank 1 decreases, the sediment pretreatment assembly 3 drops with the water level, and the drainage assembly 4 descends with the sediment pretreatment assembly 3, and the second floating plate 42 moves on the second column 41 following the water level, always maintaining The pumping end of the drainage pipe 43 sucks the upper water surface, so that the sediment at the bottom of the sedimentation tank 1 will not be stirred, and the separation efficiency of sewage and sediment is higher.

It can be understood that the end of the drain pipe 43 close to the second floating plate 42 can be provided with an adsorption cover, and a filter can be provided in the adsorption cover to further filter the residual floating matter in the sewage in the sedimentation tank 1 .

For a better description of the last embodiment, in one embodiment of the present application, as shown in Figure 5, the bottom of the overflow box 32 is provided with a first discharge port 36, so that the sediment 7 in the overflow box 32 The bottom of the sedimentation tank 1 is funnel-shaped, and the center of the bottom of the sedimentation tank 1 is provided with a second discharge port 11 .

Wherein, both the first discharge port 36 and the second discharge port 11 are provided with electromagnetic valve switches, and both electromagnetic valve switches are controlled by the controller.

In the daily maintenance and cleaning of the sewage plant, in addition to the maintenance of related machinery, the overflow tank 32 and the sedimentation tank 1 also need to be cleaned.

Specifically, the relevant staff can open the electromagnetic valve switch at the first discharge port 36 through the controller, and the sewage remaining in the overflow tank 32 will be discharged from the first discharge port 36 to the sedimentation tank 1 with sediment. Inside, and then relevant workers open the electromagnetic valve switch of the second discharge port 11 through the controller, and discharge the sediment and a small part of sewage in the sedimentation tank 1 together.

It should be noted that, for the cleaning of the overflow tank 32 and the sedimentation tank 1, the electromagnetic valve switches at the first discharge port 36 and the second discharge port 11 must be controlled by relevant staff, and the cleaning liquid is used to The overflow box 32 and the sedimentation tank 1 are flushed, and the final cleaning liquid is discharged from the second discharge port 11 .

For the convenience of operation, the controller can be externally connected with a key switch, and the relevant staff can control the opening and closing of the electromagnetic valves at the first discharge port 36 and the second discharge port 11 by pressing the key switch.

In one embodiment of the present application, as shown in FIG. 5 , a limiting device 37 is provided at the bottom of the overflow tank 32 , and the limiting device 37 includes a support rod and a support plate.

Wherein, the support bar is vertically arranged at the bottom of the overflow box 32, the support plate is hinged on the support bar, the overflow box 32 is provided with an overflow port 38, and the overflow port 38 is arranged above the filter plate 35.

It can be understood that the sewage in the sedimentation tank 1 gradually decreases, and the overflow tank 32 follows the water level and lowers until the bottom of the overflow tank 32 contacts the funnel-shaped bottom of the sedimentation tank 1, and the limit device 37 supports the overflow tank 32 to prevent The overflow box 32 is damaged between the connecting piece 321 and the first column 31 due to the inclined tendency.

When the sewage plant discharges the sewage in the sedimentation tank 1 , the overflow box 32 descends following the sewage in the sedimentation tank 1 .

Specifically, when the overflow tank 32 descends to the bottom following the sewage in the sedimentation tank 1, the support plate touches the bottom of the sedimentation tank 1 and rotates to an angle that fits the bottom of the sedimentation tank 1, and the support rod and the overflow tank 32 are far away from each other. One side of the limiting device 37 is jointly supported, so that the overflow box 32 is in a stable stable state.

In one embodiment of the present application, as shown in Figure 4, the sedimentation tank 1 is provided with a mounting plate 2, and the water inlet end of the water inlet pipe 34 and the water outlet of the drain pipe 43 are all arranged on the mounting plate 2, so that the water inlet pipe 34 The water inlet end of the water inlet and the water outlet of the drain pipe 43 are fixed, so that the water inlet of the water inlet pipe 34 and the water outlet of the drain pipe 43 are connected to an external water pump, so that the relevant staff can discharge the sewage into the overflow tank 32 and from the settling tank 1 When pulled out, it is more convenient.

Wherein, the water inlet pipe 34 and the drain pipe 43 are all elastic telescopic pipes, to ensure that when the sediment pretreatment assembly 3 and the drainage assembly 4 move up and down, the use of the water inlet pipe 34 and the drain pipe 43 is still effective, and at the same time to ensure that the water inlet pipe 34 stability, the water outlet end of the water inlet pipe 34 is fixed against the overflow box 32 by buckles.

To sum up, the sewage sediment separation and discharge device of the embodiment of the present application can reduce the agitation of the sediment at the bottom when the sewage is discharged, improve the separation efficiency, and is easy to operate and has a small workload.

In the description of the present application, it should be understood that the terms "center", "longitudinal", "transverse", "length", "width", "thickness", "upper", "lower", "front", " Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Clockwise", "Counterclockwise", "Axial" , "radial", "circumferential" and other indicated orientations or positional relationships are based on the orientations or positional relationships shown in the drawings, and are only for the convenience of describing the application and simplifying the description, rather than indicating or implying the referred device or Elements must have certain orientations, be constructed and operate in certain orientations, and thus should not be construed as limiting the application.

In addition, the terms "first" and "second" are used for descriptive purposes only, and cannot be interpreted as indicating or implying relative importance or implicitly specifying the quantity of indicated technical features. Thus, a feature defined as "first" and "second" may explicitly or implicitly include one or more of these features. In the description of the present application, "plurality" means two or more, unless otherwise specifically defined.

In this application, terms such as "installation", "connection", "connection" and "fixation" should be interpreted in a broad sense, for example, it can be a fixed connection or a detachable connection, unless otherwise clearly specified and limited. , or integrated; it can be mechanically connected or electrically connected; it can be directly connected or indirectly connected through an intermediary, and it can be the internal communication of two components or the interaction relationship between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in this application according to specific situations.

In the present application, unless otherwise clearly specified and limited, a first feature being "on" or "under" a second feature may mean that the first and second features are in direct contact, or that the first and second features are indirect through an intermediary. touch. Moreover, "above", "above" and "above" the first feature on the second feature may mean that the first feature is directly above or obliquely above the second feature, or simply means that the first feature is higher in level than the second feature. "Below", "beneath" and "beneath" the first feature may mean that the first feature is directly below or obliquely below the second feature, or simply means that the first feature is less horizontally than the second feature.

In the description of this specification, descriptions referring to the terms "one embodiment", "some embodiments", "example", "specific examples", or "some examples" mean that specific features described in connection with the embodiment or example , structure, material or characteristic is included in at least one embodiment or example of the present application. In this specification, the schematic representations of the above terms are not necessarily directed to the same embodiment or example. Furthermore, the described specific features, structures, materials or characteristics may be combined in any suitable manner in any one or more embodiments or examples. In addition, those skilled in the art can combine and combine different embodiments or examples and features of different embodiments or examples described in this specification without conflicting with each other.

Although the embodiments of the present application have been shown and described above, it can be understood that the above embodiments are exemplary and should not be construed as limitations on the present application, and those skilled in the art can make the above-mentioned The embodiments are subject to changes, modifications, substitutions and variations.

Claims (8)

1. A sewage precipitate separating and discharging device is characterized by comprising: a sedimentation tank (1), a sediment pretreatment component (3) and a drainage component (4), wherein,

the sediment pre-treatment assembly (3) comprises: a first upright post (31), an overflow box (32), a first floating plate (33), a water inlet pipe (34) and a filter plate (35), wherein,

the first upright column (31) is arranged in the sedimentation tank (1);

the overflow box (32) is slidably arranged on the first upright column (31);

the first floating plate (33) is arranged outside the overflow tank (32), and the first floating plate (33) is used for controlling the overflow tank (32) to float on the water surface;

the filter plate (35) and the water outlet end of the water inlet pipe (34) are arranged in the overflow tank (32), the water outlet end of the water inlet pipe (34) is positioned below the filter plate (35), the filter plate (35) is used for filtering sewage when the sewage seeps through the filter plate (35), and the sewage seeping through the filter plate (35) flows into the sedimentation tank (1) through the opening of the overflow tank (32);

a drain assembly (4), the drain assembly (4) comprising: a drain pipe (43), a second floating plate (42) and a second upright post (41), wherein,

the second upright column (41) is arranged on the first floating plate (33);

the second floating plate (42) is slidably arranged on the second upright post (41);

the water inlet end of the water discharging pipe (43) is arranged on the second floating plate (42), and the water discharging pipe (43) is used for discharging surface water in the sedimentation tank (1).

2. The sewage sludge separating and discharging device according to claim 1, wherein the bottom of the overflow tank (32) is provided with a first discharge port (36) for discharging the sludge (7) in the overflow tank (32).

3. The sewage sludge separating and discharging device according to claim 2, wherein the bottom of the sedimentation tank (1) is funnel-shaped, and a second discharge opening (11) is arranged at the center of the bottom of the sedimentation tank (1).

4. The sewage precipitate separation discharging device according to claim 3, wherein the first discharging port (36) and the second discharging port (11) are provided with electromagnetic valve switches, and both of the electromagnetic valve switches are controlled by a controller.

5. The sewage sludge separating and discharging device according to claim 1, wherein a limiting device (37) is arranged at the bottom of the overflow tank (32), the limiting device (37) comprises a support rod and a support plate, wherein the support rod is vertically arranged at the bottom of the overflow tank (32), and the support plate is hinged on the support rod.

6. The sewage and sediment separating and discharging device according to claim 1, wherein a mounting plate (2) is arranged on the sedimentation tank (1), and the water inlet end of the water inlet pipe (34) and the water outlet end of the water outlet pipe (43) are both arranged on the mounting plate (2).

7. The sewage sludge separating and discharging apparatus according to claim 1, wherein an overflow port (38) is formed in the overflow tank (32), and the overflow port (38) is disposed above the filtering plate (35).

8. The sewage sludge separating and discharging apparatus according to claim 1, wherein the water inlet pipe (34) and the water outlet pipe (43) are both elastic telescopic pipes.
