CN115722131A - High-quality production system for new material coating - Google Patents

Abstract

The invention relates to a high-quality production system for new material coating, which comprises a box body, wherein a disc distributing mechanism, a premixing mechanism and a remixing mechanism are sequentially arranged along the vertical direction of the box body; a plurality of groups of raw material storage units are arranged in the disc separating mechanism, and raw materials with different components are stirred in the disc separating mechanism respectively; the pre-mixing mechanism comprises a plurality of groups of discharging assemblies respectively corresponding to the raw material storage units, a transfer assembly for sequentially receiving, mixing and outputting the raw materials discharged by the discharging assemblies, and a powder spraying assembly which is arranged below the transfer assembly and is used for quantitatively outputting the reflective powder; the re-mixing mechanism carries out multi-stage stirring on the raw materials mixed and output by the pre-mixing mechanism; the invention solves the technical problems that when paint is filtered, the mounting and dismounting effects of the filter screen are poor, the filter screen cannot be replaced and cleaned quickly, the surface of the filter screen cannot be cleaned at the same time, and impurities easily block the meshes of the filter screen.

Description

A high-quality production system for new material coatings

technical field

The invention relates to the technical field of coatings, in particular to a high-quality production system for new material coatings.

Background technique

Paint is a kind of coating. The so-called paint is coated on the surface of the object to be protected or decorated, and can form a continuous film firmly attached to the object to be coated. It is usually based on resin, or oil, or emulsion, with the addition of or It is a viscous liquid prepared with organic solvents or water without adding pigments or fillers and adding corresponding additives.

The patent document with the patent number CN2018201589642 discloses an environmentally friendly paint coating particle crushing and deployment production system, including a base, a material tube, a support rod and a frame are symmetrically arranged on the base, and a first material is provided on both sides of the frame. silo, the second silo, the support rod is connected to the reactor, the bottom of the reactor is provided with a discharge port, the first feed pipe and the second feed pipe are symmetrically arranged on both sides of the reactor, and the first feed pipe is connected to the second feed pipe. A pump, the first pump is connected to the first feed bin through the feed pipe, the second feed pipe is connected to the second pump, and the second pump is connected to the second feed bin through the feed pipe.

However, the existing paints usually have the following defects in the process of preparation and processing:

1. When the equipment is filtering the paint, it cannot effectively filter and directly crush the large particles of impurities in the paint coating;

2. When the paint is filtered, the installation and disassembly of the filter screen is poor, and the filter screen cannot be replaced and cleaned quickly. At the same time, the surface of the filter screen cannot be cleaned, and impurities are easy to block the filter screen mesh.

Contents of the invention

The purpose of the present invention is to address the deficiencies of the prior art. By setting the driving mechanism to cooperate with the sub-disc mechanism, the transmission parts drive the screening cylinder unit on each set of rotating shafts to rotate, and the screening cylinder unit converts the raw materials injected into it. Carry out mixing and stirring. After mixing and screening, the paint with qualified particle size is output to the raw material storage unit of the box, waiting to be mixed with other raw materials in proportion to avoid excessive crushing of a certain raw material during the mixing work, resulting in excessive secondary mixing. It is not easy to filter, and then the outer cylinder and the inner cylinder are slidably connected, so that the paint particles blocked in the first liquid outlet and the second liquid outlet can be automatically sheared during the reciprocating sliding process, and after the particles are sheared It can be reused in the inner cylinder for mixing work to ensure the automatic output of qualified paint after crushing, thus solving the problem of poor installation and disassembly of the filter screen when the paint is filtered and processed, and the filter screen cannot be replaced and cleaned quickly. It is impossible to clean the surface of the filter screen, and the impurities are easy to block the technical problems of the filter screen mesh.

Aiming at the above technical problems, the technical solution adopted is as follows: a high-quality production system for new material coatings, including a box body, and a sub-disc mechanism, a pre-mixing mechanism and a re-mixing mechanism are sequentially arranged along the vertical direction of the box body;

There are several groups of raw material storage units arranged in the disc-distributing mechanism, and raw materials with different components are stirred separately in the disc-distributing mechanism;

The pre-mixing mechanism includes several groups of discharge components corresponding to the raw material storage unit, a transfer component that sequentially collects and mixes the raw materials that are discharged along the discharge components, and is arranged under the transfer group. And the powder spraying assembly used to quantitatively output the reflective powder;

The re-mixing mechanism performs multi-stage stirring on the raw materials mixed and output by the pre-mixing mechanism.

Preferably, the raw material storage unit is set in four groups, which are separated by a cross partition in the box, and titanium dioxide base material, red raw material, yellow raw material and blue raw material are placed in sequence in it;

A bottom plate is fixed and sealingly connected under the cross dividing plate, and the bottom plate is sealed and matched with the inner wall of the box body.

Preferably, the disc dividing mechanism includes screening cylinder units correspondingly arranged in the raw material storage unit in sequence, and four groups of the screening cylinder units are synchronously driven by the drive mechanism;

The screening cylinder unit is a double-layer structure, which includes an inner cylinder and an outer cylinder matched with the inner cylinder, and several groups of first liquid outlet holes are uniformly arranged on the inner cylinder, and the outer cylinder Several groups of second liquid outlet holes are uniformly arranged on the top, and the first liquid outlet holes correspond to the second liquid outlet holes and are arranged concentrically;

The outer cylinder and the inner cylinder are elastically connected by several sets of elastic members, and a feeding opening is provided through the outer cylinder and the inner cylinder, and an upper cover is installed on the feeding opening.

Preferably, the drive mechanism includes:

A driving cylinder, the lower end of which is provided with a push rod;

Two sets of rotating shafts are arranged and located on both sides of the inner cylinder respectively. The rotating shafts are arranged on the box; along the longitudinal direction of the box, the outer rotating shaft is hollow and connected by belt transmission. Along the lateral direction of the box, the adjacent and coaxial rotating shafts on the inside are solid shafts and fixed transmission;

Transmission parts, the transmission parts are provided with two groups, and any one group of transmission parts is connected with two coaxial and external rotating shafts, which includes a support frame installed on the box body, and a rotating shaft arranged on the support frame. The first connecting rod and the second connecting rod eccentrically arranged on the rotating shaft and rotating with the rotating shaft, the second connecting rod is arranged in discontinuous contact with the lower surface of the push rod.

Preferably, a pre-cut assembly is provided in the screening cylinder unit, and the pre-cut assembly includes a connecting shaft installed on the cross dividing plate and passing through the rotating shaft of the hollow structure, along the connecting shaft The axial length direction is fixedly arranged in sequence and staggeredly inclined filter plates and several groups of extruded plates fixedly connected with the inner cylinder and made of elastic material structure;

Any one of the extruding plates has a triangular structure and is located between adjacent two groups of the filter plates, and the extruding plate cooperates with the two groups of filter plates to crush the particles in the mixture;

The connecting shaft is located in the inner cylinder, and a sealing ring is provided on the contact part of the connecting shaft and the rotating shaft.

Preferably, the upper layer of the box body is provided with a control assembly for driving the dislocation transmission of the screening cylinder unit, the control assembly includes several control shafts installed on the box body and arranged in intermittent contact with the second liquid outlet hole , the end of the control shaft is a spherical structure and an elastic material structure.

As a preference, several groups of the discharge assembly are provided and respectively correspond to the raw material storage unit. The first limit plate at the end of the barrel, the first transmission rack installed on the first limit plate, the first bracket installed under the bottom plate, the first bracket installed on the first bracket to rotate A transmission gear, a second transmission gear that is synchronously transmitted with the first transmission gear and meshed with the first transmission rack, and four sets of the discharge cylinders are set according to the ratio of raw materials;

The first transmission gear has a complete tooth structure, the second transmission gear has an incomplete tooth structure, and dampers are arranged on the first transmission gear and the second transmission gear.

As a preference, the transfer assembly includes a discharge plate that is matched with the inner wall of the box and has a gap, a material receiving frame that is rotatably arranged above the discharge plate and that fits closely, and is installed on the A second transmission rack on the material receiving frame and meshed with the first transmission gear.

As preferably, the powder spraying assembly includes:

Extrusion unit, the extrusion unit includes a push plate that is rotatably arranged under the discharge plate to open a circular sliding groove, a ring gear that is disposed under the push plate, and is rotatably disposed under the discharge plate and is connected with The third transmission gear meshed with the ring gear and the arc-shaped rack that meshes with the third transmission gear and rotates coaxially with the material receiving frame, the third transmission gear is provided with a damper, and the pushing The plate is arc-shaped and several groups of raised blocks arranged at intervals are arranged on it;

A powder spraying unit, the powder spraying unit includes an air bag installed in the box, a discharge pipe communicated with the output end of the air bag, and a storage box installed outside the box and connected to the air bag through a connecting pipe , the discharge pipe and the connecting pipe are equipped with a one-way valve.

As still more preferred, the remixing mechanism includes a stirring unit.

Beneficial effects of the present invention:

(1) In the present invention, different raw materials for preparing the paint are stirred sequentially by setting a sub-disc mechanism, and after the stirring is sufficient, the various raw materials are quantitatively extracted by the pre-mixing mechanism, and are output after mixing in small quantities, and combined after output. Quantitative reflective powder is mixed to form a quantitative ratio layer of small components, which improves the final mixing effect and product quality after multiple combinations;

(2) In the present invention, by setting the driving mechanism to cooperate with the sub-disc mechanism, the transmission member drives the screening cylinder unit on each set of rotating shafts to rotate, and the screening cylinder unit mixes the raw materials injected into it, and after mixing and screening The paint with qualified particle size is output into the raw material storage unit of the box, waiting to be mixed with other raw materials in proportion, so as to avoid the insufficient breaking of a certain raw material during the mixing work, which will cause excessive secondary mixing and difficult to filter, and then use the outer cylinder Sliding connection with the inner cylinder, so that the paint particles blocked in the first liquid outlet hole and the second liquid outlet hole can be automatically sheared during the reciprocating sliding process, and the particles are cut and reused in the inner cylinder for mixing work, to ensure that the qualified paint is automatically output after crushing, and the flow is smooth;

(3) In the present invention, by setting the discharge assembly to cooperate with the transfer assembly, the transfer assembly rotates through the transfer assembly to automatically output the various raw materials that have been crushed in the raw material storage unit in proportion, and the transfer assembly performs the various raw materials in sequence. The material is connected, and the material is automatically discharged through the gap after the completion of the material connection, so that each time the mixing work is mixed layer by layer and then fully mixed for the second time, compared with the traditional method of mixing all kinds of raw materials , the difficulty of uniform mixing is greatly reduced, and the powder is added once after multiple sets of mixed materials are output, so as to avoid the phenomenon of agglomeration when a large amount of powder is put into the mixing, and improve the product quality.

To sum up, the equipment has the advantages of uniform material mixing and small footprint, and is especially suitable for the field of paint technology.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments. Obviously, the accompanying drawings described below are only some embodiments of the present invention. Those of ordinary skill in the art can also obtain other drawings based on these drawings on the premise of not paying creative work.

Figure 1 is a schematic structural diagram of an automatic mixing device for high-quality production of paint.

Fig. 2 is a structural schematic diagram of the disc dividing mechanism.

Fig. 3 is a schematic top view of the disc dividing mechanism.

Fig. 4 is a schematic structural view of the screening cylinder unit.

Fig. 5 is a schematic cross-sectional view of the disc dividing mechanism.

Fig. 6 is a schematic diagram of the transmission work of the screening cylinder unit.

Fig. 7 is a schematic structural diagram of a pre-cut assembly.

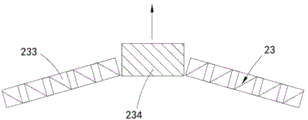

Figure 8 is a first schematic diagram of the transmission work of the pre-cut assembly.

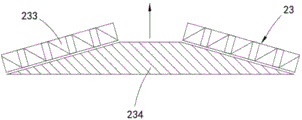

Fig. 9 is the second schematic diagram of the transmission work of the pre-cut assembly.

Fig. 10 is a first structural schematic diagram of the pre-mixing mechanism.

Fig. 11 is the second structural diagram of the pre-mixing mechanism.

Figure 12 is a schematic structural view of the powder spraying assembly.

Figure 13 is a schematic diagram of the transmission work of the powder spraying assembly.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings.

Embodiment one

As shown in Figure 1, a kind of high-quality production system for new material paint, comprises box body 1, is provided with sub-disc mechanism 2, premixing mechanism 3 and remixing mechanism successively along the vertical direction of described box body 1;

Several groups of raw material storage units 201 are arranged in the disc-distributing mechanism 2, and raw materials with different components are stirred separately in the disc-distributing mechanism 2;

The pre-mixing mechanism 3 includes several groups of discharge components 31 corresponding to the raw material storage unit 201, a transfer component 32 that sequentially collects and mixes the raw materials that are discharged along the discharge components 31, and is arranged on the The powder spraying assembly 33 below the transfer assembly 32 and used to quantitatively output the reflective powder;

The re-mixing mechanism 4 performs multi-stage agitation on the raw materials mixed and output by the pre-mixing mechanism 3 .

In this embodiment, different raw materials for preparing the paint are stirred sequentially by setting the disc-distributing mechanism 2, and after the stirring is sufficient, the various raw materials are quantitatively extracted by the pre-mixing mechanism 3, and output after mixing in small quantities. Finally, it is mixed with quantitative reflective powder to form a quantitative ratio layer of small quantities, which improves the final mixing effect and product quality after multiple combinations.

It should be noted that, after the remixing mechanism 4 fully mixes the raw materials, it outputs them quantitatively by measurement.

Further, as shown in Figure 2, the raw material storage unit 201 is set in four groups, which are separated by the cross partition plate 202 in the box body 1, in which titanium dioxide base material, red raw material, yellow raw material and blue raw material are placed in sequence. ;

A bottom plate 203 is fixed and sealingly connected to the bottom of the cross partition plate 202 , and the bottom plate 203 is sealed and matched with the inner wall of the box body 1 .

Further, as shown in FIG. 2 to FIG. 6 , the sub-disc mechanism 2 includes screening cylinder units 21 correspondingly arranged in the raw material storage unit 201 in sequence, and four groups of the screening cylinder units 21 are driven by a driving mechanism 22 synchronous drive;

The screening cylinder unit 21 is a double-layer structure, which includes an inner cylinder 211 and an outer cylinder 212 matched with the inner cylinder 211, and several groups of first liquid outlet holes are uniformly arranged on the inner cylinder 211 213 and several groups of second liquid outlet holes 214 are uniformly arranged on the outer cylinder 212, and the first liquid outlet holes 213 are corresponding to the second liquid outlet holes 214 and arranged concentrically;

The outer cylinder 212 and the inner cylinder 211 are elastically connected by several sets of elastic members 215, and the outer cylinder 212 and the inner cylinder 211 are provided with a feeding port 216, and the feeding port 216 is The interference is installed with loam cake 217.

It should be noted that the hole space of the first liquid outlet hole 213 is larger than the hole space of the second liquid outlet hole 214, and the second liquid outlet hole 214 is provided with an inner eight structure, thereby achieving a shearing effect.

Further, as shown in Figures 2 to 3, the drive mechanism 22 includes:

Drive cylinder 221, the lower end of the drive cylinder 221 is provided with a push rod 222;

The rotating shaft 223, two sets of rotating shafts are arranged and are respectively located on both sides of the inner tube 211, and the rotating shaft 223 is arranged on the box body 1; along the longitudinal direction of the box body 1, the outer rotating shaft 223 is hollow Structure and belt transmission connection, along the horizontal direction of the box body 1, the inner adjacent and coaxial rotating shaft 223 is a solid shaft and fixed transmission;

The transmission member 224, the transmission member 224 is provided with two groups, any one group of transmission members 224 is connected with two coaxial and external rotating shafts 223, which includes a support frame 225 installed on the box body 1, and the rotation is arranged on the The first connecting rod 226 on the support frame 225 and the second connecting rod 227 which is eccentrically rotated on the rotating shaft 223 and arranged to rotate with the rotating shaft 223, the second connecting rod 227 and the push rod 222 lower surface discontinuous contact setting.

Further, as shown in Figure 5, the upper layer of the box body 1 is provided with a control assembly 24 that drives the displacement transmission of the screening cylinder unit 21, and the control assembly 24 includes several The liquid hole 214 corresponds to the control shaft 241 provided in discontinuous contact, and the end of the control shaft 241 is a spherical structure and an elastic material structure.

In this embodiment, by setting the driving mechanism 22 to cooperate with the disc mechanism 2, the transmission member 224 drives the screening cylinder unit 21 on each set of rotating shafts 223 to rotate, and the screening cylinder unit 21 mixes the raw materials injected into it. Stir, mix and sieve raw materials with qualified particle size requirements and export them to the raw material storage unit 201 of box 1, waiting to be mixed with other raw materials in proportion to avoid excessive crushing of a certain raw material during the mixing process resulting in secondary mixing And not easy to filter.

Second, by setting the outer cylinder 212 to be slidingly connected to the inner cylinder 211, the control shaft 241 of the control assembly 24 acts on the second liquid outlet hole 214, so that the first liquid outlet hole 213 and the second liquid outlet hole are blocked. The raw material particles in 214 are automatically sheared during the reciprocating sliding process, and the particles are reused in the inner cylinder 211 for mixing after shearing, while avoiding the first liquid outlet hole 213 and the second liquid outlet hole 214. Blockage ensures automatic output of qualified raw materials after crushing and smooth flow.

In detail, the driving cylinder 221 activates the push rod 222, and the rotating shaft 223 drives the inner cylinders 211 to rotate synchronously, and then the transmission member 224 drives all the inner cylinders 211 to rotate synchronously to complete the stirring work.

It should be noted that, because the end of the control shaft 241 is a spherical structure and an elastic material structure, when the control shaft 241 is in the elastic space, the first liquid outlet hole 213 and the second liquid outlet hole 214 are misaligned; When 241 is at the compression limit, the outer cylinder 212 passes over the control shaft 241 for normal transmission.

Further, as shown in Fig. 7 to Fig. 9, a pre-cut assembly 23 is arranged inside the screening cylinder unit 21, and the pre-cut assembly 23 includes the cross partition plate 202 and the hollow structure. The connecting shaft 232 in the rotating shaft 223, the filter plates 233 fixedly arranged in sequence along the length direction of the connecting shaft 232 and staggered and inclined, and several groups of extruding plates 234 fixedly connected with the inner cylinder 211 and made of elastic material;

Any one of the extruding plates 234 has a triangular structure and is located between two adjacent groups of the filter plates 233, and the extruding plate 234 cooperates with the two groups of filter plates 233 to crush the particles in the mixture;

The connecting shaft 232 is located in the inner cylinder 211 and a sealing ring 100 is disposed on the contact portion of the connecting shaft 232 and the rotating shaft 223 .

In this embodiment, by setting the pre-cutting assembly 23 to cooperate with the screening cylinder unit 21, when the raw materials are centrifugally rotated along with the screening cylinder unit 21, the pre-mixing work is performed, and the extrusion plate 234 compresses the raw materials in the inner cylinder 211 Pick it up and push it to the filter plate 233. First, use the filter plate 233 to complete the pre-shearing work on the raw material, and then combine the extrusion plate 234 and the filter plate 233 to make contact and then drive smoothly. For those that cannot pass through the filter plate 233 smoothly The raw material particles are crushed and crushed, then scooped up and refluxed for secondary treatment, combined with the output shear of the screening cylinder unit 21 to complete the stirring and mixing, and then shear, which is highly targeted and more efficient than the transmission mixing work. The unground particles can be selected and crushed in a targeted manner, with high mixing uniformity and high efficiency.

It should be noted that the purpose of providing the extruding plate 234 with an elastic structure is to complete the extruding between the extruding plate 234 and the two sets of filter plates 233 , and to achieve smooth passage after the extruding is sufficient.

Further, as shown in FIG. 10 and FIG. 11 , several groups of the discharge assembly 31 are arranged and correspond to the raw material storage unit 201 respectively. The discharge assembly 31 includes a discharge cylinder with a rectangular structure installed on the bottom plate 203 311, the first limit plate 313 installed on the end of the discharge cylinder 311 through the first telescopic unit 312, the first transmission rack 314 installed on the first limit plate 313, installed on the The first bracket 315 below the bottom plate 203, the first transmission gear 316 that is rotatably arranged on the first bracket 315, the second gear that is synchronously driven with the first transmission gear 316 and meshed with the first transmission rack 314. The transmission gear 317, the four sets of discharge cylinders 311 are set according to the ratio of raw materials;

The first transmission gear 316 has a complete tooth structure, and the second transmission gear 317 has an incomplete tooth structure, and dampers are arranged on the first transmission gear 316 and the second transmission gear 317 .

It should be noted that the purpose of setting the damper is to prevent the gear transmission from affecting the transmission accuracy due to inertia.

Further, as shown in FIG. 10 , the transfer assembly 32 includes a discharge plate 321 that is matched with the inner wall of the box body 1 and has a gap 320 , and a joint that is rotatably disposed above the discharge plate 321 and that fits closely. The material frame 322 and the second transmission rack 323 installed on the material receiving frame 322 and meshed with the first transmission gear 316 .

In this embodiment, by setting the discharge assembly 31 to cooperate with the transfer assembly 32, the transfer assembly 32 rotates through the transfer assembly 32 to automatically output the qualified raw materials after crushing in the raw material storage unit 201 in proportion, and the transfer assembly 32 is in order. Carry out the material receiving work of various raw materials in sequence, and automatically discharge the material through the gap after the material receiving is completed, so that each time the mixing work is mixed layer by layer and then fully mixed for the second time, compared with the traditional one. When various raw materials are mixed, the difficulty of homogeneous mixing is greatly reduced, and powder is added once after multiple sets of mixed materials are output, so as to avoid a large amount of powder from forming agglomerates during stirring and improve product quality.

In detail, the material receiving frame 322 rotates, the second transmission rack 323 drives the first transmission gear 316 to rotate, the rotating first transmission gear 316 drives the second transmission gear 317 for synchronous transmission, and the second transmission gear 317 drives the first transmission gear 317 again. The transmission rack 314 moves horizontally, and the moving first transmission rack 314 slides to open the discharge port of the discharge cylinder 311 through the first stop plate 313. On the contrary, when the second transmission rack 323 leaves a transmission gear 316, the first A limiting plate 313 automatically closes the discharge port of the discharge cylinder 311; the receiving frame 322 is used to rotate on the discharge plate 321 to scrape and output the received mixed materials.

Further, the remixing mechanism includes a stirring unit.

In this embodiment, by setting up a remixing mechanism, the powder and the compounding material are mixed in small quantities, and then mixed in a multi-component mixing process.

Embodiment two

As shown in FIG. 12 and FIG. 13 , the same or corresponding components as those in the first embodiment use the corresponding reference numerals as those in the first embodiment. For the sake of brevity, only the differences from the first embodiment are described below. The difference between this embodiment two and embodiment one is:

Further, as shown in Figure 12 and Figure 13, the powder spraying assembly 33 includes:

Extruding unit 331, said extruding unit 331 comprises the pusher plate 332 that is arranged to open the annular sliding groove under the said discharge plate 321, the ring gear 333 that is arranged under the said pusher plate 332, and the ring gear 333 that is arranged on the said discharge plate 321. The third transmission gear 334 under the discharge plate 321 and meshed with the ring gear 333 and the arc-shaped rack 335 meshed with the third transmission gear 334 and rotates coaxially with the material receiving frame 322 , the first The three transmission gears 334 are provided with a damper, and the pushing plate 332 is arc-shaped and several groups of protruding blocks 336 arranged at intervals are arranged on it;

A powder spraying unit 337, the powder spraying unit 337 includes an air bag 338 installed in the box body 1 and in discontinuous contact with the push plate 332, a discharge pipe 339 communicated with the output end of the air bag 338 and installed in the The storage box 330 is arranged outside the box body 1 and is connected to the air bag 338 through a connecting pipe, and a one-way valve is installed on the discharge pipe 339 and the connecting pipe.

In this embodiment, by setting the extruding unit 331 of the powder spraying assembly 33 to cooperate with the powder spraying unit 337, the liquid mixture is used in the mixing process to simultaneously realize a mixing work and drive a certain amount of powder output at the same time, working back and forth. The connection is tight and easy to control, while saving extra power output and reducing production costs.

In detail, when the receiving frame 322 rotates, it drives the arc-shaped rack 335 for synchronous transmission, and the arc-shaped rack 335 drives the third transmission gear 334 for transmission, and the third transmission gear 334 drives the ring gear 333 to rotate. Driven by 333, the push plate 332 acts intermittently on the air bag 338, and the air bag 338 automatically discharges the material under extrusion, and the quantitative powder is output in proportion and mixed with the mixing material.

It should be noted that a built-in servo motor can be used to drive the material receiving frame 322 to drive regularly.

work process:

Firstly, each raw material prepared is manually placed in the corresponding screening cylinder unit 21 in turn, and the driving mechanism 22 drives all the screening cylinder units 21 to start synchronously, and the screening cylinder unit 21 cooperates with the pre-cutting assembly 23 to complete the raw material screening during the transmission process. One-time shearing work, and the dislocation between the first liquid outlet hole 213 and the second liquid outlet hole 214 is realized through the screening cylinder unit 21 and the external control shaft 241, and the secondary shearing of the unoutputted raw materials is completed. Centrifuge until the conditions are met and throw them out into the box for collection;

The output component 31 cooperates with the transfer component 32, and the transfer component 32 rotates through the transfer component 32 to automatically output the qualified raw materials after crushing in the raw material storage unit 201 according to the proportion, and the transfer component 32 performs the receiving of various raw materials in order Work, and automatically discharge the material through the gap after the material is received, so that each time the mixing work is mixed layer by layer and then fully mixed for the second time, and the mixed raw materials are combined with the powder for mixing;

The final mixture is mixed through the remixing mechanism, and the valve is opened for active output after the mixing is sufficient.

In the description of the present invention, it should be understood that the orientation or positional relationship indicated by the terms "front and rear", "left and right", etc. is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present invention and simplifying the description. It is not intended to indicate or imply that the referred device or component must have a particular orientation, be constructed in a particular orientation, and operate in a particular orientation, and thus should not be construed as limiting the invention.

Of course, in this technical solution, those skilled in the art should understand that the term "a" should be understood as "at least one" or "one or more", that is, in one embodiment, the number of one element can be one , and in other embodiments, the number of the element may be more than one, and the term "a" cannot be understood as a limitation on the number.

The above is only a preferred embodiment of the present invention, but the scope of protection of the present invention is not limited thereto, and any changes or substitutions that can be easily imagined by those skilled in the art under the technical tips of the present invention, All should be covered within the protection scope of the present invention. Therefore, the protection scope of the present invention should be determined by the protection scope of the claims.

Claims (9)

1. A high-quality production system for new material paint is characterized by comprising a box body, wherein a disc distributing mechanism, a premixing mechanism and a remixing mechanism are sequentially arranged along the vertical direction of the box body;

a plurality of groups of raw material storage units are arranged in the disc separating mechanism, and raw materials with different components are stirred in the disc separating mechanism respectively;

the pre-mixing mechanism comprises a plurality of groups of discharging assemblies respectively corresponding to the raw material storage units, a transfer assembly for sequentially receiving, mixing and outputting raw materials discharged along the discharging assemblies, and a powder spraying assembly arranged below the transfer assembly and used for quantitatively outputting reflective powder;

the remixing mechanism performs multi-stage stirring on the raw materials mixed and output by the premixing mechanism.

2. A high quality production system for new material coating according to claim 1, wherein said raw material storage units are provided in four groups, which are divided by cross partition plates in a casing;

and a bottom plate is fixedly and hermetically connected below the cross partition plate.

3. The high-quality production system for the new material coating according to claim 1, wherein the disc dividing mechanism comprises screening drum units which are sequentially and correspondingly arranged in the raw material storage unit, and four groups of the screening drum units are driven by the driving mechanism to synchronously drive;

the screening drum unit is of a double-layer structure and comprises an inner drum and an outer drum matched and attached with the inner drum, a plurality of groups of first liquid outlet holes are uniformly formed in the inner drum, a plurality of groups of second liquid outlet holes are uniformly formed in the outer drum, and the first liquid outlet holes and the second liquid outlet holes correspond to each other and are concentrically arranged;

the outer cylinder is elastically connected with the inner cylinder through a plurality of groups of elastic pieces, a feed port penetrates through the outer cylinder and the inner cylinder, and an upper cover is arranged on the feed port in an interference fit mode.

4. A high quality production system for new material coatings according to claim 3, characterized in that said drive mechanism comprises:

the lower end of the driving cylinder is provided with a push rod;

the two groups of rotating shafts are arranged in a rotating mode and are respectively positioned on two sides of the inner barrel, and the rotating shafts are arranged on the box body in a rotating mode; the rotating shafts positioned on the outer side are in a hollow structure and in belt transmission connection along the longitudinal direction of the box body, and the rotating shafts adjacent and coaxial on the inner side are solid shafts and are in fixed transmission along the transverse direction of the box body;

the driving medium, the driving medium sets up two sets ofly, and arbitrary a set of driving medium just is located the rotation axis connection in the outside with two axials, and it sets up including installing support frame on the box, rotating first connecting rod and the eccentric rotation on the support frame set up the axis of rotation and the axis of rotation rotate the second connecting rod that sets up, the second connecting rod with catch bar lower surface discontinuous contact sets up.

5. The high-quality production system for the new material coating according to claim 4, wherein a pre-cutting assembly is arranged in the sieving cylinder unit, and the pre-cutting assembly comprises a connecting shaft which is arranged on the cross partition plate and penetrates through the hollow structure and the rotating shaft, filter plates which are sequentially and fixedly arranged along the length direction of the connecting shaft and are inclined in a staggered manner, and a plurality of groups of extrusion plates which are fixedly connected with the inner cylinder and are made of elastic materials.

6. A high quality production system for new materials and coatings, according to claim 3, wherein said upper layer of said box is provided with a control assembly for driving said sieving cylinder unit to perform a staggered transmission, said control assembly comprising a plurality of control shafts mounted on said box and disposed in intermittent contact with said second outlet holes.

7. The high-quality production system for the new material coating according to claim 1, wherein the discharging assembly is provided with a plurality of groups and respectively corresponds to the raw material storage unit, and comprises a discharging barrel which is arranged on a bottom plate and has a rectangular structure, a first limiting plate which is slidably arranged at the end of the discharging barrel through a first telescopic unit, a first transmission rack which is arranged on the first limiting plate, a first bracket which is arranged below the bottom plate, a first transmission gear which is rotatably arranged on the first bracket, and a second transmission gear which is synchronously transmitted with the first transmission gear and is meshed with the first transmission rack.

8. The high-quality production system for the new material coating as claimed in claim 7, wherein the transfer assembly comprises a discharging plate matching with the inner wall of the box body and provided with a notch, a receiving frame rotatably arranged above the discharging plate and attached to the discharging plate, and a second transmission rack mounted on the receiving frame and engaged with the first transmission gear.

9. A high quality production system for new materials coatings according to claim 8, characterized in that said dusting assembly comprises:

the extrusion unit comprises a pushing plate, a gear ring, a third transmission gear and an arc-shaped rack, wherein the pushing plate is rotatably arranged below the discharging plate and provided with a circular ring sliding groove, the gear ring is arranged below the pushing plate, the third transmission gear is rotatably arranged below the discharging plate and meshed with the gear ring, the arc-shaped rack is meshed with the third transmission gear and coaxially rotates with the material receiving frame, and the pushing plate is arc-shaped and is provided with a plurality of groups of convex blocks arranged at intervals;

the powder spraying unit comprises an air bag, a discharging pipe and a storage box, wherein the air bag is installed in the box body and is in intermittent contact with the pushing plate, the discharging pipe is communicated with the output end of the air bag, and the storage box is installed outside the box body and is connected with the air bag through a connecting pipe.
