CN115677016A - Circular treatment aeration oxidation pond and method - Google Patents

Abstract

The present application discloses a circulation treatment aeration oxidation tank and its method. The aeration oxidation tank includes a sewage tank. One side of the sewage tank is provided with a settling tank, and the other side of the sewage tank is provided with a sludge tank. The upper side of the sewage tank is The connection is provided with a walking bracket, which is connected with a dredging mechanism and a lifting mechanism. The lifting mechanism is used to drive the dredging mechanism to move up and down inside the sewage pool, and the walking bracket is used to drive the dredging mechanism to move to remove the sludge at the bottom of the sewage pool. Cleaning; the top of the sewage tank is fixed with a top bridge, the middle of the top of the top bridge is fixed with an air pump, the bottom of the top bridge is equipped with an aeration tube, and there are several aeration tubes. Connected through the vent tube.

Description

A circulation treatment aeration oxidation tank and its method

technical field

The present application relates to the technical field of sewage treatment, more specifically, to a circulation treatment aeration oxidation tank and its method.

Background technique

Aeration refers to the process of forcibly transferring the oxygen in the air to the liquid. Its purpose is to obtain enough dissolved oxygen and strengthen the contact between the organic matter in the pool and the microorganisms and dissolved oxygen, so as to ensure that the microorganisms in the pool have sufficient dissolved oxygen. , to oxidize and decompose organic matter in sewage.

The prior art publication number is CN213171802U, which provides a circulation treatment aeration oxidation tank for sewage treatment, which performs secondary treatment on the treated sewage through the filter tank, which improves the treatment quality, and the sewage that does not meet the standard passes through the circulation treatment pipe. It flows into the sewage treatment tank and is treated again to achieve the effect of circular treatment, so as to enhance the sewage treatment effect; the sludge plate is washed by pumping the treated clean water, and then pumped out of the sewage treatment tank by the sewage suction pump for treatment, thereby Increase the efficiency of sewage cleaning, and also reduce the cost and waste of resources caused by multiple sewage cleaning. Although the above-mentioned device can clean the bottom sludge in the tank through the sludge plate and the sewage suction pump, it is relatively slow to use the cleaning nozzle to flush the sludge on the dredging plate, which affects the working efficiency of the sewage aeration oxidation tank; moreover, the sewage treatment tank and filtration The volume of the pool is different. When the filter pool is working, the sewage treatment pool has not been emptied, so that other sewage cannot enter the sewage treatment pool for treatment, which reduces the efficiency of sewage treatment.

In view of this, we propose a circulation treatment aeration oxidation tank and its method.

Contents of the invention

1. Technical problems to be solved

The purpose of this application is to provide a cycle treatment aeration oxidation tank and its method, which solves the technical problems of low sludge cleaning efficiency and slow sewage treatment efficiency, and realizes that the sludge inside the sewage treatment tank can be cleaned more quickly, and the sewage aeration rate is improved. The technical effect of gas oxidation efficiency.

2. Technical solution

A circulation treatment aeration oxidation tank, comprising: sewage tank 1;

A dredging mechanism, the dredging mechanism is arranged on the inner side of the sewage pool 1;

The dredging mechanism includes a dredging pump 5, a first telescopic tube 501, a sludge conveying tube 502, a second telescopic tube 503, a connecting plate 505, an auxiliary claw plate 506 and a sludge suction nozzle 508, and the first telescopic tube 501 communicates with Set at the output end of the dredging pump 5, the other end of the first telescopic tube 501 communicates with the sludge conveying tube 502, the second telescopic tube 503 is connected with the input end of the dredging pump 5, the second The other end of telescopic pipe 503 is connected with sludge suction pipe 507, and described sludge suction nozzle 508 is connected and arranged on the other end of sludge suction pipe 507, and described sludge suction pipe 507 and sludge suction nozzle 508 are all provided with several, several The silt suction pipes 507 are connected through a silt pipe, one side of the connecting plate 505 is fixedly provided with an auxiliary claw plate 506, and the side of the bottom end of the auxiliary claw plate 506 is provided with a desilting claw. Several auxiliary claw plates 506 are provided, and the connecting plate 505 is fixedly arranged on the outside of the second telescopic tube 503;

One side of the sewage tank 1 is provided with a settling tank 2, and the other side of the sewage tank 1 is provided with a sludge tank 3, and the tops of the settling tank 2 and the sludge tank 3 are connected with a vent valve 201, and the The side of the sewage tank 1 close to the sludge tank 3 is provided with a silt outlet 301, and the side of the sewage tank 1 close to the settling tank 2 is provided with a water outlet, and the height of the water outlet is greater than the height of the silt outlet 301. The inside of the settling tank 2 is provided with a filter plate, and the height of the filter plate is greater than the height of the water outlet;

The lifting mechanism is located at the top side of the sewage pool 1.

In the above technical solution, the second telescopic pipe 503 facilitates the lifting of the sludge suction pipe 507, and the first telescopic pipe 501 facilitates the movement of the dredging pump 5.

In the above technical solution, the dredging pump 5 is turned on, and the sludge enters the sludge pool 3 through the sludge suction nozzle 508, the sludge suction pipe 507, the second telescopic pipe 503, the dredging pump 5, the first telescopic pipe 501 and the sludge conveying pipe 502 in sequence. The interior of the silt is convenient for centralized processing in the later stage; when the auxiliary claw plate 506 is walking, it will loosen the silt through the dredging claws, which is convenient for the silt suction nozzle 508 to absorb, and improves the quality and efficiency of dredging.

As an alternative to the technical solution of this application document, a sewage inlet 101 is symmetrically arranged on one side of the sewage pool 1, and a top bridge plate 102 is fixedly arranged on the top of the sewage pool 1, and the top bridge plate 102 An air suction pump 103 is fixedly arranged in the middle of the top, and an aeration pipe 104 is arranged at the bottom end of the top bridge plate 102, and there are several aeration pipes 104, and the aeration pipes 104 are connected through ventilation pipes, One of the aeration pipes 104 is arranged directly below the air pump 103 .

In the above technical solution, start the walking motor 401 to drive the walking gear 404 to rotate, thereby driving the walking support 4 to start moving, the moving wheel A405 and the moving wheel B406 roll on the top of the fixed tooth plate 402 and the track plate 403, thereby driving the lifting mechanism and dredging The mechanism moves to clean the silt at the bottom of the sewage tank 1, so that the sludge at the bottom of the sewage tank 1 can be cleaned more comprehensively.

As an alternative to the technical solution of this application document, fixed tooth plates 402 and track plates 403 are symmetrically fixed on both sides of the sewage pool 1, and a walking bracket 4 is arranged above the fixed tooth plates 402. The side of the walking bracket 4 that is far away from each other is respectively rotated with a moving wheel A405 and a moving wheel B406, and the moving wheel A405 and the moving wheel B406 are respectively rollingly connected to the tops of the fixed tooth plate 402 and the track plate 403. One side is fixedly provided with a travel motor 401, the driving end of the travel motor 401 rotates through the side wall of the travel bracket 4 and is coaxially connected with a travel gear 404, and the travel gear 404 is meshed with the fixed tooth plate 402. top.

In the above technical solution, the dredging mechanism and the lifting mechanism can be moved, so as to achieve a comprehensive cleaning effect on the sludge at the bottom of the sewage tank 1 and improve the quality of cleaning.

As an alternative to the technical solution of this application document, the lifting mechanism includes a lifting gear column 601, a lifting motor 602, a lifting gear 604, a chain 607 and a connecting rod 608, and the driving end of the lifting motor 602 and the connecting rod 608 One end of each is provided with a sprocket 603, and the sprocket 603 is connected by a chain 607. The side wall of the connecting rod 608 is sleeved with a lifting gear 604, and the lifting gear 601 is engaged with the lifting gear 604. outside.

By adopting the above-mentioned technical scheme, when the sewage inside the settling tank 2 is left still, the lifting motor 602 can be started, so that the sprocket 603 starts to rotate, and one of the sprocket 603 drives the connecting rod 608 to rotate, and the connecting rod 608 drives the lifting gear 604 to rotate. Then drive the lifting tooth column 601 to rise or fall, and the landing of the lifting tooth column 601 can drive the connecting plate 505 to descend, so that the dredging mechanism is lowered. When the silt suction nozzle 508 is about to touch the inner bottom of the sewage pool 1, it stops. The dredging claw on the bottom side of the auxiliary claw plate 506 is in contact with the inner bottom of the sewage tank 1, so that the dredging mechanism is close to the silt to carry out the dredging work.

As an alternative to the technical solution of this application document, the lifting motor 602 is fixedly arranged on the top of the walking support 4, and the outer side of the lifting tooth column 601 is slidably provided with a fixed platform A6 and a fixed platform B605, and the fixed platform A6 and one side of the fixed platform B605 are fixedly connected by a connecting bracket 606, the connecting bracket 606 is fixedly arranged on one side of the walking bracket 4, and the connecting rod 608 is rotatably arranged on the inner side of the fixed platform A6.

By adopting the above technical solution, the lifting mechanism can be operated better.

As an alternative to the technical solution of this application document, the connecting plate 505 is fixedly arranged at the bottom end of the elevating tooth column 601, and one side of the connecting plate 505 is fixedly provided with an elevating slide plate 504, and the elevating slide plate 504 slides It is arranged on the top side of the walking frame 4 , and the dredging pump 5 is fixedly arranged on the top side of the walking frame 4 .

In the above technical solution, the lifting tooth column 601 drives the connecting plate 505 to lift up and down, so as to realize the lifting of the dredging mechanism, and the connecting plate 505 lifts and drives the lifting slide plate 504 to lift and lower at the same time, so as to maintain the stability of the dredging mechanism.

As an alternative to the technical solution of this application document, a self-locking mechanism is provided on one side of the fixed table A6, and the self-locking mechanism includes a ratchet 7 and an electric telescopic rod 703, and the outer side of the ratchet 7 is engaged with a The ratchet 701 , a spring 702 is fixedly arranged on one side of the ratchet 701 , and the ratchet 701 is fixedly arranged on one end of the electric telescopic rod 703 .

In the above technical solution, when the lifting gear column 601 is lowered, the electric telescopic rod 703 pushes the pawl 701 to compress the spring 702, so that the pawl 701 breaks away from the engagement with the ratchet 7, so that the ratchet 7 can rotate, so that the lifting gear 604 can Rotate; when the dredging mechanism reaches the dredging position, the ratchet 701 is restored to the engagement state with the ratchet 7 through the electric telescopic rod 703, preventing the lifting tooth column 601 from descending when the dredging mechanism is working; and when the lifting tooth column When 601 rises, the spring 702 will be compressed, and the electric telescopic rod 703 is not energized, and the ratchet 7 can move the pawl 701 when it rotates in the opposite direction; Achieving the effect of self-locking, preventing the lifting gear column 601 from falling down, and achieving the effect of protecting the dredging mechanism.

As an alternative to the technical solution of this application document, the ratchet 7 is fixedly arranged on one end of the connecting rod 608, the ratchet 701 is rotatably arranged on one side of the fixed table A6, and the spring 702 and the electric telescopic rod 703 They are all arranged on one side of the fixed table A6.

In the above technical solution, the rotation of the connecting rod 608 will drive the ratchet 7 to rotate, and the ratchet 7 will rotate while the ratchet 7 is rotated.

As an alternative to the technical solution of this application document, the sludge delivery pipe 502 is connected to the top side of the sludge tank 3, and the sewage tank 1 and the settling tank 2 have the same volume.

In the above technical solution, while the sewage is settling, the new sewage can be continuously aerated and oxidized, so as to improve the efficiency of sewage treatment.

The object of the present invention is also to provide a method for circulating aeration, comprising the following steps:

Pour the sewage into the interior of the sewage tank 1 from the sewage inlet 101, start the air pump 103 to extract the outside air and transport the oxygen in the air to the sewage through the aeration pipe 104, so as to achieve the effect of aeration and oxidation;

After the aeration and oxidation of the sewage is completed, the pump between the sewage tank 1 and the settlement tank 2 pumps the treated sewage into the interior of the settlement tank 2,

The filter plate inside the settling tank 2 prevents impurities from floating to the inner upper layer of the settling tank 2. After the impurities in the water settle, the clear water inside the settling tank 2 can be pumped out through the outlet pump on one side of the settling tank 2;

Start the lifting motor 602, drive the connecting rod 608 to rotate, the connecting rod 608 drives the lifting gear 604 to rotate, the lifting gear 604 drives the lifting tooth column 601 to fall, and then realize the synchronous landing of the dredging mechanism, wherein, when the lifting tooth column 601 falls, the motorized The telescopic rod 703 pushes the ratchet 701 to compress the spring 702, so that the ratchet 701 and the ratchet 7 are out of engagement, and the ratchet 7 is unlocked and drives the lifting gear 604 to rotate;

When the dredging mechanism reaches the dredging position, the ratchet 701 restores the engaging state with the ratchet 7 to prevent the lifting tooth column 601 from continuing to descend when the dredging mechanism is working;

Stop when the sludge suction nozzle 508 is about to touch the bottom of the sewage tank 1. At this time, the dredging claw on the bottom side of the auxiliary claw plate 506 contacts the internal bottom of the sewage tank 1, and the dredging pump 5 is turned on, and the sludge passes through in turn. The silt suction nozzle 508, the silt suction pipe 507, the second telescopic pipe 503, the dredging pump 5, the first telescopic pipe 501 and the silt delivery pipe 502 enter the inside of the silt tank 3, which is convenient for centralized processing in the later stage;

While the dredging mechanism is running, start the walking motor 401 to drive the walking bracket 4 to start moving, thereby driving the lifting mechanism and the dredging mechanism to move to clean the sludge at the bottom of the sewage pool 1;

After the dredging mechanism cleans the sludge into the sludge tank 3, it continues to pour sewage into the sewage tank 1 for aeration and oxidation treatment.

3. Beneficial effect

One or more technical solutions provided in the embodiments of this application have at least the following technical effects or advantages:

1. In this application, the cooperation of the lifting mechanism and the dredging mechanism is used to effectively solve the problem of low dredging efficiency. While quickly and cleanly cleaning the sludge at the bottom of the sewage tank, it also improves the effect of sewage aeration treatment ;

2. In this application, the lifting mechanism can realize the lifting of the dredging mechanism. When the dredging mechanism is lowered, the inner bottom of the sewage pool can be dredged. When the dredging mechanism stops working, the lifting mechanism can drive the dredging mechanism to rise. So that the dredging mechanism will not be exposed to too much sludge and reduce the aging rate of the dredging mechanism;

3. In this application, the dredging mechanism can suck out the sludge at the bottom of the sewage tank through the sludge suction nozzle, and the dredging claw can loosen the sludge, which is convenient for the suction of the sludge suction nozzle, and improves the quality and efficiency of dredging;

4. In this application, the self-locking mechanism can prevent the lifting tooth column from continuing to fall when it is not in use, so as to prevent the dredging mechanism from falling or falling too fast, which will cause damage to the dredging mechanism and achieve better protection for the dredging mechanism .

Description of drawings

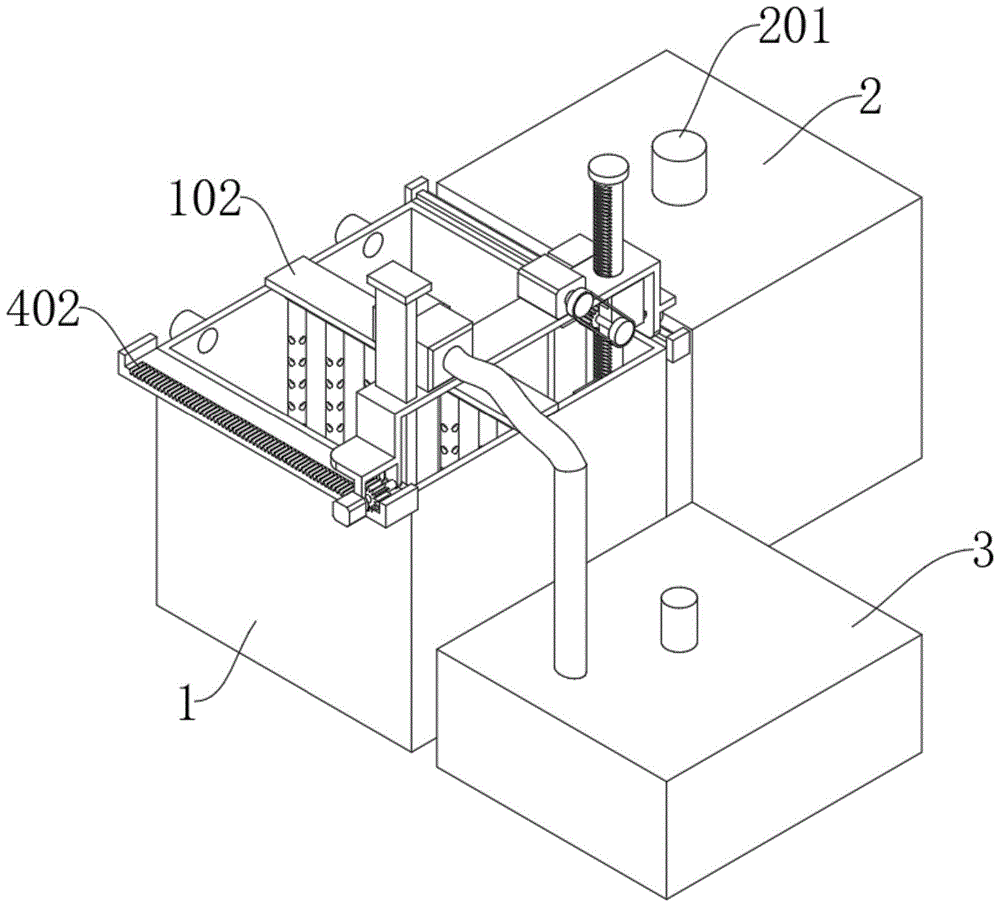

Fig. 1 is a schematic diagram of the overall structure of the circulation treatment aeration oxidation tank disclosed in the preferred embodiment of the present application;

Fig. 2 is a schematic diagram of the left and right axonometric overall structure of the circulation treatment aeration oxidation tank disclosed in the preferred embodiment of the present application;

Fig. 3 is a schematic diagram of the overall structure of a sewage tank, a settling tank and a sludge tank in a circulation treatment aeration oxidation tank disclosed in a preferred embodiment of the present application;

Fig. 4 is a schematic diagram of a part of the overall structure inside the sewage tank in the circulating treatment aeration oxidation tank disclosed in the preferred embodiment of the present application;

5 is a schematic diagram of the overall structure of both sides of the top of the sewage tank in the circulation treatment aeration oxidation tank disclosed in the preferred embodiment of the present application;

Fig. 6 is a schematic diagram of the combined overall structure of the dredging mechanism in the circulating treatment aeration oxidation tank disclosed in the preferred embodiment of the present application;

Fig. 7 is a schematic diagram of the combined overall structure of the lifting mechanism in the circulation treatment aeration oxidation tank disclosed in the preferred embodiment of the present application;

Fig. 8 is a schematic diagram of the combined overall structure of the self-locking mechanism in the circulation treatment aeration oxidation tank disclosed in the preferred embodiment of the present application.

The reference signs in the figure are:

1. Sewage tank; 2. Settling tank; 3. Silt tank; 4. Walking bracket; 5. Dredging pump; 6. Fixed platform A; 7. Ratchet;

101. Sewage inlet; 102. Top bridge plate; 103. Air pump; 104. Aeration pipe;

201, ventilation valve;

301, silt outlet;

401, travel motor; 402, fixed tooth plate; 403, track plate; 404, travel gear; 405, moving wheel A; 406, moving wheel B;

501, the first telescopic pipe; 502, the sludge delivery pipe; 503, the second telescopic pipe; 504, the lifting slide plate; 505, the connecting plate; 506, the auxiliary claw plate; 507, the sludge suction pipe; 508, the sludge suction nozzle;

601, lifting gear column; 602, lifting motor; 603, sprocket wheel; 604, lifting gear; 605, fixed platform B; 606, connecting bracket; 607, chain; 608, connecting rod;

701, ratchet; 702, spring; 703, electric telescopic rod.

Detailed ways

In order to make the objectives, technical solutions and advantages of the present invention clearer, the technical solutions in the embodiments of the present invention will be described in more detail below in conjunction with the drawings in the embodiments of the present invention. In the drawings, the same or similar reference numerals denote the same or similar elements or elements having the same or similar functions throughout. The described embodiments are some, but not all, embodiments of the invention.

Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

The embodiments and directional words described below by referring to the figures are exemplary and are intended to explain the present invention, but should not be construed as limiting the present invention.

In a broad embodiment of the present invention, a circulation treatment aeration oxidation pond comprises a sewage pond 1, a settling pond 2 is provided on one side of the sewage pond 1, and sludge is provided on the other side of the sewage pond 1 The pool 3 is characterized in that, the upper side of the sewage pool 1 is connected with a walking bracket 4, and the walking bracket 4 is connected with a dredging mechanism and a lifting mechanism, and the lifting mechanism is used to drive the dredging mechanism in the sewage pool. 1 internal lifting, the walking bracket 4 is used to drive the dredging mechanism to move to clean the sludge at the bottom of the sewage pool 1; the top of the sewage pool 1 is fixed with a top bridge plate 102, and the top bridge plate 102 An air suction pump 103 is fixedly arranged in the middle of the top, and an aeration pipe 104 is arranged at the bottom end of the top bridge plate 102, and there are several aeration pipes 104, and the aeration pipes 104 are connected through air pipes.

Preferably, the dredging mechanism includes a dredging pump 5, a first telescopic pipe 501, a sludge conveying pipe 502, a second telescopic pipe 503, a connecting plate 505, an auxiliary claw plate 506 and a sludge suction nozzle 508, the first telescopic The pipe 501 is connected to the output end of the dredging pump 5, the other end of the first telescopic pipe 501 is connected to the sludge delivery pipe 502, and the second telescopic pipe 503 is connected to the input end of the dredging pump 5. The other end of the second telescopic tube 503 is communicated with a sludge suction pipe 507, the sludge suction nozzle 508 is communicated with the other end of the sludge suction tube 507, and one side of the connecting plate 505 is fixedly provided with several auxiliary claw plates 506, the side of the bottom end of the auxiliary claw plate 506 is provided with dredging claws, and the connecting plate 505 is fixedly arranged on the outside of the second telescopic tube 503.

Preferably, the silt suction pipe 507 and the silt suction nozzle 508 are provided with several, and the several silt suction pipes 507 are connected through the silt pipe, and the silt delivery pipe 502 is connected to the bottom of the silt pool 3. On the top side, the sewage tank 1 and the settling tank 2 have the same volume.

Preferably, one side of the sewage pond 1 is symmetrically provided with a sewage inlet 101, the tops of the settling pond 2 and the sludge pond 3 are connected with a ventilation valve 201, and the sewage pond 1 is provided on the side close to the sludge pond 3 There is a silt outlet 301, and the sewage tank 1 is provided with a water outlet near the side of the settling tank 2; the height of the water outlet is greater than the height of the silt outlet 301, and the inside of the settling tank 2 is provided with a filter plate, so The height of the filter plate is greater than the height of the water outlet.

Preferably, fixed tooth plates 402 and track plates 403 are arranged symmetrically on both sides of the sewage pool 1, the walking bracket 4 is arranged above the fixed tooth plate 402, and the sides of the walking brackets 4 are far away from each other. The moving wheel A405 and the moving wheel B406 are respectively rotated, and the moving wheel A405 and the moving wheel B406 are respectively rollingly connected to the top surfaces of the fixed tooth plate 402 and the track plate 403; one side of the walking support 4 is fixedly provided with a walking motor 401 , the driving end of the travel motor 401 rotates through the side wall of the travel bracket 4 and is coaxially connected with a travel gear 404 , and the travel gear 404 is meshed with the top of the fixed tooth plate 402 .

Preferably, the lifting mechanism includes a lifting tooth column 601, a lifting motor 602, a lifting gear 604, a chain 607 and a connecting rod 608, and the driving end of the lifting motor 602 and one end of the connecting rod 608 are all provided with a sprocket 603, so The sprockets 603 are connected by transmission through a chain 607 , the side wall of the connecting rod 608 is sleeved with a lifting gear 604 , and the lifting gear column 601 is meshed and arranged on the outside of the lifting gear 604 .

Preferably, the lifting motor 602 is fixedly arranged on the top of the walking support 4, and the outer side of the lifting tooth column 601 is slidably provided with a fixed platform A6 and a fixed platform B605, and one side of the fixed platform A6 and the fixed platform B605 is connected by The bracket 606 is fixedly connected, the connecting bracket 606 is fixedly arranged on one side of the walking frame 4 , and the connecting rod 608 is rotatably arranged inside the fixed platform A6.

Preferably, the connecting plate 505 is fixedly arranged at the bottom end of the lifting tooth column 601, and one side of the connecting plate 505 is fixedly provided with a lifting slide 504, and the lifting slide 504 is slidably arranged on the top side of the walking support 4, The dredging pump 5 is fixedly arranged on the top side of the walking support 4 .

Preferably, one side of the fixed table A6 is provided with a self-locking mechanism, the self-locking mechanism includes a ratchet 7 and an electric telescopic rod 703, and the outer side of the ratchet 7 is engaged with a pawl 701, and the pawl 701 A spring 702 is fixedly arranged on one side, the pawl 701 is fixedly arranged on one end of the electric telescopic rod 703, the ratchet 7 is fixedly arranged on one end of the connecting rod 608, and the ratchet 701 is rotatably arranged on one side of the fixed table A6 , the spring 702 and the electric telescopic rod 703 are both arranged on one side of the fixed table A6.

The object of the present invention is also to provide a method for circulating aeration, comprising the following steps:

Pour the sewage into the interior of the sewage tank 1 from the sewage inlet 101, start the air pump 103 to extract the outside air and transport the oxygen in the air to the sewage through the aeration pipe 104 to realize the aeration and oxidation of the sewage;

After the aeration and oxidation of the sewage is completed, the pump between the sewage tank 1 and the settlement tank 2 pumps the treated sewage into the interior of the settlement tank 2, and after the impurities in the water settle, the water is pumped out by the outlet pump on the side of the settlement tank 2. The clear water inside the settling tank 2 is drawn out;

Start the lifting motor 602, drive the connecting rod 608 to rotate, the connecting rod 608 drives the lifting gear 604 to rotate, the lifting gear 604 drives the lifting tooth column 601 to fall, and then realize the synchronous landing of the dredging mechanism, wherein, when the lifting tooth column 601 falls, the motorized The telescopic rod 703 pushes the ratchet 701 to compress the spring 702, so that the ratchet 701 and the ratchet 7 are out of engagement, and the ratchet 7 is unlocked and drives the lifting gear 604 to rotate;

When the dredging mechanism reaches the dredging position, the ratchet 701 returns to the engagement state with the ratchet 7 to prevent the lifting tooth column 601 from continuing to descend when the dredging mechanism is working. At this time, the dredging claw on the bottom side of the auxiliary claw plate 506 contact with the inner bottom of the sewage tank 1;

Turn on the dredging pump 5, and the sludge enters the sludge tank 3 through the sludge suction nozzle 508, the sludge suction pipe 507, the second telescopic pipe 503, the dredging pump 5, the first telescopic pipe 501, and the sludge conveying pipe 502, which is convenient for the later stage. centralized processing;

While the dredging mechanism is running, start the walking motor 401 to drive the walking bracket 4 to start moving, thereby driving the lifting mechanism and the dredging mechanism to move to clean the sludge at the bottom of the sewage pool 1;

After the desilting mechanism clears the silt into the inside of the silt tank 3, the above steps are repeated to continue the sewage aeration and oxidation treatment.

The preferred embodiments of the present invention will be listed below in conjunction with the accompanying drawings, and the present invention will be further described in detail.

With reference to Fig. 1 and Fig. 6, a kind of cycle treatment aeration oxidation pond, comprises:

cesspool 1;

A dredging mechanism, the dredging mechanism is located on the inner side of the sewage pool 1;

The dredging mechanism includes, a dredging pump 5, a first telescopic pipe 501, a sludge conveying pipe 502, a second telescopic pipe 503, a connecting plate 505, an auxiliary claw plate 506, a mud suction pipe 507 and a mud suction nozzle 508, and the first telescopic pipe 501 is set on one side of the dredging pump 5, the first telescopic tube 501 is connected to one end of the sludge delivery pipe 502, the second telescopic tube 503 is connected to the input end of the dredging pump 5, and the other end of the second telescopic tube 503 A sludge suction pipe 507 is arranged in communication, and a sludge suction nozzle 508 is connected to one end of the sludge suction pipe 507. There are several sludge suction pipes 507 and sludge suction nozzles 508, and the sludge suction pipes 507 are connected through a silt pipe. One side of the connecting plate 505 is fixedly provided with an auxiliary claw plate 506, and one side of the bottom end of the auxiliary claw plate 506 is provided with a dredging claw, and several auxiliary claw plates 506 are provided, and the connecting plate 505 is fixedly arranged on the bottom of the second telescopic tube 503. outside;

One side of the sewage tank 1 is provided with a sedimentation tank 2, and the other side of the sewage tank 1 is provided with a sludge tank 3, and the tops of the sedimentation tank 2 and the sludge tank 3 are connected with a ventilation valve 201, and the sewage tank 1 is close to the sludge tank 3. There is a silt outlet 301 on one side, and a water outlet is provided on the side of the sewage tank 1 close to the sedimentation tank 2. The height of the water outlet is greater than the height of the silt outlet 301. The inside of the sedimentation tank 2 is provided with a filter plate, and the height of the filter plate is greater than the height of the water outlet;

Lifting mechanism, the lifting mechanism is located at the inner top side of the sewage pool 1.

Turn on the dredging pump 5, the sludge is sucked into the sludge suction pipe 507 by the sludge suction nozzle 508, then passes through the second telescopic pipe 503, and then enters the first telescopic pipe 501 through the dredging pump 5, wherein the second telescopic pipe 503 is convenient for sludge suction The lifting of the pipe 507, the first telescopic pipe 501 facilitates the movement of the dredging pump 5, and then the sludge inside the first telescopic pipe 501 can be collected inside the sludge tank 3 through the sludge conveying pipe 502, which is convenient for later centralized treatment, and the connecting plate 505 When the auxiliary claw plate 506 on one side is walking, the silt will be loosened by the dredging claw at the bottom of the auxiliary claw plate 506 to prevent the silt from being adsorbed on the inner bottom of the sewage tank 1, so as to facilitate the suction of the silt suction nozzle 508 and improve the dredging effect. quality and efficiency.

1 and 3, the other side of the sewage tank 1 is symmetrically provided with a sewage inlet 101, the top of the sewage tank 1 is fixedly provided with a top bridge 102, and the middle of the top of the top bridge 102 is fixedly provided with an air suction pump 103, and the top bridge The bottom end of the plate 102 is provided with an aeration tube 104 , and there are several aeration tubes 104 , and the aeration tubes 104 are connected through a ventilation tube.

Start the walking motor 401 to make the walking gear 404 start to rotate, thereby driving the walking support 4 to start moving, the moving wheel A405 and the moving wheel B406 will roll on the top of the fixed tooth plate 402 and the track plate 403, thereby driving the lifting mechanism and the dredging mechanism Move and clean the silt at the bottom end of the sewage pool 1, so that the mud at the bottom end of the sewage pool 1 can be cleaned more comprehensively.

Referring to Fig. 1 and Fig. 5, fixed tooth plates 402 and track plates 403 are arranged symmetrically on both sides of the sewage tank 1, and a walking support 4 is arranged above the fixed tooth plate 402, and the sides of the walking supports 4 that are far away from each other are respectively rotated and provided with Moving wheel A405 and moving wheel B406, moving wheel A405 and moving wheel B406 are respectively rollingly connected to the top of fixed tooth plate 402 and track plate 403, one side of walking support 4 is fixedly provided with walking motor 401, and the driving end of walking motor 401 rotates A travel gear 404 is coaxially connected to the side wall of the travel bracket 4 , and the travel gear 404 is meshed with the top of the fixed tooth plate 402 .

The movement of the dredging mechanism and the lifting mechanism can achieve a comprehensive cleaning effect on the silt at the bottom of the sewage tank 1 and improve the quality of cleaning.

Referring to Fig. 1 and Fig. 7, elevating mechanism comprises elevating tooth post 601, elevating motor 602, sprocket 603, elevating gear 604, chain 607 and connecting rod 608, and the driving end of elevating motor 602 is fixed and one end of connecting rod 608 is all provided with The sprocket 603 is connected by a chain 607 transmission between the sprocket 603, the outer side of the connecting rod 608 is fixedly provided with a lifting gear 604, the lifting tooth column 601 is meshed and arranged on the outside of the lifting gear 604, and the lifting motor 602 is fixedly arranged on the side of the walking support 4 At the top, a fixed platform A6 and a fixed platform B605 are slidingly arranged on the outer side of the elevating tooth column 601, and one side of the fixed platform A6 and the fixed platform B605 is fixedly connected by a connecting bracket 606, and the connecting bracket 606 is fixedly arranged on one side of the walking bracket 4, and connected Rod 608 is rotatably arranged on the inner side of fixed table A6, connecting plate 505 is fixedly arranged on the bottom end of elevating tooth column 601, and one side of connecting plate 505 is fixedly arranged with elevating slide plate 504, and elevating slide plate 504 is slidably arranged on the top of walking support 4. On the side, the dredging pump 5 is fixedly arranged on the top side of the walking support 4 .

While the sewage inside the settling tank 2 is standing still, the lifting mechanism can be opened, and the lifting motor 602 in the lifting mechanism is started, so that the sprocket 603 starts to rotate, and the two sprockets 603 are driven by the chain 607, and one of the sprockets 603 drives the connecting rod 608 rotates, the connecting rod 608 drives the lifting gear 604 to rotate, and the lifting gear 604 can drive the lifting tooth column 601 to rise or fall. Nozzle 508 stops when about to touch the inner bottom of sewage tank 1, and now the dredging claw on the bottom side of auxiliary claw plate 506 contacts with the inner bottom of sewage tank 1, so that the dredging mechanism is carried out dredging work near the silt.

Referring to Fig. 6 and Fig. 8, one side of fixed table A6 is provided with self-locking mechanism, and self-locking mechanism comprises ratchet 7, ratchet 701, spring 702 and electric telescopic rod 703, and the outer side of ratchet 7 is provided with ratchet 701, ratchet One side of the pawl 701 is fixedly provided with a spring 702, the ratchet 701 is fixedly arranged at one end of the electric telescopic rod 703, the ratchet 7 is fixedly arranged at one end of the connecting rod 608, the ratchet 701 is rotatably arranged at one side of the fixed table A6, and the spring 702 and the electric telescopic rod 703 are all fixedly arranged on one side of the fixed platform A6.

When the lifting gear column 601 falls, the electric telescopic rod 703 in the self-locking mechanism will push the ratchet 701, so that the spring 702 will be compressed, so that the ratchet 701 will leave the engagement with the ratchet 7, and the ratchet 7 can rotate like this, so that The lifting gear 604 can rotate. When the dredging mechanism reaches the dredging position, it is enough to restore the pawl 701 to the engagement state with the ratchet 7, so as to prevent the lifting tooth column 601 from falling when the dredging mechanism works. When the lifting tooth column 601 When rising, the spring 702 will be compressed, and the electric telescopic rod 703 will not be energized, so that the ratchet 7 can move the pawl 701 when it rotates in the opposite direction, and the electric telescopic rod 703 can freely expand and contract, so that the pawl 701 can be moved. Achieving the effect of self-locking, preventing the lifting gear column 601 from falling down, and achieving the effect of protecting the dredging mechanism.

Referring to Fig. 1 and Fig. 3, the sludge conveying pipe 502 is fixedly arranged on the top side of the sludge tank 3, and the volume of the sewage tank 1 and the settling tank 2 are the same.

In this way, the new sewage can be continuously aerated and oxidized when the sewage is settling, which can be carried out at the same time, and the efficiency of sewage treatment can be improved.

It is worth noting that the following steps are involved:

S1. First, the sewage can be poured into the interior of the sewage tank 1 from the sewage inlet 101;

S2, then the air pump 103 draws in the outside air, and the oxygen in the air is delivered to the sewage through the aeration pipe 104, so as to achieve the effect of aeration and oxidation;

S3. After the aeration and oxidation of sewage is completed, the treated sewage will be pumped into the interior of the sedimentation tank 2 by the pump between the sewage tank 1 and the sedimentation tank 2. The filter plate inside the sedimentation tank 2 can prevent impurities from floating into the sedimentation tank 2. The inner upper layer, and then stand still for a while, wait for the impurities in the water to settle, and then pump out the clear water inside the settling tank 2 through the outlet pump on the side of the settling tank 2;

S4, lifting mechanism, the lifting motor 602 in the lifting mechanism is started, so that the sprocket 603 starts to rotate, and the two sprockets 603 are driven by the chain 607, and one of the sprockets 603 drives the connecting rod 608 to rotate, and the connecting rod 608 drives the lifting gear 604 to rotate , the lifting gear 604 can drive the lifting tooth column 601 to rise or fall, so that the dredging mechanism can rise or fall;

S5. While the lifting tooth column 601 is falling, the electric telescopic rod 703 in the self-locking mechanism will push the pawl 701, so that the spring 702 will be compressed, so that the pawl 701 will leave the engagement with the ratchet 7, so that the ratchet 7 can rotate , so that the lifting gear 604 can rotate. When the dredging mechanism reaches the dredging position, it is enough to restore the pawl 701 to the engagement state with the ratchet 7, so as to prevent the lifting tooth column 601 from falling when the dredging mechanism is working. When the column 601 rises, the spring 702 will be compressed, and the electric telescopic rod 703 will not be energized, so that the ratchet 7 can move the pawl 701 when it rotates in the opposite direction, and the electric telescopic rod 703 can be freely retracted, so that the pawl 701 can be dialed move to achieve the effect of self-locking, prevent the lifting tooth column 601 from falling, and achieve the effect of protecting the dredging mechanism;

S6. Stop when the silt suction nozzle 508 is about to touch the inner bottom of the sewage tank 1. At this time, the dredging claw on the bottom side of the auxiliary claw plate 506 contacts the inner bottom of the sewage tank 1, and then the dredging pump 5 is turned on. The silt can be sucked into the silt suction pipe 507 by the silt suction nozzle 508, then passes through the second telescopic pipe 503, and then enters the first telescopic pipe 501 through the dredging pump 5. The second telescopic pipe 503 is convenient for the lifting of the silt suction pipe 507. A telescopic pipe 501 is convenient for the movement of the dredging pump 5, and then the silt inside the first telescopic pipe 501 can be collected inside the silt pond 3 through the silt conveying pipe 502, which is convenient for later centralized treatment;

S7, when the dredging mechanism is running, start the walking motor 401 to make the walking gear 404 start to rotate, thereby driving the walking support 4 to start moving, the moving wheel A405 and the moving wheel B406 will roll on the top of the fixed tooth plate 402 and the track plate 403, Thereby driving the lifting mechanism and the dredging mechanism to move to clean the silt at the bottom of the sewage tank 1, so that the sludge at the bottom of the sewage tank 1 can be cleaned more comprehensively, and the dredging mechanism will clean the sludge into the sludge tank 3 , can continue to pour sewage into the interior of the sewage tank 1 for aeration oxidation treatment, and does not affect the static treatment of sewage inside the settling tank 2, which can improve the efficiency of sewage treatment.

Working principle: the sewage is poured into the sewage tank 1 from the sewage inlet 101, and then the air pump 103 draws in the outside air, and the oxygen in the air is transported into the sewage through the aeration pipe 104, so as to achieve the effect of aeration and oxidation, and the sewage After the aeration and oxidation is completed, the treated sewage will be pumped into the interior of the sedimentation tank 2 by the pump between the sewage tank 1 and the sedimentation tank 2. The filter plate inside the sedimentation tank 2 can prevent impurities from floating to the inner upper layer of the sedimentation tank 2. Then let it stand for a while, wait for the impurities in the water to settle, and then take out the clear water in the settlement tank 2 through the outlet pump on one side of the settlement tank 2. The vent valve 201 can balance the air pressure inside the settlement tank 2. When the sewage is left still, the lifting mechanism can be opened, and the lifting motor 602 in the lifting mechanism starts to make the sprocket 603 start to rotate. The two sprockets 603 are driven by the chain 607, and one of the sprockets 603 drives the connecting rod 608 to rotate. Rod 608 drives lifting gear 604 to rotate, and lifting gear 604 can drive lifting gear 601 to rise or fall. The compression makes the ratchet 701 leave the engagement with the ratchet 7, so that the ratchet 7 can rotate and the lifting gear 604 can rotate. When the dredging mechanism is working, the lifting tooth column 601 will be lowered. When the lifting tooth column 601 rises, the spring 702 will be compressed, and the electric telescopic rod 703 will not be energized, so that the ratchet 7 can rotate in the reverse direction. Toggle the ratchet 701, and the electric telescopic rod 703 can be freely retracted, so that the ratchet 701 can be moved to achieve the effect of self-locking, prevent the lifting tooth column 601 from falling, and achieve the effect of protecting the dredging mechanism. The lifting tooth column 601 The landing can make the connecting plate 505 drop, so that the dredging mechanism is dropped. When the sludge suction nozzle 508 is about to touch the inner bottom of the sewage tank 1, it stops. At this time, the dredging claws on the bottom side of the auxiliary claw plate 506 and the sewage tank 1, and then open the dredging pump 5, the sludge can be sucked into the sludge suction pipe 507 by the sludge suction nozzle 508, then pass through the second telescopic pipe 503, and then enter the first telescopic pipe 501 through the dredging pump 5, the second The second telescopic pipe 503 is to facilitate the lifting of the sludge suction pipe 507, the first telescopic pipe 501 is to facilitate the movement of the dredging pump 5, and then the sludge inside the first telescopic pipe 501 can enter the interior of the sludge pool 3 through the sludge delivery pipe 502 to collect, Facilitate later centralized processing;

At the same time, start the traveling motor 401 to make the traveling gear 404 start to rotate, thereby driving the traveling support 4 to start moving, the moving wheel A405 and the moving wheel B406 will roll on the top of the fixed tooth plate 402 and the track plate 403, thereby driving the lifting mechanism Move with the dredging mechanism to clean up the silt at the bottom of the sewage tank 1, so that the sludge at the bottom of the sewage tank 1 can be cleaned more comprehensively. After the sludge is cleaned to the inside of the sludge tank 3, the dredging mechanism can continue to Sewage is poured into the sewage tank 1 for aeration and oxidation treatment without affecting the static treatment of the sewage inside the settling tank 2, which can improve the efficiency of sewage treatment.

Finally, it should be pointed out that the above embodiments are only used to illustrate the technical solutions of the present invention, rather than to limit them. Although the present invention has been described in detail with reference to the aforementioned embodiments, those skilled in the art should understand that: they can still modify the technical solutions described in the aforementioned embodiments, or perform equivalent replacements for some of the technical features; and these The modification or replacement does not make the essence of the corresponding technical solutions deviate from the spirit and scope of the technical solutions of the various embodiments of the present invention.

Claims (10)

1. A cyclic treatment aeration oxidation pond comprises a sewage pond (1), wherein a sedimentation tank (2) is arranged on one side of the sewage pond (1), and a sludge pond (3) is arranged on the other side of the sewage pond (1), and is characterized in that a traveling support (4) is connected to the upper side of the sewage pond (1), a dredging mechanism and a lifting mechanism are connected to the traveling support (4), the lifting mechanism is used for driving the dredging mechanism to lift in the sewage pond (1), and the traveling support (4) is used for driving the dredging mechanism to move so as to clean sludge at the bottom end in the sewage pond (1); the sewage treatment device is characterized in that a top bridge plate (102) is fixedly arranged at the top end of the sewage tank (1), an air suction pump (103) is fixedly arranged in the middle of the top end of the top bridge plate (102), aeration pipes (104) are arranged at the bottom end of the top bridge plate (102), a plurality of aeration pipes (104) are arranged, and the aeration pipes (104) are communicated through aeration pipes.

2. A cyclic processing aeration oxidation pond according to claim 1, wherein the dredging mechanism comprises a dredging pump (5), a first telescopic pipe (501), a sludge conveying pipe (502), a second telescopic pipe (503), a connecting plate (505), an auxiliary claw plate (506) and a sludge suction nozzle (508), the first telescopic pipe (501) is communicated with the output end of the dredging pump (5), the other end of the first telescopic pipe (501) is communicated with the sludge conveying pipe (502), the second telescopic pipe (503) is communicated with the input end of the dredging pump (5), the other end of the second telescopic pipe (503) is communicated with the sludge suction pipe (507), the sludge suction nozzle (508) is communicated with the other end of the sludge suction pipe (507), a plurality of auxiliary claw plates (506) are fixedly arranged on one side of the connecting plate (505), a dredging claw is arranged on one side of the bottom end of each auxiliary claw plate (506), and the connecting plate (505) is fixedly arranged on the outer side of the second telescopic pipe (503).

3. A cyclic treatment aeration oxidation tank according to claim 2, wherein a plurality of sludge suction pipes (507) and sludge suction nozzles (508) are provided, a plurality of sludge suction pipes (507) are communicated with each other through sludge passing pipes, the sludge delivery pipe (502) is communicated with one side of the top end of the sludge tank (3), and the volumes of the sewage tank (1) and the sedimentation tank (2) are the same.

4. A circular processing aeration oxidation tank according to the claim 3, wherein a sewage inlet (101) is symmetrically arranged on one side of the sewage tank (1), the top ends of the sedimentation tank (2) and the sludge tank (3) are respectively communicated with a vent valve (201), a sludge outlet (301) is arranged on one side of the sewage tank (1) close to the sludge tank (3), and a water outlet is arranged on one side of the sewage tank (1) close to the sedimentation tank (2); the height of the water outlet is greater than that of the sludge outlet (301), a filter plate is arranged in the sedimentation tank (2), and the height of the filter plate is greater than that of the water outlet.

5. A cyclic processing aeration oxidation tank according to claim 1, wherein a fixed toothed plate (402) and a track plate (403) are symmetrically and fixedly arranged on two sides of the sewage tank (1), the walking bracket (4) is arranged above the fixed toothed plate (402), one sides of the walking bracket (4) far away from each other are respectively and rotatably provided with a moving wheel A (405) and a moving wheel B (406), and the moving wheel A (405) and the moving wheel B (406) are respectively and rotatably connected to the top end surfaces of the fixed toothed plate (402) and the track plate (403); one side of the walking support (4) is fixedly provided with a walking motor (401), the driving end of the walking motor (401) rotates to penetrate through the side wall of the walking support (4) and is coaxially connected with a walking gear (404), and the walking gear (404) is meshed with the top end of the fixed toothed plate (402).

6. A cyclic treatment aeration oxidation tank according to claim 2, wherein the lifting mechanism comprises a lifting tooth column (601), a lifting motor (602), a lifting gear (604), a chain (607) and a connecting rod (608), the driving end of the lifting motor (602) and one end of the connecting rod (608) are respectively provided with a chain wheel (603), the chain wheels (603) are in transmission connection through the chain (607), the lifting gear (604) is sleeved on the side wall of the connecting rod (608), and the lifting tooth column (601) is meshed with the outer side of the lifting gear (604).

7. A circular processing aeration oxidation pond according to claim 6, wherein the lifting motor (602) is fixedly arranged at the top end of the traveling bracket (4), the outer side of the lifting tooth column (601) is provided with a fixed platform A (6) and a fixed platform B (605) in a sliding manner, one side of the fixed platform A (6) and one side of the fixed platform B (605) are fixedly connected through a connecting bracket (606), the connecting bracket (606) is fixedly arranged at one side of the traveling bracket (4), and the connecting rod (608) is rotatably arranged at the inner side of the fixed platform A (6).

8. A cyclic processing aeration oxidation pond according to claim 7, wherein the connecting plate (505) is fixedly arranged at the bottom end of the lifting tooth column (601), one side of the connecting plate (505) is fixedly provided with a lifting slide plate (504), the lifting slide plate (504) is slidably arranged at one side of the top end of the walking bracket (4), and the dredging pump (5) is fixedly arranged at one side of the top end of the walking bracket (4).

9. A cyclic treatment aeration oxidation tank according to claim 7, wherein a self-locking mechanism is arranged on one side of the fixed platform A (6), the self-locking mechanism comprises a ratchet wheel (7) and an electric telescopic rod (703), a pawl (701) is meshed with the outer side of the ratchet wheel (7), a spring (702) is fixedly arranged on one side of the pawl (701), the pawl (701) is fixedly arranged at one end of the electric telescopic rod (703), the ratchet wheel (7) is fixedly arranged at one end of a connecting rod (608), the pawl (701) is rotatably arranged on one side of the fixed platform A (6), and the spring (702) and the electric telescopic rod (703) are both arranged on one side of the fixed platform A (6).

10. A cyclic treatment aeration method is characterized by comprising the following steps:

sewage is poured into the sewage tank (1) from the sewage inlet (101), an air pump (103) is started to pump outside air, and oxygen in the air is conveyed into the sewage through an aerator pipe (104) so as to realize aeration oxidation of the sewage;

after aeration and oxidation of the sewage are completed, a water suction pump between the sewage pool (1) and the sedimentation pool (2) pumps the treated sewage into the sedimentation pool (2), and clear water in the sedimentation pool (2) is pumped out through a water outlet pump at one side of the sedimentation pool (2) after impurities in the water are settled;

starting a lifting motor (602), driving a connecting rod (608) to rotate, driving a lifting gear (604) to rotate by the connecting rod (608), driving a lifting tooth column (601) to descend by the lifting gear (604), and further realizing synchronous descending of the dredging mechanism, wherein when the lifting tooth column (601) descends, an electric telescopic rod (703) pushes a pawl (701) to compress a spring (702), so that the pawl (701) is disengaged from a ratchet wheel (7), the ratchet wheel (7) is unlocked and the lifting gear (604) is driven to rotate;

when the dredging mechanism reaches the dredging position, the pawl (701) restores the clamping state with the ratchet wheel (7) to prevent the lifting tooth column (601) from continuously descending when the dredging mechanism works, and at the moment, the dredging claw at one side of the bottom end of the auxiliary claw plate (506) is contacted with the inner bottom end of the sewage pool (1);

the dredging pump (5) is started, and the sludge enters the sludge tank (3) through the sludge suction nozzle (508), the sludge suction pipe (507), the second telescopic pipe (503), the dredging pump (5), the first telescopic pipe (501) and the sludge conveying pipe (502) in sequence, so that later-stage centralized treatment is facilitated;

when the dredging mechanism runs, the walking motor (401) is started to drive the walking bracket (4) to start moving, so that the lifting mechanism and the dredging mechanism are driven to move to clean sludge at the bottom end inside the sewage pool (1);

after the silt is cleaned to the inside of the silt pool (3) by the silt cleaning mechanism, the aeration and oxidation treatment of the sewage is continued for a new time.
